Boiler Chemical Dosing System for Efficient Water Treatment Solutions in Industrial Applications

Customization:	Available
Type:	Water Treatment
Usage:	Environmental Protection, Chemical Industry

Overview & Basic Info

Model NO.

YTZDJ

Motive Force

Electric power

Style

Vertical

Performance

Sophisticated Filters

Certification

CE, ISO9001

Material

PE

Pressure

8-20bar

HS Code

8421219990

Product Description

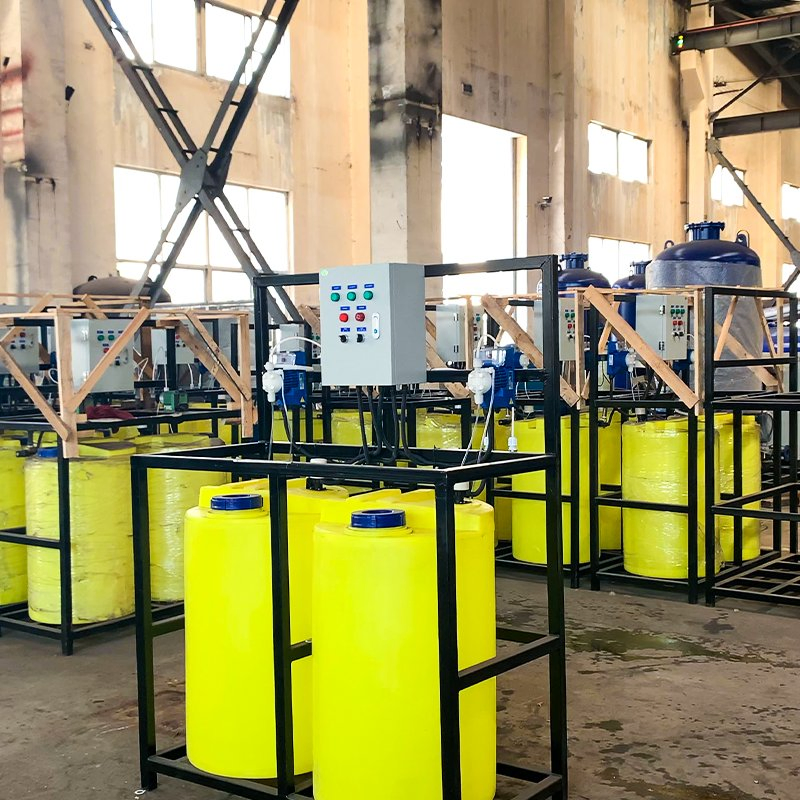

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through the following two control modes. Time control mode: use the microcomputer time control switch to control the timing opening and closing of the metering pump and the sewage valve. Indication control mode: The change of water quality index controls the real-time opening and closing of metering pump and sewage valve.

Product Parameters

Key Elements

PLC control
Metering pump
Dosing tank / Chemical tank
On-line monitoring for corrosion rate (Optional)
On-line monitoring for PH (Optional)
On-line monitoring for turbidity (Optional)
On-line monitoring for ORP (Optional)
Fouling thermal resistance meter, mixer, PLC, GPRS (Optional)

Name	Type	Dimensions (mm)	Import / Outlet Diameter
Single Pump Single Barrel (Time Control)	YTZDJ-2000D	6406701650	DN25
Single Pump Single Barrel (Conductivity & PH)	YTZDJ-2000DP	6406701900	DN25

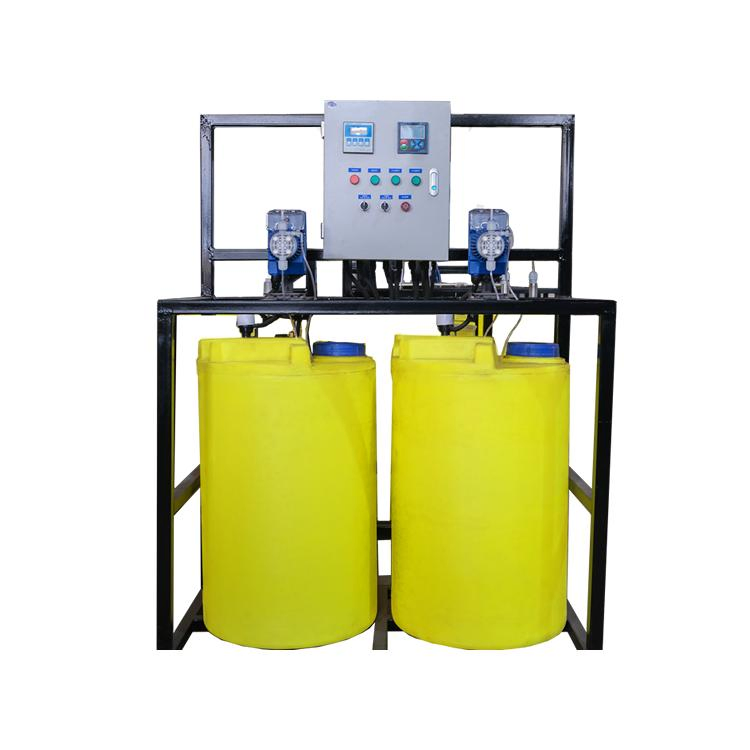

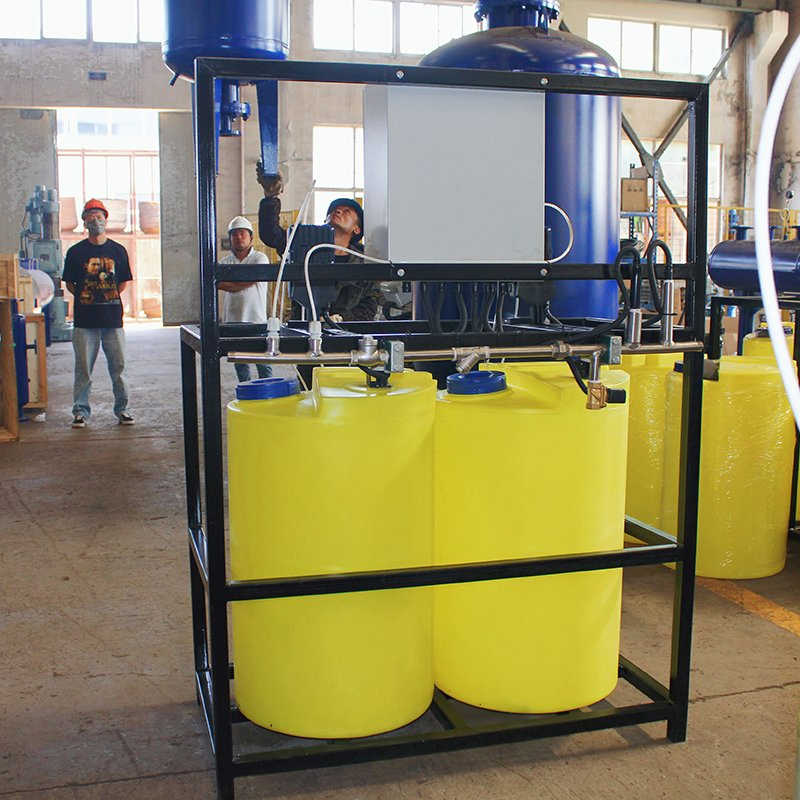

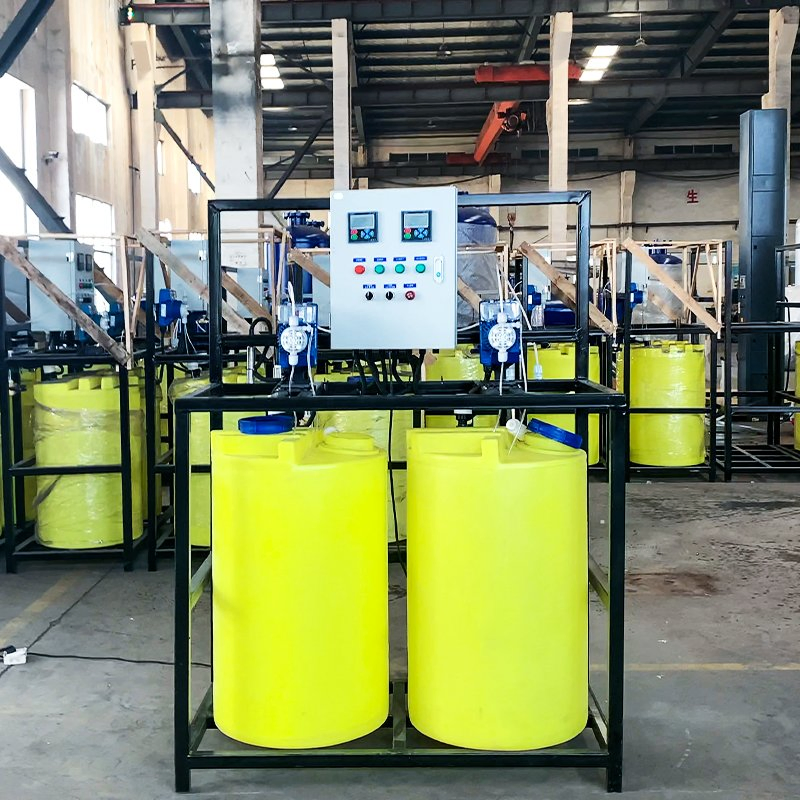

Double Pumps Double Barrels (Time Control)	YTZDJ-2000S	67012601650	DN25
Double Pumps Double Barrels (Conductivity & PH)	YTZDJ-2000SP	67012601900	DN25

Functions and Benefits

🛡️Effective protection from corrosion

⚙️Prevent incrustation

💧Saving power and water

🌿Environmental friendly

Core Features

Various proportions of chemicals added arbitrarily
High degree of automation and low energy consumption
Simple installation and maintenance
Strong corrosion and acid-alkali resistance
Remote control and system integration capable

Applications

Industrial & HVAC: Air Conditioning Circulating Water and Boiler Water (Corrosion and scale inhibitors).
Textile Industry: Printing and Dyeing (Chelating agents and oxygen bleach stabilizers).
Water Treatment: Tapping water, waste water, and sewage systems.

Common Cooling Water Problems Solved

1. Corrosion

Reversion of metal to oxide state.

2. Scale

Insoluble mineral precipitates.

3. Fouling

Deposition of suspended materials.

4. Biological

Microbial organism growth and deposits.

Company Profile

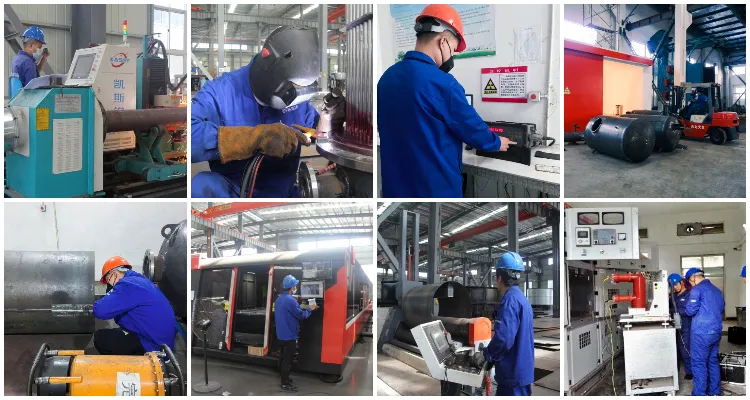

The tradition began in 2005. It is a comprehensive enterprise integrating R&D, design, production and sales. Leading the field of HVAC circulating water equipment for over 17 years, through strategic partnerships, extensive manufacturing and design experience, advanced R&D capabilities, and highly skilled engineers, we provide world-class solutions. Utilizing advanced mechanical equipment and cutting-edge technical facilities, it has become a leading supplier of filters, constant pressure water supply equipment, volumetric heat exchangers, and dosing equipment.
