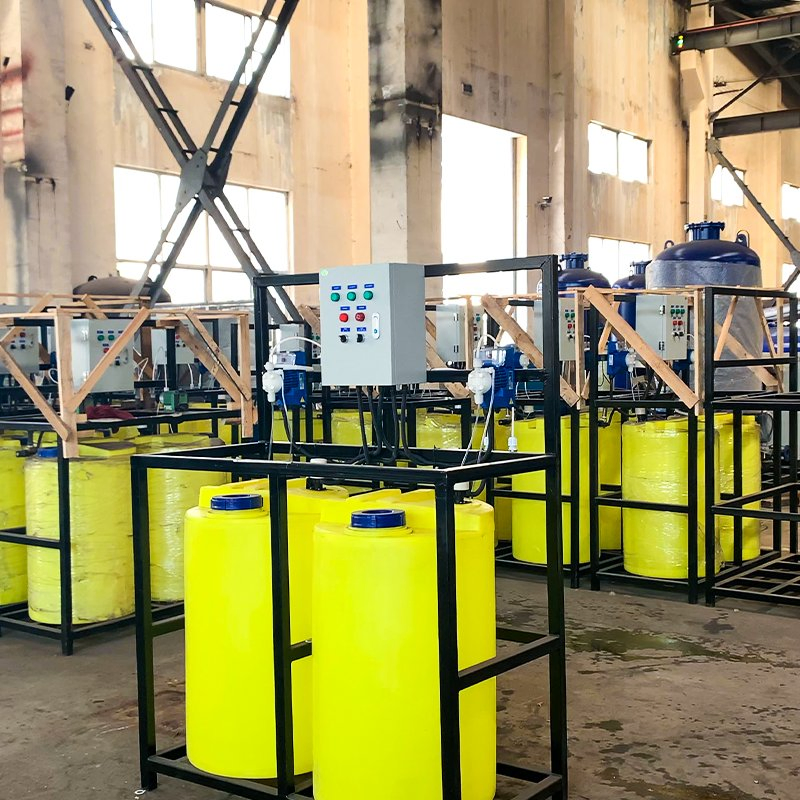

Automated Chilled Feeding and Chemical Dosing System with Precision Metering Pumps for Global B2B Buyers

Customization:	Available
Type:	Water Treatment
Usage:	Environmental Protection, Chemical Industry

i

Basic Info.

Model NO.YTZDJ

Motive ForceElectric power

StyleVertical

PerformanceSophisticated Filters

CertificationCE, ISO9001

MaterialPE

ColorCustomized Color

Power220V/380V/50Hz/60Hz

Pressure8-20bar

Production Capacity2000pieces/Month

OriginChina

HS Code8421219990

P

Product Description

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through two control modes. Time control mode: use the microcomputer time control switch to control the timing opening and closing of the metering pump and the sewage valve. Indication control mode: The change of water quality index controls the real-time opening and closing of metering pump and sewage valve, realizing automatic dosing and automatic sewage discharge.

⚙

Product Parameters

Key Elements

PLC control
Metering pump
Dosing tank / Chemical tank
On-line monitoring for corrosion rate (Optional)
On-line monitoring for PH (Optional)
On-line monitoring for turbidity (Optional)
On-line monitoring for ORP (Optional)
Fouling thermal resistance meter, mixer, PLC, GPRS (Optional)

Features

Various proportions of water treatment chemicals can be added arbitrarily with accurate measurement.
High degree of automation, simple operation, and low energy consumption.
Simple and convenient installation, use, and maintenance.
Strong corrosion resistance, strong acid and alkali resistance, safe and reliable.
System can be remotely controlled and integrated into computer management systems.

Name	Type	Dimensions(mm)	Import /Outlet Diameter

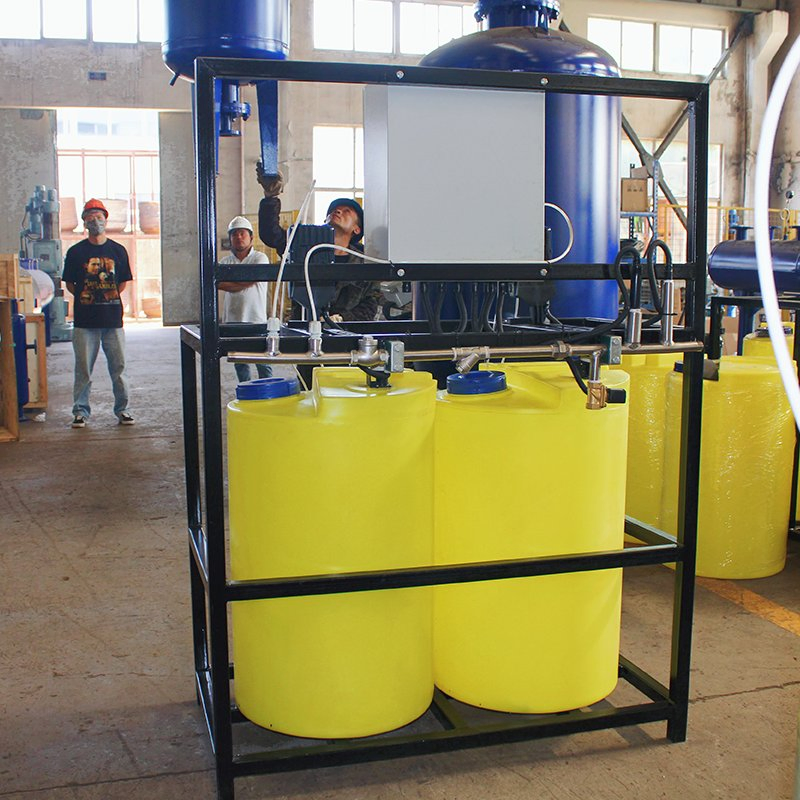

Single Pump Single Barrel (Time Control)	YTZDJ-2000D	6406701650	DN25
Single Pump Single Barrel (With Conductivity and PH Detector)	YTZDJ-2000DP	6406701900	DN25

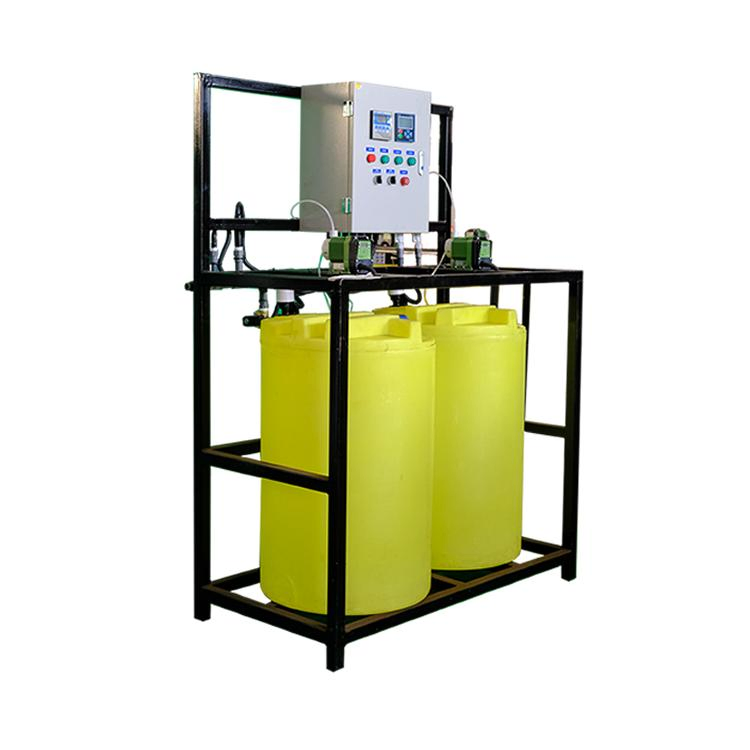

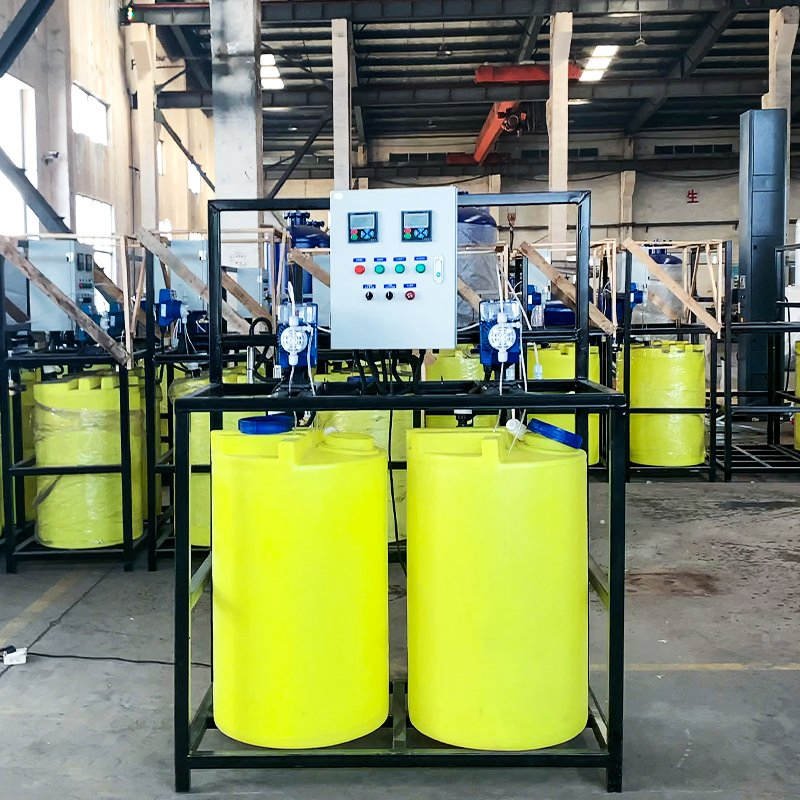

Double Pumps Double Barrels (Time Control)	YTZDJ-2000S	67012601650	DN25
Double Pumps Double Barrels (With Conductivity and PH Detector)	YTZDJ-2000SP	67012601900	DN25

★

Functions and Benefits

Effective protection from freshwater/seawater corrosion.
Prevent incrustation of condensers and heat exchangers.
Inhibit formation of organisms and biological membrane attachment.
Remove blockages caused by organic and inorganic corrosion.
Supplementary water does not need chemical pre-treatment.
Applicable to freshwater, seawater, and recycled wastewater.
Applicable to steel, iron, alloy, plastic, cement, timber, and other materials.
Saving power and water with no wastewater retreatment burden.
Environmentally friendly and biodegradable.

✔

Applications

• Industrial, Air Conditioning Circulating Water and Boiler Water: To inject corrosion and scale inhibitors, complexing agents for cyanide-free electroplating.

• Textile Printing and Dyeing Industry: To add chelating agents and oxygen bleach stabilizers.

• Water Treatment System: To add chemicals to tapping water, waste water and sewage system.

!

Common Problems of Cooling Water System

1. Corrosion: Reversion process of metal to original oxide state.

2. Scale: Minerals such as calcium carbonate precipitate and form deposits.

3. Fouling: Deposition of suspended material from external or internal sources.

4. Biological Contamination: Ideal environment for microbial organisms to multiply.

C

Company Profile

Beginning in 2005, we are a comprehensive enterprise integrating R&D, design, production and sales. Leading the field of HVAC circulating water equipment for over 17 years, we provide world-class solutions through strategic partnerships, extensive manufacturing experience, and advanced R&D capabilities. Utilizing cutting-edge technical facilities, we have become a leading supplier of filters, constant pressure water supply equipment, and dosing equipment.
