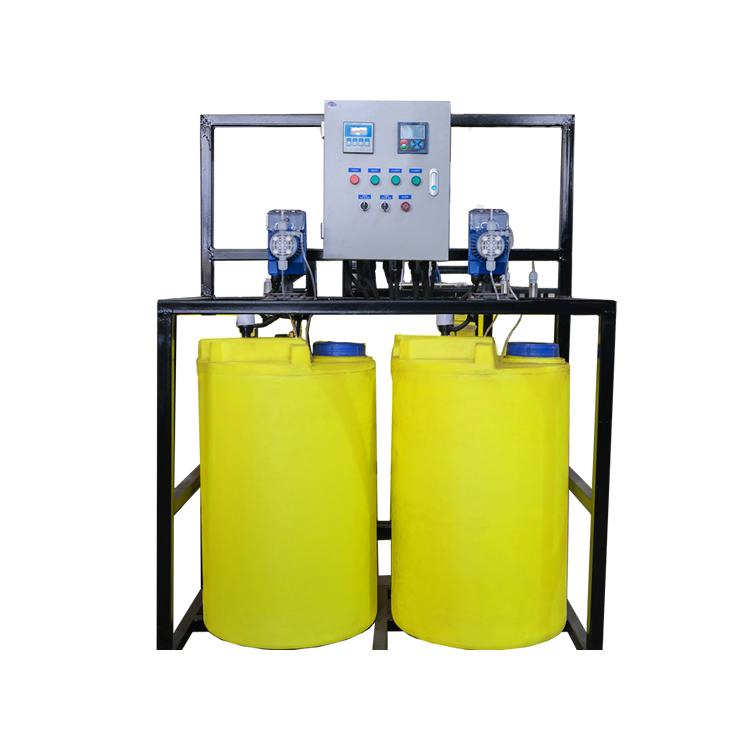

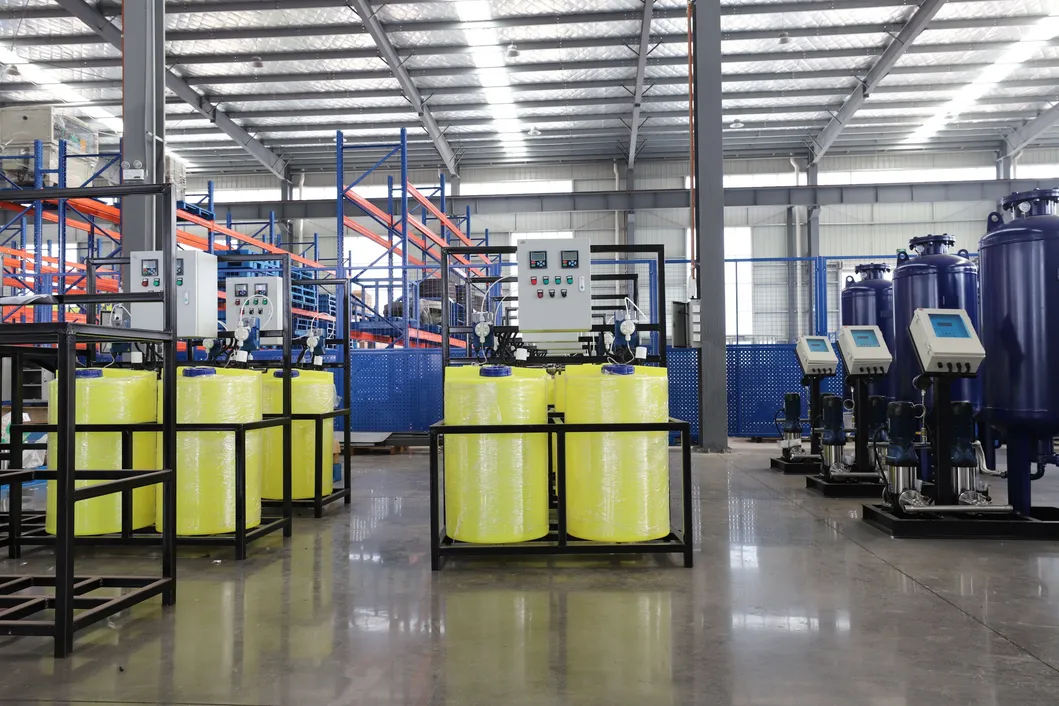

PE Chemical Feed System with Automatic Diaphragm Metering Pump for Global B2B Procurement

Customization:	Available
Type:	Water Treatment
Usage:	Environmental Protection, Chemical Industry

Basic Information

Model NO.

YTZDJ

Motive Force

Electric power

Style

Vertical

Performance

Sophisticated Filters

Certification

CE, ISO9001

Material

PE

Power

220V/380V/50Hz/60Hz

Pressure

8-20bar

HS Code

8421219990

Capacity

2000 pieces/Month

Product Description

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through two control modes: Time control mode (using microcomputer time switches) and Indication control mode (real-time water quality monitoring).

Product Parameters

Key Elements

PLC control system
Precision metering pump
Dosing tank / Chemical tank
On-line monitoring for corrosion rate, PH, turbidity, and ORP (Optional)
Fouling thermal resistance meter, mixer, and GPRS (Optional)

Name	Type	Dimensions (mm)	Diameter
Single Pump Single Barrel (Time Control)	YTZDJ-2000D	6406701650	DN25
Single Pump (Conductivity & PH)	YTZDJ-2000DP	6406701900	DN25
Double Pumps (Time Control)	YTZDJ-2000S	67012601650	DN25
Double Pumps (Conductivity & PH)	YTZDJ-2000SP	67012601900	DN25

Functions and Benefits

Effective protection from freshwater/seawater corrosion.
Prevents incrustation of condensers and heat exchangers.
Inhibits biological membrane and organism formation.
High degree of automation and low energy consumption.
Strong acid, alkali, and corrosion resistance.
Remote control and computer system integration support.

Applications

Industrial & HVAC Systems

• Air Conditioning Circulating Water and Boiler Water: Injecting corrosion and scale inhibitors.

Textile & Dyeing Industry

• Chemical additions: Adding chelating agents and oxygen bleach stabilizers.

Water Treatment

• Systems: Tapping water, waste water, and sewage systems.

Common System Problems

Corrosion

Reversion of metal to original oxide state.

Scale

Mineral precipitation like calcium carbonate.

Fouling

Deposition of suspended materials/dust.

Biological

Growth of microbial organisms causing deposits.

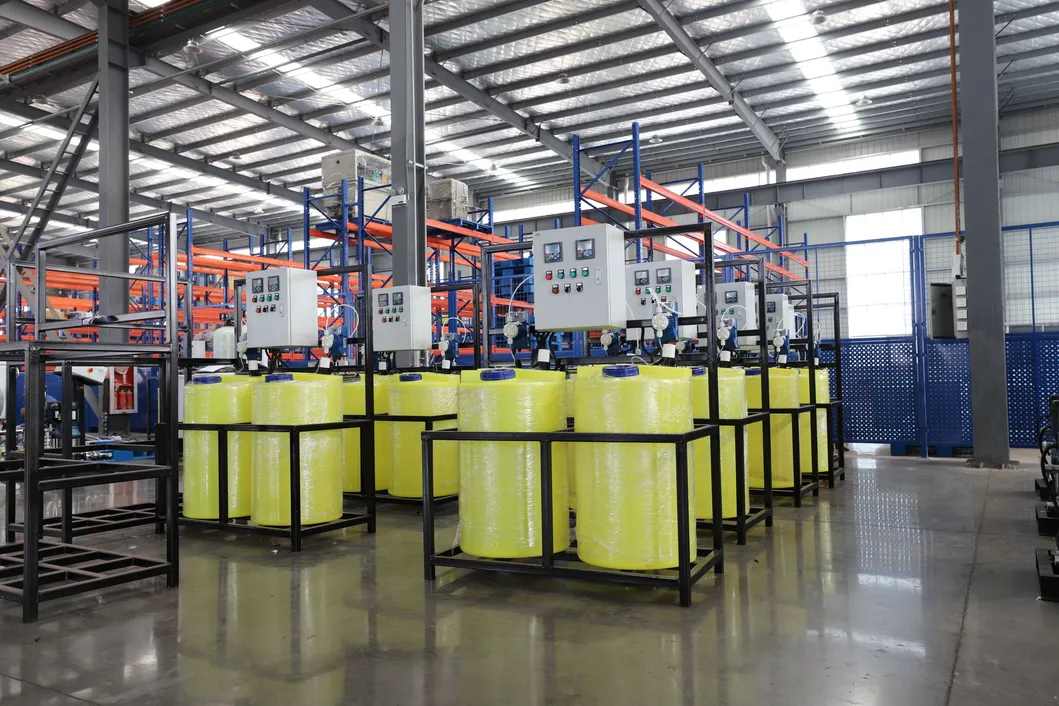

Professional Manufacturing

With over 17 years of experience in the HVAC industry, our facilities integrate R&D, design, and production. We are recognized as a high-tech comprehensive enterprise providing world-class solutions for circulating water equipment, including filters, constant pressure supply systems, and dosing equipment.

Our Advantages

17 Years Experience: Deep R&D expertise in HVAC.
Smart Factory: Fast delivery with standardized production.
24/7 Support: Prompt professional online service.
Cost-Effective: High-quality systems at competitive pricing.

Frequently Asked Questions

Q1: Can I request a sample for quality testing? A: Yes, we welcome sample orders to test and verify quality. Mixed samples are also acceptable.

Q2: What is the typical lead time for production? A: Samples generally take 1-3 days, while mass production typically requires 15-30 days depending on your specific requirements.

Q3: Do you support mixed batch orders? A: Yes, we can provide a wholesale mix of different products to meet your needs.

Q4: What are the payment terms? A: We accept multiple payment methods including Trade Assurance, TT (Bank Transfer), PayPal, and Western Union.

Q5: What is the warranty period for the dosing system? A: We provide a one-year warranty for our products from the date of purchase.

Q6: Are you a manufacturer or a trading company? A: We are a professional manufacturer. You are welcome to visit our factory to inspect our production lines and products.
