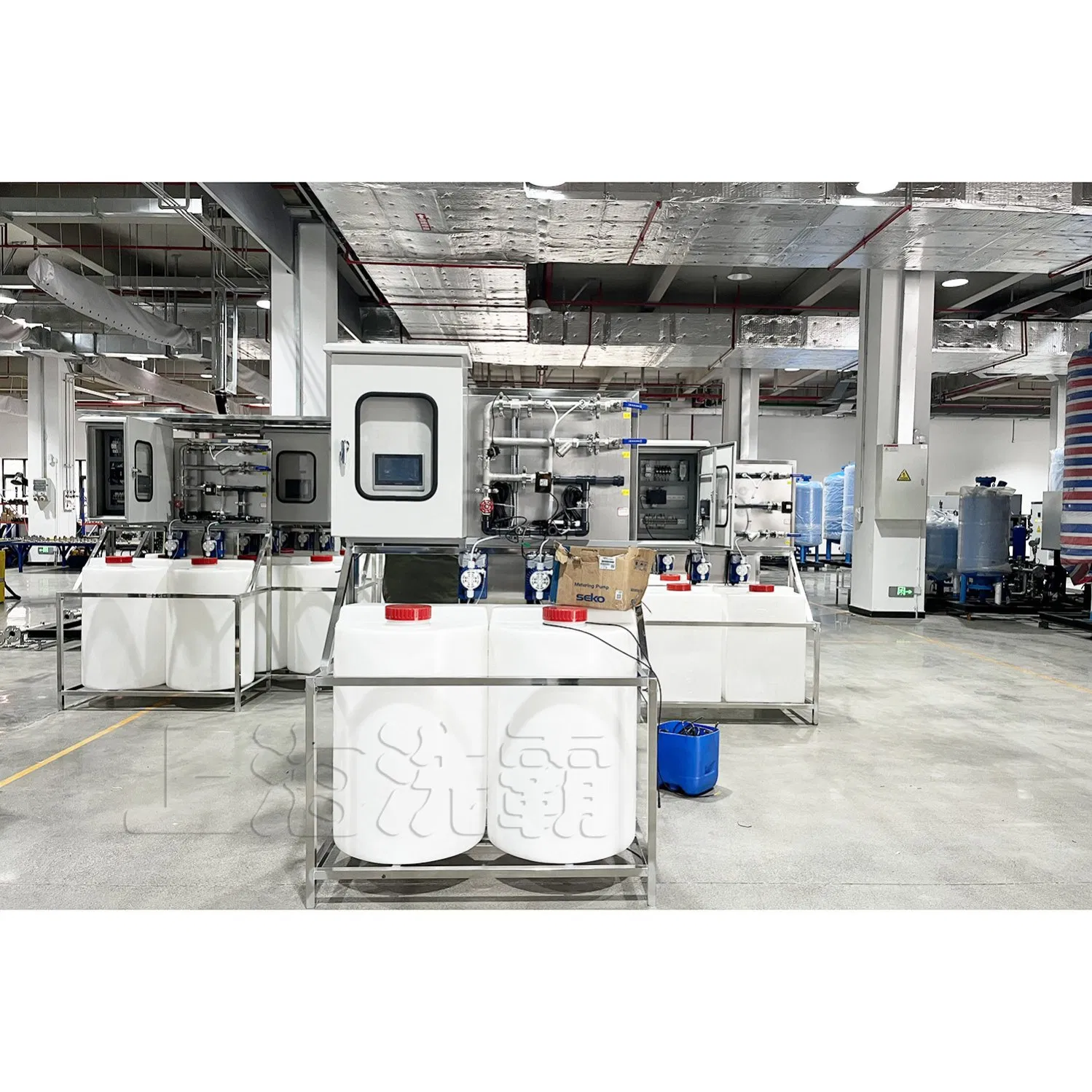

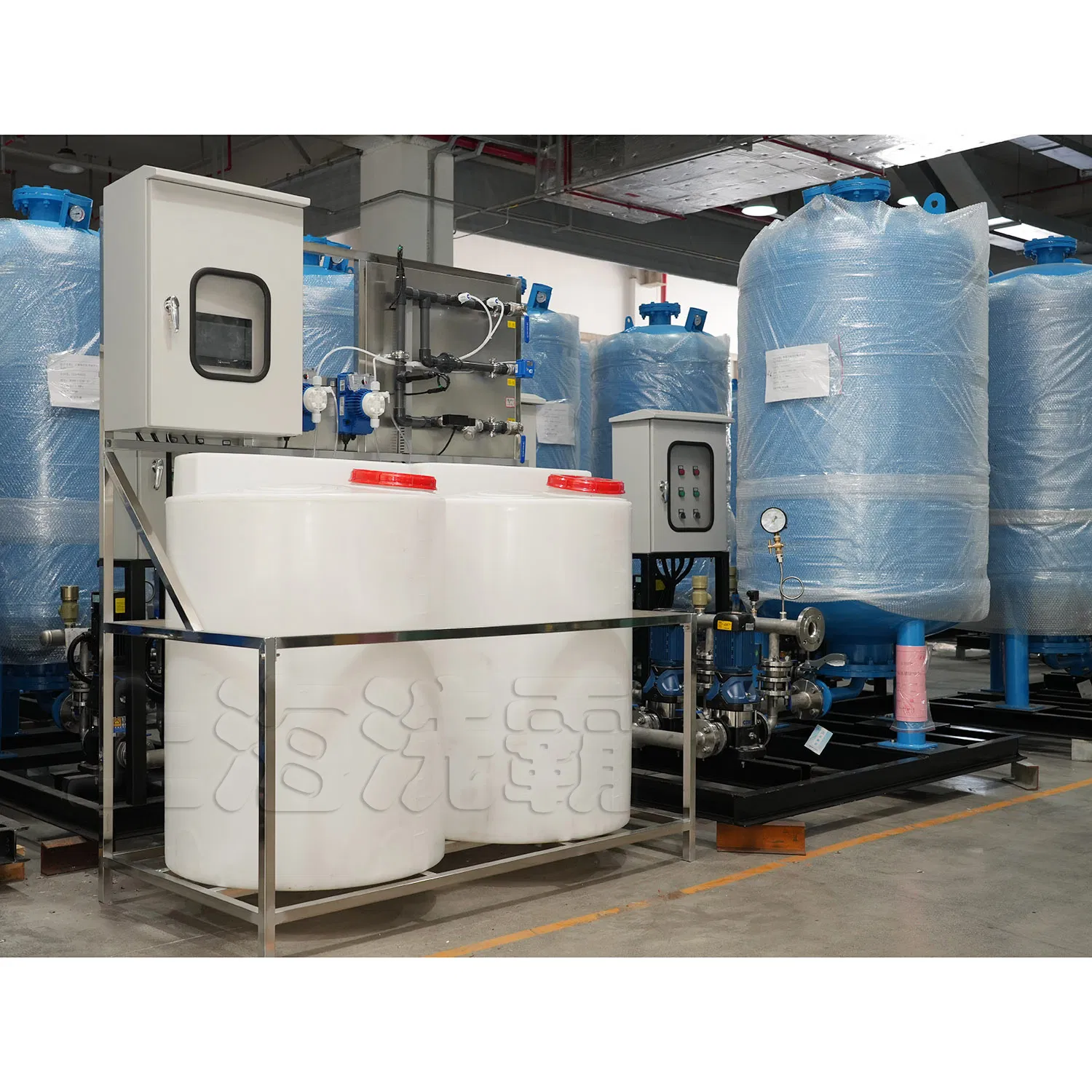

The automatic dosing device is suitable for almost all water treatment requirements of water systems, such as air-conditioning chilled water, air conditioning cooling water systems, boiler water systems, industrial circulating water systems, and sewage treatment systems.

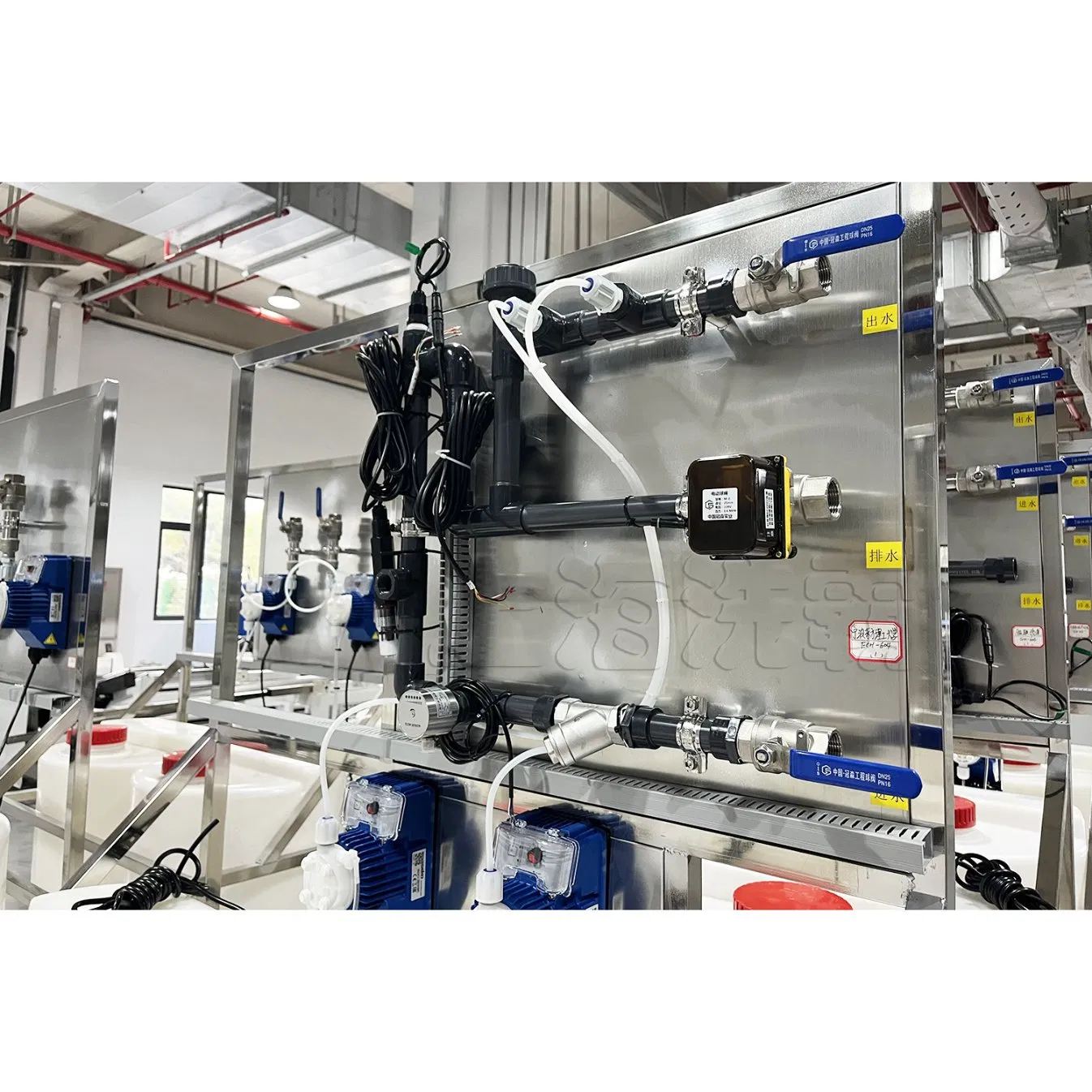

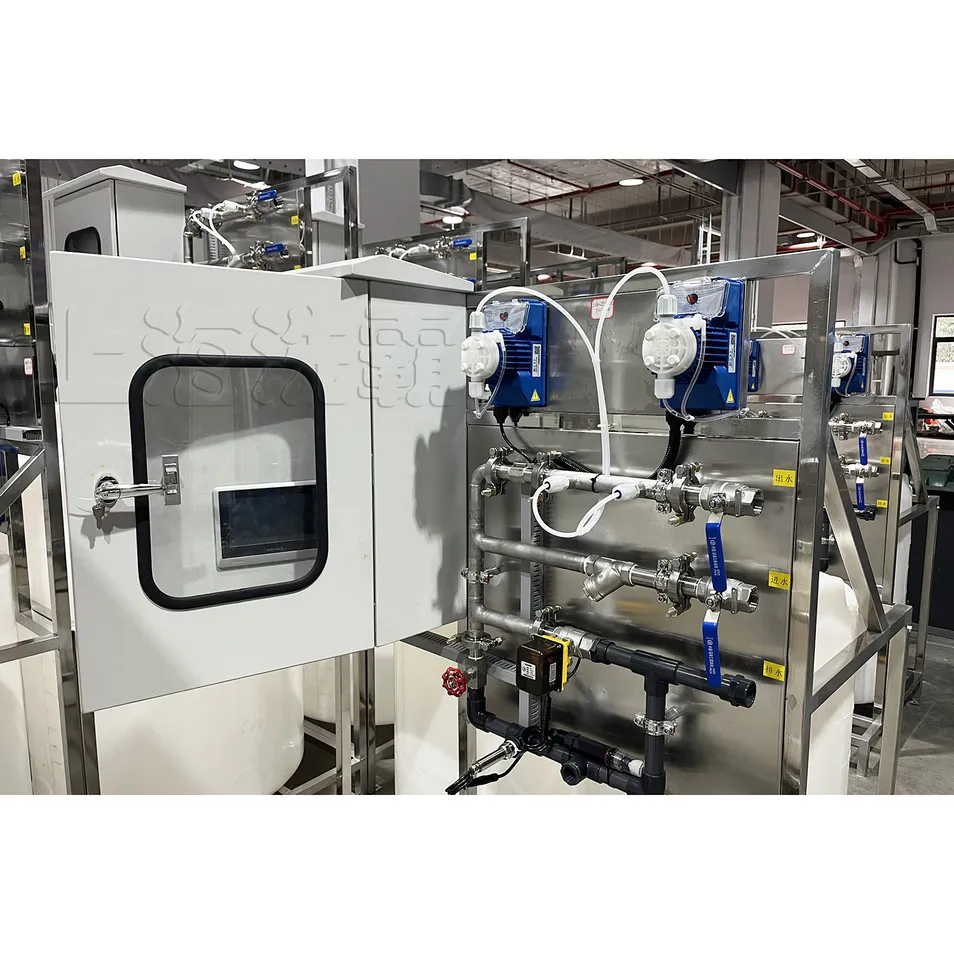

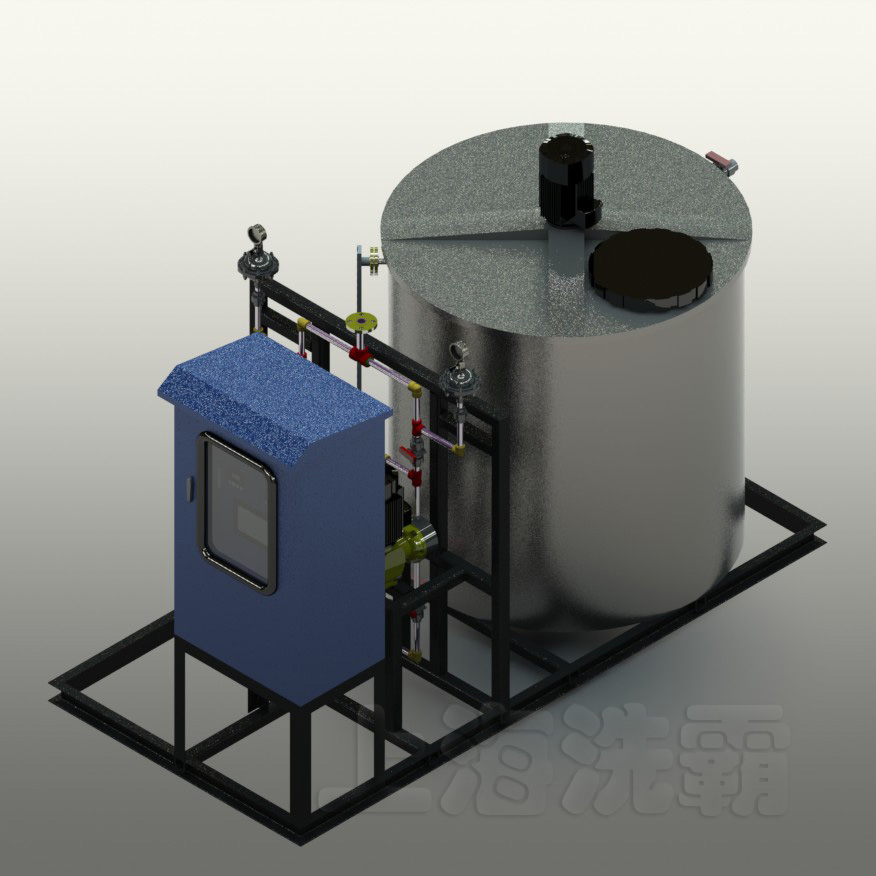

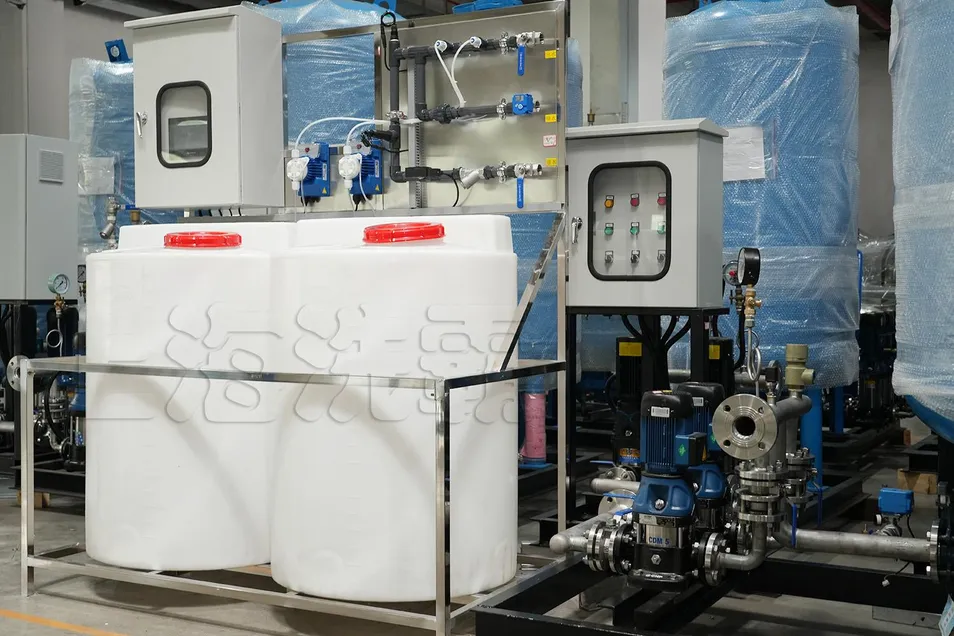

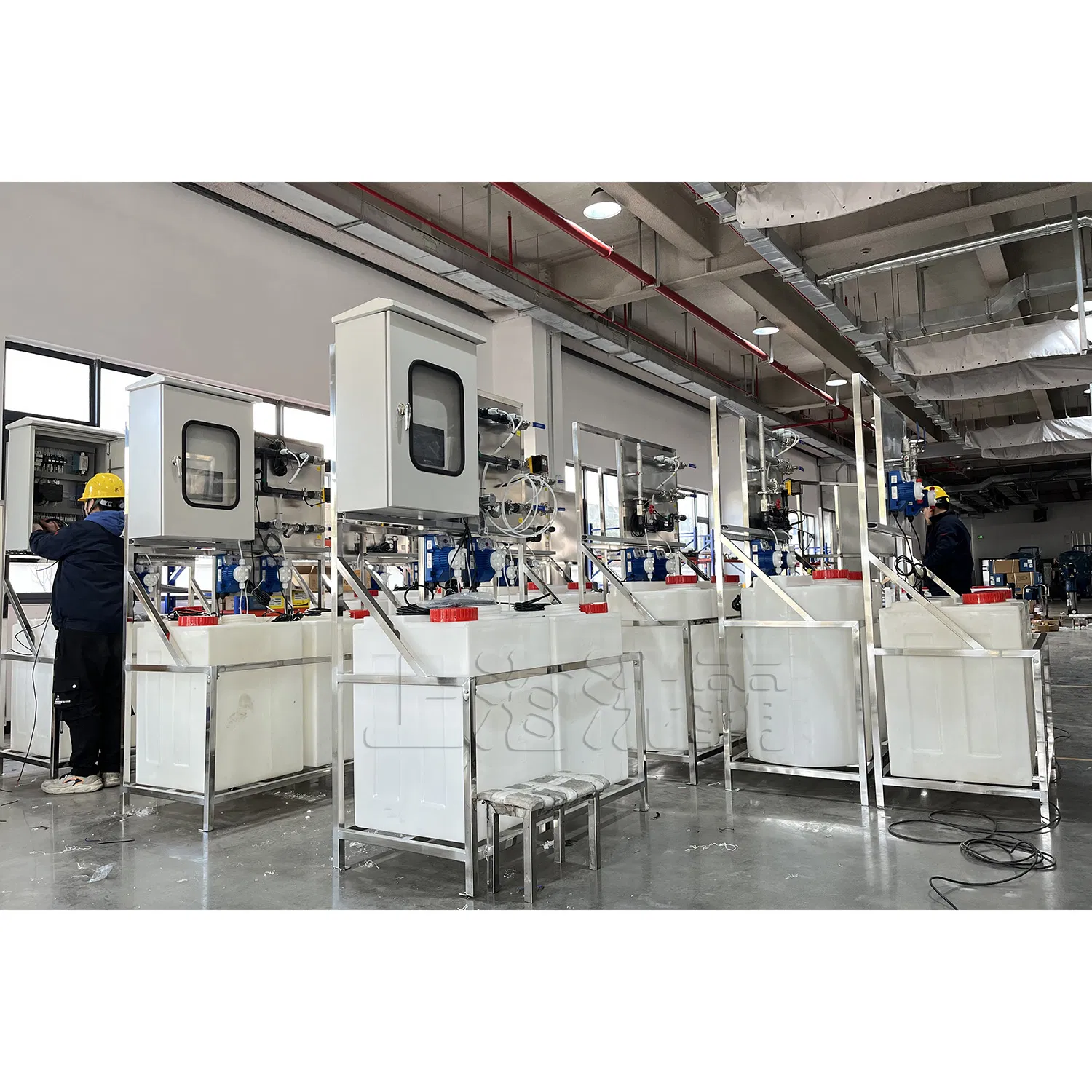

The dosing device includes a control cabinet, dosing pumps, buckets, gauges, and other accessories. Gauges include pH meters, conductivity meters, corrosion rate meters, and more, selectable according to client needs.
Chemicals handled by the system slow down corrosive and scaling trends of equipment and pipelines while killing bacteria and algae. Our intelligent control algorithm adjusts water quality parameters, such as concentration ratio and agent concentration, ensuring they remain stable within preset ranges for optimal performance.
(Custom configurations available upon request.)
| System Parameters | ECH-A-604 (Open) | ECH-B-604 (Closed) | ECH-C-604 (Steam) |
|---|---|---|---|
| Cycle Volume Range | 0-5000m3/h | 5000-20000m3/h | >20000m3/h |
| Boiler Evaporation | 0-10m3/h | 10-40m3/h | >40m3/h |
| Dosing Tank | 200L (PE/SS) | 500L (PE/SS) | 1000L (PE/SS) |
| Overall Size (mm) | 640*640*1800 | 950*950*1800 | 2200*2200*1800 |
| Power Supply | 220V 0.5KW | 380V 2.5KW | 380V 3.0KW |
Founded in 1994, our enterprise is a professional service provider of integrated solutions for water treatment technology. We maintain multiple qualifications including safety production permits and certifications for quality, environment, and health management systems. The company was listed on the stock exchange in 2017 (Stock Code: 603200).
We serve clients globally, with successfully delivered projects in Indonesia, Ethiopia, Pakistan, and the USA. Our international presence is bolstered by established entities in Dubai, Thailand, Vietnam, and the United States.
As of June 2024, our group holds 126 authorized patents, including 60 invention patents, 66 utility model patents, and 38 software copyrights. Our district-level water treatment research center in Shanghai provides comprehensive chemical and operational technology services.
