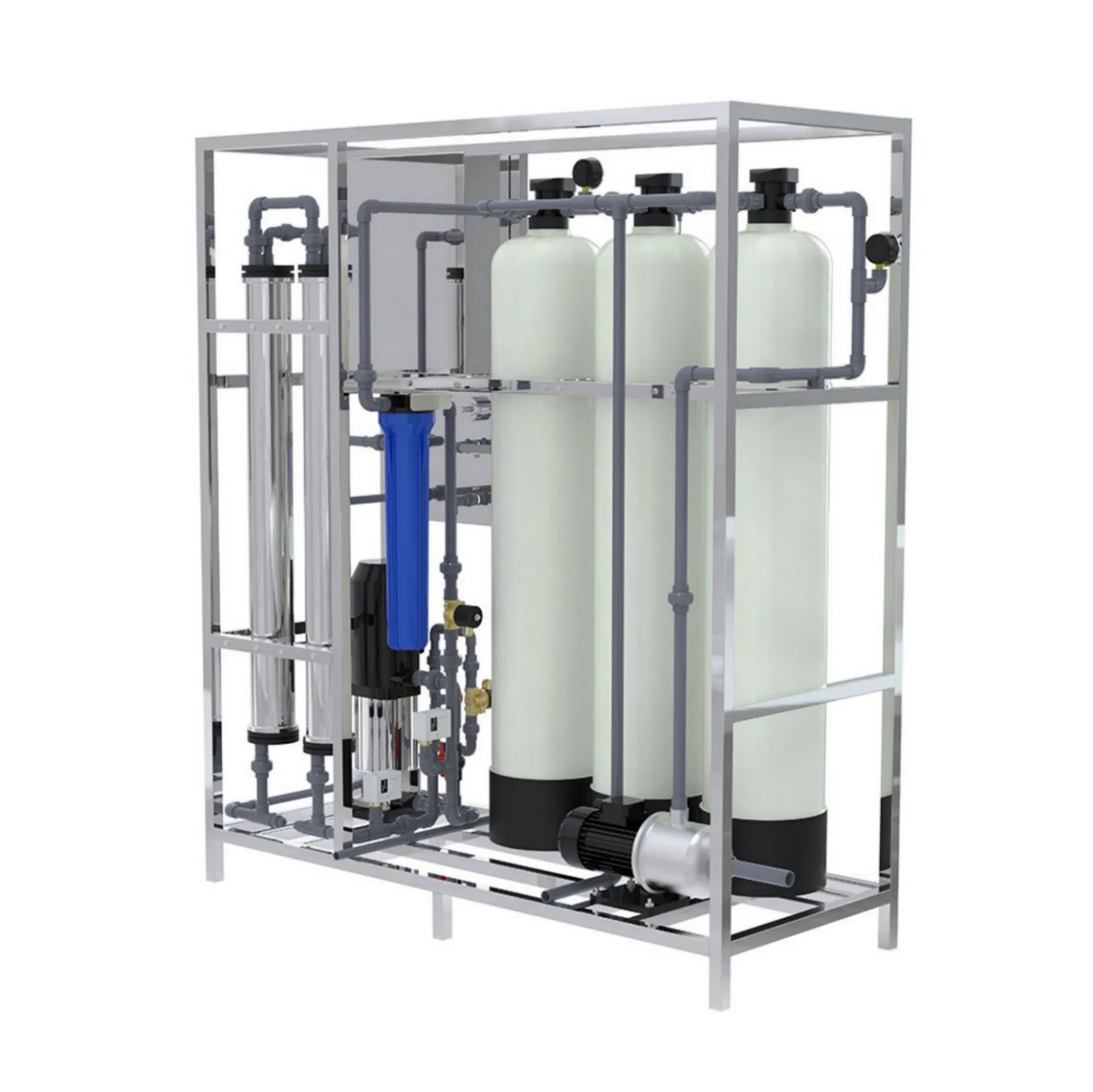

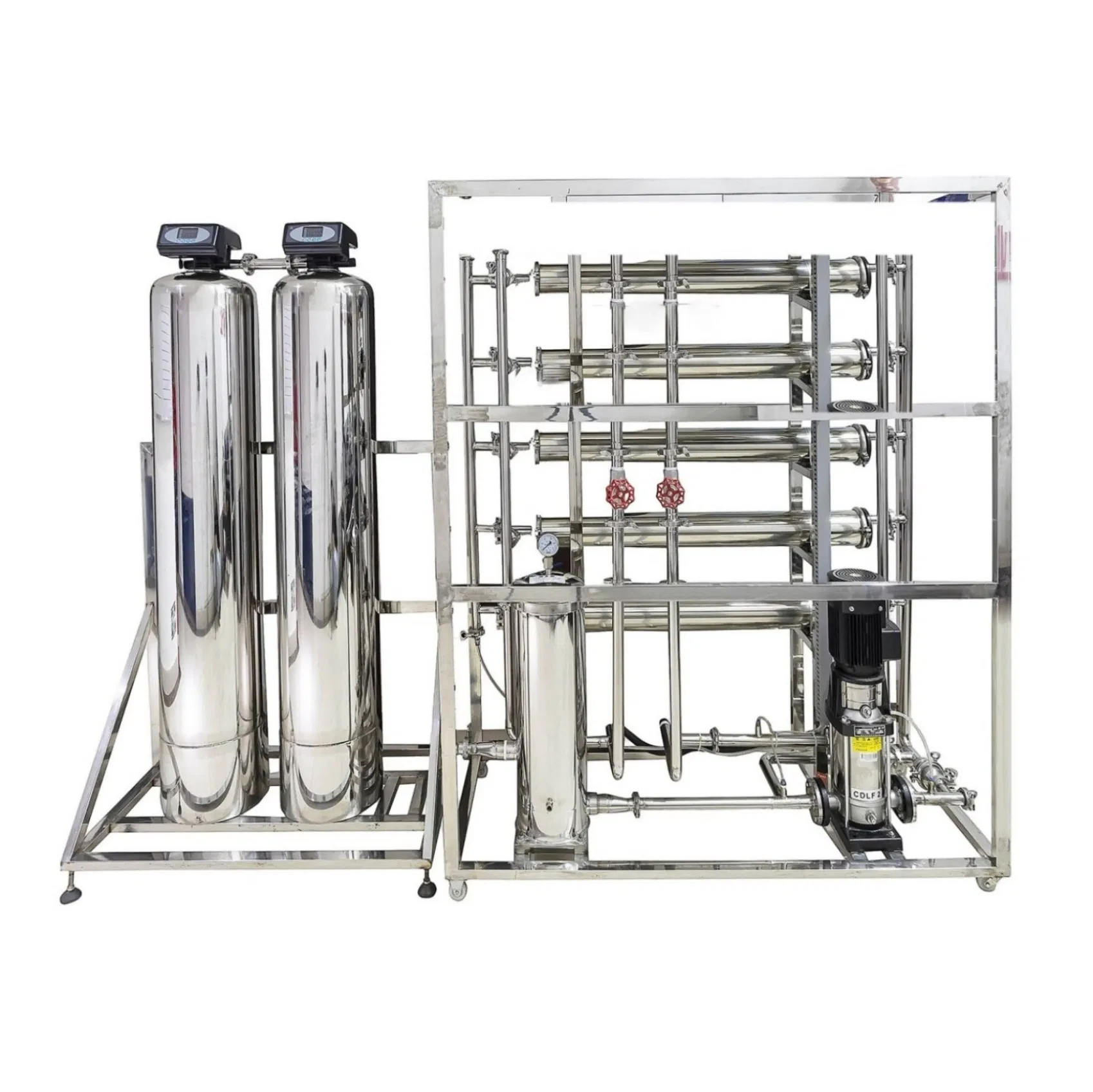

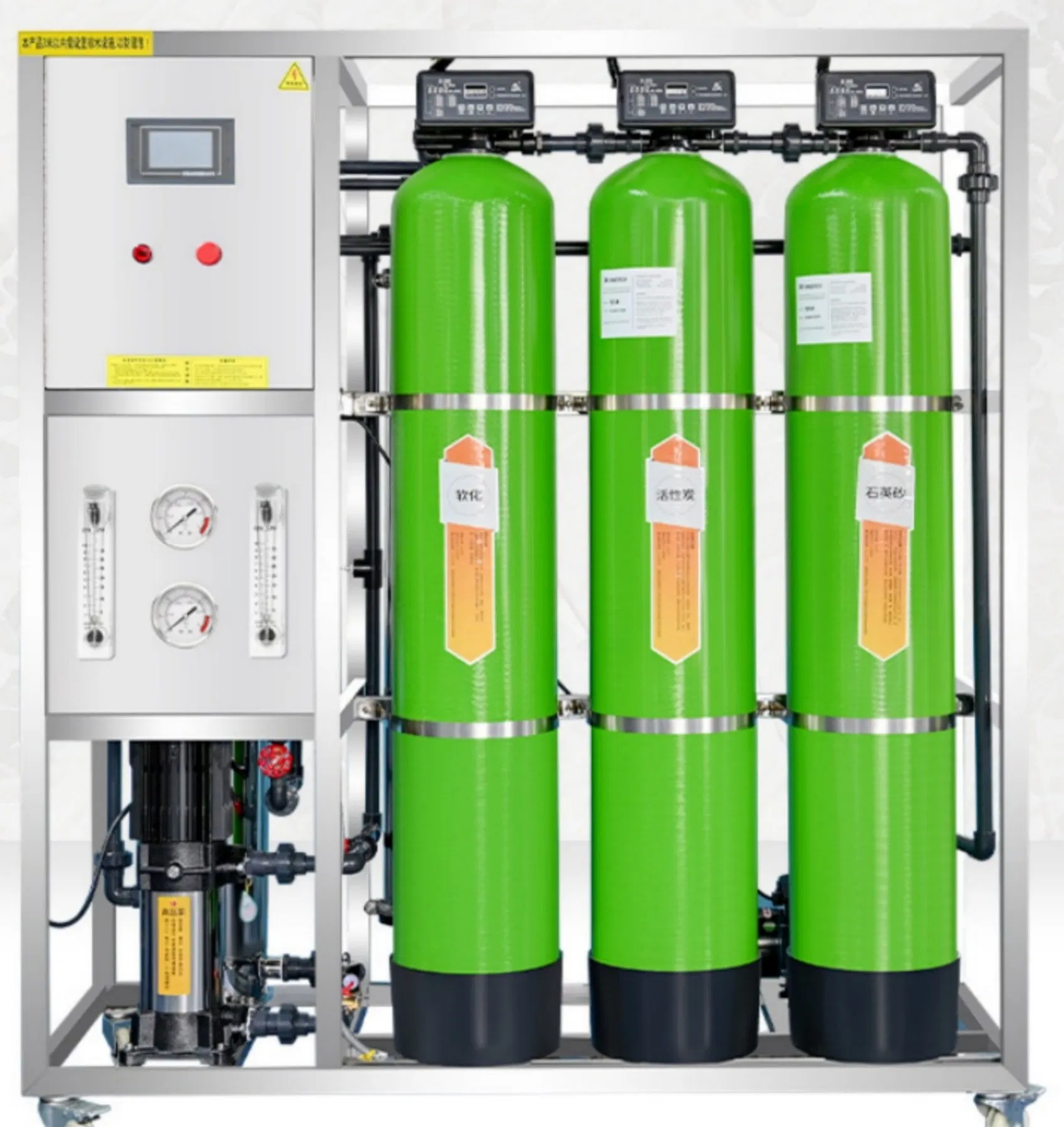

Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
1 / 5
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control
Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control

Industrial Reverse Osmosis with Chemical Dosing System for pH Adjustment and Biofouling Control

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
HELLA-RO
Motive Force
Electric power
Style
Vertical
Performance
Efficient Filtration
Certification
CE, RoHS, CB
Salt Rejection Rate
99.0%
Capacity
250-100000L/H
Processing Type
Reverse Osmosis
Warranty
More Than 5 Years(for Core Part)
Material
Ss/FRP/CS
💧 Product Introduction

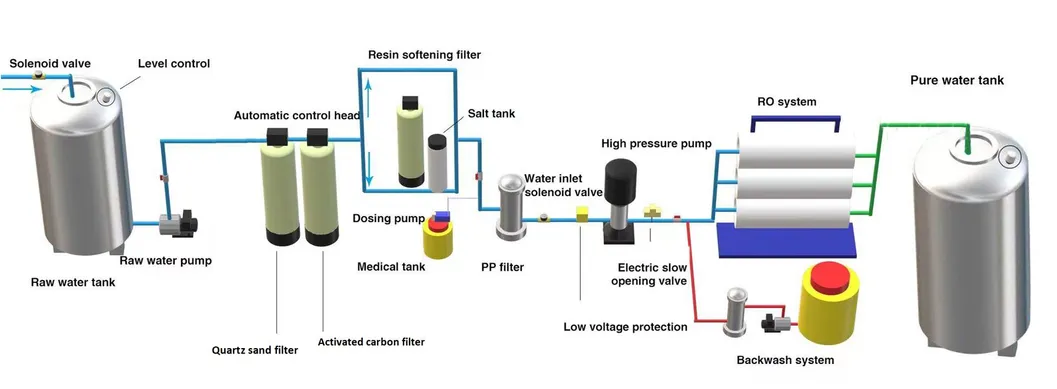

Reverse Osmosis Flow Chart

Image: Reverse Osmosis Flow Chart

01Raw water system: level control system to adjust stop and start, single-way valve to prevent re-flux.
02Quartz sand filter: remove turbidity, suspended matter, organic matter, colloid and so on.
03Activated carbon filter: remove free chloride, organics, harmful matter, bad smell/color and so on.
04Resin softening filter: get rid of calcium and magnesium ions to reduce hardness.
05Dosing system: Automatically adjust chemical dosing according to water quality parameters.
06PP filter: prevent any deposition of large particles into the RO membrane.
07High pressure pump: provide the high pressure to pump water into reverse osmosis system.
08Reverse osmosis membrane system: capable of removing over 99% of ions, bacteria, virus, particles.
09Backwash system: cleaning system to prolong the service life of RO membrane.
10Sterilization system: UV light and Ozone generator to kill organics like bacteria and virus.
11Chemicals system: customized adjustment system to purify different raw water types.

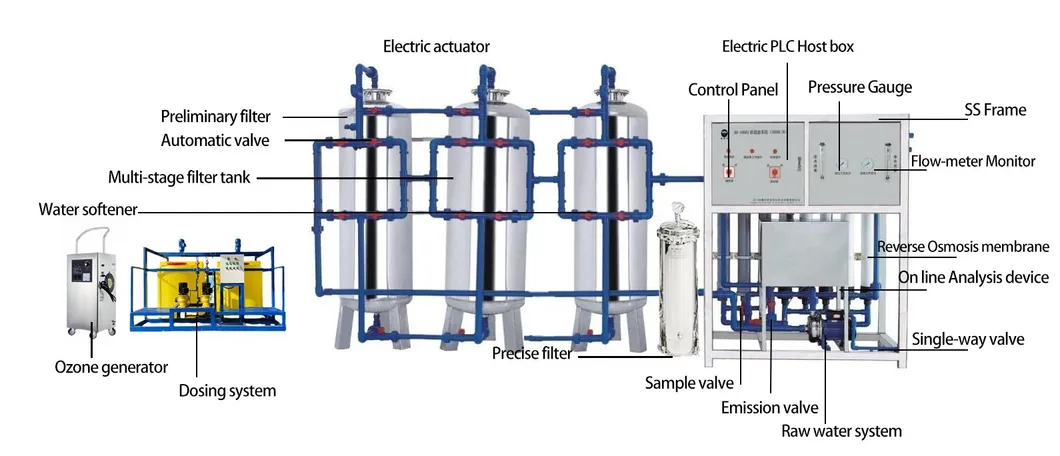

System Overview
📊 Product Parameter
Output Capacity100L-1000T/H Multi-stage filtration4/5/6/7-stage
Desalination Rate≥99% Filtration Accuracyup to 0.0001
Recovery Rate≥60% Machine MaterialSS, FRP, CS
Pipe MaterialPE, PVC, PPR, SS, CS Operating Temp3-45℃
Host Control SystemPLC & terminal controller Inlet pressure0.1-0.5Mpa
🔍 Product Detail & Effect

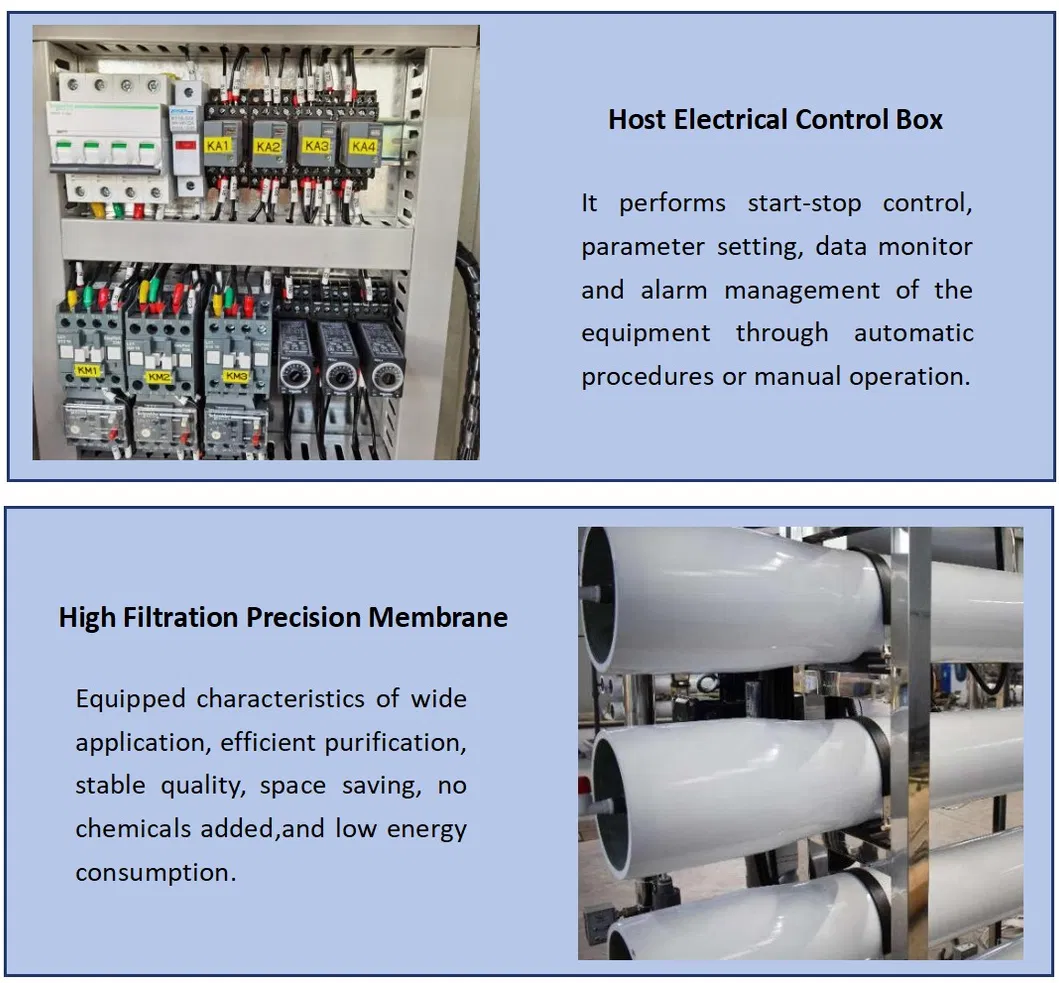

Detailed View 1

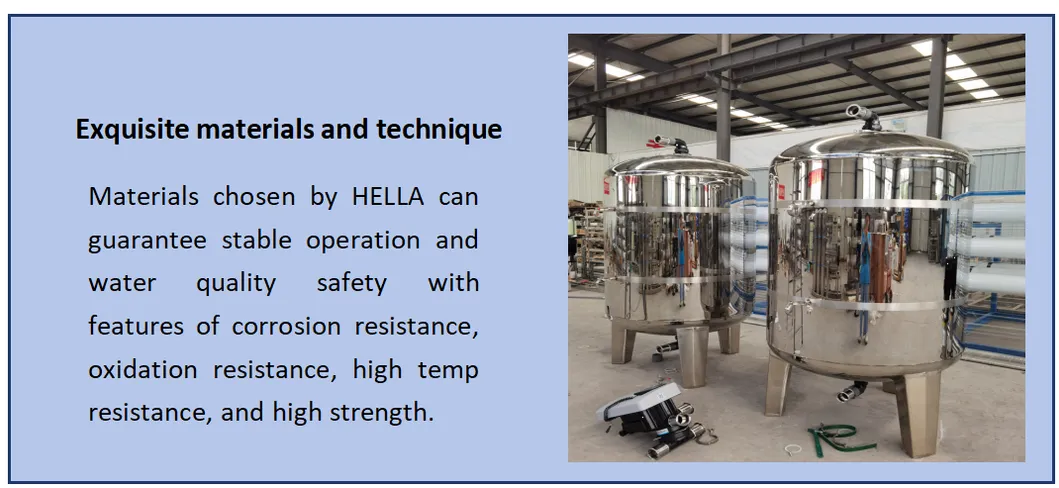

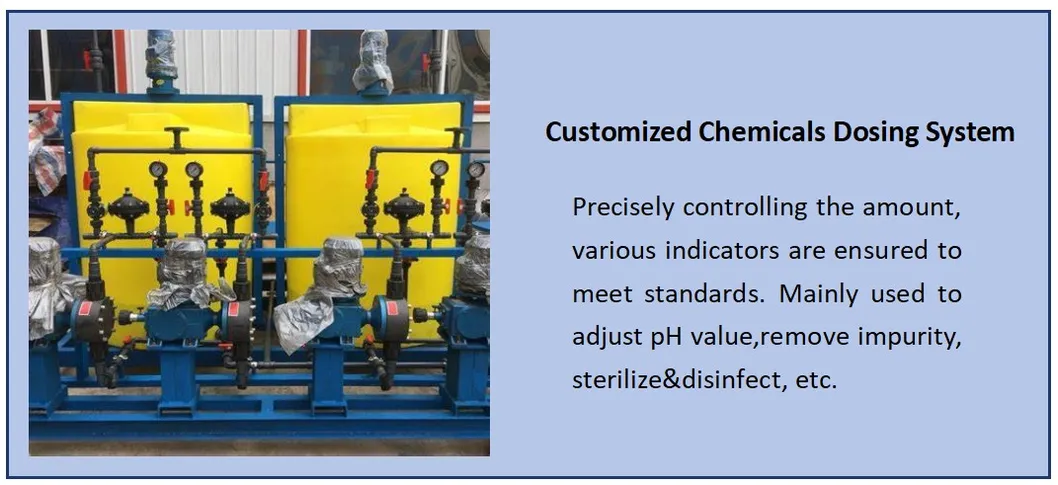

Component 1 Component 2

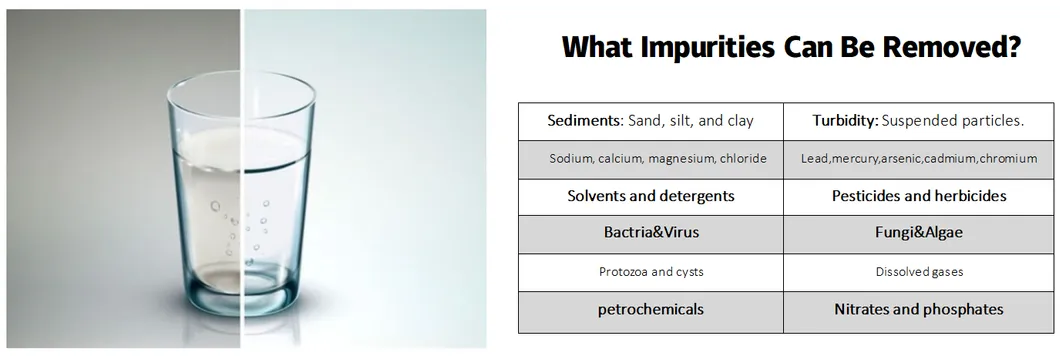

Purification Effect

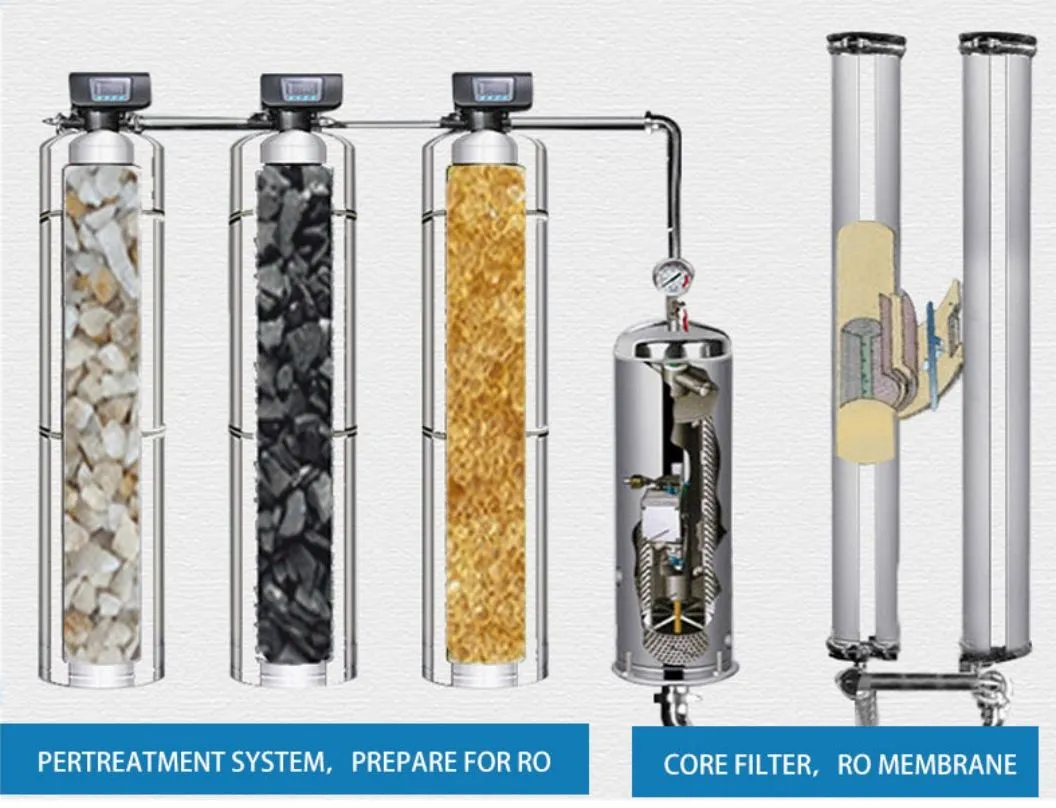

Effect Chart
⭐ System Features

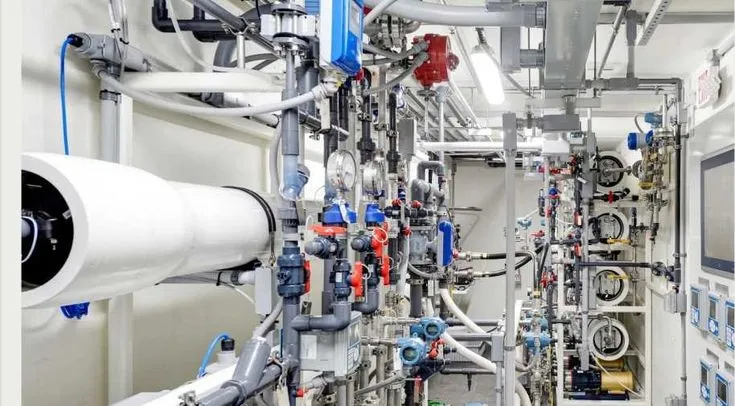

Machine Feature Image
⚡ Produce water continuously 24/7.
🛠️ Easy operation and maintenance.
🔄 Auto-wash to prolong filter and membrane life.
⚠️ Automatic switch off for emergencies.
🚚 Installation & Logistics

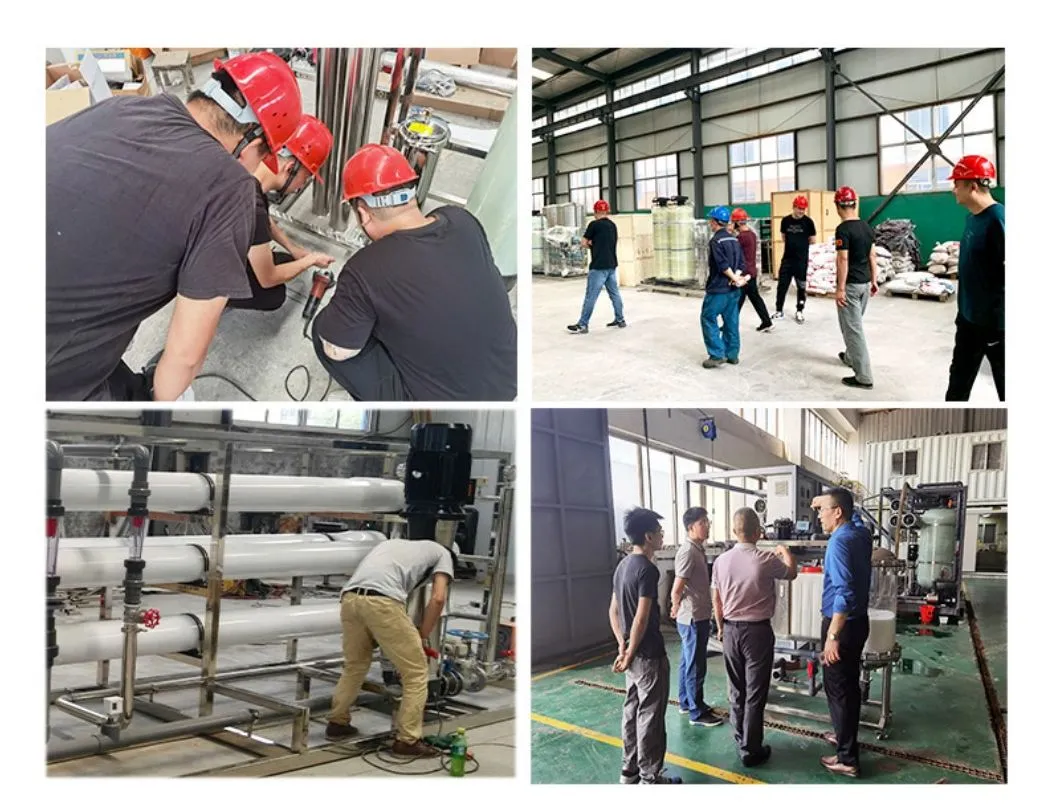

Installation 1

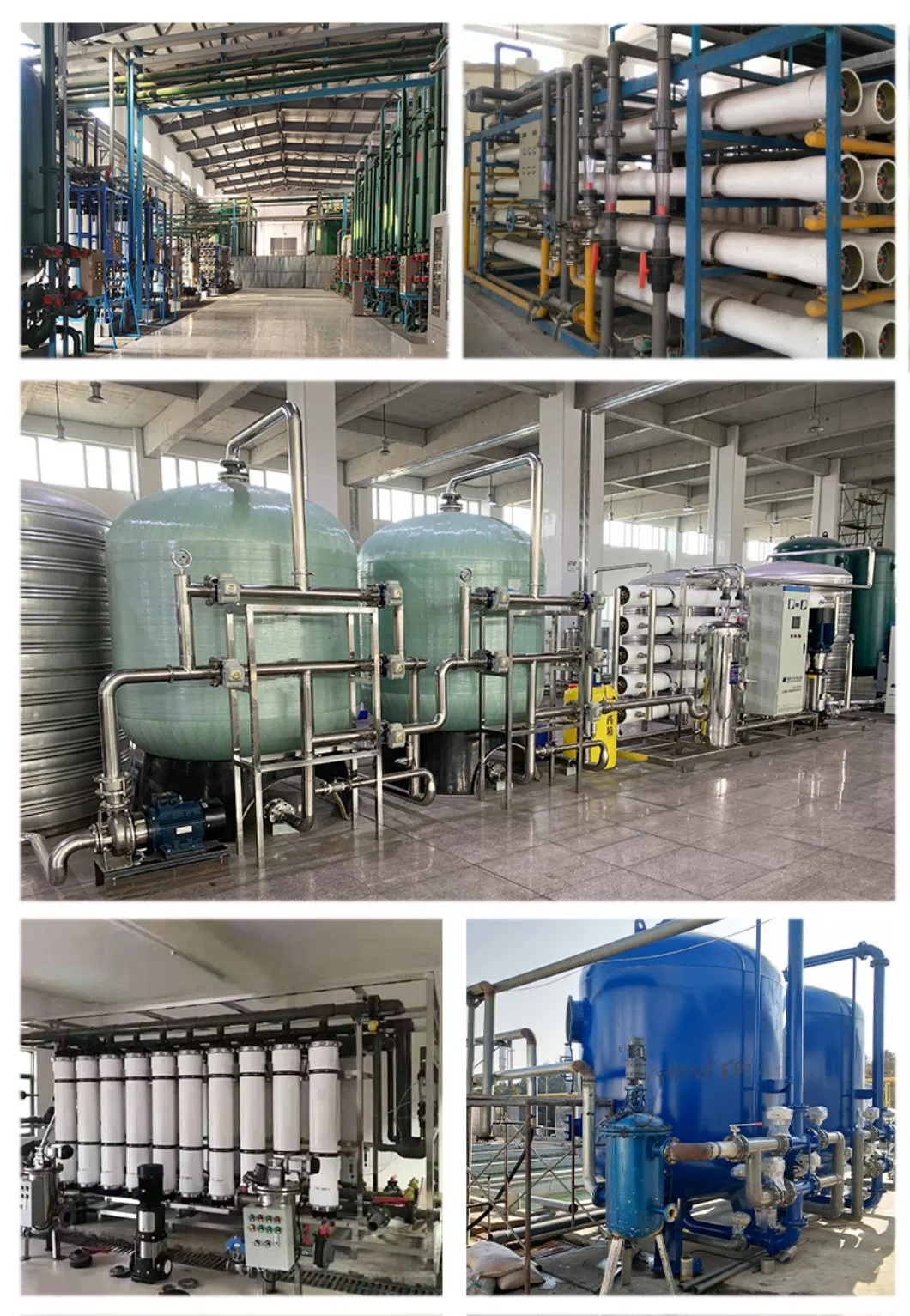

Installation 2
Profile 1 Profile 2
Packaging
Certifications
🤝 Why Partner with Us?
  • Comprehensive Solutions - Advanced & integrated water filtration systems
  • OEM & Private Labeling Available - Customize with your brand
  • Reliable Quality - ISO-certified systems with durable components
  • Technical & After-Sales Support - Training and spare parts assistance
  • Fast Delivery - On-time shipping with full technical support
❓ Frequently Asked Questions
What is your experience in water treatment machinery?
We have over 20 years of manufacturing experience, specializing in environmental protection machinery and industrial water purification systems with official certifications.
How is the quality of the equipment guaranteed?
Every system undergoes a final inspection before shipment. We provide a 2-year core part guarantee and lifelong after-sales service to ensure stable performance.
What types of machinery can be purchased?
We offer Environmental Protection Machinery, Water Treatment Equipment, Filling Machines, and Sterilization Devices.
Why should I choose this industrial water equipment?
Our equipment features 20+ years of production expertise, complete certifications, professional technical support for installation, and factory-direct competitive pricing.
What payment and delivery terms are supported?
We accept various delivery terms including FOB, CIF, EXW, and DDP. Payments can be made via T/T, L/C, PayPal, or Credit Card in multiple currencies like USD, EUR, and CNY.
Which languages can your support team speak?
Our team is proficient in multiple languages including English, Chinese, Spanish, Japanese, Portuguese, Arabic, French, and Russian to better serve global clients.
