Basic Specifications
Capacity
6000liter Per Hour
Desalination Rate
More Than 97%
System Recovery Rate
50%-75%
Function
Water Treatment Equipment
Production Capacity
20 Sets /Month
Product Description
💧

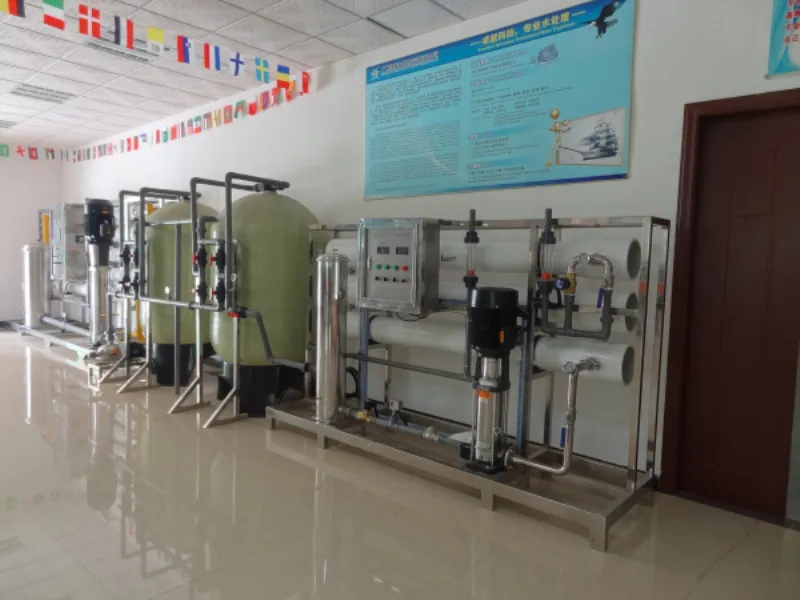

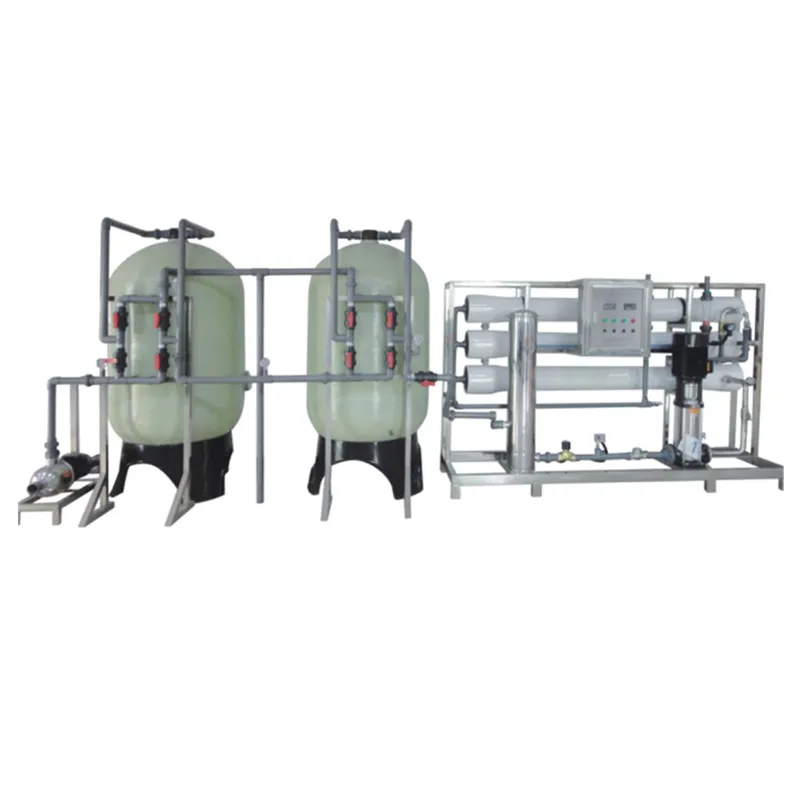

6000 lph RO Water Treatment Plant
RO water system / water treatment plant /water treatment system, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc.
Technical Parameters
Voltage
220V/50Hz, 380V/50Hz
Water recovery rate
50-70%
Conductivity (Raw)
≤ 400μ S
Conductivity (Pure)
≤ 10μ S

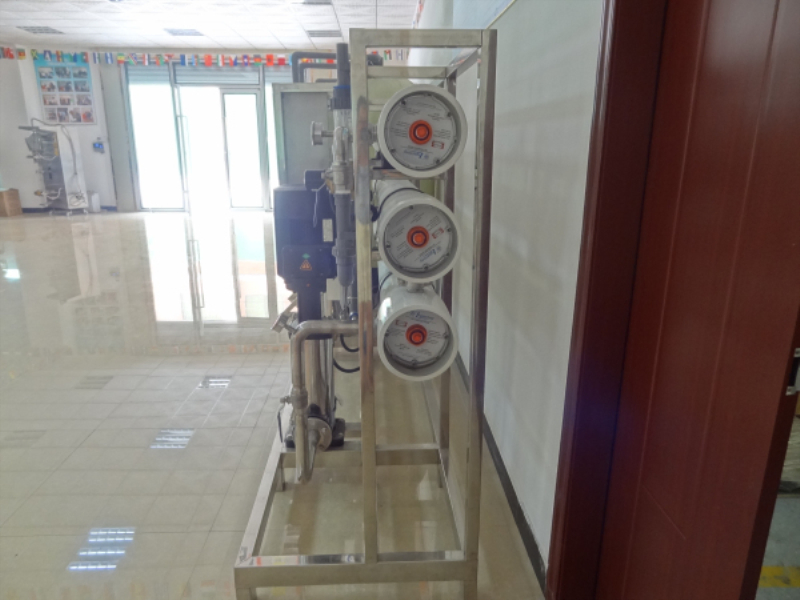

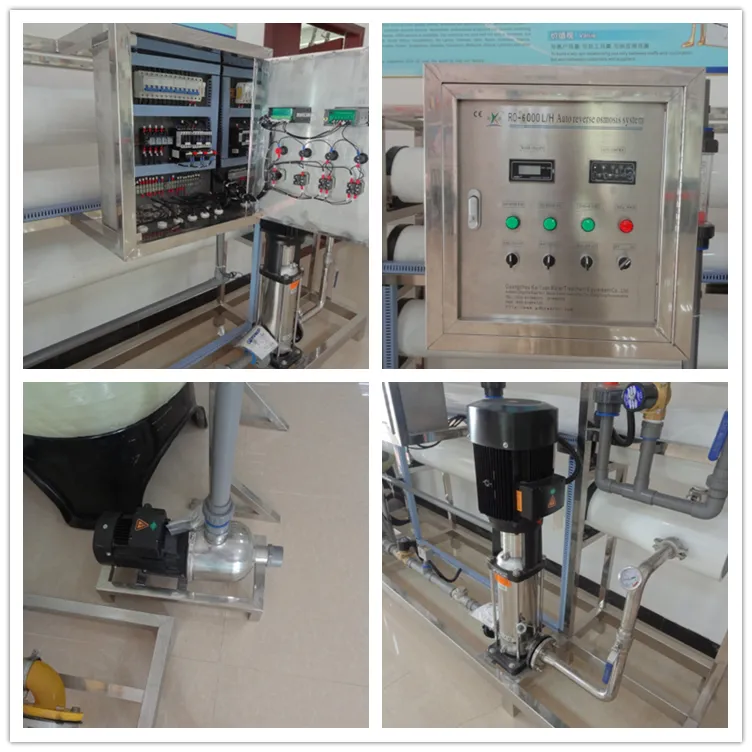

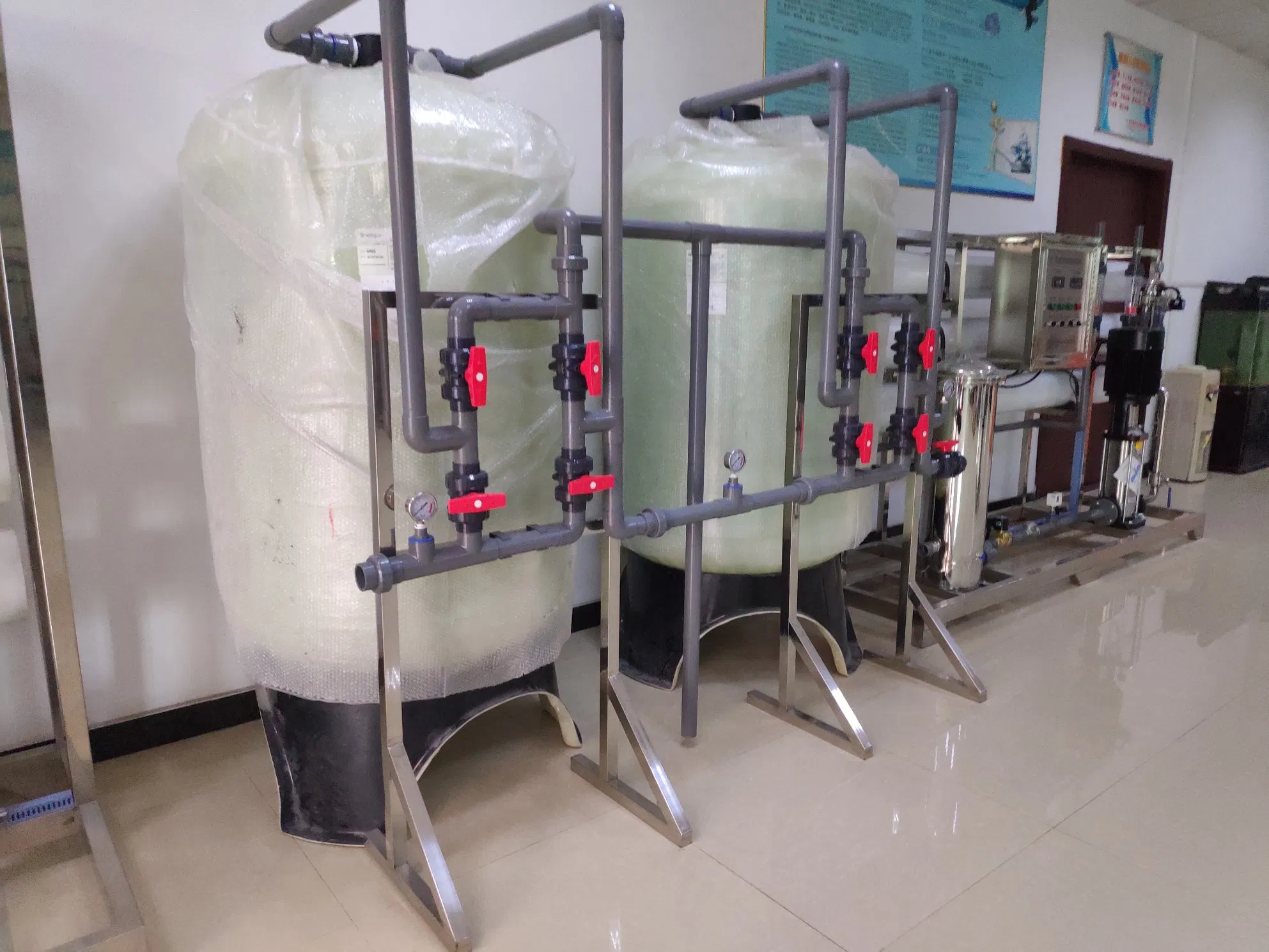

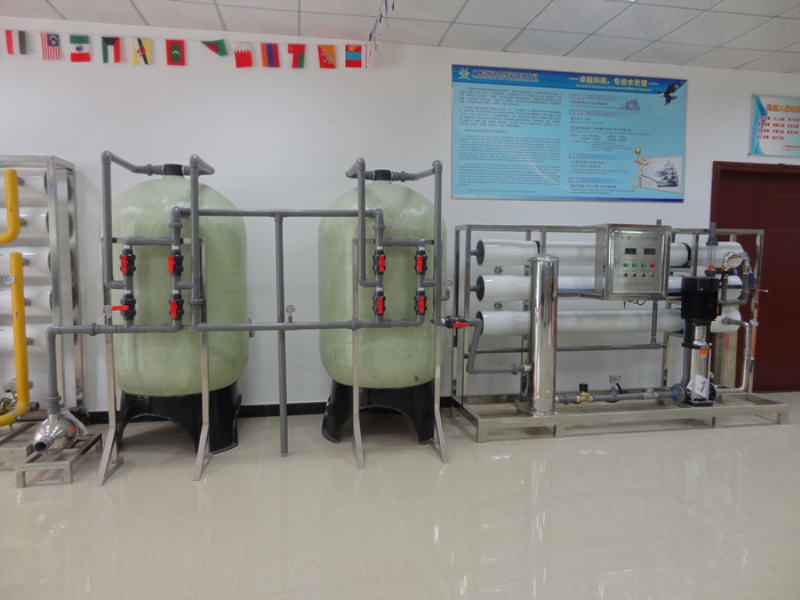

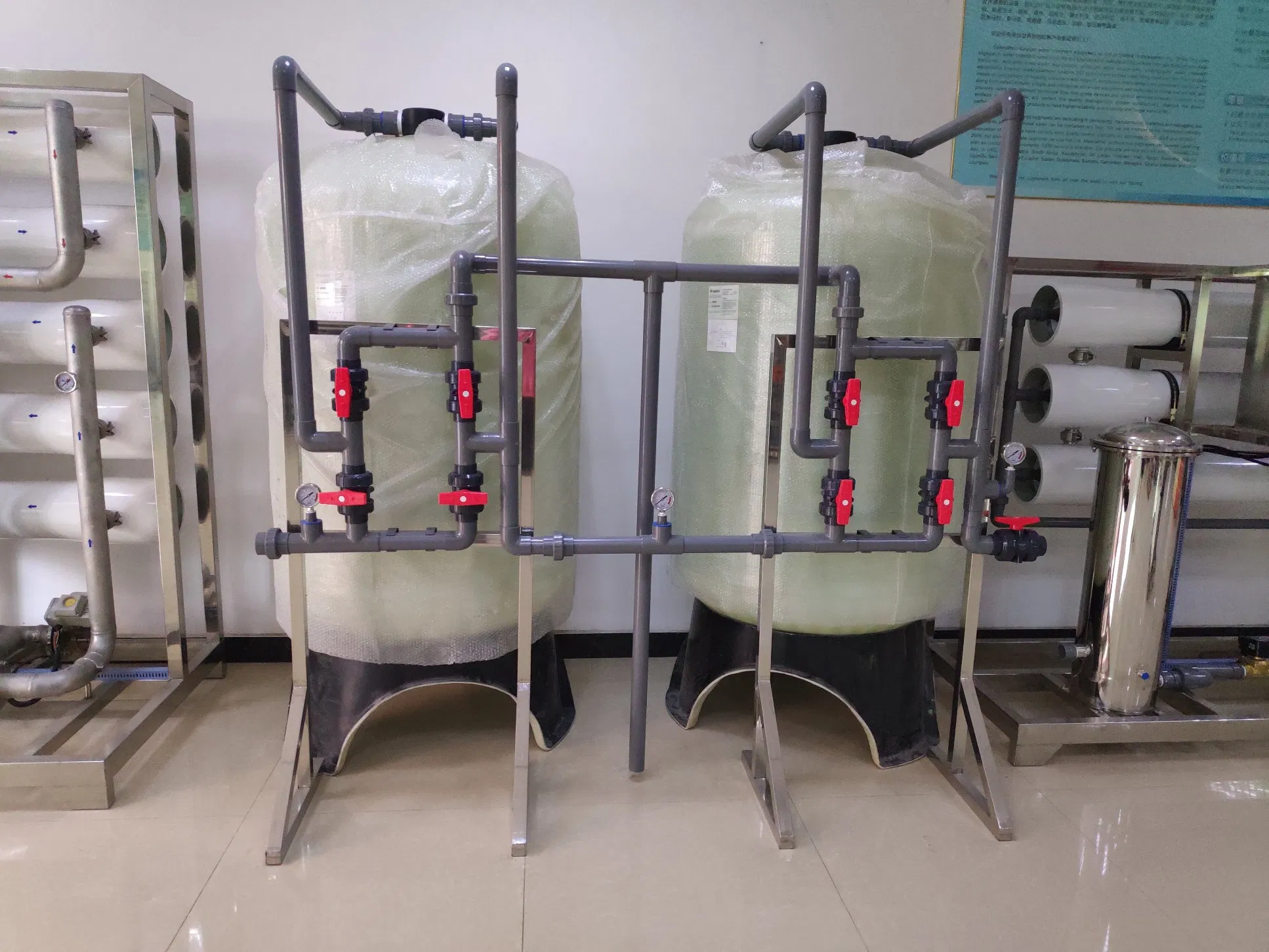

Detailed Product View
Working Process

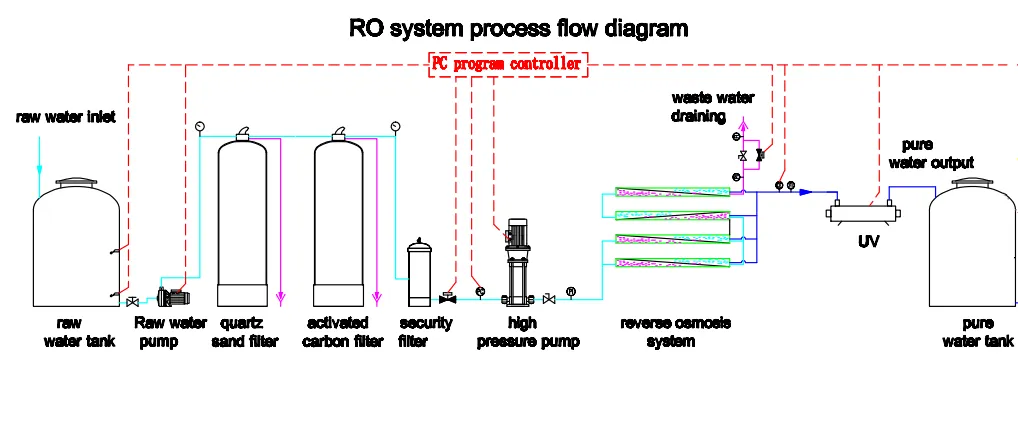

Raw water → raw water tank → raw water pump → sand filter → carbon filter → water softener (optional) → security filter → high pressure pump → reverse osmosis → pure water tank → UV sterilizer (ozone generation) → precision filter → water supply points
Function of Components
- Raw water pump: Provides pressure to quartz sand/active carbon filters.
- Sand filter: Removes turbidity and suspended matter.
- Active Carbon filter: Removes color, free chloride, organic matter, and harmful substances.
- Softener: Exchanges calcium and magnesium ions.
- Security filter: Prevents large particles (accuracy 5um) from entering RO membrane.
- High pressure pump: Provides the necessary pressure for RO membrane operation.
- RO system: Main part of the plant. Desalting rate reaches 97%+, removing over 99% of ions.
- UV/Ozone generator: Eliminates bacteria in the water.
System Advantages
- Continuous water production & high automation
- No chemical regeneration needed
- Imported USA DOW membranes
- Auto-switch based on water levels
- Automatic membrane flushing/backwash
- Water shortage protection for pumps
- Online conductivity monitoring
- Low operation cost & long life span
- PLC program controlled
- Environmental protection & low power
After-Sale Service
🛠️
Warranty: 1 year. Free parts provided for issues during standard operation.

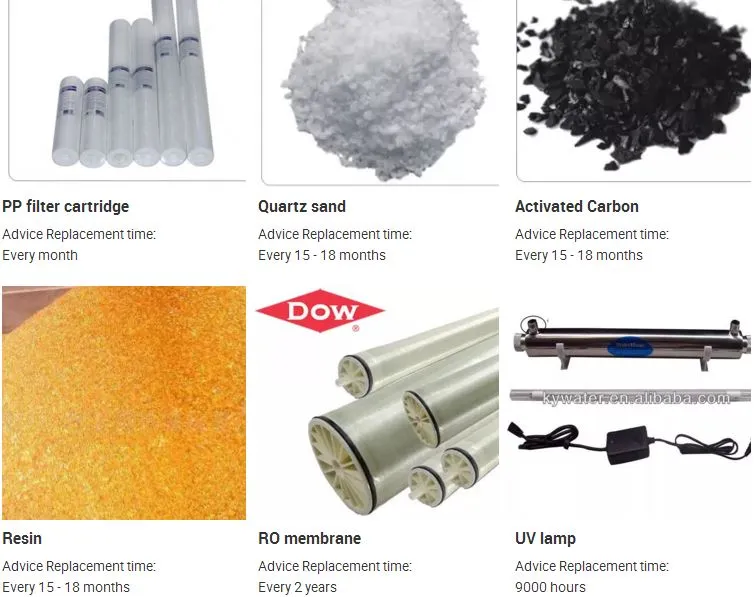

Life-span Support: Consumables supplied at low cost after the warranty period.
Technical Support: Online technical services available at all times.

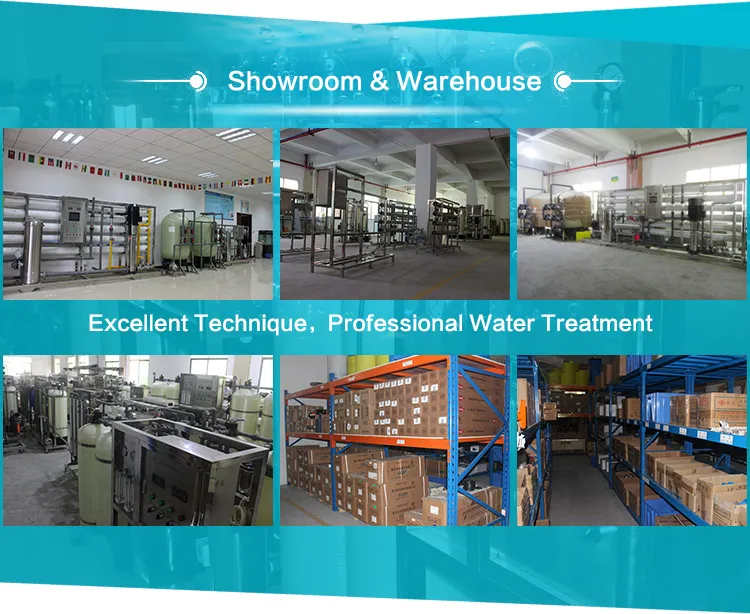

Factory & Production
Frequently Asked Questions
What is the desalination rate of the KYRO-6000?
The system features a high desalination rate of more than 97%, effectively removing dissolved salts and impurities.
Does the system require manual operation?
No, the system is designed for automatic operation, including automatic flushing and water level controls via a PLC program.
What is the warranty period for this water treatment plant?
We provide a 1-year warranty. If any problems occur within the first year during normal operation, parts are provided free of charge.
Can the water quality be monitored in real-time?
Yes, the system is equipped with an online product water conductivity meter to monitor water quality continuously.
What kind of membranes are used in the RO system?
The core components utilize imported USA DOW membranes for high efficiency and durability.
How does the system protect the pumps?
The system includes water shortage protection for the multi-stage pumps and low/high pressure protection to ensure safe operation.
