Customized service is available to meet specific industrial requirements.

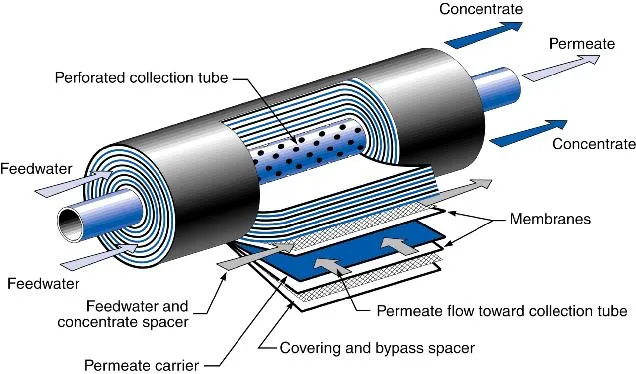

Reverse osmosis process is a world-advanced, energy-saving, and effective separation technology. With a filtration accuracy of 0.001 μm, it completely separates and removes soluble salts, colloids, organics, microorganisms, viruses, bacteria, rust, and heavy metals. It uses pressure to force pure water across a semi-permeable membrane, leaving impurities behind.
Note: For water with high hardness or contaminants, pre-treatment (filtering, deferrization) is recommended to extend membrane life.

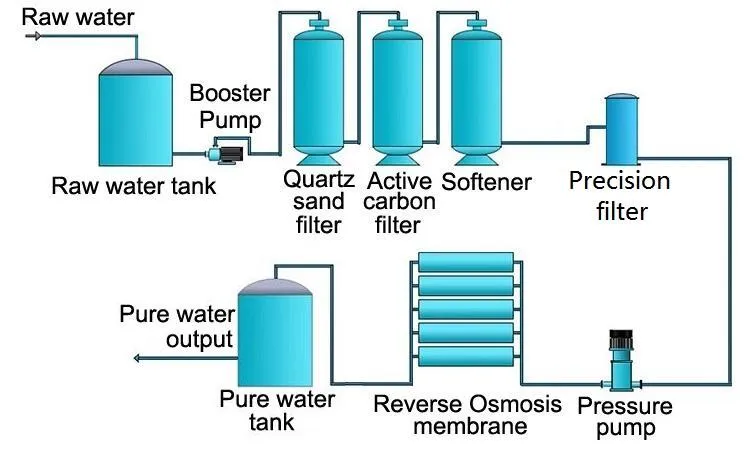

The system utilizes multi-stage pre-treatment, including quartz sand filters, activated carbon filters, water softeners, and security filters. Combined with RO technology, salt and bacteria removal rates can reach 97%-99%, ensuring safe and pure water production.
| S/N | Process | Application Details |
|---|---|---|
| 1 | Raw water tank | Stores water, buffers pressure, and ensures stable supply for the system. |
| 2 | Booster pump | Provides necessary pressure for the pre-treatment filters. |
| 3 | Quartz sand filter | FRP or stainless steel vessel; filters large particles, suspended substances, and colloids. |
| 4 | Activated carbon filter | Removes color, odor, residual chlorine, and organic substances. |
| 5 | Water softener | Uses cation resin to reduce hardness (Ca2+, Mg2+) with intelligent regeneration. |
| 6 | Security filter | 5μm accuracy; prevents particles and microorganisms from entering the RO membrane. |
| 7 | High pressure Pump | Ensures the required working pressure for RO production capacity. |
| 8 | RO system | Removes 99% of dissolved salts, heavy metals, bacteria, and viruses. |
| 9 | Control Cabinet | Automatic control via Relay, PLC, or HMI options. |

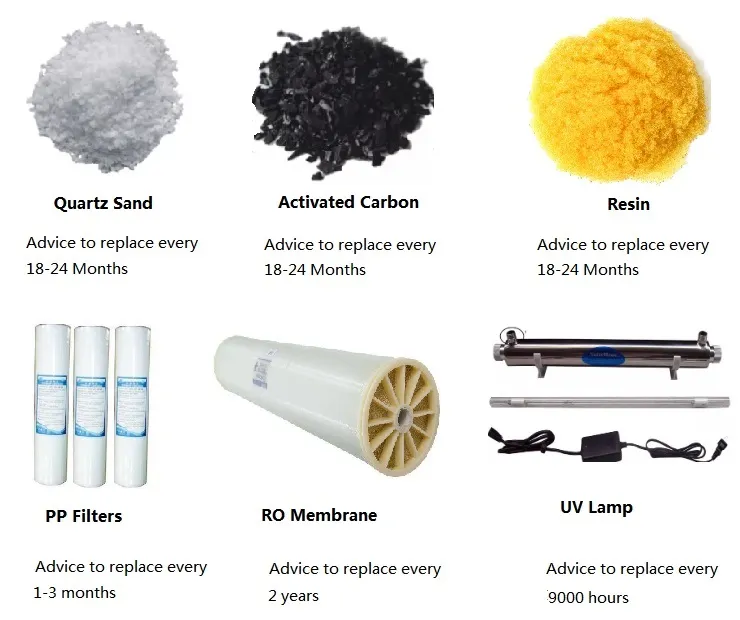

The replacement period for consumables depends strictly on the feed water quality.
