Centrifugal Oil Filtration Equipment, Centrifugal Oil Recycling System 8000lph

Customization:	Available
After-sales Service:	According to Demand (Engineer Remote Assistance or
Warranty:	2year

Send Inquiry

Product Description

Basic Information

Model NO.	RCF-8T(8000LPH)	Type	Centrifuge
Object	Oil	Separation Mode	Centrifugal
Operating Type	Continuous Type	Installation	Horizontal
Pressure	Low Pressure	Condition	New
Centrifuge Type	Disc Centrifuge	HS Code	84212990

Product Description

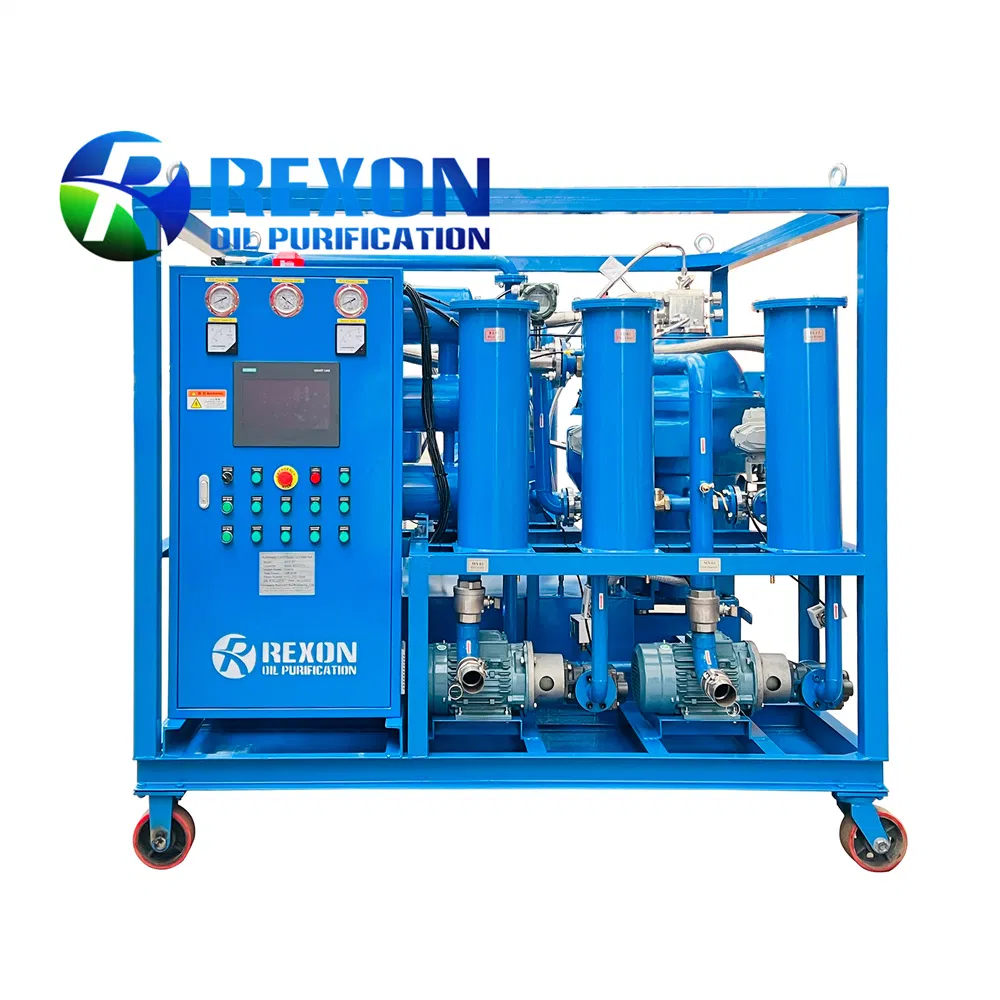

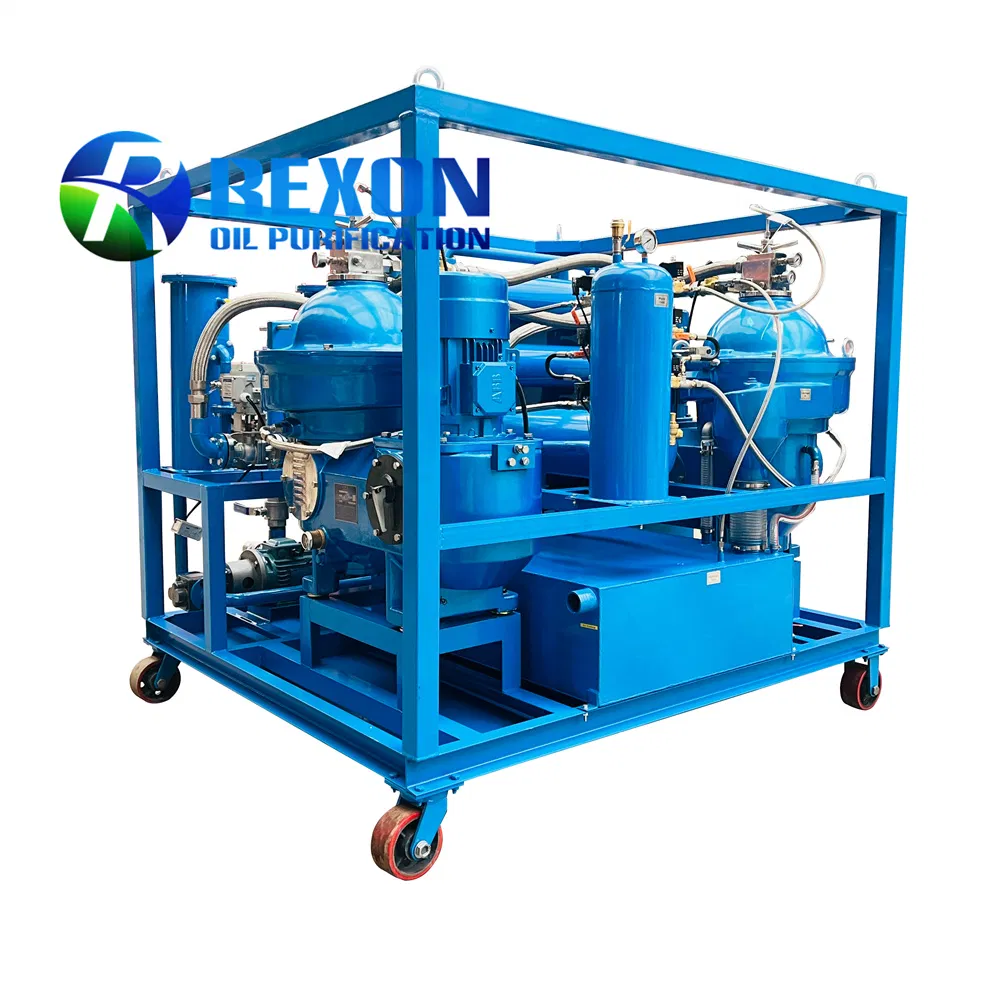

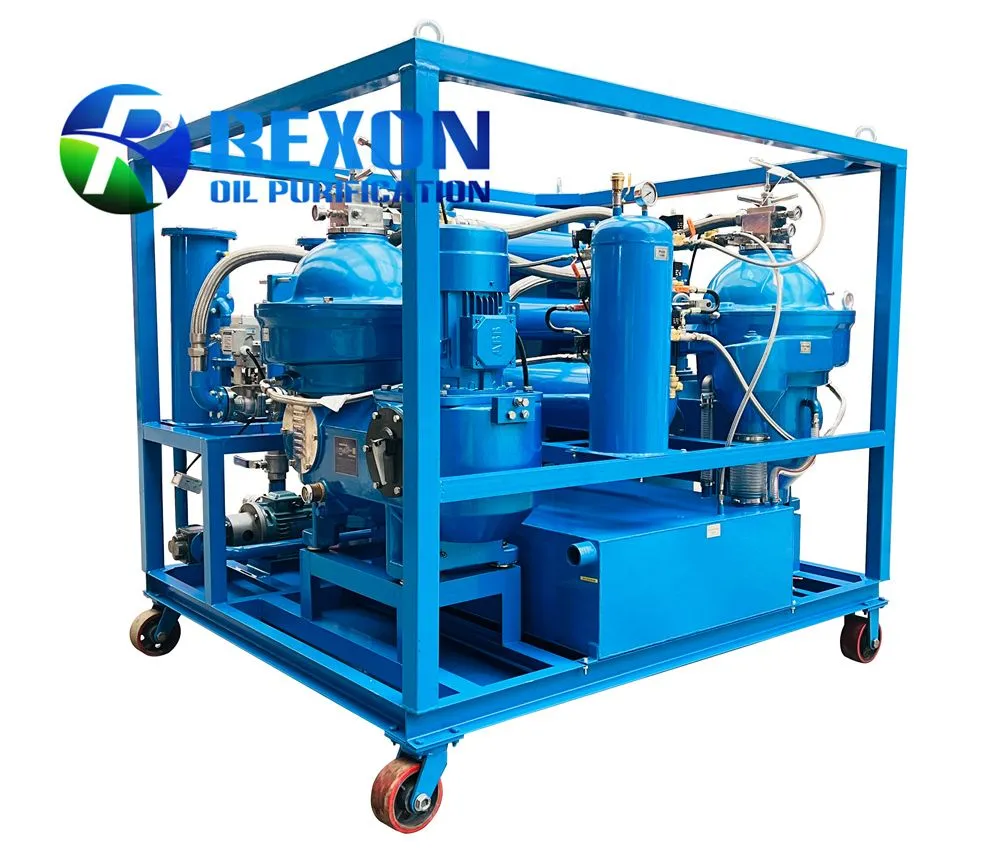

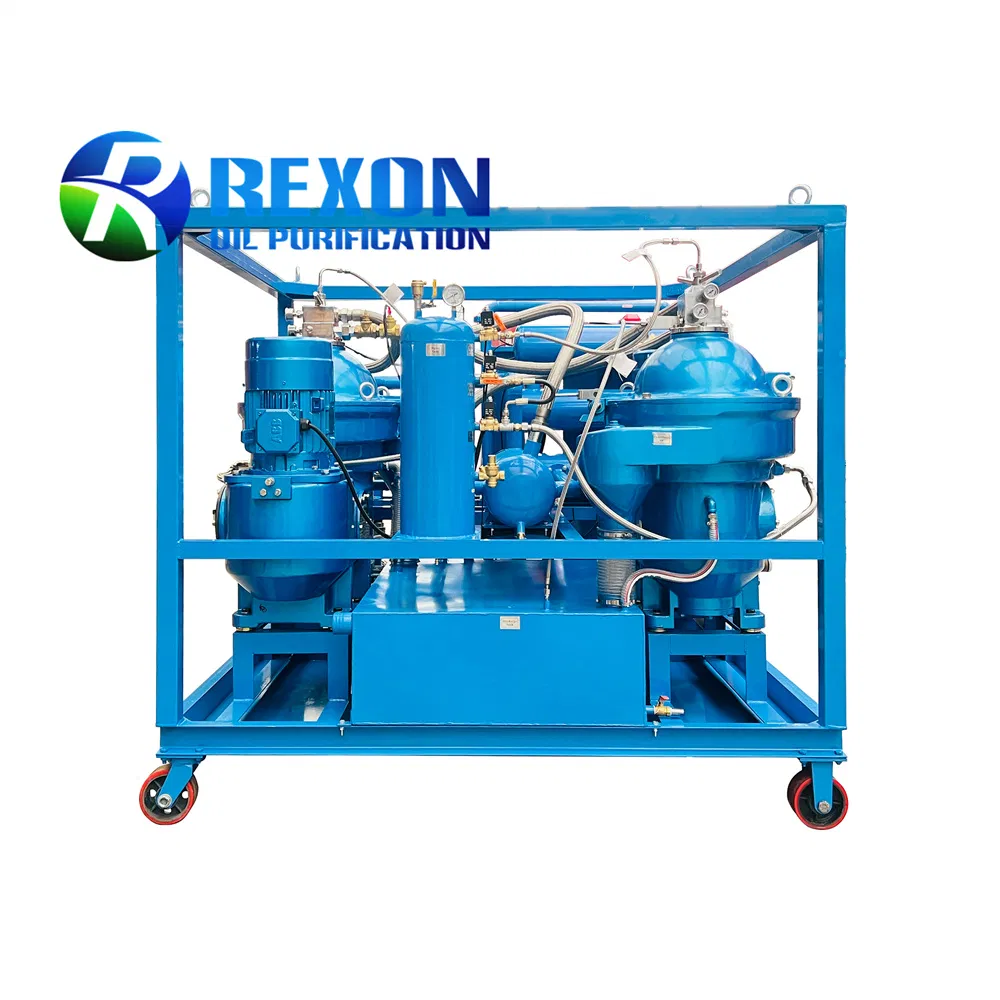

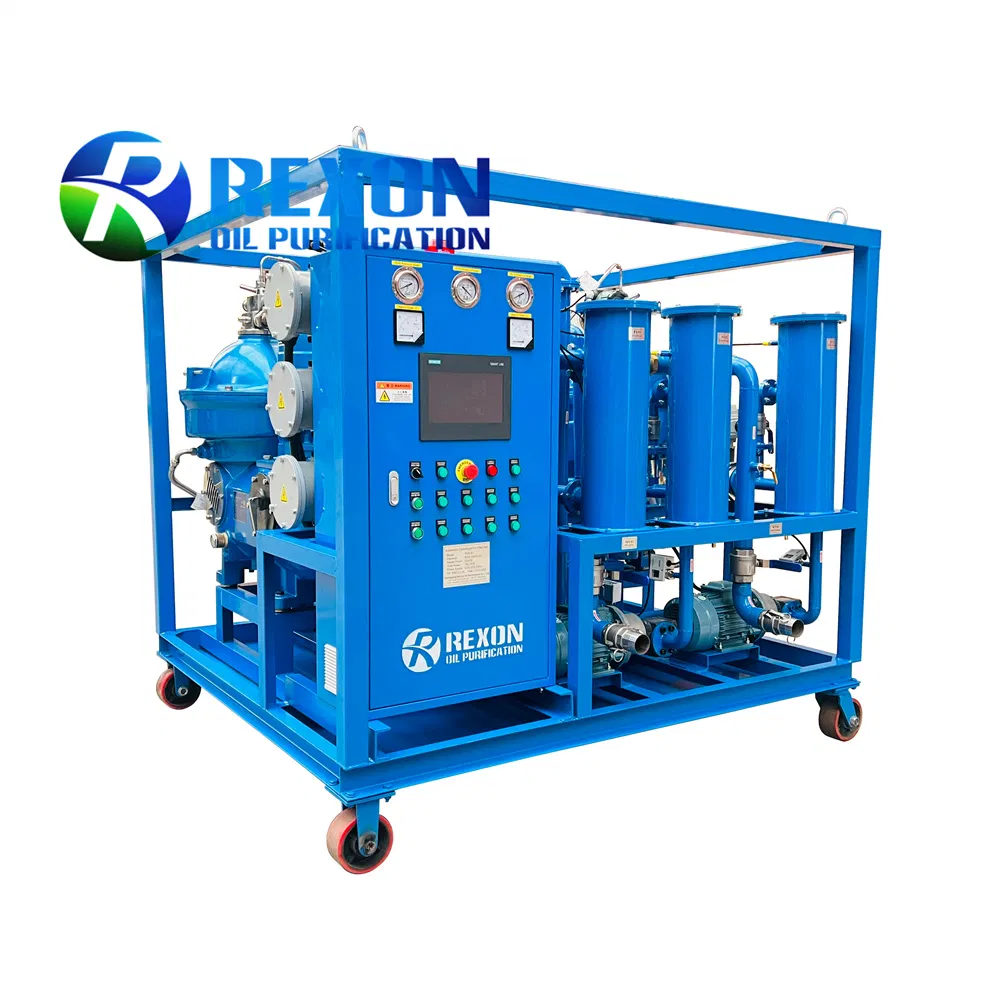

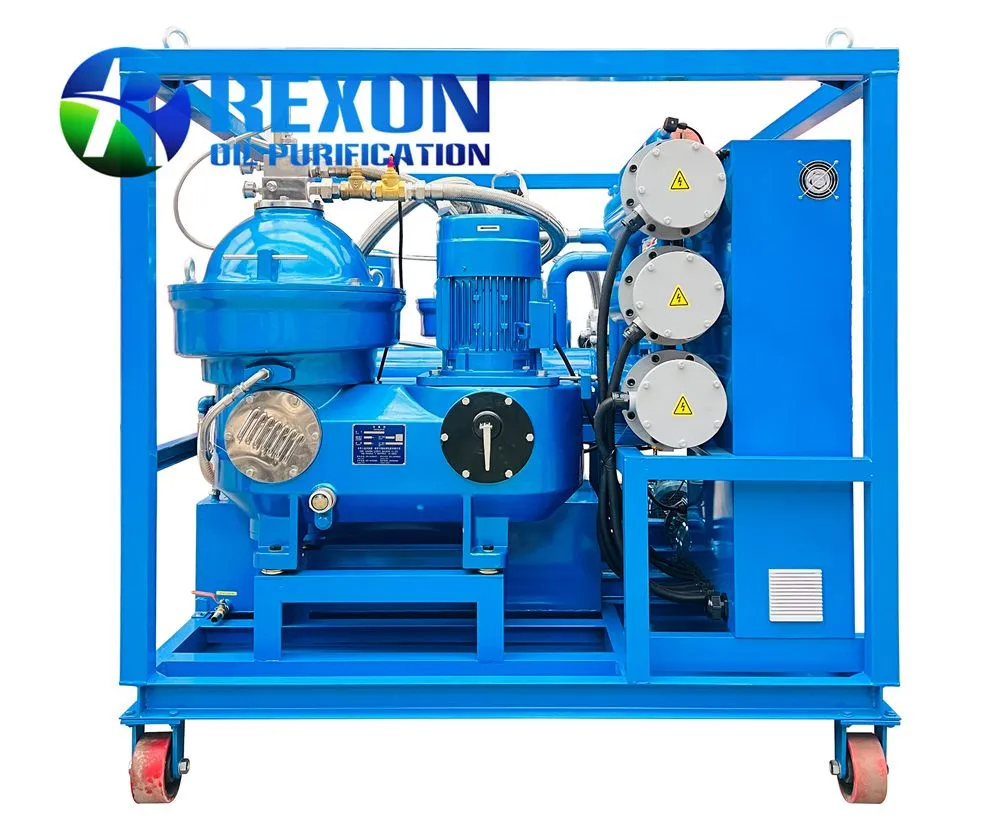

Centrifugal Oil Filtration Equipment, Centrifugal Oil Recycling System (8000LPH)

Centrifugal oil purifiers are extensively applied across numerous industrial sectors, particularly in operations requiring continuous oil cleaning, recycling, and maintenance. These systems utilize high-speed centrifugal force to effectively separate solid particles, water, and other contaminants from various types of oils, such as diesel, lubricating oil, hydraulic oil, and waste oil. This process ensures that the oil remains clean and within operational parameters, significantly extending the lifespan of both the oil and the machinery it services.

Key Advantages & Applications

High-efficiency filtration: Removes fine particles and moisture with high precision.
Cost savings: Avoids frequent oil changes and reduces consumable costs.
Extended equipment life: Minimizes mechanical wear and maintenance frequency.
Environmentally friendly: Supports oil recycling and reduces waste emissions.
Automated operation: Systems monitor oil quality and discharge sludge automatically.

Industrial Machinery Metallurgy Shipping Marine Engineering Rail Transportation Power Generation

Technical Parameters

Models	3T	6T	8T	10T
Processing Capacity (m³/h)	3	6	8	10
Sludge Discharge Modes	Manual Discharge Mode or Automatic Discharge Mode
Drum speed (r/min)	8300
Working Temperature (ºC)	20~80
Moisture after Processing (ppm)	≤100
Oil Cleanliness (NAS)	≤6 Grade

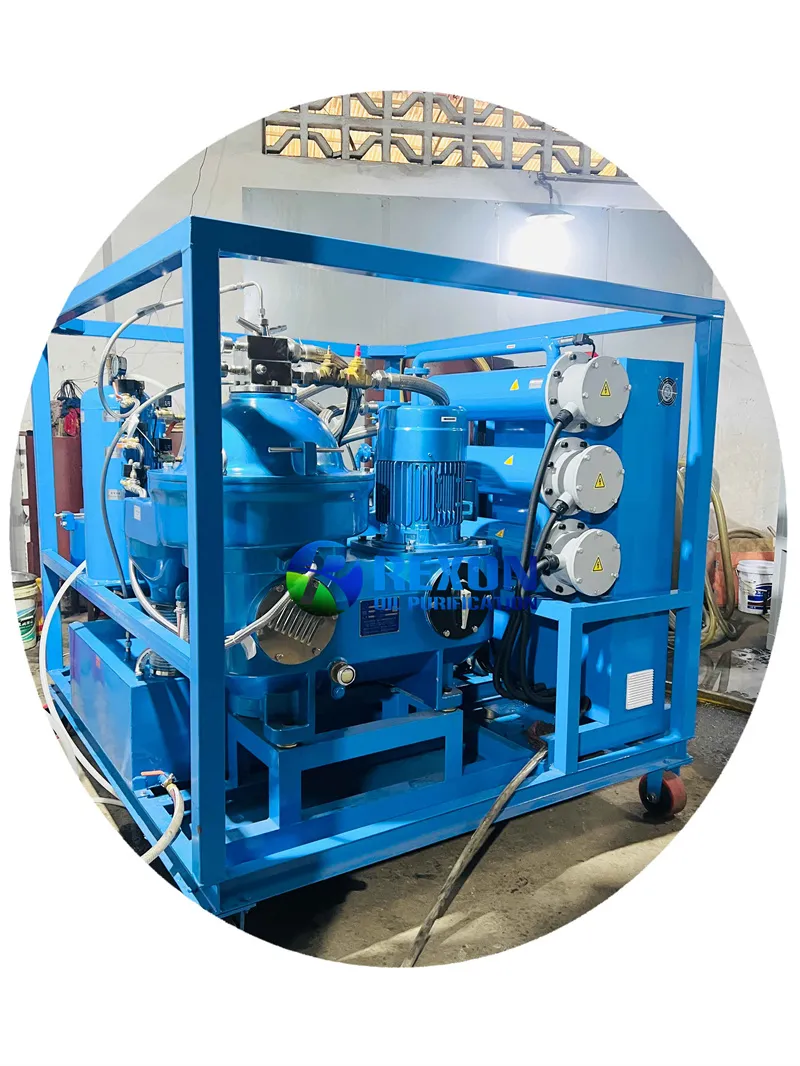

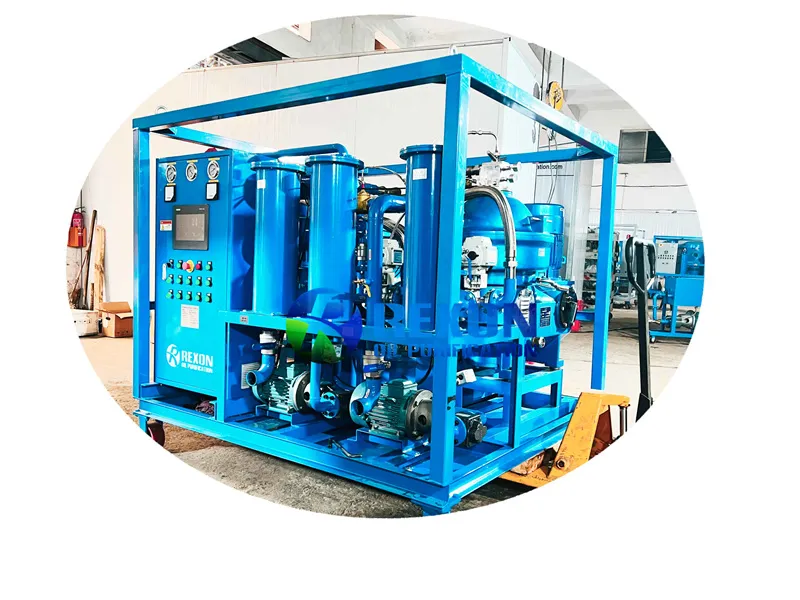

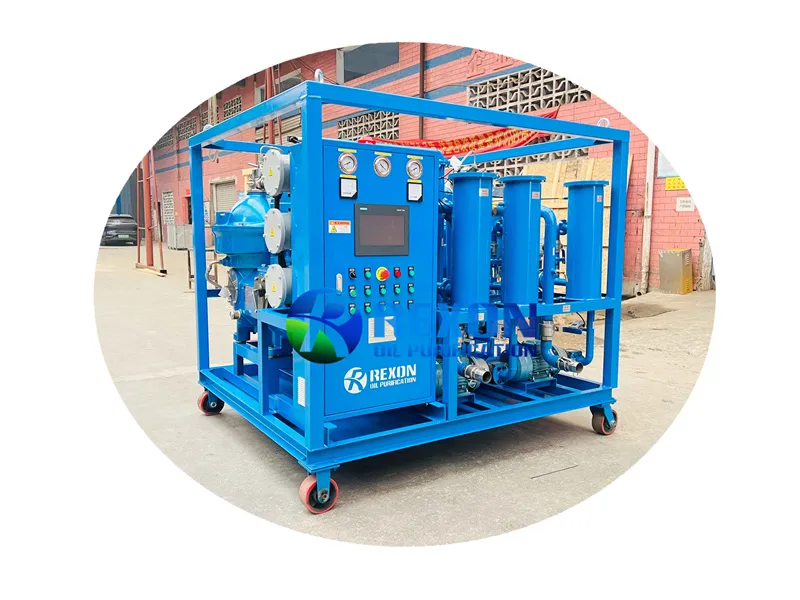

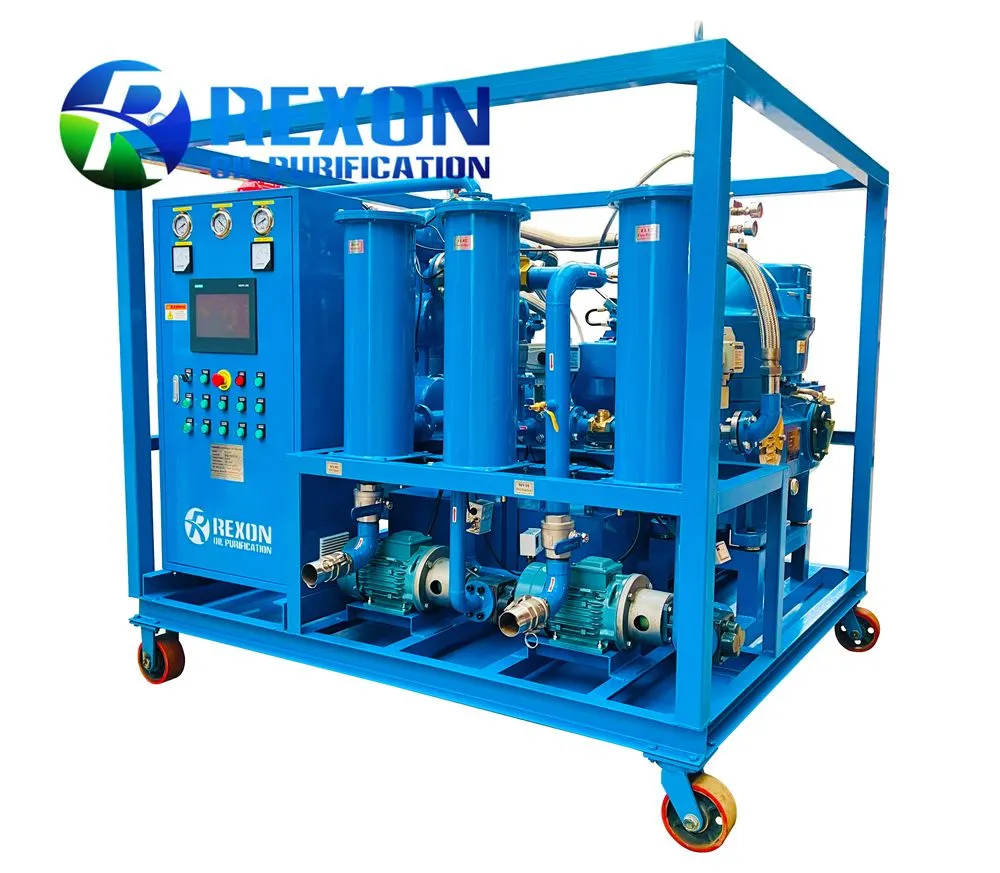

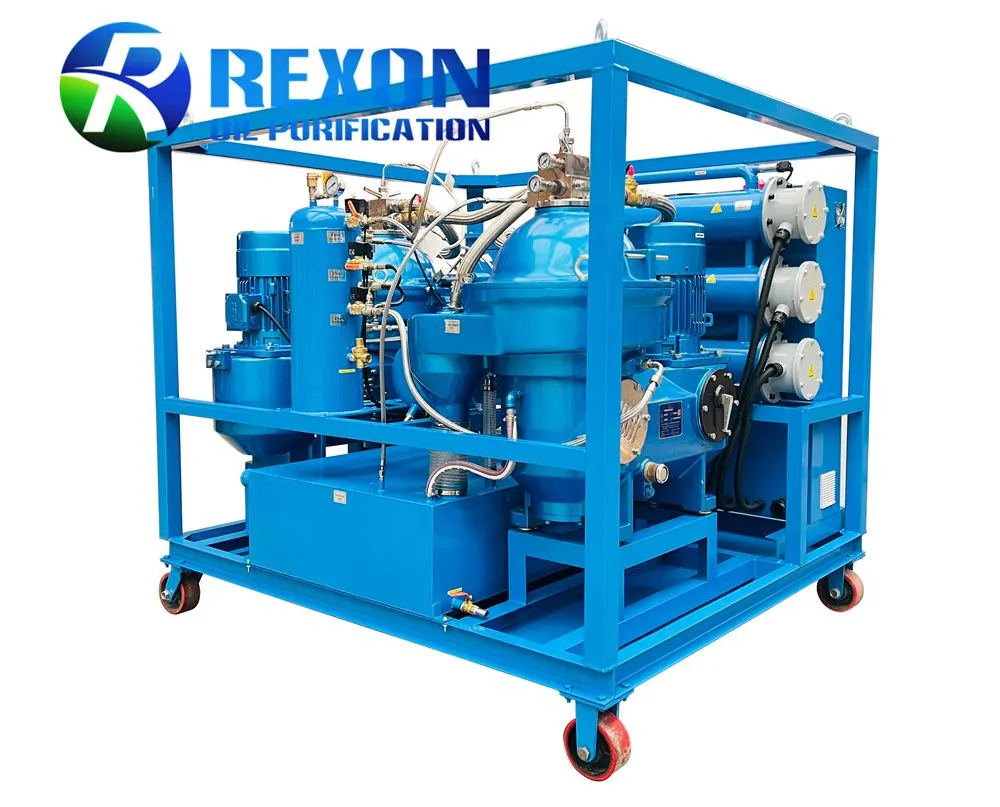

Equipment Series & Onsite Processing

Packaging & Service

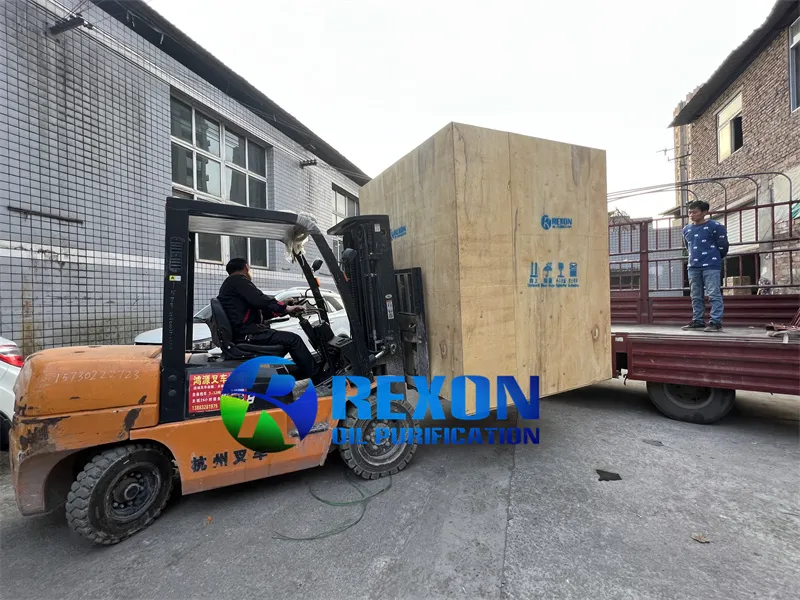

Export Standard Plywood Case

Professional Technical Support

Frequently Asked Questions

1. What types of industrial oils can this centrifugal purifier treat?

The system is designed for a wide range of oils including heavy fuel oil, diesel, lubricating oil, hydraulic oil, turbine oil, and gear oil. It is especially effective for oils with high sludge and water content.

2. How does the centrifugal separation process differ from traditional filters?

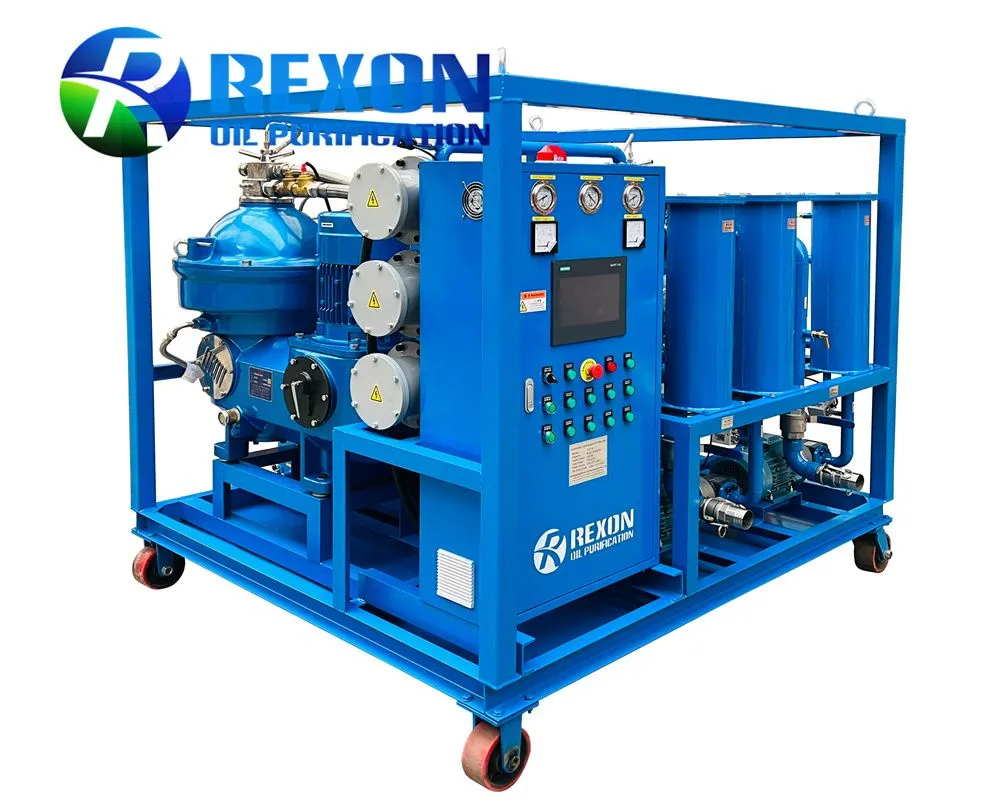

Unlike traditional filters that use consumables, centrifugal separation uses high-speed rotation (8300 r/min) to separate contaminants based on density differences. This eliminates the need for frequent filter replacements and handles large volumes of water and sludge efficiently.

3. Is the sludge discharge process automated?

Yes, the equipment can be equipped with an automatic slagging device. This system automatically discharges sludge and impurities online, reducing manual labor and ensuring continuous operation.

4. Can this machine remove dissolved water from the oil?

The centrifugal process is excellent at removing free water and moisture down to ≤100 ppm. For deep dehydration and removal of dissolved water (down to 15-30 ppm), we recommend using a vacuum oil dehydration series following the centrifugal treatment.

5. What is the typical lifespan and maintenance required for this system?

Due to the absence of filter media, maintenance is significantly lower than conventional systems. The robust design and stainless steel components ensure a long service life. We provide lifetime technical support and a two-year guarantee.

6. Is the equipment energy efficient for large-scale operations?

Yes, for larger models, we incorporate heat recovery devices. This system uses hot output oil to pre-warm incoming cold oil, increasing heating efficiency by 50% or more and reducing the overall electrical load.
