Basic Specifications
Separation Mode
Centrifugal
Operating Type
Continuous Type
Centrifuge Type
Disc Centrifuge
Product Description
Craft beer clarifier series provide isolated air separation and clarifying, meanwhile keeping high yeast capacity activity with no oxidation, not only meet the latest standard, but also improve production and reduce costs.

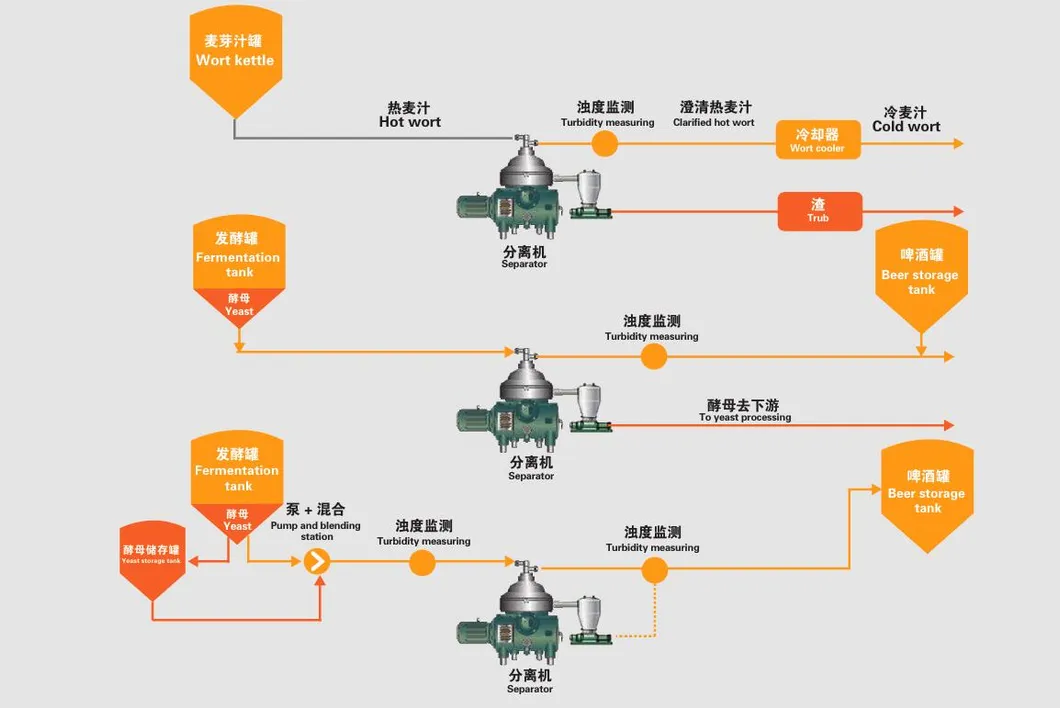

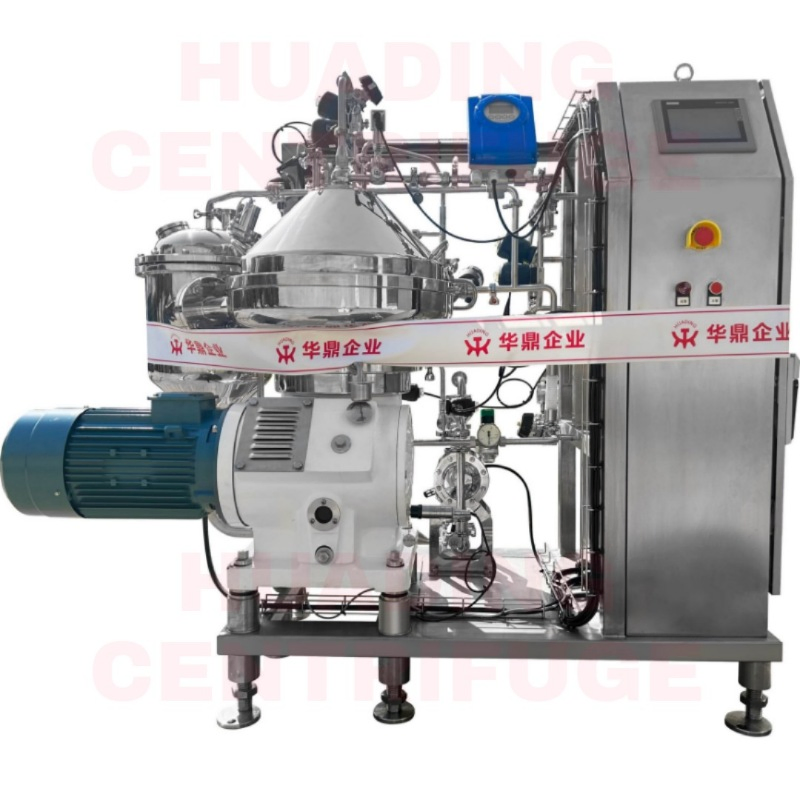

Brewing is a blend of art and science technology in one process. As trends in beer are rapid changes, people are demanding when it comes to new flavors, colors and types. The craft beer clarifier skid is used in clarifying solutions of beer process, with the features of high quality, easy operation, high efficiency and easy maintenance.
🚀 User Benefits
- Continuous production compared with traditional filtration and settling methods, reducing processing time and improving yields.
- Control TSS level in the clarified beer, allowing direct bottling.
- Minimal loss of flavor or taste, achieving longer product shelf life.
- Low temperature maintained throughout the process.
- Long service life and low cost by the use of frequency drive.
- Return on investment in a short period of time.
⚙️ Separator Features
- Inert gas seal system: Minimized oxygen into products that have been clarified.
- Monitoring system: Automatic piping outlet turbidity monitoring and total suspended solids control.
- Control system: Monitor all functions with self-adjustment to keep running settings, ensuring accessibility and safe operation.
- Self-recirculating seal device: Developed inert gas system that isolates oxygen to ensure oxygen after separation is no more than 10ppb.
- GMP standard: Each stainless steel pipeline is manufactured to meet sanitary standards; clarifier is self-cleaning.
- CIP on line: Effectively clean the equipment, save resources and reduce labor.
📊 Model List & Technical Data
| Model |
BRSX20 |
BRSX40 |
BRSX80 |
BRSX95 |
BRSX125 |
BRSX250 |
| Hydraulic capacity |
6000L/H |
10,000L/H |
20,000L/H |
25,000L/H |
35,000L/H |
50,000L/H |
| Capacity |
300-1500L/H |
1200-3500L/H |
2500-7500L/H |
3,000-10,000L/H |
3,500-13,000L/H |
6,000-16,000L/H |
| Power |
5.5KW |
11KW |
15KW |
18.5KW |
22KW |
37KW |
| Dimension (mm) |
950*950*1250 |
1500*1100*1500 |
1772*1473*1855 |
1772*1500*1855 |
1800*1500*1855 |
2100*1700*2350 |
| Weight |
~980KG |
~1560KG |
~2780KG |
~3160KG |
~3850KG |
~4230KG |
Frequently Asked Questions
What is the primary function of the PTSX Disc Centrifuge?
The PTSX model is specifically designed for the clarification of beverages, particularly craft beer, by effectively separating yeast and solids while preventing oxidation.
How does the system prevent oxygen from entering the product?
It utilizes a specialized inert gas seal system that isolates the product from the air, ensuring that oxygen levels after separation remain below 10ppb.
What materials are used in the construction of the centrifuge?
The equipment is built using high-grade sanitary materials, including SS304, SS316L, and 2205 duplex stainless steel, to meet strict food and beverage industry standards.
Is the equipment easy to clean?
Yes, the system supports CIP (Clean-In-Place) on-line, meaning it is self-cleaning and does not require dismantling for routine maintenance, which reduces labor costs.
What kind of control system does the centrifuge use?
The system is equipped with a Siemens HMI and an automatic monitoring system that controls turbidity and total suspended solids for consistent output quality.
What are the power requirements for the different models?
Power requirements range from 5.5KW for the BRSX20 model up to 37KW for the high-capacity BRSX250 model, depending on your production needs.
