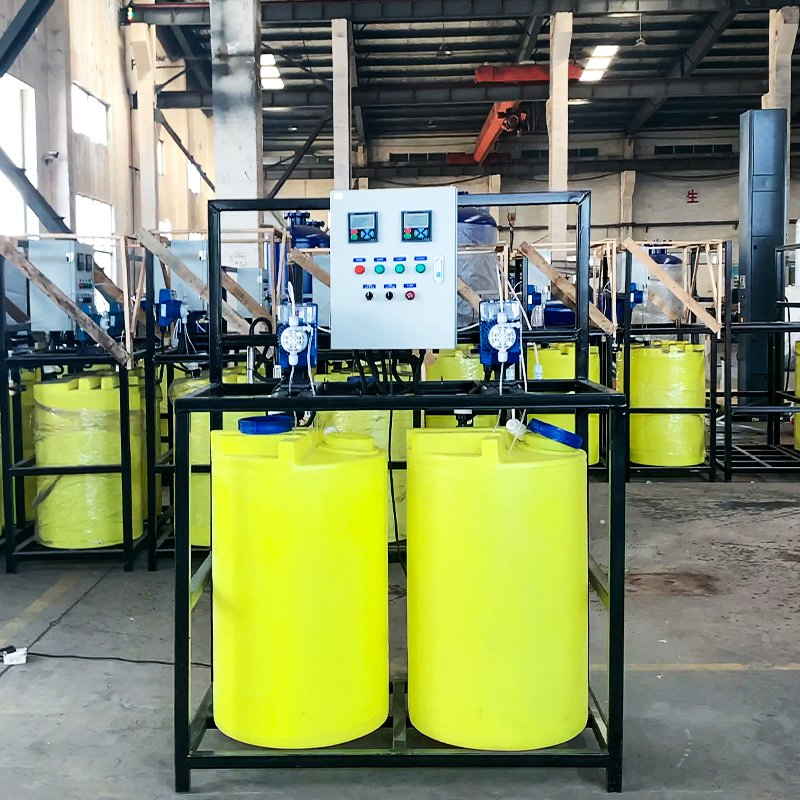

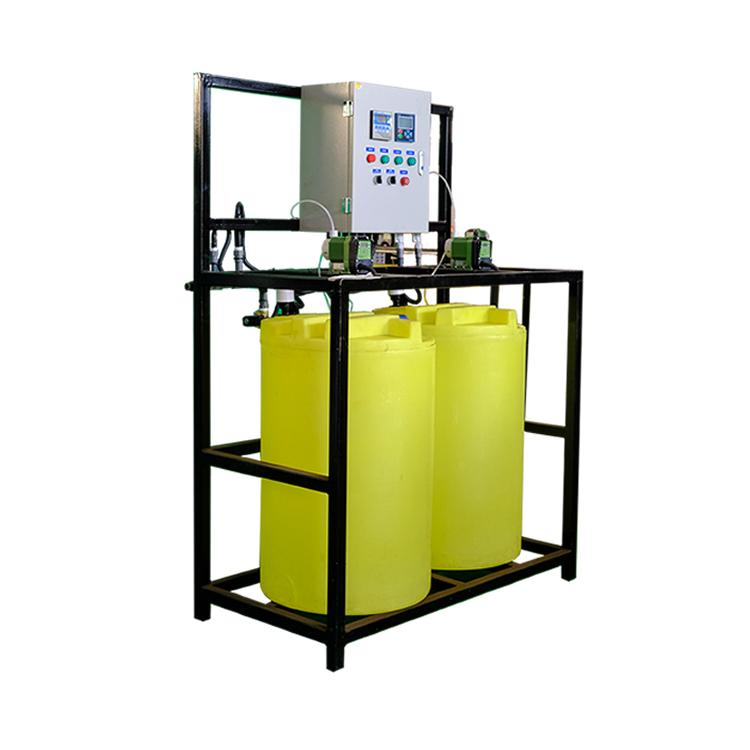

Chemical Delivery and Mixing Systems for Dosing Equipment and PE Tanks for Global B2B Procurement

Customization:	Available
Type:	Water Treatment
Usage:	Environmental Protection, Chemical Industry

Basic Information

Model NO.

YTZDJ

Motive Force

Electric power

Style

Vertical

Performance

Sophisticated Filters

Certification

CE, ISO9001

Material

PE

Color

Customized

Power

220V/380V/50Hz/60Hz

Pressure

8-20bar

Origin

China

HS Code

8421219990

Capacity

2000 pieces/Month

Product Description

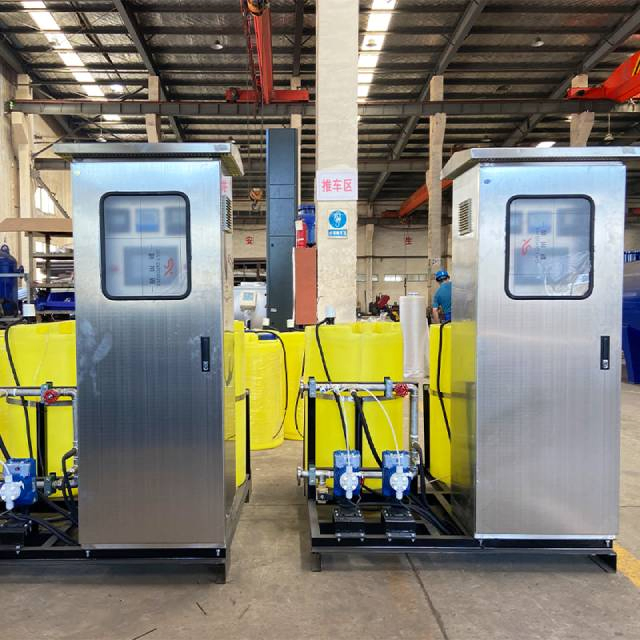

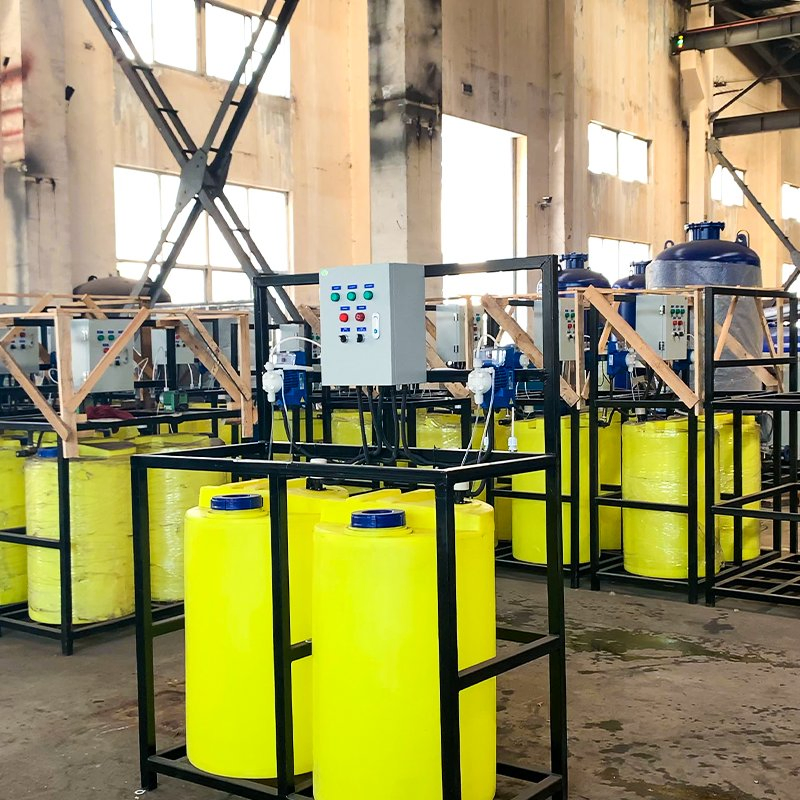

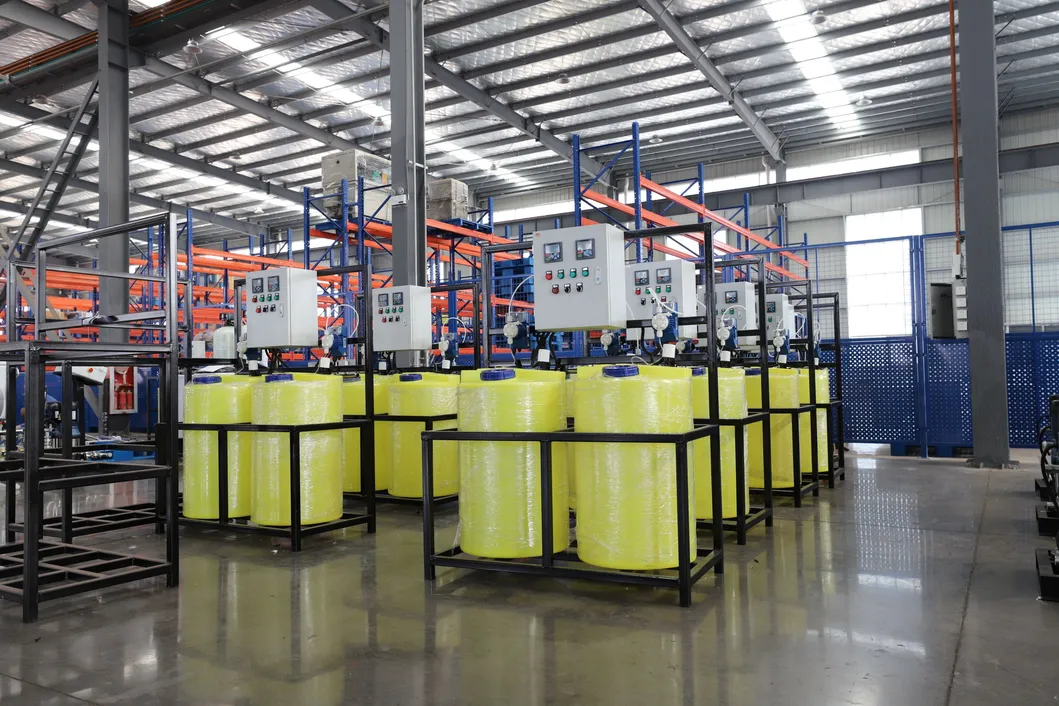

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through the following two control modes:

Time Control Mode: Use the microcomputer time control switch to control the timing opening and closing of the metering pump and the sewage valve.
Indication Control Mode: The change of water quality index controls the real-time opening and closing of metering pump and sewage valve.

Key Elements & Parameters

PLC control and Metering pump
Dosing tank / Chemical tank
On-line monitoring for corrosion rate, PH, turbidity, and ORP (Optional)
Fouling thermal resistance meter, mixer, PLC, GPRS (Optional)

Name	Type	Dimensions(mm)	Inlet/Outlet Diameter
Single Pump Single Barrel (Time Control)	YTZDJ-2000D	6406701650	DN25
Single Pump Single Barrel (With Conductivity/PH)	YTZDJ-2000DP	6406701900	DN25
Double Pumps Double Barrels (Time Control)	YTZDJ-2000S	67012601650	DN25
Double Pumps Double Barrels (With Conductivity/PH)	YTZDJ-2000SP	67012601900	DN25

Functions & Benefits

Core Features

Accurate measurement and arbitrary chemical proportions.
High automation, simple operation, and low energy consumption.
Safe and reliable with strong acid and alkali resistance.
Remote control integration capabilities.

System Benefits

Protection from freshwater/seawater corrosion.
Prevention of incrustation in condensers and heat exchangers.
Biodegradable and environmentally friendly.
Power and water-saving without wastewater burden.

Applications

• Industrial Air Conditioning & Boiler Water: Injecting corrosion and scale inhibitors.

• Textile Printing & Dyeing Industry: Adding chelating agents and oxygen bleach stabilizers.

• Water Treatment System: Adding chemicals to tapping water, waste water, and sewage systems.

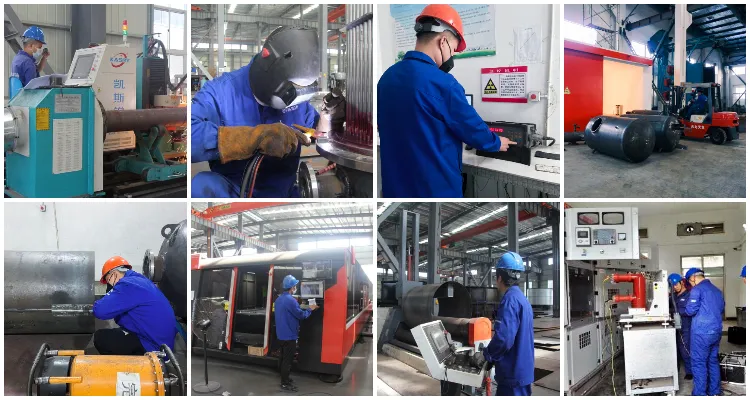

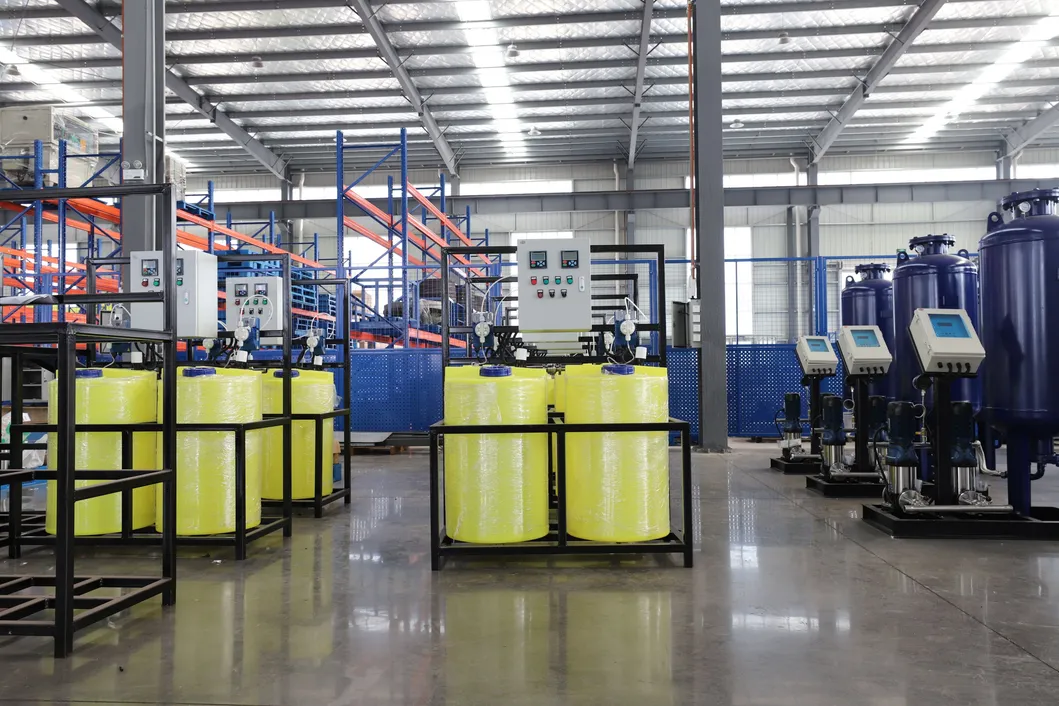

Production Capability

The tradition began in 2005. It is a comprehensive enterprise integrating R&D, design, production and sales. Leading the field of HVAC circulating water equipment for over 17 years, we provide world-class solutions to renowned customers. Utilizing advanced mechanical equipment and cutting-edge technical facilities, we have become one of the leading suppliers of filters, constant pressure water supply equipment, and dosing equipment.
