Chemical Powder Chemical Mixing System Chemical Feeding System

1 / 5

Chemical Powder Chemical Mixing System Chemical Feeding System

Customization:	Available
Type:	Water Treatment
Usage:	Environmental Protection, Chemical Industry

Send Inquiry

Product Description

Overview

Model NO.

YTZDJ

Motive Force

Electric power

Style

Vertical

Performance

Sophisticated Filters

Certification

CE, ISO9001

Material

Color

Customized Color

Power

220V/380V/50Hz/60Hz

Pressure

8-20bar

Package

Wooden Cases

Origin

China

HS Code

8421219990

Product Description

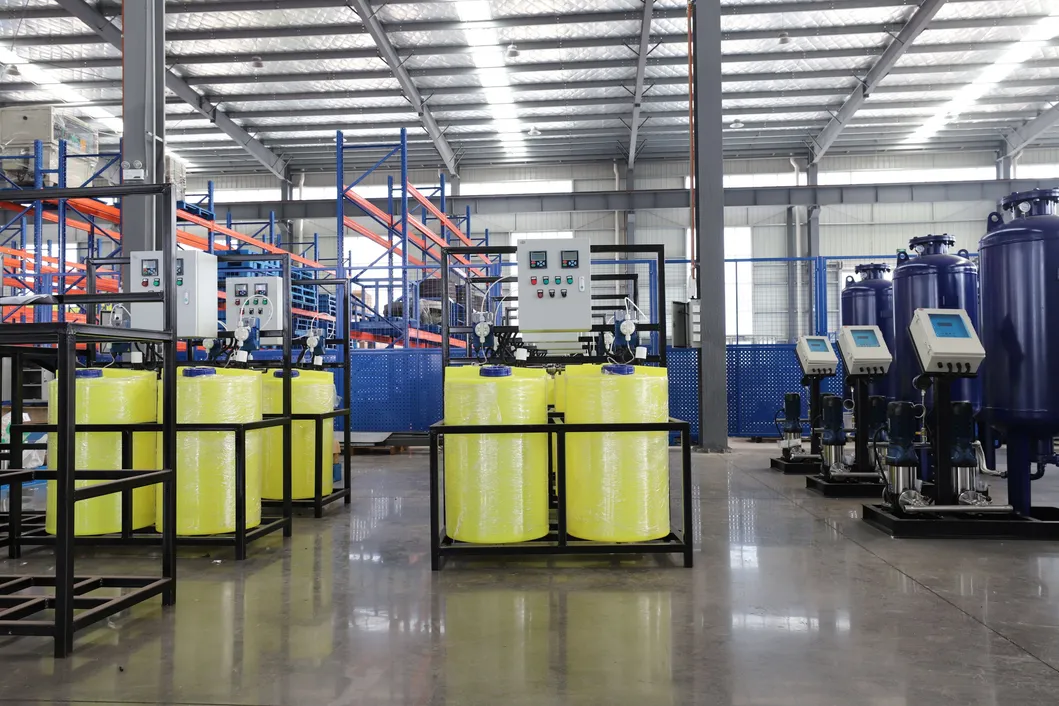

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It achieves automated precision through time control and real-time quality indication modes.

Technical Specifications

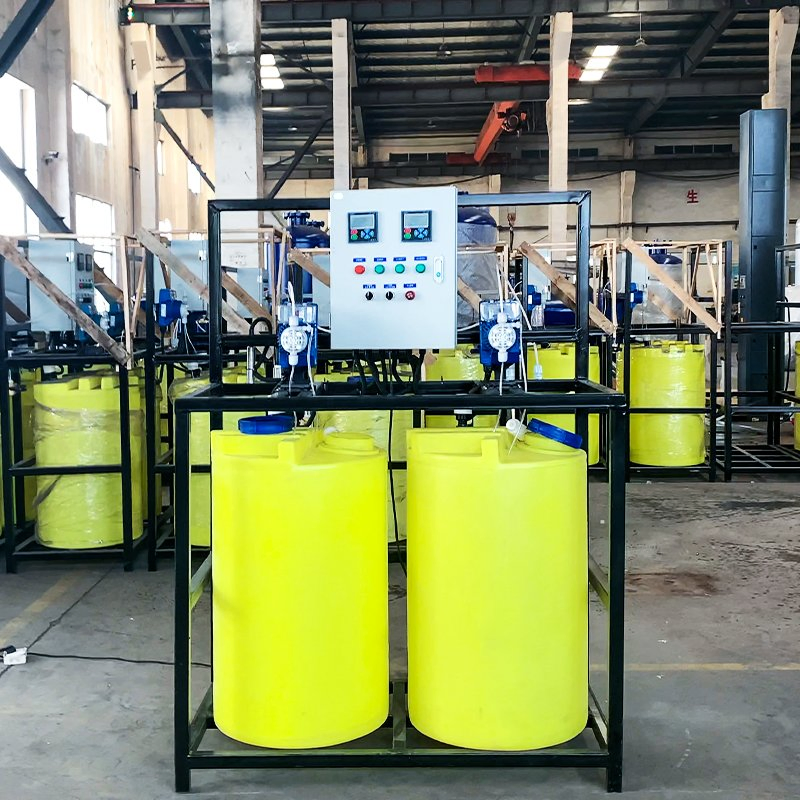

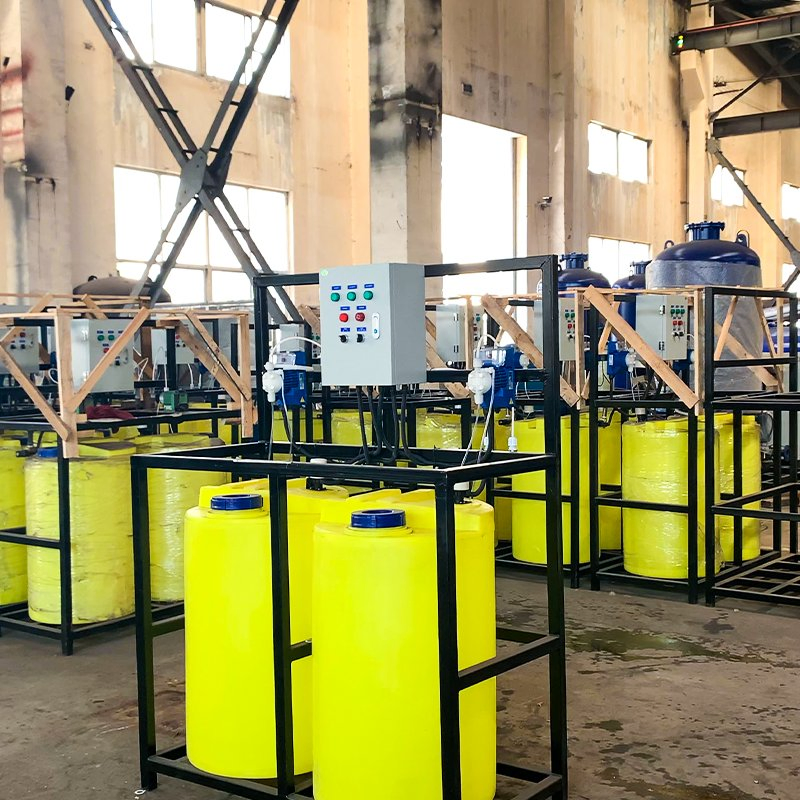

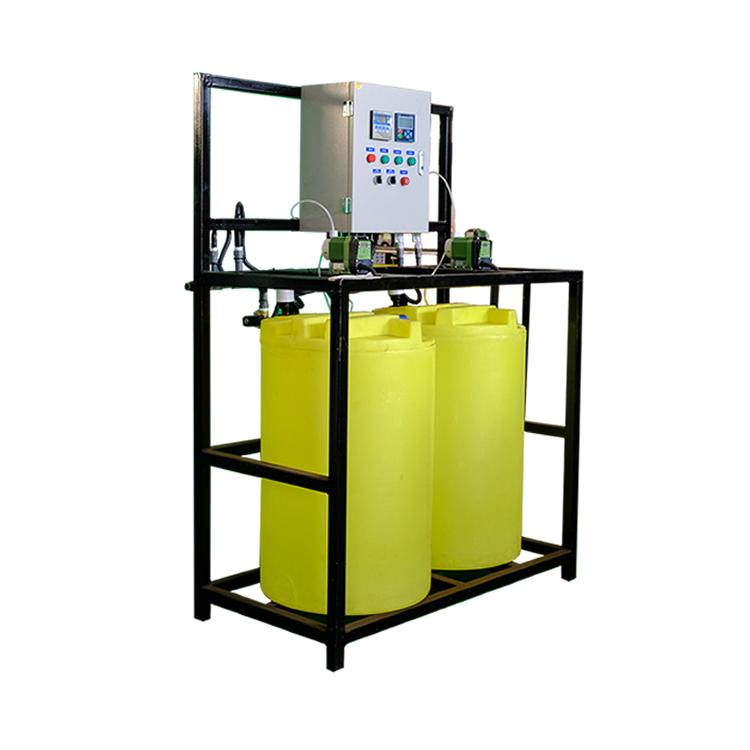

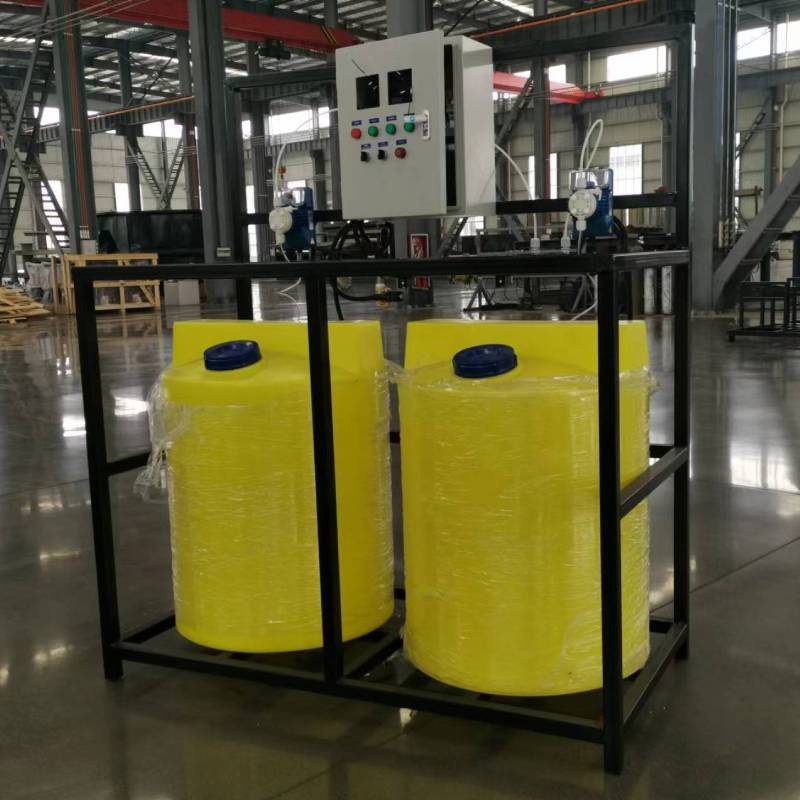

Key Elements

PLC Control System
Precision Metering Pump
Dosing Tank / Chemical Tank
On-line monitoring for corrosion rate (Optional)
On-line monitoring for PH/ORP/Turbidity (Optional)

Product Features

Accurate chemical measurement and proportioning
High automation with low energy consumption
Simplified installation and maintenance
Strong corrosion and acid/alkali resistance
Remote control and computer integration ready

Parameters Table

Name	Type	Dimensions(mm)	Import/Outlet Diameter
Single Pump Single Barrel (Time Control)	YTZDJ-2000D	6406701650	DN25
Single Pump Single Barrel (With Conductivity/PH)	YTZDJ-2000DP	6406701900	DN25
Double Pumps Double Barrels (Time Control)	YTZDJ-2000S	67012601650	DN25
Double Pumps Double Barrels (With Conductivity/PH)	YTZDJ-2000SP	67012601900	DN25

Functions and Benefits

Effective protection from freshwater/seawater corrosion.

Prevents incrustation in condensers and heat exchangers.

Inhibits biological membrane and organism formation.

Biodegradable and environmentally friendly chemical compatibility.

Applications

Industrial Circulating Water: Boiler water, cooling towers, and injection of corrosion/scale inhibitors.

Textile Industry: Printing and dyeing, adding chelating agents and bleach stabilizers.

Water Treatment Systems: Tapping water, waste water, and sewage system chemical dosing.

Production & Quality

A comprehensive enterprise integrating R&D, design, production, and sales. Leading the field of HVAC circulating water equipment for over 17 years, we provide world-class solutions using advanced mechanical equipment and cutting-edge technical facilities. We specialize in filters, constant pressure water supply equipment, and dosing systems.
