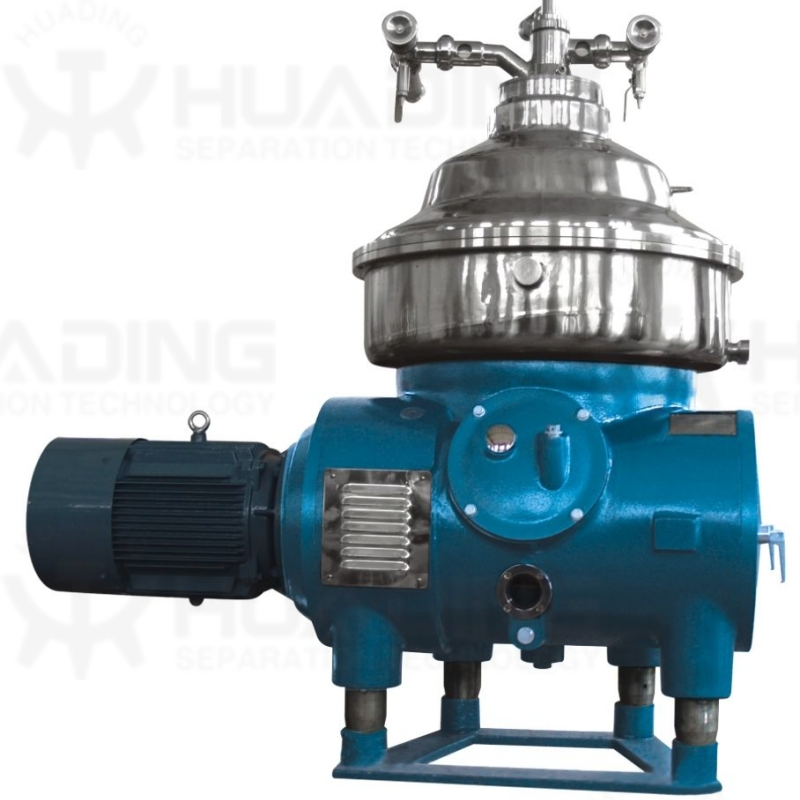

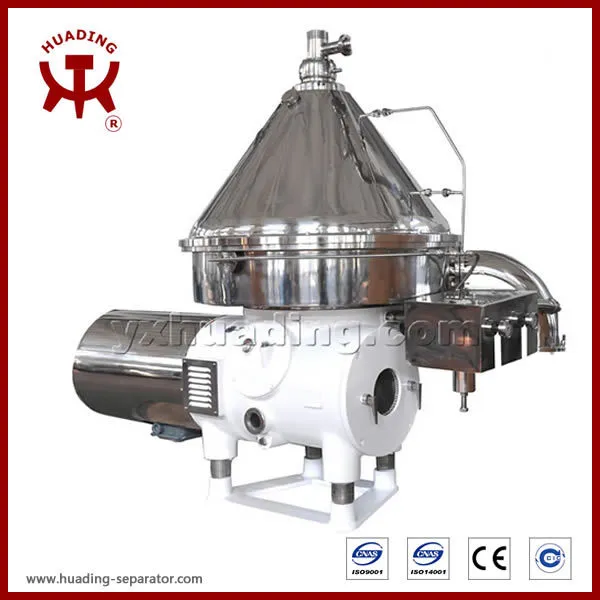

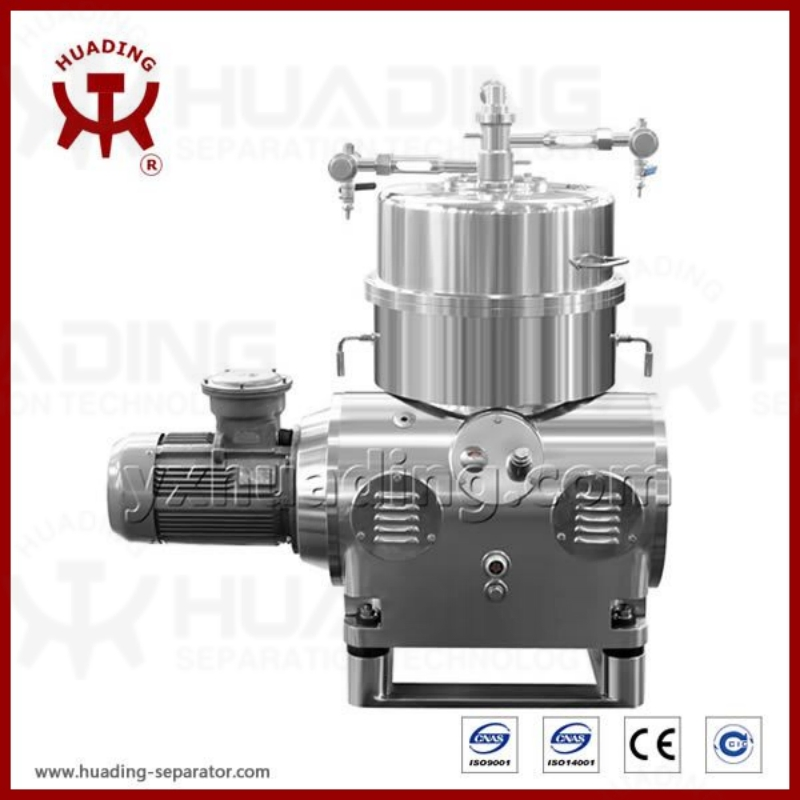

Efficient Disc Centrifuge System for Antibiotic Purification Needs

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.:BTSX

Type:Centrifuge

Object:Antibiotic

Separation Mode:Centrifugal

Operating Type:Continuous Type

Installation:Vertical

Centrifuge Type:Disc Centrifuge

Pressure:Low Pressure

HMI:Siemens

Material:SS304/316L/2205

HS Code:8421199090

Capacity:500 Sets Per Year

Product Overview

1. INTRODUCTION

The industrial production of chemical, pharmaceutical and biotechnological products places high demands on the process technology used. Mechanical separation technology is gaining importance in these markets because the efficiency of the separation process directly impacts the quality of the end product as well as economy and environmental compatibility.

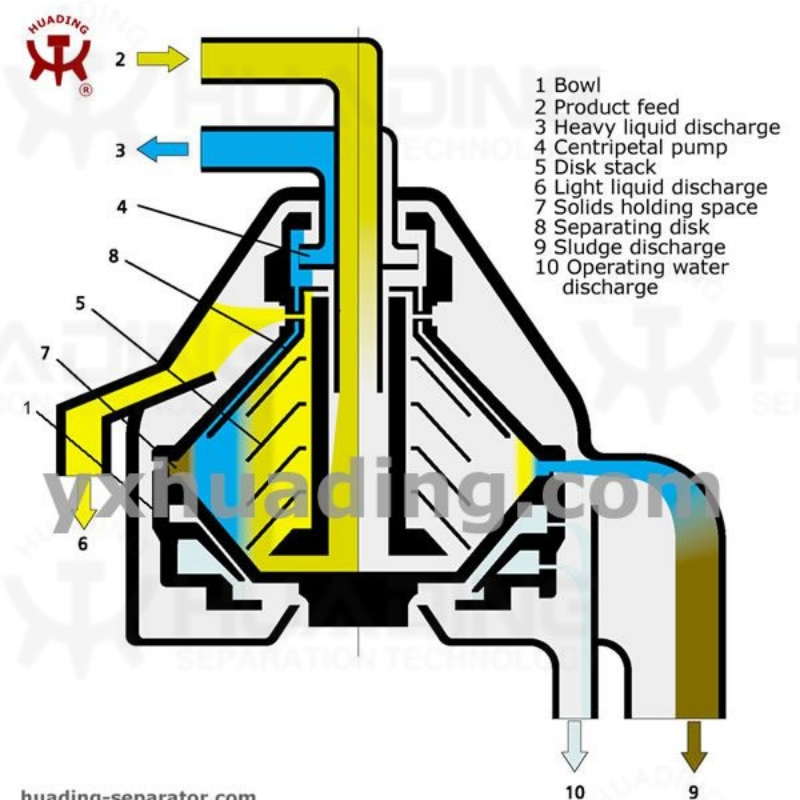

Disc separators are widely used for the separation of microbes and their debris, such as in the treatment of vaccines, amino acids, enzymes, starter cultures, and other fermented products. These systems are designed to separate and purify cell protein, extract material during the production of antibiotics, alkaloids, and hormones, and to separate animal plasma.

2. SPECIFICATIONS

Model	Handling capacity (L/H)	Weight (KG)	Dimension (LWH mm)
BTSX15	400-1000	1100	950X950X1250
BTSX35	1000-3000	1500	1400X1400X1450
BTSX85	3000-70000	1800	1750X1450X1850
BTSX150	14000-30000	3700	1850X1500X1850
BTSX200	20000-40000	4800	2100X1700X2200

3. APPLICATION

Pharmaceutical agents such as vitamins, plant and organ extracts, antibiotics, enzymes, and hormones are extremely sensitive and precious. We offer separators and decanters in gas-tight and explosion-proof designs to ensure gentle extraction. Whether liquid-liquid, liquid-liquid-solid, or liquid-solid, our equipment covers all methods and modes of operation, including co-current, counter-current, or crossflow principles.

Primary Applications:

Alkaloids (Morphine, Caffeine, etc.)

Antibiotics (Penicillin, Erythromycin)

Herbal medicines

Essential oils & Scents

Vitamins

Hormones (Insulin, Steroids)

Organ extracts

Aromatic materials

Frequently Asked Questions

1. What are the primary uses of the BTSX series disc centrifuge?

The BTSX series is designed for the separation of microbes, cell proteins, and the extraction of materials during the production of antibiotics, hormones, and vaccines.

2. What materials are used in the construction of these separators?

The equipment is manufactured using high-quality materials such as Stainless Steel 304, 316L, and 2205 to ensure durability and hygiene in pharmaceutical processes.

3. Does the system support continuous operation?

Yes, the BTSX series is designed as a continuous type centrifuge, allowing for efficient, uninterrupted processing in industrial environments.

4. What is the handling capacity of these centrifuges?

The capacity varies by model, ranging from 400 L/H for the BTSX15 up to 40,000 L/H for the high-capacity BTSX200 model.

5. Can these separators handle sensitive biological agents?

Absolutely. The systems are specifically engineered for gentle extraction, making them ideal for sensitive agents like vitamins, enzymes, and plant extracts.

6. What control system is integrated into the equipment?

The equipment utilizes high-performance Siemens HMI (Human Machine Interface) for precise control and monitoring of the separation process.
