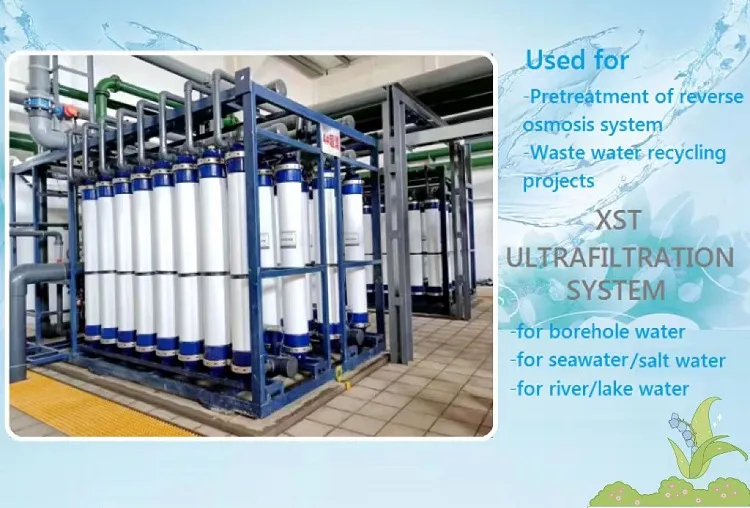

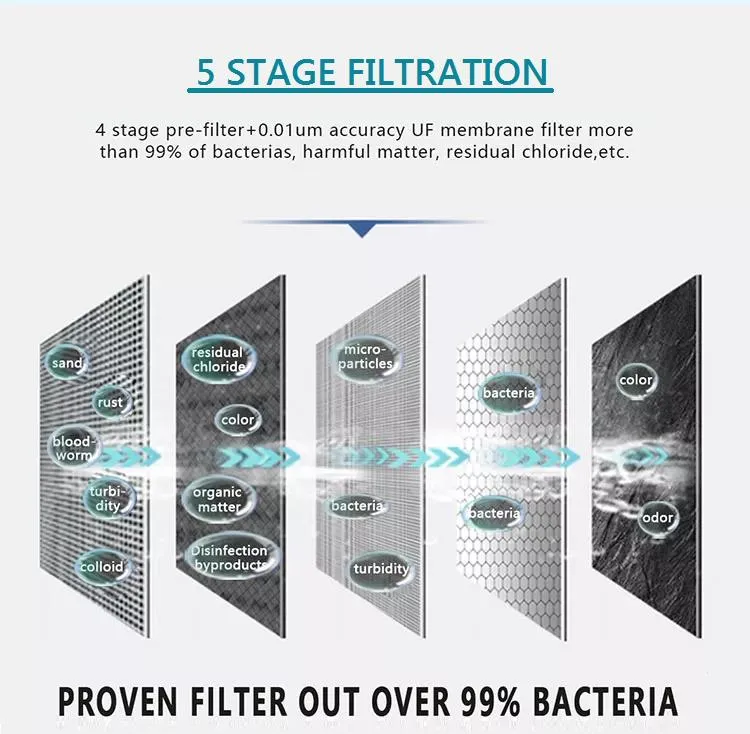

Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for removal of bacteria and other microorganisms, particulate material, and natural organic material.

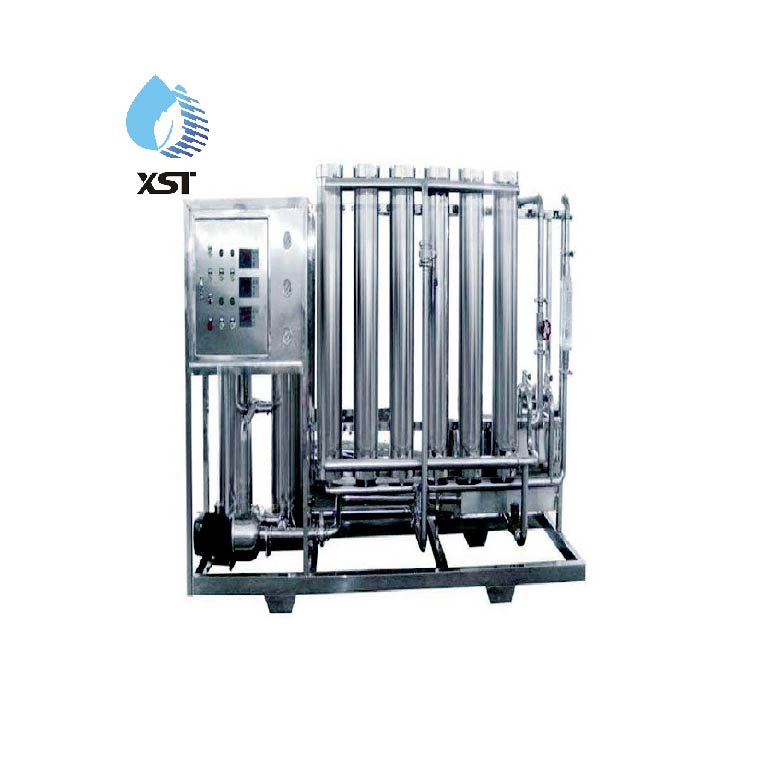

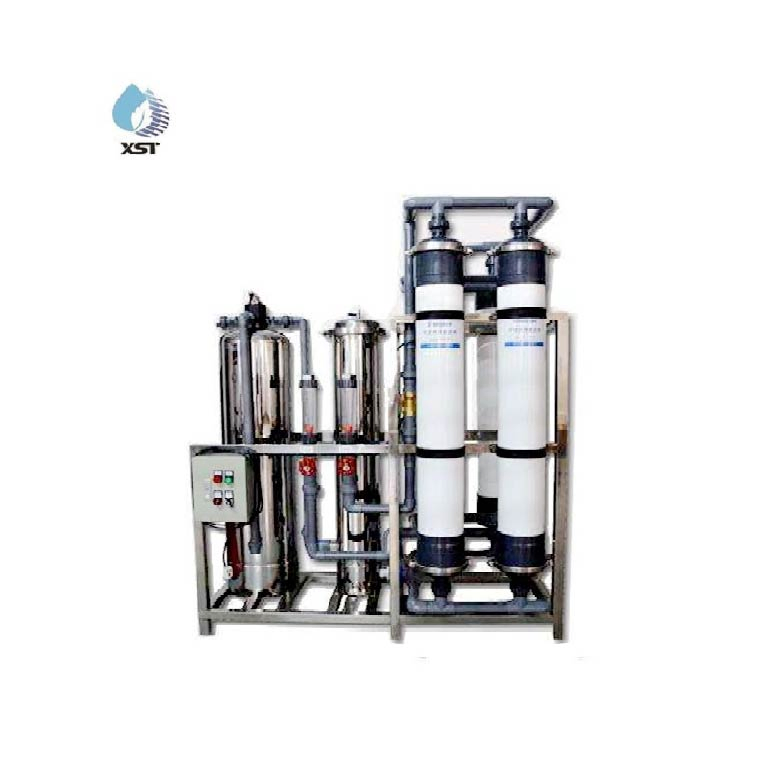

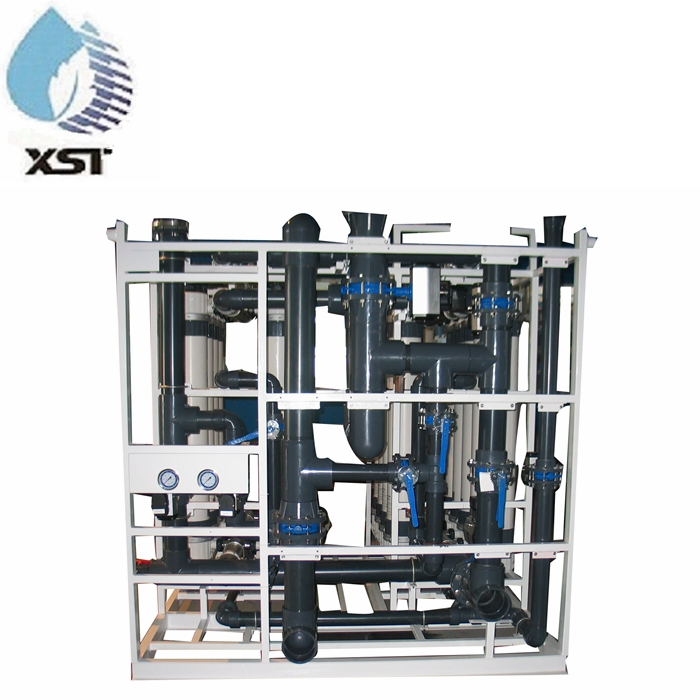

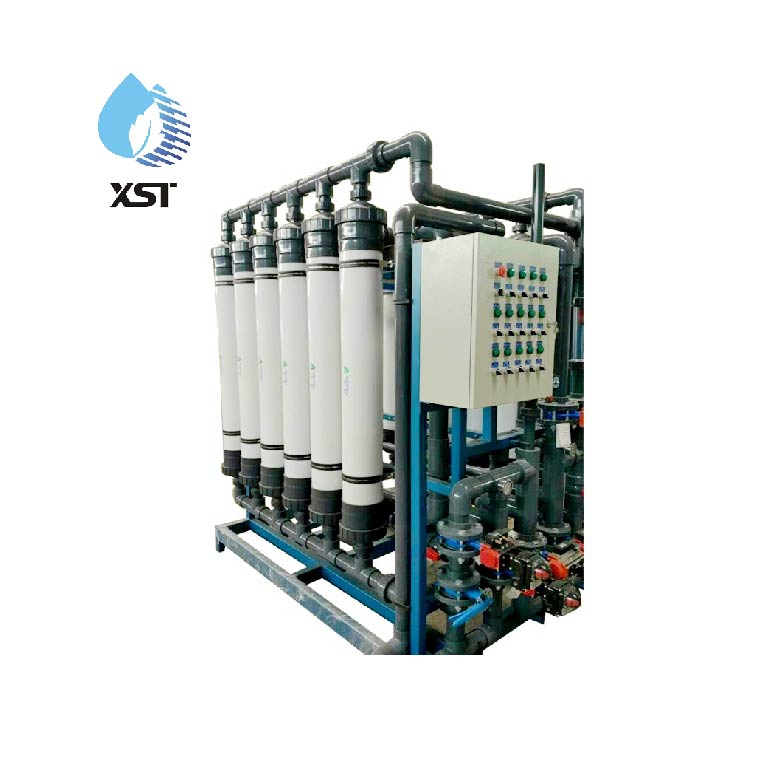

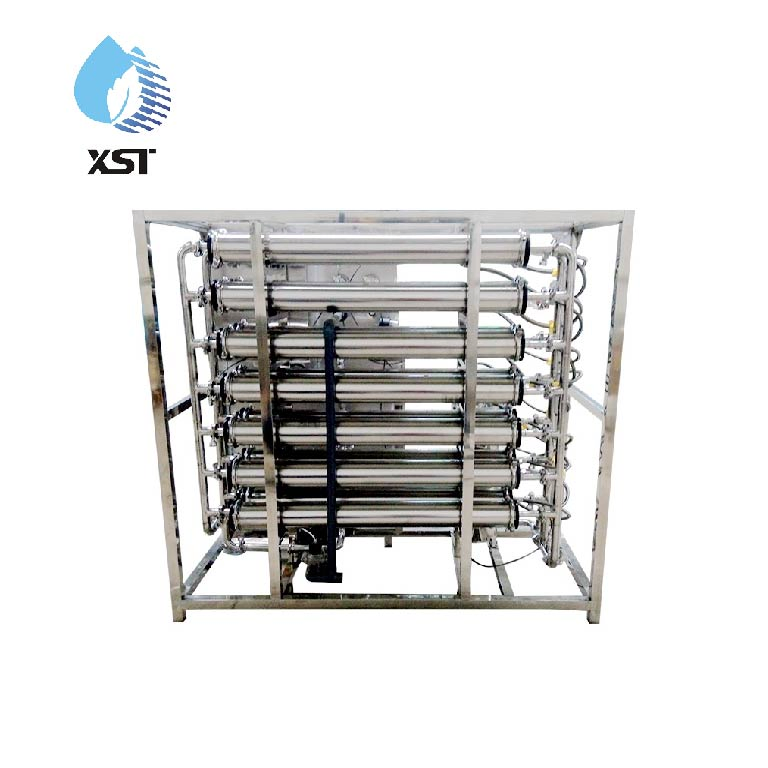

Ultrafiltration (UF) systems use hydrostatic pressure to push solvents against a very fine membrane. They block suspended particulates and large solids while allowing water and solutes with lower molecular weight to flow through. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.
| Model | Capacity (T/H) | Membrane (mm) | Inlet/Outlet | Power (KW) | Size (m) | Weight (KG) |
|---|---|---|---|---|---|---|
| UF-0.5 | 0.5 | 4 | DN20 | 0.55 | 1.0x0.8x1.7 | 200 |
| UF-1 | 1 | 4 | DN20 | 0.55 | 1.0x0.8x1.7 | 220 |
| UF-2 | 2 | 4 | DN25 | 0.75 | 1.0x1.2x1.7 | 250 |
| UF-4 | 3 | 4 | DN40 | 0.75 | 1.5x0.8x1.7 | 350 |
| UF-5 | 4 | 4 | DN40 | 1.1 | 1.5x0.8x1.7 | 375 |
| UF-10 | 10 | 8 | DN50 | 2.2 | 2.2x1.3x2.5 | 620 |
| UF-20 | 20 | 8 | DN80 | 4 | 3.5x1.8x2.5 | 1200 |

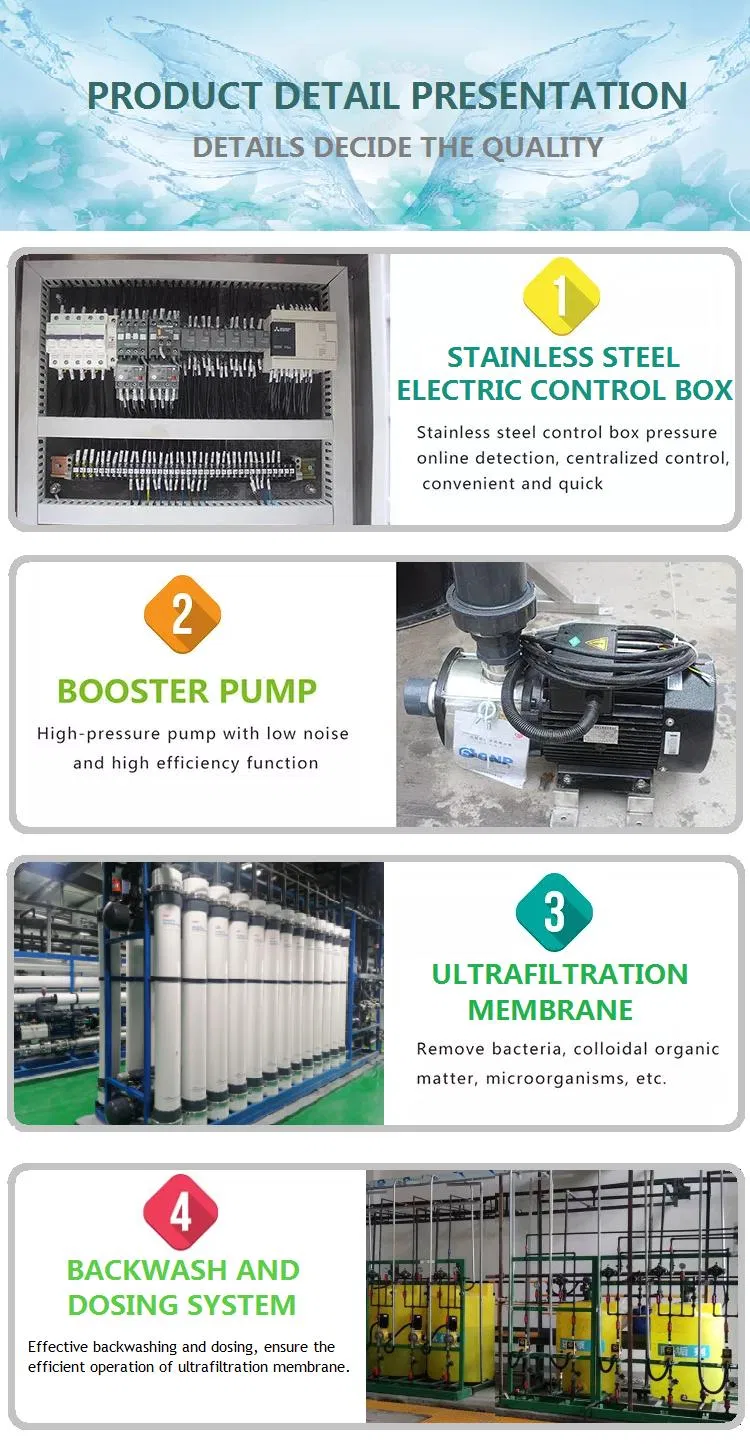

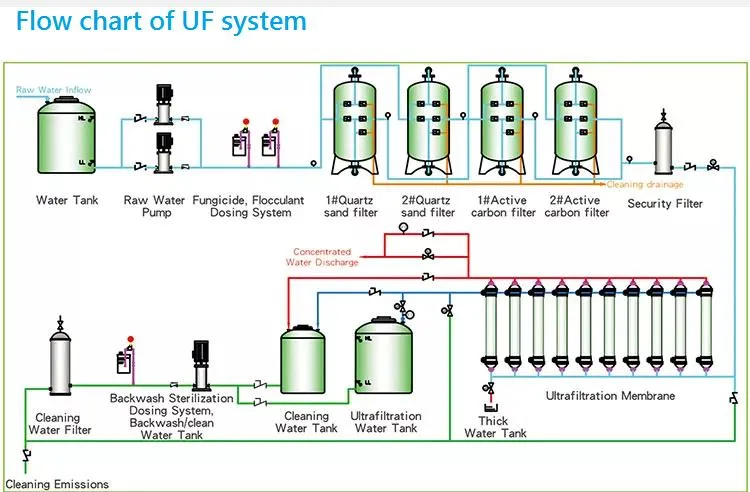

| No. | Process | Application Description |
|---|---|---|
| 1 | Raw water tank | Store water, buffering pressure, ensure to supply water stably and continuously for whole system. |
| 2 | Pumps | High-quality pressure pumps. Chemical dosing uses precision metering pumps for stability. |

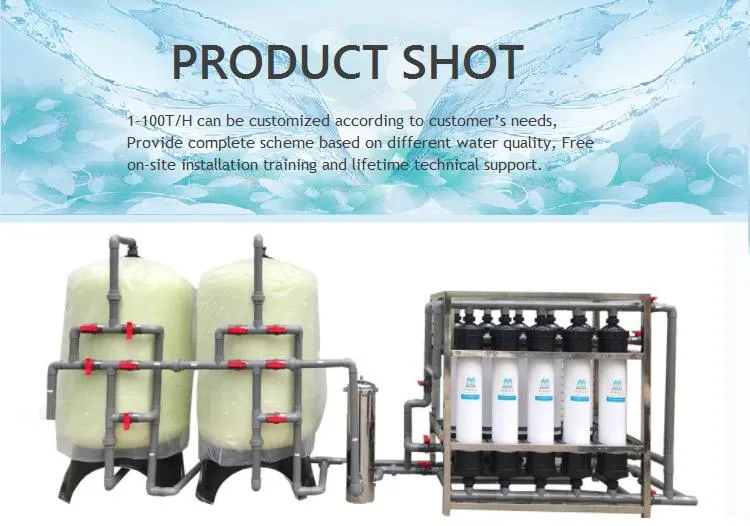

| 3 | Multimedia Filter | Options include FRP, SS304, or SS316. Removes larger particles and sediments. |
| 4 | Security filter | PP filter with 5μm accuracy to prevent large particles and viruses from entering membranes. |

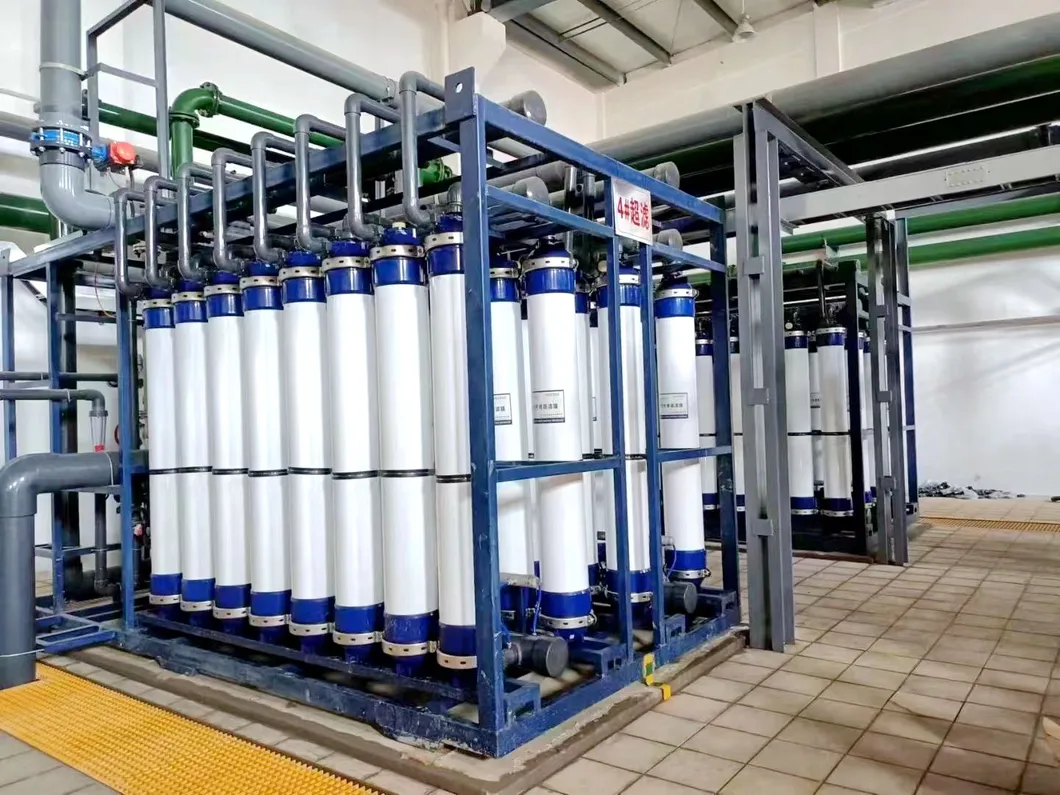

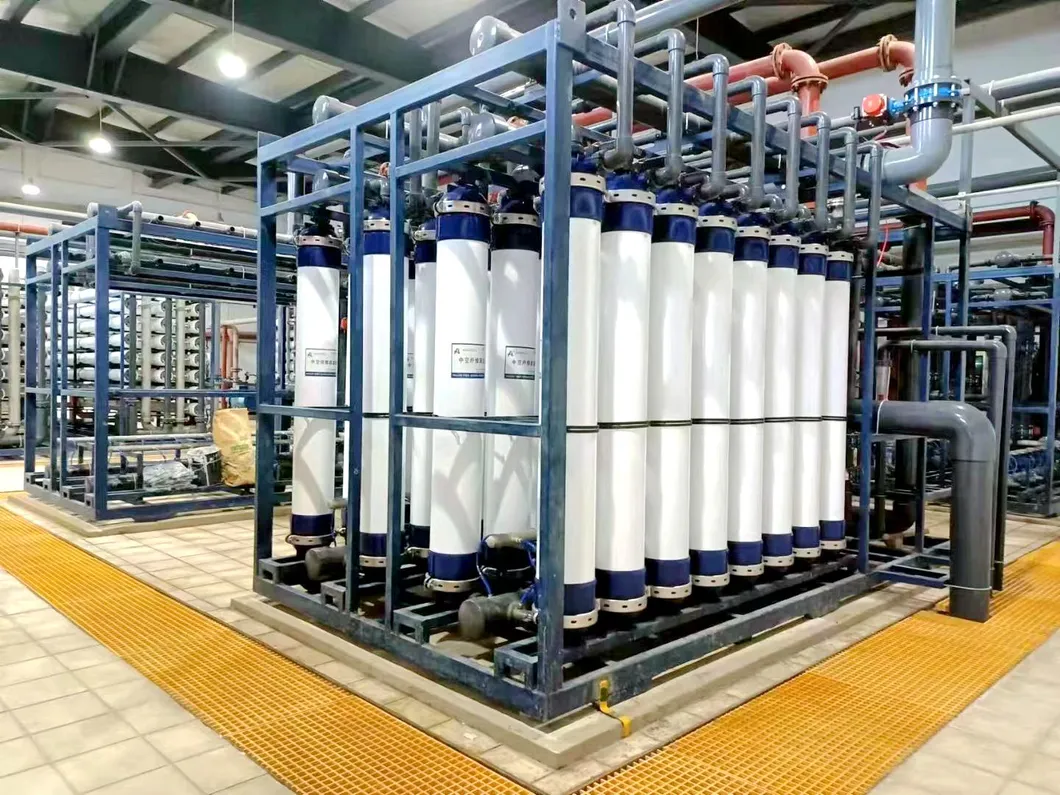

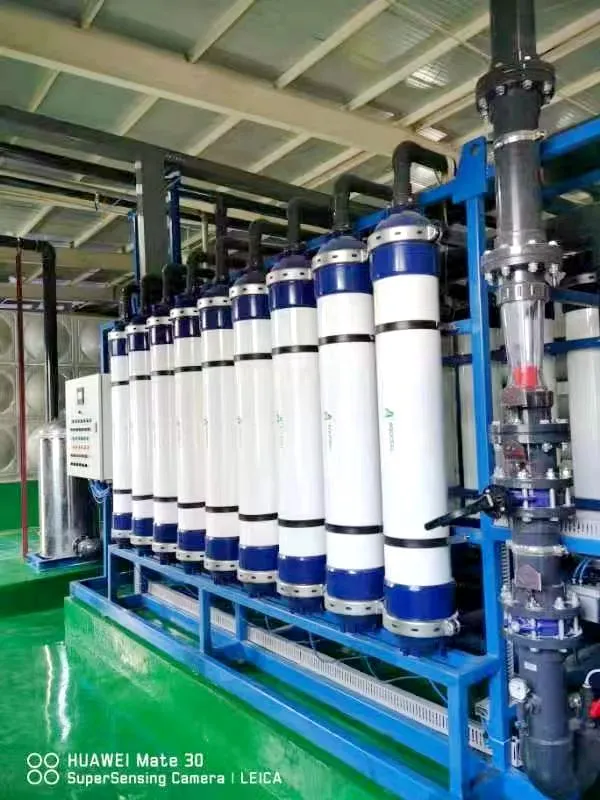

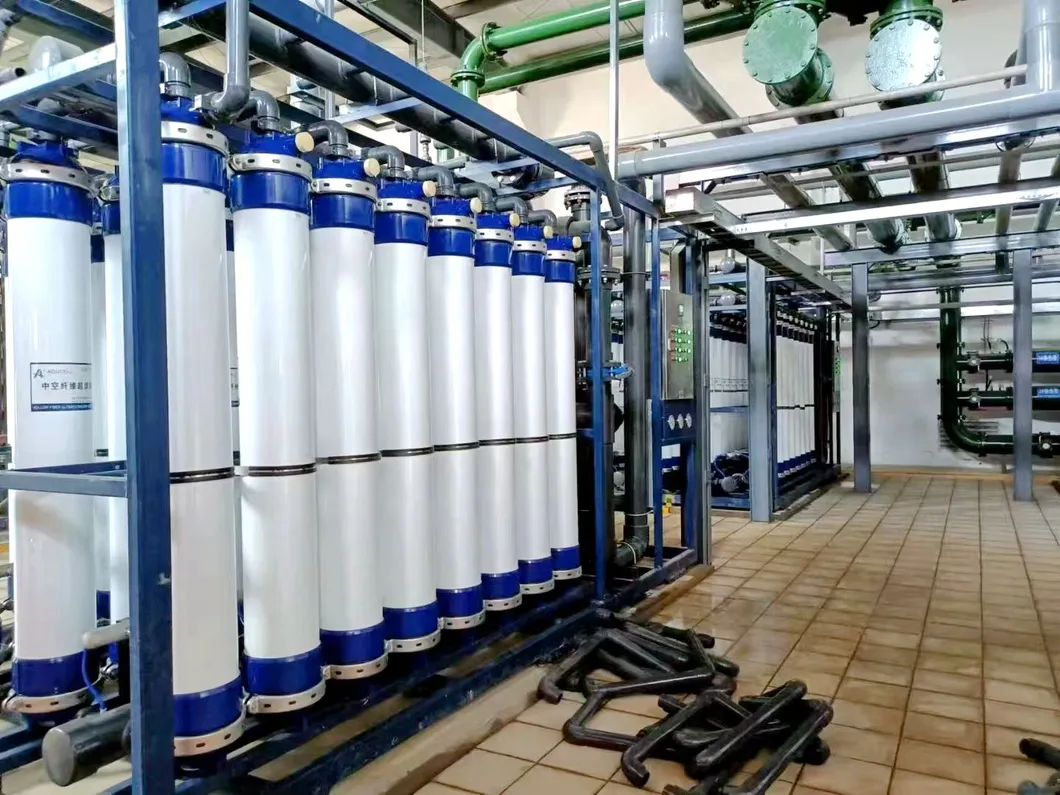

| 5 | UF system | Utilizes PVDF hollow fiber membranes. Efficiently removes macromolecules and bacteria. |
| 6 | Cleaning system | Optional chemical cleaning device using acid or alkali to remove scale and organic dirt. |
| 7 | Control Cabinet | Automatic control with high-grade electronic parts; PLC touch screen options available. |
