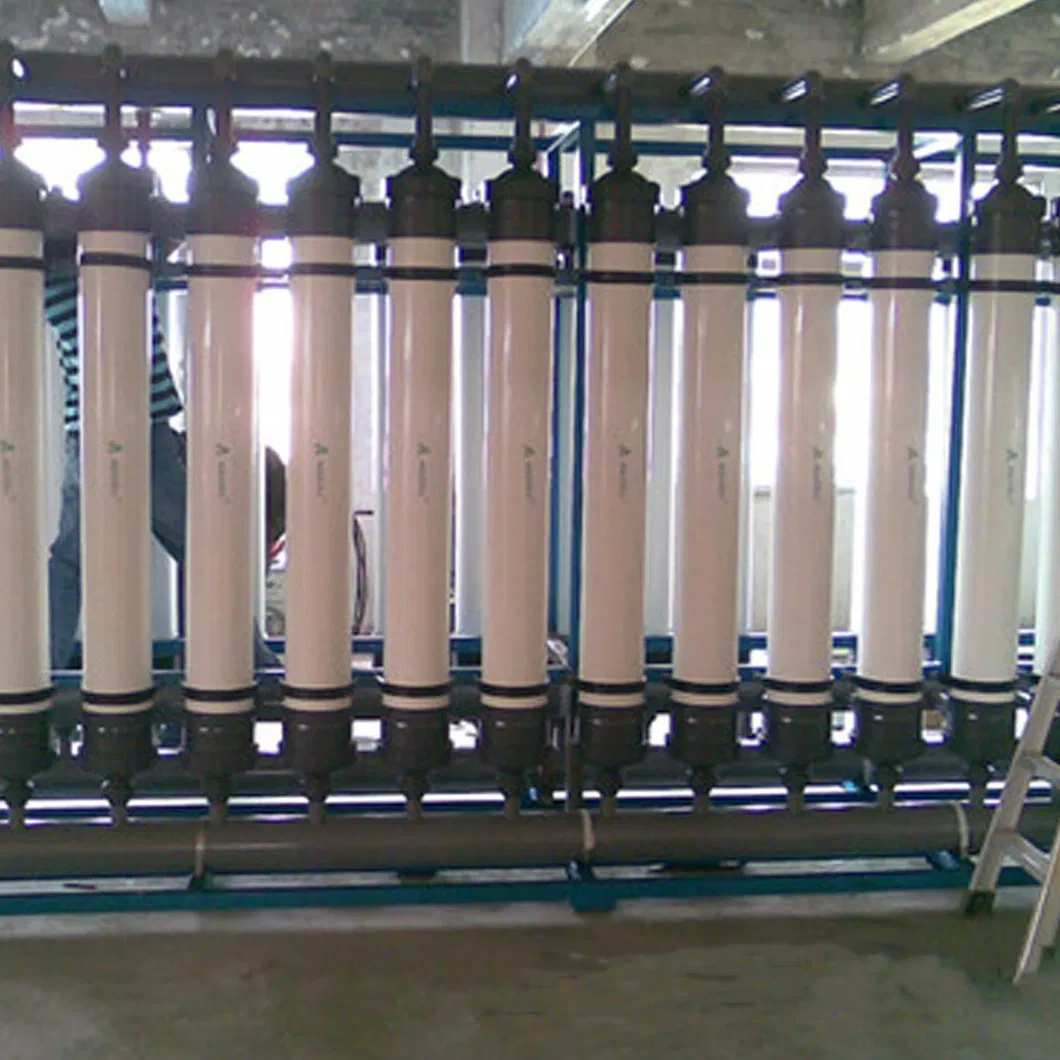

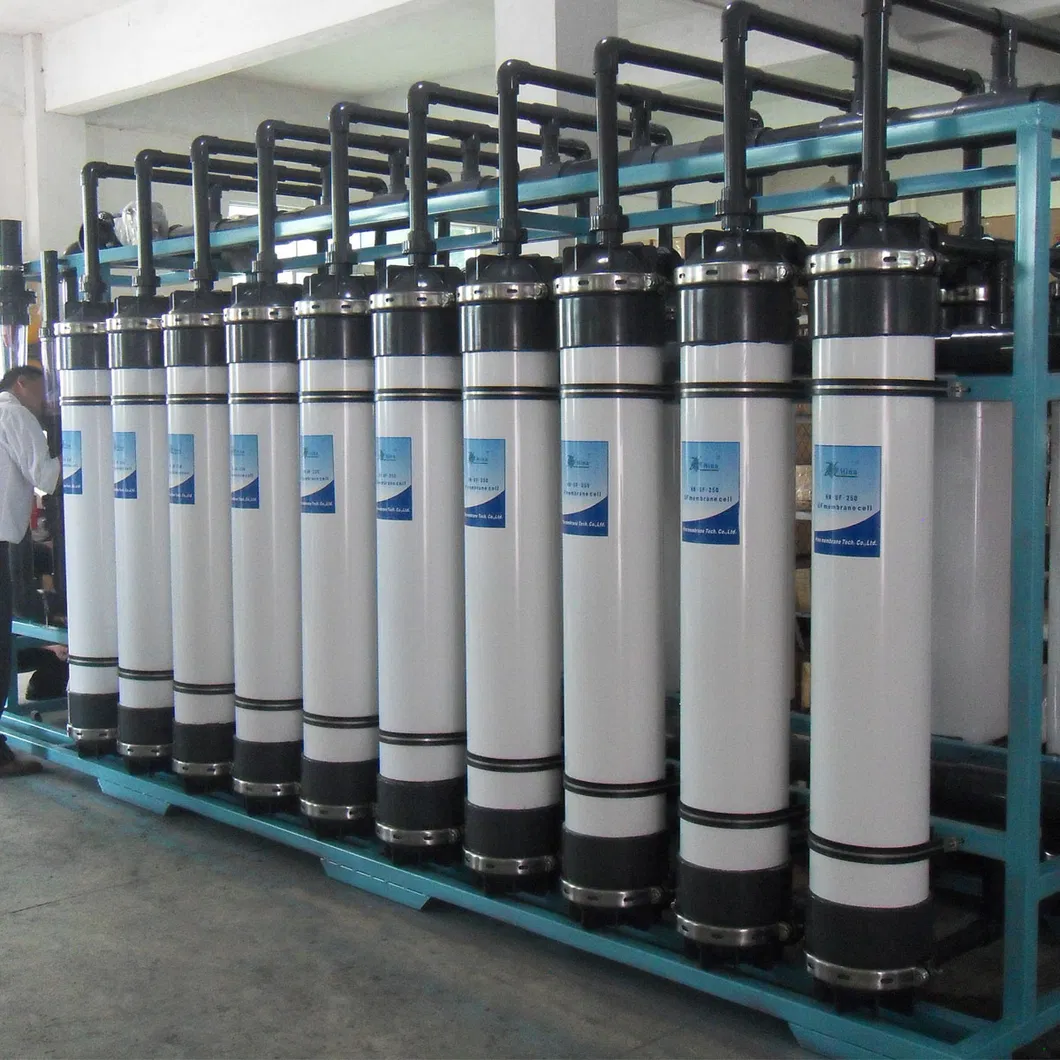

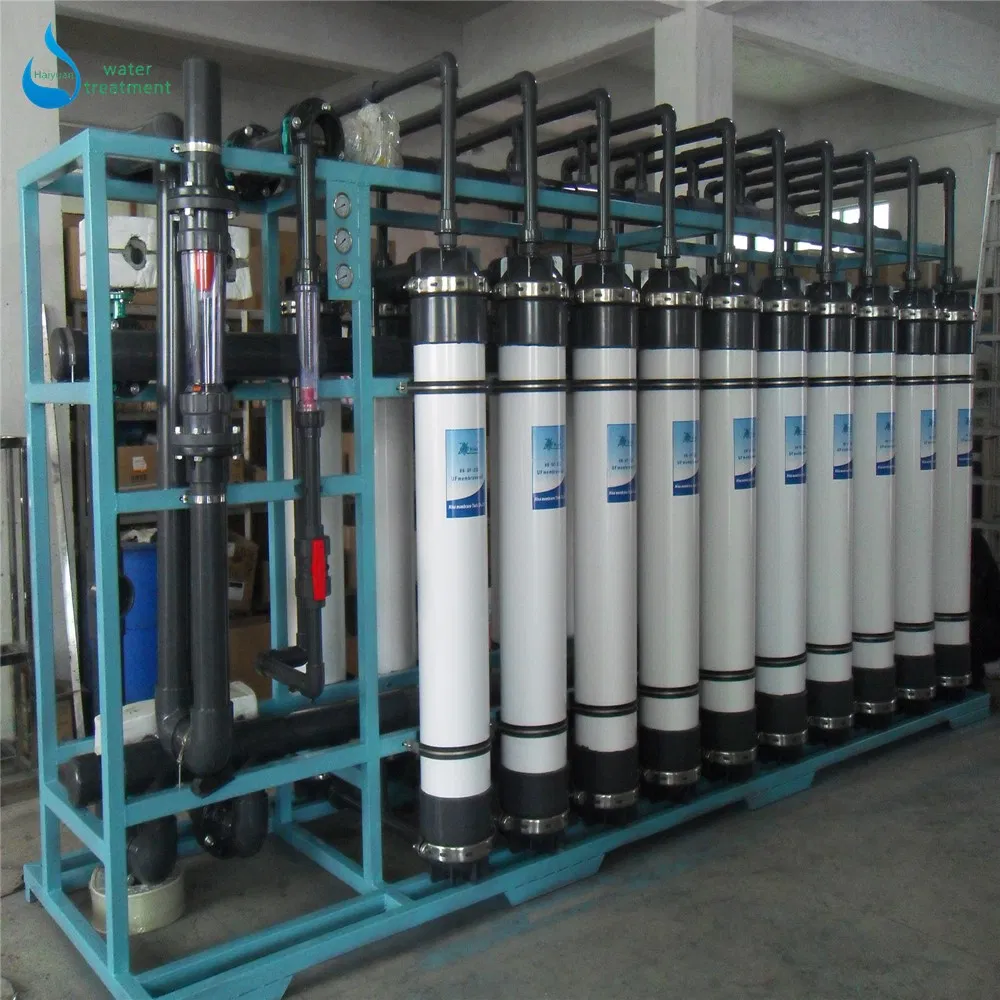

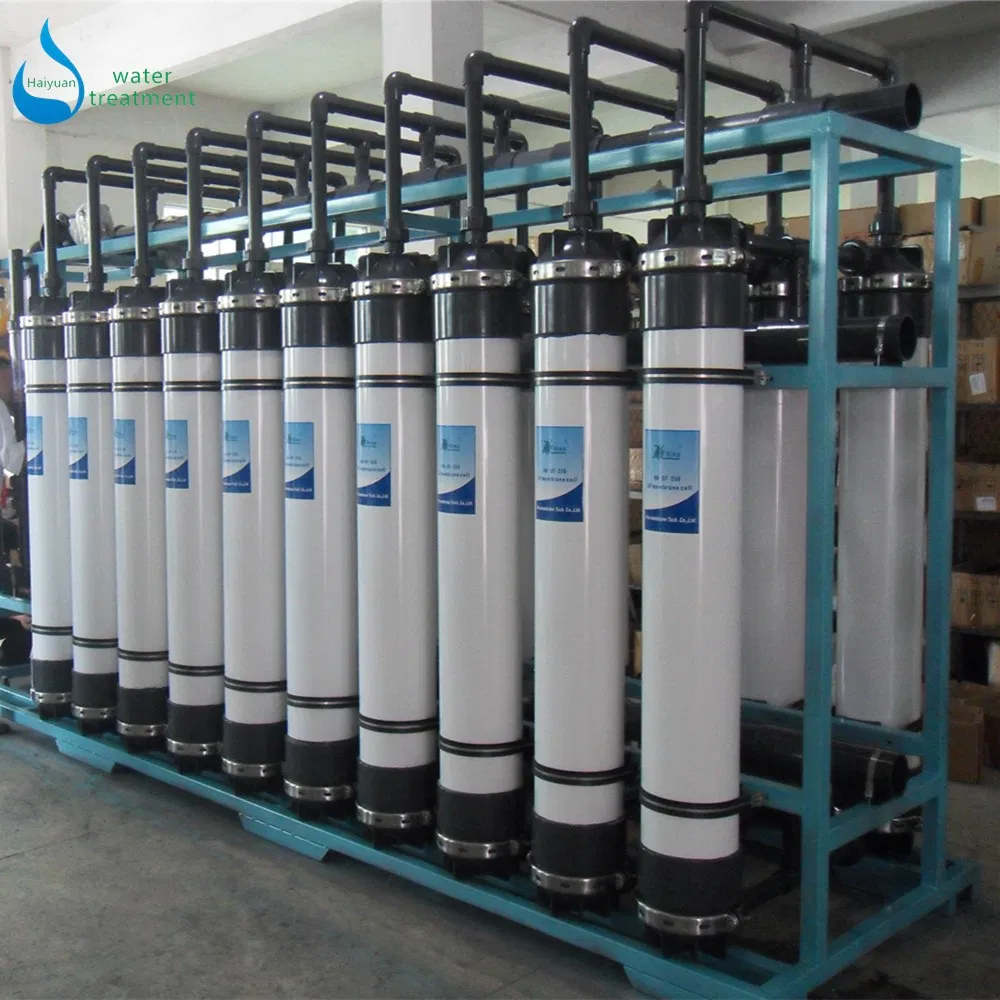

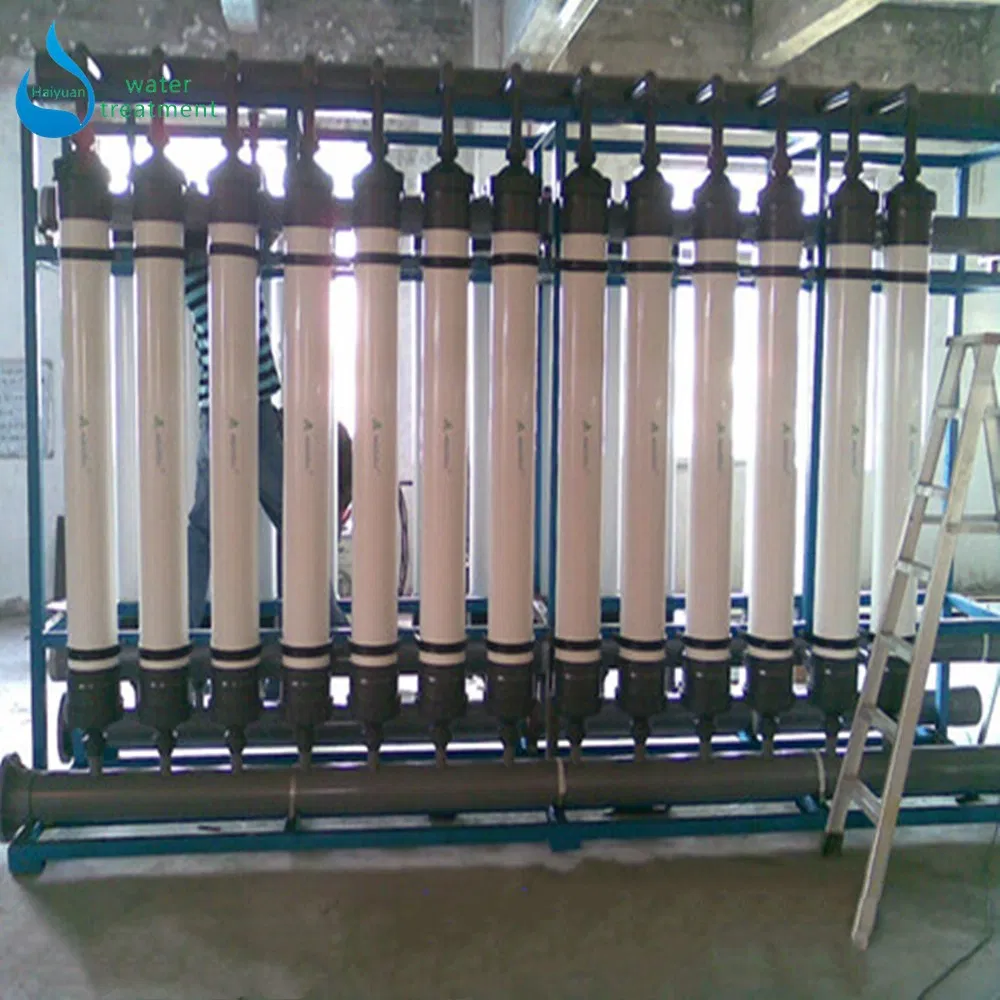

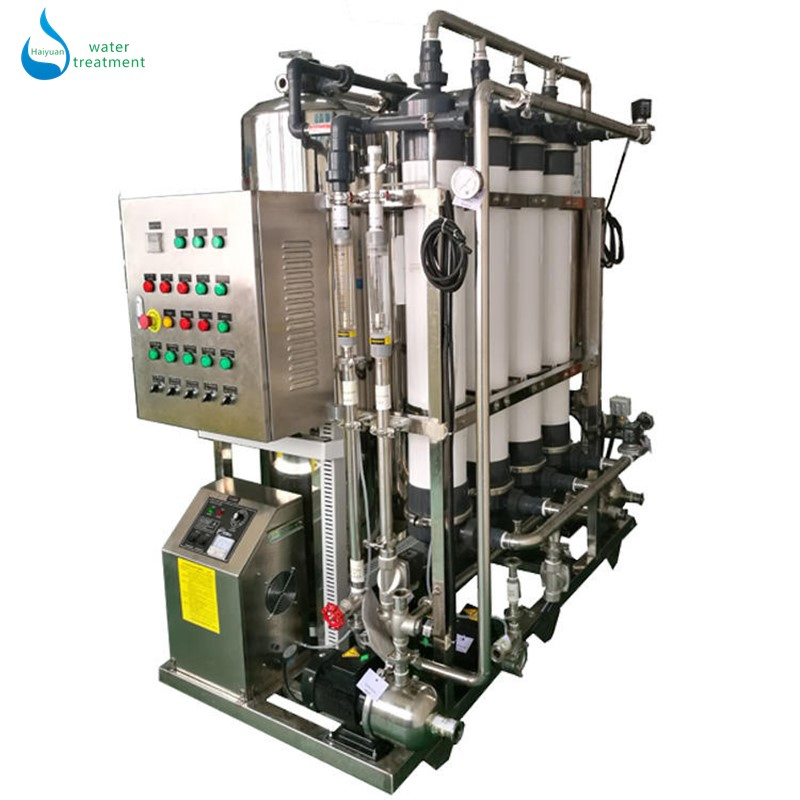

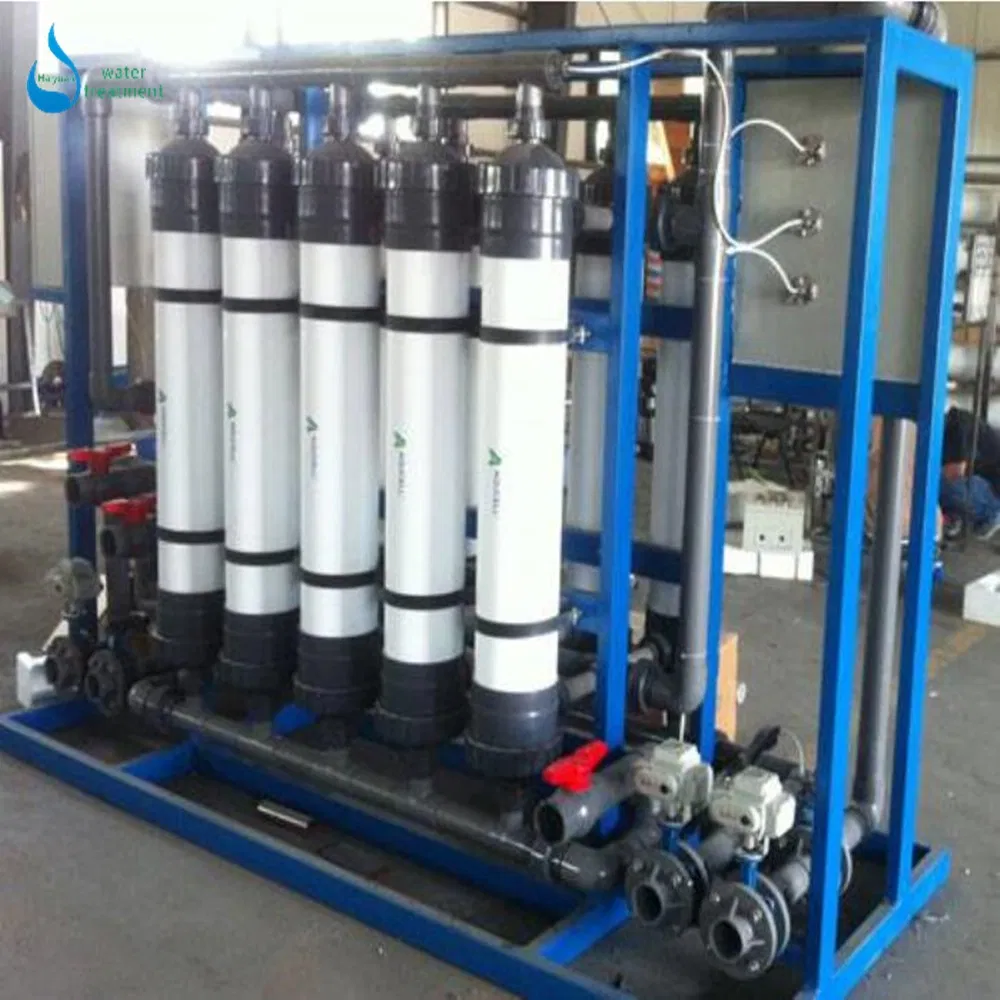

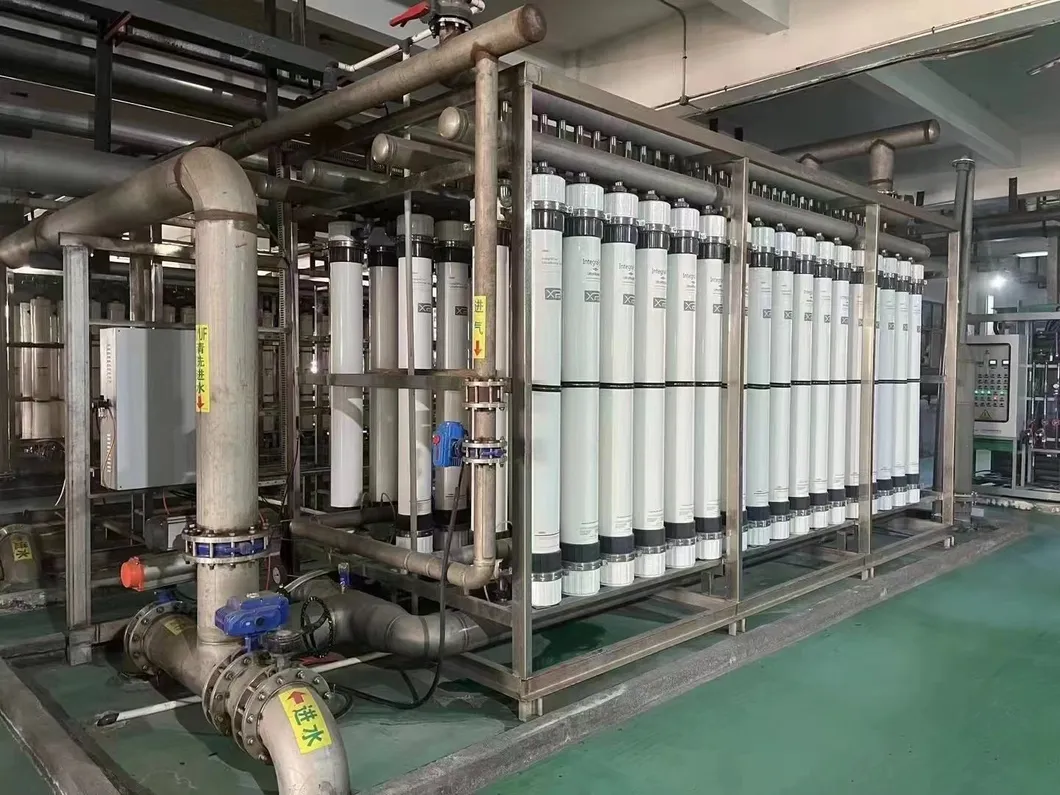

This industrial UF ultrafiltration water treatment system is primarily designed to produce pure, mineral, or pre-treated water for various beverage industries or daily drinking water needs. It utilizes advanced pressure-driven membrane separation technology.

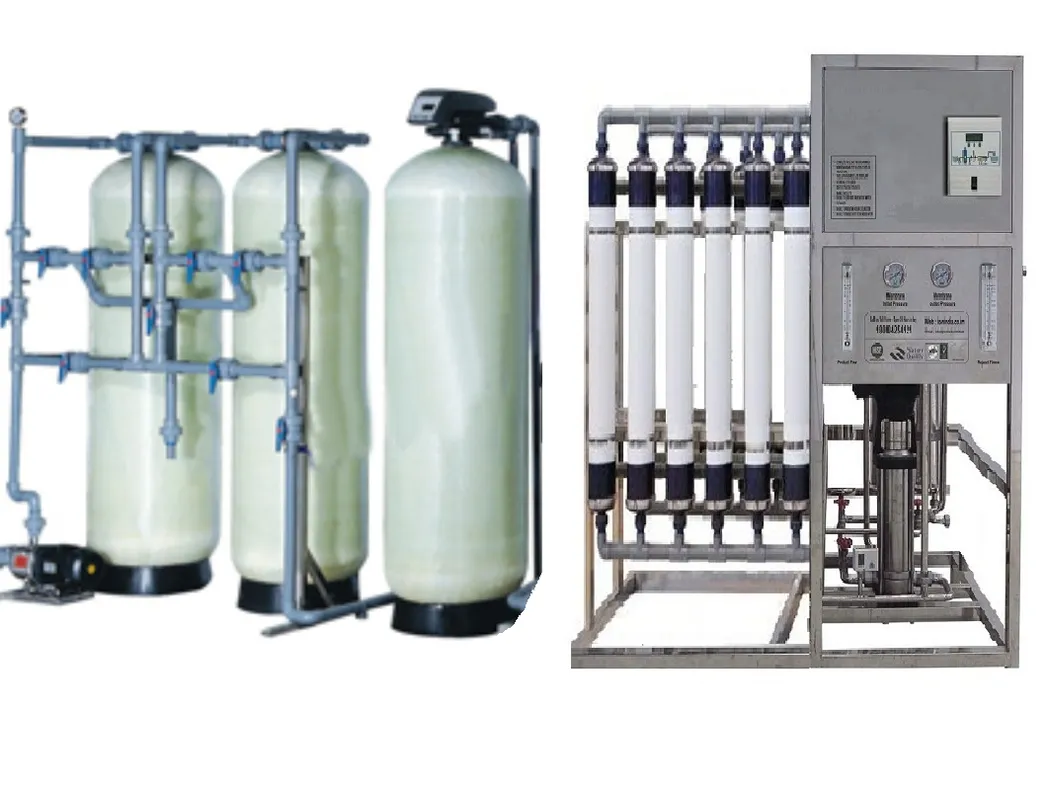

Raw water booster pump → Quartz sand filter → Activated carbon filter → Water softener (optional) → Security filter → High pressure pump → UF system → UV light (optional) → Pure water tank.
| S/N | Component Name | Application & Function | Remarks |
|---|---|---|---|
| 1 | Raw water pump | Provides necessary pressure for pretreatment filters. | High-quality pump options available. |
| 2 | Quartz sand filter | Filters large particles, impurities, suspended substances, and colloids. | Fiberglass or stainless steel housing. |
| 3 | Activated carbon filter | Removes color, odor, residual chlorine, and organic substances. | Essential for taste and odor control. |
| 4 | Water softener | Uses cation resin to reduce water hardness by absorbing Ca2+ and Mg2+. | Intelligent regeneration system. |
| 5 | Security filter | Prevents large particles and bacteria from entering the membrane (5µm accuracy). | PP sediment filter. |
| 6 | UF/RO System | Removes colloids, organic impurities, heavy metal ions, bacteria, and viruses. | High-efficiency membrane technology. |
With over 15 years of experience in water treatment systems, we provide integrated professional and technical solutions. Our mission is to be your industry consultant, providing high-quality service and reasonable pricing.
