MBR System for Slaughter House Wastewater Treatment & Water Purification

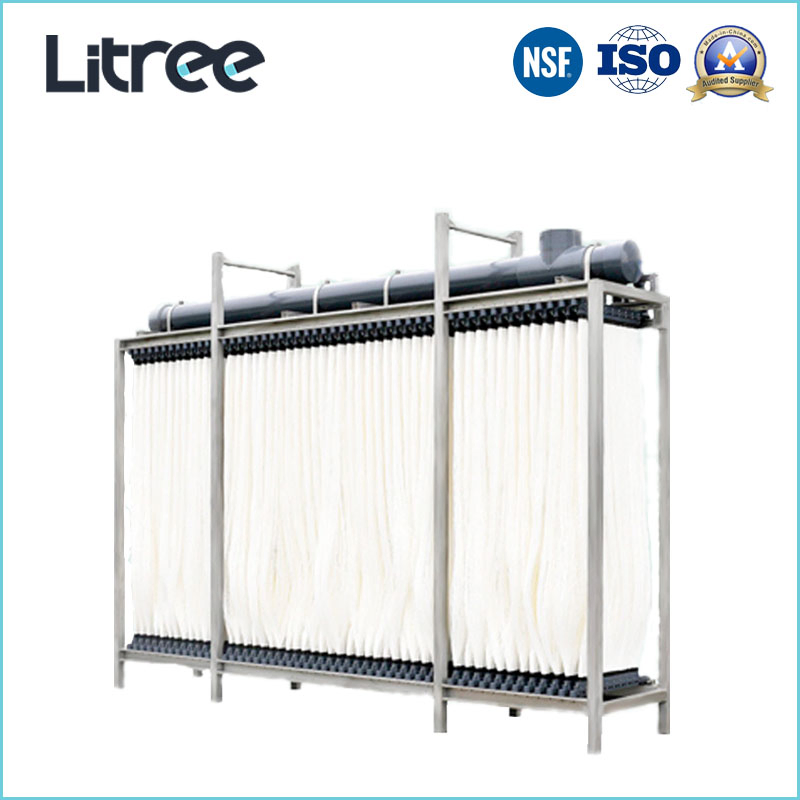

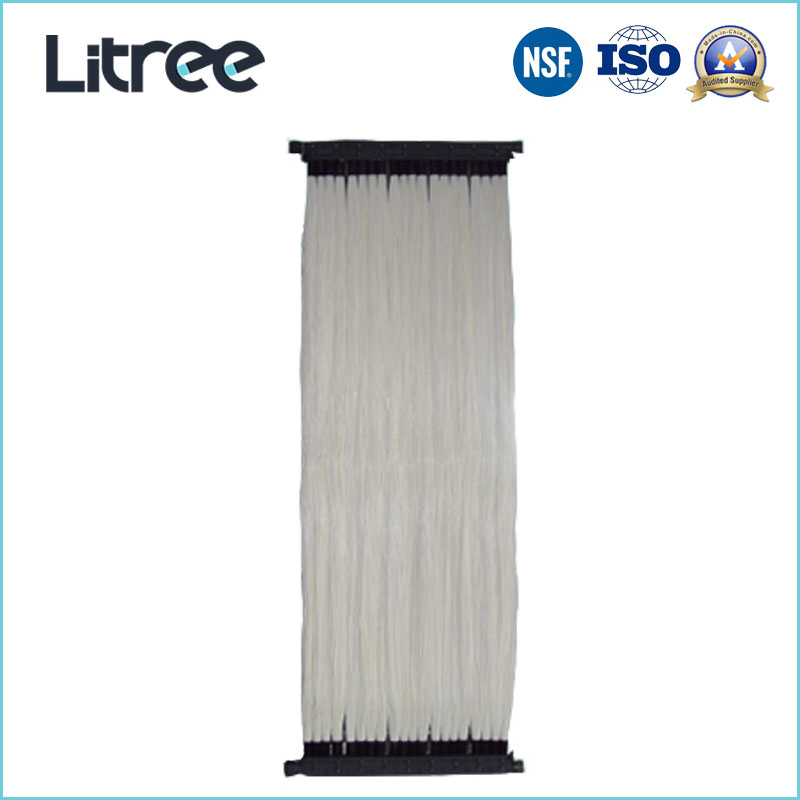

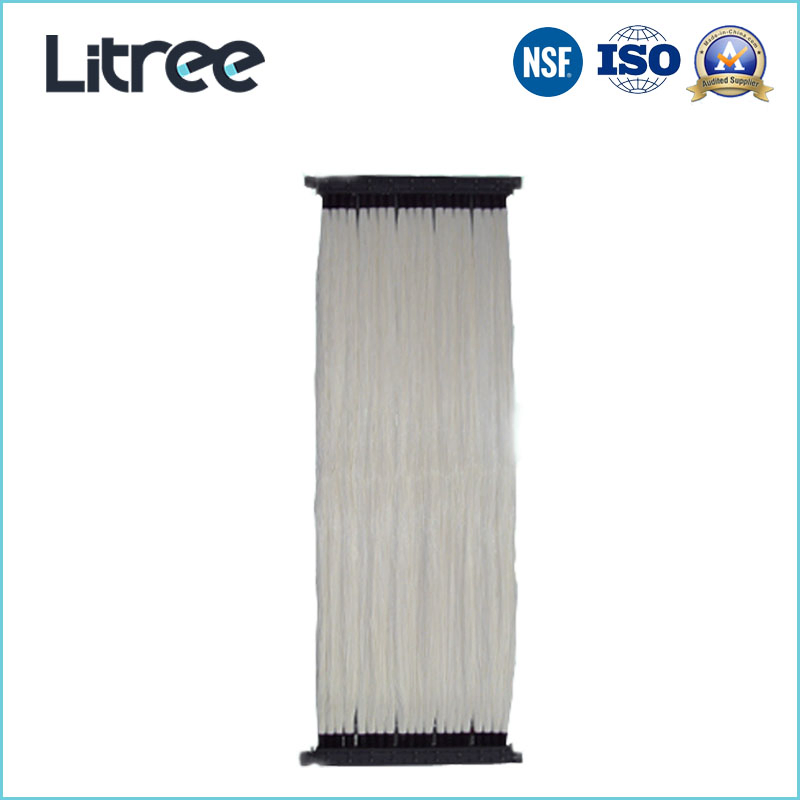

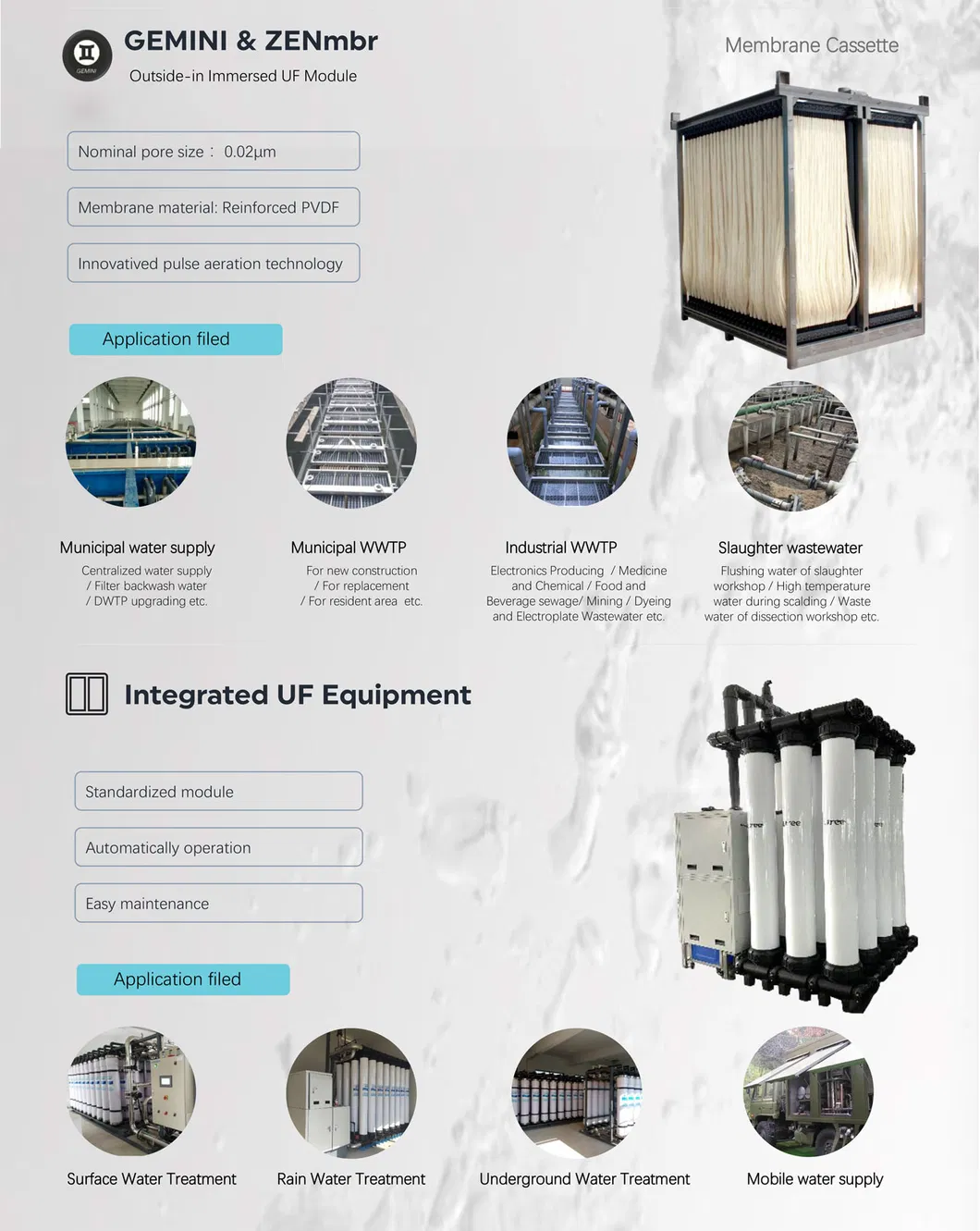

This curtain design MBR system membrane module is specifically engineered for high-efficiency wastewater treatment and water recycling. By integrating advanced membrane separation technology with biological treatment, it provides a superior alternative to traditional sedimentation and sand filtration processes.
| Model No. | GEMINI-U | GEMINI-S | GEMINI-E |
| Membrane Material | Reinforced PVDF | Reinforced PVDF | Reinforced PVDF |
| Fiber ID/OD (mm) | 1.0/2.0 | 1.0/2.0 | 1.0/2.0 |
| Pore Size (μm) | 0.02 | 0.02 | 0.02 |
| System Structure | Immersed | Immersed | Immersed |
| Max. Operation Pressure (-kPa) | 60 | 60 | 60 |
| pH Range | 1~13 | 1~13 | 1~13 |

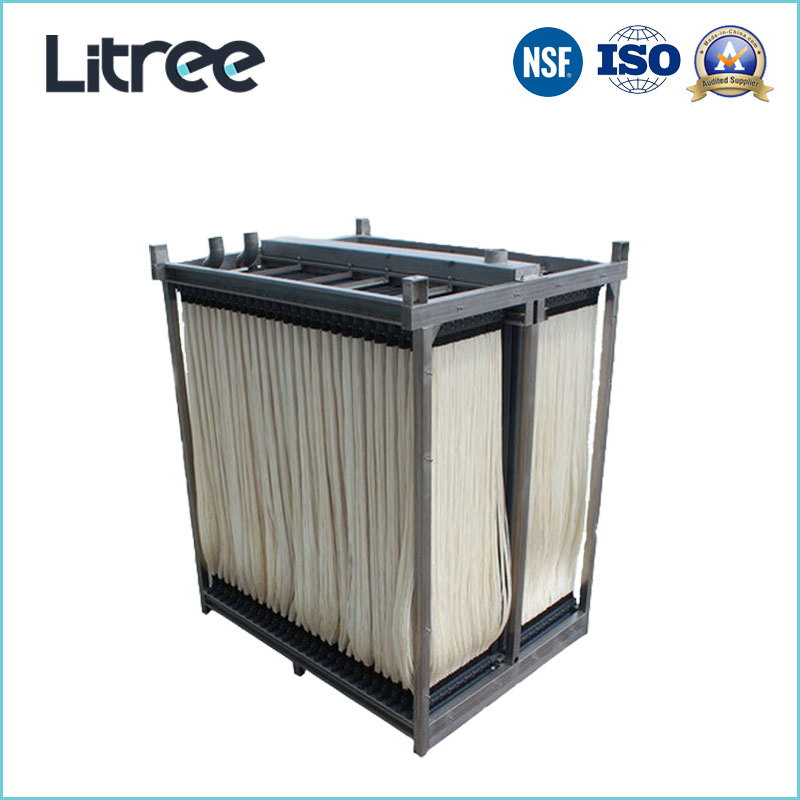

| Cassette No. | Dimension (L × W × H) mm | Active membrane area (m²) |
| GEMINI-E14 | 1210×805×1485 | 196 |
| GEMINI-S14 | 1210×805×2010 | 322 |
| GEMINI-U14 | 1210×805×2510 | 434 |
| GEMINI-E26 | 2110×805×1505 | 364 |
| GEMINI-S26 | 2110×805×2030 | 598 |
| GEMINI-U52 | 2100×1560×2520 | 1612 |
