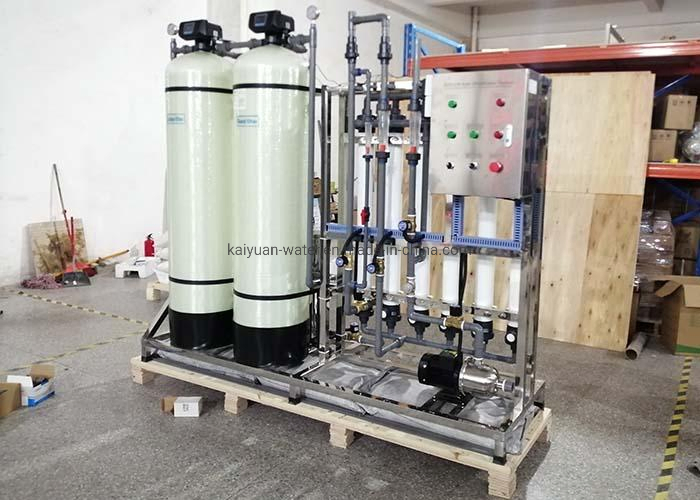

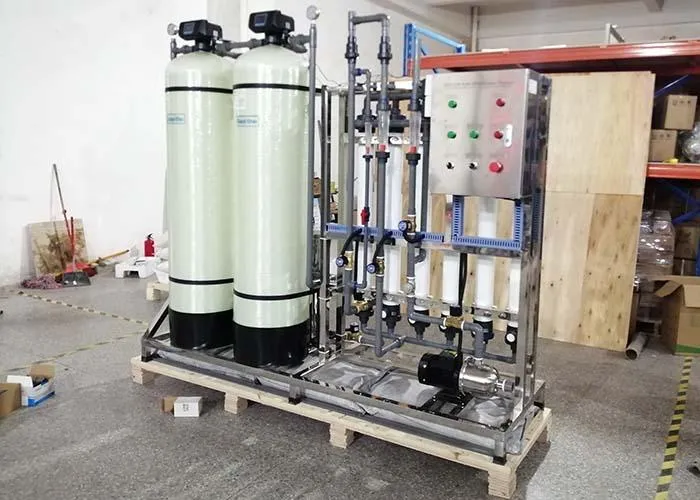

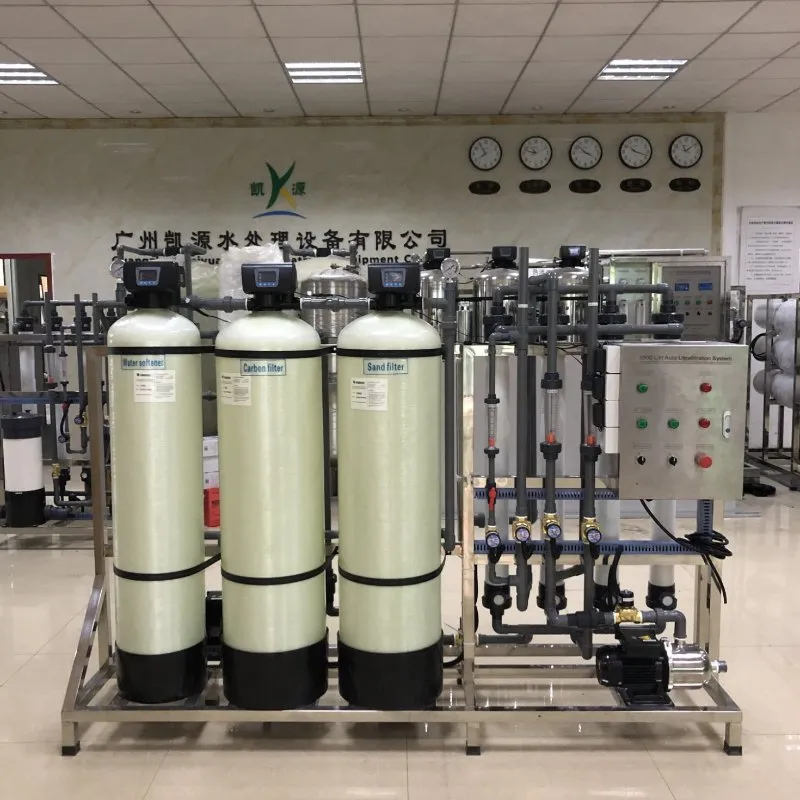

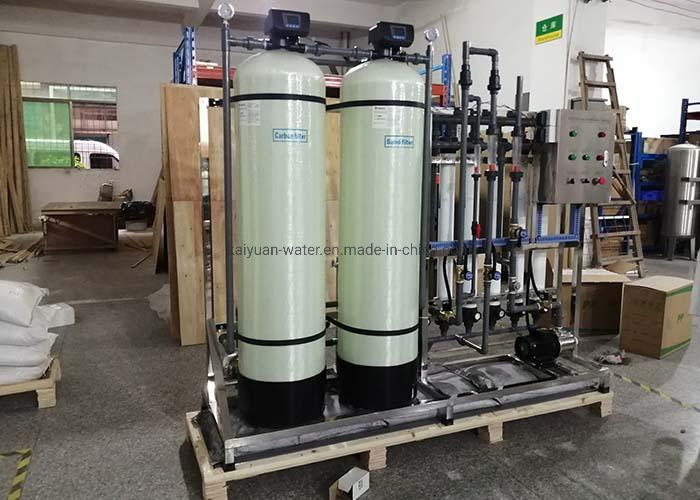

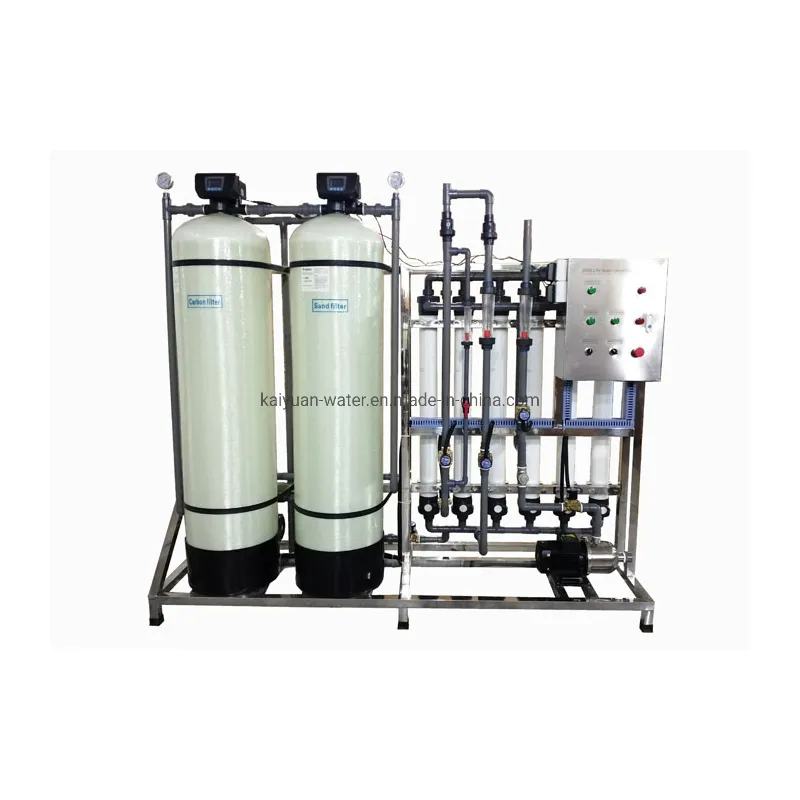

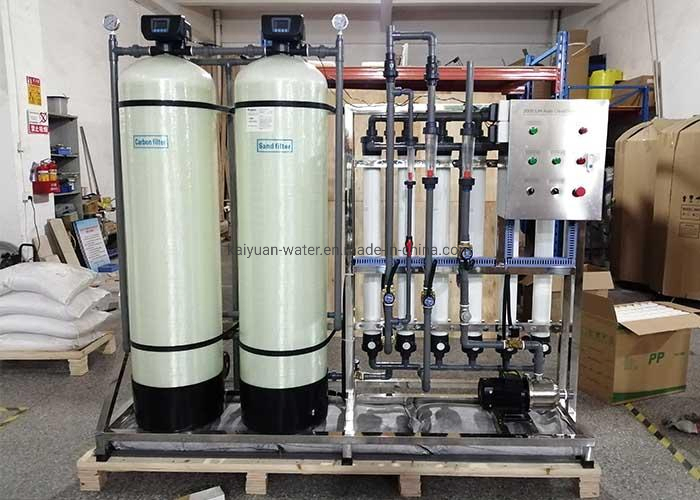

Ultrafiltration (UF) technology is a pressure-driven membrane separation process that removes suspended or particular matters (including colloids & silt) from water. It serves as a superior pretreatment for surface water, sea water, and biologically-treated municipal effluent before reverse osmosis and other membrane systems. This solution is significantly more reliable than conventional multimedia filters. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.

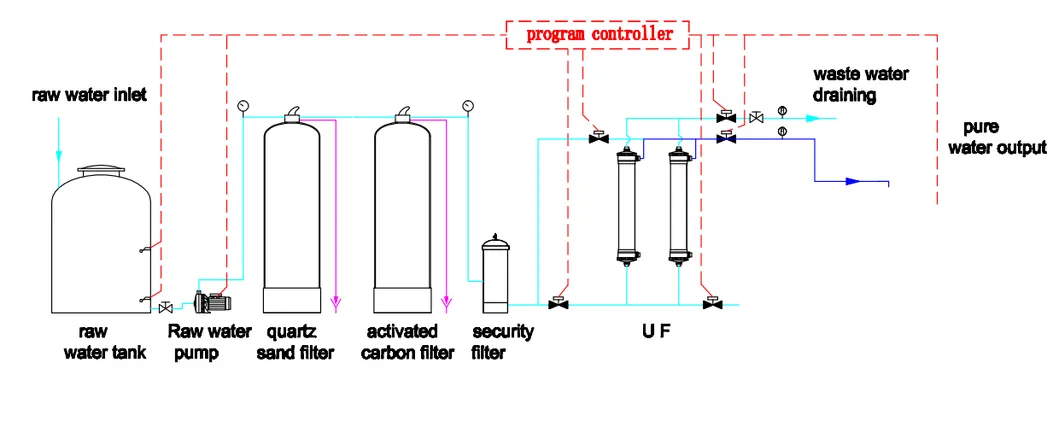

| Component | Material | Functionality |
|---|---|---|
| Raw Water Pump | SUS-304 | Provides pressure for pre-treatment filters |
| Sand Filter | FRP | Removes sediment, manganese, rust (>20UM) |
| Activated Carbon | FRP | Removes odor, organics, and pesticide pollution |
| Water Softener | FRP | Removes Calcium (Ca2+) and Magnesium (Mg2+) |
| Security Filter | SUS-304 | Removes fine particles and small colloids |
| UF Membrane | UFc90AL | Removes impurities greater than 0.001 micron |
| UV Sterilizer | 40W | Kills bacteria for direct drinking water safety |
Uses sand media (0.5-1mm) to trap suspended solids like colloids, rust, and mud down to 200 microns.
Absorbs organic matter, dissolved air, odor, and color from the water source.
Utilizes cation exchange resin to remove hardness (Calcium/Magnesium).
Uses 5-20 micron sediment cartridge filters to ensure safety before the UF entrance.
The UF membrane traps most ions to de-mineralize and desalt, producing PURE WATER.
| Spare Part | Advised Replacement Time | Quantity |
|---|---|---|
| Quartz Sand | Every 15-18 months | 200kg |
| Activated Carbon | Every 15-18 months | 75kg |
| PP Cartridge | Every month | 5 pcs |
| UF Membrane | Every 1-2 years | 6 pcs |
| UV Light | Every 1 year | 1 pc |
*Replacement periods depend on the specific feed water quality.
