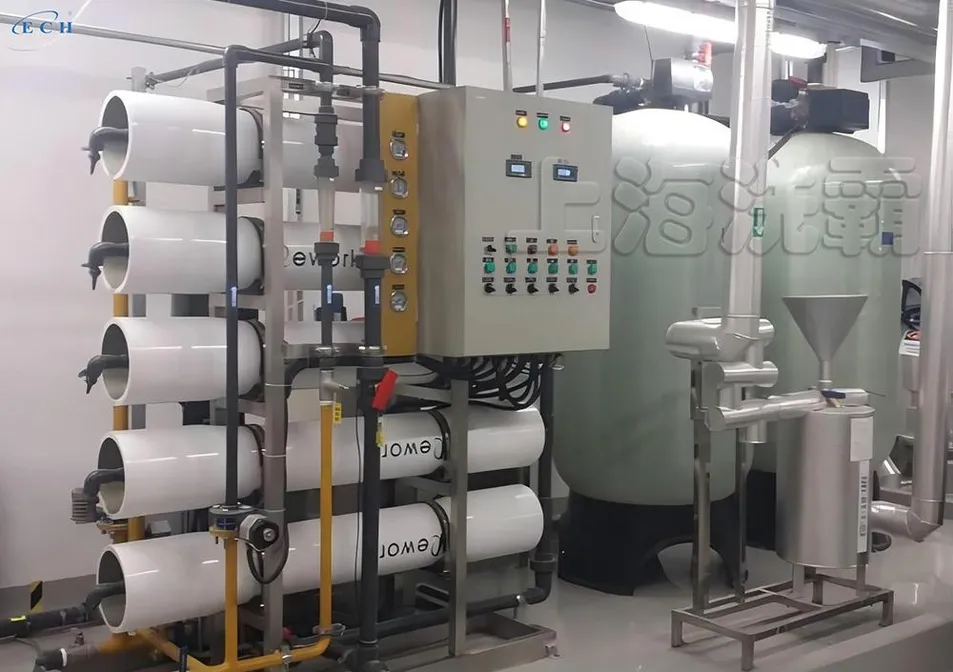

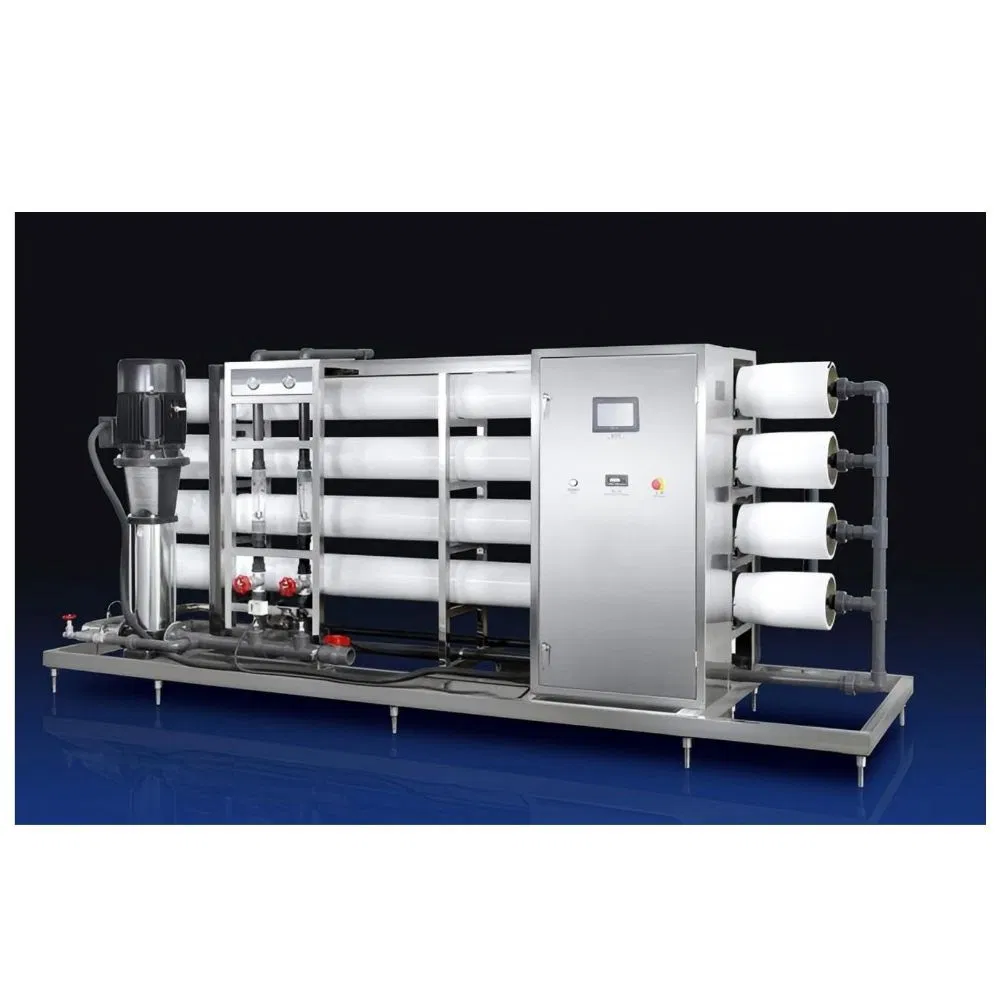

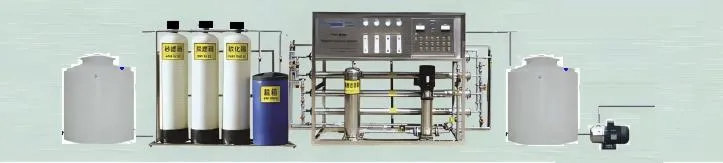

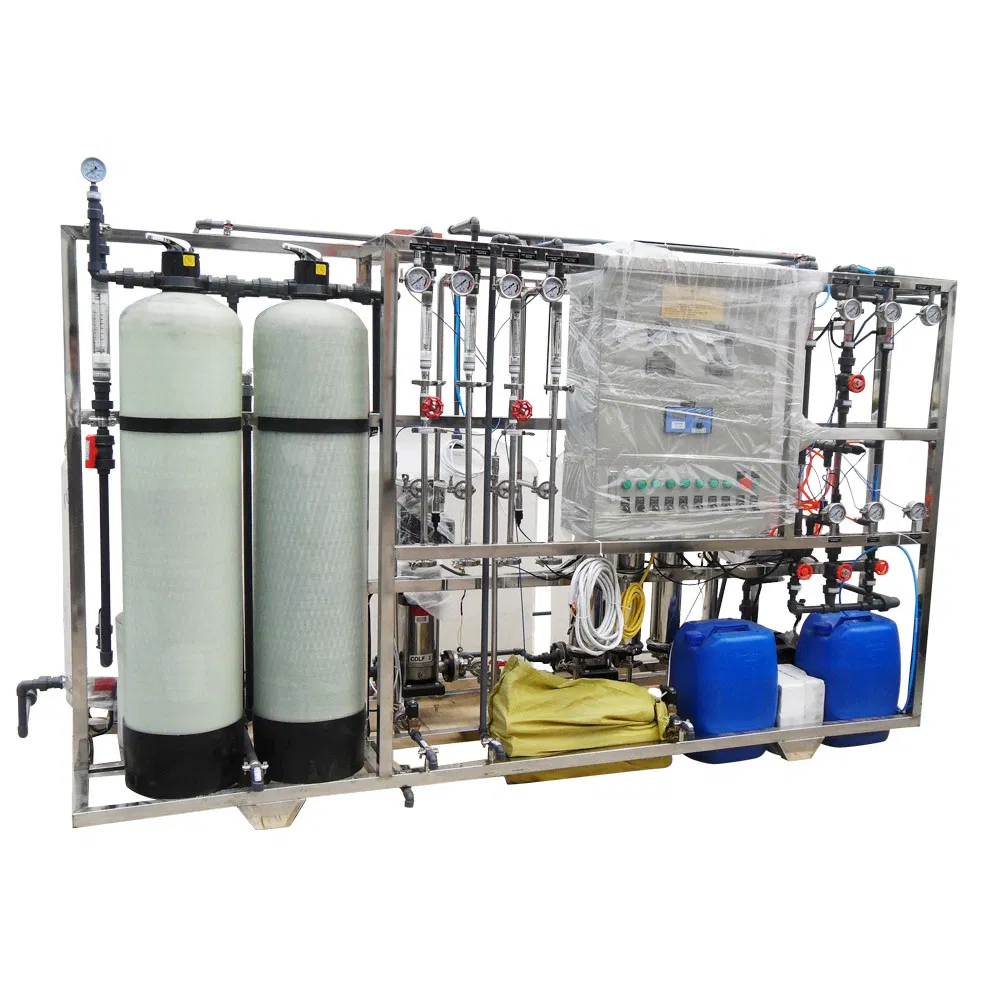

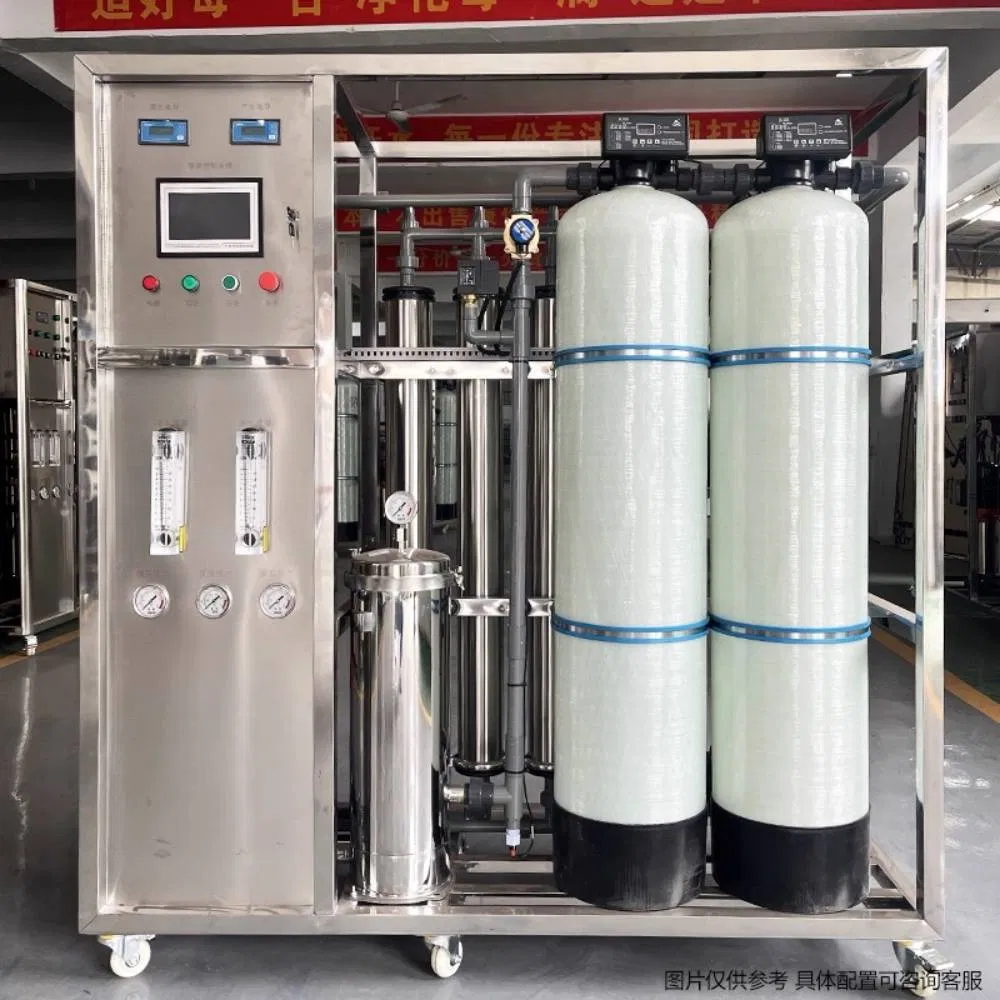

This 2m³/h reverse osmosis (RO) water treatment system includes pretreatment, RO unit, electrical control, and piping. The pretreatment combines multi-media filter, softener, and cartridge filter to protect RO membranes. The RO unit features a 3kW high-pressure pump, 8040 membranes (2 pcs), and automatic controls, producing water with conductivity ≤20μS/cm. Constructed in SS304 stainless steel, it is suitable for food, electronics, or pharmaceutical industries. Customization is available.
| Category | Item | Specifications | Material | Qty |
|---|---|---|---|---|
| Pretreatment | ||||
| Water Tank | Raw Water Tank | 1000L | SS304 | 1 set |
| Filter | Multi-media Filter | Φ500×H1650mm | SS304 | 1 set |
| Softener | Softener | Φ400×H1650mm | FRP | 1 set |
| Filter | Cartridge Filter | Φ220×H650mm, 5μm | SS304 | 1 set |
| RO System | ||||
| Pump | High Pressure Pump | 3.5m³/h, 3kW | SS304 | 1 |
| Membrane | RO Membrane | 8040, High Rejection | - | 2 |
| Housing | Membrane Housing | 8040-1B | SS304 | 2 |
| Meter | Conductivity Meter | 0-20μS/cm | - | 2 |
| Electrical & Control | ||||
| System | Control System | PLC Automatic Control | - | 1 set |
| Piping | ||||
| Valves | Pipes & Valves | DN15-DN40 | SS304/U-PVC | 1 lot |
| Tank | Pure Water Tank | 2000L | SS304 | 1 set |
Founded in 1994, our company is a professional service provider of integrated solutions for water treatment technology and healthy space environment technology. We have obtained multiple qualifications, including safety production permits and certifications for quality, environment, and health management systems. We are recognized as a National Torch High-tech Enterprise.
As of June 30, 2024, our company holds 126 authorized patents, including 60 invention patents and 66 utility model patents. We have established a dedicated water treatment technology research center in Shanghai.
