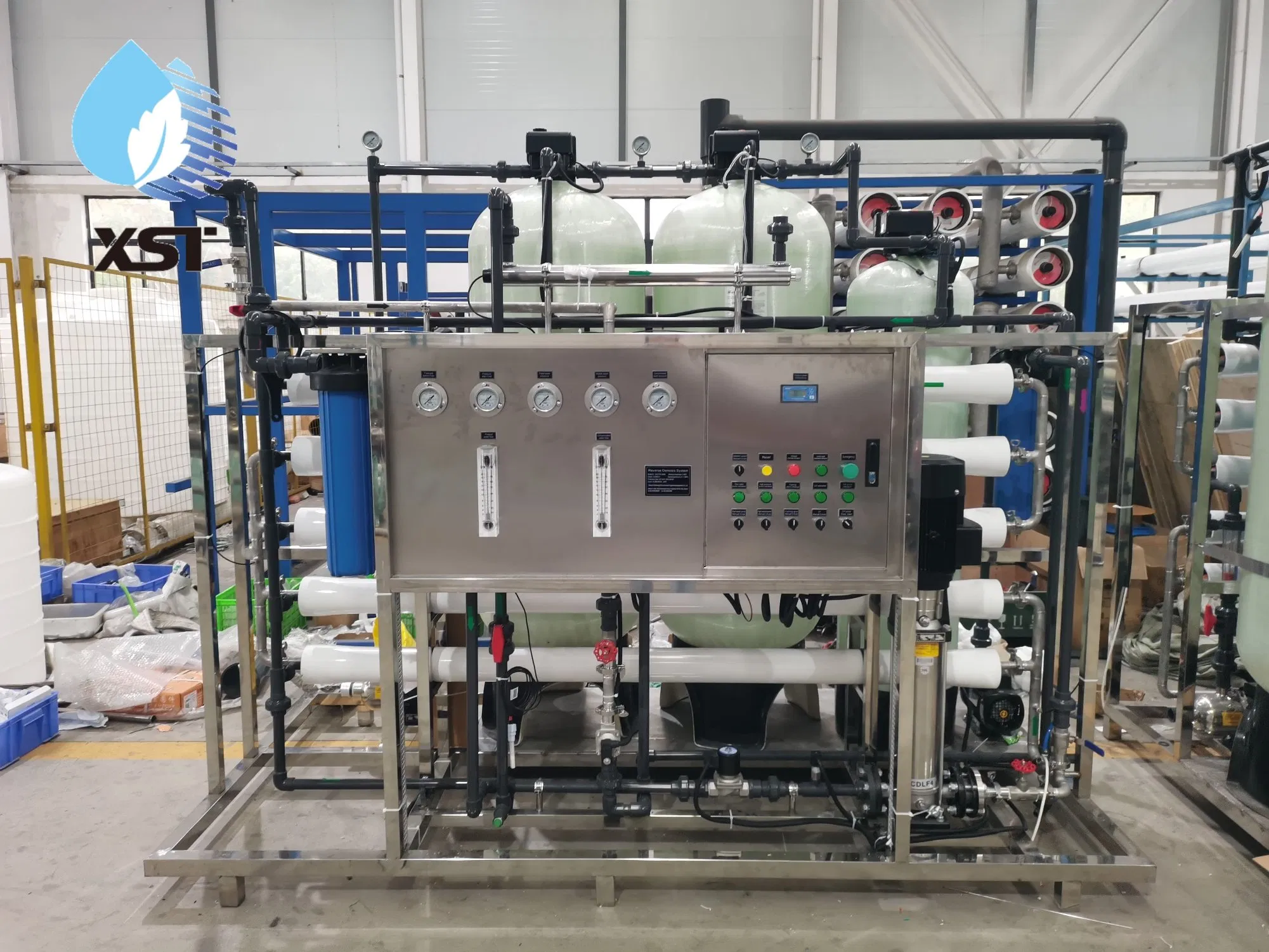

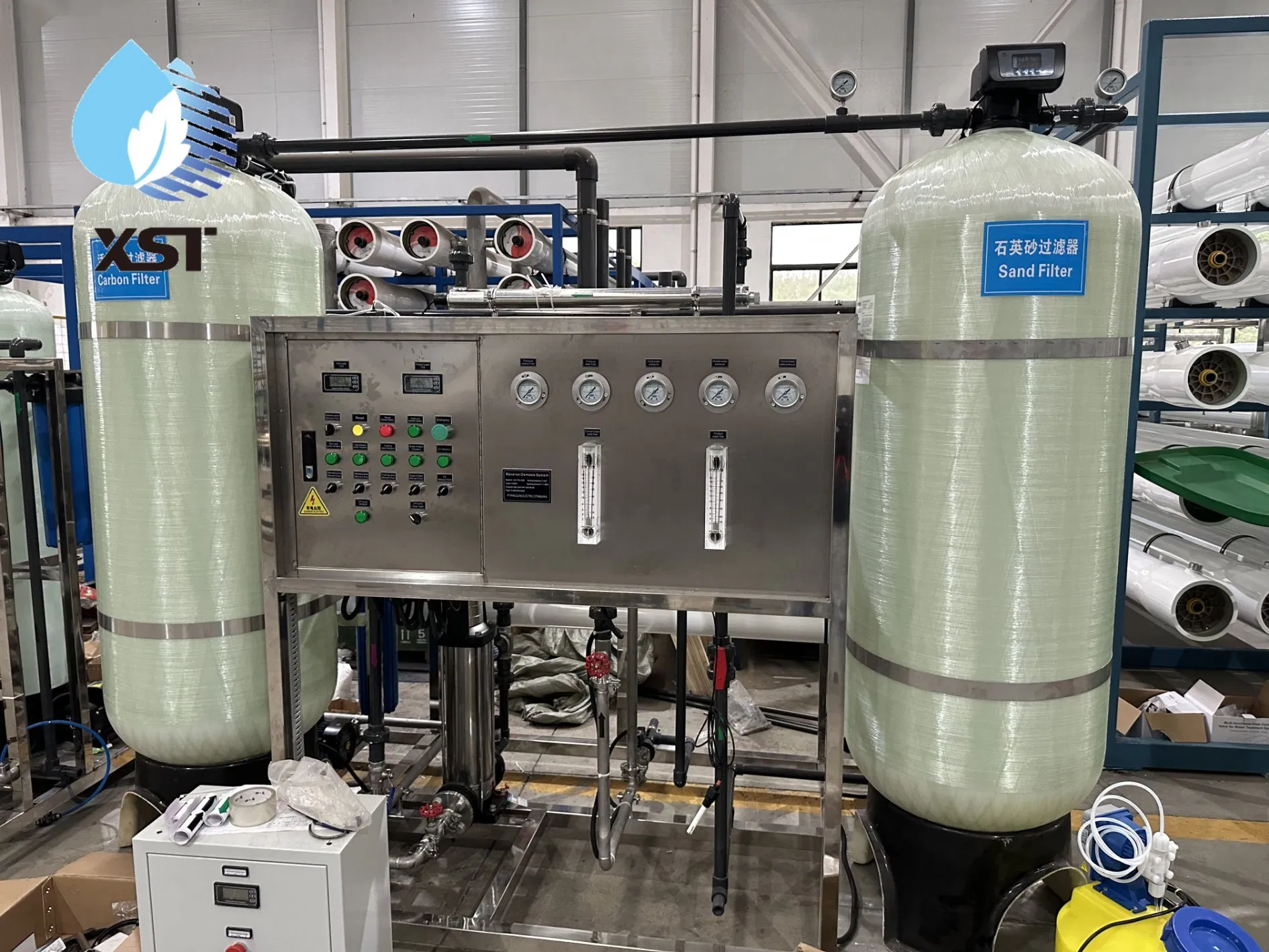

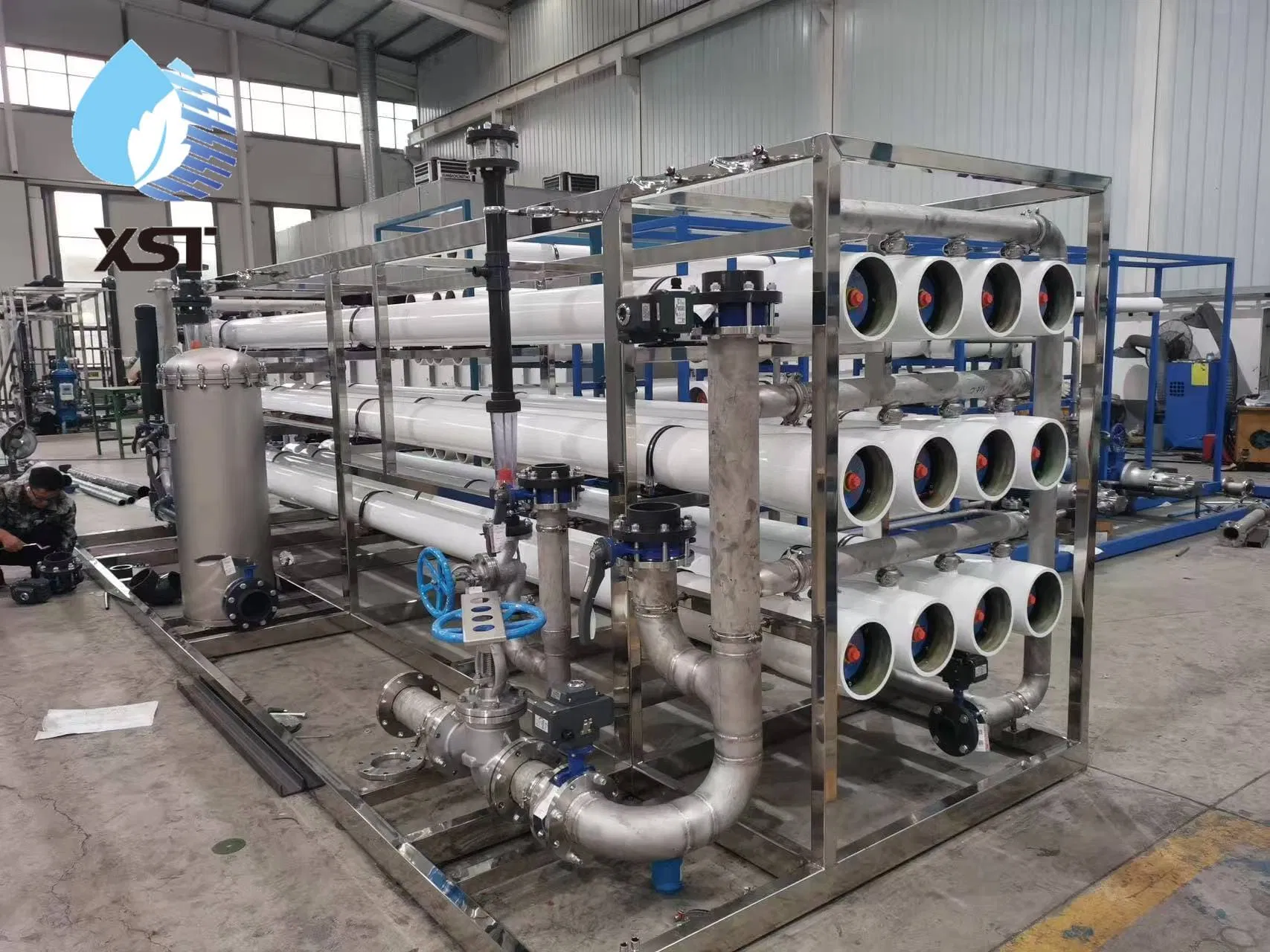

RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
1 / 5
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System
RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System

RO Systems RO Membrane Pure Water Treatment Filtration Purification Reverse Osmosis System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications

Application
Industry
Capacity
6000L/H
Materials
FRP, Stainless Steel
Recovery Rate
35%-85%
Target Uses
Drinking, Irrigation, Chemicals
Voltage
110V/220V/380V
Transport Package
Wooden Box with Pallet
Specification
2.7m*1.5m*2.1m
Origin
China
HS Code
842121
Production Cap.
500 sets/Month
RO System Filtration
Pure Water Treatment

Product Features & Components

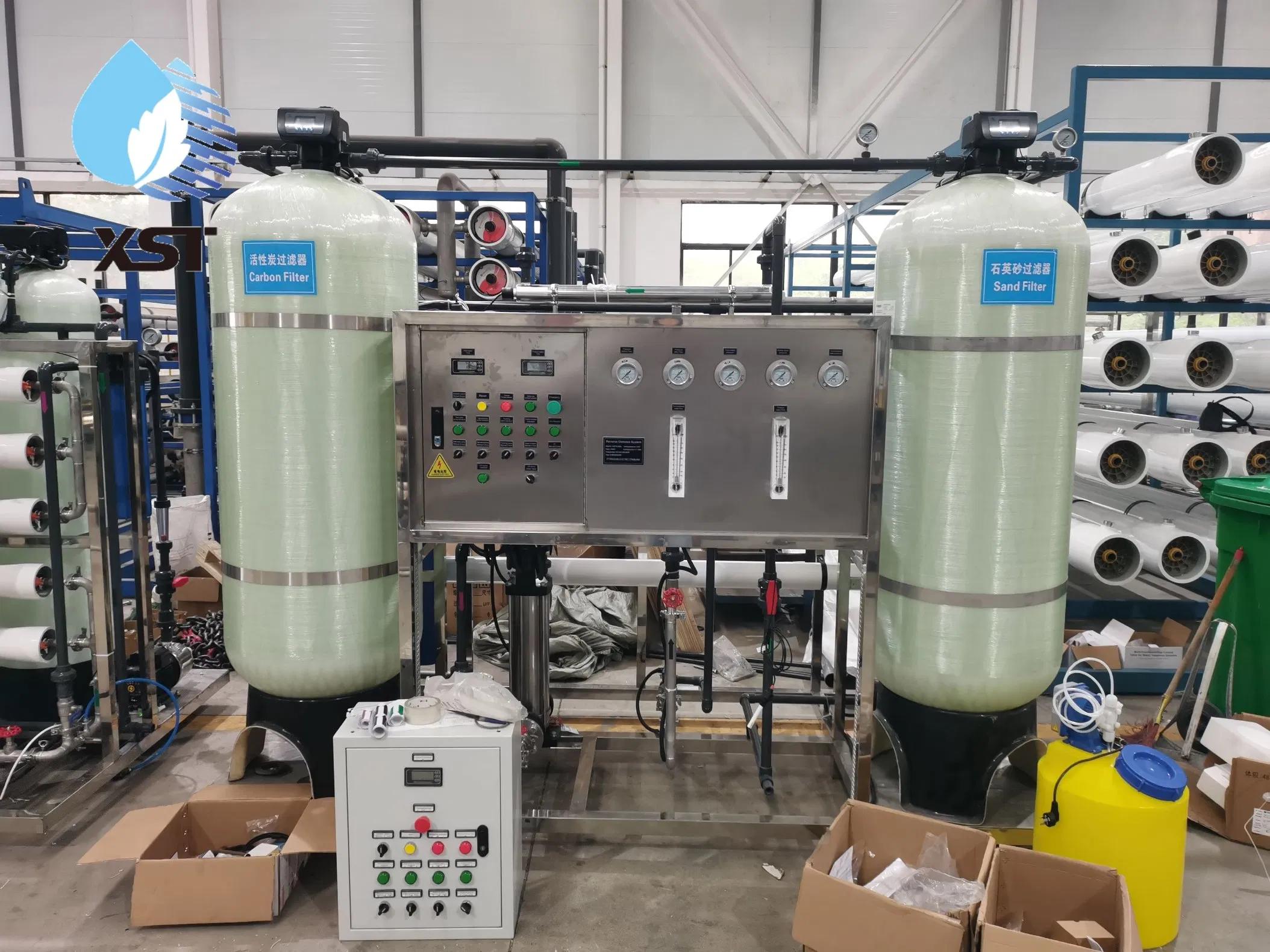

  • 1. Pre-treatment System Multi-media filter for suspended solids and sediment removal. Activated carbon filter for organic matter and residual chlorine adsorption. Softener to prevent scaling from calcium and magnesium ions.

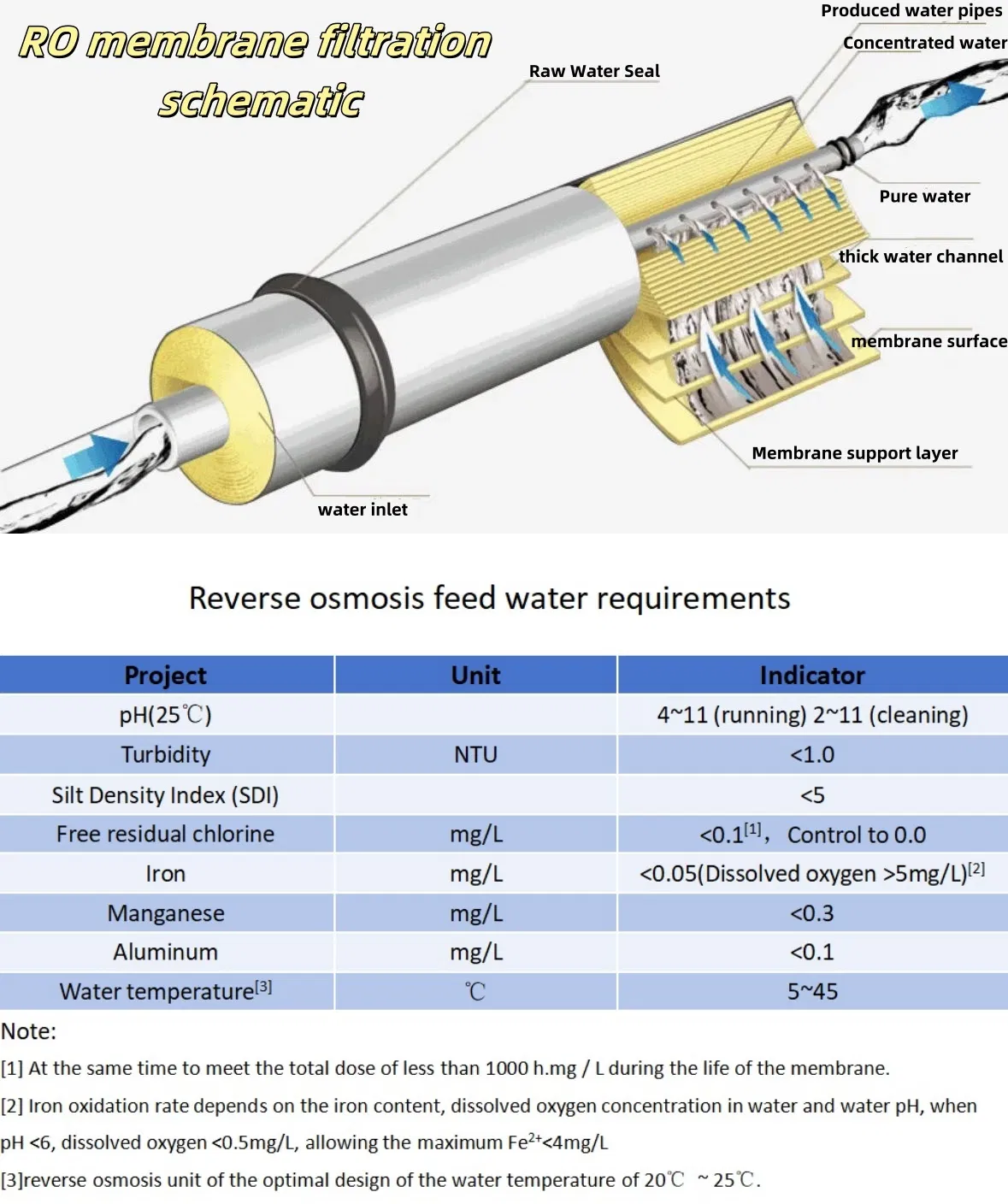

  • 2. Reverse Osmosis Membrane The core component made of polyamide or cellulose acetate. Extremely small pore size (0.0001 micron) effectively retains dissolved salts, bacteria, and viruses.
  • 3. High-Pressure Pump Provides necessary pressure (100-1000 psi) to force water molecules through the RO membrane for purification.
  • 4. Post-treatment System Includes UV sterilizers to neutralize pathogens and Ozone generators for final disinfection and odor removal.
  • 5. Control System PLC controller automatically monitors operation parameters like pressure, flow rate, and water quality via precision instrumentation.

Model Parameters

MODEL Operation (Mpa) Inlet DN Membrane (Inch) Power (KW)
XSTRO-0.25T1.0-1.4DN2040*401.1
XSTRO-0.5T1.0-1.4DN2040*401.5
XSTRO-0.75T1.0-1.4DN2540*402.2
XSTRO-1T1.0-1.4DN2540*402.2
XSTRO-1.5T1.0-1.4DN2540*403
XSTRO-2T1.0-1.4DN2540*403

System Showcase

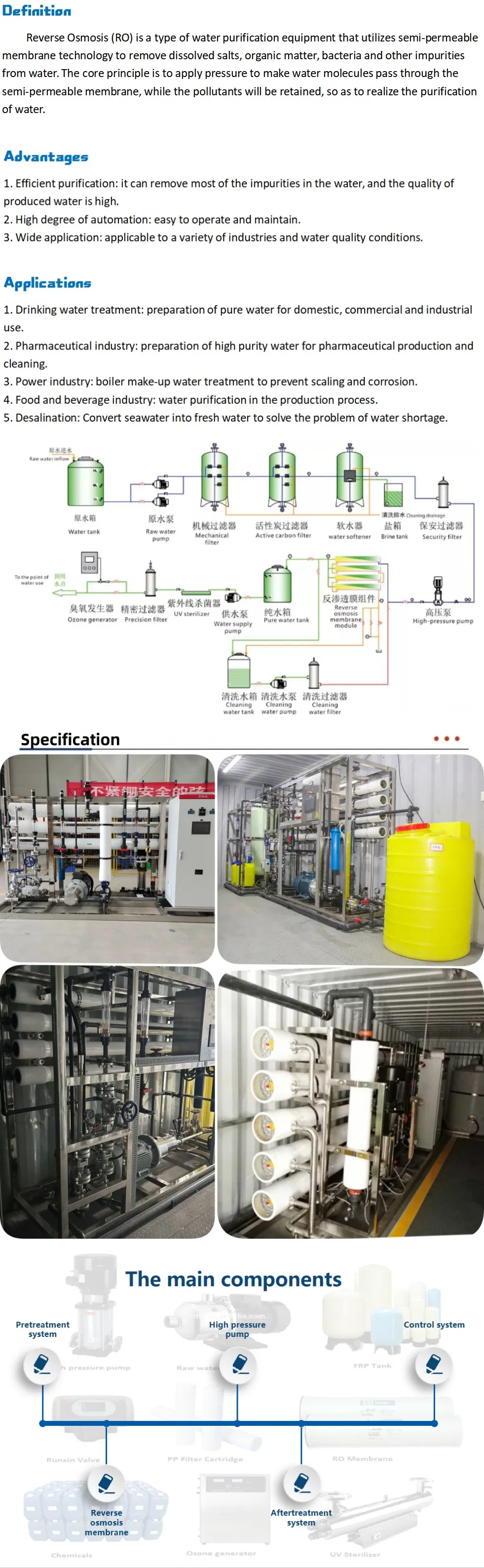

Membrane Details
Internal Layout
Control Panel
System Structure
Process Flow
Full Unit
Components
Production Line
Packaging

Frequently Asked Questions

What is the production capacity of this RO system?
The standard model provides a capacity of 6000 Liters per Hour (6000L/H), suitable for industrial and large-scale commercial applications.
What materials are used for the filters and housing?
The system utilizes high-quality Fiber Reinforced Plastic (FRP) and Stainless Steel to ensure durability and resistance to corrosion.
Which contaminants does the Reverse Osmosis membrane remove?
With a pore size of 0.0001 micron, it effectively removes dissolved salts, bacteria, viruses, and other microscopic impurities from the water.
Does the system require manual monitoring?
No, the system is equipped with a PLC controller and real-time instrumentation (pressure gauges, flow meters) for automated operation and monitoring.
What power supply is compatible with this equipment?
The system is versatile and can be configured for 110V, 220V, or 380V depending on your local electrical requirements.
How is the system protected during international shipping?
All units are securely packed in heavy-duty wooden boxes with pallets to ensure safe transport and prevent damage during handling.
