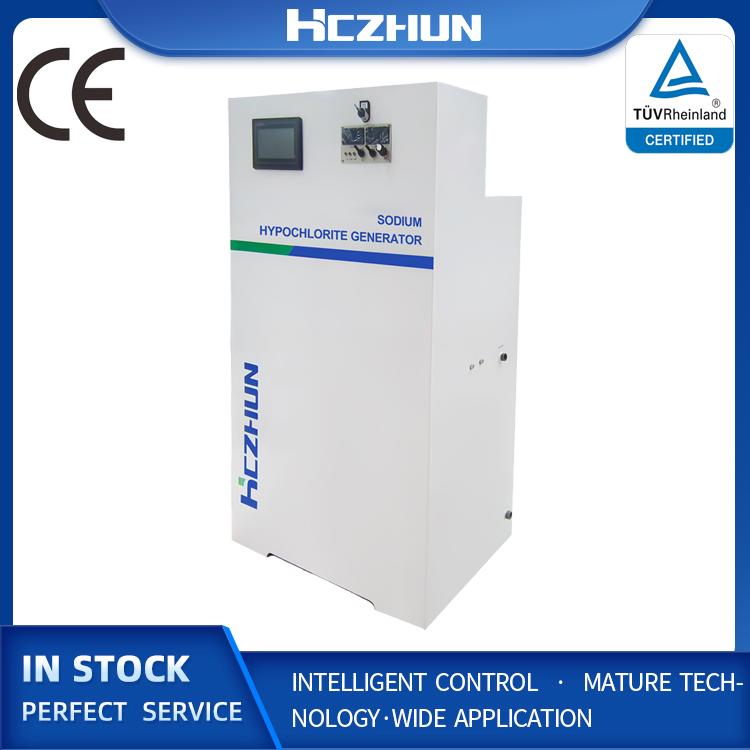

8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
1 / 5
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant
8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant

8kg Wastewater Treatment Equipment Brine Electrolysis 8000ppm Sodium Hypochlorite Generating System for Industrial Water Plant

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🌐 Overview
Basic Information
Model NO.
HCCL-8000
Certification
ISO9001, CE, TUV Explosion-Proof Certification
Application
Industry
Voltage
380V
Disinfection Method
Sodium Hypochlorite
Type
Electrolytic Type
Service Life
Whole Life
Material
Metal
Chlorine Concentration
6000-8000ppm
Capacity
8000g/H
Transport Package
Wooden Packaging
Specification
1880*1260*2285mm
Production Capacity
10000sets Per Year
HS Code
8543300090
Packaging & Delivery
Package Size
198.00cm * 136.00cm * 240.00cm
Gross Weight
800.000kg
📄 Product Description

8kg Wastewater treatment equipment brine electrolysis 8000ppm sodium hypochlorite generating system for industrial water plant

The HCCL series sodium hypochlorite generator is a device that uses a diaphragm-free electrolysis method to electrolyze dilute brine and prepare low concentration 6000-8000ppm sodium hypochlorite solution online. It has the characteristics of easy availability of raw materials, purity of products, and safety and reliability. Suitable for various types of chlorinated disinfection water treatment.

Key Applications
  • Waterworks Disinfection
  • Municipal Wastewater Disinfection
  • Swimming Pool Water Disinfection
  • Rural Drinking Water Disinfection
  • Hospital Wastewater Disinfection
  • Deodorant and Decoloration in Recycled Water

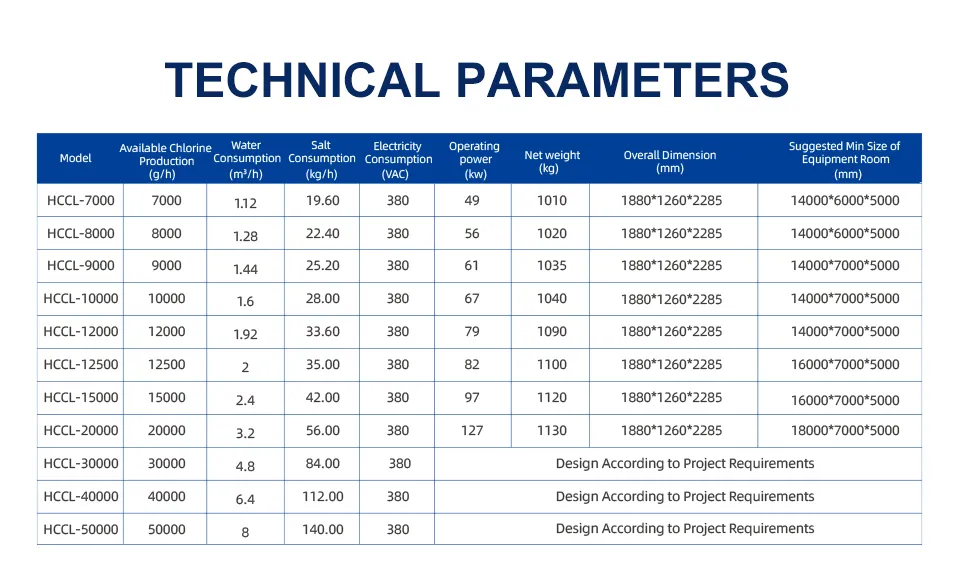

⚙️ Product Parameters
Model Concentration Production (g/h) Water Consumption (m³/h) Salt Consumption (kg/h) Electricity (kW/h) Dimension (W×D×H)
HCCL-70006000-8000ppm70001.1219.6491880*1260*2285
HCCL-80006000-8000ppm80001.2822.4561880*1260*2285
HCCL-90006000-8000ppm90001.4425.2611880*1260*2285
HCCL-100006000-8000ppm100001.628671880*1260*2285
HCCL-120006000-8000ppm120001.9233.6791880*1260*2285
HCCL-150006000-8000ppm150002.442971880*1260*2285
HCCL-200006000-8000ppm200003.2561271880*1260*2285
HCCL-300006000-8000ppm300004.884CustomCustom
📸 Detailed Photos

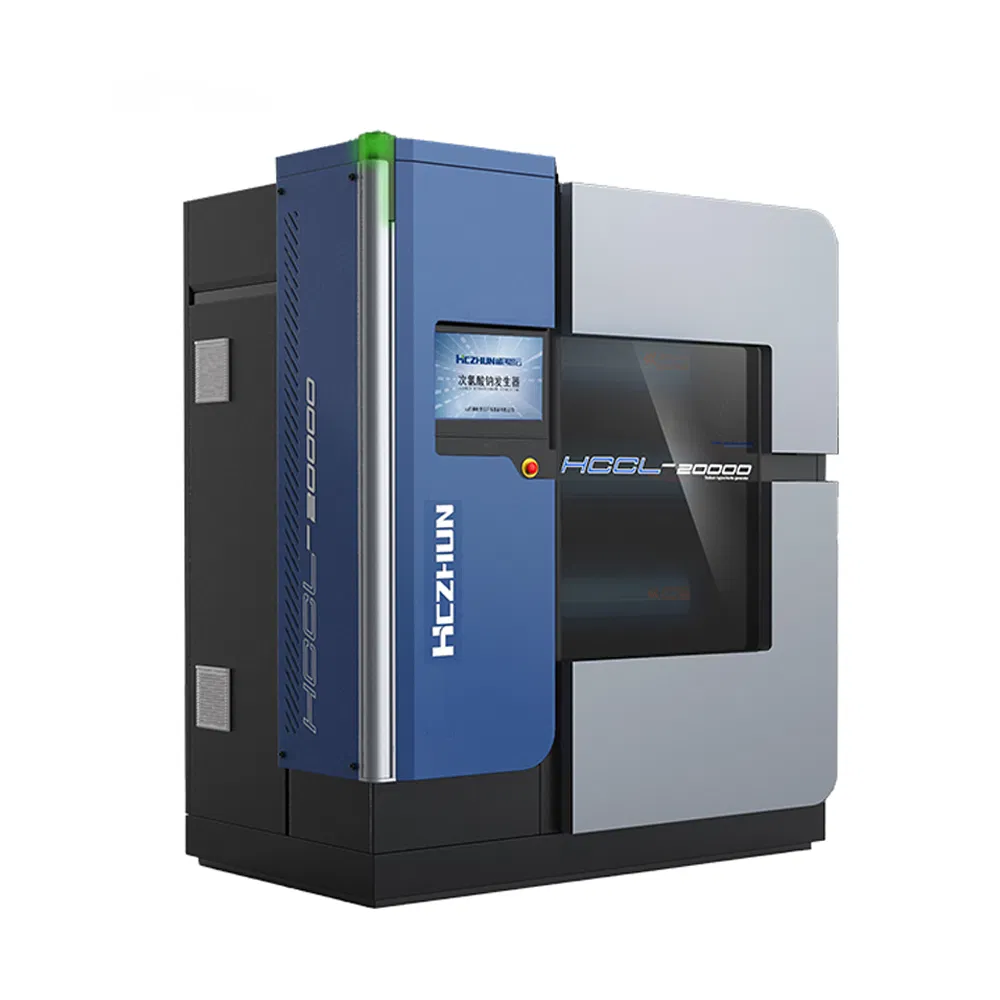

Equipment View 1

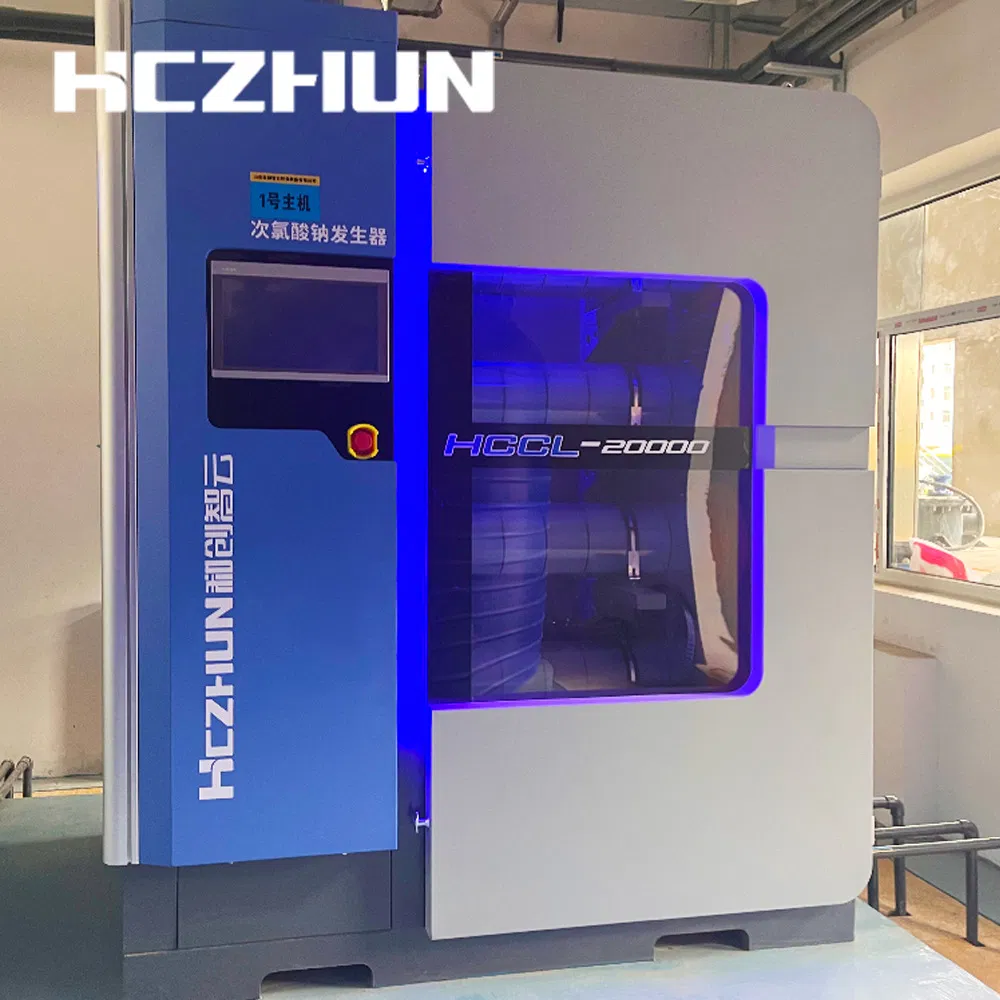

Equipment View 2

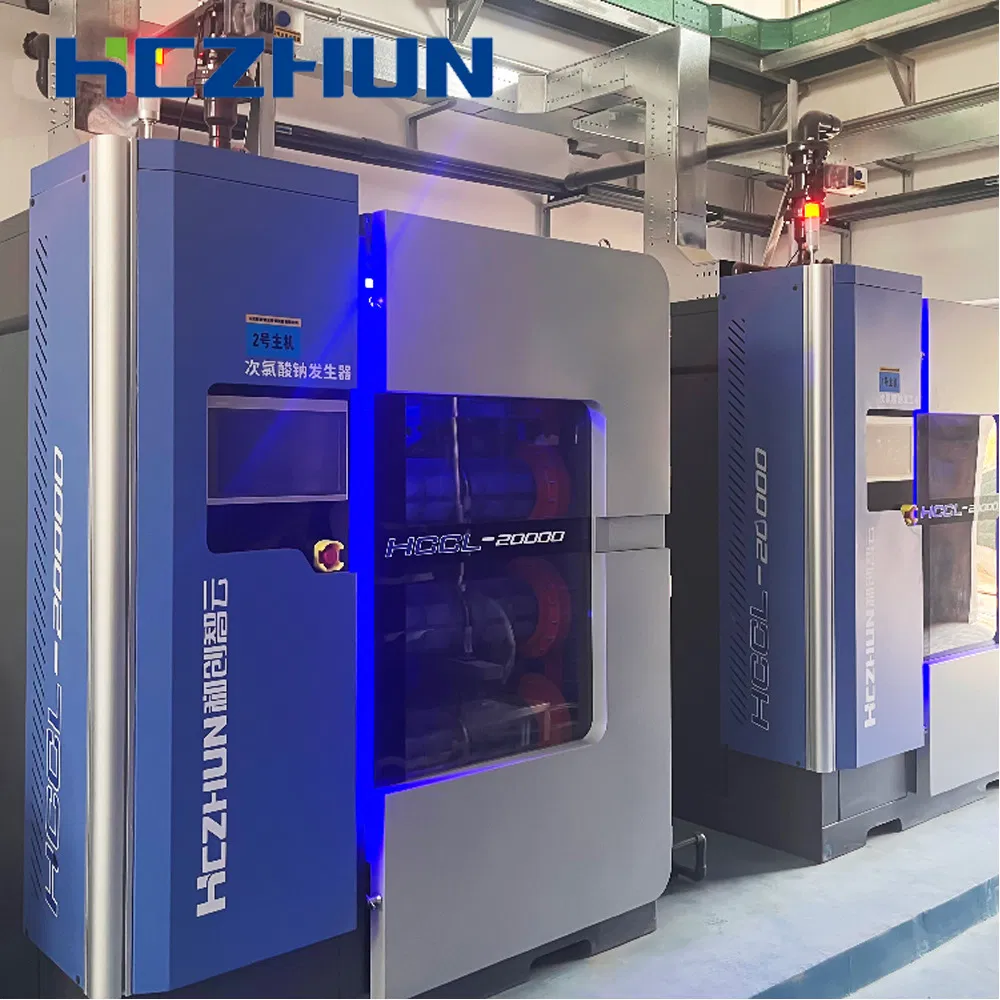

Equipment View 3
📜 Certifications

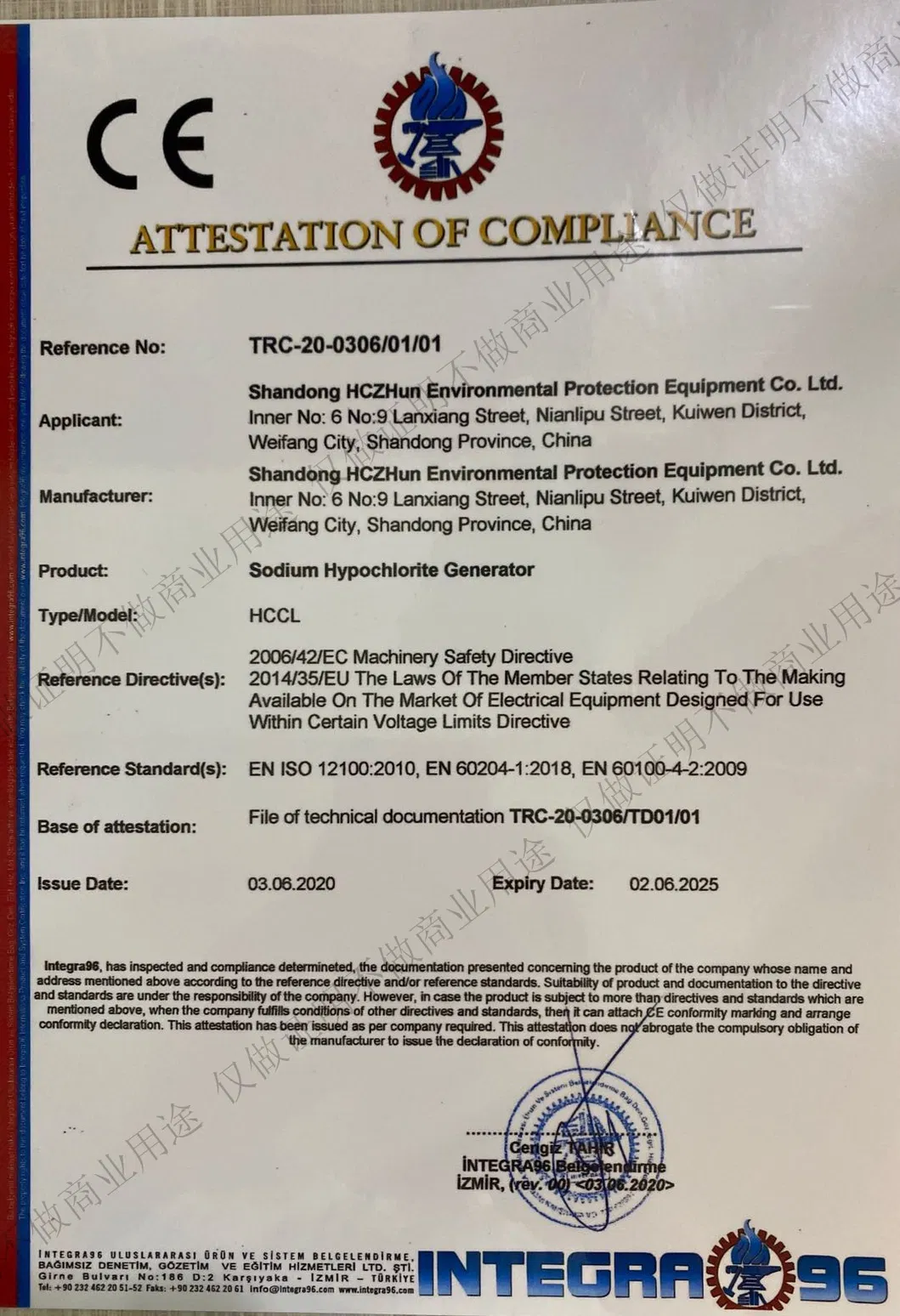

Certification 1
Certification 2
Certification 3
🤝 Exhibition & Customers
Exhibition 1
Exhibition 2
Exhibition 3
Customer Case 1
Customer Case 2
Customer Case 3
Technical Flowchart 1

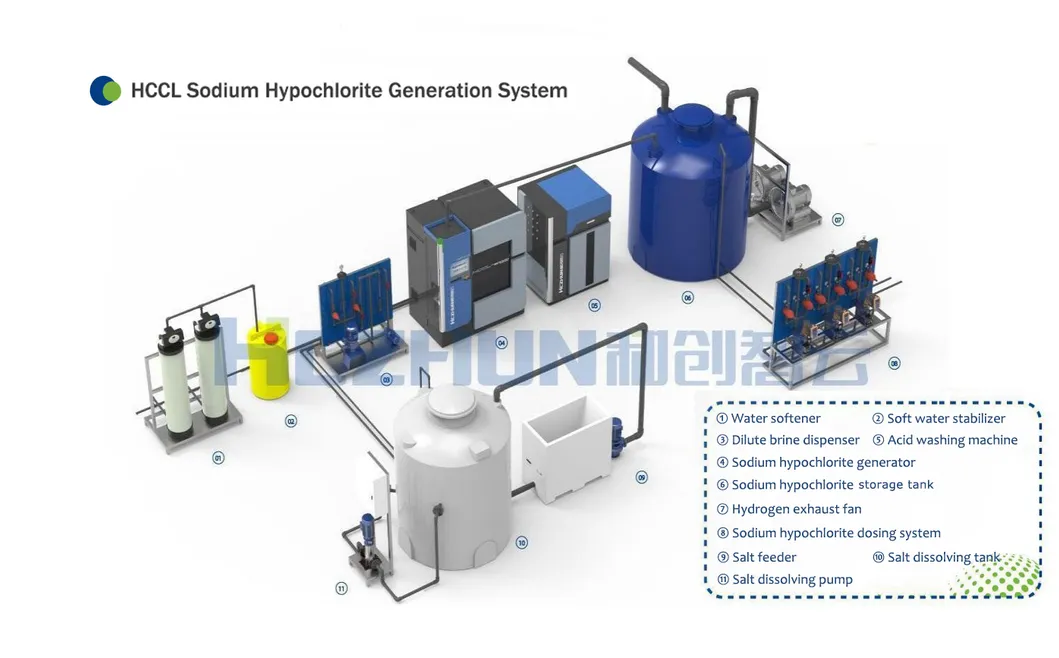

System Component

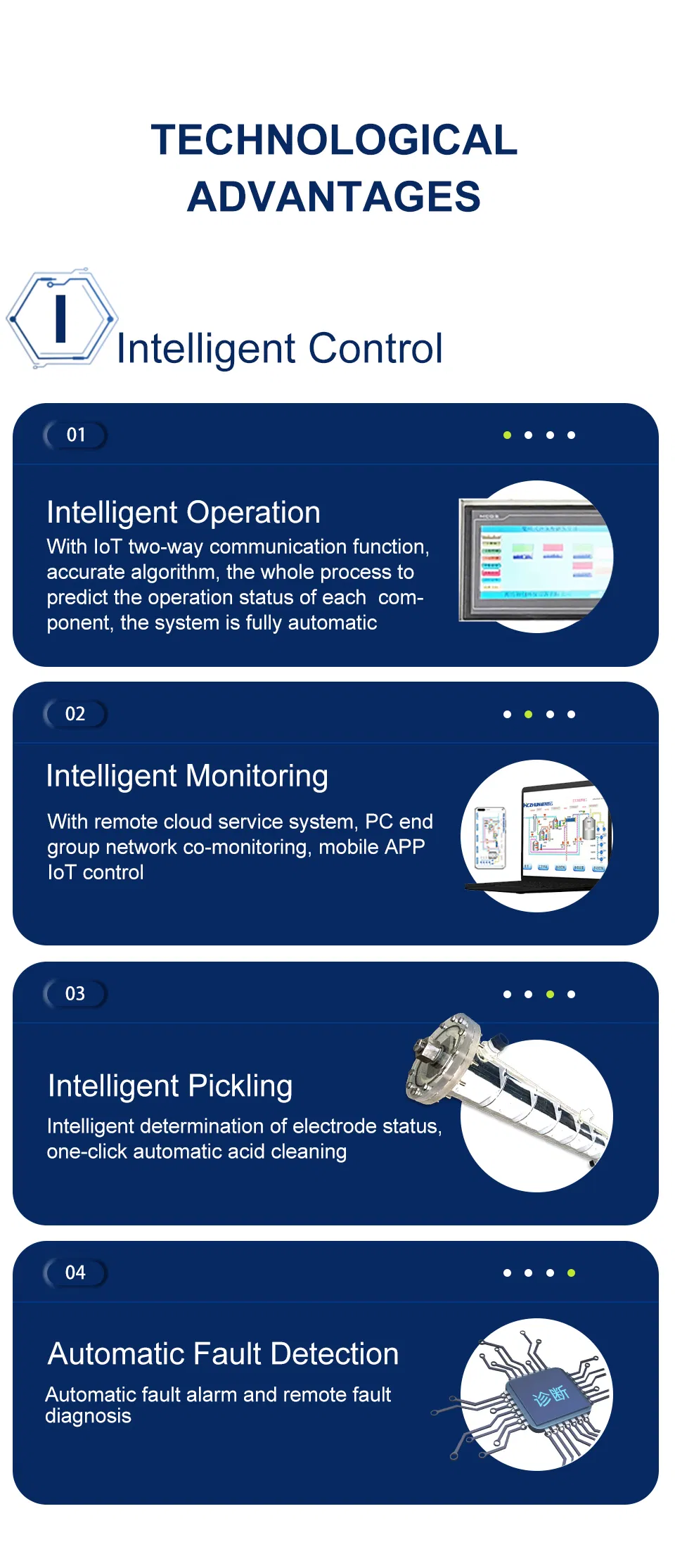

Technical Layout

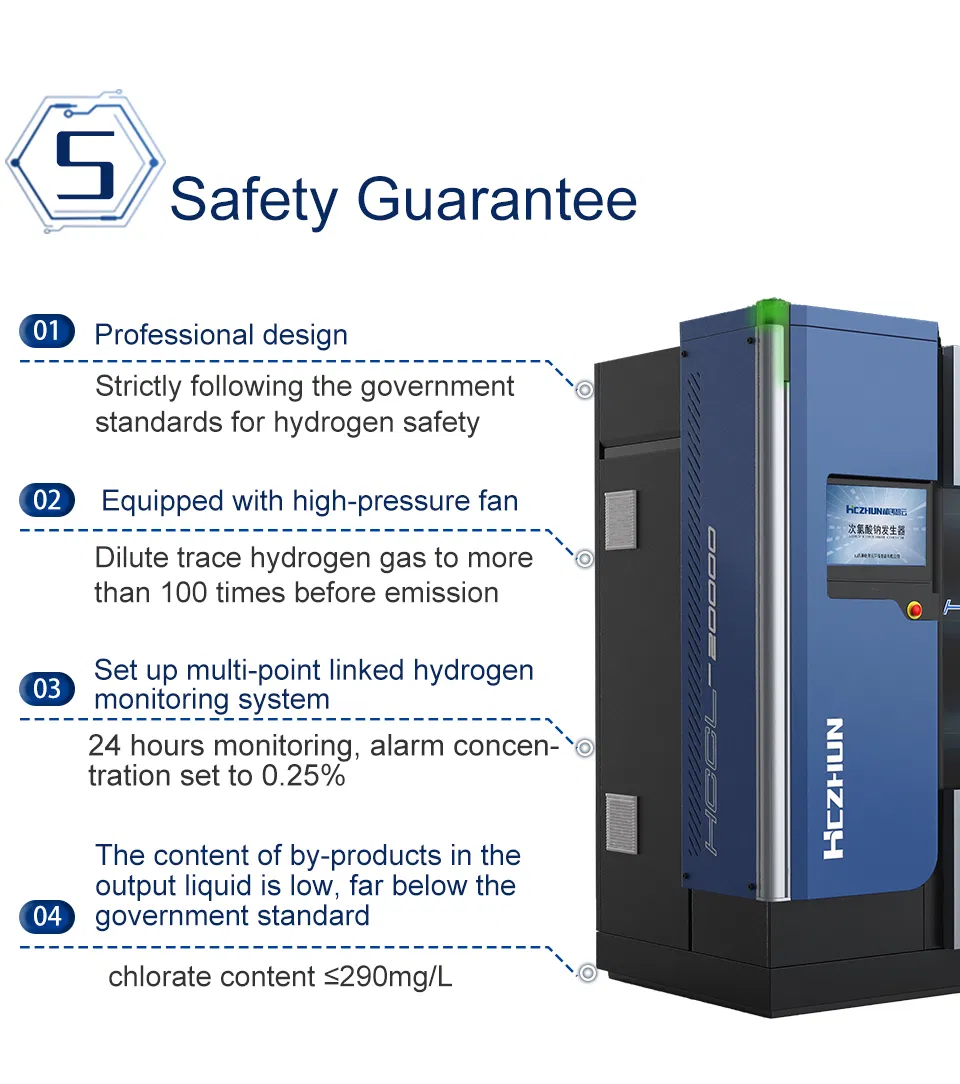

Structure Detail

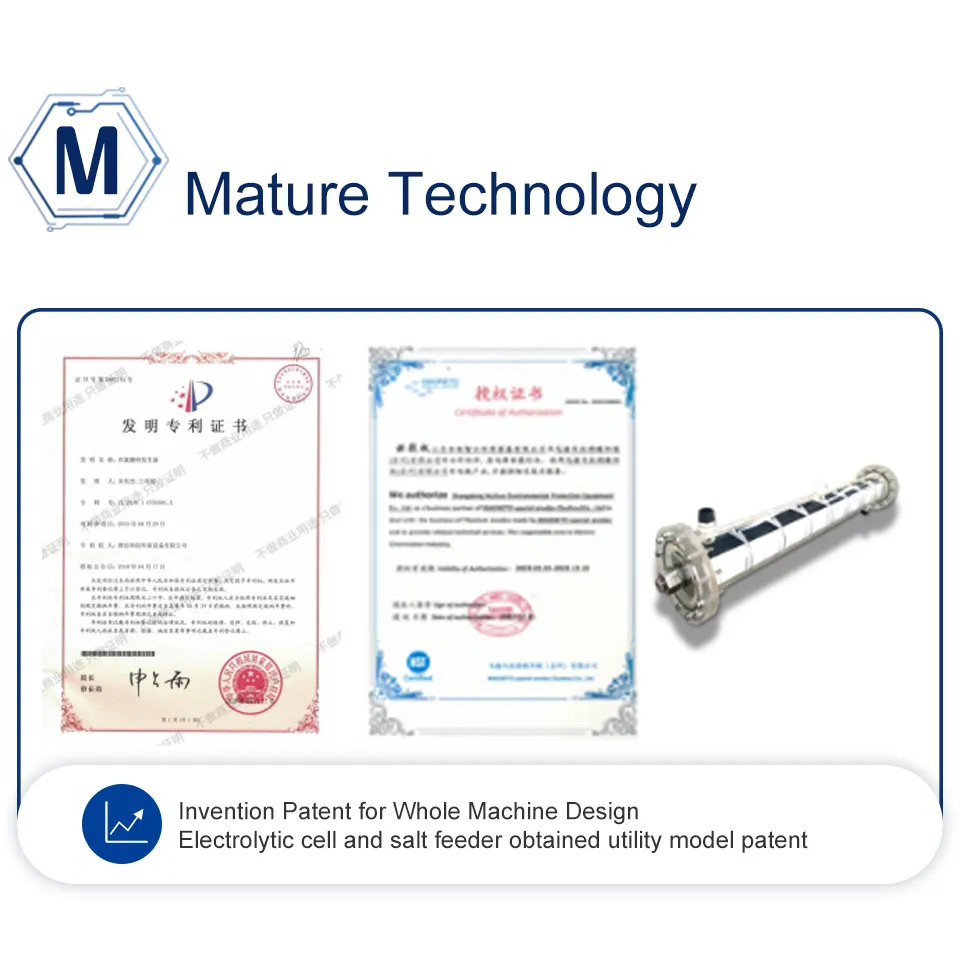

Control System
Electrolytic Cell

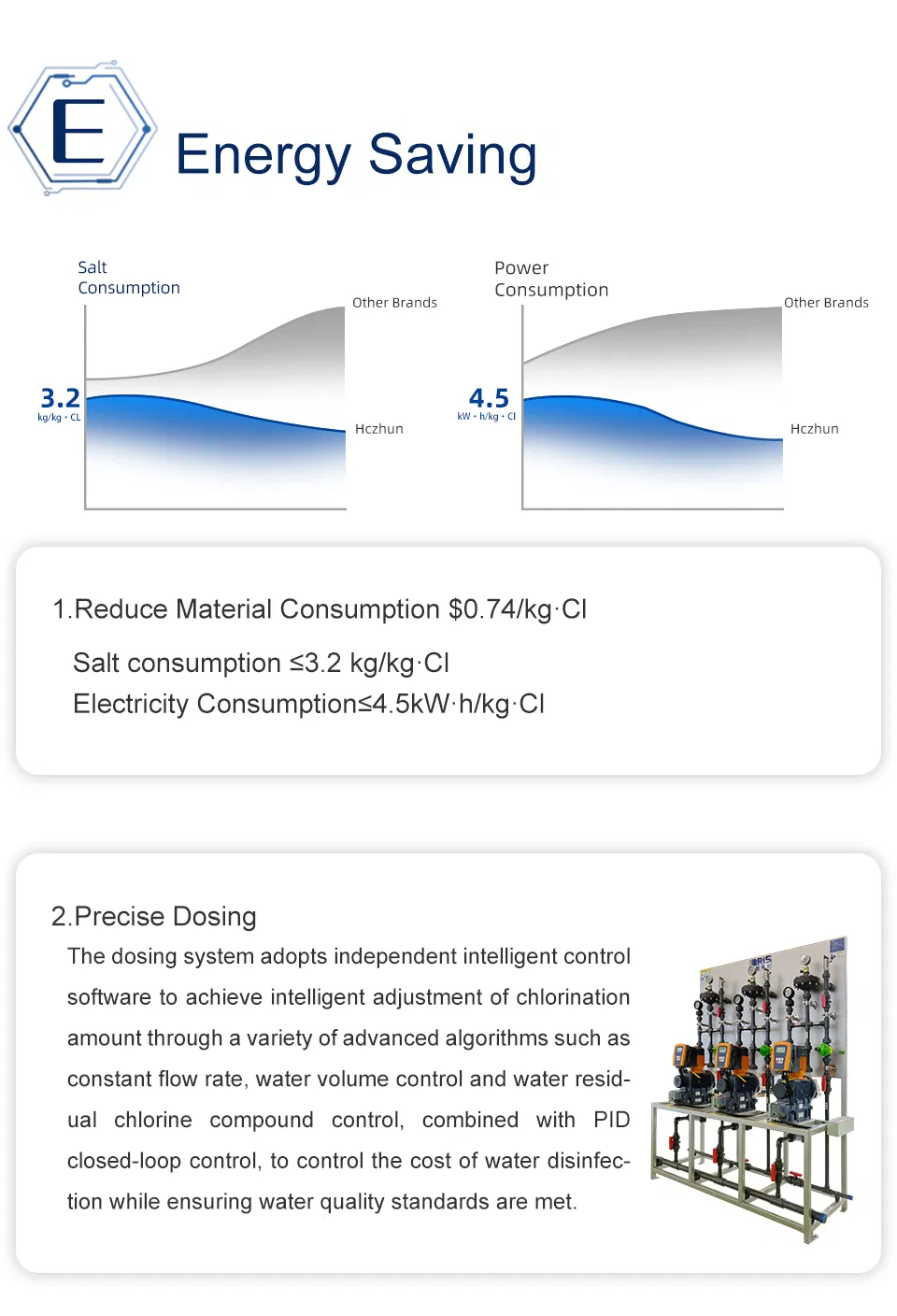

Installation Diagram

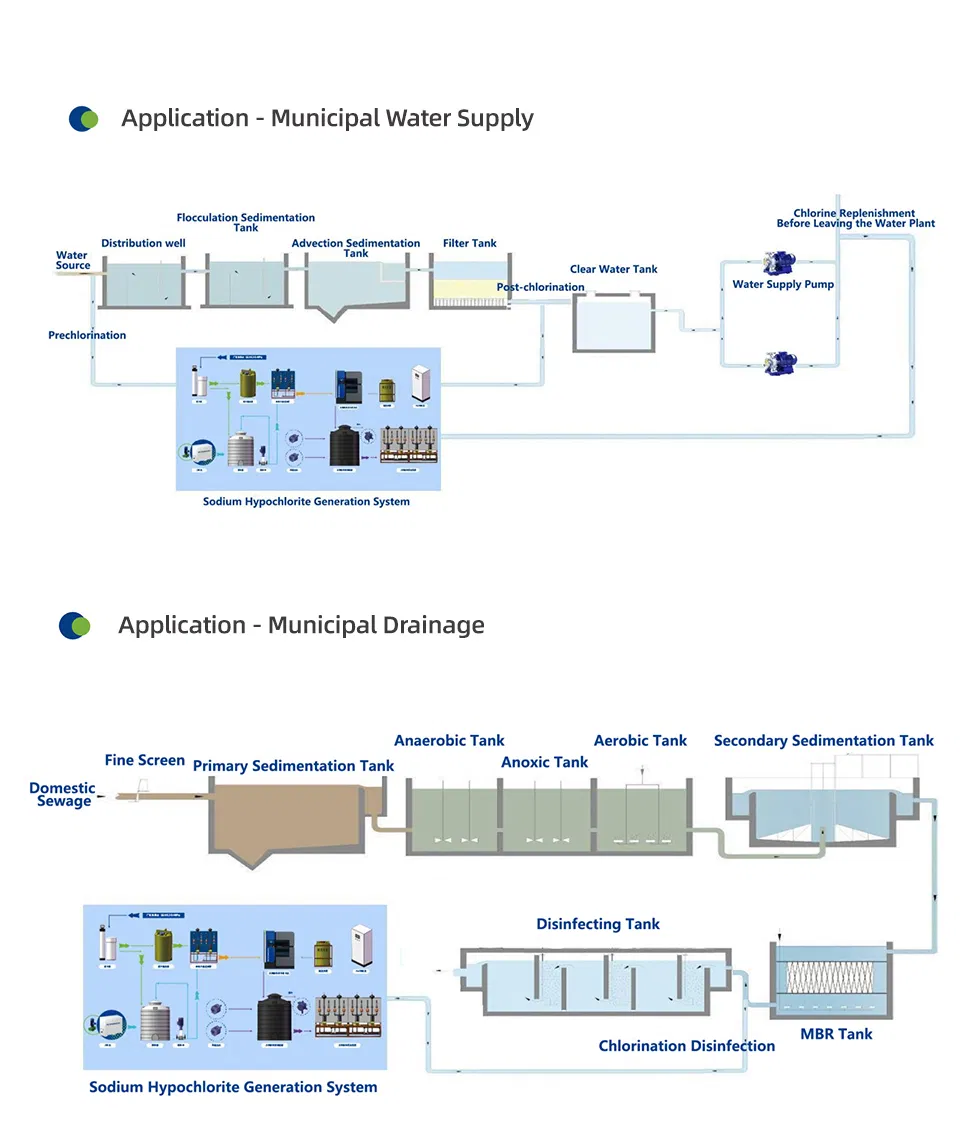

Pipeline Details
Module View
Final Assembly
Frequently Asked Questions
How does the brine electrolysis system work?
The system uses a diaphragm-free electrolysis method to convert dilute salt water (brine) into a low-concentration sodium hypochlorite solution (6000-8000ppm) through an electrolytic cell.
What are the primary raw materials required?
The system only requires common salt, water, and electricity to operate, making it highly cost-effective and easy to maintain.
What industries can use this equipment?
It is ideal for municipal waterworks, wastewater treatment plants, industrial cooling water systems, swimming pools, and hospital disinfection.
Is the sodium hypochlorite produced safe for drinking water?
Yes, the generated low-concentration solution is a pure and effective disinfectant widely used for rural and municipal drinking water disinfection.
What is the electricity requirement for the HCCL-8000?
The HCCL-8000 model operates on a standard 380V industrial voltage with an electricity consumption of approximately 56 kW/h.
What certifications does this equipment hold?
The system is fully certified with ISO9001 and CE standards, and specifically features TUV Explosion-Proof Certification for enhanced safety.
