Olaprixa Industrial Olaprixa Industrial

Industrial Wastewater Treatment RO System Home Water Purification System

Customization: Available
Type: Reverse Osmosis
Usage: Industrial Water Filtration

Product Description

Basic Info.
Model NO. HUAYU Motive Force Electric power
Style Pure Water Treatment System Performance Efficient Filtration
Device Power AC/380V/50Hz Control Mode Fully Automatic Operation
Application Domestic Drinking Water/Industrial Water Filtration Weight 260kg
Transport Package Wooden Rack/Plastic Wrap Packaging Specification 1500mm*650mm*1700mm
HS Code 8421219990 Production Capacity 3000
Packaging & Delivery
Package Size 100.00cm * 100.00cm * 100.00cm
Package Gross Weight 100.000kg
Product Description

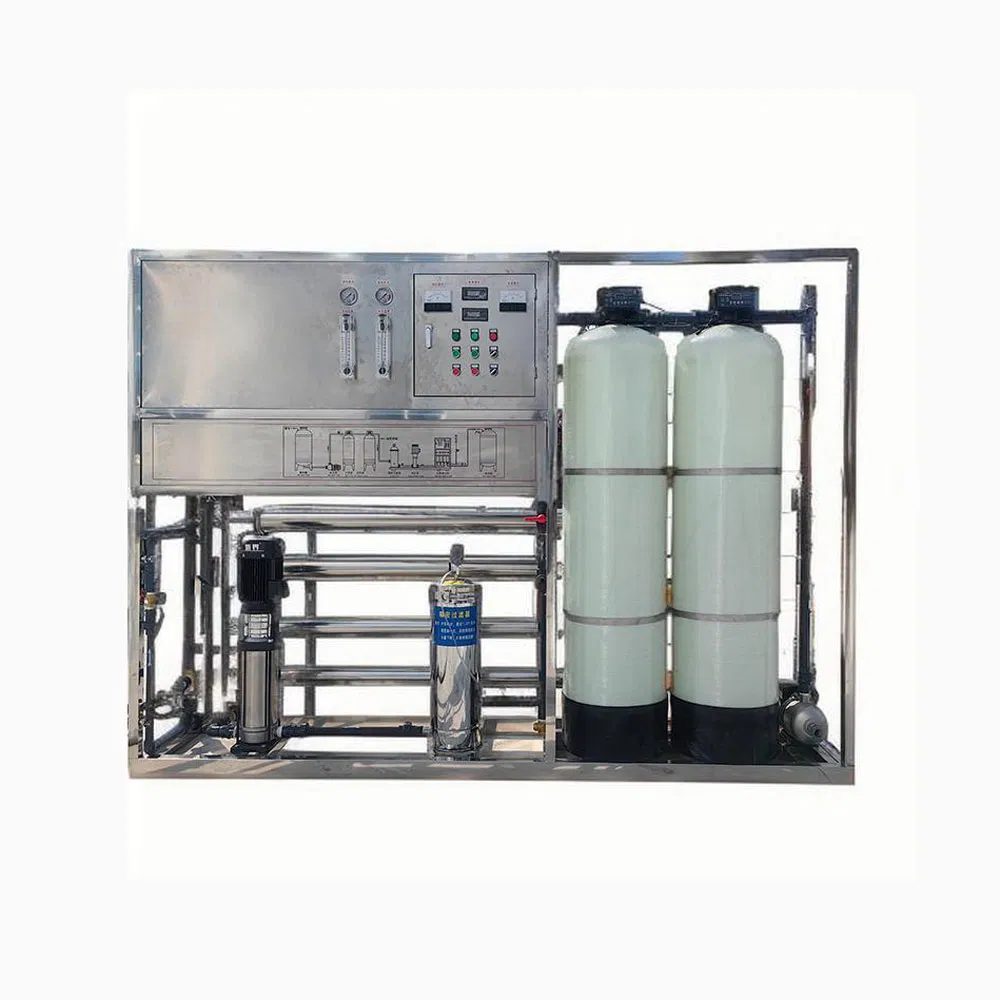

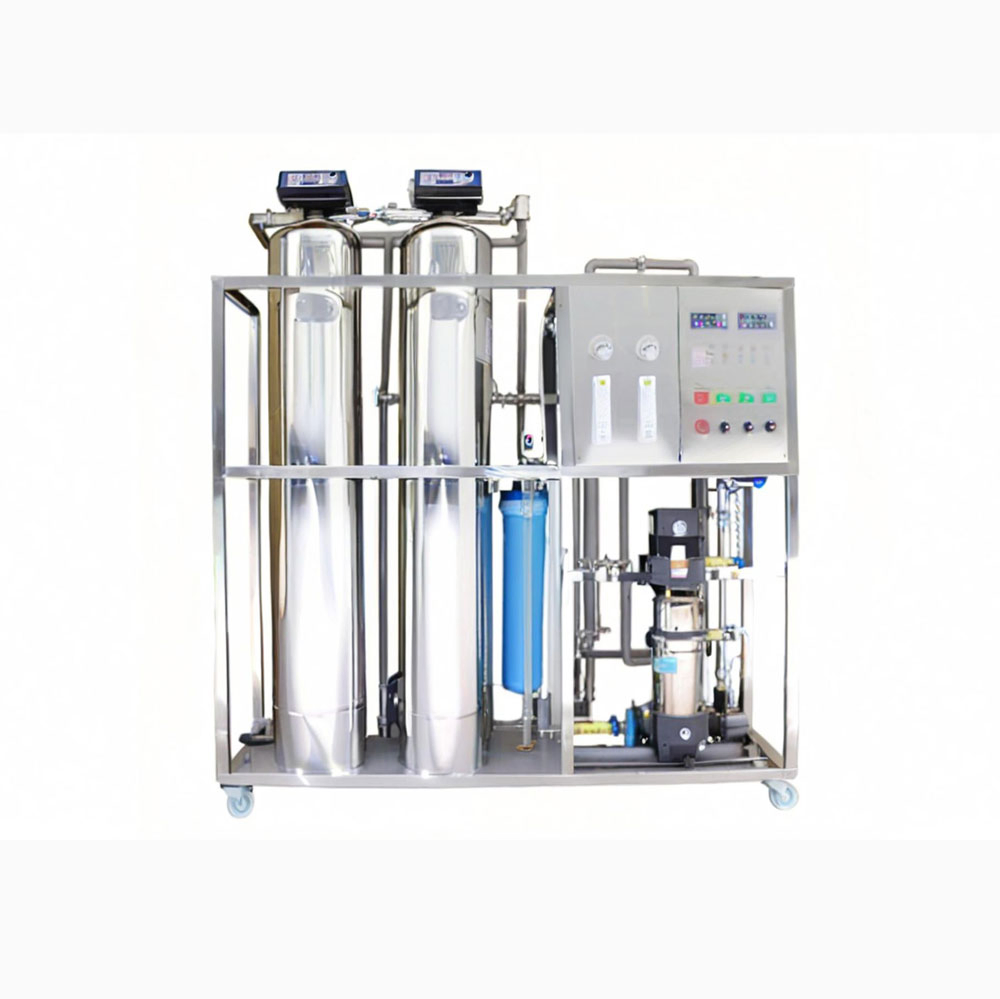

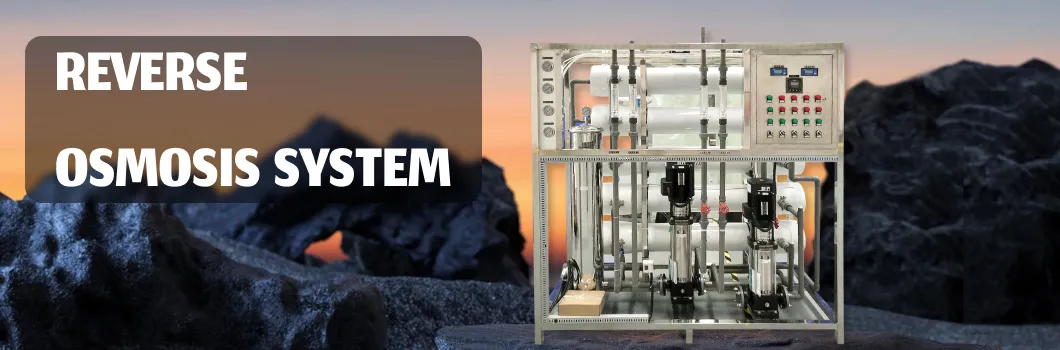

Industrial Wastewater Treatment RO System

Working Process:

  • Raw Water Supply: Tap water is stored efficiently in the water tank to stabilize pressure and enhance booster pump performance.
  • Booster Pump: A robust stainless steel pump provides the necessary pressure for the filtration journey.
  • Quartz Sand & Carbon Filtration: Expertly removes mud, suspended solids, organic compounds, residual chlorine, and odors.
  • Precision & Security Filters: Provides advanced filtration to safeguard the reverse osmosis membrane.
  • RO Unit: The pivotal element that generates high-purity water for diverse applications.
  • Storage: Refined water is stored in customizable pure water tanks (FRP or Stainless Steel options available).
Detailed Photos

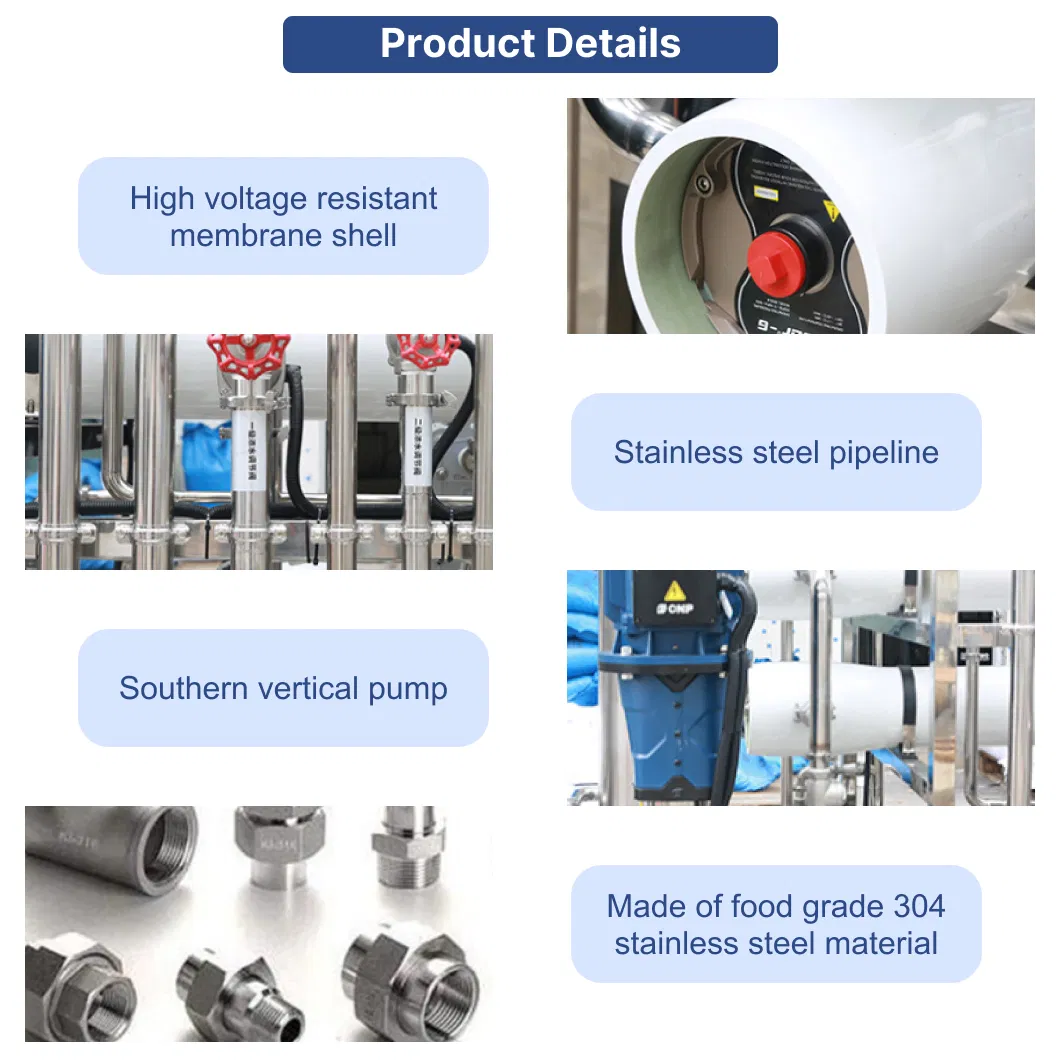

System Detailed View
Working Principle
RO Working Principle
Product Parameters
Parameters HYHJ-RO-0.5T
Machine Size 1500mm*650mm*1700mm
Control Mode Fully Automatic Device Power AC/380V/50HZ
Unladen Weight 260KG Running Weight 500KG
Raw Water Pump Q=2m³/H H=30m High Press Pump Q=2m³/H H=90m
Quartz Sand Filter φ250×1400mm Activated Carbon Filter φ250×1400mm
Precision Filters 5 cores 10 inches Filter Element 10''5μm
Dosing Pump Q=1L/H H=50m Dosing Box 40L
Membrane Vessels 1 core 4 inches Membrane Model 4040
Our Advantages

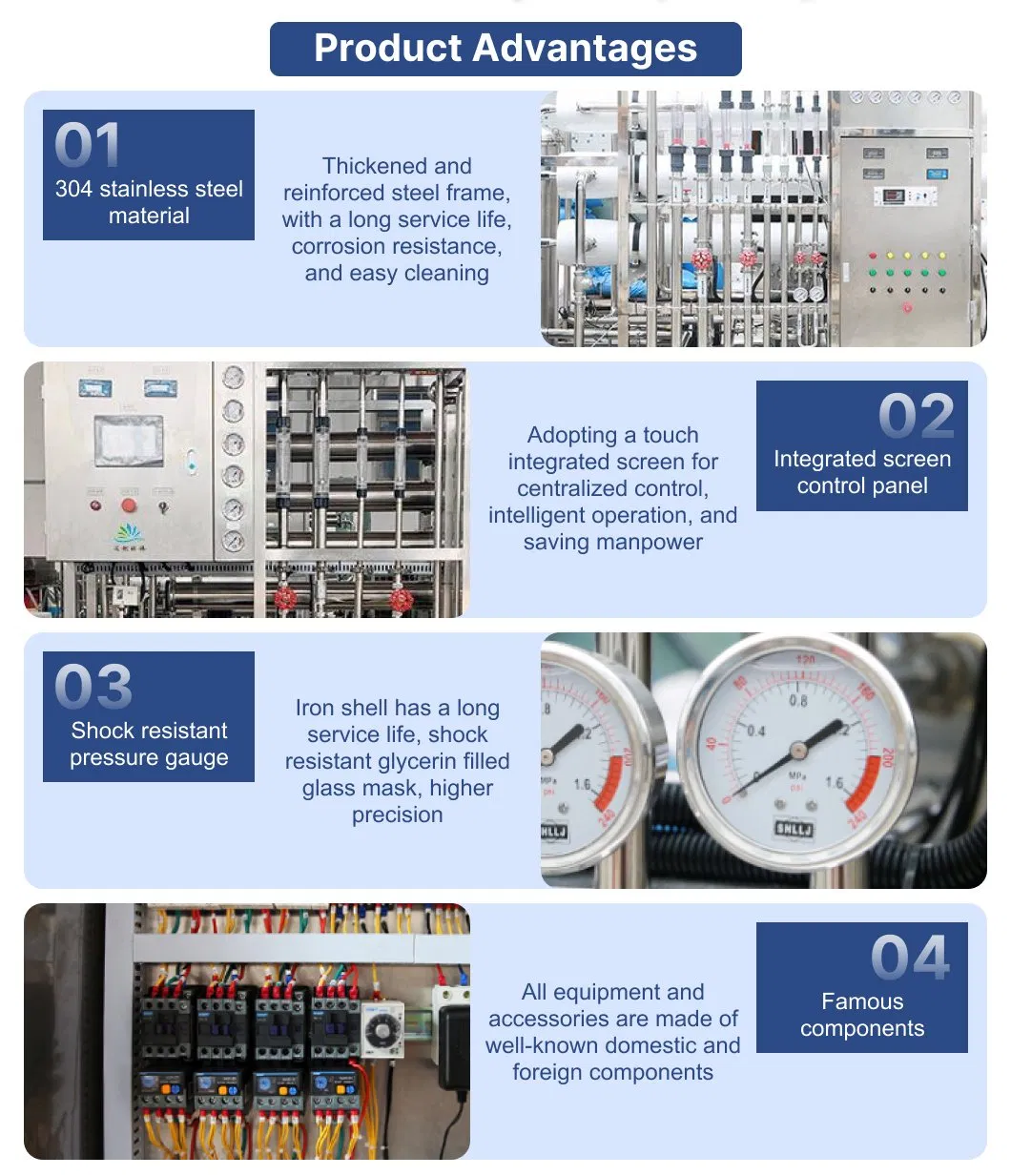

Core Advantages
Product Application
System Applications
Industrial Capabilities

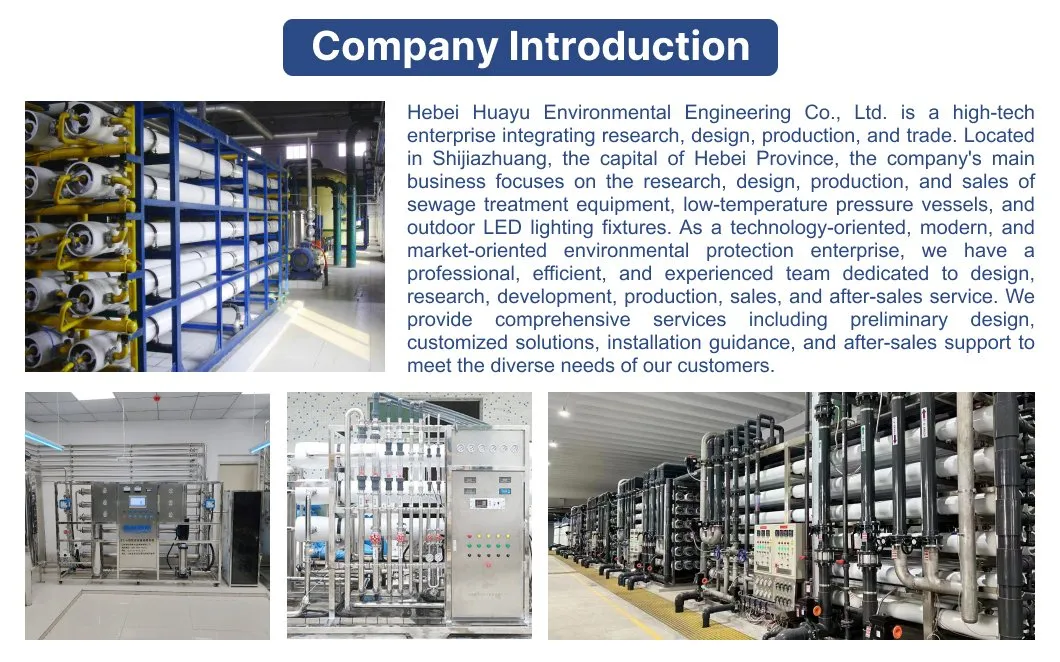

Production Facility Equipment Layout
Frequently Asked Questions

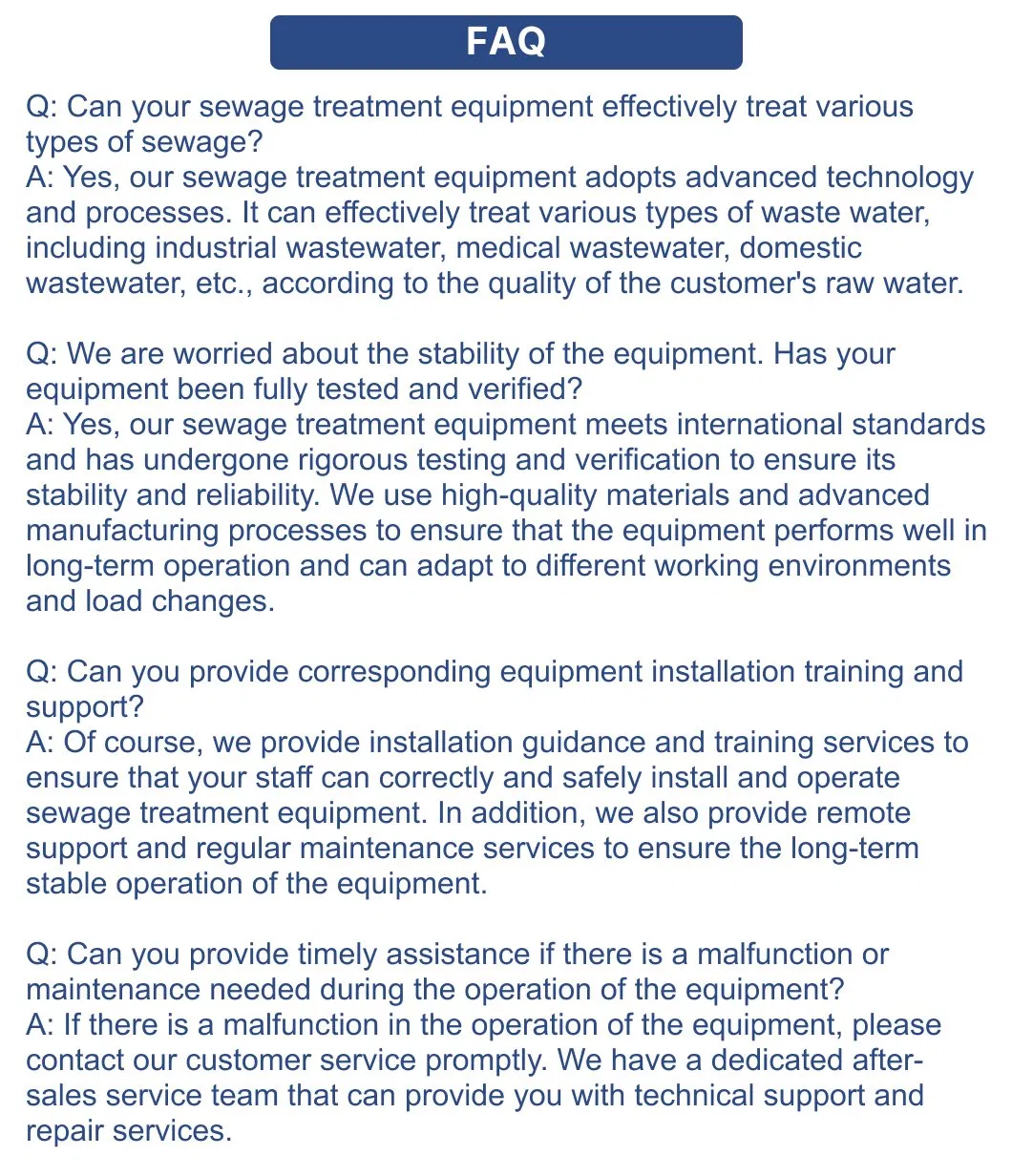

FAQ Support
What is the primary technology used in this water purification system?
The system utilizes advanced Reverse Osmosis (RO) membrane technology combined with multi-stage filtration (Quartz sand, Activated carbon, and Precision filters) to ensure high-purity water output.
Is the system difficult to operate?
No, the system is designed for fully automatic operation, requiring minimal manual intervention while maintaining efficient performance and safety.
What kind of contaminants does the system remove?
It effectively removes mud, suspended solids, organic compounds, residual chlorine, unpleasant odors, and microscopic impurities through its integrated filtration stages.
Can I customize the filter tank materials?
Yes, we offer customization options where you can choose between FRP (Fiber Reinforced Plastic) or Stainless Steel tank systems based on your specific industrial or domestic requirements.
What are the power and space requirements for the HYHJ-RO-0.5T model?
This model requires an AC/380V/50Hz power supply and has a compact footprint of approximately 1500mm x 650mm x 1700mm.
Is this system suitable for industrial wastewater treatment?
Yes, it is versatile enough for both high-standard domestic drinking water purification and various industrial wastewater treatment applications.
