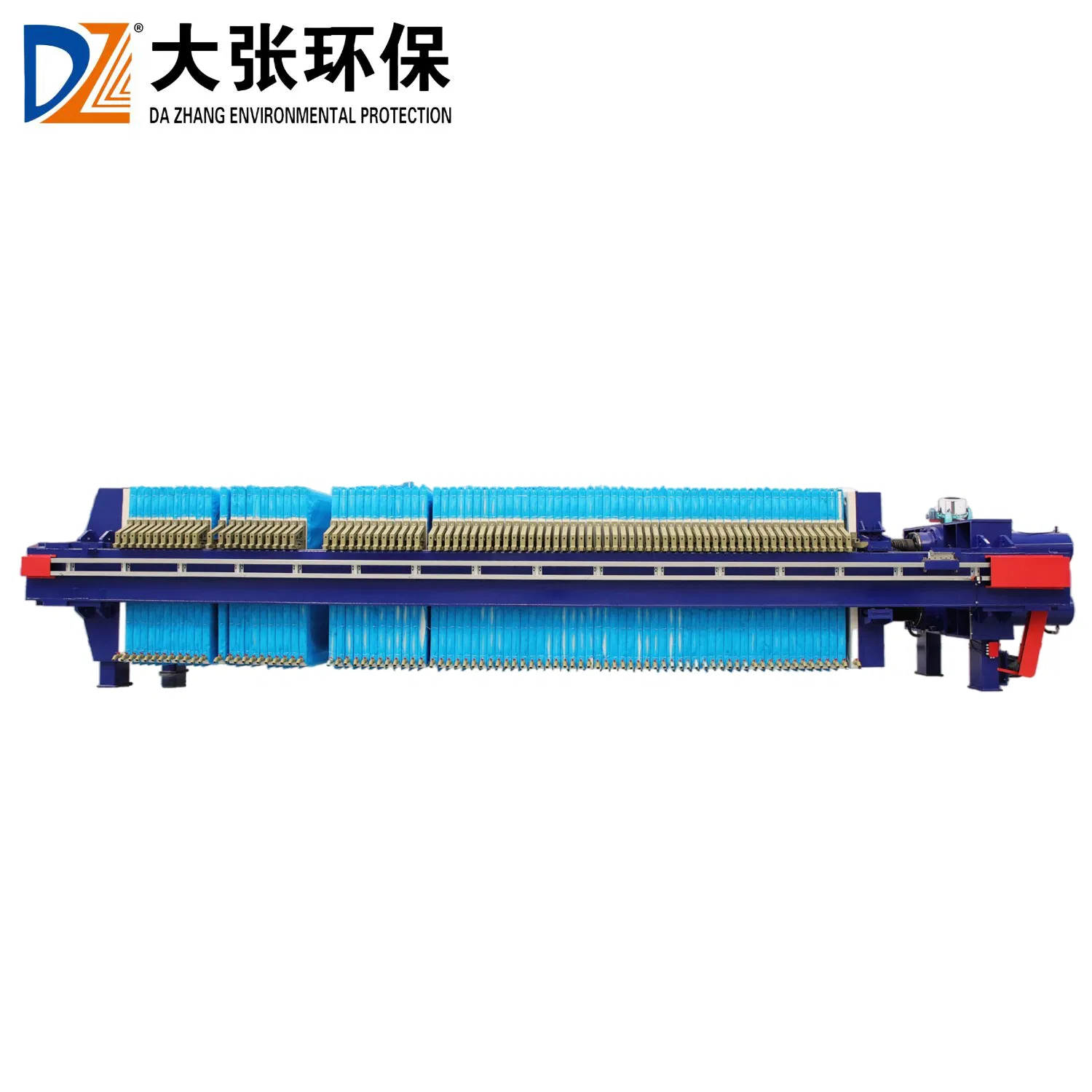

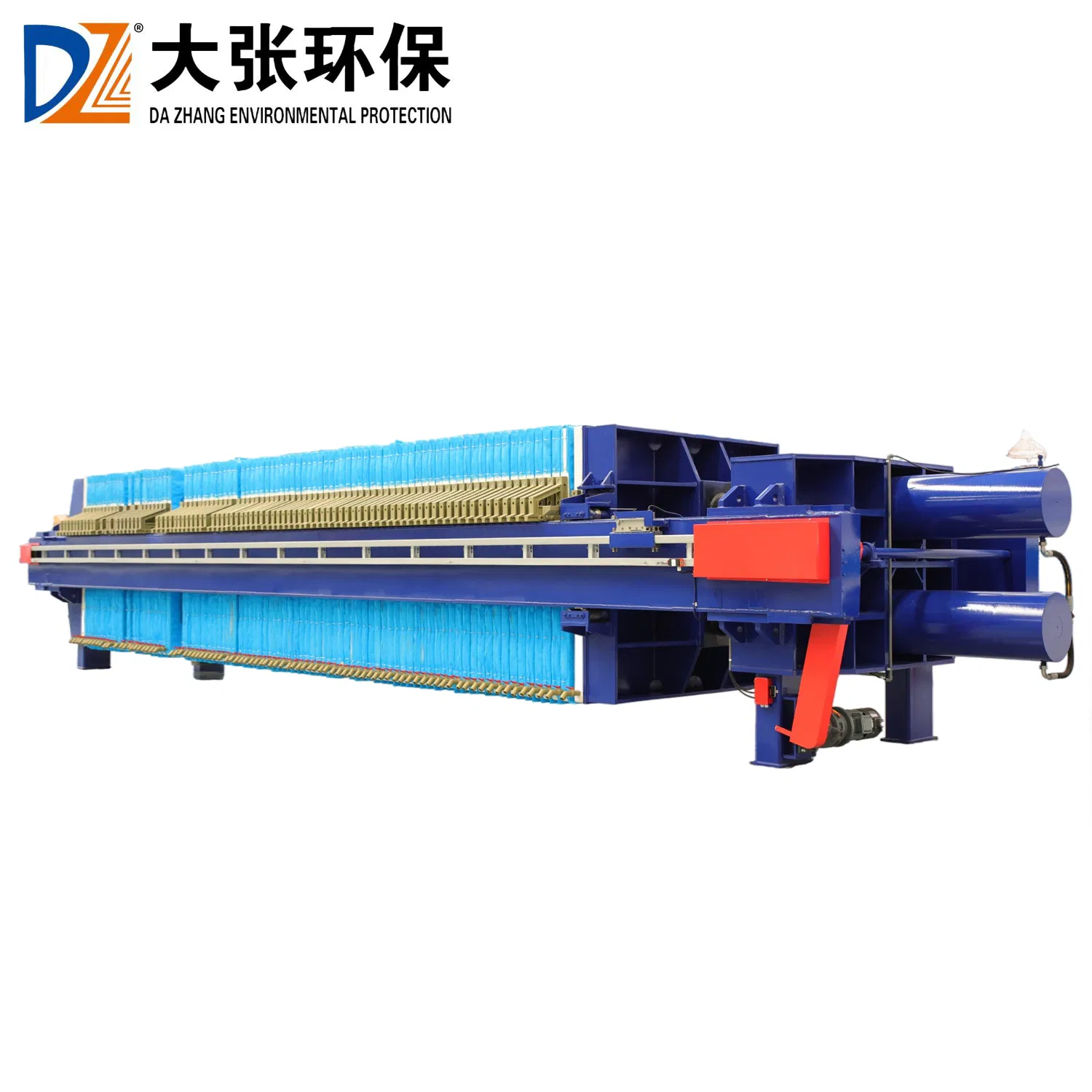

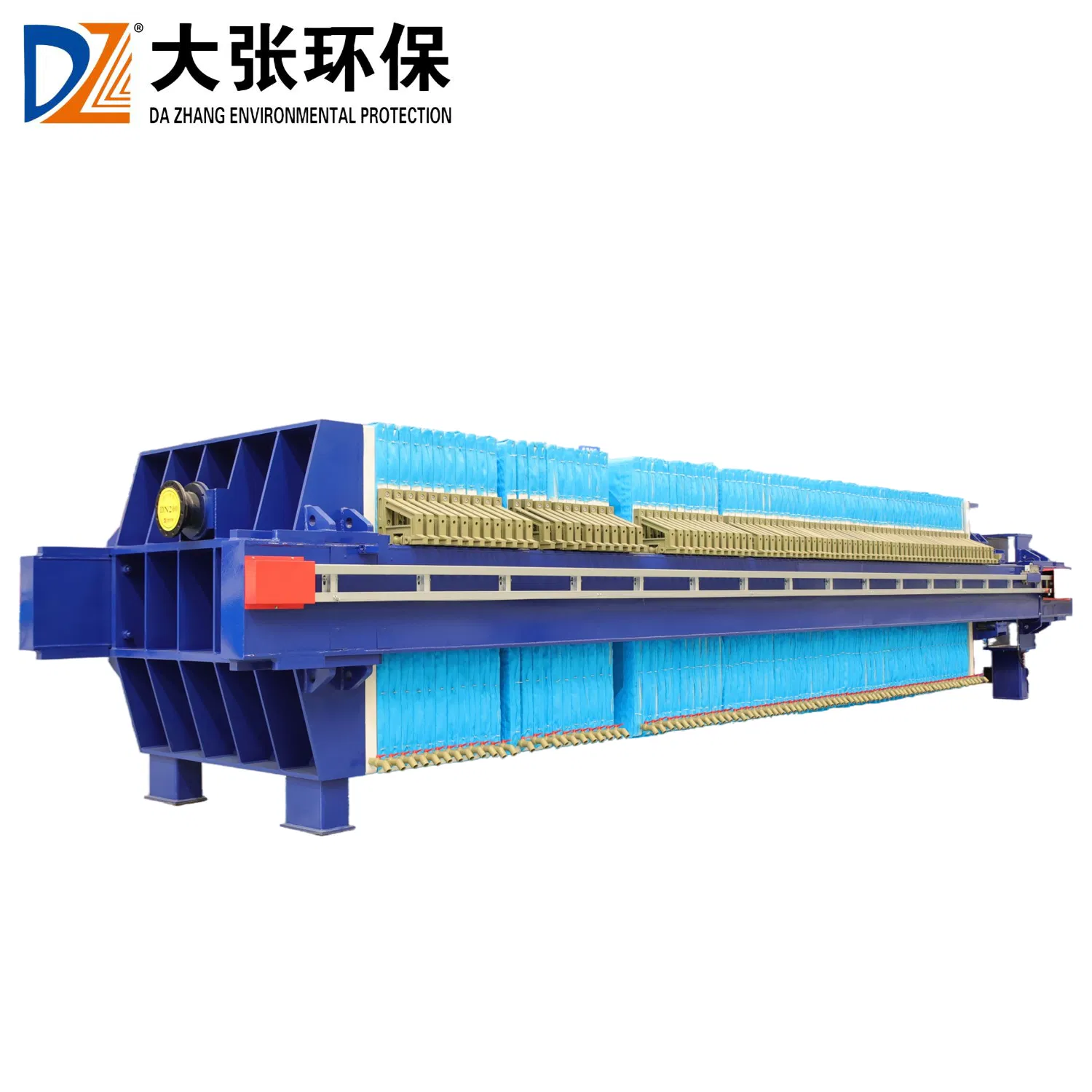

Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
1 / 5
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment
Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment

Advanced Automatic Sludge Management Recessed Filter System for Efficient Wastewater Treatment

Customization: Available
Structure: Chamber Filter Press
Filter Material: PP
Send Inquiry

Product Description

📊

Product Overview

Model NO.
DZ
Pressure
Hydraulic Pressure
Type
Programmed Controlled
Plate Shifting
with Auto Shifter
Feeding Type
Central Feeding
Filter Area
30-1000 Square Meter
Chamber Volume
595L
Item
Chamber Filter Press
Material of Girder
Carbon Steel Q235
Plate Type
PP Recessed Chamber
Feeding Pressure
0.6-1.5 MPa
Cake Thickness
30-45 mm
⚙️

Product Description

Automatic Sludge Management System

The program controlled automatic recessed filter press can carry out multiple operations, such as filter plate pressing, liquid collector plate open/close, filter plate releasing, filter plate withdrawing, and cloth washing. Equipped with a microchip controller, PLC, and touch screen, the system allows for all operations to be managed via remote control.

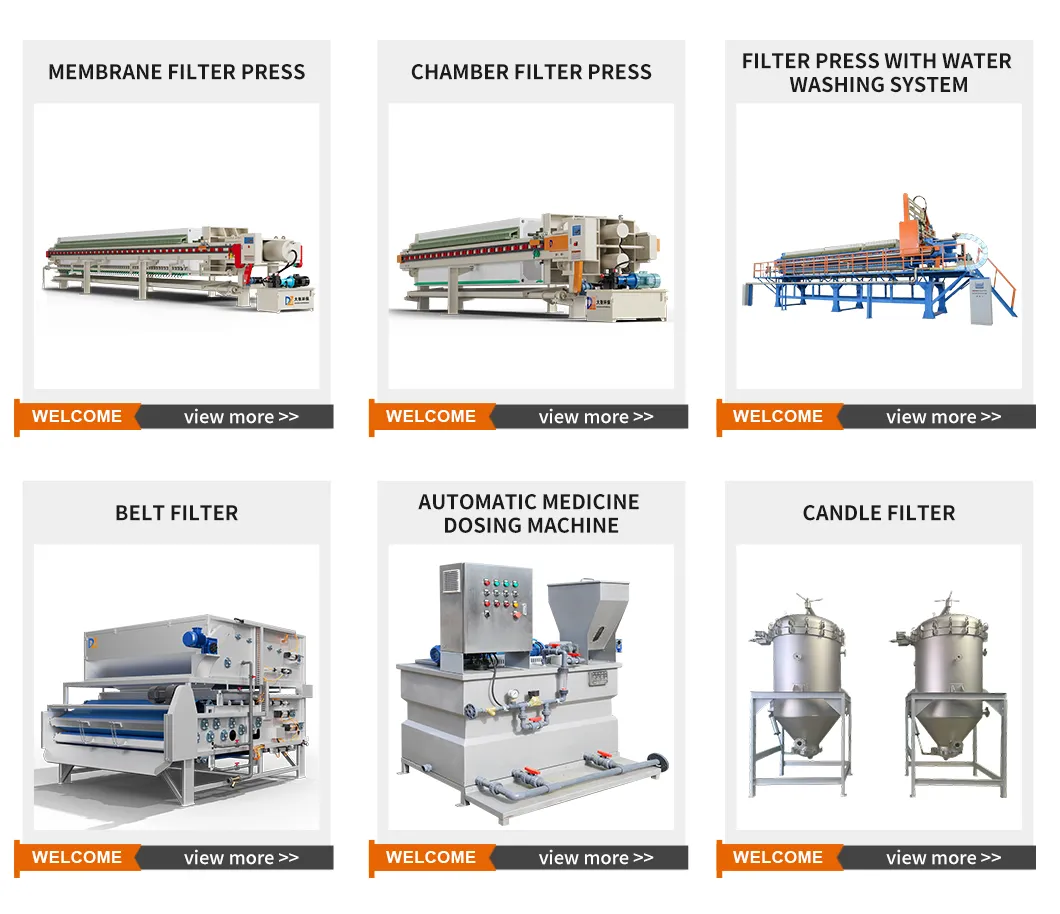

Filter Press Detail 1
Filter Press Detail 2
  • Energy Efficient: With the shifter assembled and an enhanced hydraulic cylinder, this automatic recessed filter press discharges filter cakes more efficiently.
  • High Frequency Operation: Ideal for industries handling easily dehydrated materials with high-frequency operational needs.
  • Stable Performance: Features a compact structure that ensures stability, efficiency, and economy.
  • Rapid Unloading: The rapid unloading system increases cake discharging speed by 3-6 times compared to standard systems.
📋

Technical Parameters

Model Filter Area (㎡) Plate Size (mm) Cake Thickness (mm) Chamber Volume (L) Plate Quantity (pcs) Feeding Pressure (MPa) Motor Power (kW) Weight (kg) Dimensions (mm)
XZ200/1250-30U2001250×125030289672≥0.67.5135047770×1900×1630
XZ250/1250-30U2501250×125030365091≥0.67.5162279010×1900×1630
XZ300/1500-35U3001500×150035525074≥0.67.5260268300×2200×1820
XZ400/1500-35U40040035700099≥0.67.53257410050×2200×1820
XZ600/2000-40U6002000×2000401200085≥0.6154900011100×3000×2500
XZ1000/2000-40U10002000×20004020000141≥0.6156500015600×3000×2500

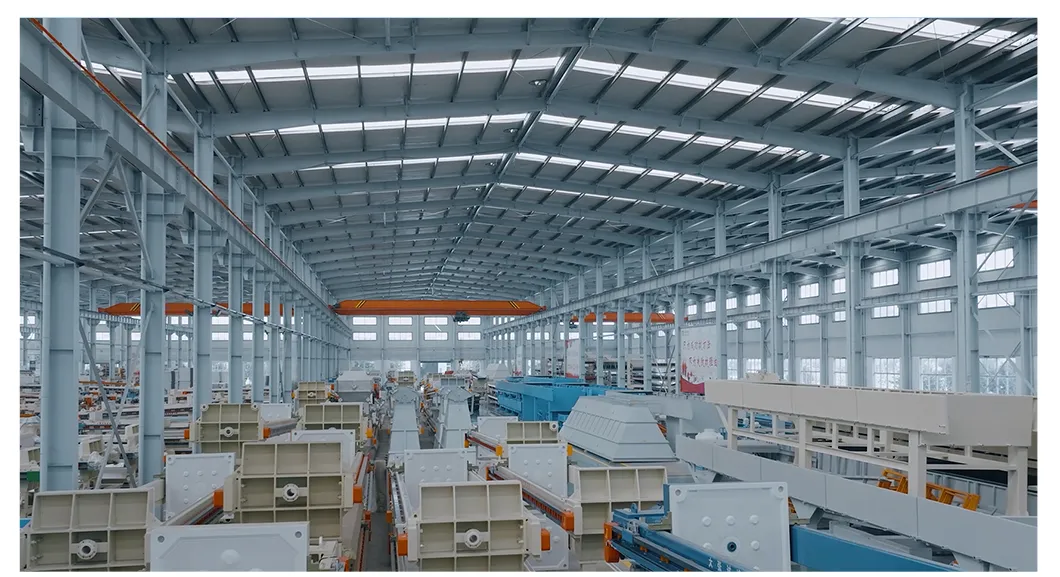

Wastewater Treatment System
Equipment Display
System Component
Industrial Application
Manufacturing Quality
Filter Plate Detail
❓

Frequently Asked Questions

Q1. Are you a manufacturer or a trader?
We are an experienced manufacturer specializing in solid-liquid separation equipment.
Q2. What is the annual production capacity?
Our manufacturing facilities produce approximately 9,500 sets of machines per year.
Q3. How long is the delivery time for bulk orders?
Normally, delivery takes 15-30 working days after deposit. Custom requirements or large-scale equipment may extend this timeframe.
Q4. What are the standard payment terms?
Typically, we require a deposit before production begins, with the balance payment due after inspection and before shipment.
Q5. What is the product warranty period?
We offer a one-year warranty for normal use and provide lifelong online technical support.
Q6. What after-sales services do you provide?
We provide foundation drawings, installation videos, and online guidance. On-site assistance can be arranged based on client needs.
