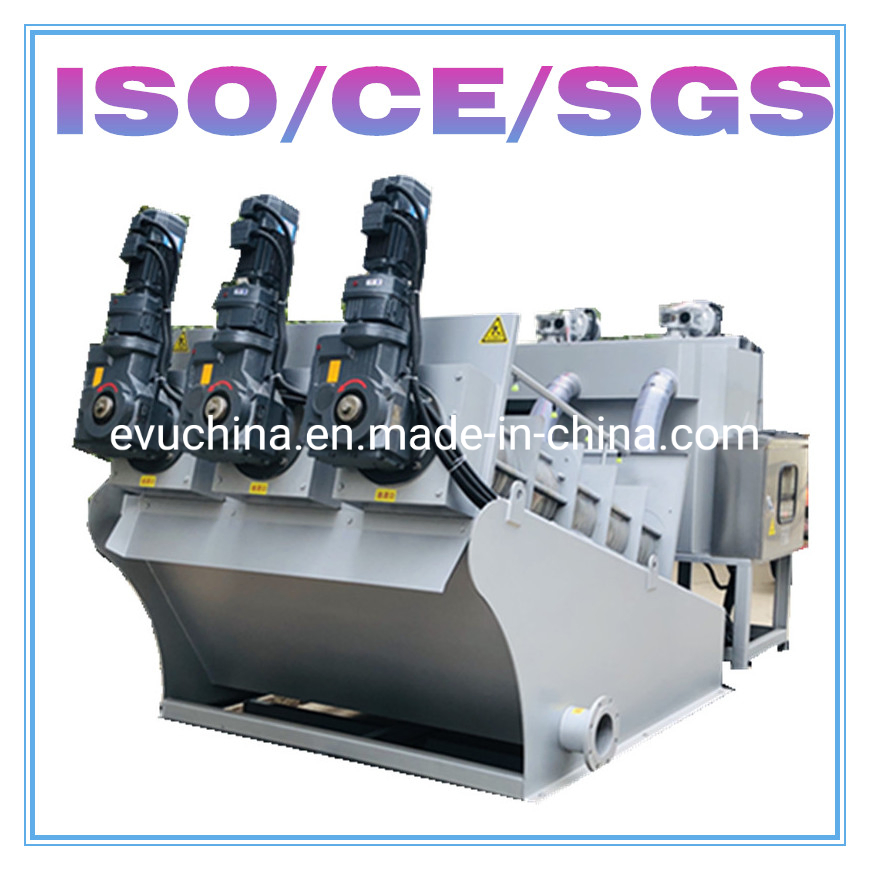

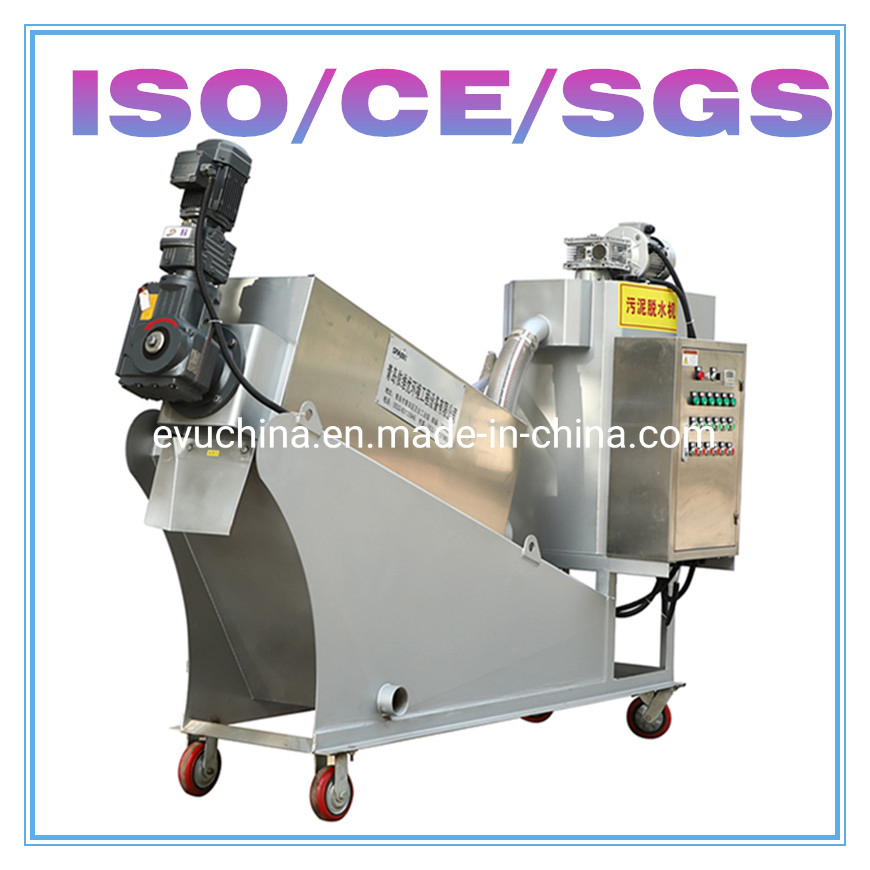

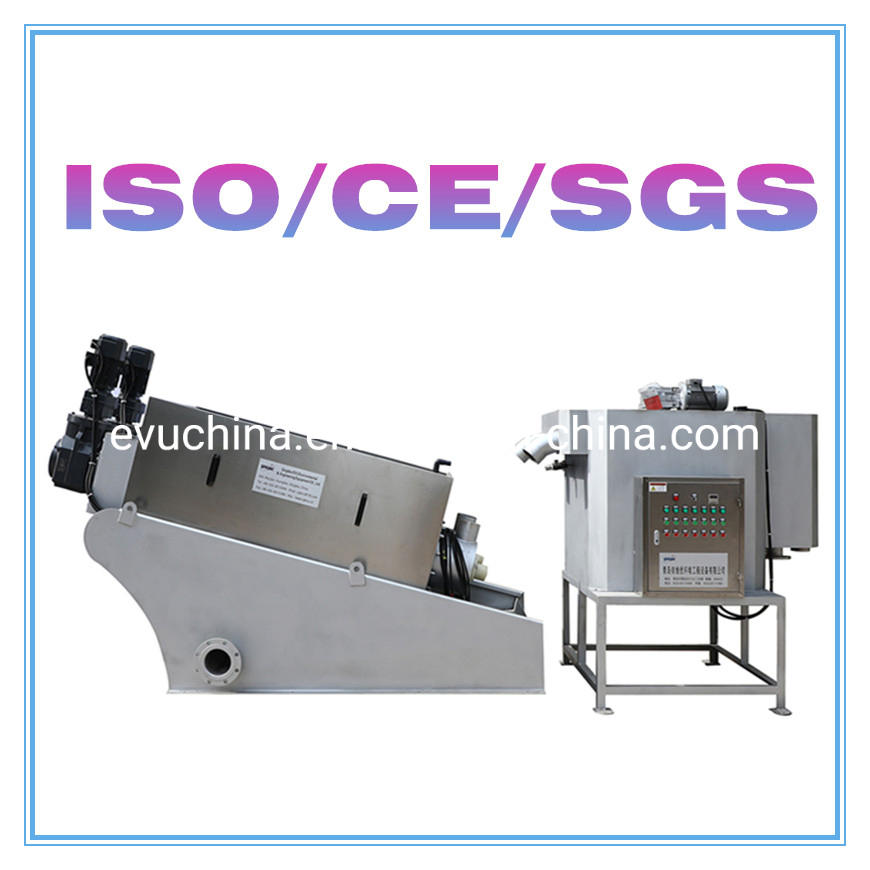

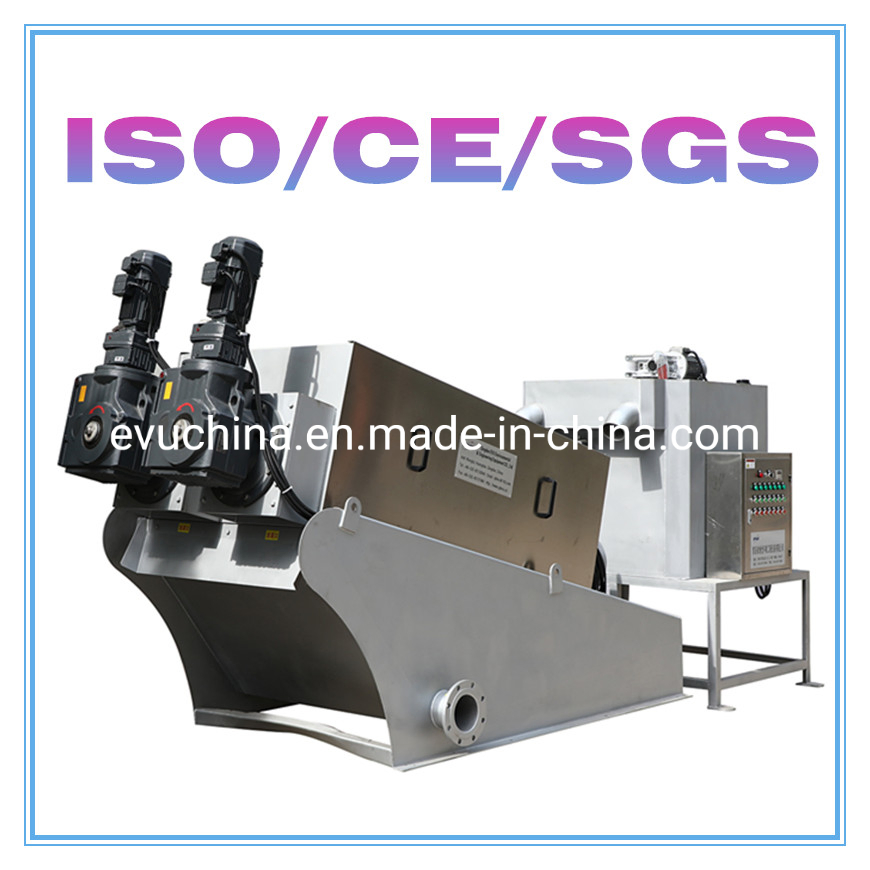

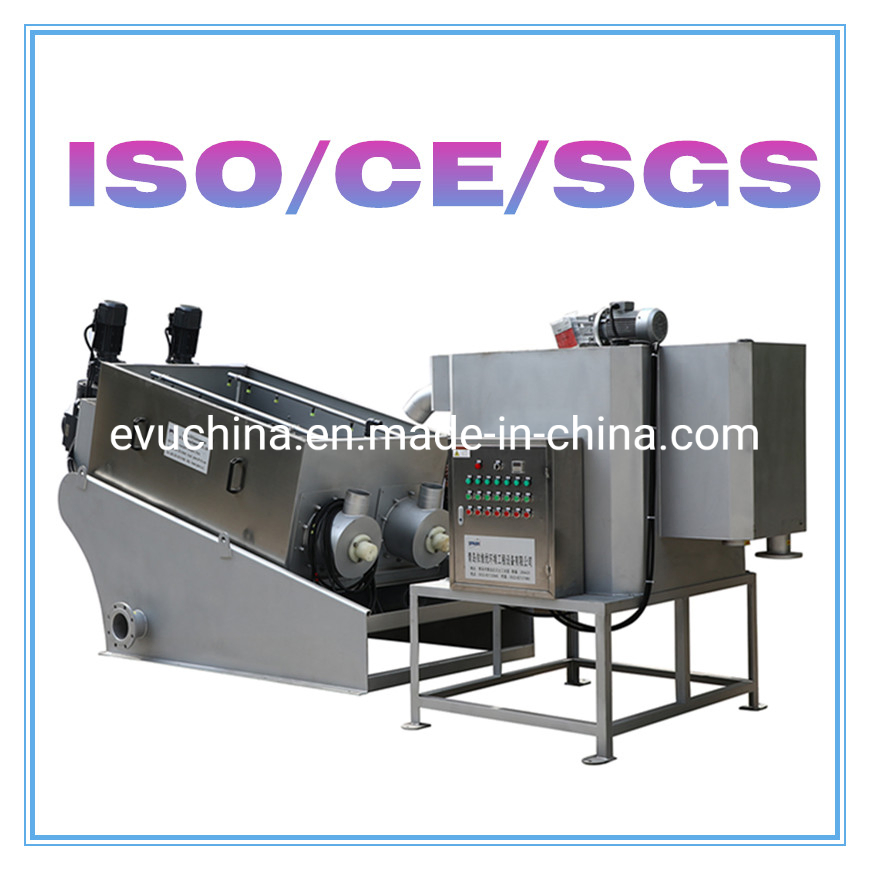

Screw Press Sludge Dewatering Machine is suitable for sludge dewatering of large, medium and small sewage plants. The dewatering machine replaces the traditional filter cloth and plate frame sludge dewatering method, reduces the investment cost and improves the treatment efficiency. It is suitable for municipal sewage treatment project and sludge dewatering treatment in food processing, printing and dyeing, paper making, pharmaceutical, leather and other industries, especially for slaughtering, petrochemical oily sludge dewatering treatment.

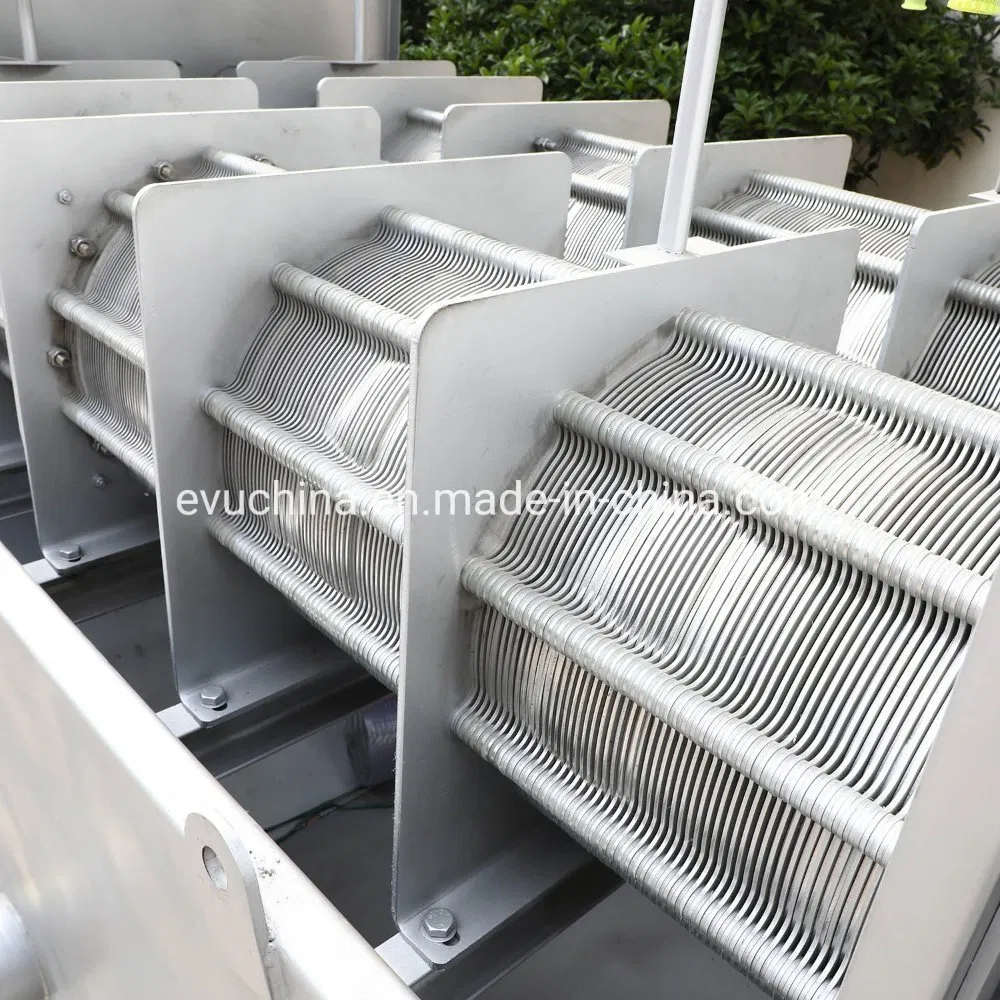

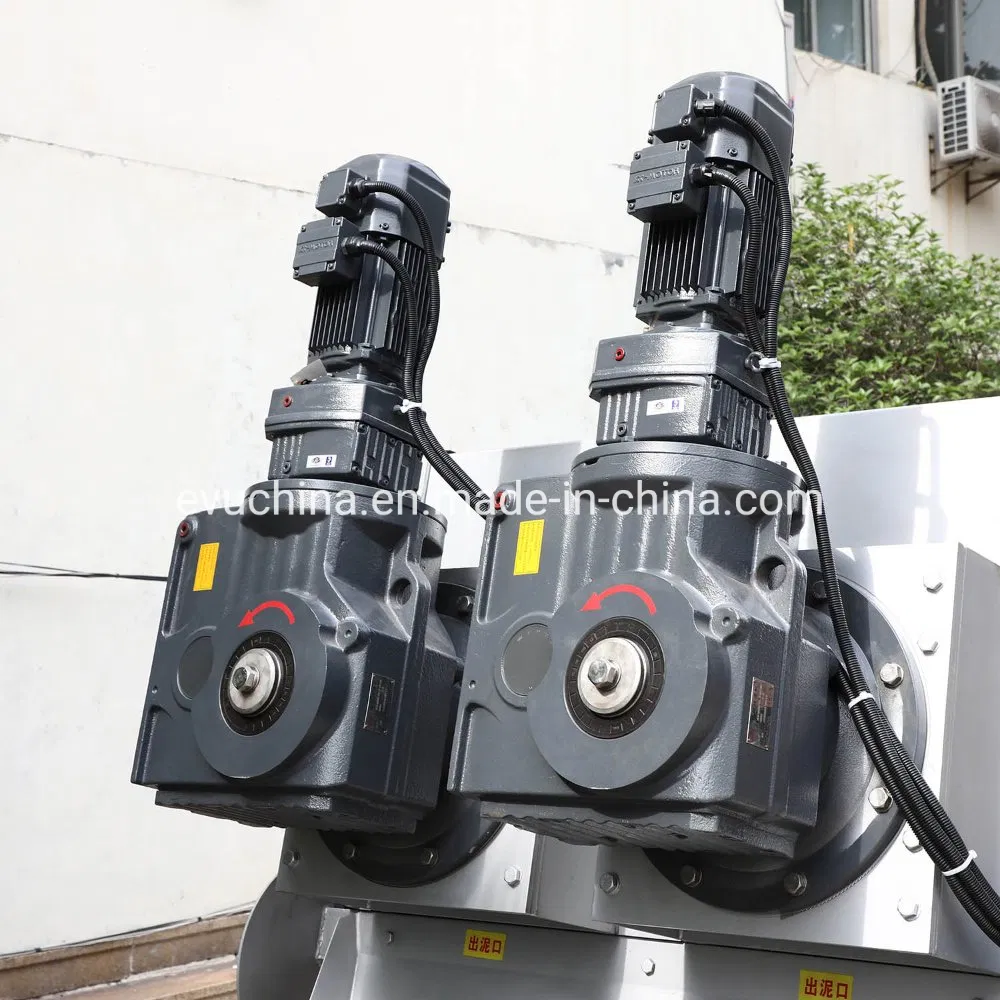

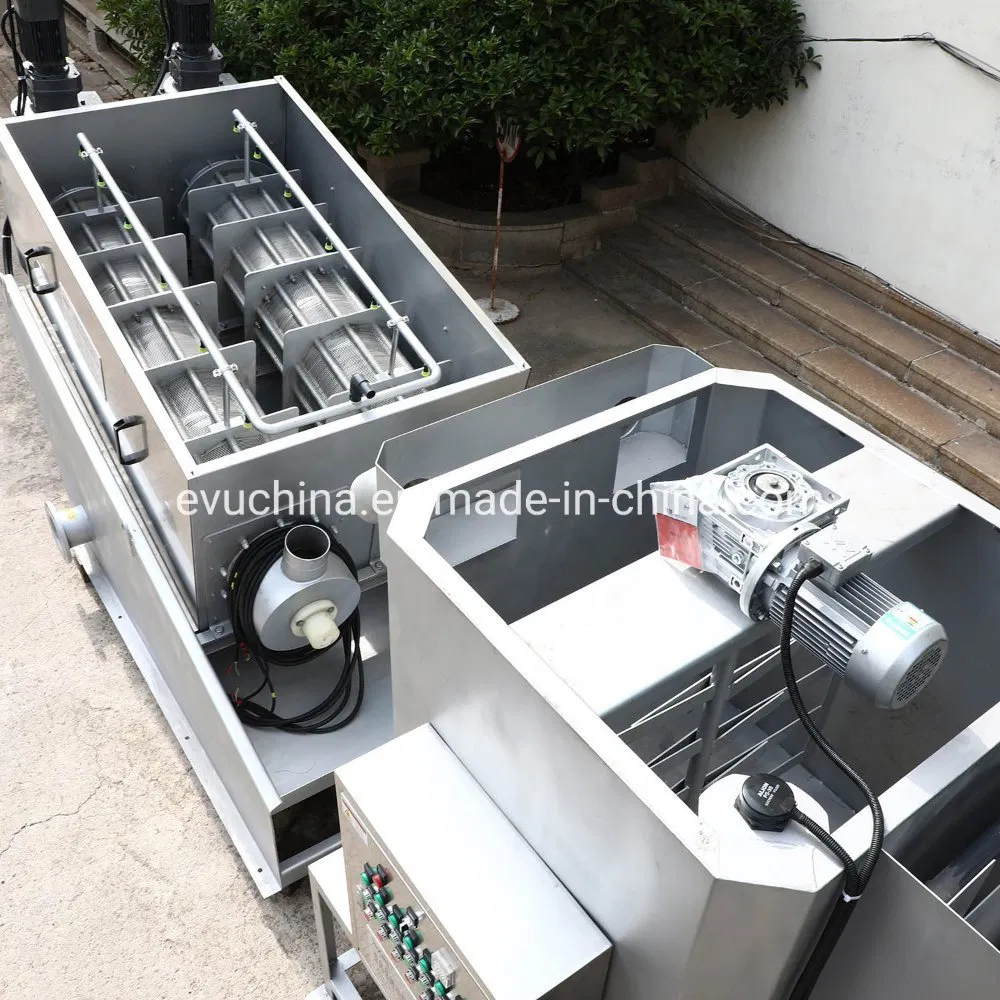

Composition: The equipment is mainly composed of frame, screw shaft, moving ring, static ring, separation ring, filtrate collecting tank, flocculating mixer, drive reducer, electrical control box and so on.

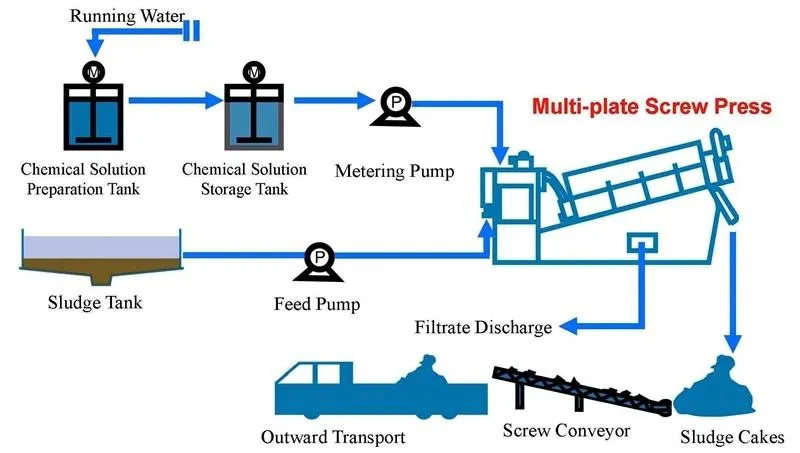

Basic Working Process:
| Model | Dried Sludge Standard Capacity (kg/h) | Flow Load (m³/h) | N.W (kg) | |||||
|---|---|---|---|---|---|---|---|---|
| Low Conc. | High Conc. | 2000 mg/L | 10000 mg/L | 20000 mg/L | 30000 mg/L | 50000 mg/L | ||
| QDLX-131 | ~4 | ~26 | ~2.0 | ~0.6 | ~0.5 | ~0.87 | ~0.4 | 250 |
| QDLX-201 | ~8 | ~52 | ~4.0 | ~1.2 | ~1.0 | ~1.73 | ~0.8 | 420 |
| QDLX-301 | ~20 | ~130 | ~10 | ~3.0 | ~2.5 | ~4.33 | ~2.0 | 900 |
| QDLX-351 | ~40 | ~260 | ~20 | ~6.0 | ~5.0 | ~8.67 | ~4.0 | 1100 |
| QDLX-404 | ~266 | ~1768 | ~133 | ~40 | ~34 | ~58.9 | ~27.2 | 7000 |
Established in 1999, our enterprise integrates scientific research design, equipment manufacture, installation, and commissioning. We specialize in water treatment industry solutions including Integrated Sewage Treatment, MBR, Electrocoagulation Plants, RO Systems, and Dissolved Air Flotation (DAF) machines.
