Basic Specifications
After Sale Service
Engineers Available
Inlet Sludge Solid
0.8%-1.5%
Motor Brand
Sew / Nord / Customize
Electrical
Schneider / Omron
Production Capacity
2000 Sets/Year
Product Description

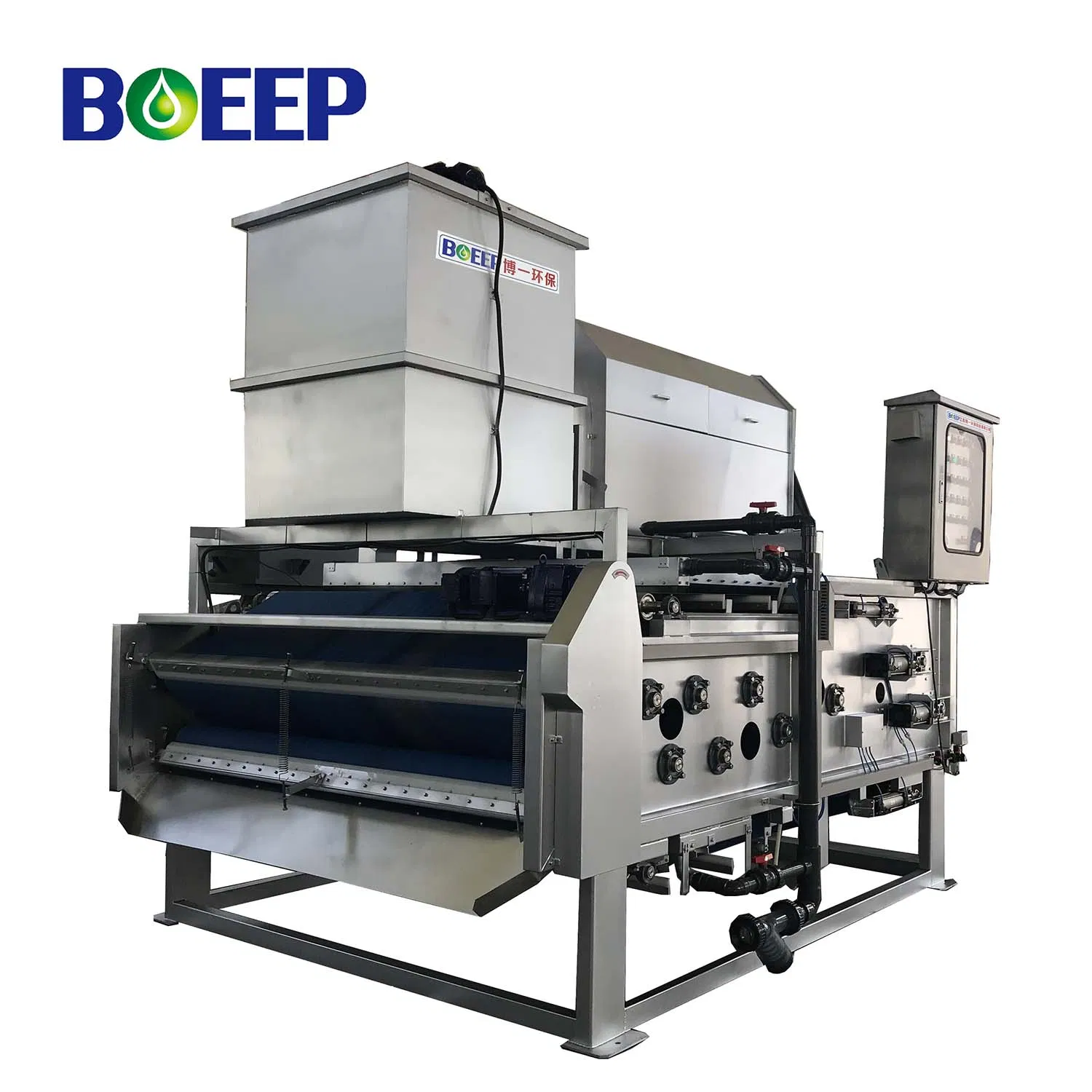

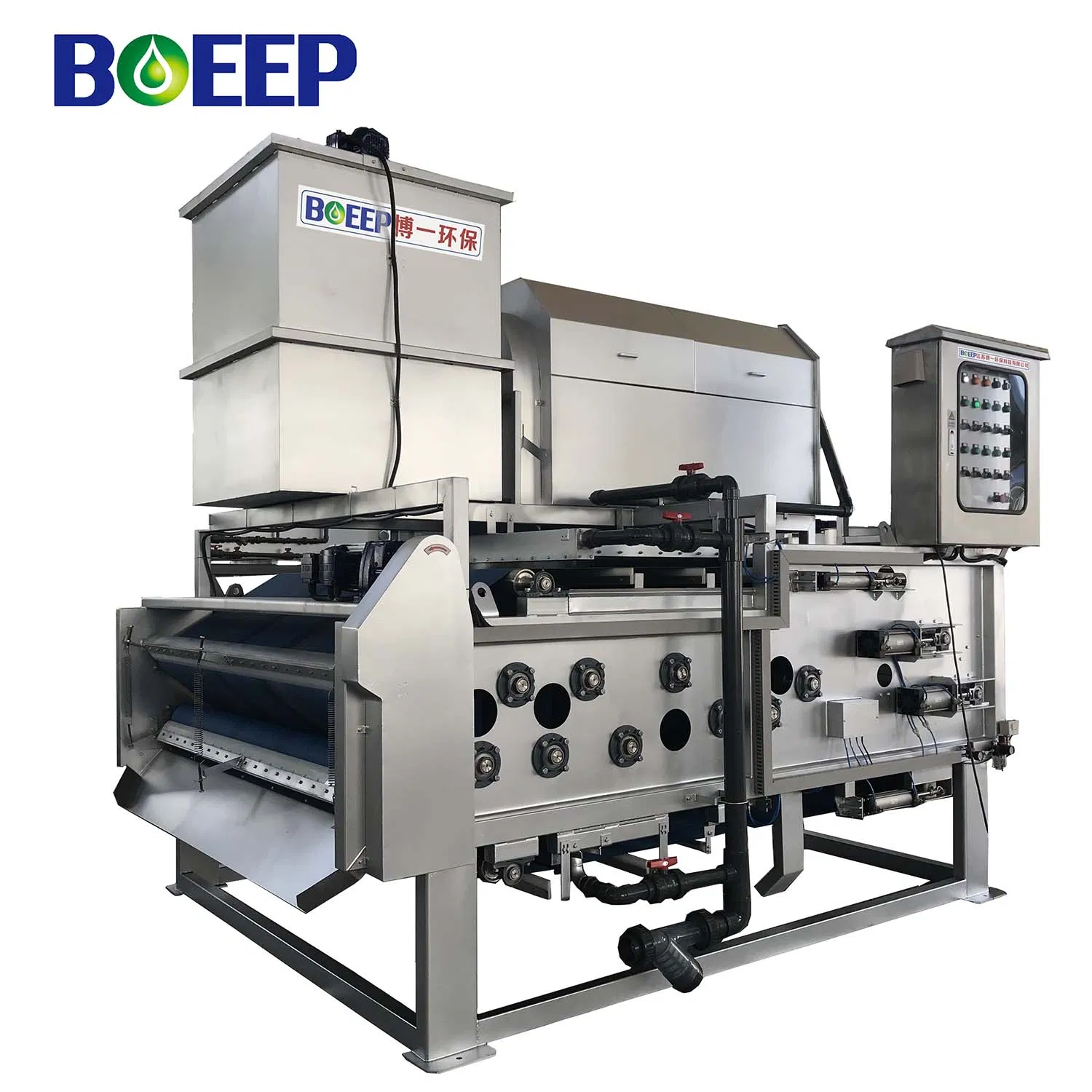

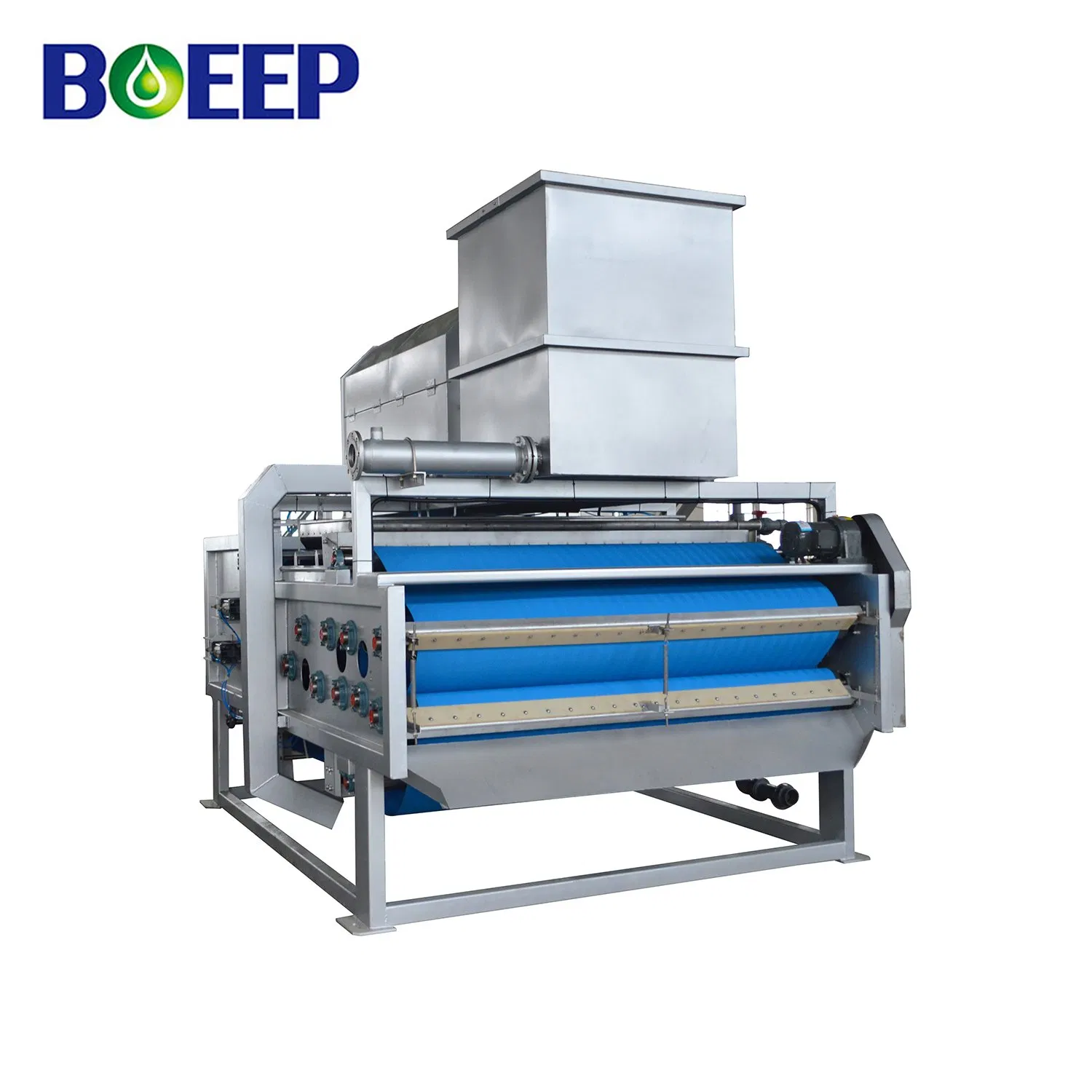

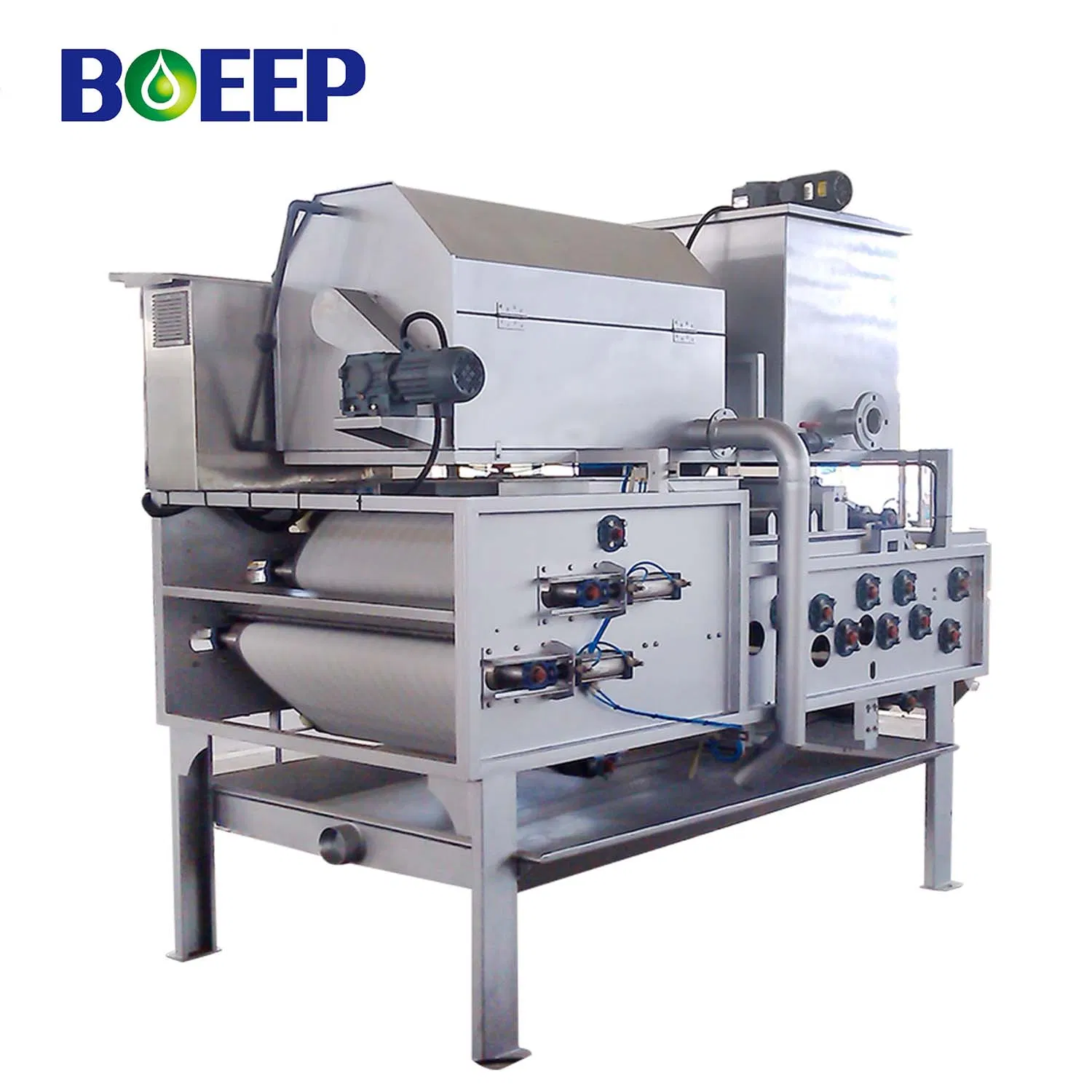

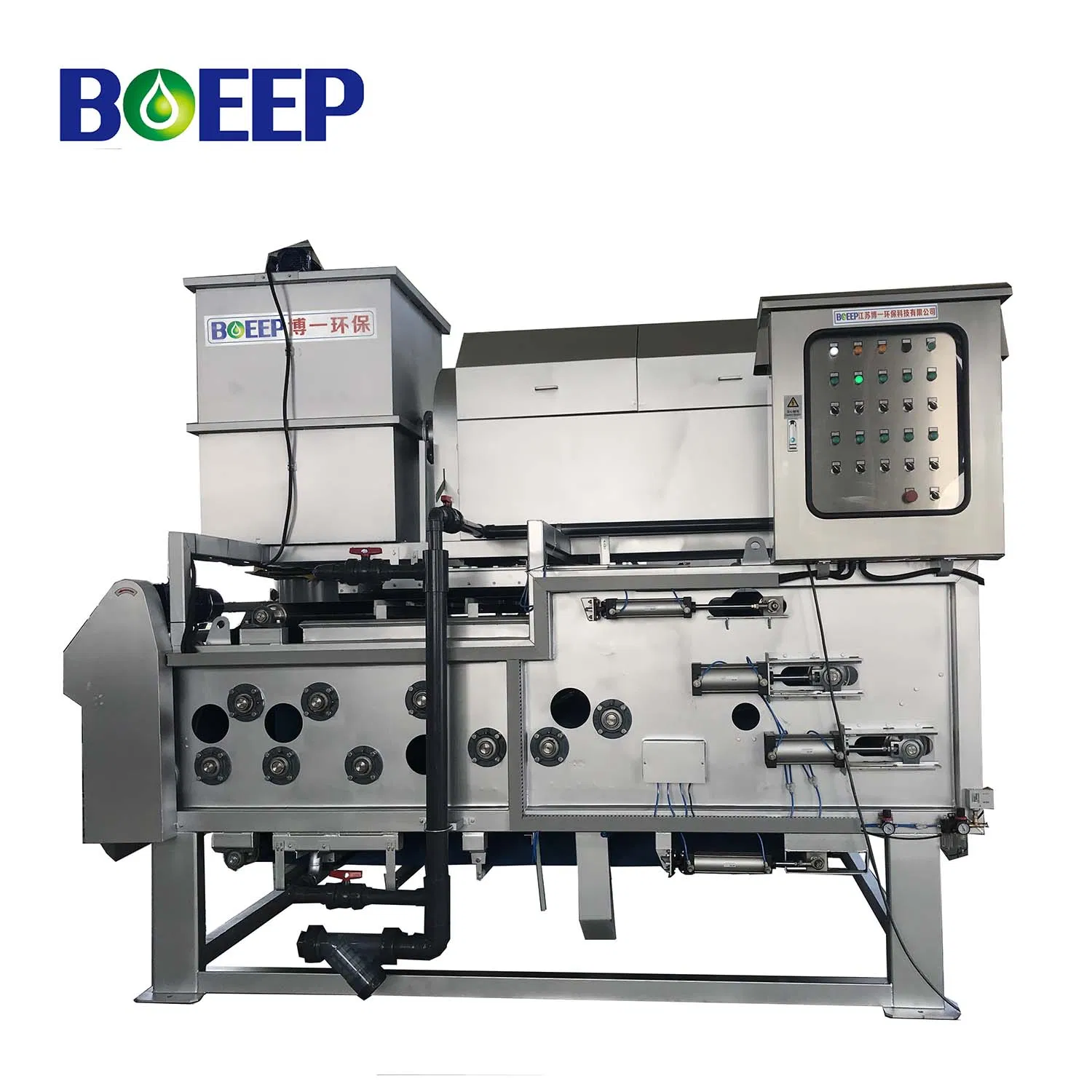

The belt press dewatering machine is composed of a conditioning tank, concentrating rotary drum, and belt filter. When the flocculated sludge is fed into the rotary thickening drum, the thickened sludge flows from the rotary drum gap. A washing device is set on the top of the rotary drum to maintain efficiency. After thickening, the sludge is distributed and fed onto the filter belt thoroughly.
Through sequential processing in the gravity dewatering zone, wedge compression zone, pre-pressing dewatering zone, and high-pressure shear dewatering zones, the pressure is applied consistently along the belt direction to ensure optimal sludge cake output at the discharge port.
Key Features & Advantages
- Principal parts adopt high-strength, rust-less stainless steel material.
- Filter cloth imported from Germany for best performance and long service life.
- Automatic cylinder deviation correction system to prevent cloth misalignment.
- Low energy consumption, high efficiency, and low noise operation.
- Integrated safety system and automatic stopping devices for security.
- Great product capability with low moisture content in output cake.

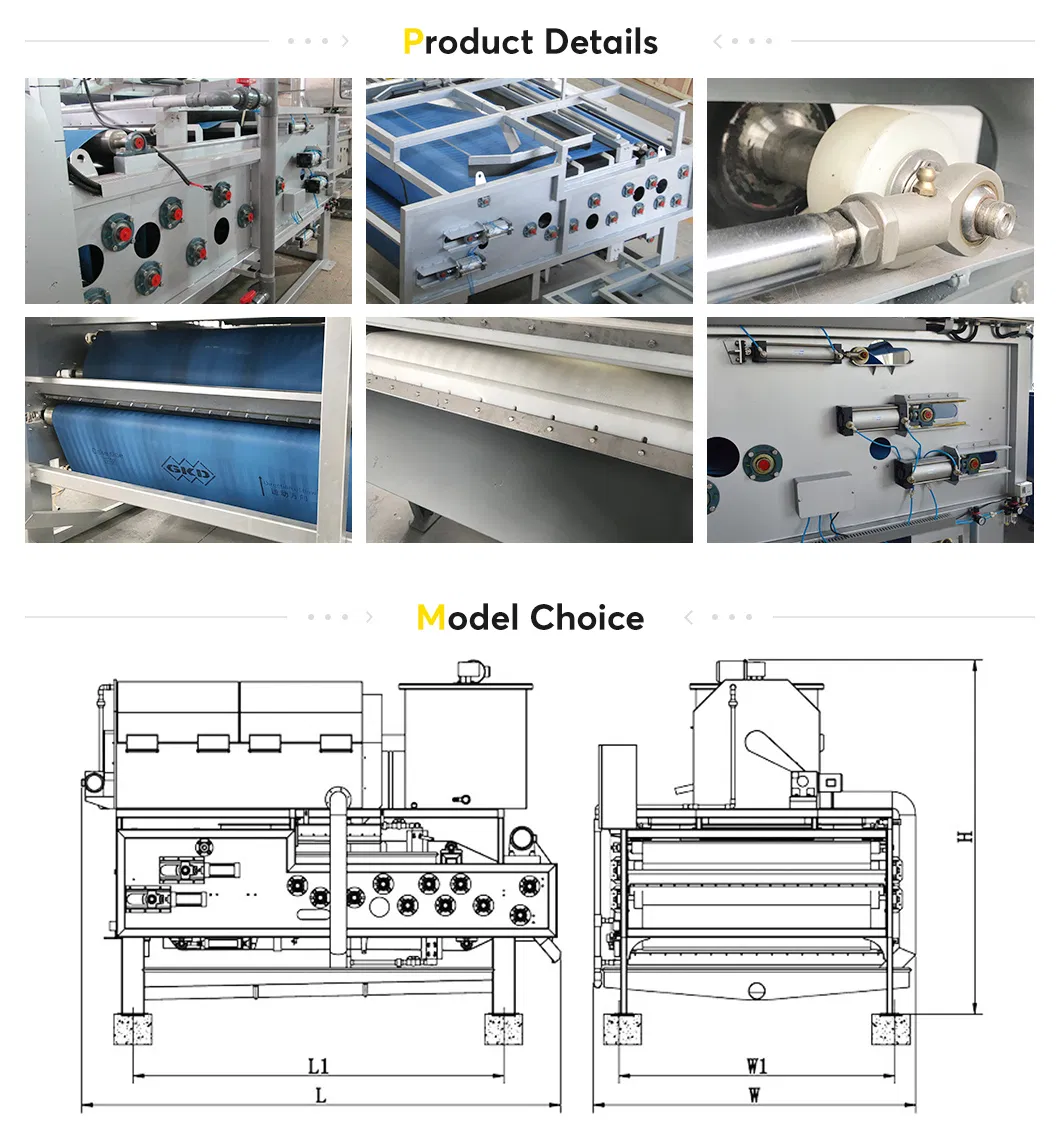

Product Display
Frequently Asked Questions
What is the typical delivery time for the equipment?
Normally, the production and delivery time is within 45 days upon receipt of the down payment.
What kind of warranty do you provide?
We offer a one-year warranty after the arrival of the goods. During this period, we provide damaged parts free of charge for non-man-made damage.
Do you offer OEM services?
Yes, we provide OEM services and can accommodate specific logo requirements as requested.
What certificates does the equipment have?
Our products are certified with CE, ISO, and SGS standards to ensure international quality compliance.
What is the production capacity for these units?
Our facility has a production capacity of over 2000 sets per year, covering an area of more than 20,000 square meters.

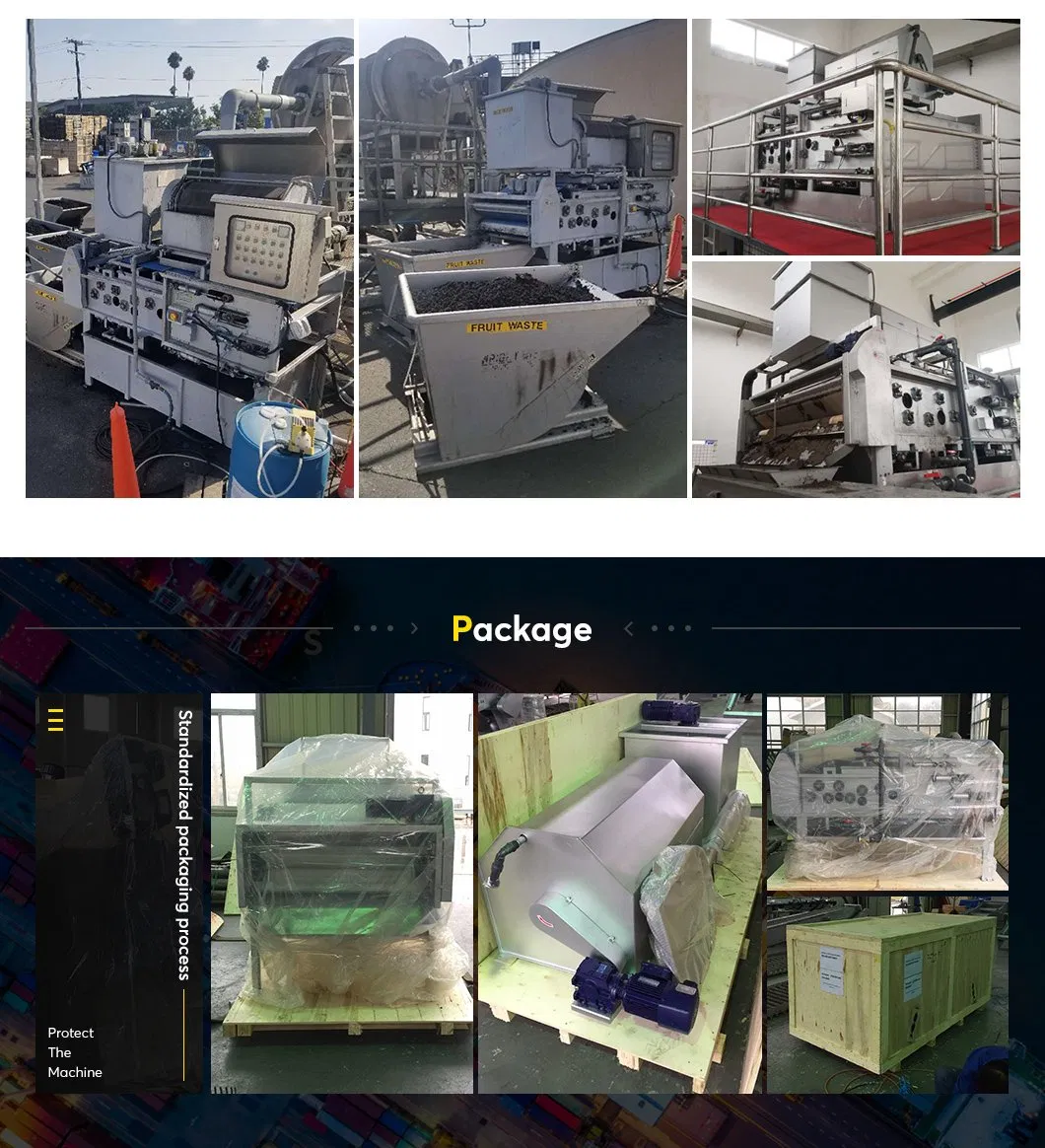

What packaging is used for export?
We use anticorrosion wooden cases with internal foam protection to ensure the safety of the product during international transit.
