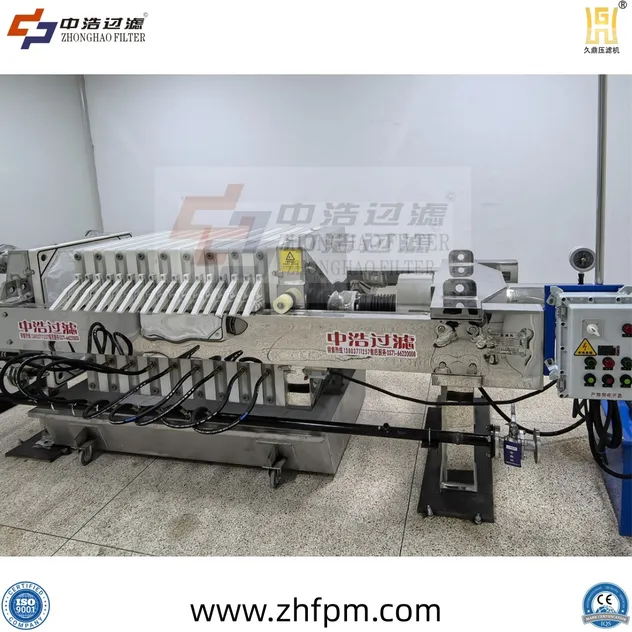

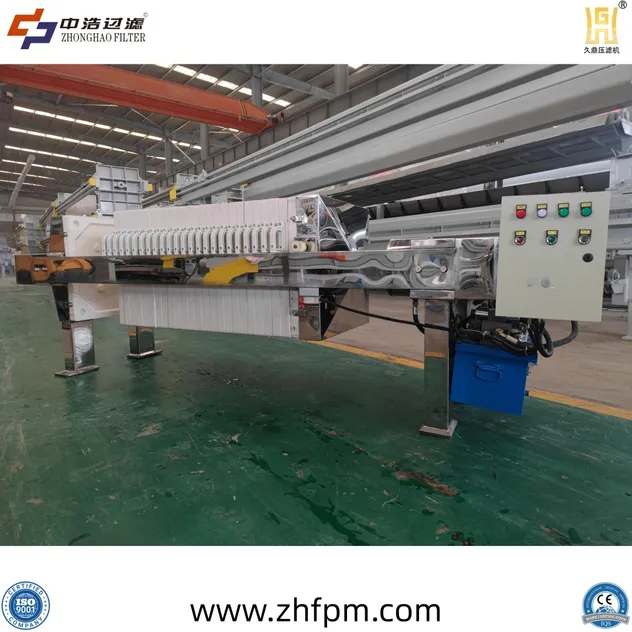

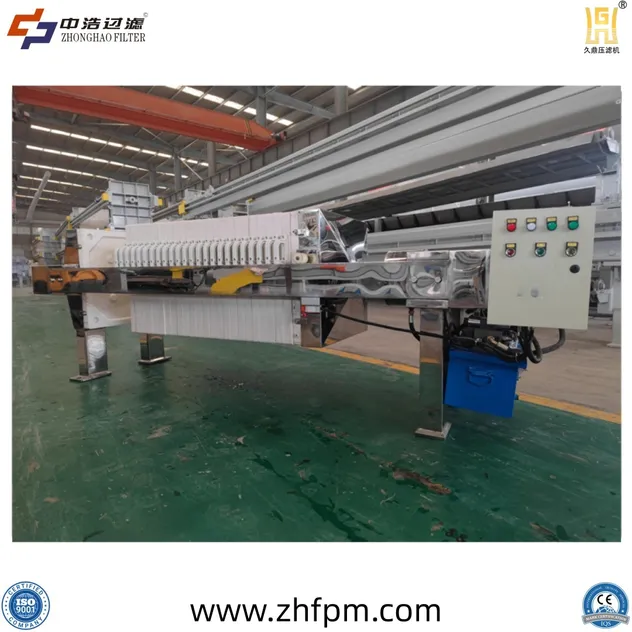

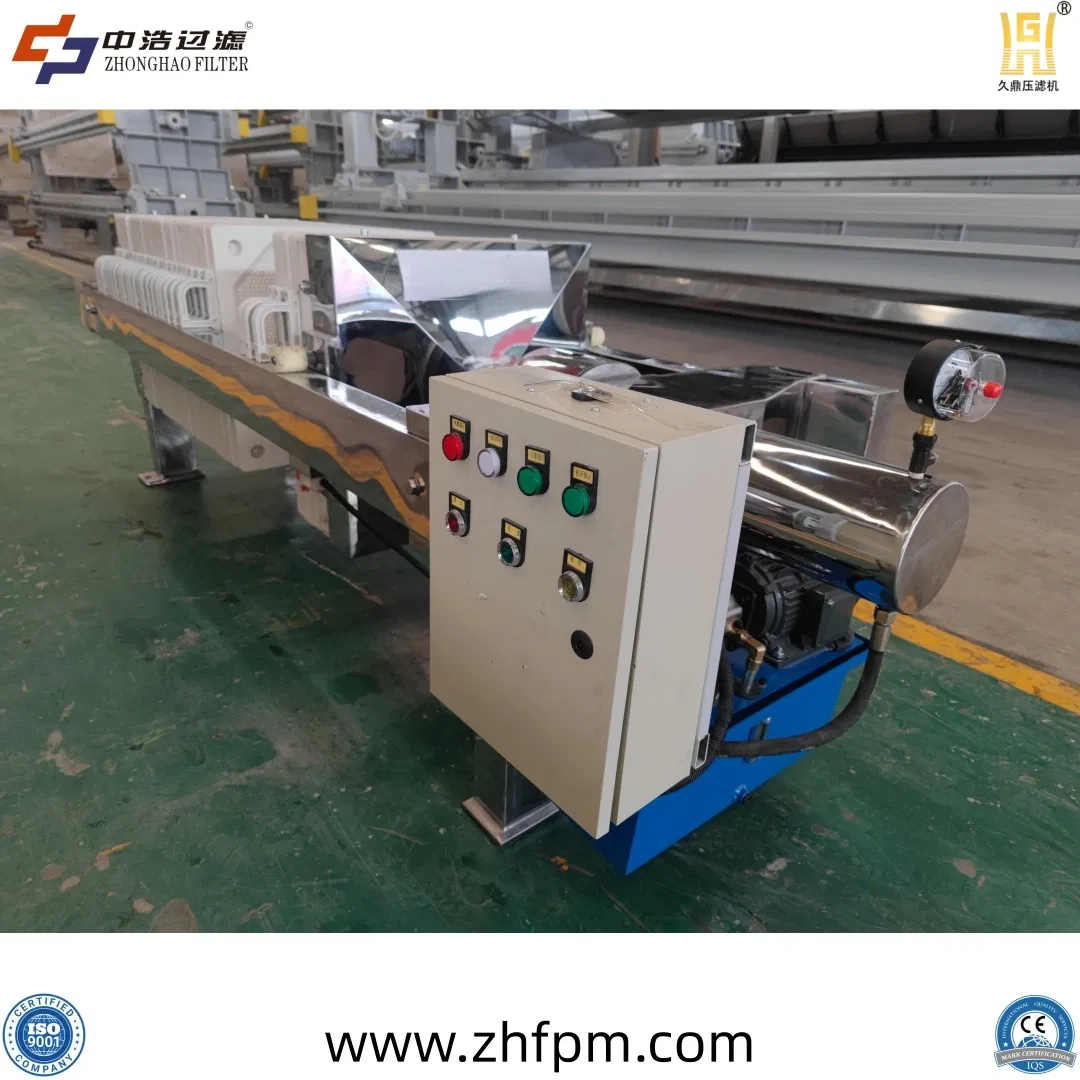

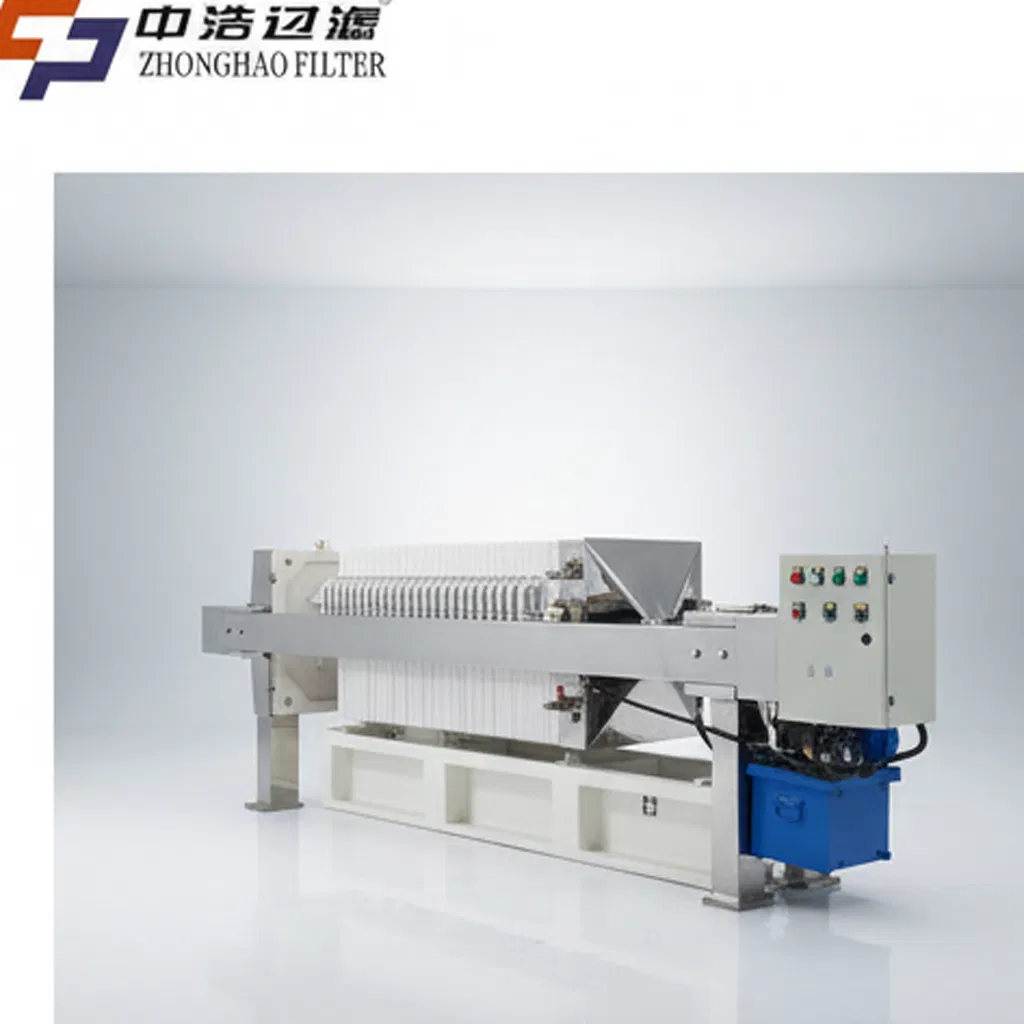

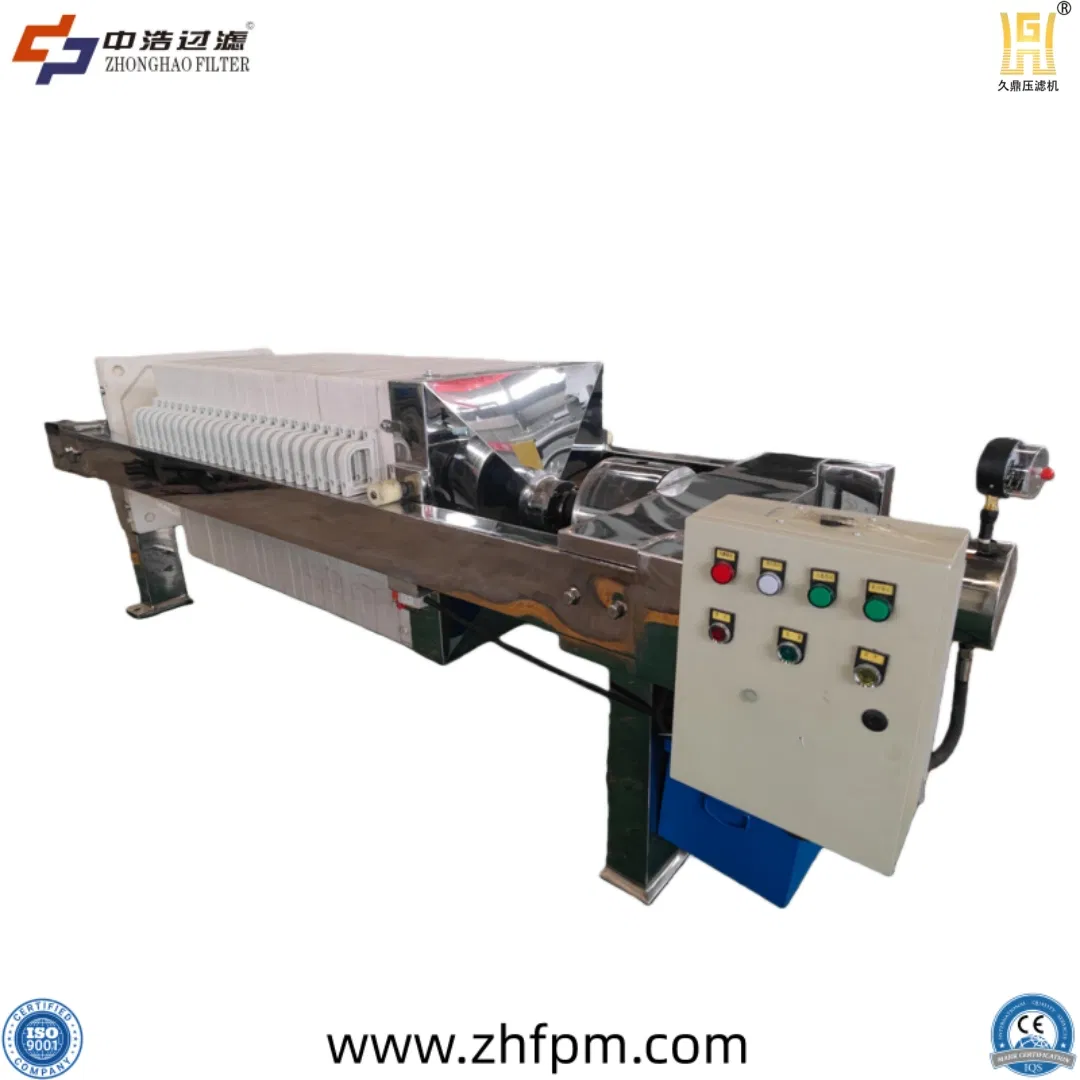

The Stainless Steel Plate and Frame Filter Press is a key filtration solution for food processing, ideal for starch, gelatin, edible oil, and beverage production. This equipment adopts 304/316L stainless steel, complying with FDA and HACCP standards to avoid food contamination.
| Model | Filtration Area(m2) | Plate Size(mm) | Cake Thickness(mm) | Volume(L) | Plates(pcs) | Frames(pcs) | Pressure(Mpa) | Weight(kg) | Dimensions(mm) |
|---|---|---|---|---|---|---|---|---|---|
| BAQ1/320 | 1 | 320×320 | 25 | 13 | 4 | 5 | 0.5 | 300 | 1050×700×680 |
| BAQ4/450 | 4 | 450×450 | 25 | 51 | 9 | 10 | 0.5 | 780 | 1680×880×900 |
| BAQ10/450 | 10 | 450×450 | 25 | 122 | 24 | 25 | 0.5 | 1470 | 2430×880×900 |
| BAY20/610 | 20 | 550×550 | 25 | 250 | 32 | 33 | 0.5 | 3820 | 3080×950×1010 |
| BAY30/800 | 30 | 800×800 | 25 | 442 | 22 | 23 | 0.5 | 5710 | 3150×1300×1300 |
Note: Specifications are for reference only. Actual configuration subject to final order.

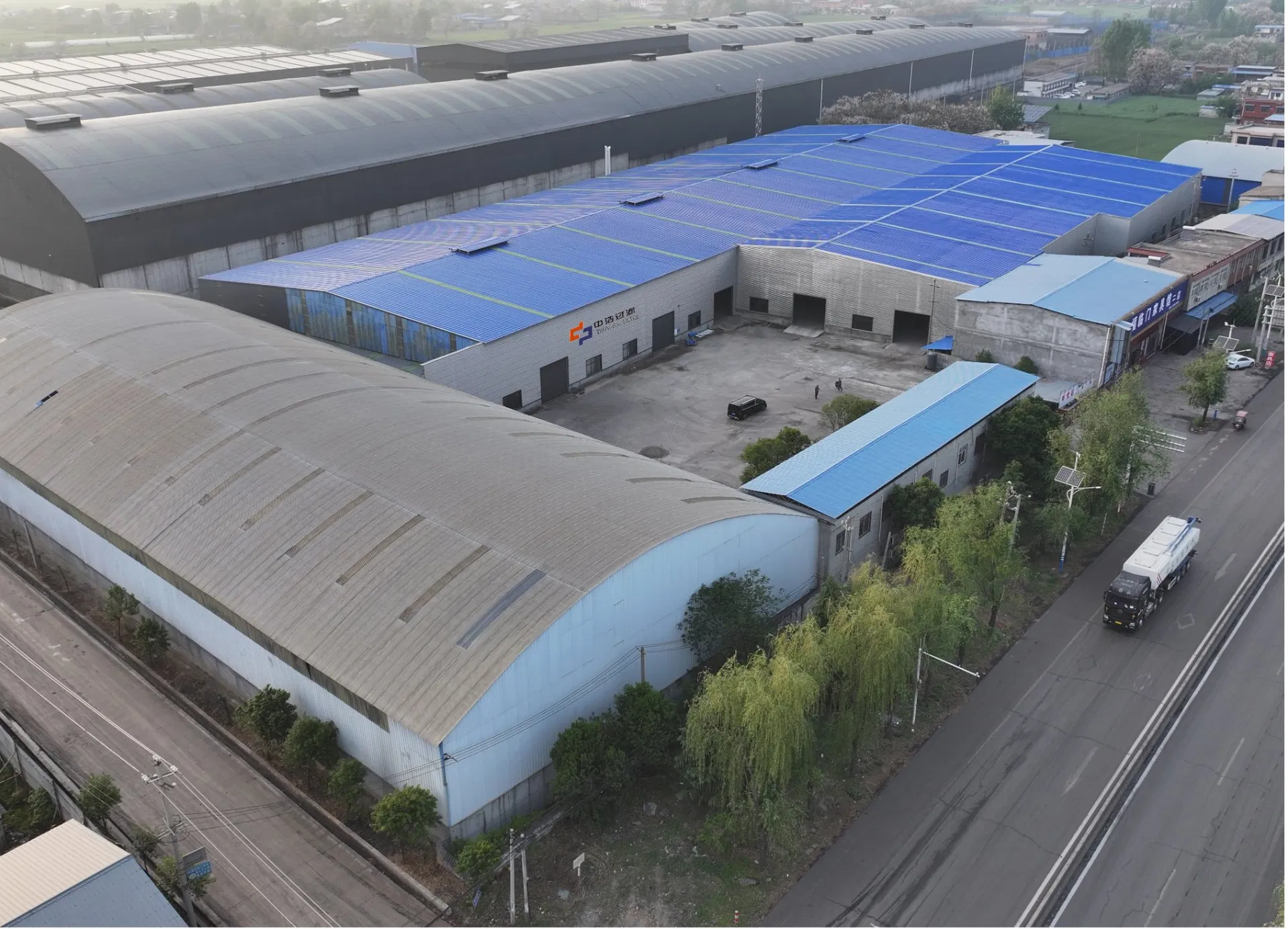

"Clearer filtrate, drier filter cake, faster processing!" We are dedicated to the R&D and sales of filter presses, specializing in sludge filtration solutions and the design and installation of solid-liquid separation projects. Our production facility spans 30,000 square meters with over 220 industry engineers and technicians.
Main Product Range

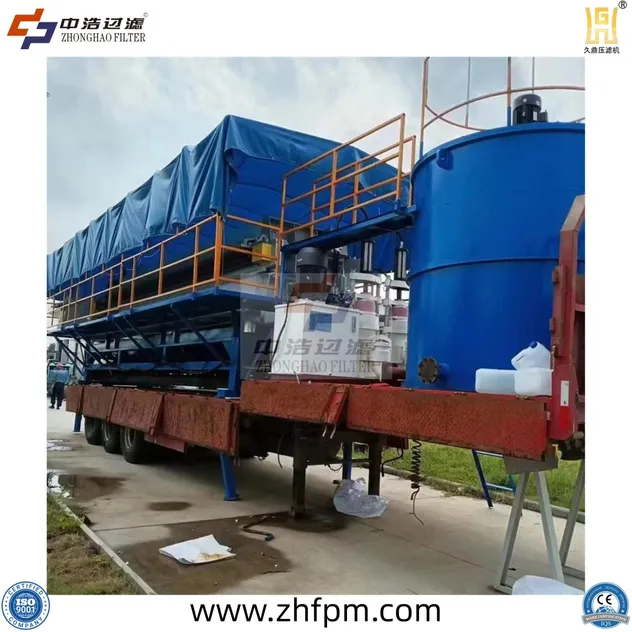

Vehicle-mounted filter press
Fully automatic filter press

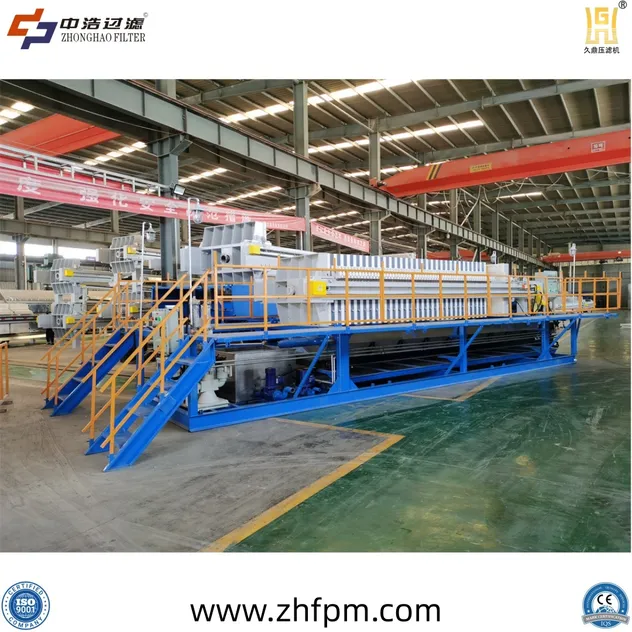

Skid-mounted filter press
