Product Description

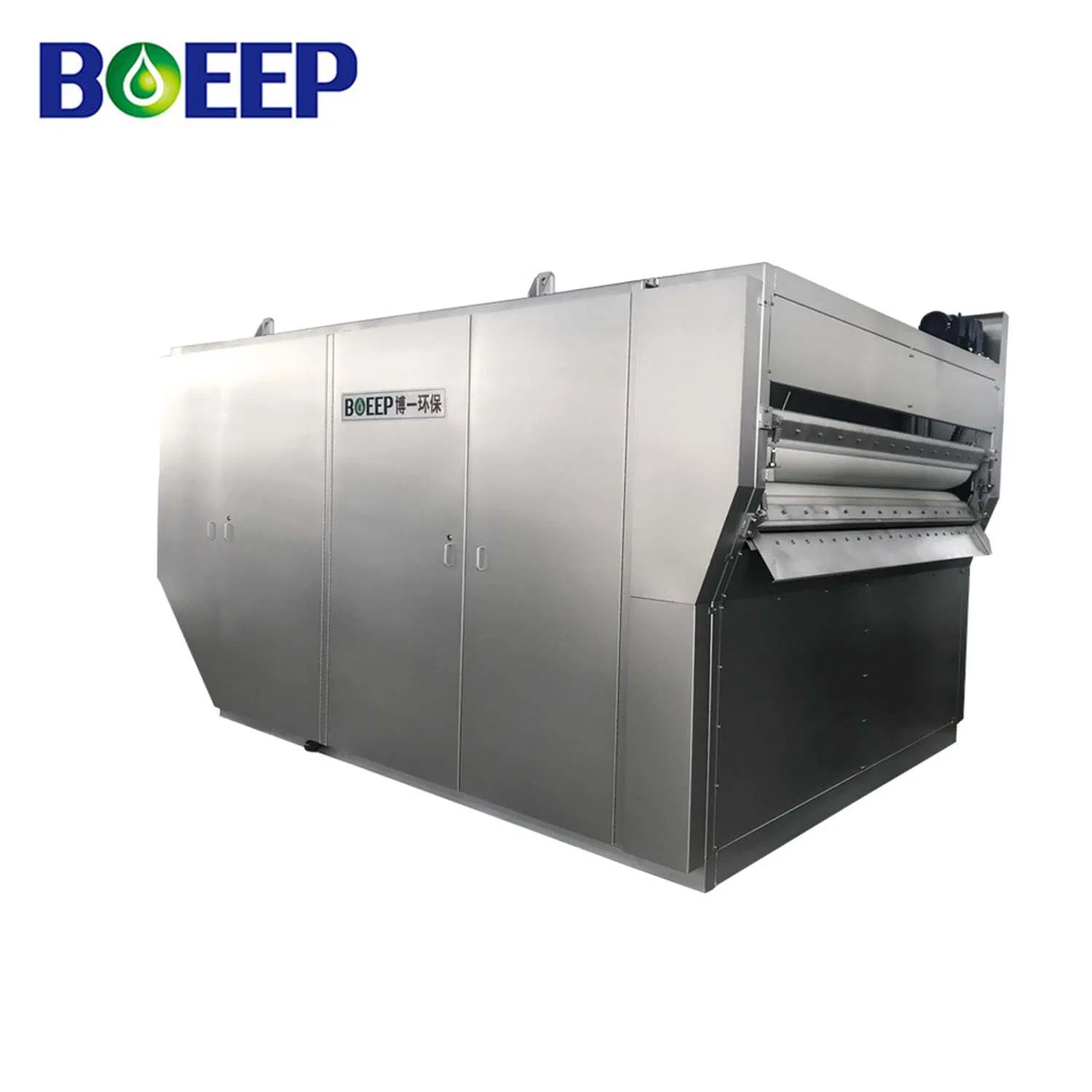

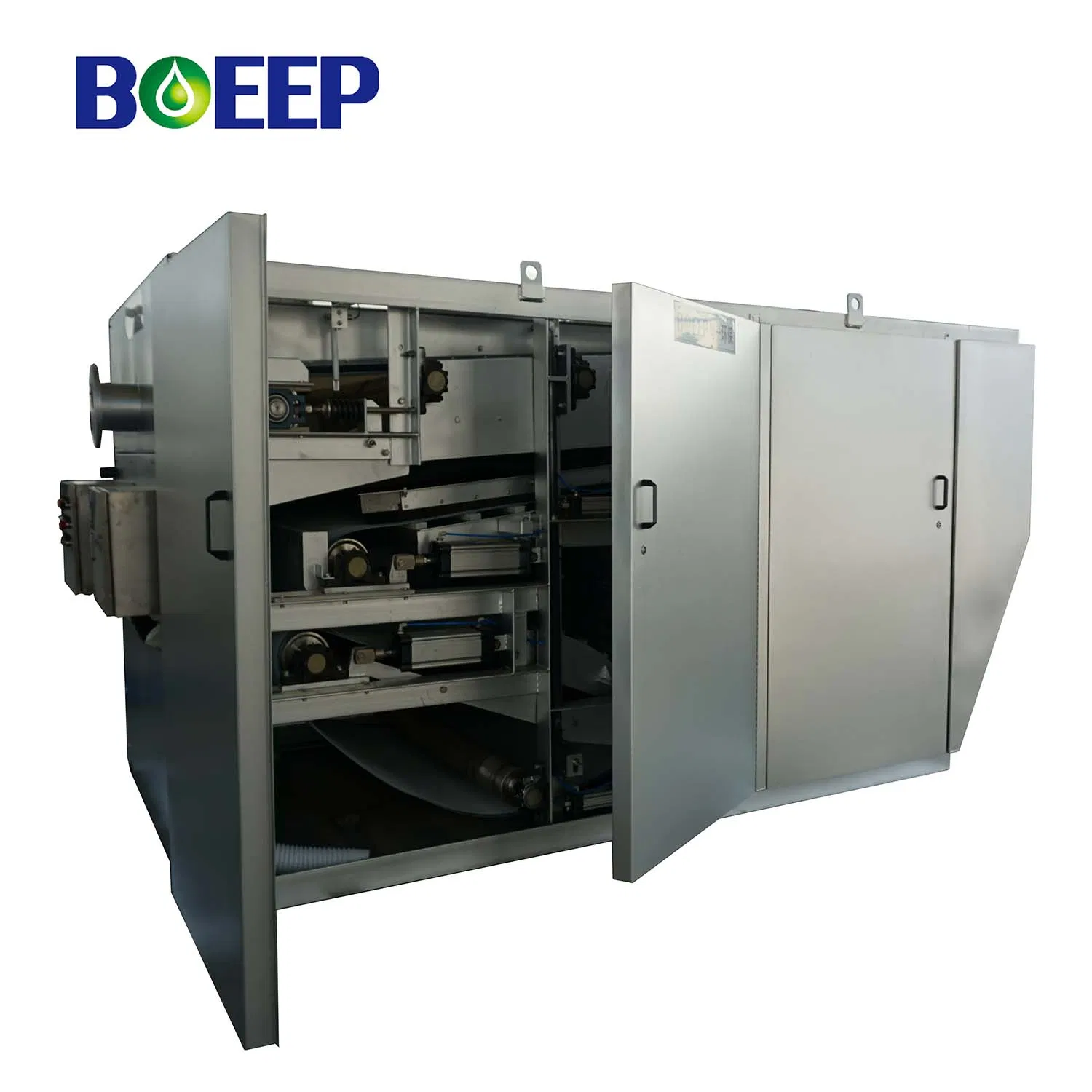

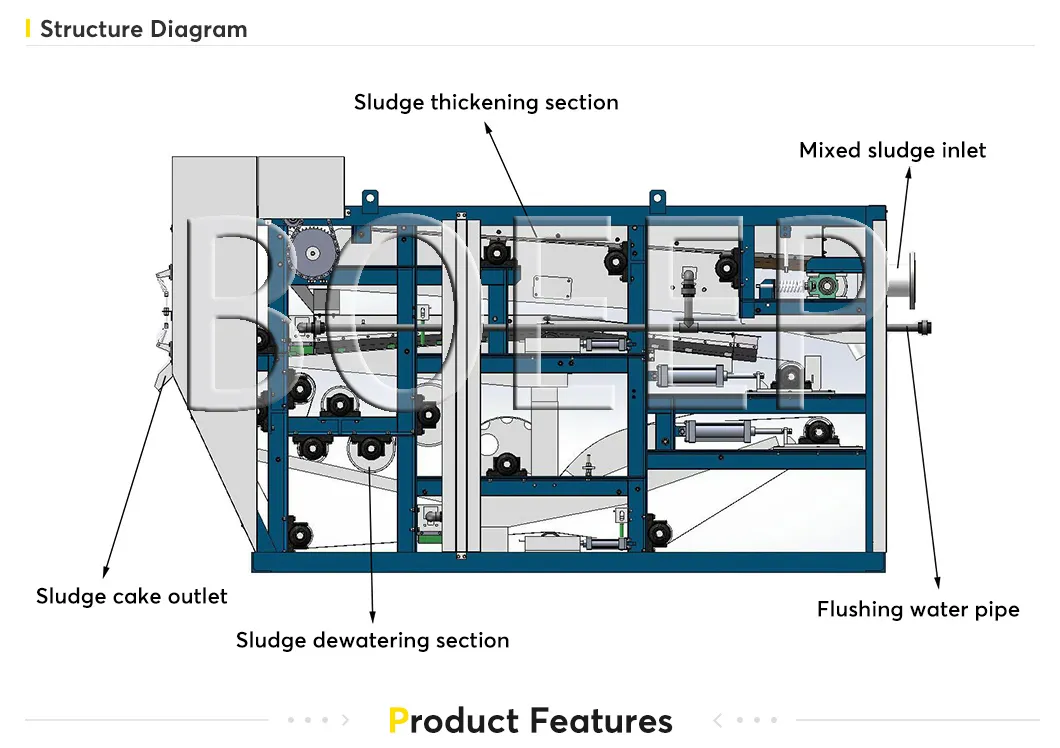

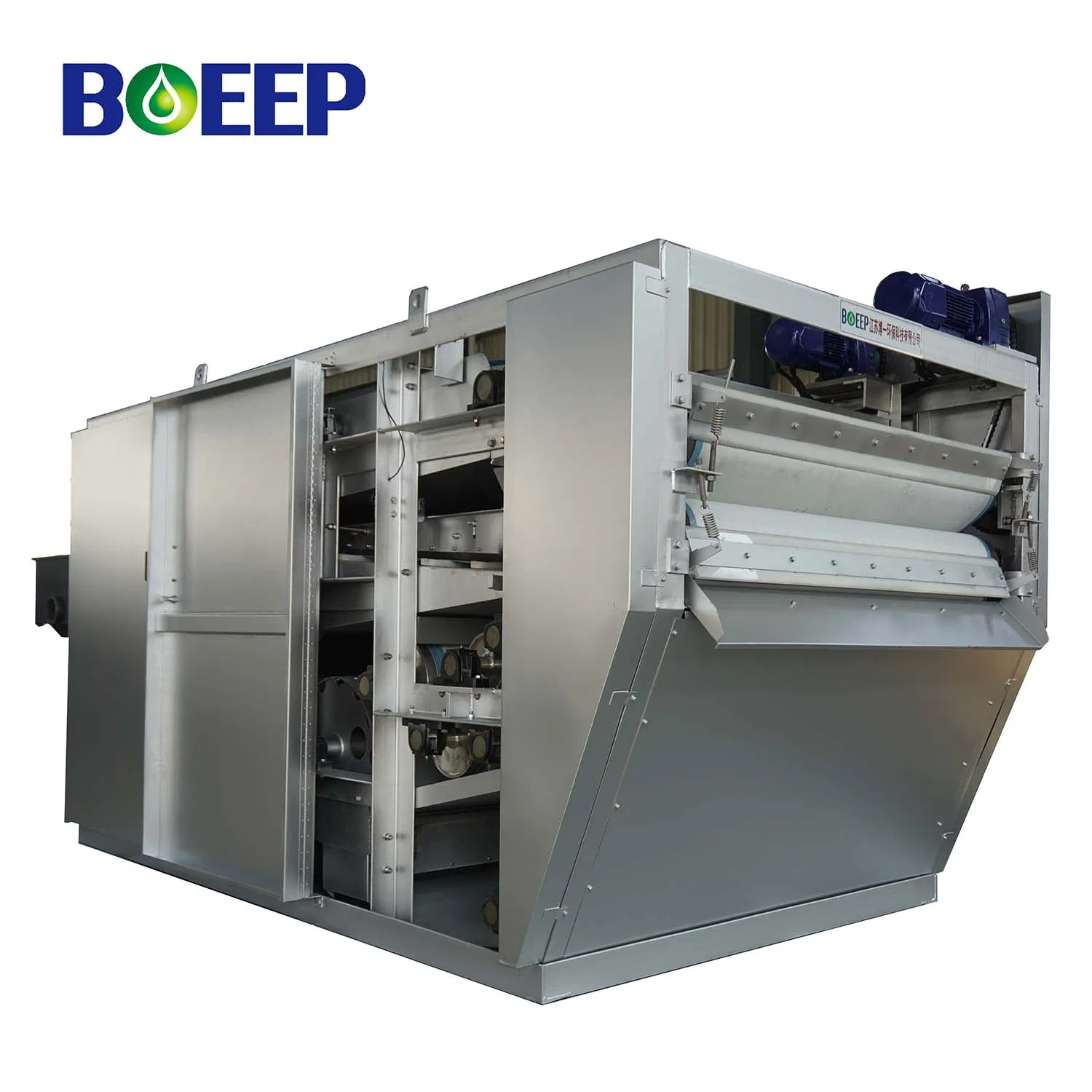

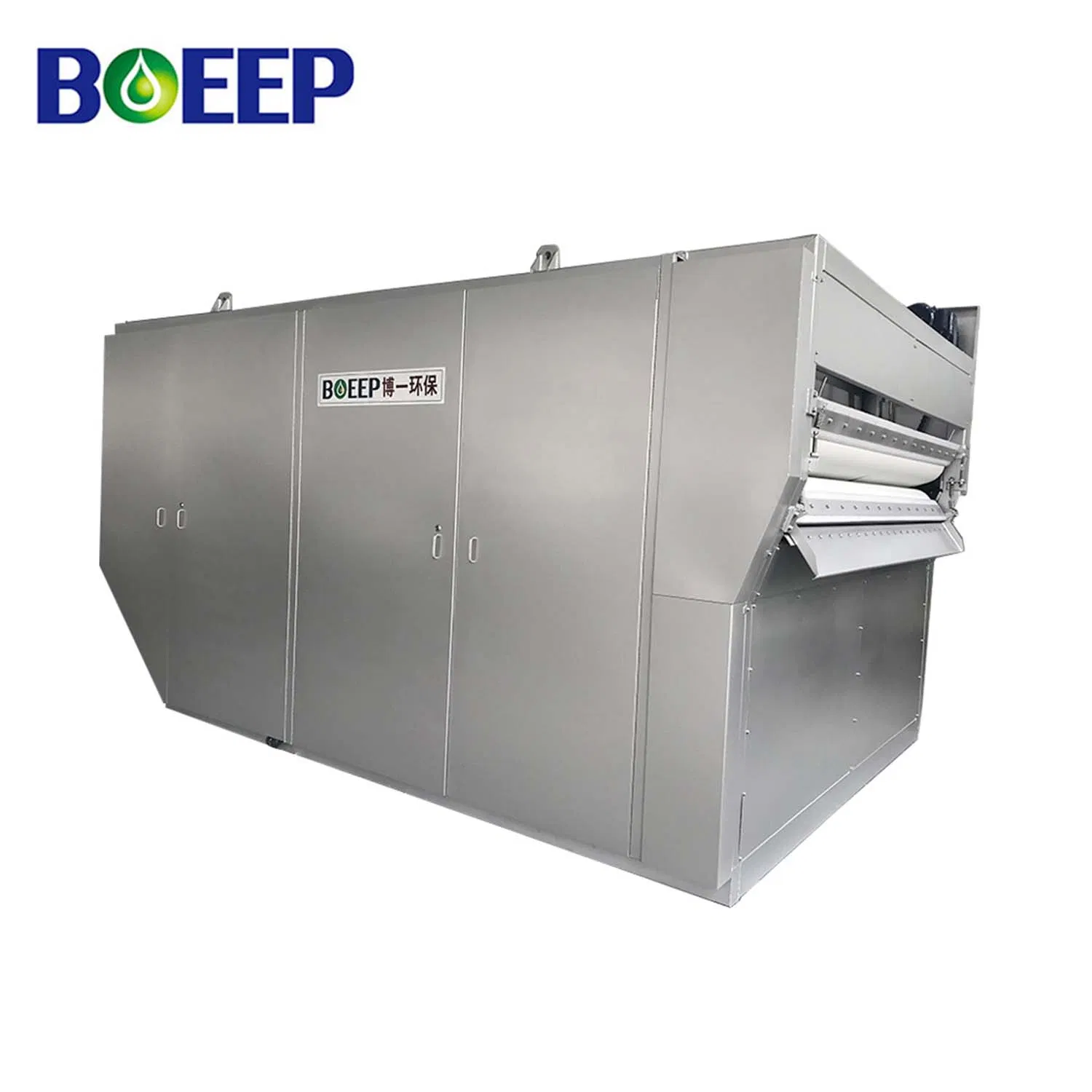

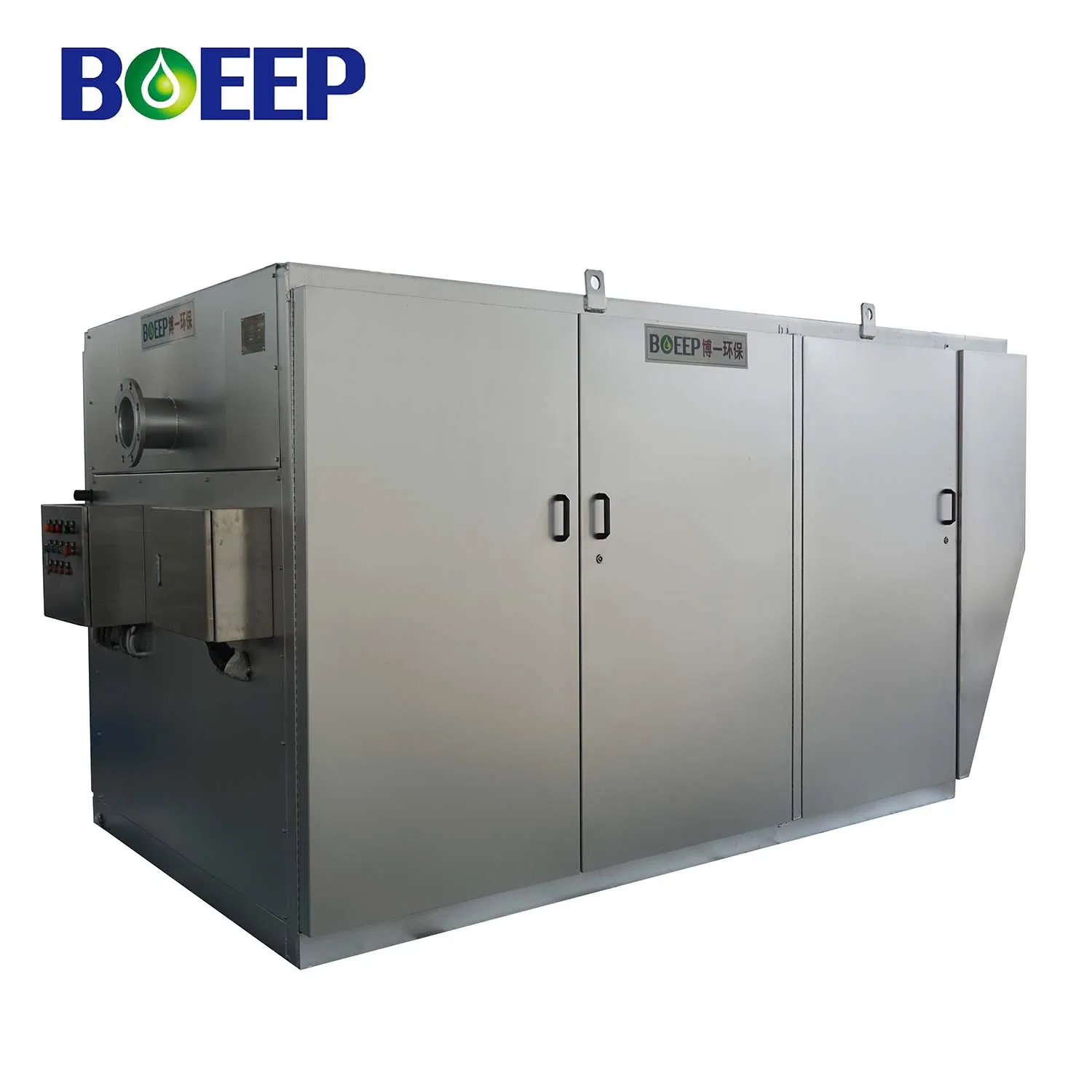

High duty type belt filter sludge dewatering device is mainly used for processing the sludge which is not concentrated in the thickening pool (such as A/O residual sludge). It has two functions: concentration and dewatering. Compared with the traditional gravity belt filter press, this equipment can meet the requirement of larger treatment capacity and lower sludge cake moisture content, by means of multiple press roll and high-pressure roll structure design. Meanwhile the outside door structure makes the system fully closed, maintenance expediently.
Correction Device: The action of the filter belt correction device is flexible and reliable. When the filter belt deviates from the center 15mm, the device works automatically, ensuring the strainer offset is no more than 30mm during operation.
Washing System: Equipped with a spray pipe and nozzle flushing device. The spray range covers the full width of the filter belt. It features excellent sealing to prevent water splashing and includes a backwash filter for easy maintenance.
High-Quality Filter Belt: Made of polyester monofilament, featuring high strength, corrosion resistance, good permeability, and a smooth surface for a high solid recovery rate.
Standard Compliance: The dehydrator meets rigorous load and empty load test requirements according to JB/T8102-1999 standards.
Frequently Asked Questions
Do you provide OEM service?
Yes. Any required logos and customized specifications are available to meet your specific project needs.
What certificates do your products have?
Our equipment is fully certified with CE, ISO, and SGS standards, ensuring international quality compliance.
How long is the warranty period?
We provide a one-year warranty after the arrival of the goods. During this period, we provide replacement parts free of charge for non-man-made damage.
What is the typical delivery time?
Normally, the delivery time is within 45 days against the down payment, depending on the order volume and customization requirements.
Do you offer after-sales technical support?
Yes, we have engineers available to provide technical support and ensure the smooth operation of your equipment.

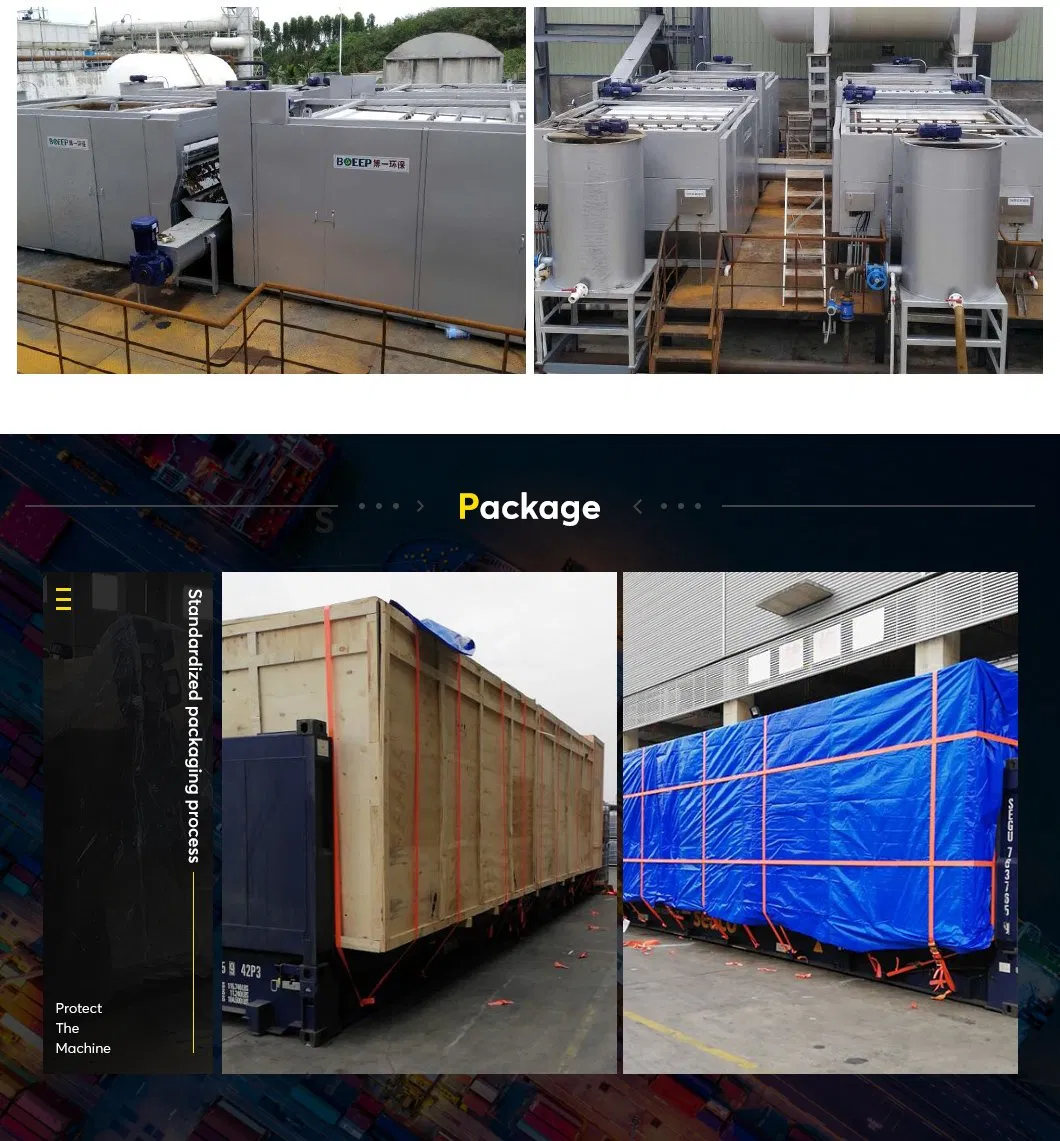

What kind of packaging is used for export?
We use professional anticorrosion wooden cases with protective foam inside to ensure the safety of the machine during international transit.
