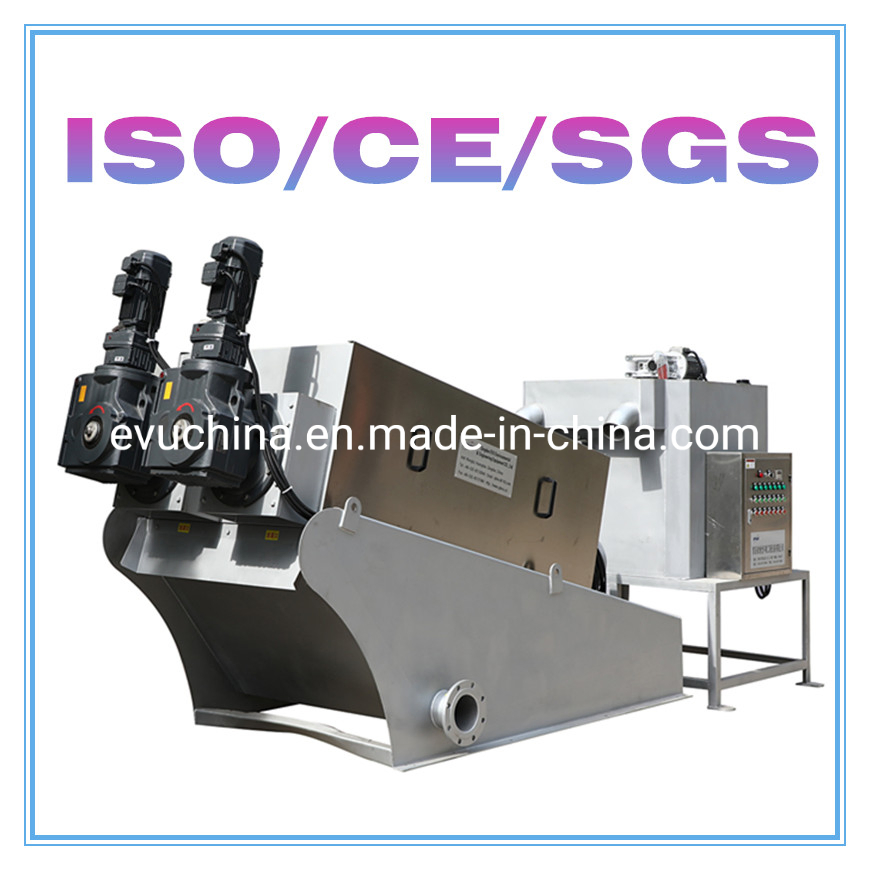

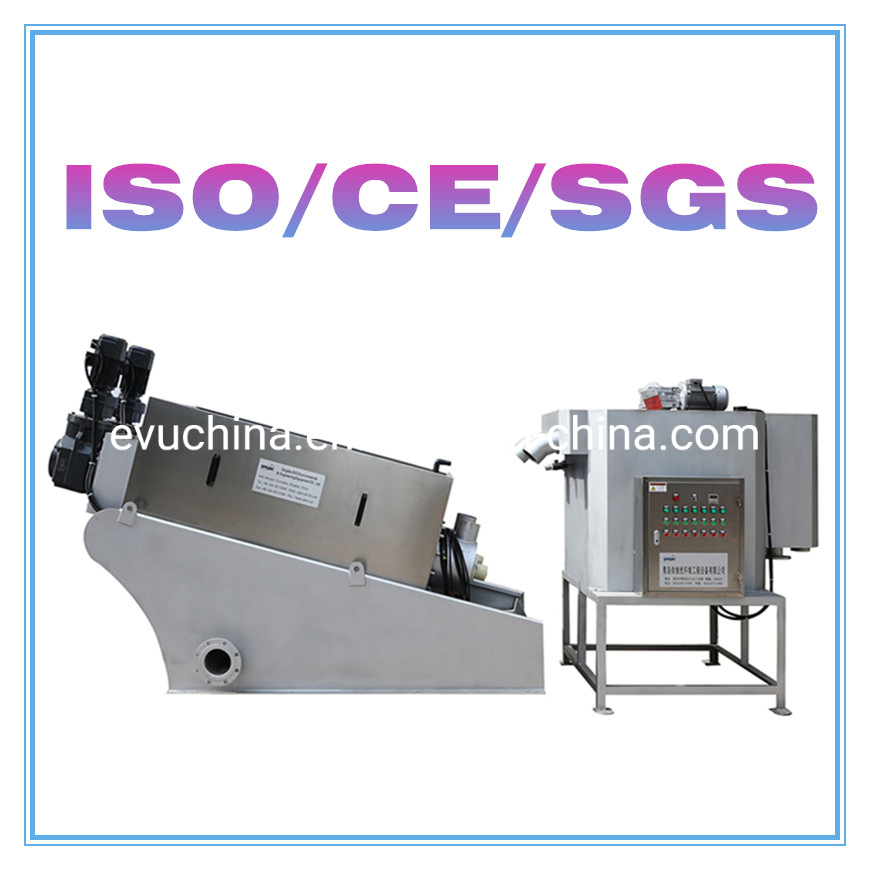

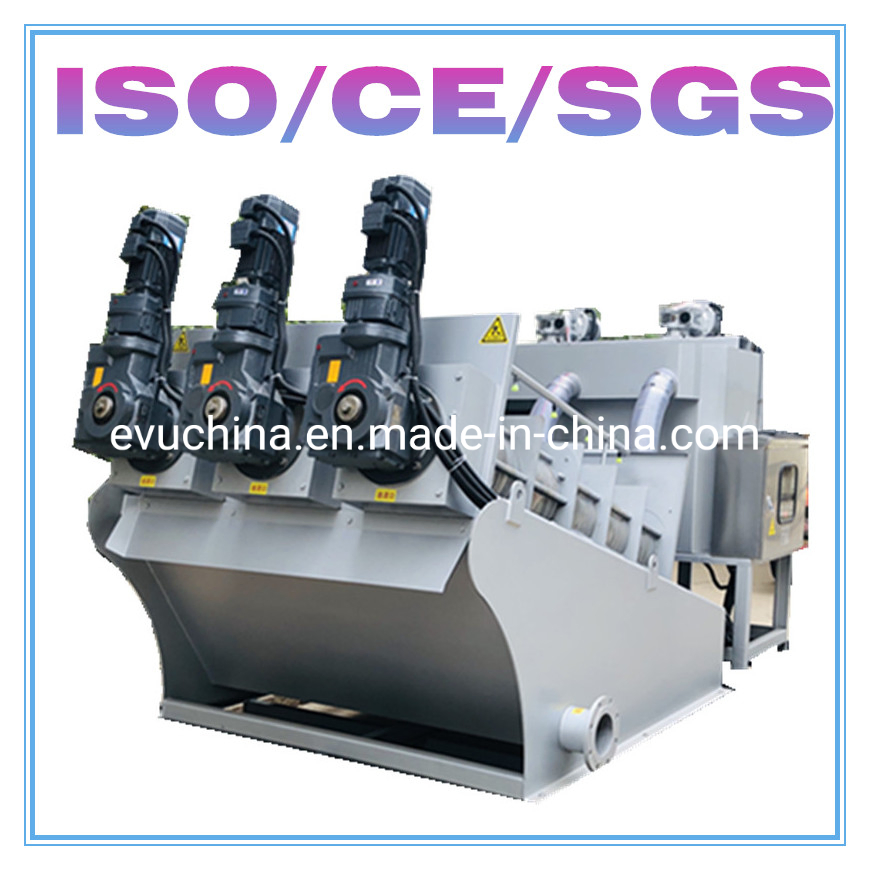

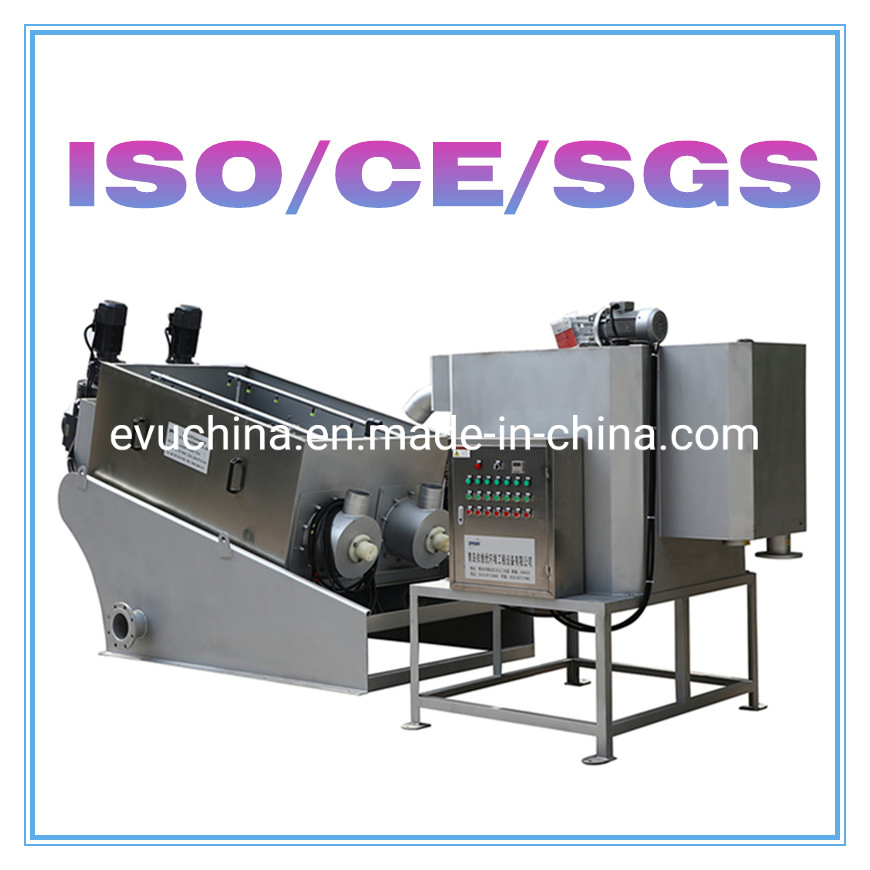

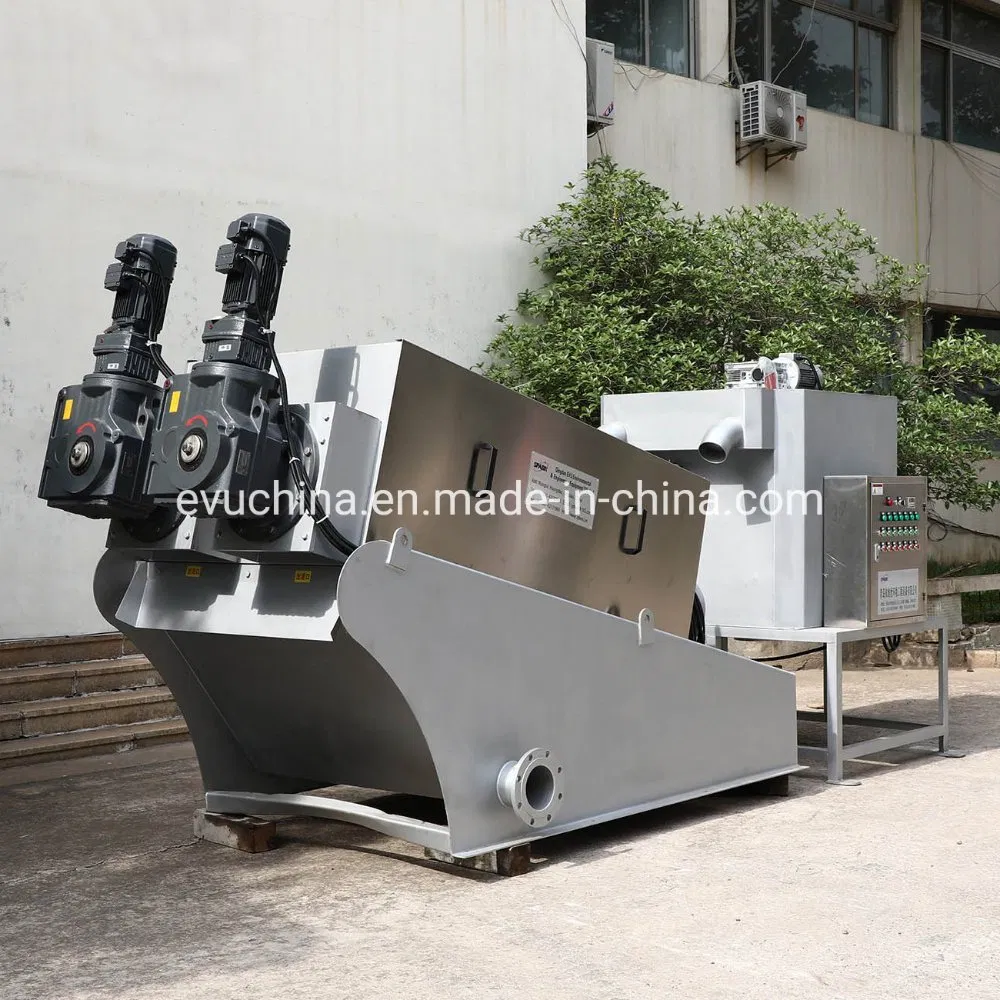

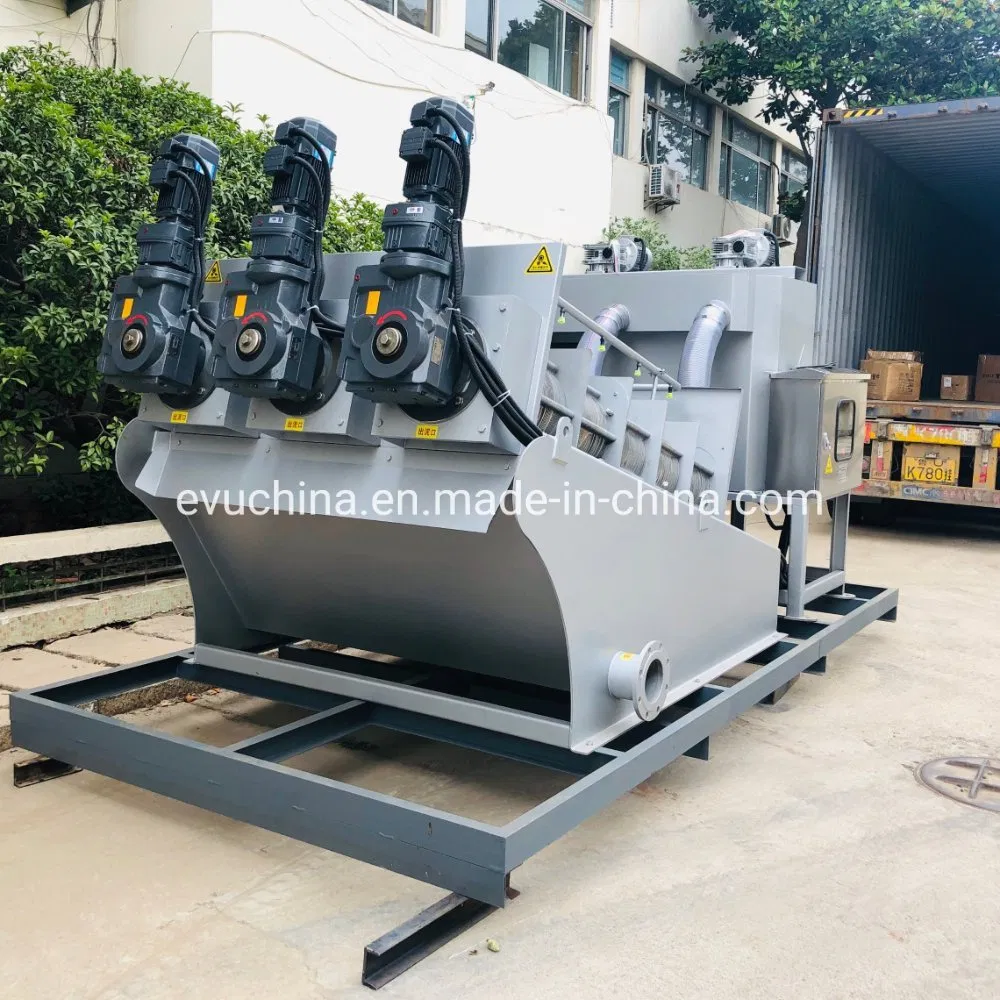

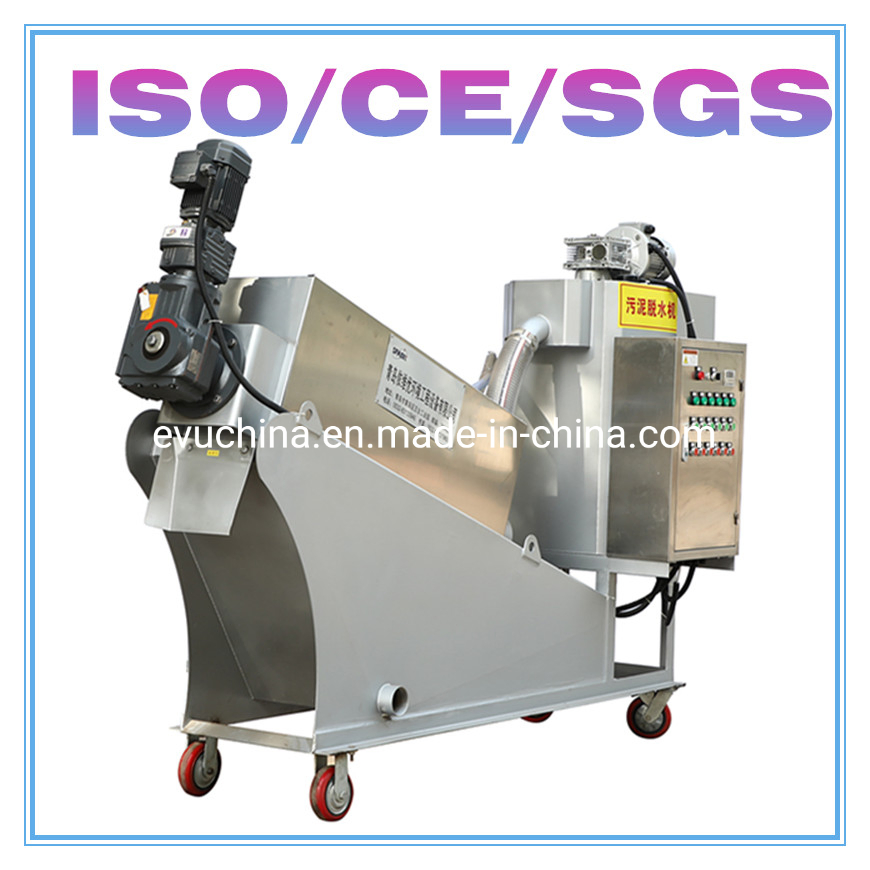

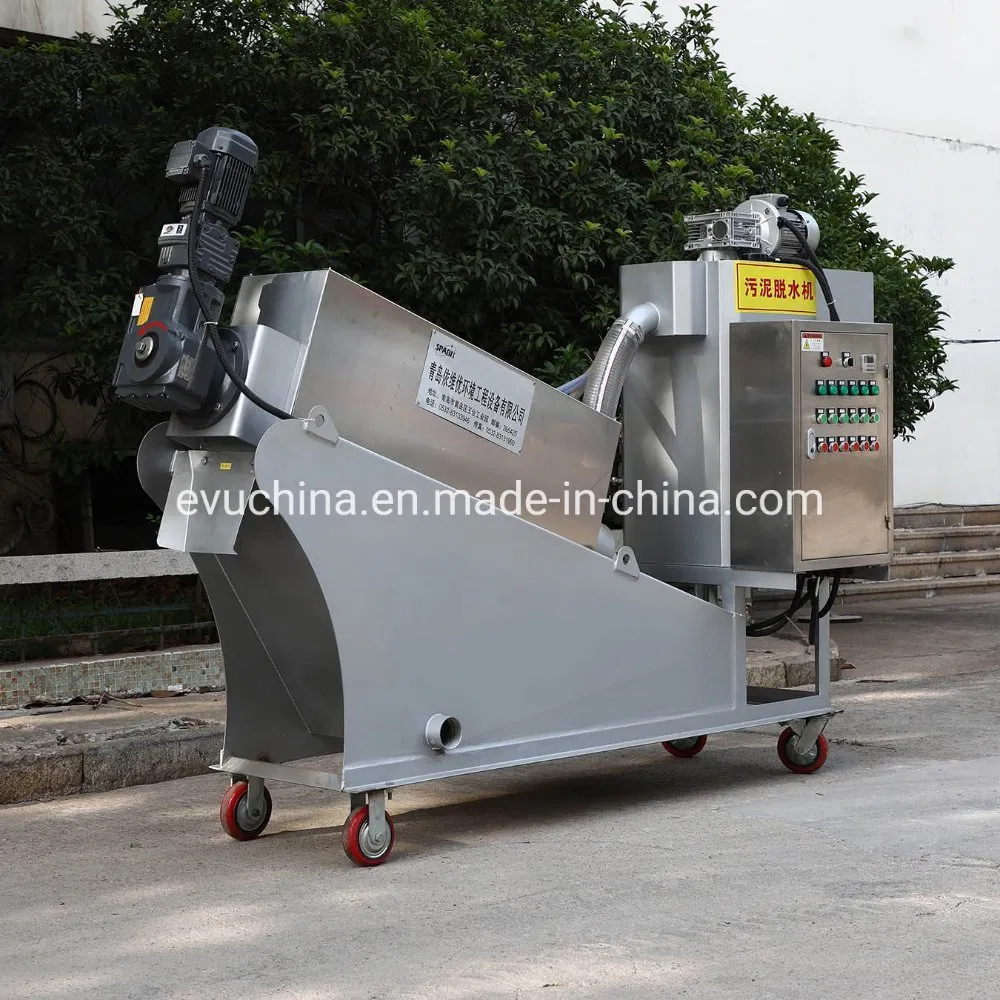

Screw Press Sludge Dewatering Machine is suitable for sludge dewatering of large, medium and small sewage plants. The dewatering machine replaces the traditional filter cloth and plate frame sludge dewatering method, reduces the investment cost and improves the treatment efficiency. It is suitable for municipal sewage treatment project and sludge dewatering treatment in food processing, printing and dyeing, paper making, pharmaceutical, leather and other industries, especially for slaughtering, petrochemical oily sludge dewatering treatment.

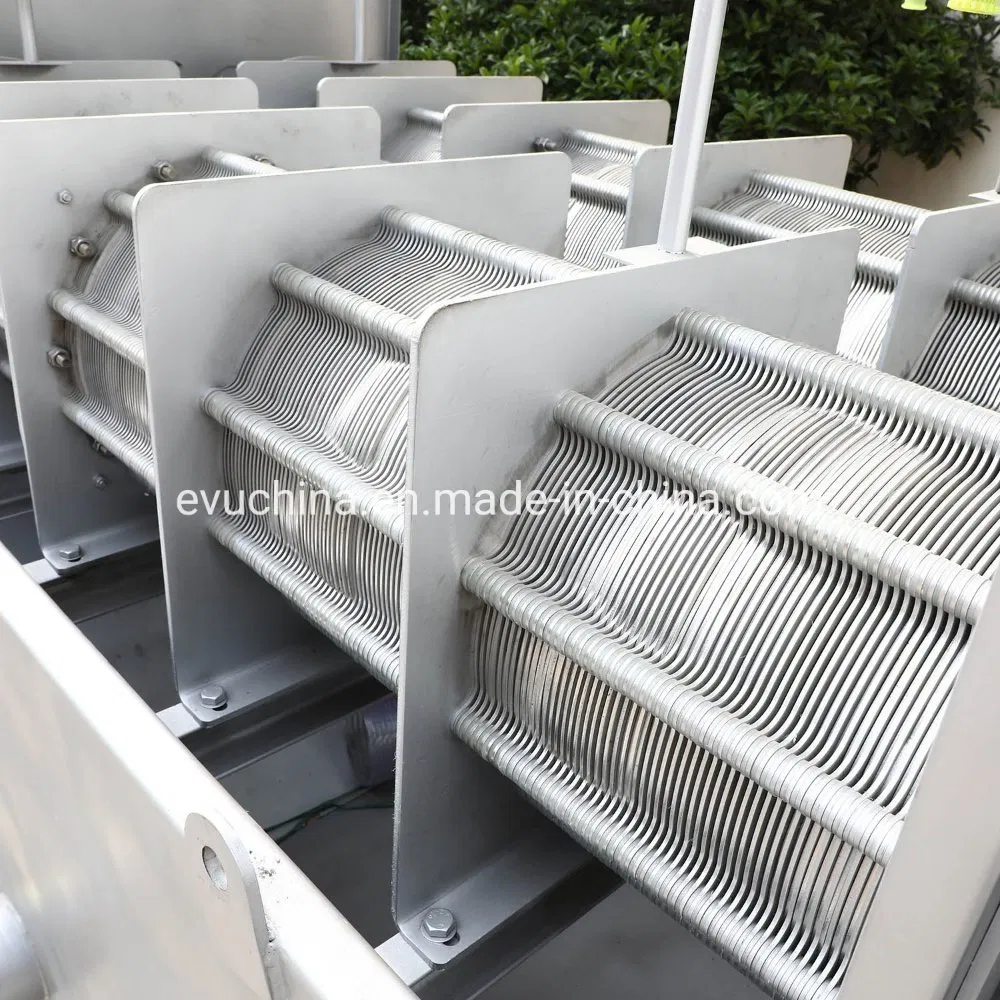

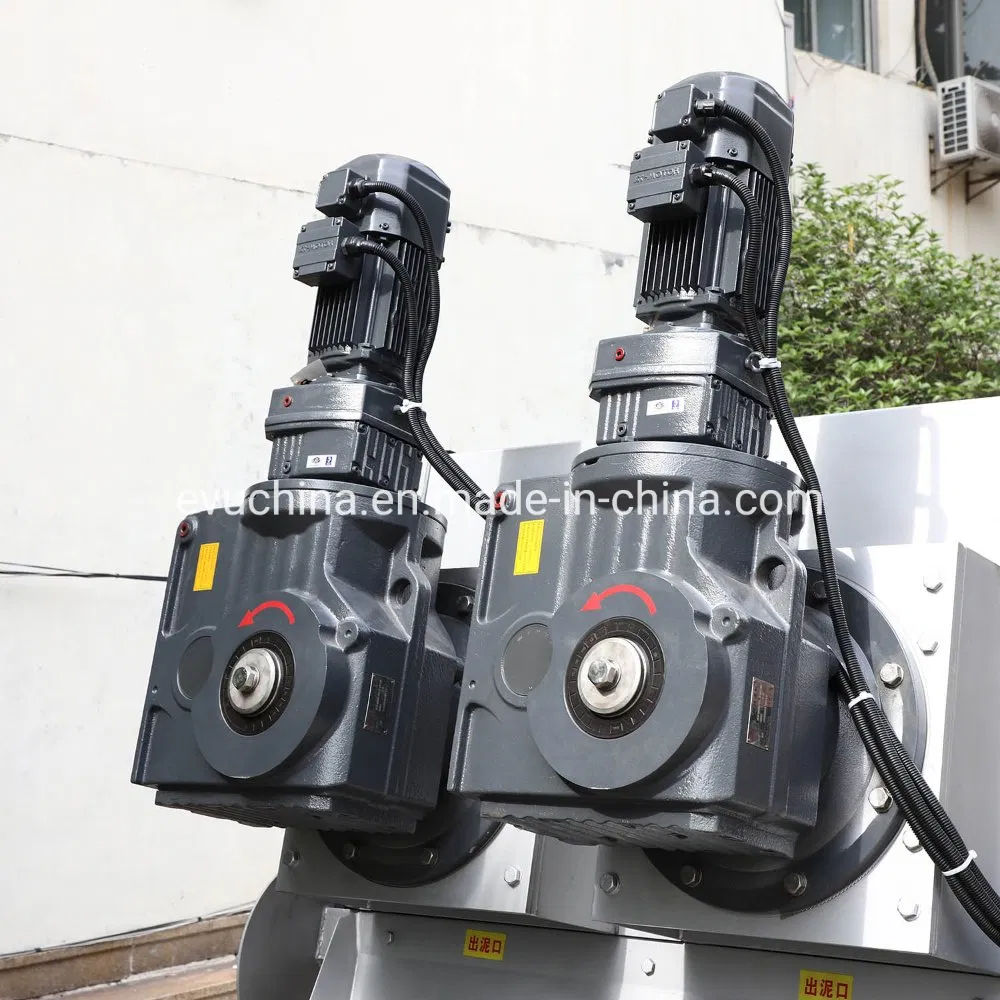

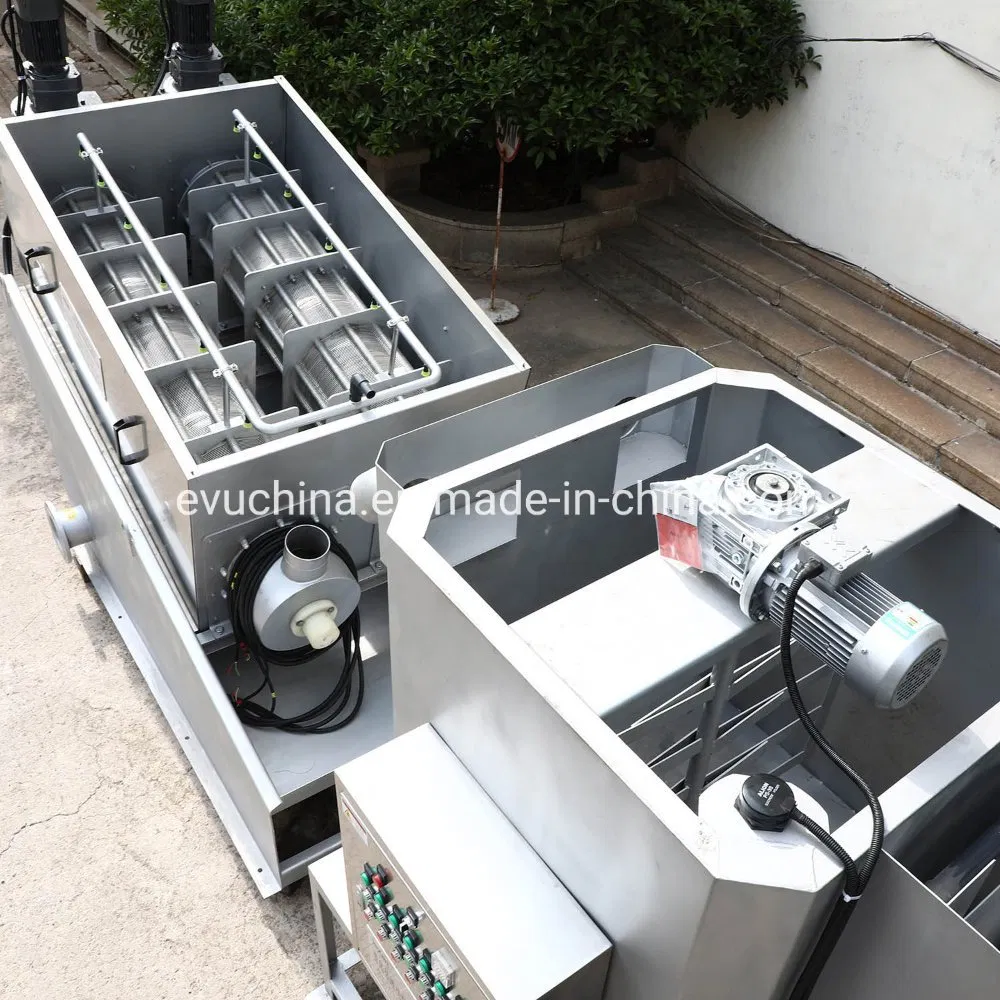

The equipment is mainly composed of frame, screw shaft, moving ring, static ring, separation ring, filtrate collecting tank, flocculating mixer, drive reducer, electrical control box and so on.
| Model | Dried Sludge Standard Capacity (kg/h) | Flow Load (m³/h) | Size (L*W*H) mm | N.W (kg) | |||
|---|---|---|---|---|---|---|---|
| Low Conc. | High Conc. | 2000 mg/L | 10000 mg/L | 50000 mg/L | |||
| QDLX-131 | ~4 | ~26 | ~2.0 | ~0.6 | ~0.4 | 2000*785*1040 | 250 |
| QDLX-201 | ~8 | ~52 | ~4.0 | ~1.2 | ~0.8 | 2510*900*1300 | 420 |
| QDLX-301 | ~20 | ~130 | ~10 | ~3.0 | ~2.0 | 3330*1005*1760 | 900 |
| QDLX-351 | ~40 | ~260 | ~20 | ~6.0 | ~4.0 | 4005*1100*2130 | 1100 |
| QDLX-404 | ~266 | ~1768 | ~133 | ~40 | ~27.2 | 5160*3160*2100 | 7000 |
* Note: Figures are for reference. Actual capacity varies based on sludge characteristics.
Established in 1999, our integrated technology-oriented enterprise specializes in water treatment industry scientific research design, equipment manufacture, installation, and commissioning. We export to over 40 countries, including Europe, USA, Russia, Brazil, Singapore, and South Africa.
