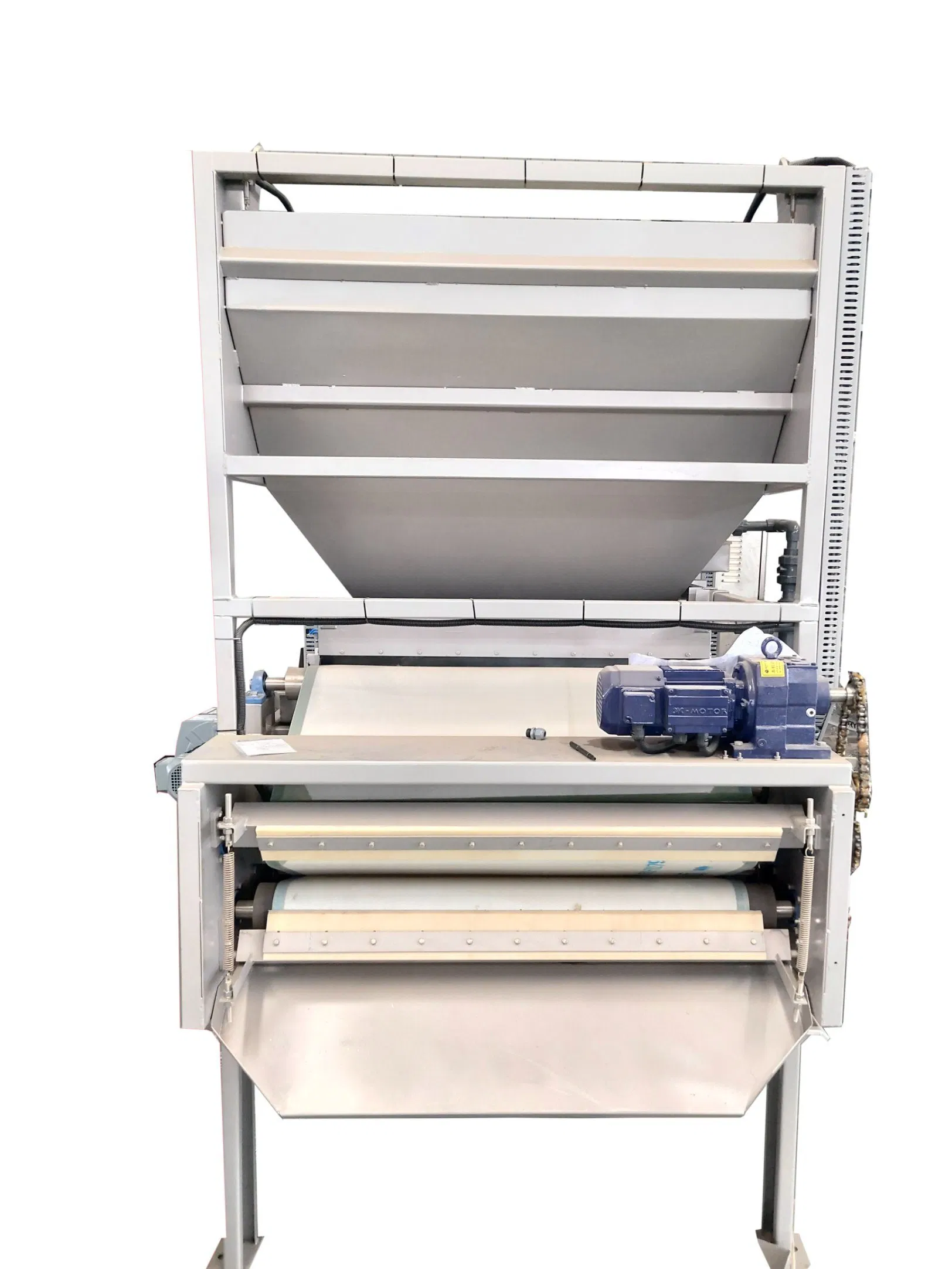

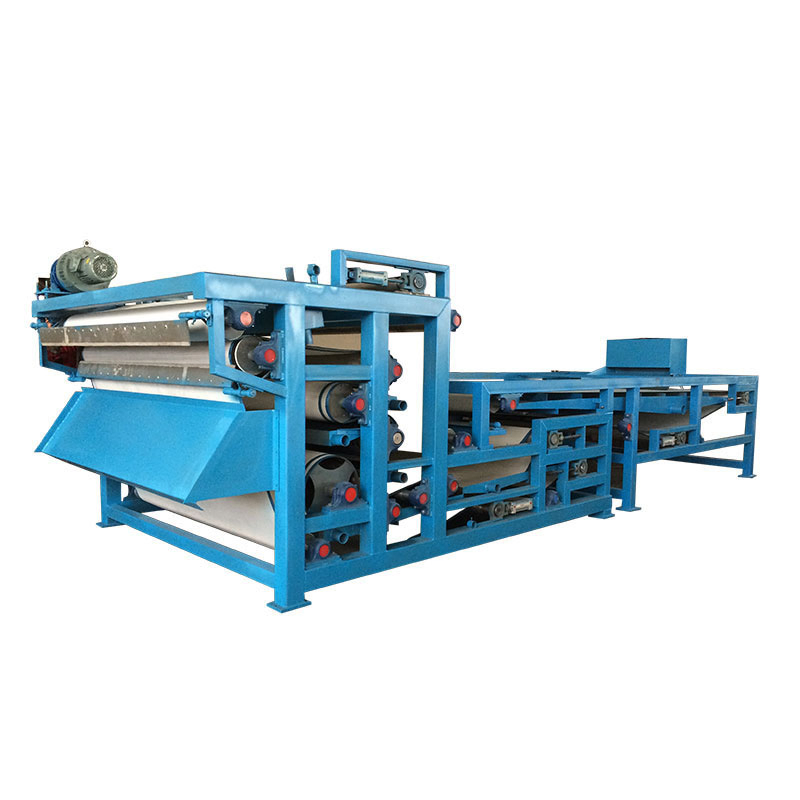

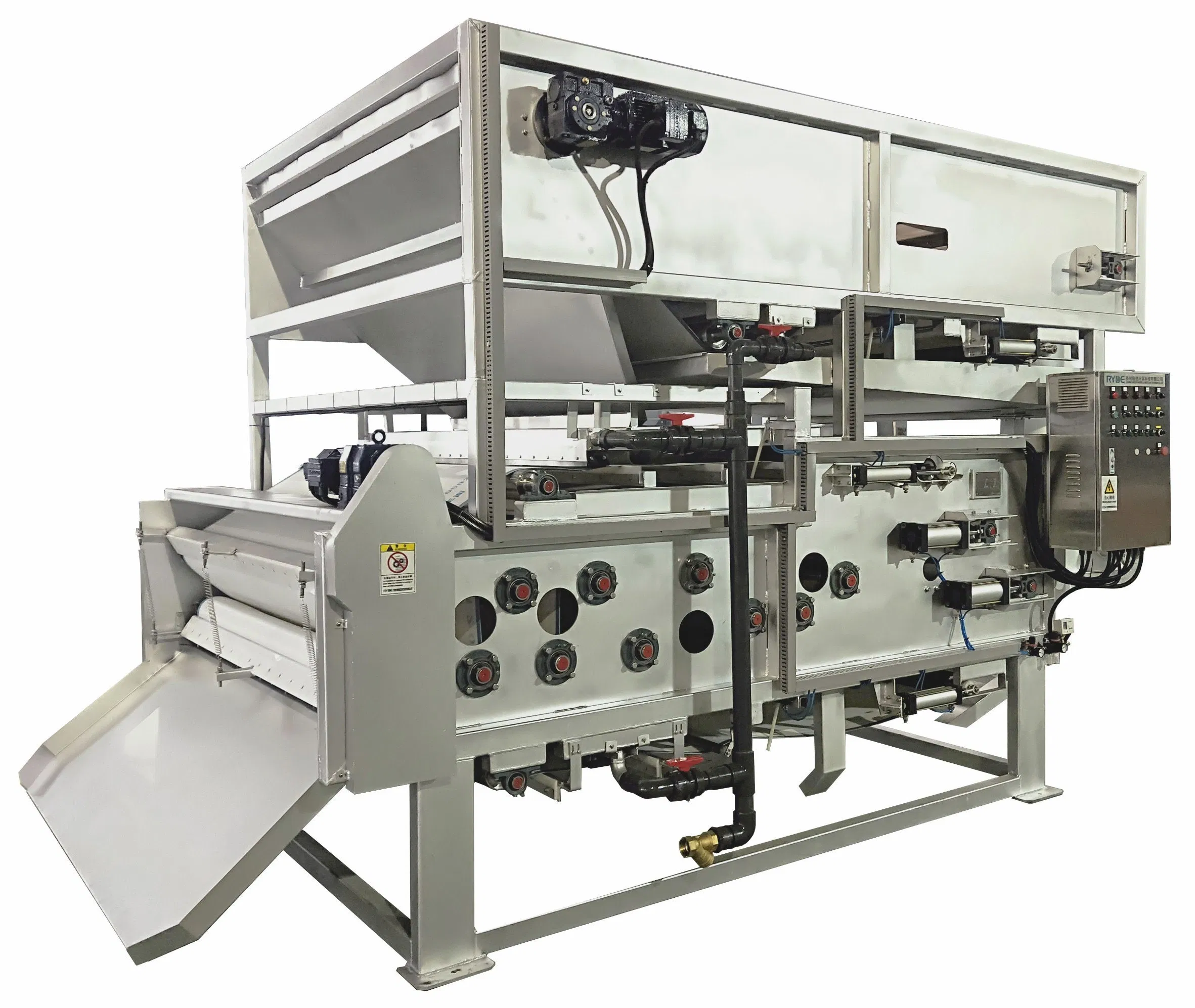

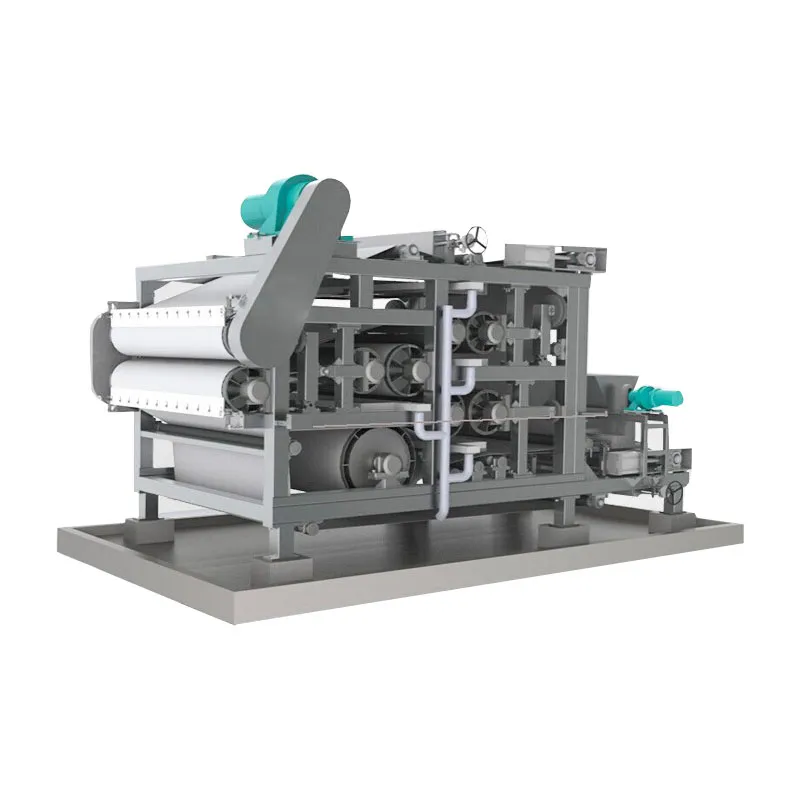

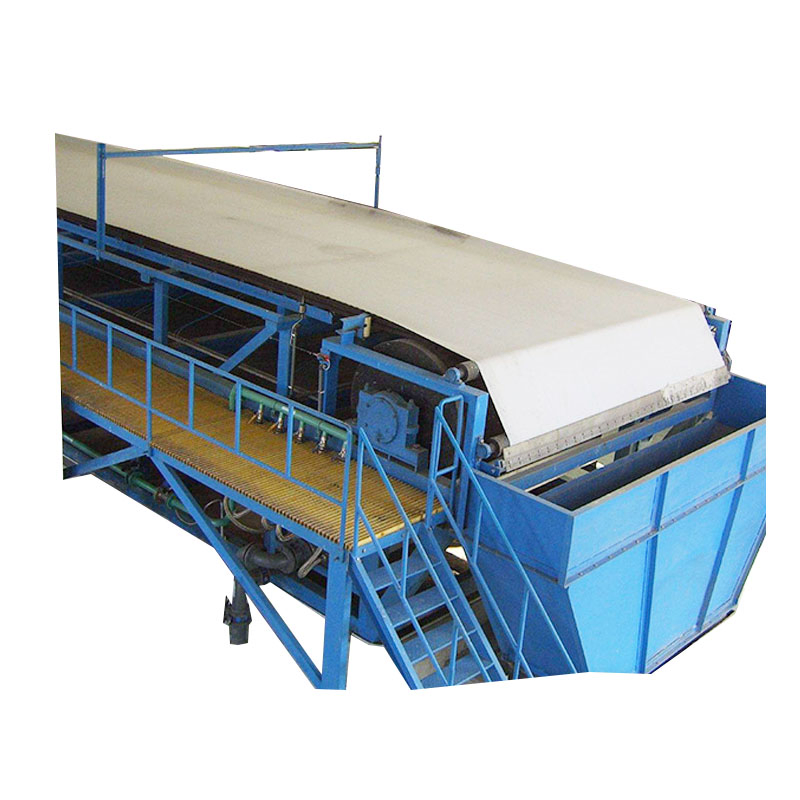

A Belt Filter Press is a sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry, which is sandwiched between two tensioned belts, by passing those belts through a serpentine of decreasing diameter rolls.
The machine is divided into three zones:

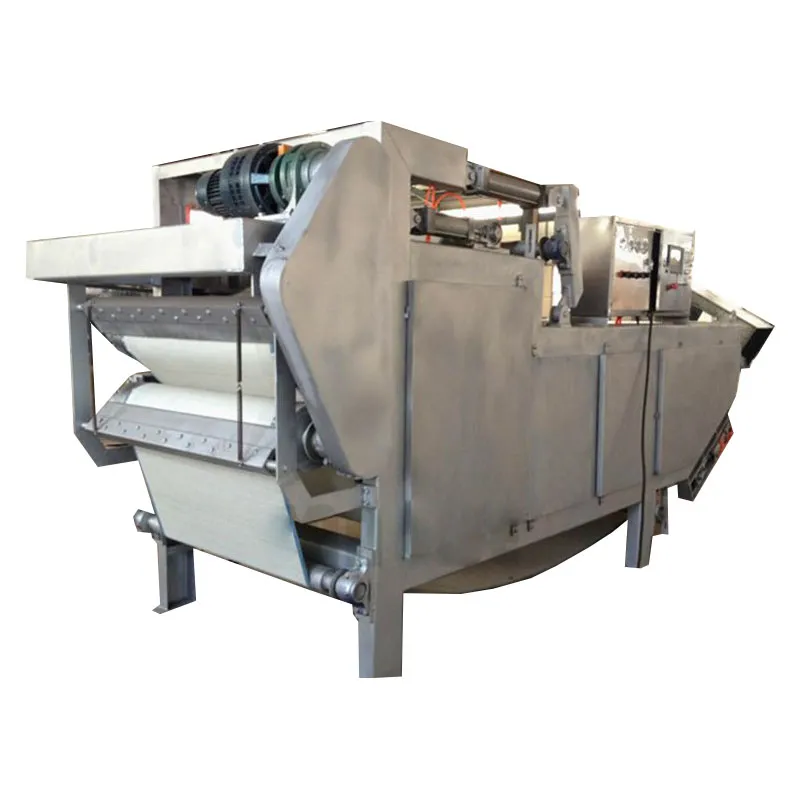

The operating principle involves conditioning feed sludge with a polyelectrolyte and draining the flocculated sludge over an endless, horizontal porous filter belt. The thickened sludge is then sandwiched by a second filter belt before further dewatering by a series of decreasing diameter rollers.
Final moisture removal is achieved by shear rollers arranged to give a minimum 180-degree belt wrap to optimize the dewatering process.
| Model | HYBFP1000 | HYBFP1500 | HYBFP2000 | Remark |
|---|---|---|---|---|
| Belt Width (mm) | 1000 | 1500 | 2000 | ----- |
| Treating Capacity (m³/h) | 12.5-15 | 20-25 | 30-35 | Based on Sludge Category |
| Dried Sludge (kg/h) | 100-188 | 160-300 | 240-450 | Based on Sludge Category |
| Mud Cake Water Rate (%) | 75-85 | 75-85 | 75-85 | Based on Sludge Category |
| Driving Motor (kw) | 0.37 | 0.75 | 0.75 | Frequency Control |
| Dimensions (L*W*H mm) | 4050*1770*2250 | 4680*2100*2980 | 5150*2750*3190 | Installation Size |
| Reference Weight (kg) | 2000 | 2850 | 3500 | ----- |

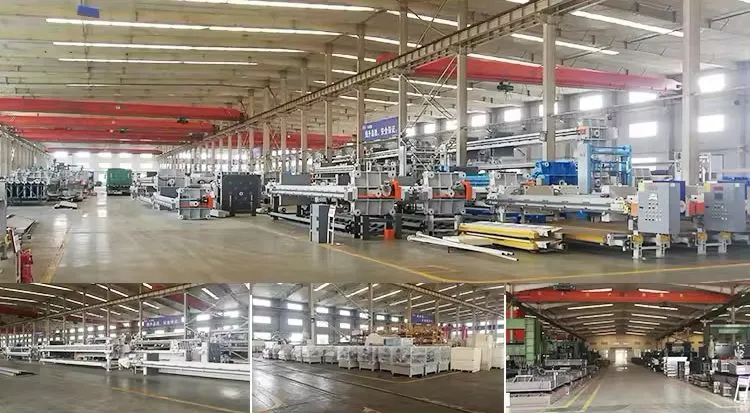

We are a high-tech enterprise that integrates scientific research, design, production, and trade. Our main business focuses on the research and development, design, production, and sales of sewage treatment equipment, low-temperature pressure vessels, and outdoor LED lighting fixtures. As a technology-based, modern, and market-oriented environmental protection enterprise, we maintain a professional, efficient, and experienced design and development team to provide comprehensive services such as preliminary design, on-demand customization, and installation guidance.
