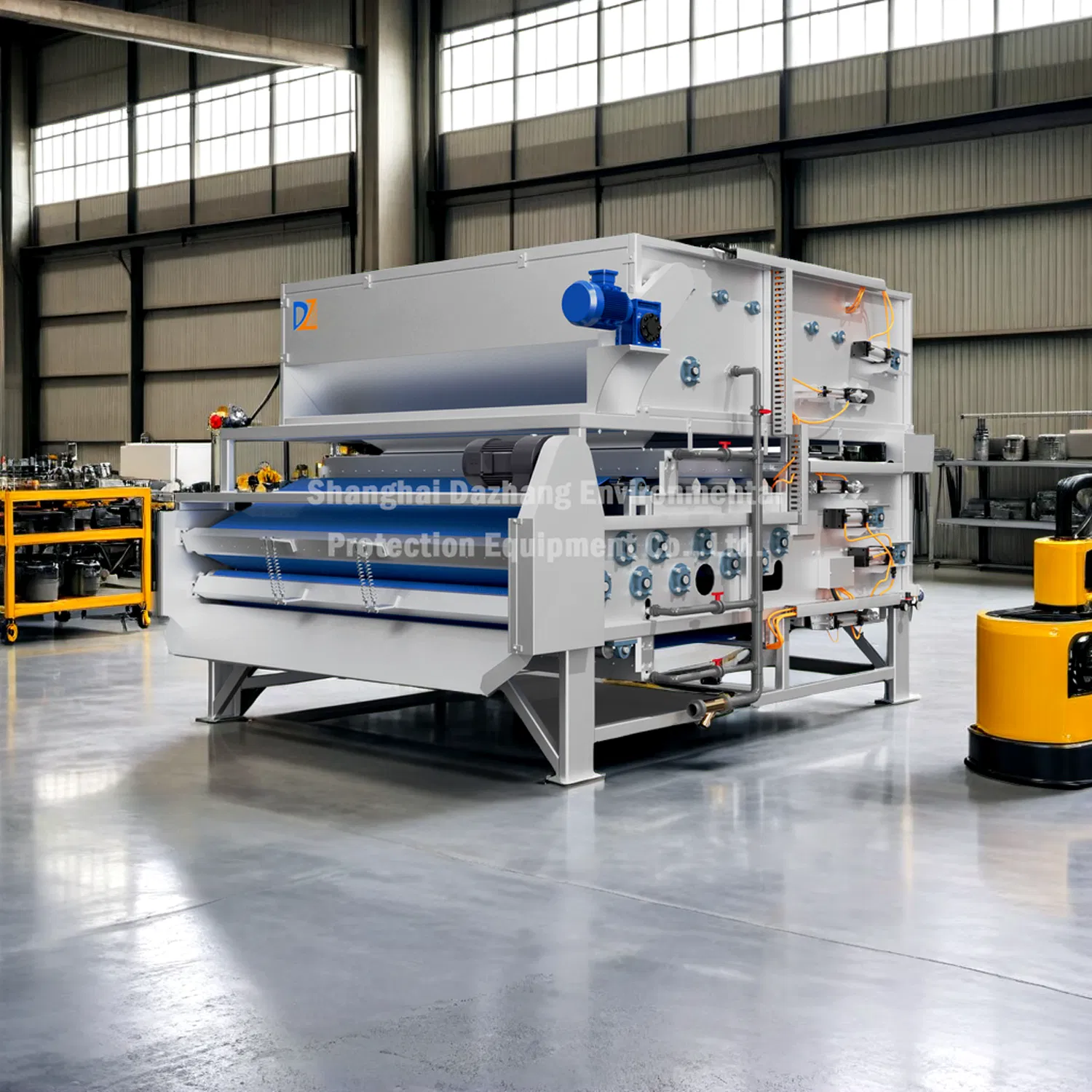

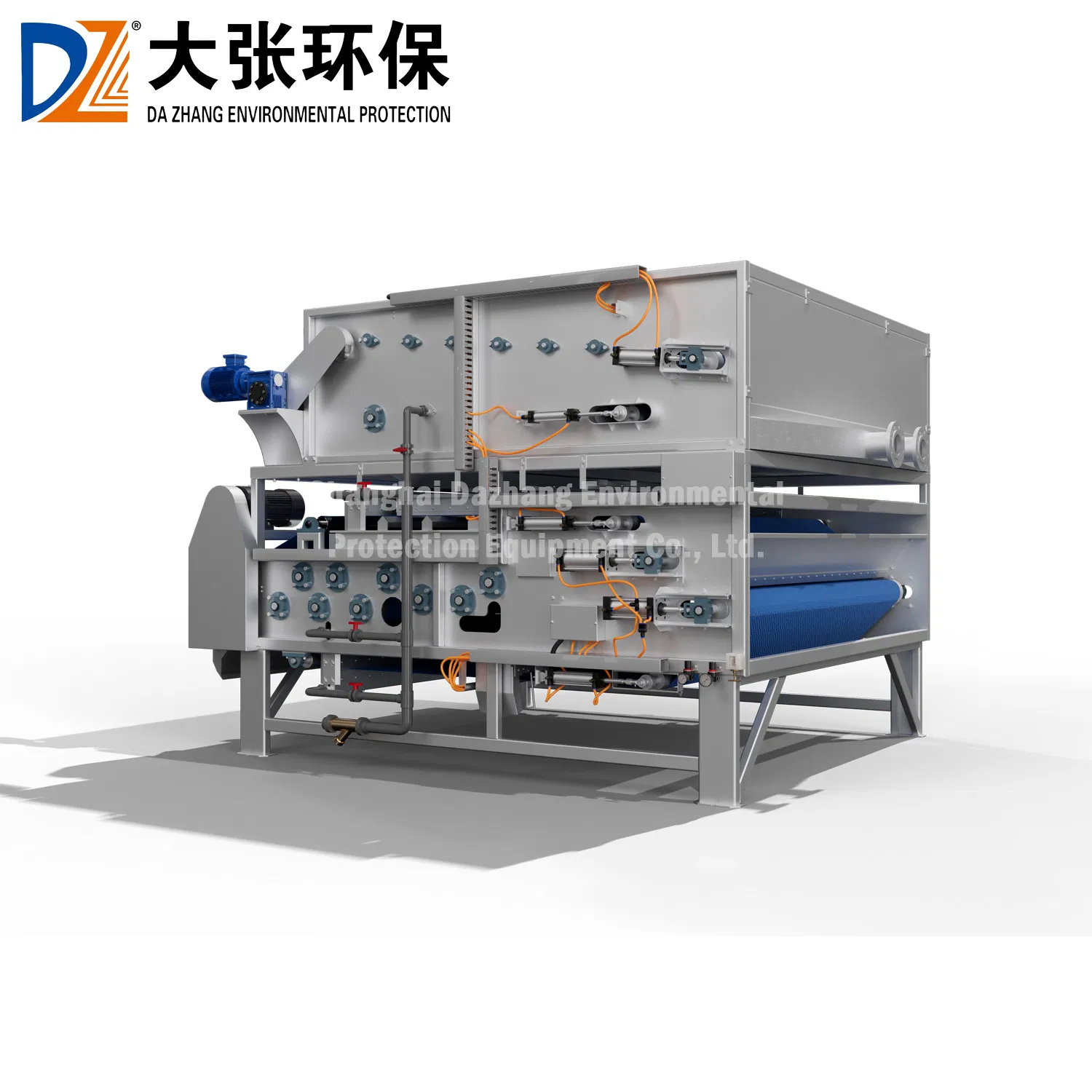

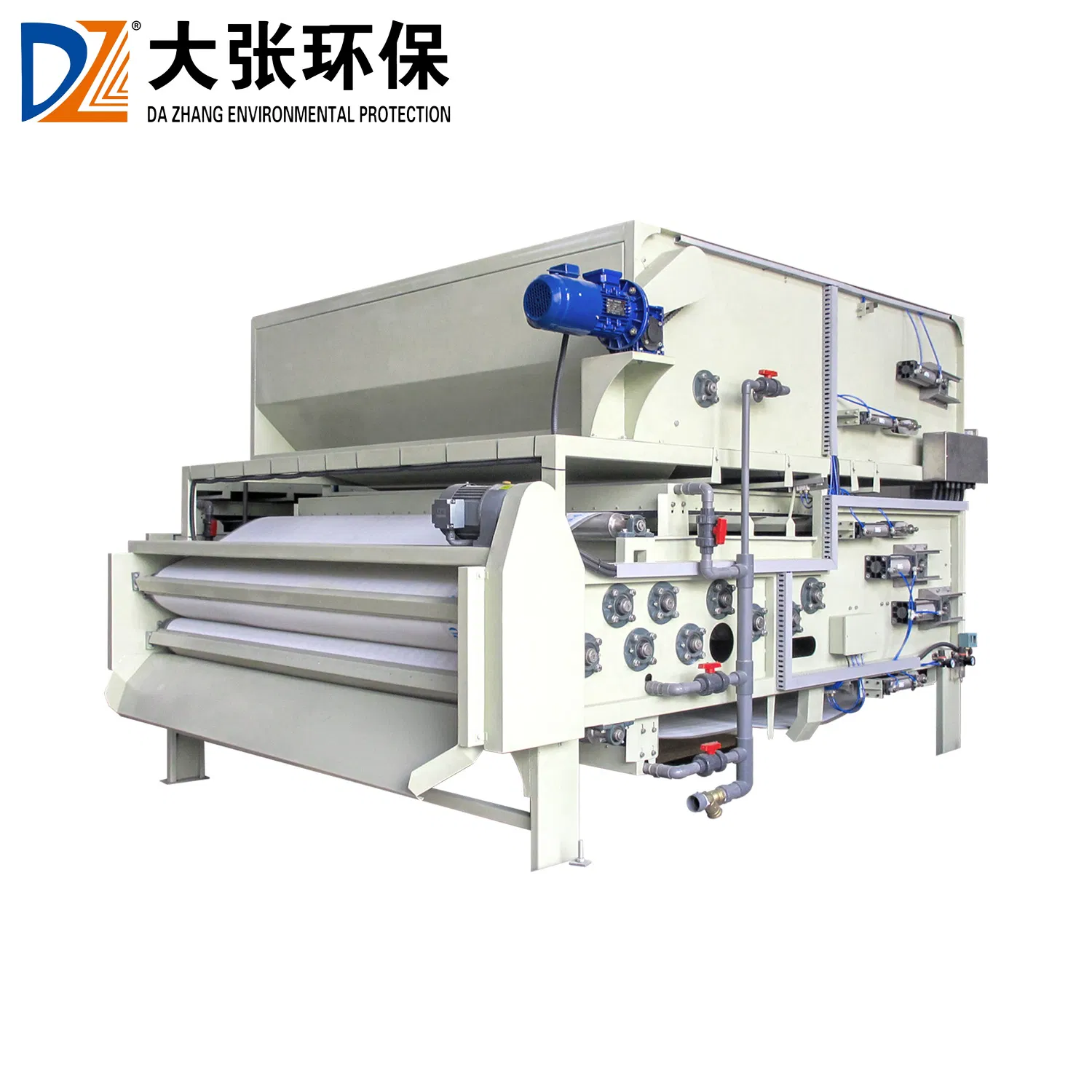

Advanced Stainless Steel Water Filtration System for Home Use

Customization: Available
Type: Filter Press
Usage: Environmental Protection, Chemical Industry

Product Description

📋 Basic Information
Model NO.
filter press
Motive Force
Pressure
Style
Belt Filter Press
Performance
Efficient Filtration
Capacity
3-45(M²/H)
Dry Solid
45-675(Kg/H)
Power of Driving Motor
0.75
Control
PLC
Cake Moisture
65%-84%
Application
Sewage Treatment & Sludge Dewatering
📦 Packaging & Delivery
Package Size
450.00cm * 250.00cm * 150.00cm
Package Gross Weight
250.000kg
Transport Package
Wooden Case/ Bubble Wrap
⚙️ Product Description
Filtration System
Filtration System Detail

Design Features

  • Embraces cutting-edge technology, combining sleek aesthetics with superior functionality.
  • Engineered for excellence with a robust structure and high rigidity for whisper-quiet performance.
  • State-of-the-art concentration preprocessing capabilities for optimal slurry flocculation and reduced costs.
  • Gravity dewatering zone with advanced distribution system to prolong filter cloth lifespan.
  • Extended wedge-shaped zones to efficiently dehydrate materials and prevent overflow.
  • Scientifically arranged dewatering rollers for enhanced filtration capacity and energy savings.
  • Seamless continuous operation with high-level automation (PLC interface ready).
  • Mechanical or frequency stepless speed regulation for various applications.
  • Pneumatic tensioning and automatic deviation adjustment mechanisms for safe belt operation.
  • Infrared safety guards and emergency shutdown systems for maximum security.
Equipment Overview
Internal Structure
📊 Reference Data & Parameters
Type of Wastewater Type of Sludge Feed Concentration (%) Flocculant Consumption Cake Moisture (%)
Paper & Pulp SewageChemical Sludge2.0-5.02.0-4.064-78
Printing & DyeingChemical Slurry1.5-2.53.0-5.076-84
Leather & TanneryActivate Slurry1.5-2.54.0-6.078-85
Electro-PlatingChemical Slurry1.5-2.53.0-5.072-84
Municipal SewageActivated Sludge0.8-1.54.0-6.078-85
Model Belt Width (mm) Capacity (m³/h) Dry Solid (kg/h) Power (kw) Weight (kg)
DNY500-35005-1530-600.751200
DNY1000-3100010-2060-1200.751800
DNY2000-3200025-45140-2701.13200
DNY3000-3300040-65220-4203.04000
Application Scene 1
Application Scene 2
Application Scene 3
Frequently Asked Questions
Are you a manufacturer or a trader?
We are a seasoned manufacturer with specialized expertise in solid-liquid separation solutions.
What is your production capacity?
Our state-of-the-art facilities encompass over 570,000m² with an annual production capacity of 9,500 machine sets.
How long is the delivery time for bulk orders?
Typically, delivery takes between 15-30 working days post-deposit. Custom specifications may require additional time.
What are the payment terms?
Our standard structure involves an initial deposit via T/T before production, with the balance payable post-inspection.
What is the product warranty period?
Products come with a one-year warranty for standard usage and lifetime online technical support.
Do you provide after-sales installation service?
Yes, we provide detailed foundation drawings, installation videos, and online guidance. On-site assistance is also available upon request.
