Basic Information
Product Name
Daf; Dissolved Air Flotation
Application
Hospital, Industrial, Restaurant Sewage Treatment
Package Size
100.00cm * 100.00cm * 100.00cm
Product Description

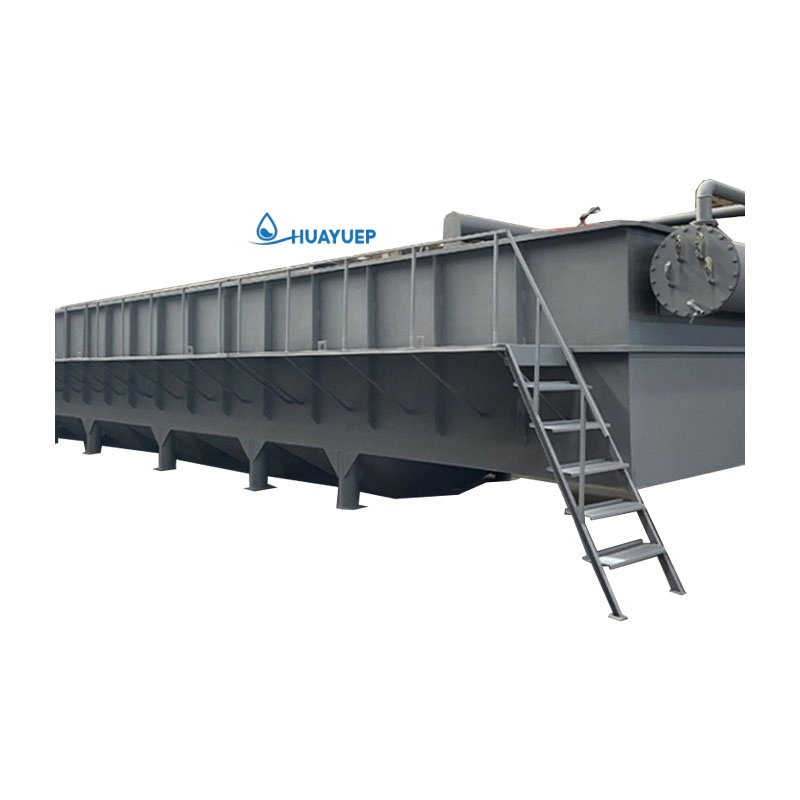

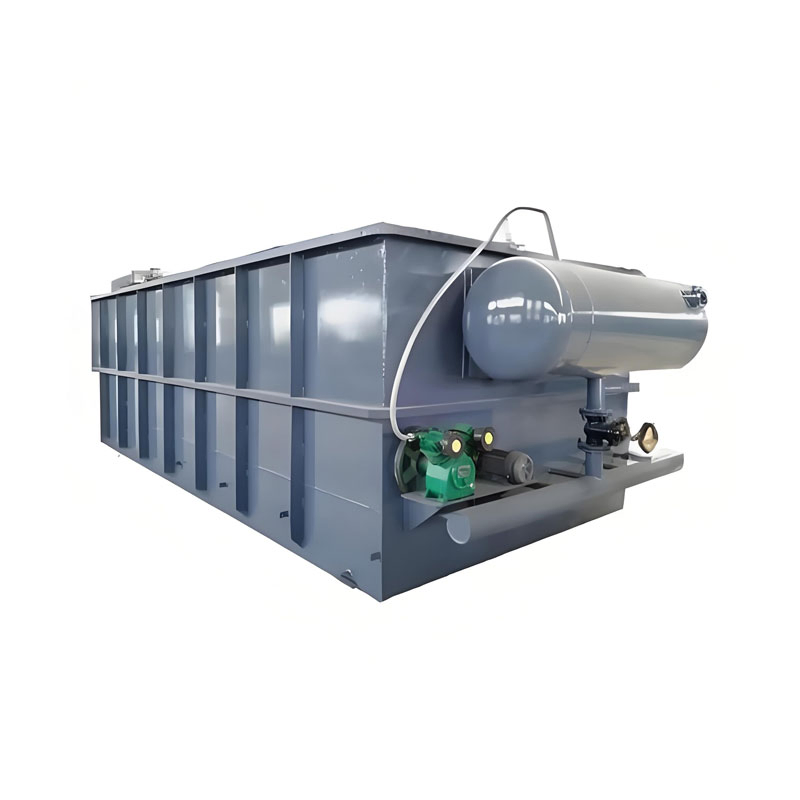

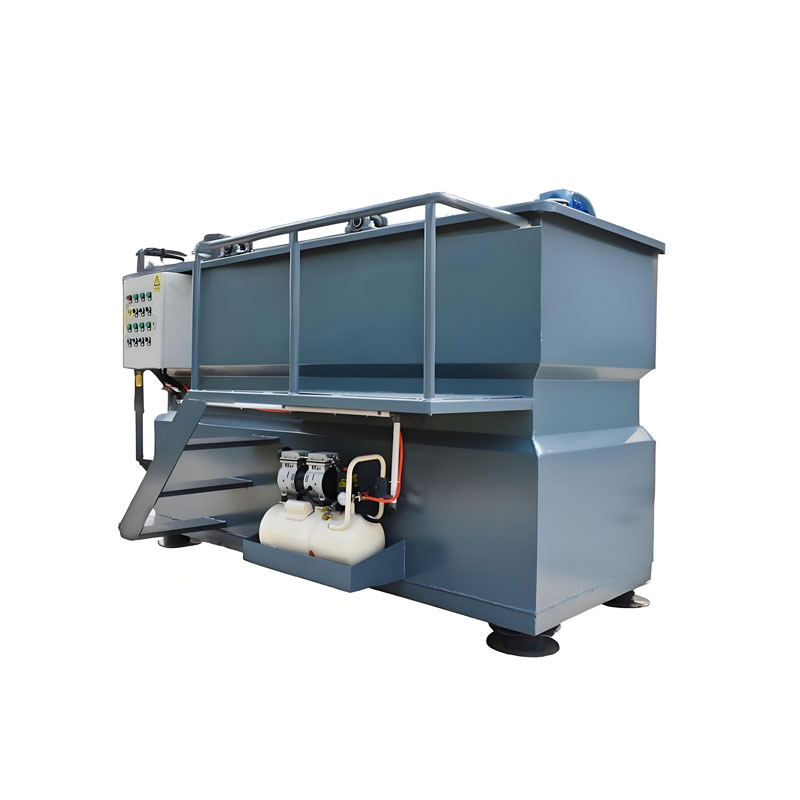

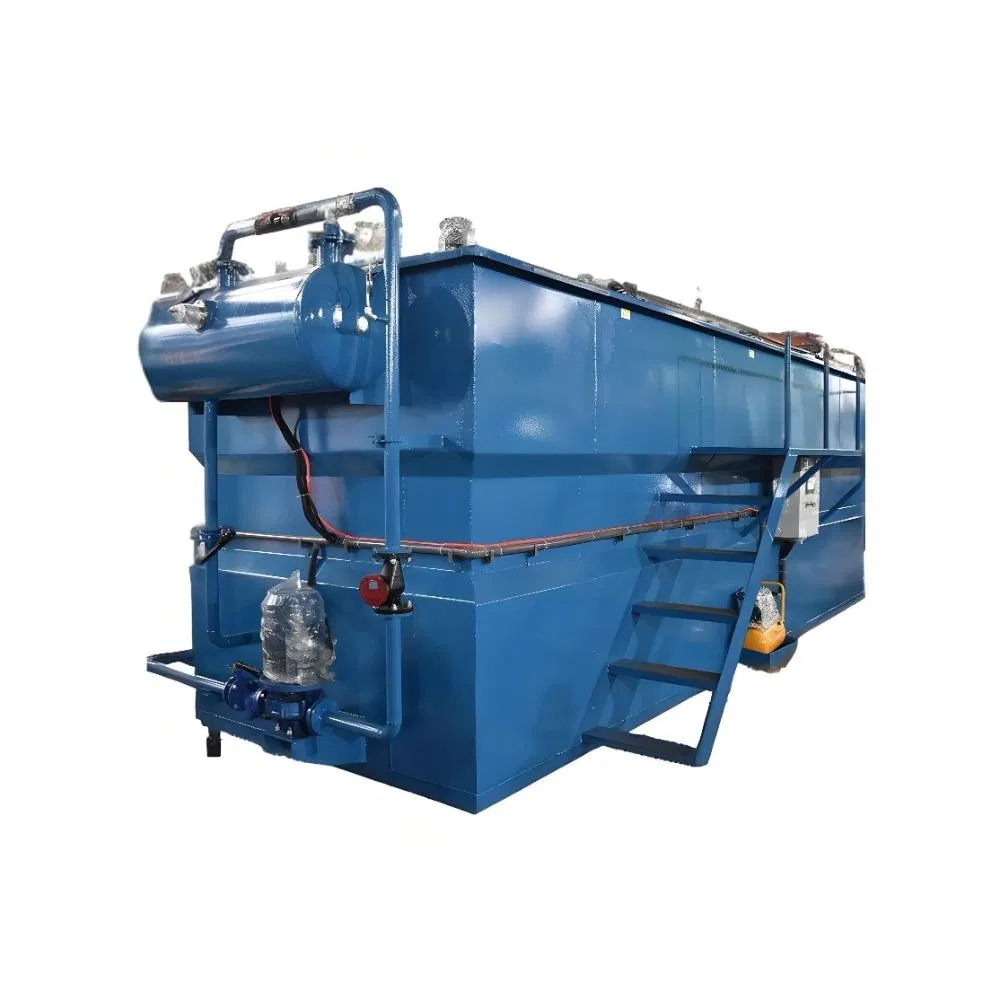

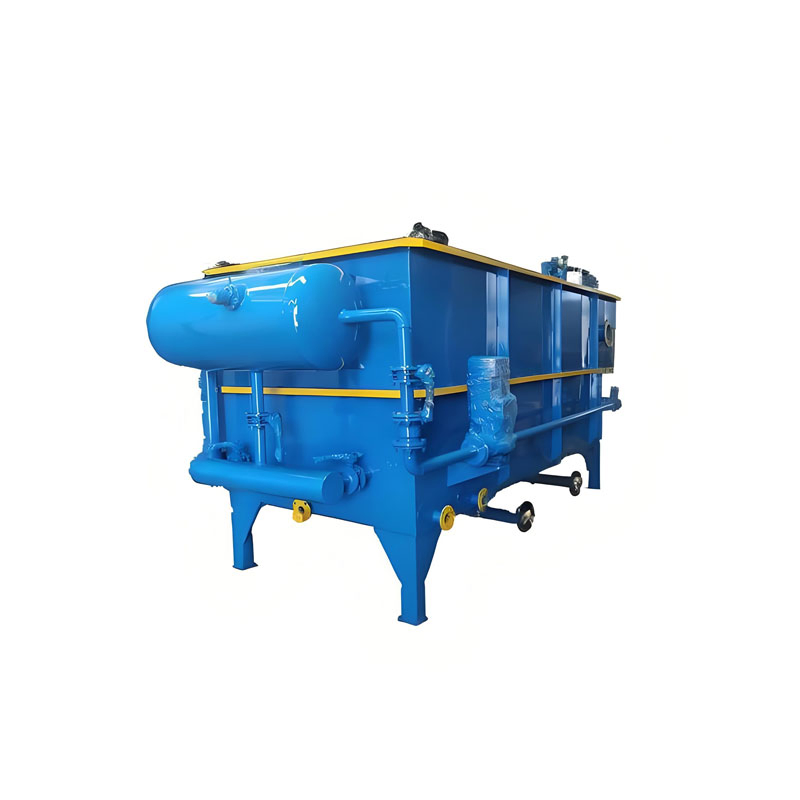

GDXF type multiphase mixed air flotation machine
In sewage treatment practice, air flotation separation and purification is one of the effective process methods for oil pollution, suspended solids, algae, etc. with a density close to water. Multiphase mixed air flotation, as a new type of air flotation equipment, can more conveniently and effectively remove oils, gel like substances, and suspended solids from industrial and urban wastewater. It is a mature and excellent sewage treatment technology.
⚙️

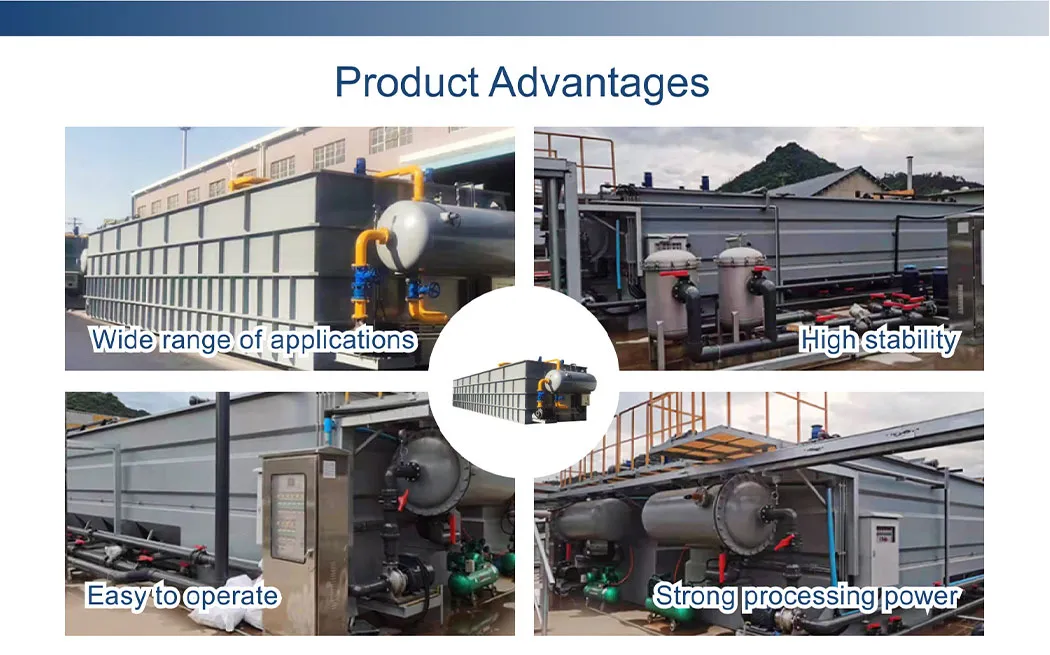

Simplified Design
No need for air compressor and pressure vessel.
💰
Cost Effective
Save operating costs, land area, and investment.
🛠️
Low Maintenance
Simple, compact, and maintenance free.

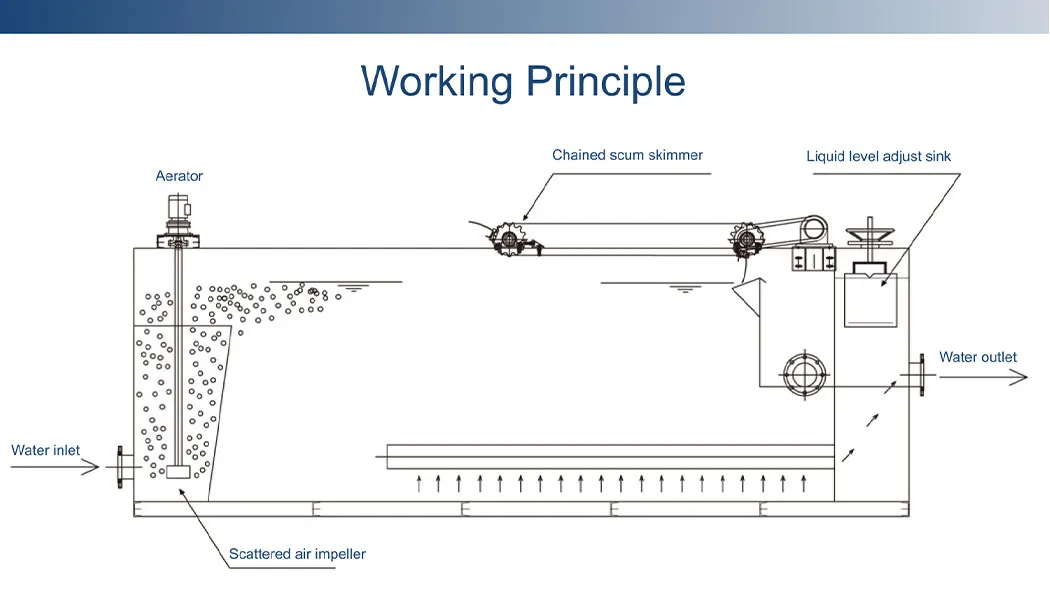

The performance of multiphase mixed air flotation mainly depends on the gas content in the multiphase mixed liquid. After being sheared by the high-speed rotary cutting pump impeller, the gas dissolves in the liquid. Highly dense microbubbles with an average diameter of less than 30 μm are released. These microbubbles attach to suspended solids and bring them to the water surface, forming a floating slag that is removed by a scraper.
Product Parameters
| Model |
Capacity (m³/h) |
Length (m) |
Width (m) |
Depth (m) |
Pump (kw) |
Scraper (kw) |
Total Power (kw) |
| GDXF-3 | 3 | 2.5 | 0.8 | 1.9 | 1.1 | 0.2 | 1.3 |
| GDXF-5 | 5 | 3.0 | 1.0 | 1.9 | 1.1 | 0.2 | 1.3 |
| GDXF-10 | 10 | 4.0 | 1.2 | 2.1 | 2.2 | 0.2 | 2.4 |
| GDXF-15 | 15 | 4.5 | 1.5 | 2.1 | 3.0 | 0.4 | 3.4 |
| GDXF-20 | 20 | 4.5 | 1.8 | 2.1 | 3.0 | 0.4 | 3.4 |
| GDXF-30 | 30 | 5.5 | 2.0 | 2.1 | 4.0 | 0.4 | 4.4 |
| GDXF-40 | 40 | 6.0 | 2.2 | 2.1 | 4.0 | 0.4 | 4.4 |
| GDXF-50 | 50 | 6.0 | 2.7 | 2.1 | 4.0 | 0.4 | 4.4 |
| GDXF-60 | 60 | 7.0 | 2.8 | 2.1 | 5.5 | 0.4 | 5.9 |
| GDXF-70 | 70 | 8.0 | 3.0 | 2.1 | 5.5 | 0.4 | 5.9 |
| GDXF-80 | 80 | 9.0 | 3.2 | 2.1 | 11.0 | 0.4 | 11.4 |
| GDXF-100 | 100 | 9.0 | 3.6 | 2.1 | 15.0 | 0.4 | 15.4 |
Frequently Asked Questions
Can your air floatation machine effectively treat various types of sewage?
Yes, our machine adopts advanced technology. It can effectively treat industrial, medical, and domestic wastewater according to the quality of the raw water.
Has your machine been fully tested and verified for stability?
Yes, it meets international standards and has undergone rigorous testing. We use high-quality materials to ensure performance in long-term operation across different environments.
Do you provide installation training and support?
We provide installation guidance and training services for your staff. Additionally, we offer remote support and maintenance services to ensure stable operation.
Is timely assistance available if a malfunction occurs?
If a malfunction occurs, please contact our customer service. We have a dedicated after-sales team providing technical support and repair services.
Can the air floatation machine be customized to our needs?
Yes, our engineering team can design a process plan based on your local water quality, volume, and outlet standards to provide the best solution.
How long is the warranty period?
Our machine comes with a standard warranty period of one year.
