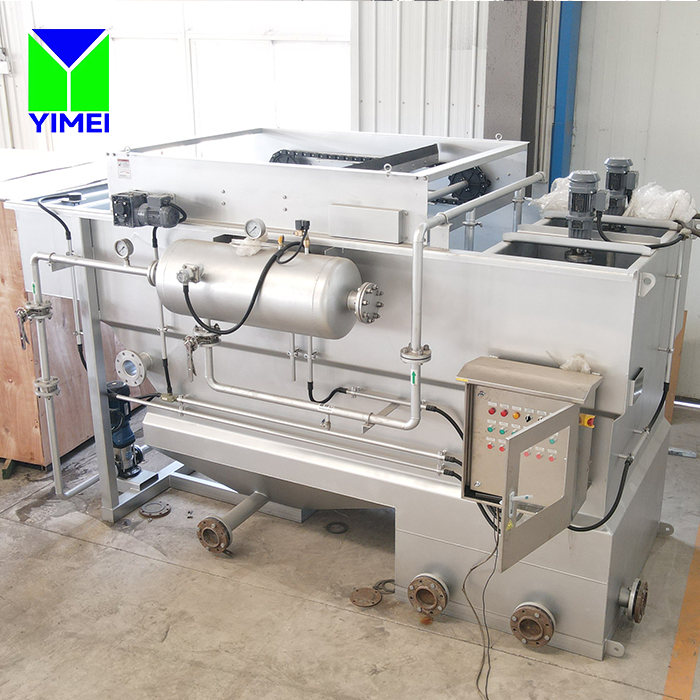

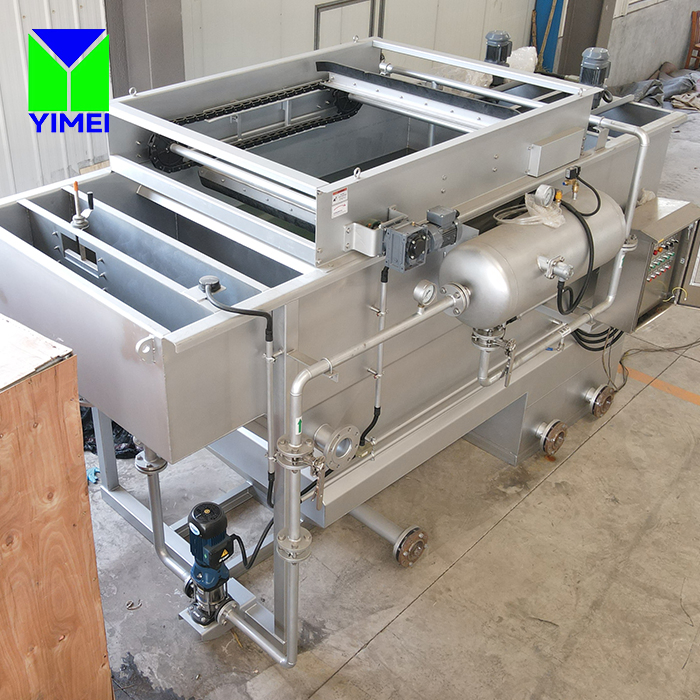

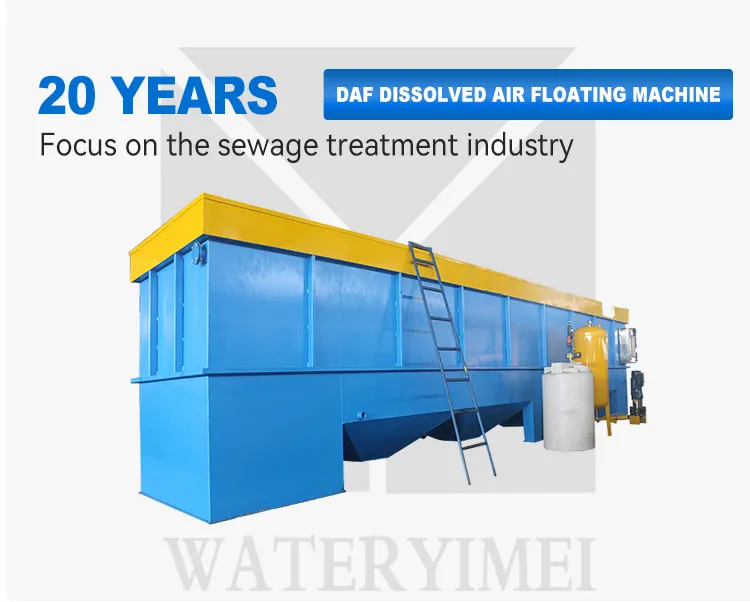

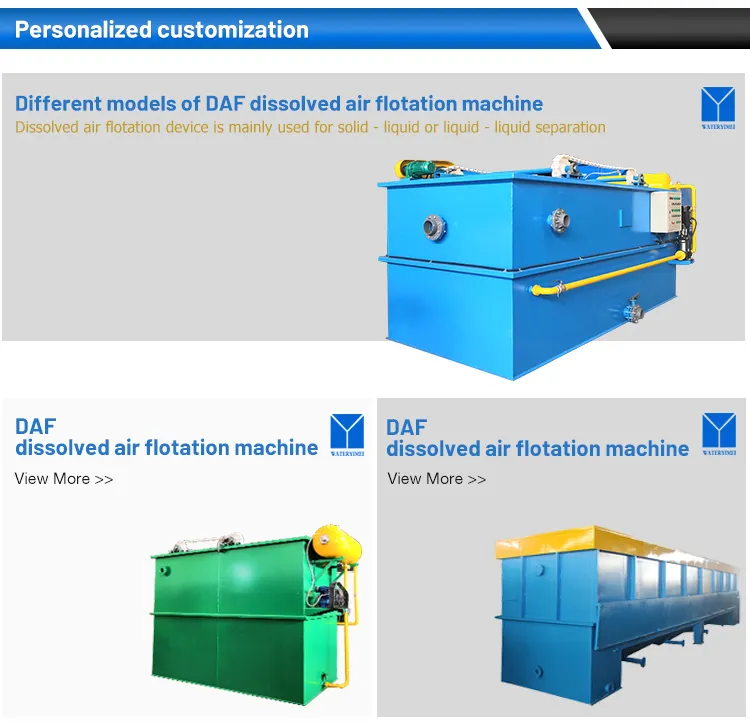

The Dissolved Air Flotation machine (DAF) is primarily used for solid-liquid separation and liquid-liquid separation. The device produces large amounts of tiny bubbles through a dissolved gas and release system. These bubbles attach to solid or liquid particles in the wastewater with a density close to water, causing them to float to the surface for easy removal.
Air is sent by a compressor into a tank and forced to dissolve into water under 0.35Mpa pressure. Upon sudden release, this air forms a vast group of microbubbles (20-50UM). These microbubbles adhere to flocculated suspended matter (SS and CODcr) added via dosing, reducing its density and causing it to float to the surface for removal.

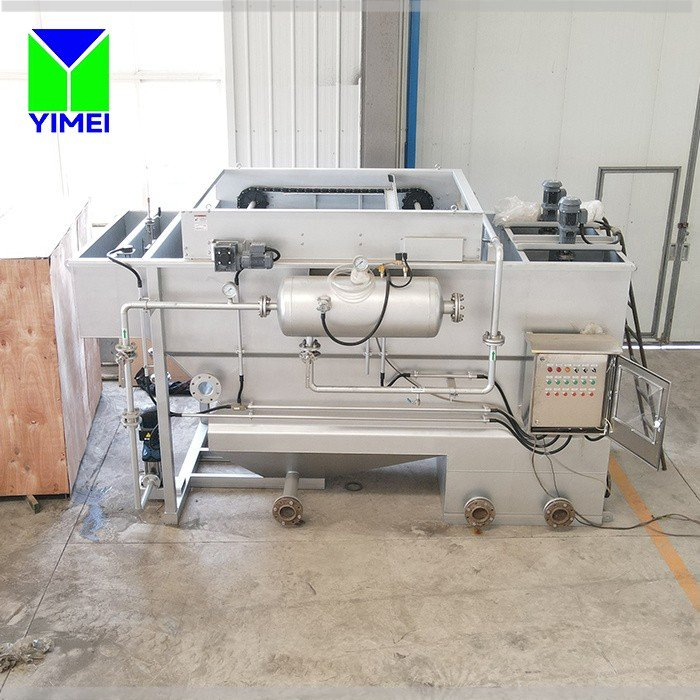

Air Flotation Machine: Steel body containing the releaser, distribution device, sewage/outlet pipes, sludge tank, and scraper system. The releaser is the core component for microbubble production.
Dissolved Air System: Composed of a dissolved air tank, storage tank, air compressor, and high-pressure pump to ensure full air-water contact.

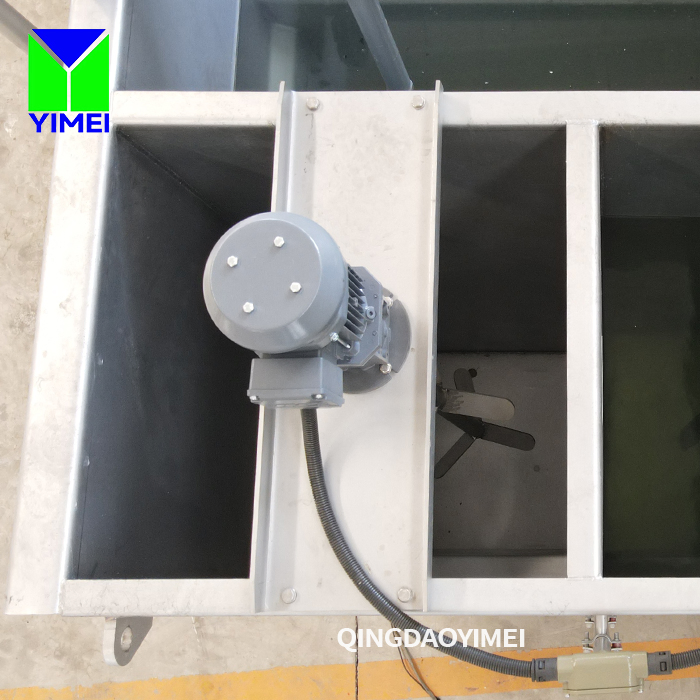

Chemical Dosing System: Includes metering pump, mixing motor, and PE tank for effective flocculation.

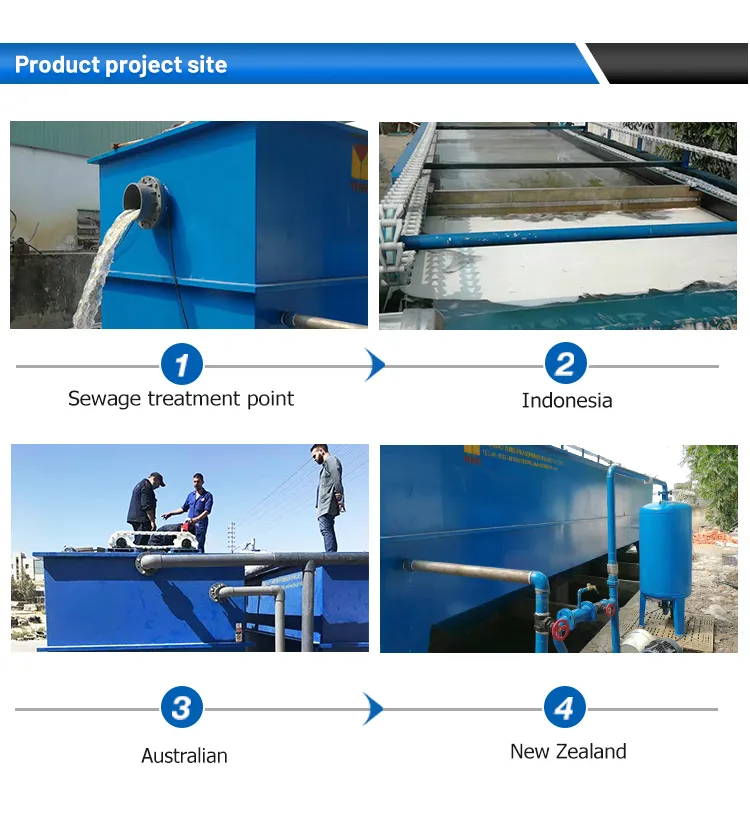

DAF technology is proven for treating industrial and municipal wastewater, specifically for oil, grease, and suspended solids removal.

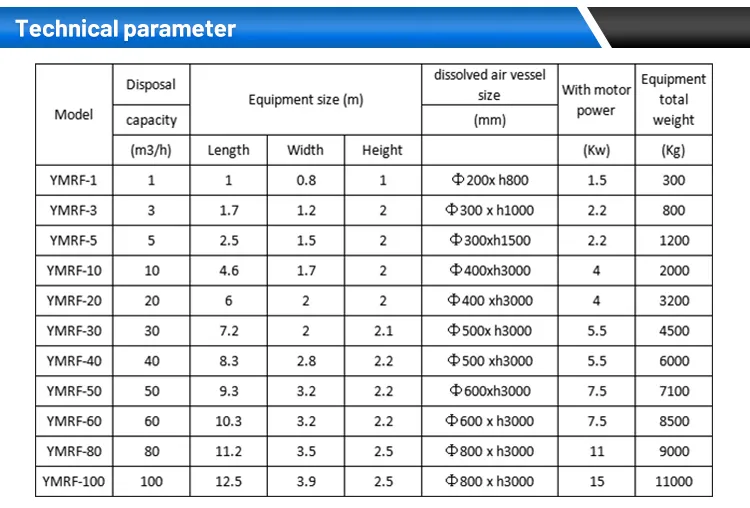

| Model | Capacity (m³/h) | Equipment Size (m) | Vessel Size (mm) | Power (Kw) | Weight (Kg) | ||
|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||
| YMRF-30 | 30 | 7.2 | 2.0 | 2.1 | Φ500 x h3000 | 5.5 | 4500 |
| No. | Item | Qty | Remark / Specifications |
|---|---|---|---|
| 1 | Main Tank Body | 1 | 6mm Carbon Steel; 7.2m x 2.0m x 2.1m |
| 2 | Dissolved Air System | 1 | Tank, Compressor, Recycle Pump, Valves, Instruments |

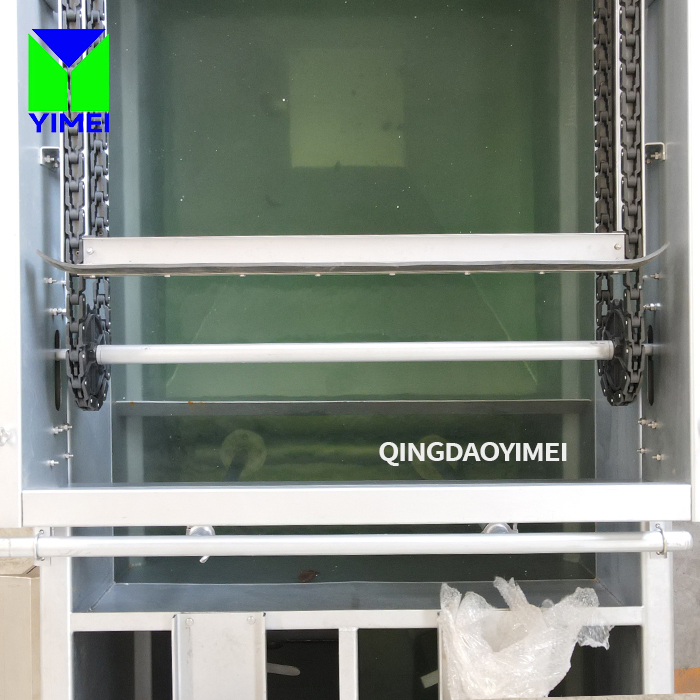

| 3 | Discharge Slagging System | 1 | Scraper, Motor, Reducer, Nylon Chain, Gears |
| 4 | Cleaning Water System | 1 | Chamber Room, Pipeline, Flange |
| 5 | Releaser | 1 | SS304 Material |
| 6 | Control Cabinet | 1 | Electric Control Unit |
