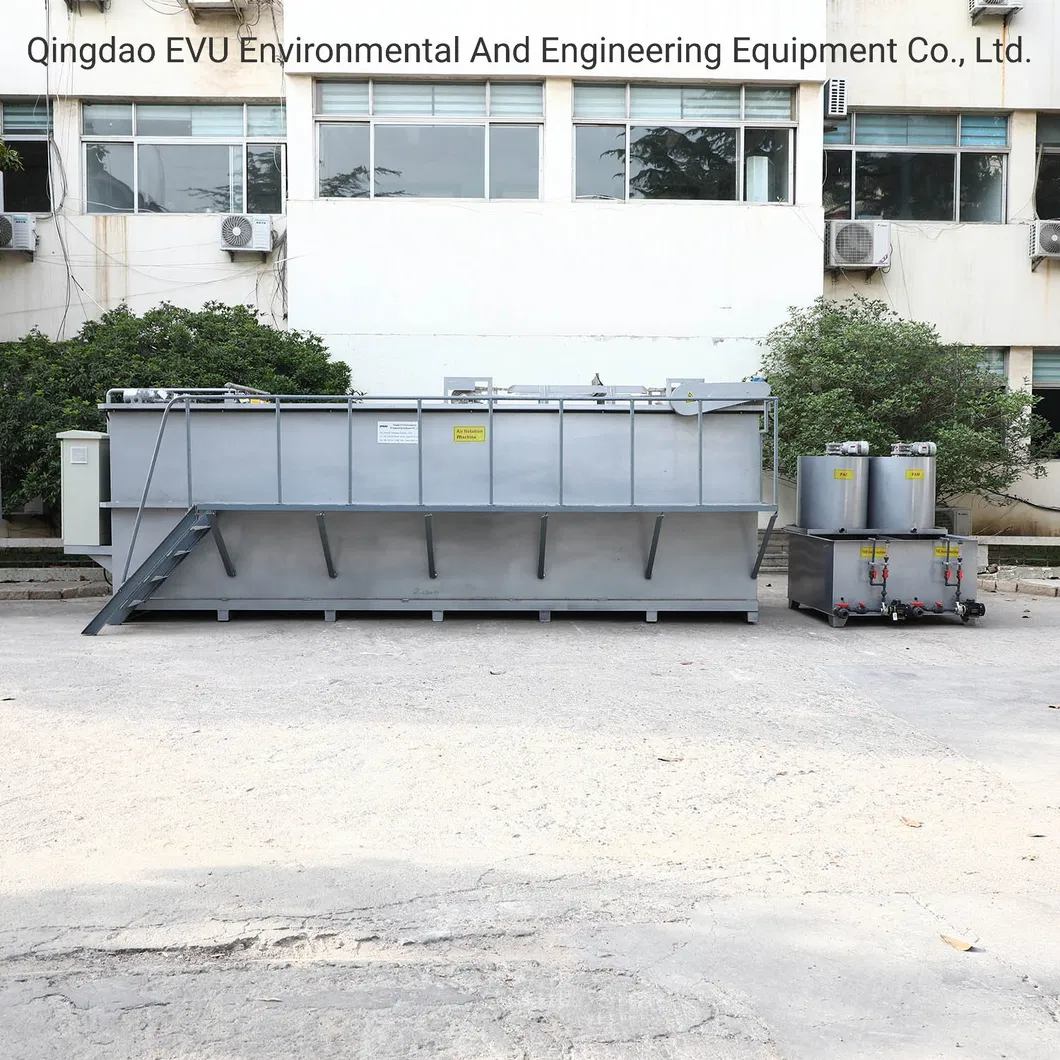

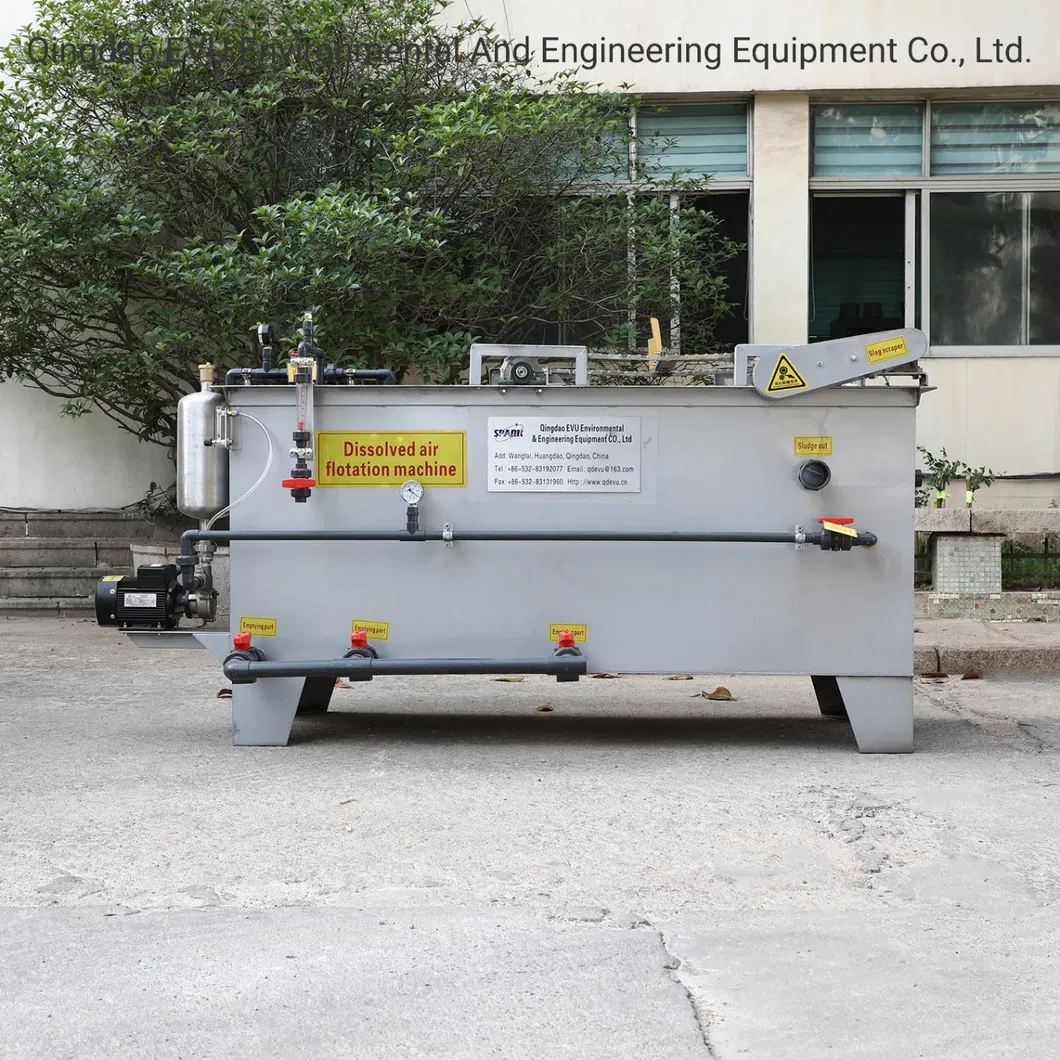

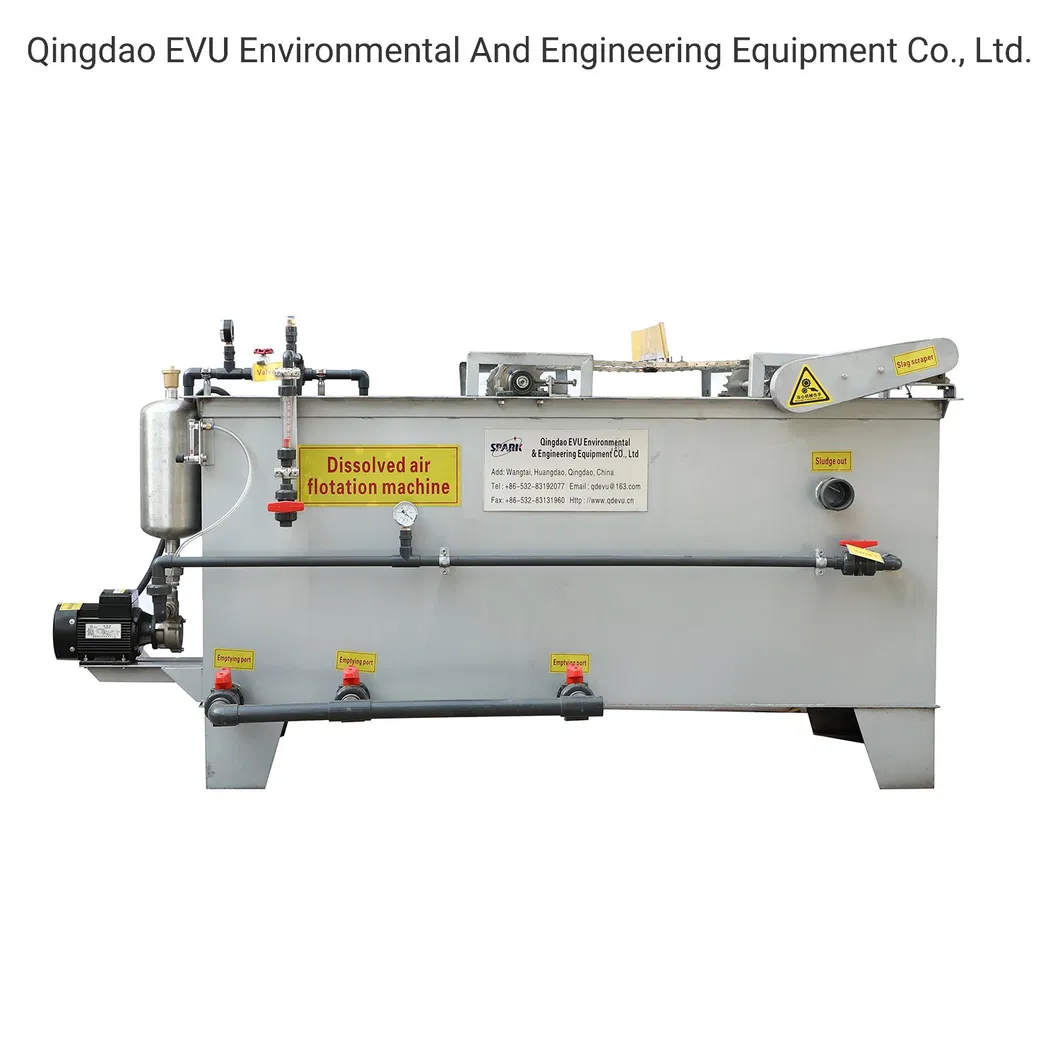

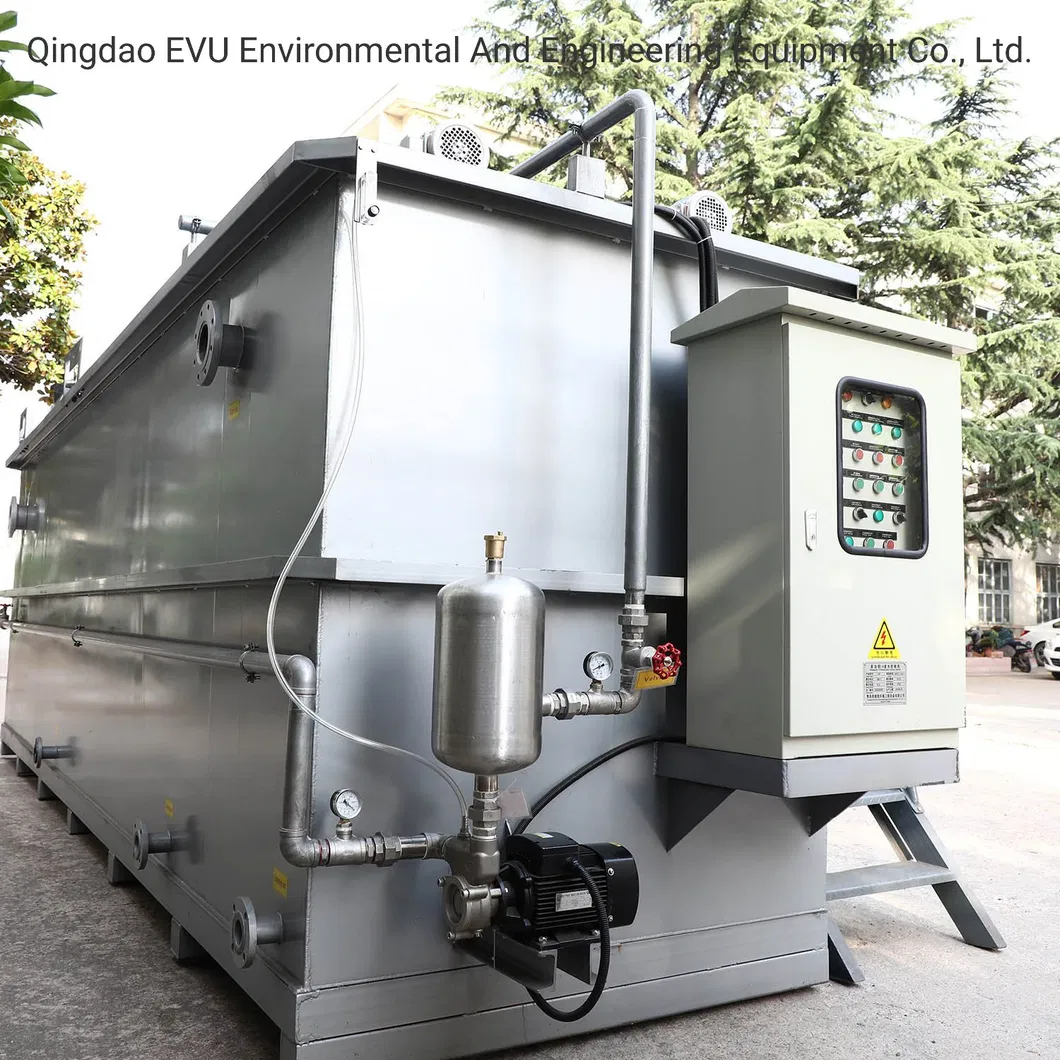

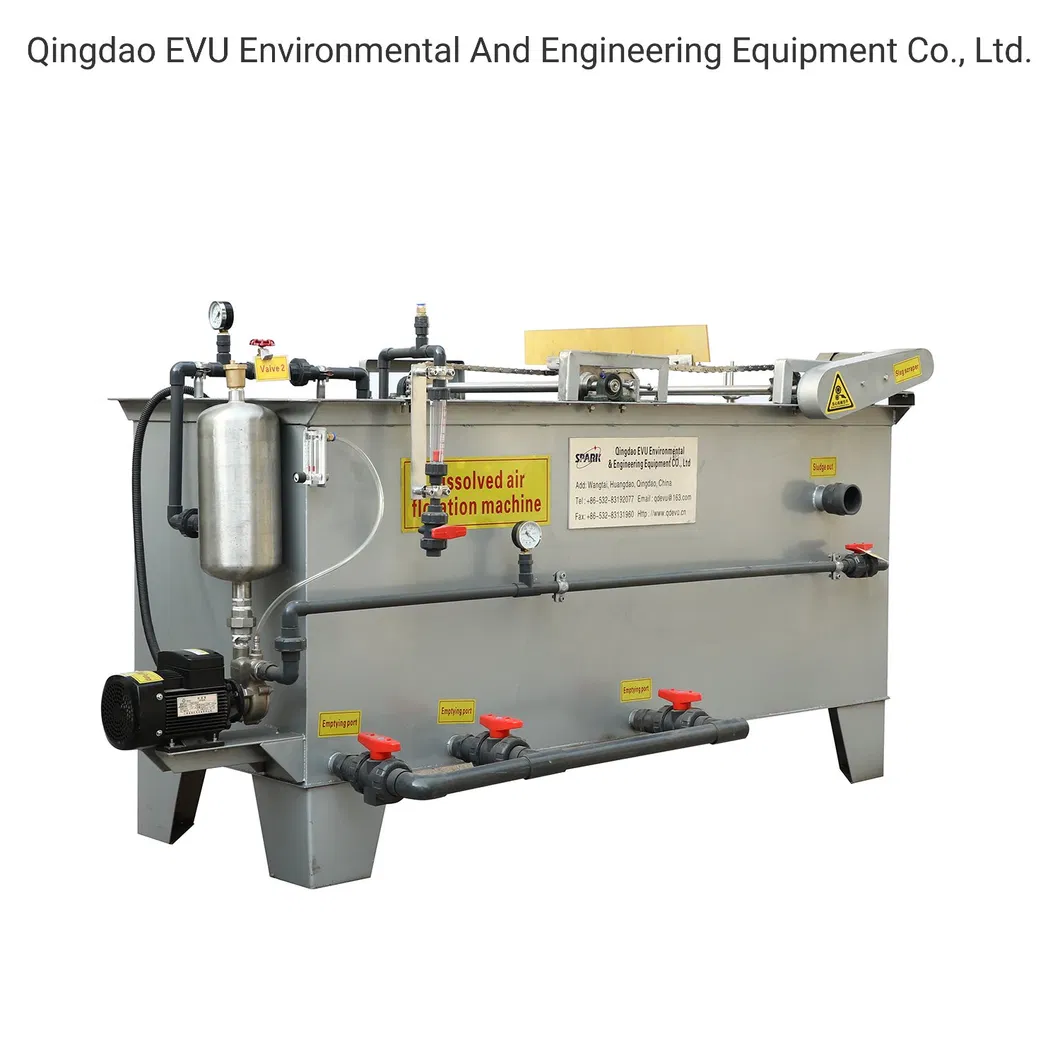

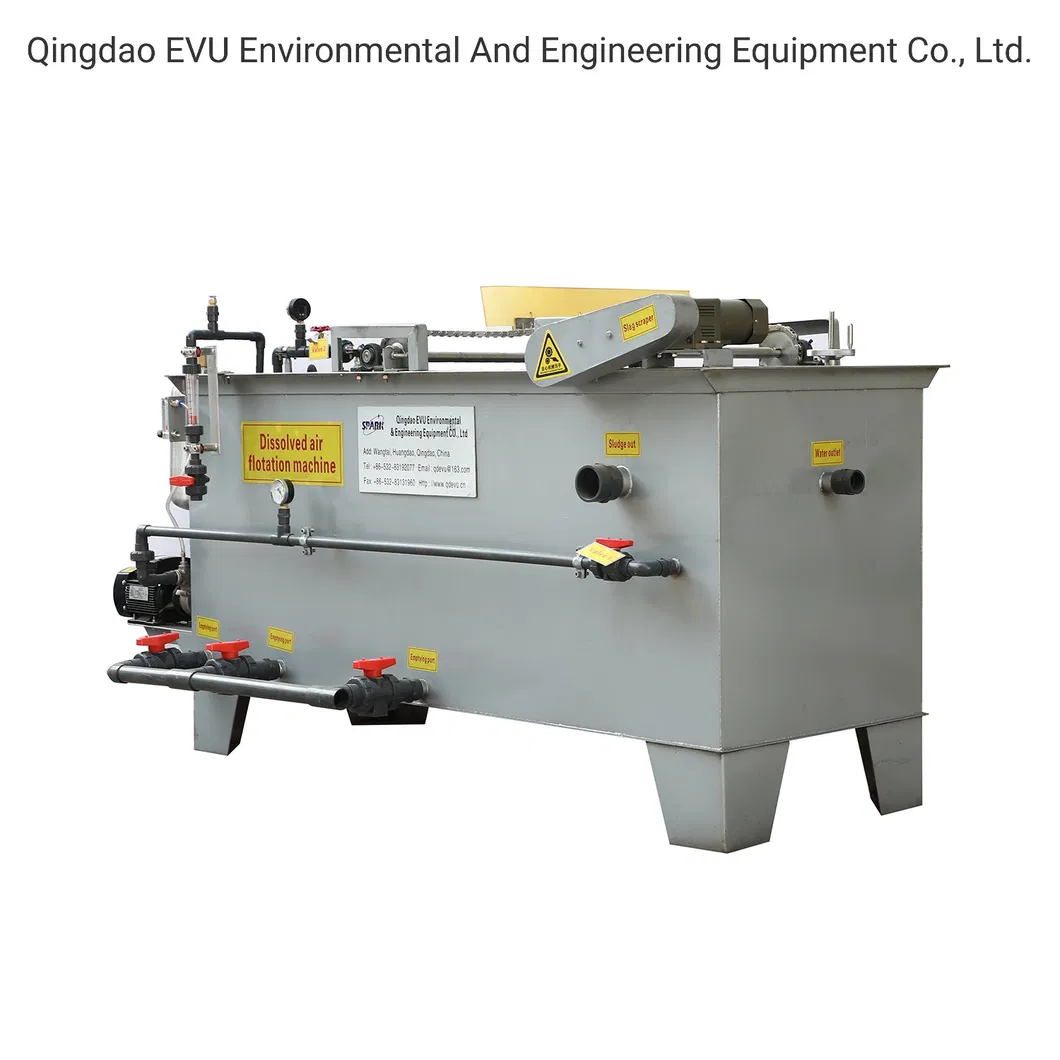

WQF series dissolved air floatation machine is mainly used for solid-liquid or liquid-liquid separation. A large volume of micro bubbles produced by the dissolving and releasing system adhere to solid or liquid particles with the same density as waste water, making the whole mass float to the surface to achieve effective separation.
Suitable for waste water treatment in: Breeding, slaughtering, painting, electroplating, chemical, pharmaceutical, paper, printing and dyeing, tanning, fermentation, food, and other industries.
Specifically used for:
1. Removing small suspended solids, algae, and micro-polymers from surface water.
2. Recycling useful materials from industrial waste water, such as paper pulp.
3. Replacing secondary sedimentation for water separation and sludge thickening.
| Model | Productivity (m³/h) | Water Volume (m³/h) | Total Power (Kw) | Release Machine Power (Kw) | Air Compressor Power (Kw) | Compressor Model | Pump Model | Floatation Pot Spec (mm) | External Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|
| WQP-5 | 4-5 | 1.5-2 | 3 | 0.75 | 1.5 | V-0.1/8 | 1 1/2G25-1 | ∮400 X 1000 | 2800 X 2100 X 2200 |
| WQP-10 | 8-10 | 2-3 | 3 | 0.75 | 1.5 | V-0.14/7 | 1 1/2GC-5X2 | ∮500 X 1512 | 3700 X 2100 X 2200 |
| WQP-15 | 10-16 | 3-4 | 3 | 0.75 | 1.5 | V-0.14/7 | 1 1/2GC-5X2 | ∮500 X 1512 | 4500 X 2400 X 2300 |
| WQP-20 | 15-20 | 5-7 | 7.5 | 1.1 | 1.5 | V-0.14/7 | 2GC-5X2 | ∮500 X 1512 | 4650 X 2400 X 2300 |
