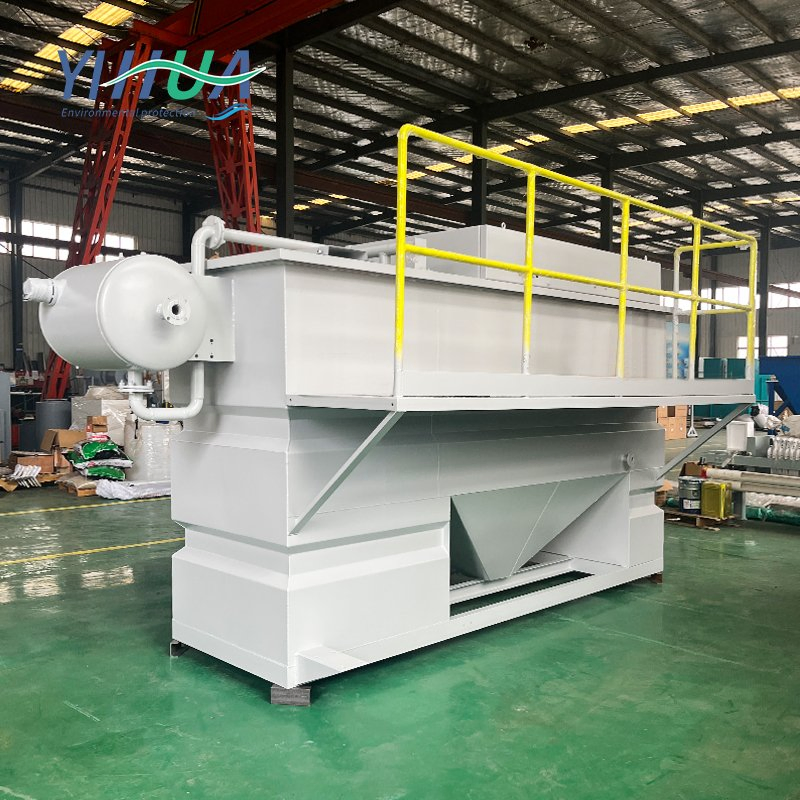

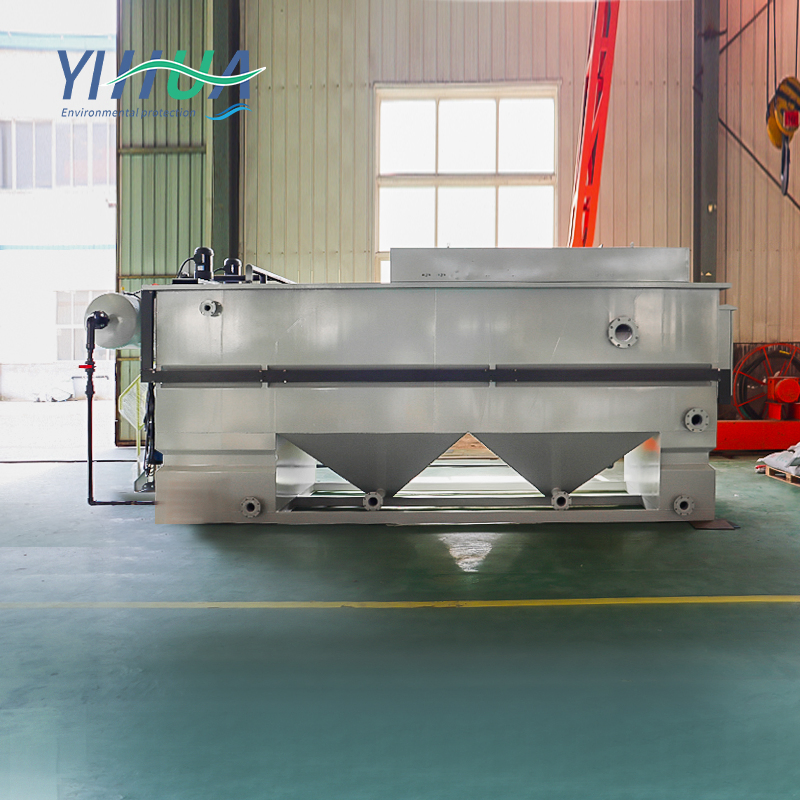

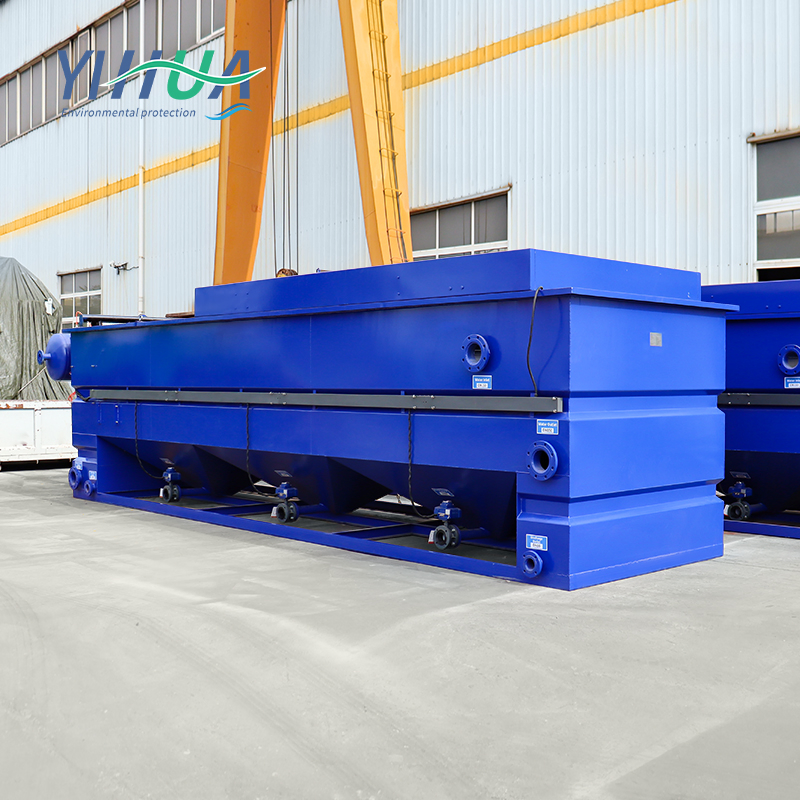

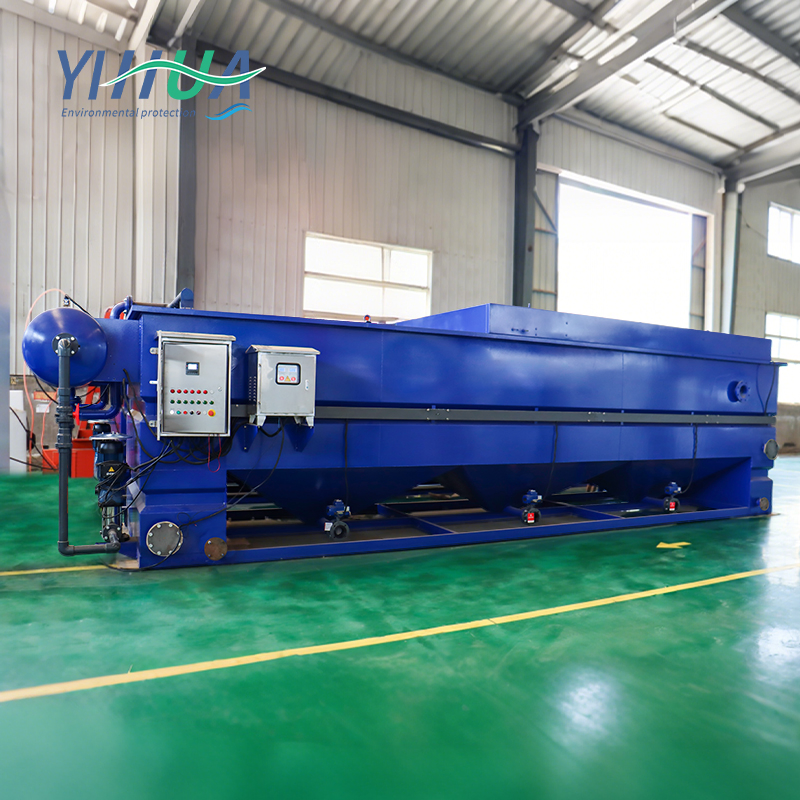

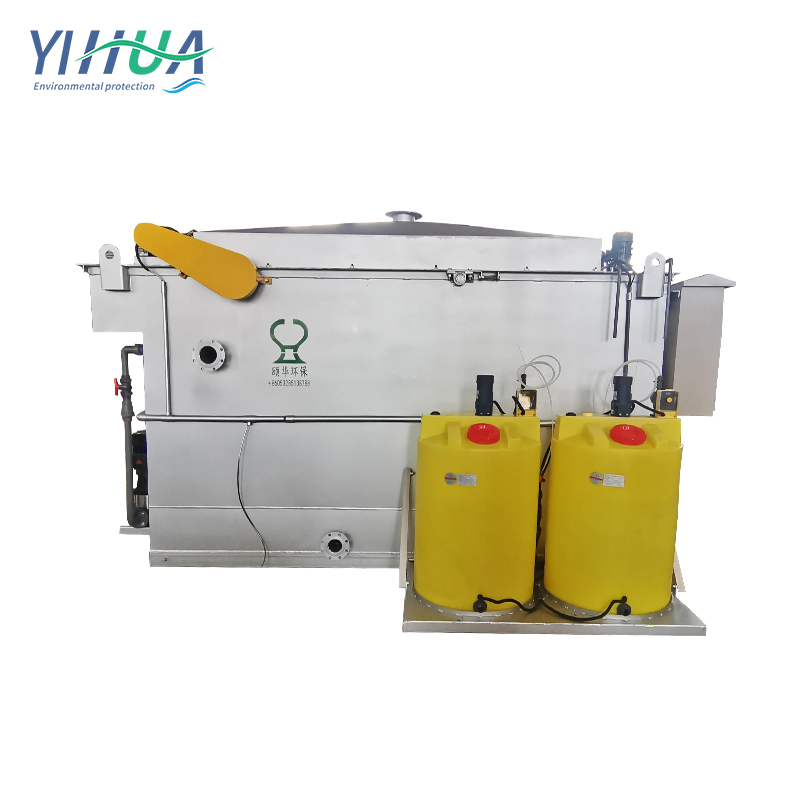

Rapid Installation Steel Mill Cooling Water System Dissolved Air Flotation System

Customization:	Available
After-sales Service:	Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

YHDAF-30

Type

Flotation Machine

Method

Physical Treatment

Usage

Industrial, Home, Agriculture, Hospital

Material

Stainless Steel, Carbon Steel

Nozzle Size

DN40*DN50*DN80

Size

1.6m*0.9m*2.3m~11.5m*3m*3.8m

Weight

1000kg-16000kg

Transport Package

Protective Film Wooden Box Packaging

Specification

50m³ /h

Product Description

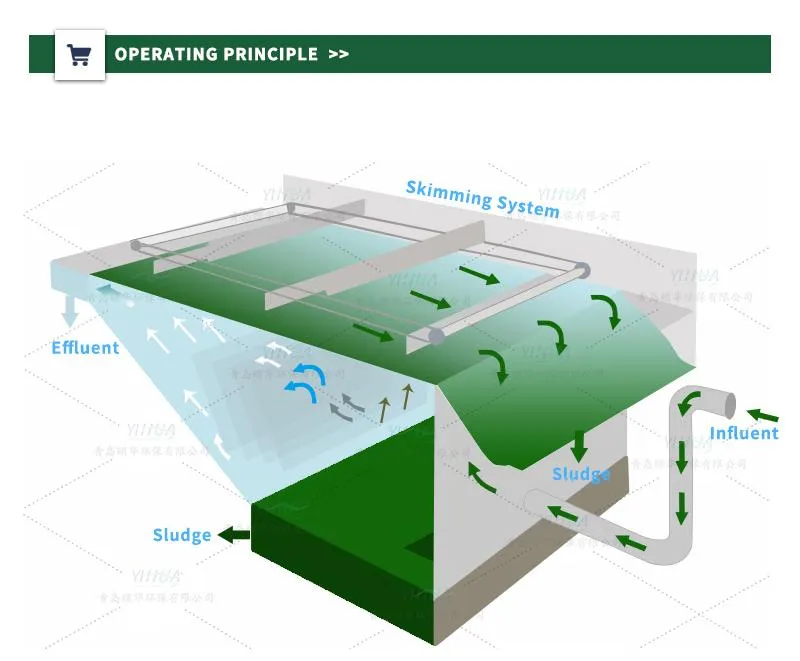

DISSOLVED AIR FLOTATION TECHNOLOGY We focus on the research and development of high-performance dissolved air flotation machines. Using micro-nano bubble technology, this system efficiently removes more than 95% of suspended solids (SS) and significantly reduces COD, helping industrial and municipal sewage to meet standards stably. The core dissolved air system has been optimized with an industry-leading gas-water ratio and a 30% reduction in energy consumption.

Equipped with an intelligent control module to achieve fully automatic operation, the equipment is stable and easy to operate. Selected corrosion-resistant stainless steel materials and pressure-resistant structures are suitable for complex water quality, extending service life by 50%. Our solutions cover petrochemicals, food, papermaking, and more, providing customized designs and lifelong operation and maintenance support.

Technical Specifications

Model	Capacity (m³/h)	Dimension (m)			Nozzle Size
Model	Capacity (m³/h)	L	W	H	Inlet	Outlet	Discharge	Sludge
YHDAF-1	1	1.8	1.13	1.28/1.88	DN40	DN50	DN150	DN80
YHDAF-3	3	2.4	1.13	1.28/1.88	DN40	DN50	DN150	DN80
YHDAF-5	5	2.7	1.33	1.28/1.88	DN40	DN65	DN200	DN80
YHDAF-10	10	3.5	1.33	1.58/2.38	DN65	DN100	DN200	DN80
YHDAF-20	20	4.7	1.85	1.88/2.68	DN100	DN150	DN200	DN100
YHDAF-35	35	6.3	1.85	1.88/2.68	DN100	DN150	DN200	DN100
YHDAF-50	50	7.7	2.15	2.33/3	DN125	DN200	DN200	DN100
YHDAF-75	75	9.7	2.2	2.33/3	DN125	DN200	DN250	DN100
YHDAF-100	100	10	2.55	2.58/3.3	DN150	DN250	DN250	DN100
YHDAF-150	150	11.5	2.95	2.68/3.4	DN200	DN250	DN300	DN100

Frequently Asked Questions

Can you customize the logo on the products?

Yes, we support OEM/ODM services. Our engineers will provide design drafts based on your requirements for confirmation before production.

What are the accepted payment methods?

We currently accept TT (Telegraphic Transfer) and L/C (Letter of Credit).

What is the typical lead time for shipment?

The delivery time usually ranges between 2 to 4 weeks, depending on the order quantity and specific requirements.

What kind of warranty do you provide?

We provide a standard one-year warranty for our dissolved air flotation systems.

What materials are used in the construction?

Our equipment is built using high-quality Stainless Steel or Carbon Steel, ensuring corrosion resistance and a long service life.

What industries can benefit from this equipment?

It is widely used in industrial wastewater treatment, municipal sewage, petrochemicals, food processing, and papermaking industries.
