Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and falls down to the filtrate tank for gravity.
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases. dryer sludge cakes are produced.

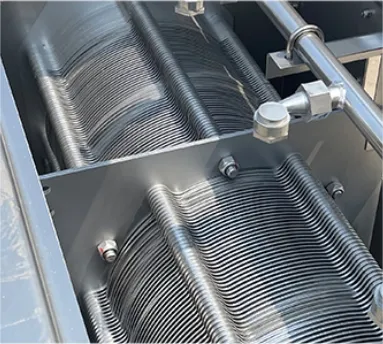

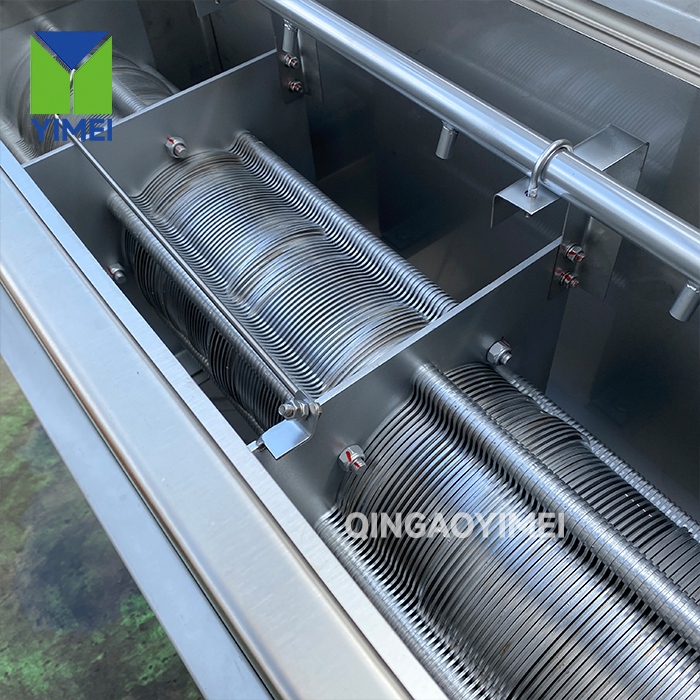

Self-cleaning: The moving rings rotate continuously under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent clogging.
| Model | DS Capacity | 2000mg/L | 10000mg/L | 25000mg/L | 50000mg/L |
|---|---|---|---|---|---|
| YMDL131 | 6-12kg/h | 1.5m³/h | 0.8m³/h | 0.3m³/h | 0.2m³/h |
| YMDL132 | 12-30kg/h | 6m³/h | 2m³/h | 0.8m³/h | 0.5m³/h |
| YMDL202 | 18-40kg/h | 9m³/h | 3m³/h | 1.2m³/h | 0.9m³/h |
| YMDL301 | 30-75kg/h | 15m³/h | 5m³/h | 2m³/h | 1.5m³/h |
| YMDL402 | 80-400kg/h | 40m³/h | 16m³/h | 10m³/h | 8m³/h |
As a professional supplier of containerized sewage treatment equipment, dissolved air flotation machines, and sludge dewatering screw presses, we focus on product development, quality control, and international standards. Most products have obtained CE certification and patent licenses.
