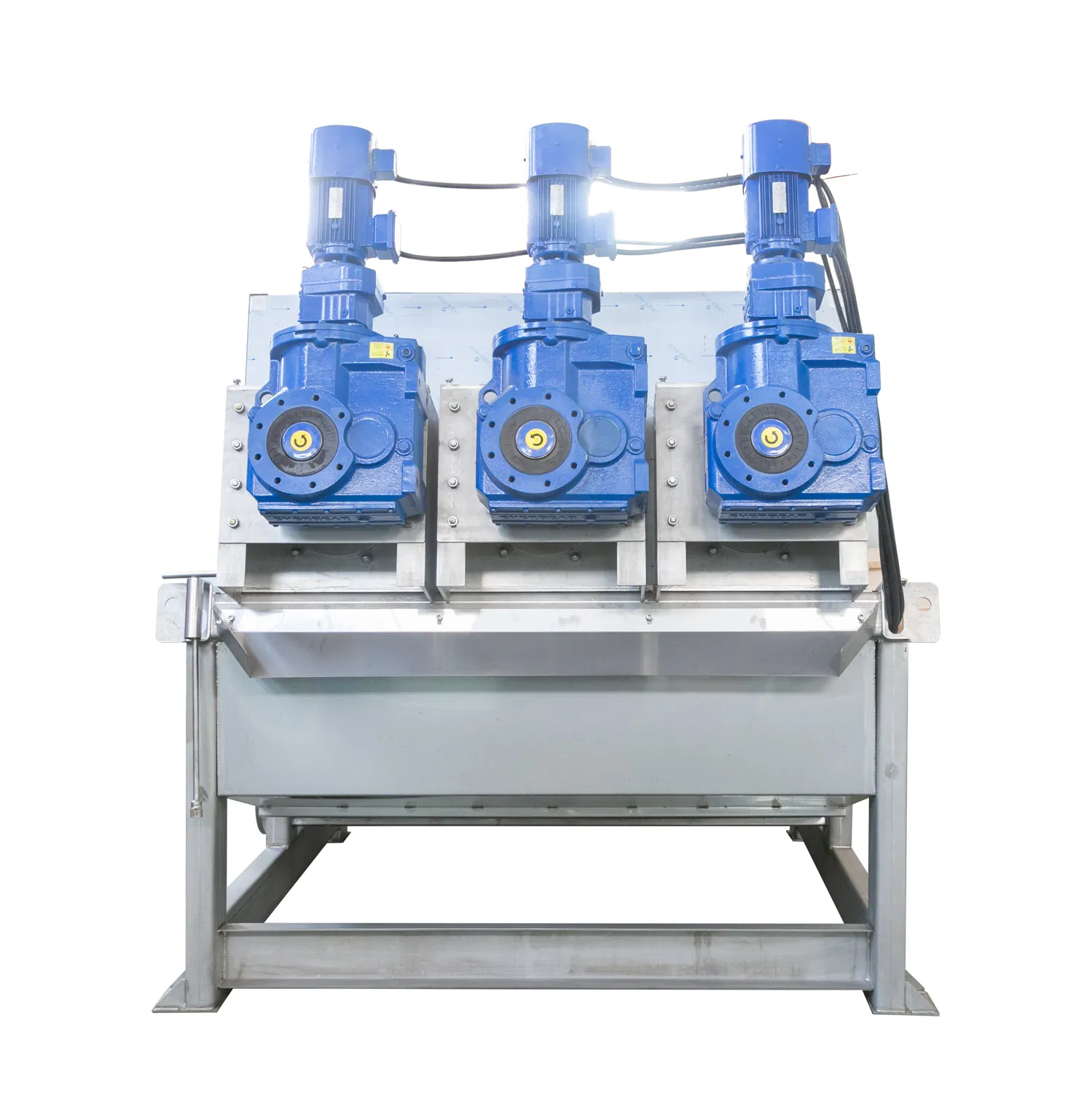

Professional Sludge Dewatering Equipment for Waste Water Treatment Plant

Customization: Available
Warranty: One Year
Type: Sludge Dewatering Machine

Product Description

Basic Information
Model NO.
XF 303
Method
Physical Treatment
Usage
Industrial, Agriculture, Hospital, Petrochemical, Food & Beverage, Print & Dyeing
Raw Material
Stainless Steel
N.W.
1820kg
Operation
Full Automatic
Mud Moisture
78%~82%
Certification
CE/UL/ISO
Delivery Time
4~6 Weeks
Motor
Gtr/Evergear/Tongli
Customized
Available
MOQ
1 Set
OEM
Yes
Package
Wooden Case & Container
Specification
3605*1690*1600mm
HS Code
8421191000
Capacity
1000 sets/Year
Product Introduction
Spiral Type Sludge Dewatering Equipment is a new kind of solid-liquid separation technology adopting a multi-disk structure. Featuring low rotation speed, energy-saving performance, and a non-clogging design, it is increasingly popular worldwide. This equipment supports 24-hour automatic operation, significantly reducing labor, construction, and maintenance costs.

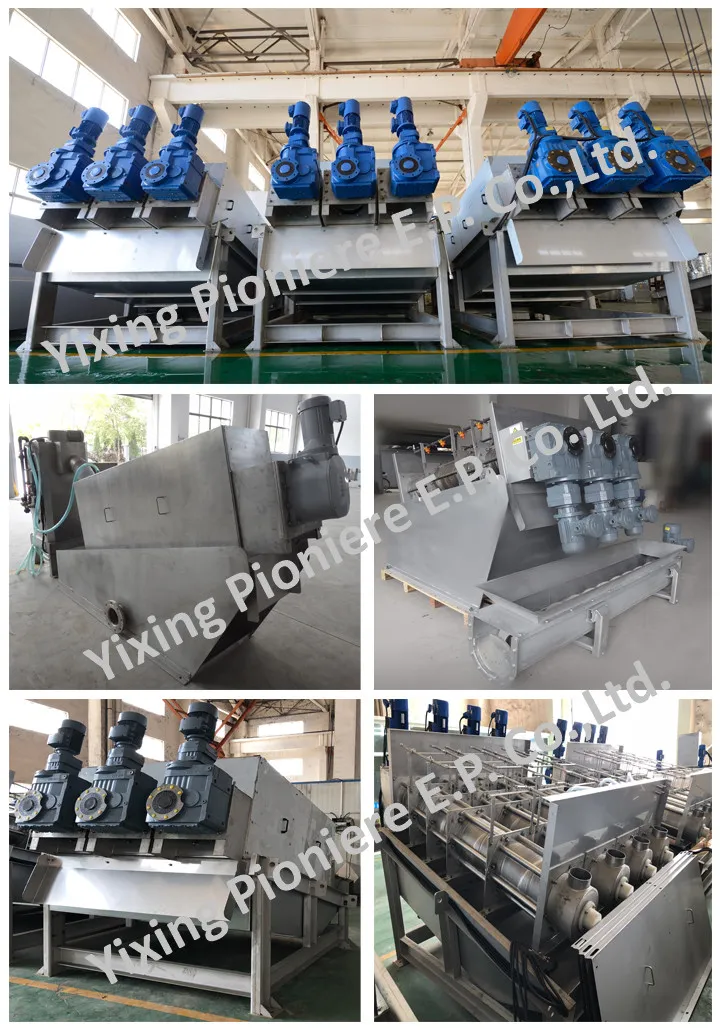

Sludge Dewatering Equipment
Technical Parameters
Model DS Process Capacity Sludge Volume at Different Concentrations
Concentration 2000mg/L 5000mg/L 10000mg/L 20000mg/L 25000mg/L 50000mg/L
XF1013~5kg/h~1.5m³/h~0.6m³/h~0.5m³/h~0.25m³/h~0.2m³/h~0.1m³/h
XF1316~10kg/h~3m³/h~1.2m³/h~1m³/h~0.5m³/h~0.4m³/h~0.2m³/h
XF13212~20kg/h~6m³/h~2.4m³/h~2m³/h~1m³/h~0.8m³/h~0.4m³/h
XF20218~30kg/h~9m³/h~3.6m³/h3m³/h~1.5m³/h~1.2m³/h~0.6m³/h
XF30130~50kg/h~15m³/h~6m³/h~5m³/h~2.5m³/h~2m³/h~1m³/h
XF30260~100kg/h~30m³/h~12m³/h~10m³/h~5m³/h~4m³/h~2m³/h
XF30390~150kg/h~45m³/h~18m³/h~15m³/h~7.5m³/h~6m³/h~3m³/h
Model Screw Shaft Spec Outlet Height (mm) L (mm) W (mm) H (mm) N.W. (kg)
XF101φ100×121518167561040190
XF131φ130×125019697561040205
XF202φ200×235025009351270470
XF303φ300×34953650169016001820
XF404φ400×48005350285025505250
Technical Process
Technical Process Flow
FAQ
Are you a factory or a trading company?
We have our own workshop, allowing us to provide high quality equipment at competitive prices.
What is the application scope of this machine?
It is widely applied in wastewater treatment across industrial, chemical, municipal, and other sectors.
What material is the press made of?
The equipment is constructed from SS304 stainless steel.
What auxiliary equipment is used alongside the machine?
Typical auxiliary equipment includes sludge pumps and polymer dosing pumps.
How do I choose the correct model?
To select the best model, please provide the type, volume, and solid content of the sludge.
Can the machine be customized?
Yes, customization options are available.
