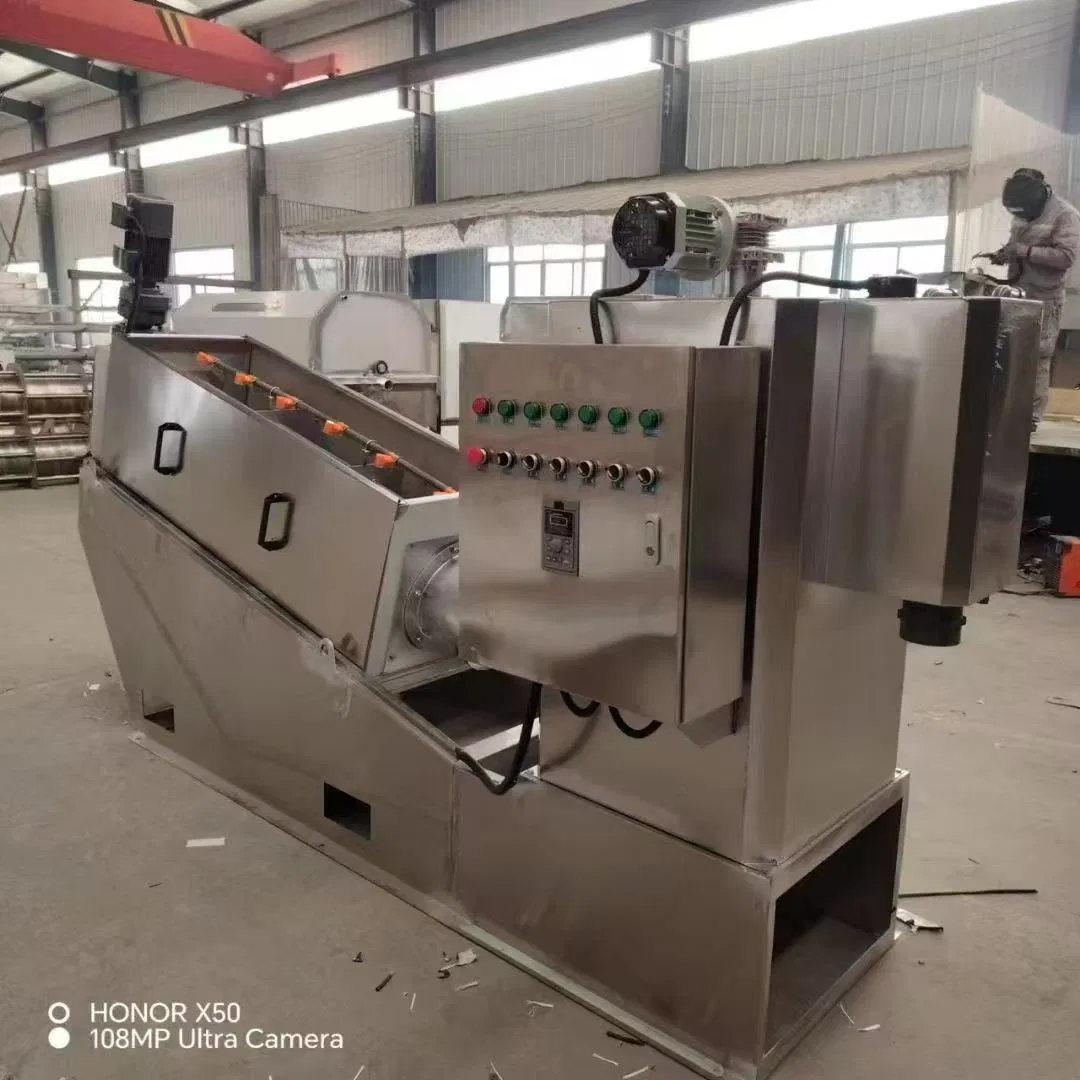

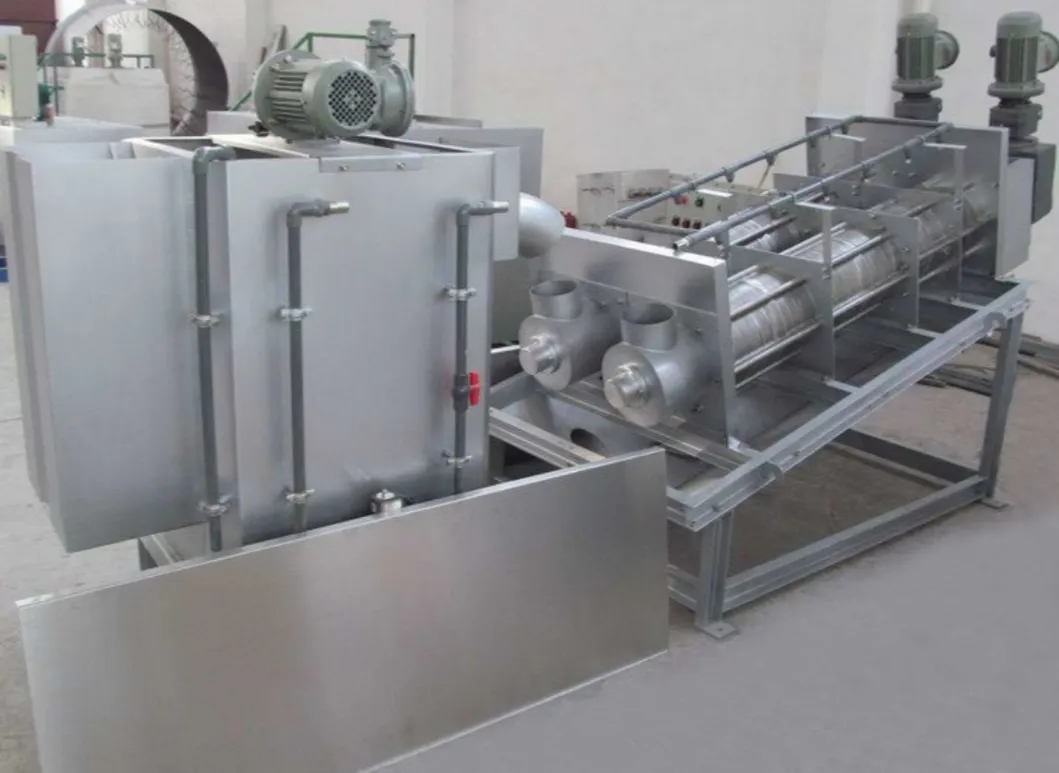

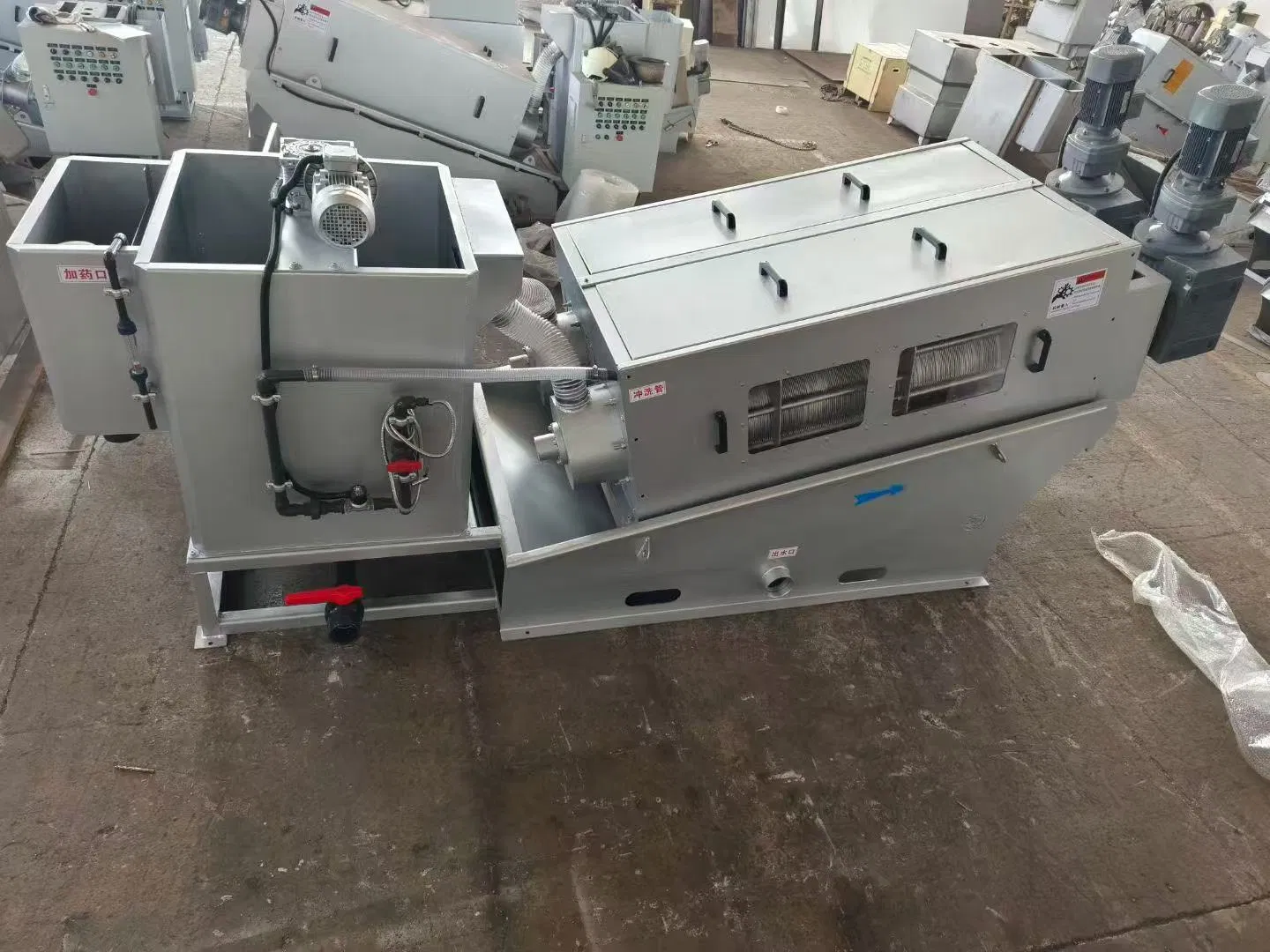

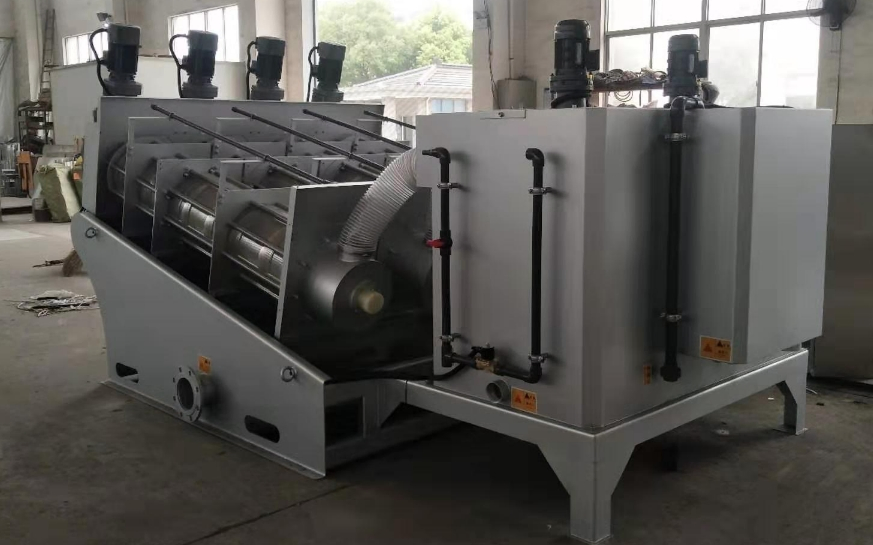

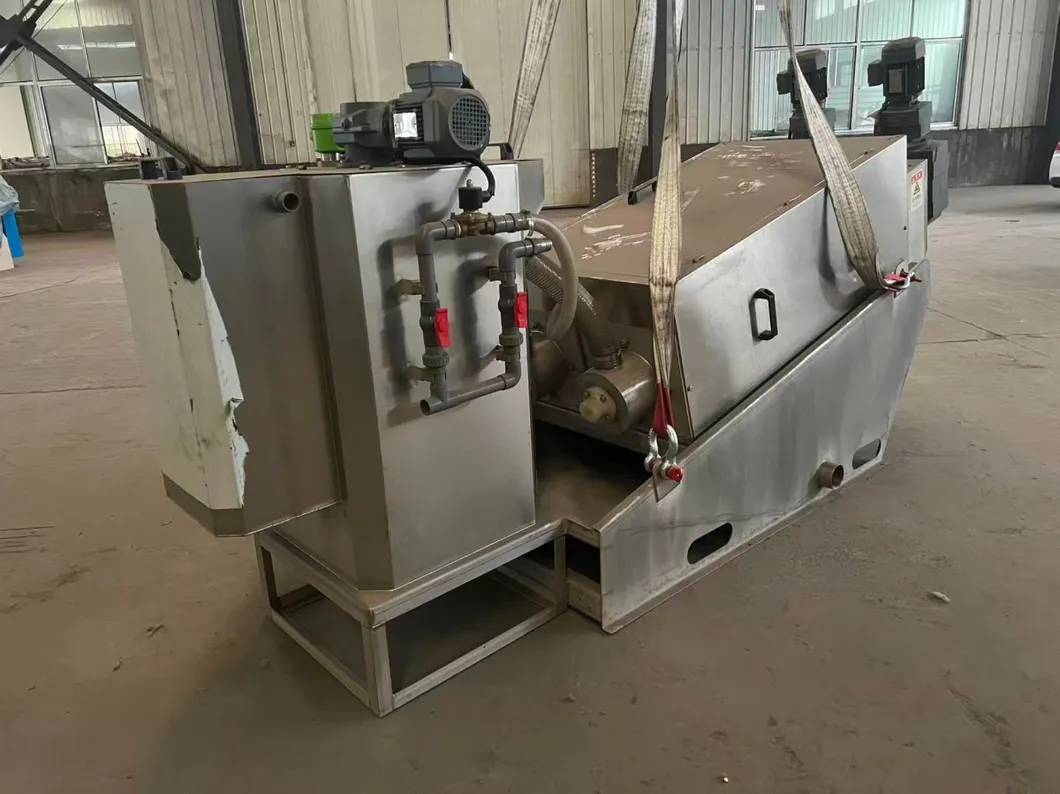

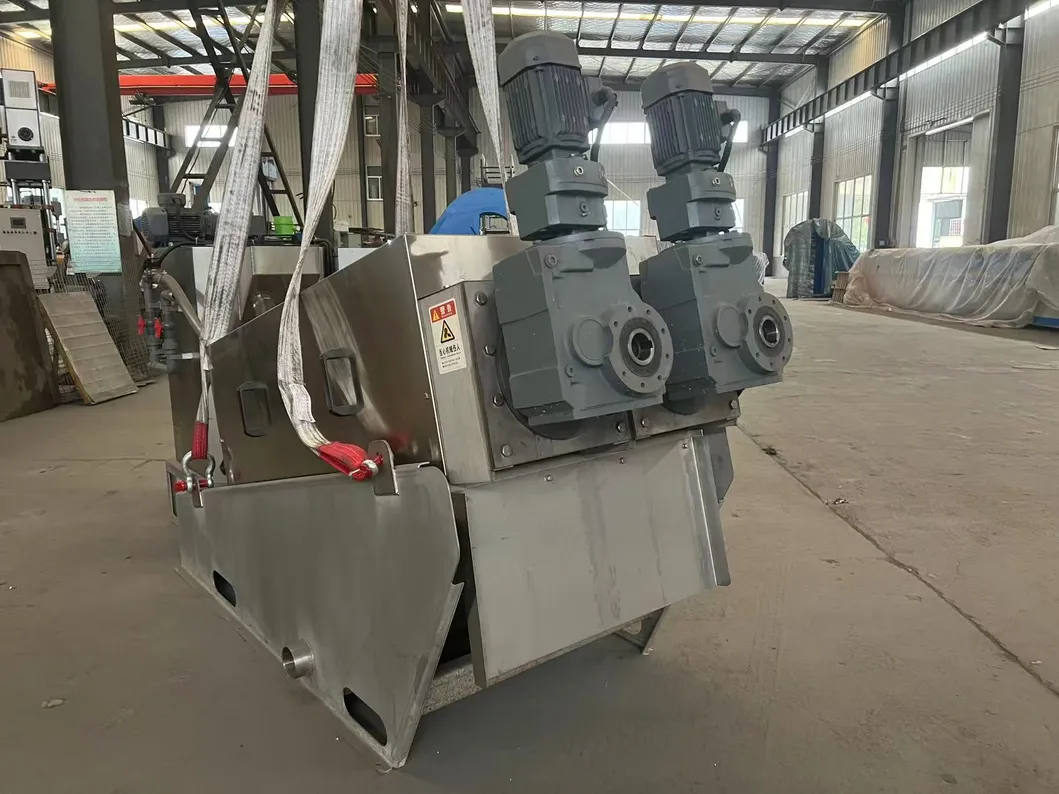

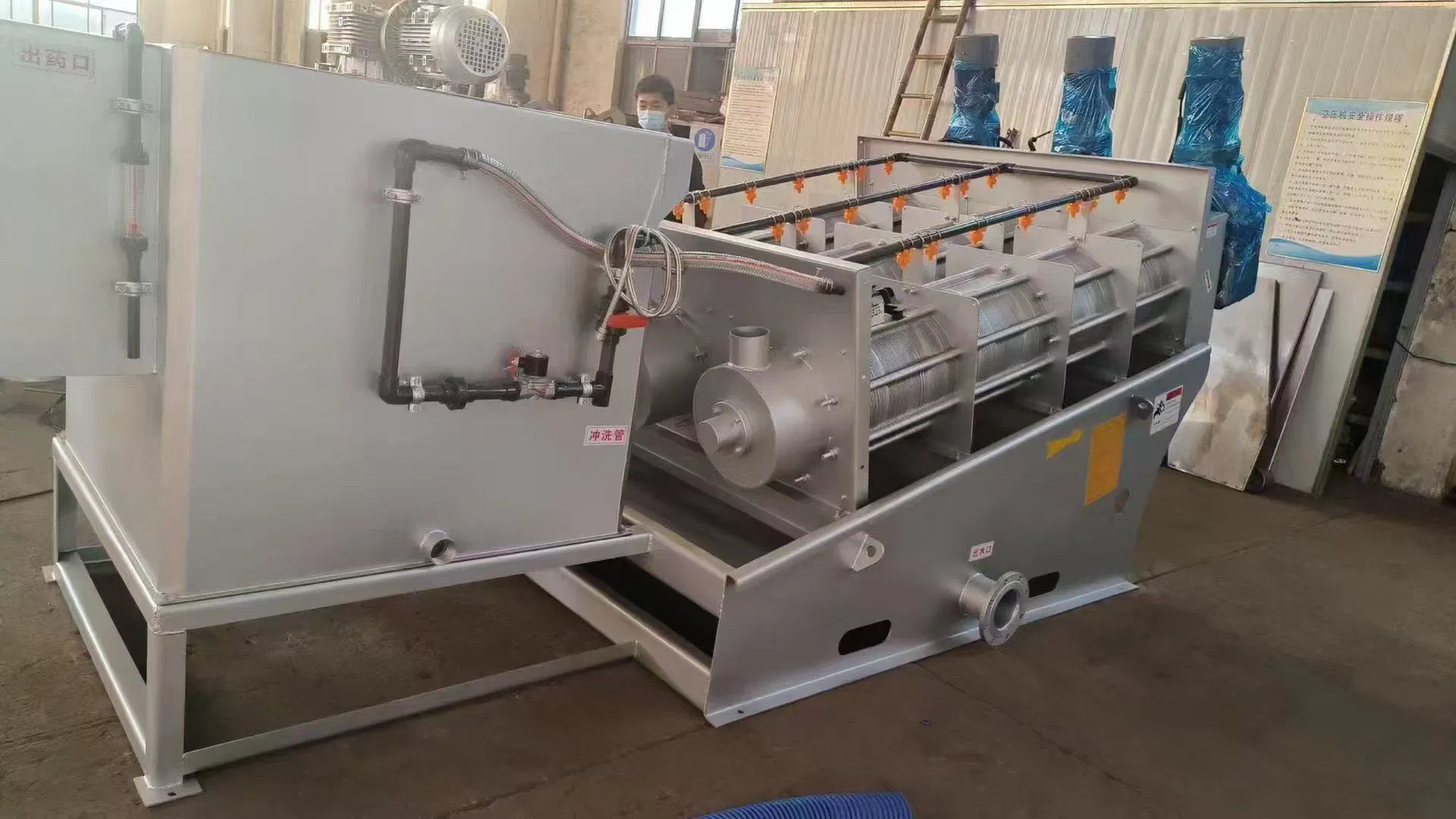

The screw press sludge dehydrator is composed of a screw body, driving device, filtrate receiver, mixing system, and frame. When the dewatering machine operates, sludge is transported to the mixing tank by a sludge feed pump; simultaneously, solid polymer is added quantitatively by a polymer feed pump. The mixing motor drives the system to ensure sludge and polymer are fully mixed to produce flocs. Once the liquid level reaches the sensor, the screw body motor starts to press the sludge. Sludge is transported to the outlet by the screw shaft, and filtrate flows out through the space between fixed and moveable rings.
| Model Number | Power of Motor (KW) | Cleaning Water Pressure | Cleaning Water Consumption (L/h) | Maintenance Frequency | ||
|---|---|---|---|---|---|---|
| Screw Shaft | Mixer | Total | ||||
| 131 | 0.18×1 | 0.18×1 | 0.36 | 1-2 bar | 20 | 10 min/day |
| 132 | 0.18×2 | 0.18×1 | 0.54 | 40 | ||
| 251 | 0.37×1 | 0.37×1 | 0.74 | 30 | ||
| 252 | 0.37×2 | 0.37×1 | 1.11 | 60 | ||
| 301 | 0.75×1 | 0.55×1 | 1.30 | 45 | ||
| 302 | 0.75×2 | 0.55×1 | 2.05 | 90 | ||
| 351 | 1.1×1 | 0.75×1 | 1.85 | 60 | ||
| 401 | 1.5×1 | 1.5×1 | 3.00 | 80 | ||
Our company is a high-tech enterprise specializing in the R&D, design, production, and sales of environmental protection equipment. We are committed to providing efficient, energy-saving, and intelligent pollution control solutions for industrial, municipal, and various environmental projects. Our business spans sectors including wastewater treatment, sludge treatment, and exhaust gas treatment.
Boasting a professional team of environmental experts and engineers, we adhere to innovation-driven development, continuously optimizing product performance and treatment efficiency. Our equipment is widely applied in chemical, pharmaceutical, food processing, and textile dyeing industries, earning extensive trust through stable and reliable quality.
