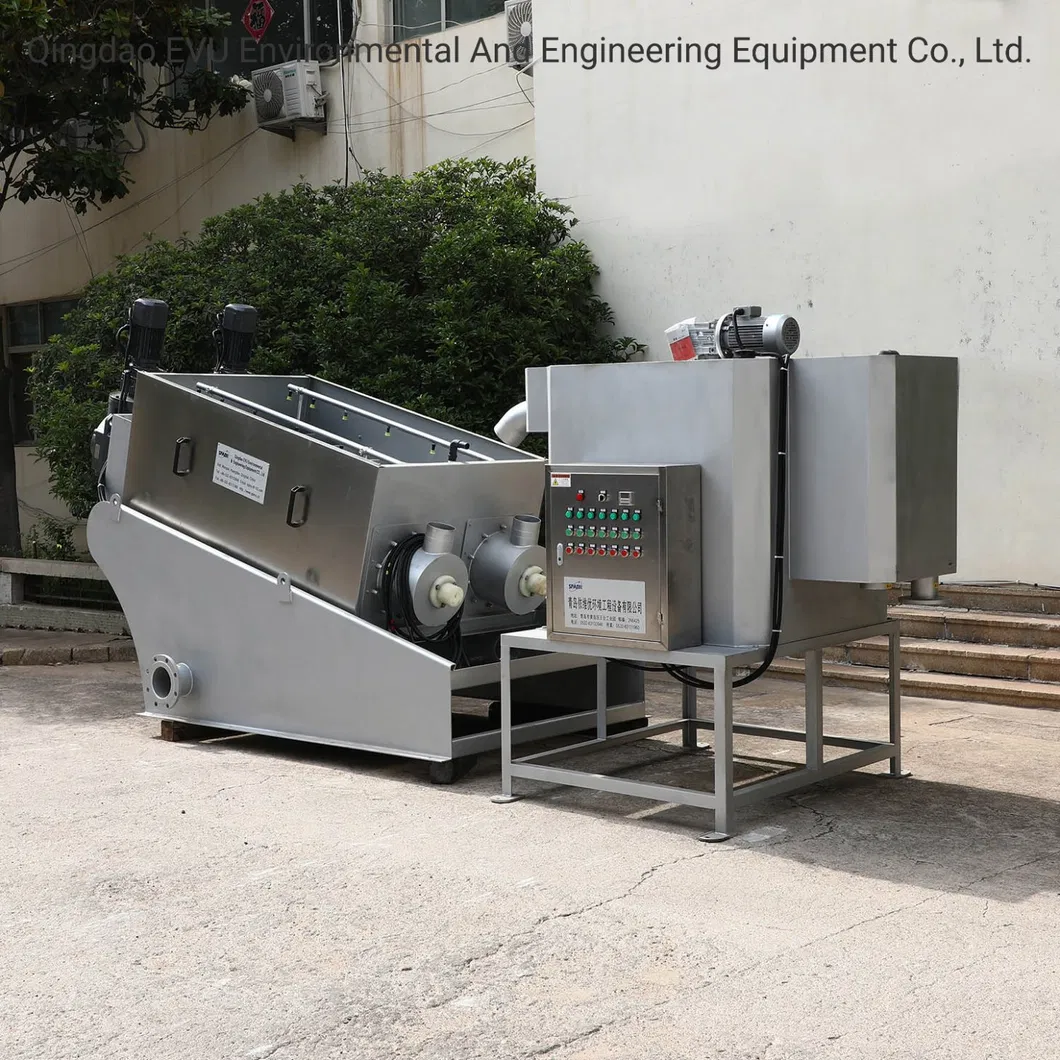

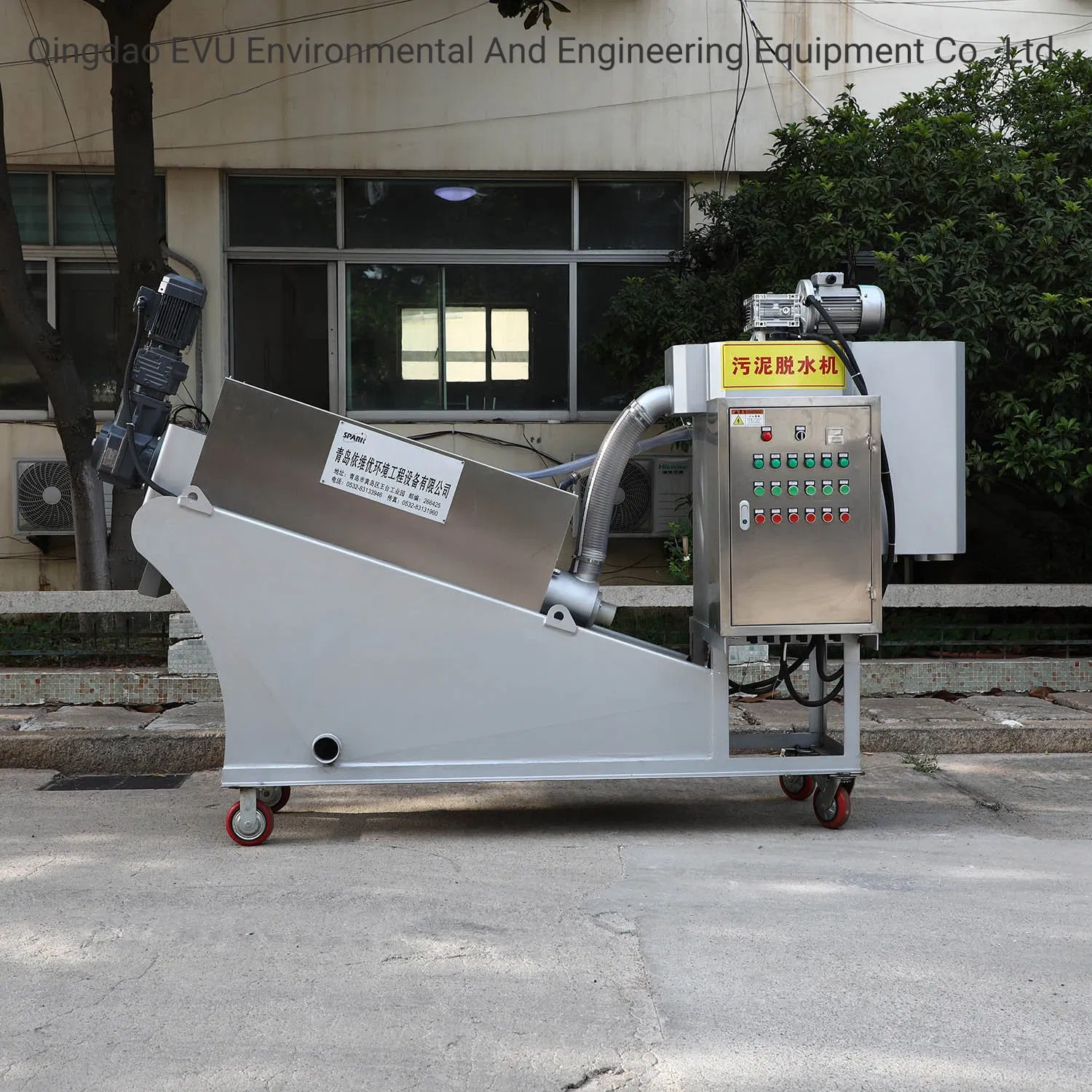

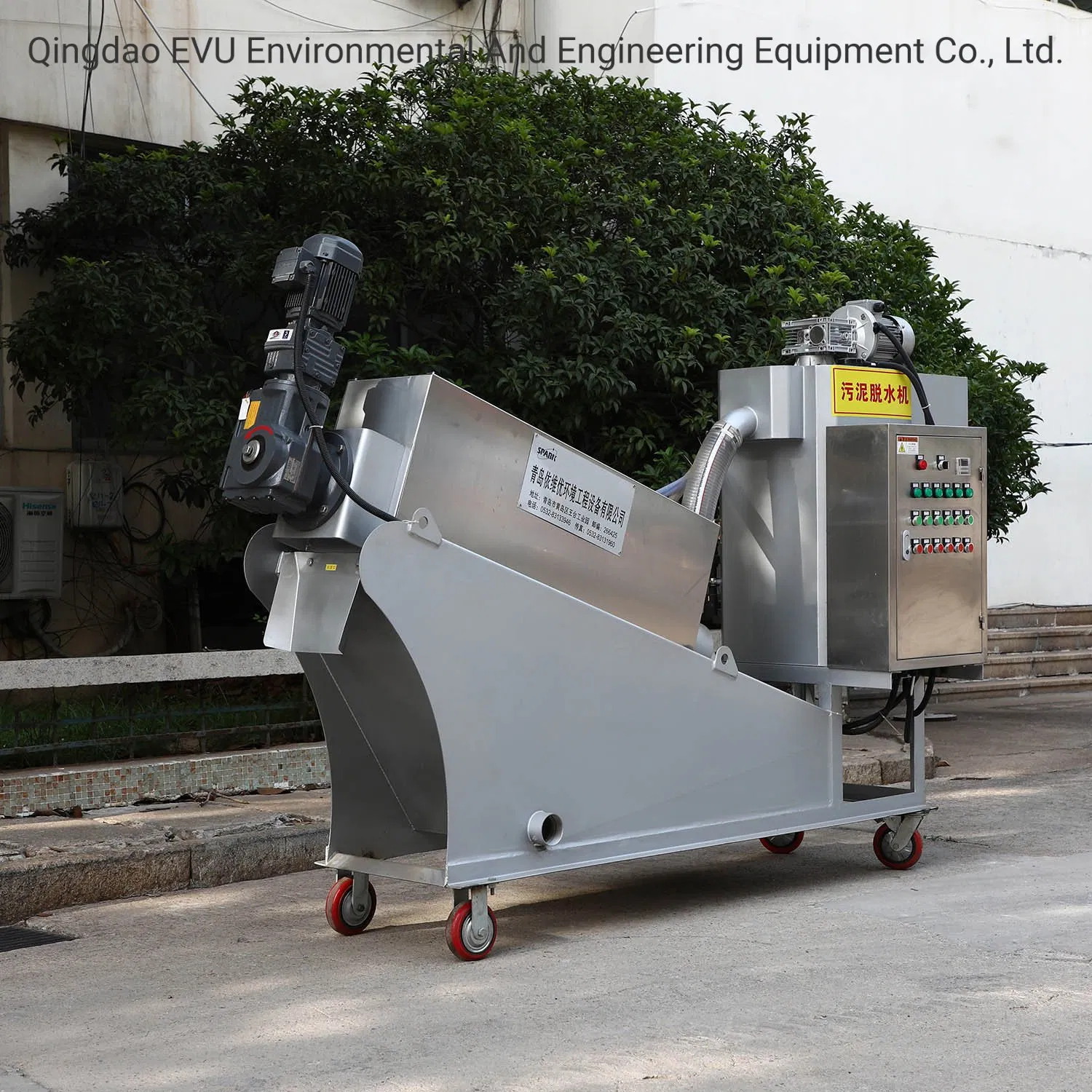

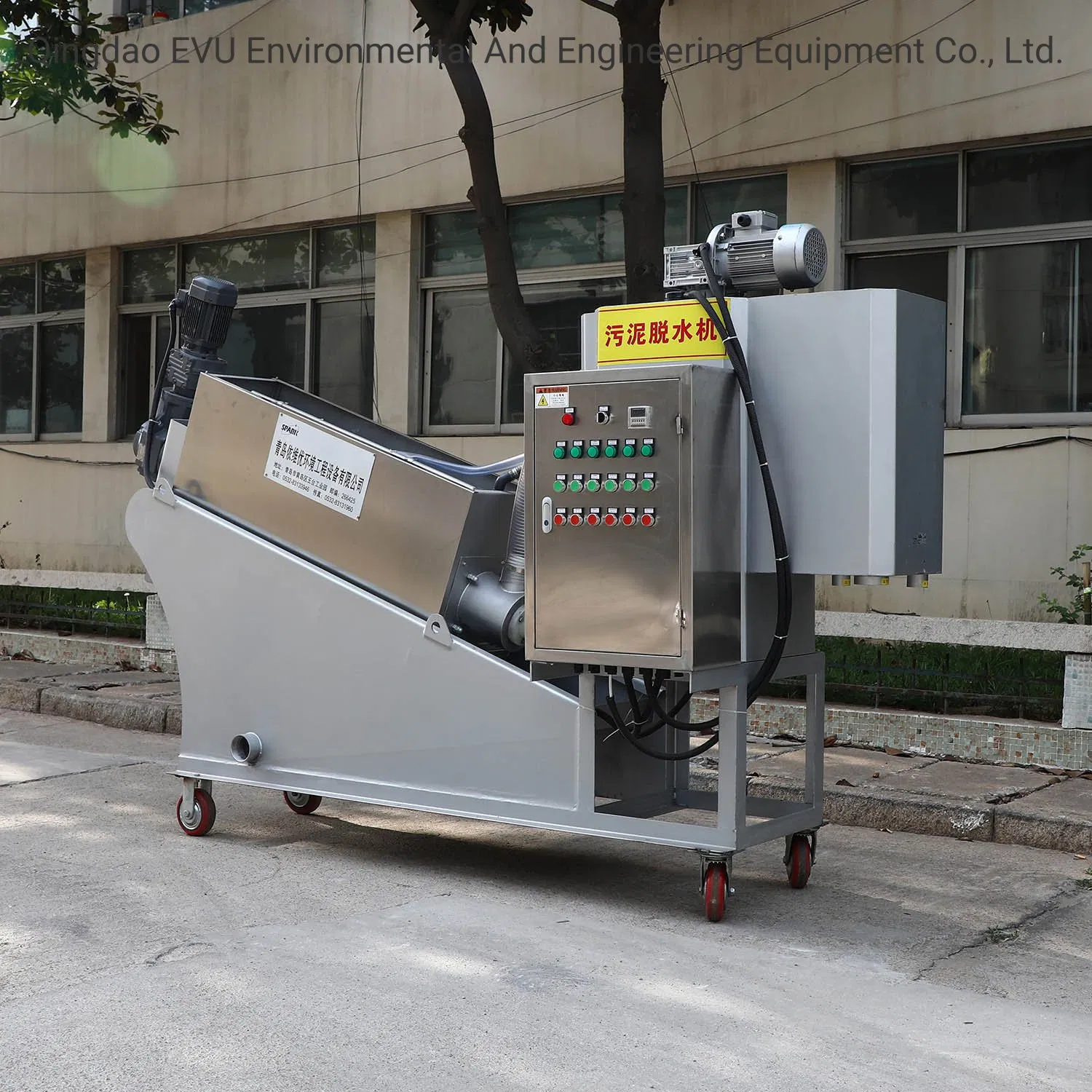

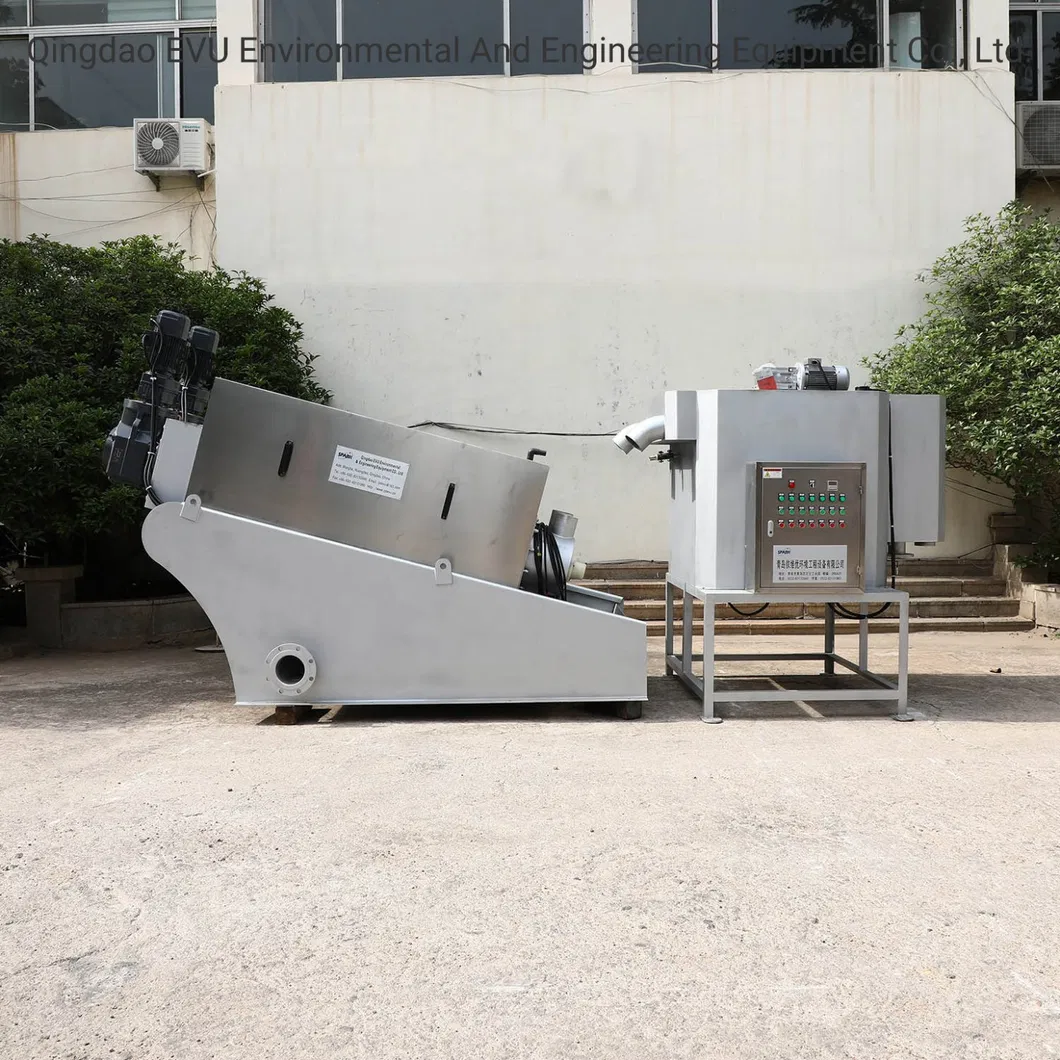

The Screw Press Sludge Dewatering Machine is an advanced solution designed for efficient sludge management in municipal and industrial wastewater treatment plants. It replaces traditional filter cloths and plate-and-frame methods, significantly reducing investment costs while boosting operational efficiency.
This equipment is highly versatile, making it ideal for food processing, pharmaceutical, leather, and petrochemical industries, particularly for challenging applications like slaughtering and oily sludge treatment.

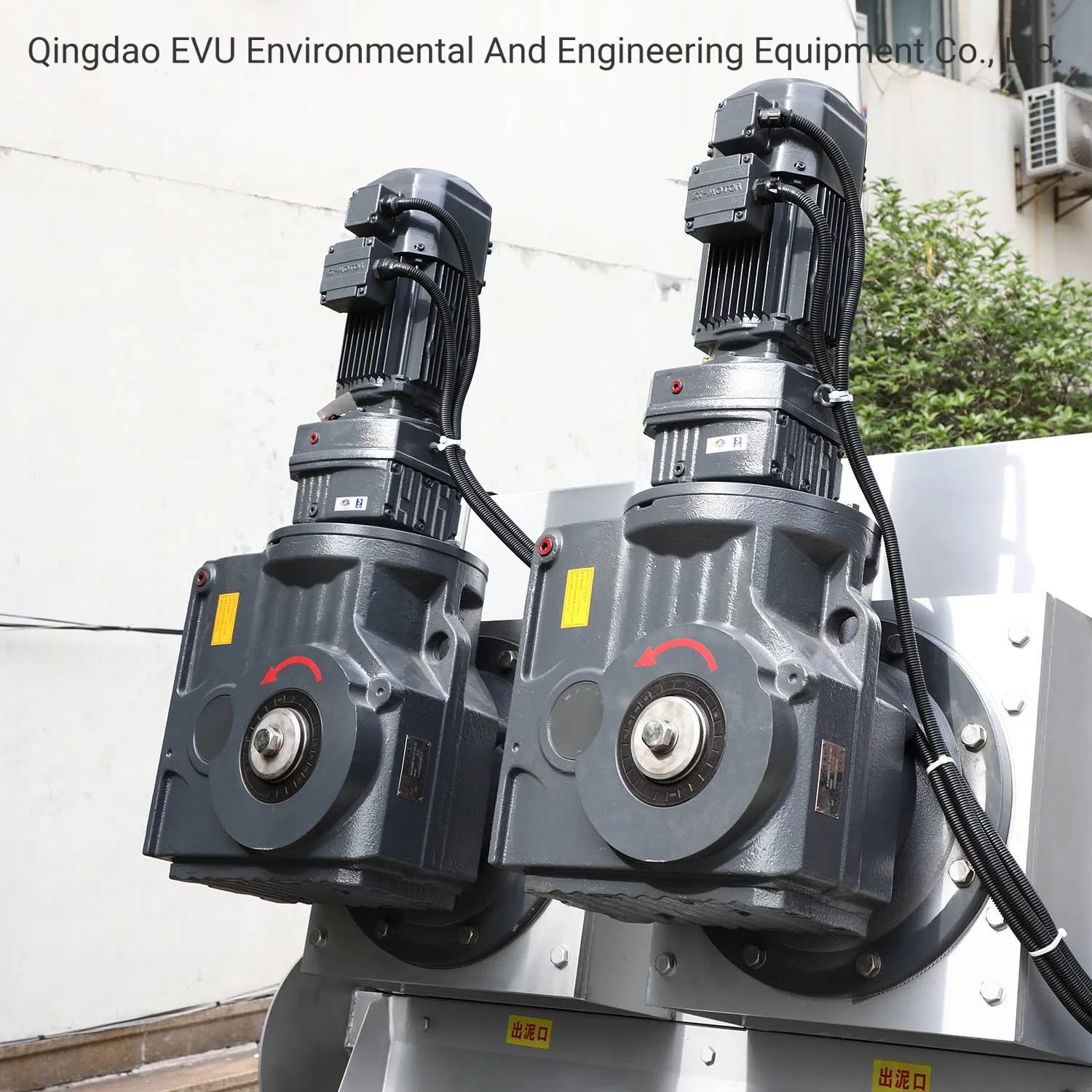

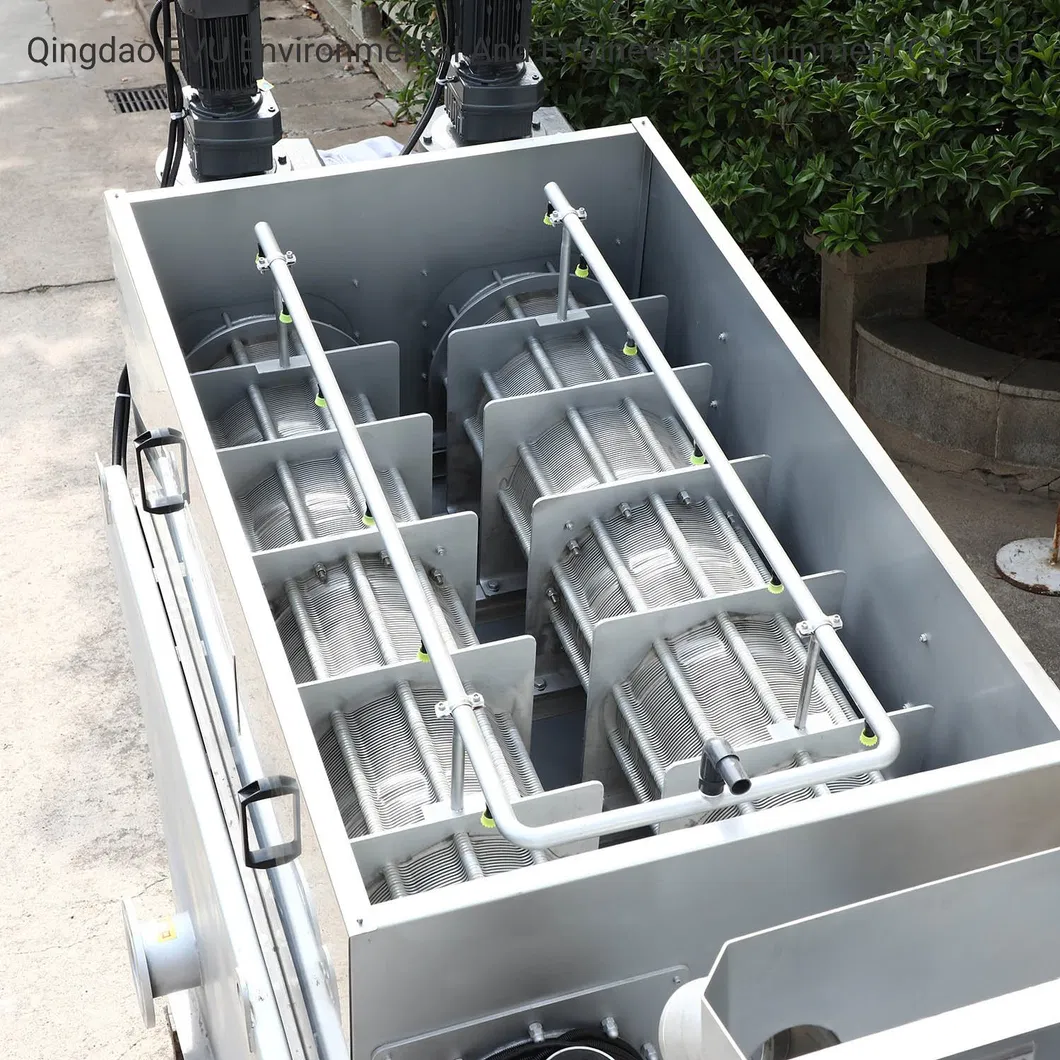

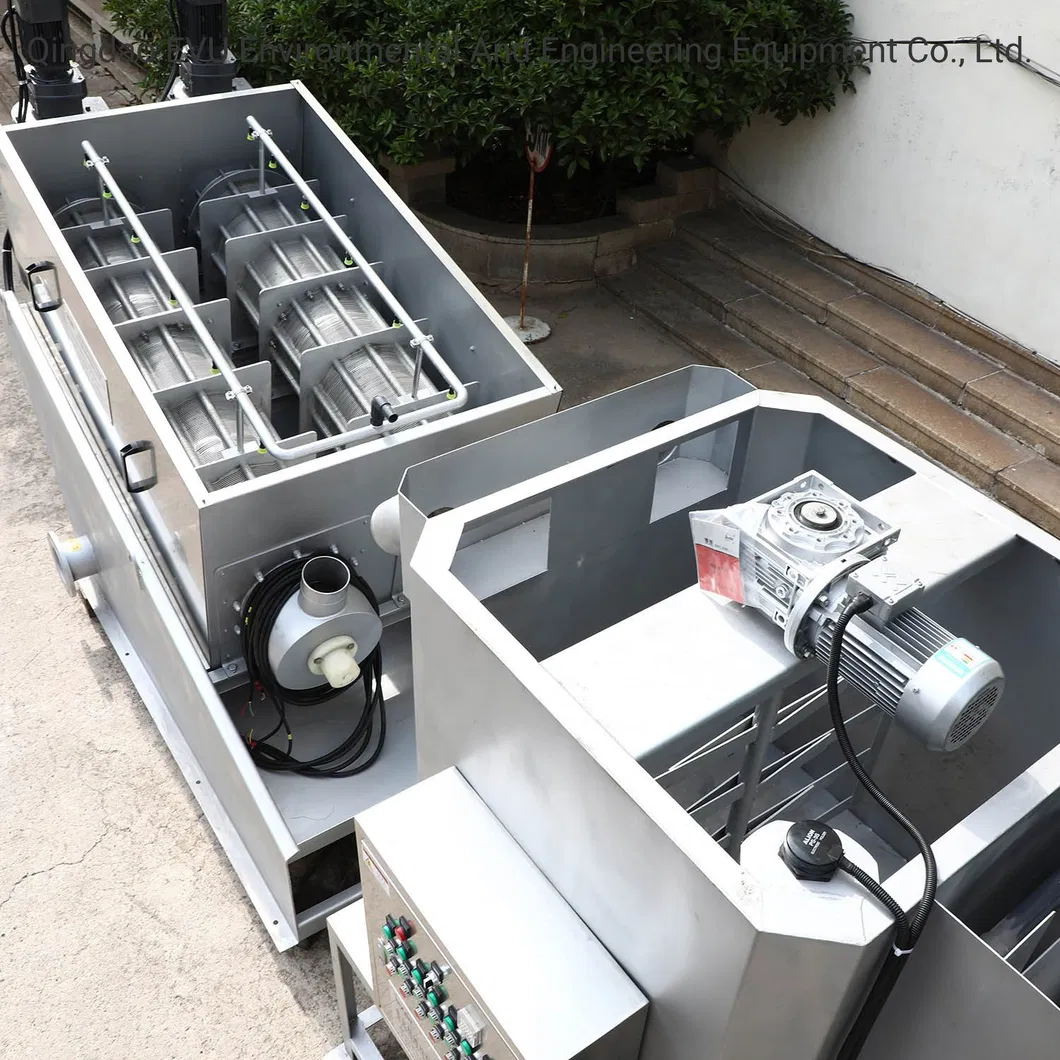

System Composition: The unit consists of a robust frame, screw shaft, moving rings, static rings, separation rings, filtrate collecting tank, flocculating mixer, drive reducer, and an integrated electrical control system.
| Model | DS Capacity (kg/h) | Flow Load (m³/h) based on mg/L | Dimensions (L/W/H mm) | N.W (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Low Conc. | High Conc. | 2000mg/L | 10000mg/L | 30000mg/L | L | W | H | ||
| QDLX-131 | ~4 | ~26 | ~2.0 | ~0.6 | ~0.87 | 2000 | 785 | 1040 | 250 |
| QDLX-201 | ~8 | ~52 | ~4.0 | ~1.2 | ~1.73 | 2510 | 900 | 1300 | 420 |
| QDLX-301 | ~20 | ~130 | ~10 | ~3.0 | ~4.33 | 3330 | 1005 | 1760 | 900 |
| QDLX-351 | ~40 | ~260 | ~20 | ~6.0 | ~8.67 | 4005 | 1100 | 2130 | 1100 |
| QDLX-402 | ~135 | ~884 | ~67.5 | ~20 | ~29.5 | 4960 | 1760 | 2100 | 3500 |
| QDLX-404 | ~266 | ~1768 | ~133 | ~40 | ~58.9 | 5160 | 3160 | 2100 | 7000 |
