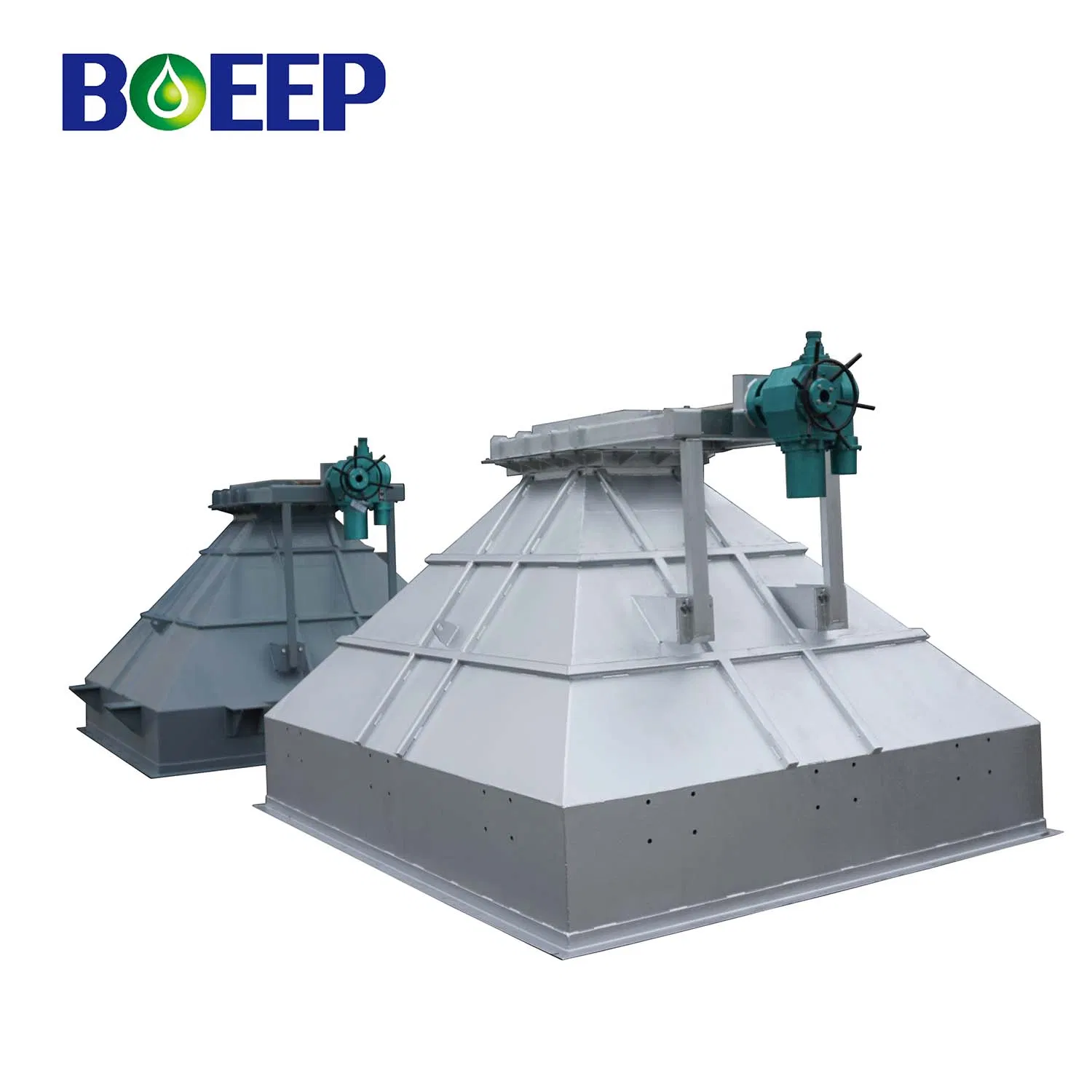

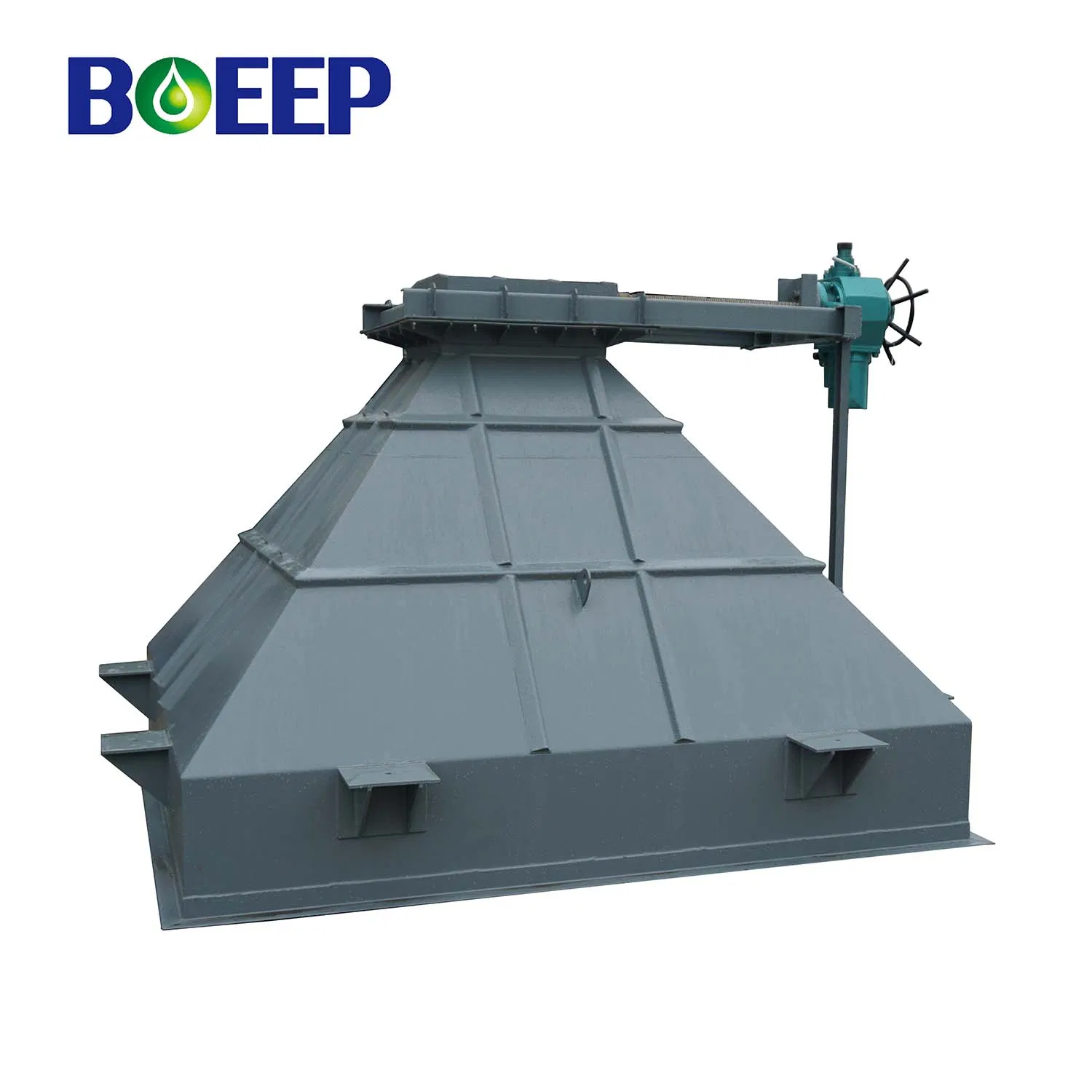

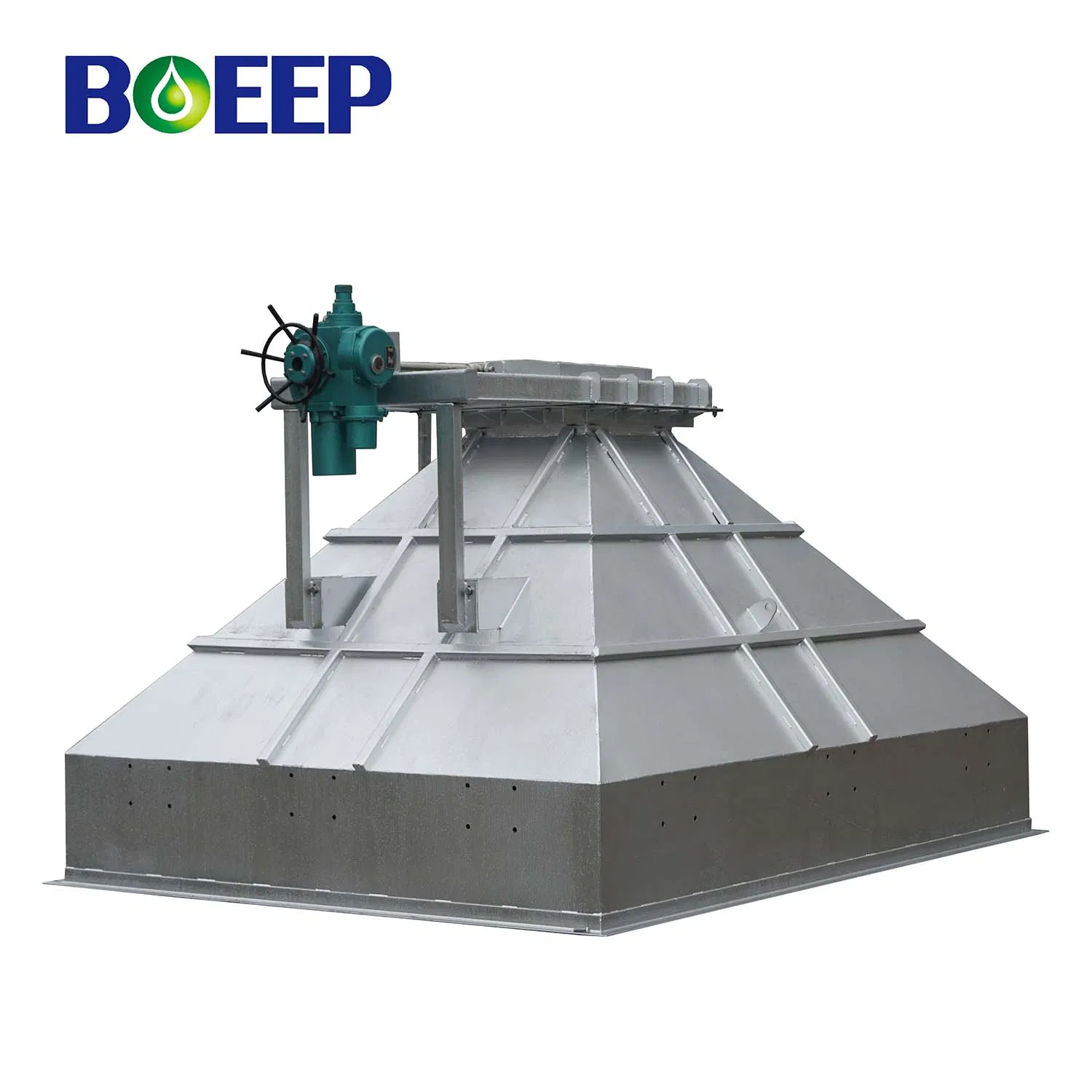

Automatically Stainless Steel Self-Cleaning Dewatering Sludge Cake Hopper Equipment

1 / 5

Automatically Stainless Steel Self-Cleaning Dewatering Sludge Cake Hopper Equipment

Customization:	Available
Usage:	Storage
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

DWD

Certification

SGS/Ce/ISO 9001

Material

SS304/316/Carbon Anti-Corronsion Paint

Motor

Sew/Nord/Customize

Volume

2-15m³

Delivery Time

35 Days Against Down Payment

Package

Poly Wooden Case

Production Capacity

2000 Sets/Year

⚙️ Product Description

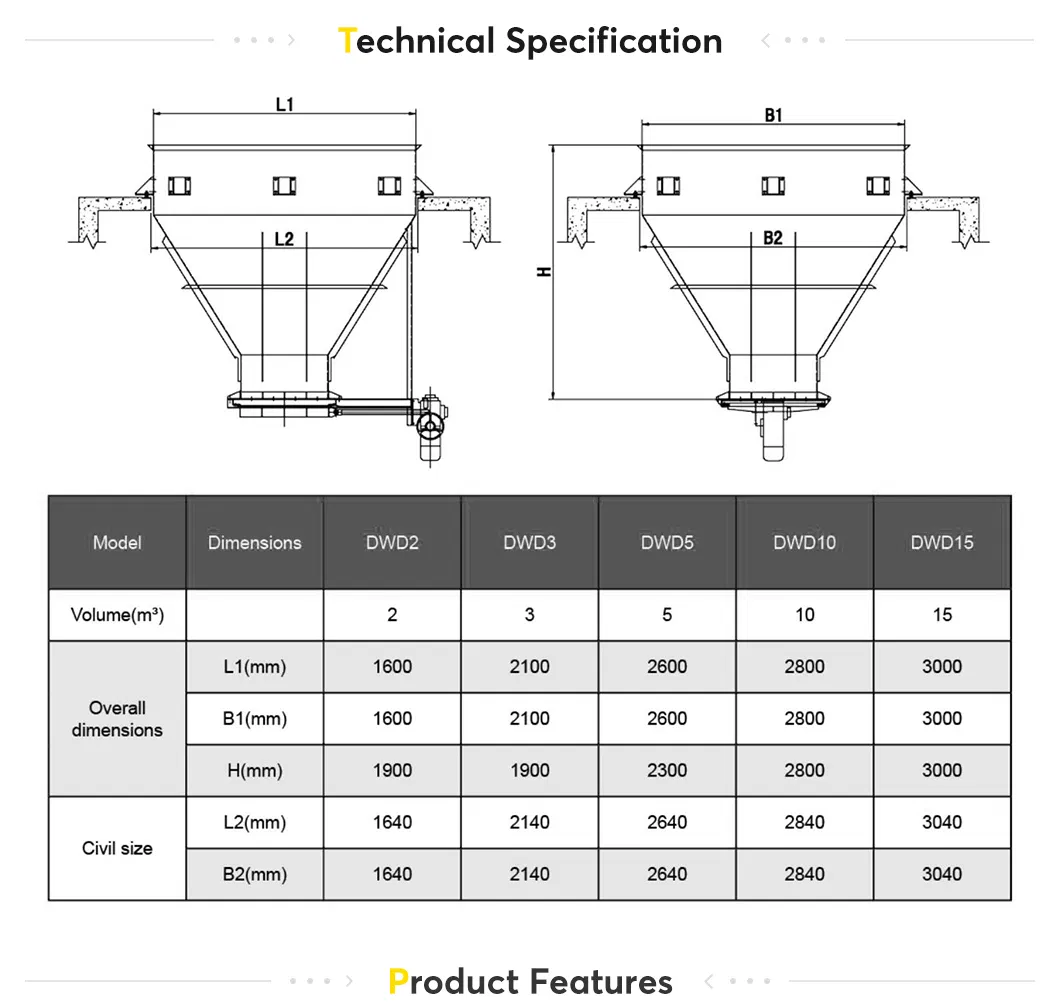

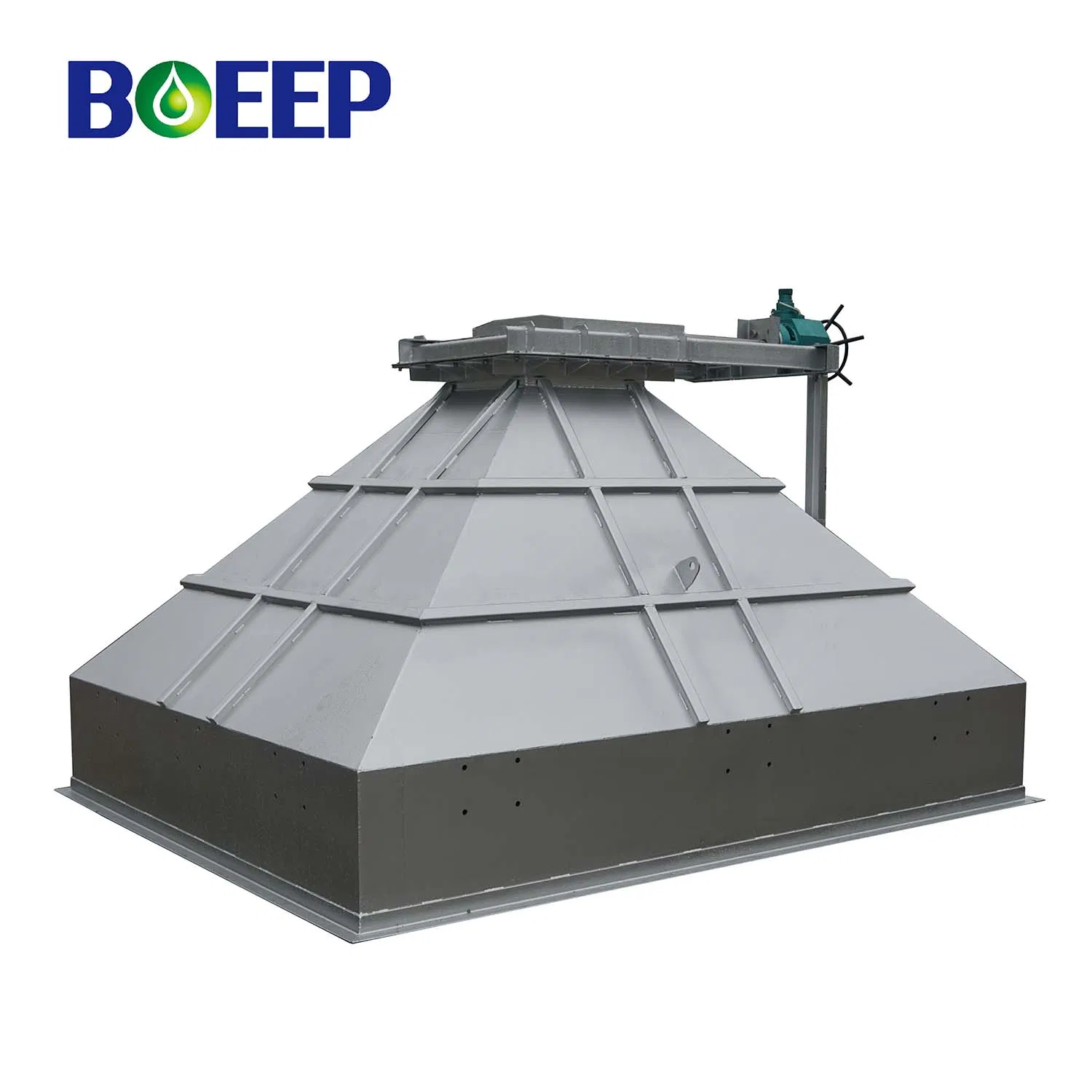

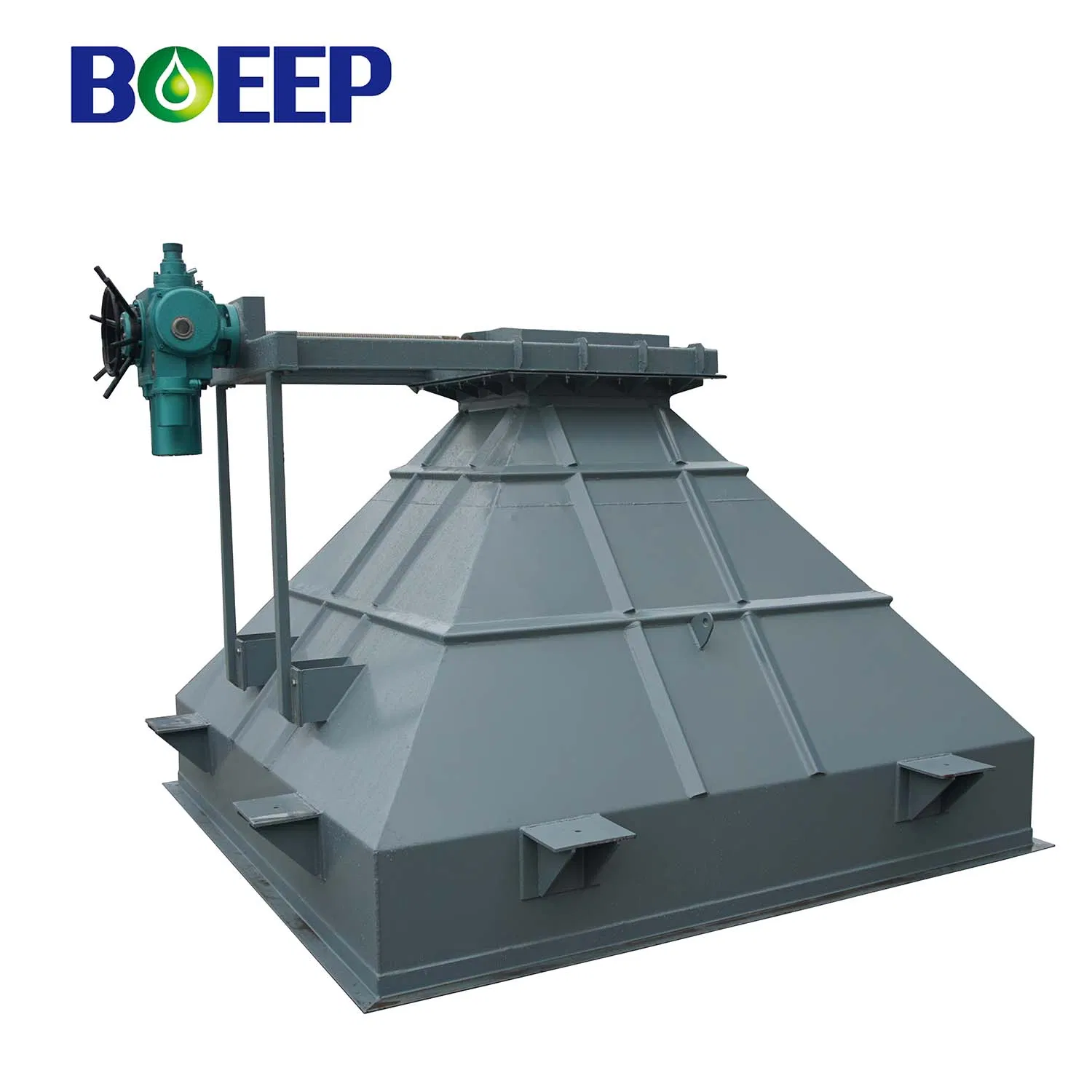

The sludge cake hopper is a collection and storage device for the dewatering sludge cake after dewatering equipment. The sludge cake will be input on top and discharge at bottom. The hopper body is designed to resist bending stress by inside pressure. When the sludge reaches a certain amount, the valve at the bottom of the hopper will be opened to discharge the sludge cake to the truck directly.

The type of sludge hopper can be selected and confirmed according to the project site requirements.
It can be equipped to store sludge cake produced by screw type sludge dehydrators, belt filter presses, centrifuges, and plate frame filter presses.
Main materials available: Carbon epoxy anti-corrosion paint, SS304, or SS316L.

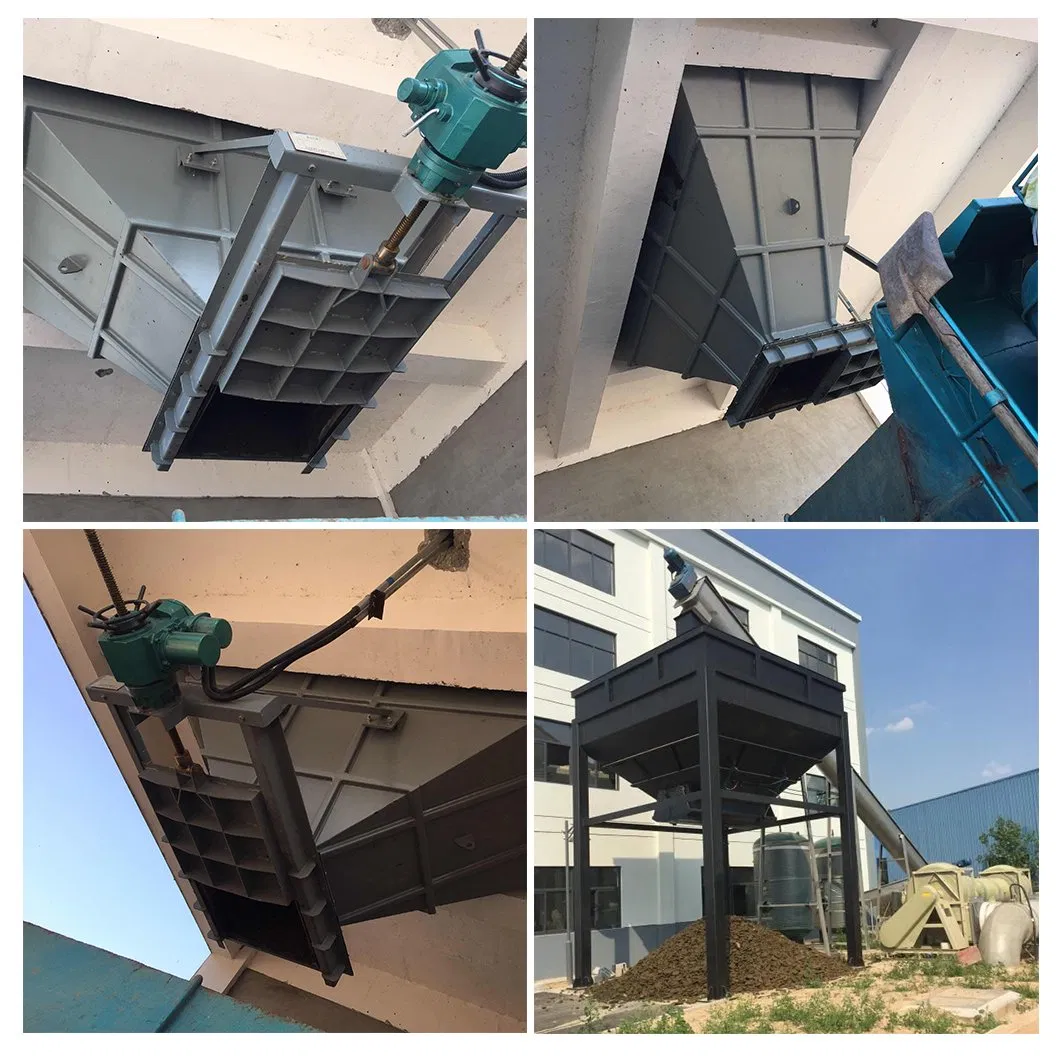

In newly built sludge dewatering rooms, the dehydrator is typically placed on the second floor, allowing the sludge hopper to be fixed on the second flat floor for direct discharge into garbage trucks below.

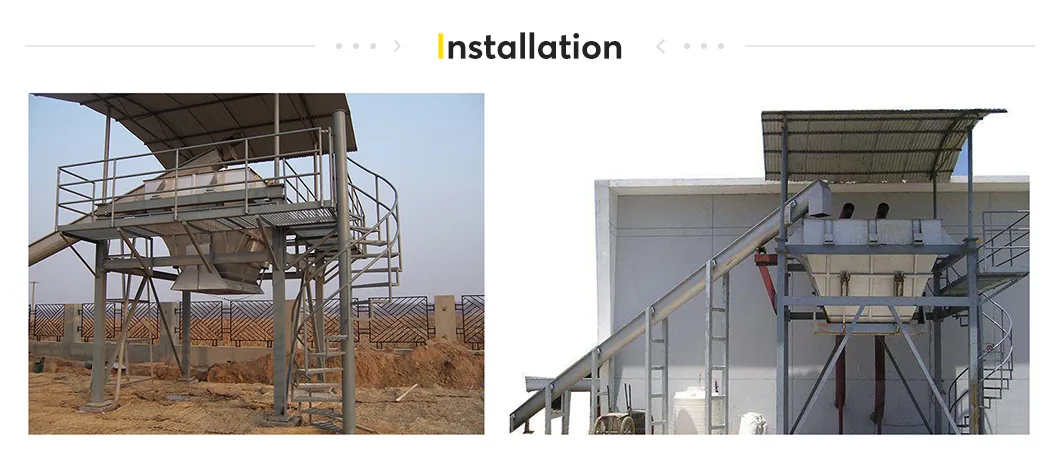

For ground-level placement, a scaffold is used to raise the hopper, ensuring sufficient height and width for truck entry and exit. Sludge is fed into the hopper via a shaftless screw conveyor.

❓ Frequently Asked Questions

Are you a manufacturer or a trading company?

We are both a manufacturer and a trading company with over 20 years of professional experience in wastewater treatment equipment and engineering services.

Do you provide OEM services?

Yes, any required logos and customized branding options are available for our equipment.

What is your current production capacity?

Our facility covers over 20,000m² and has an annual production capacity of approximately 2,000 sets of machinery.

What kind of warranty do you offer?

We provide a one-year warranty after the arrival of the goods. During this period, we provide replacement parts free of charge for any non-man-made damage.

What are the standard delivery and packaging terms?

Delivery is normally within 45 days of the down payment. We use anti-corrosion wooden cases with interior foam for export safety.

What certificates does your equipment hold?

Our products are fully certified with CE, ISO, and SGS standards to ensure high quality and compliance.
