| Model NO. | Type |
| Usage | Industrial |
| Product Name | Integrated Daf Unit Dissolved Air Flotation System |
| Flow Rate | 3-300 M3/H |
| Pressure Range | 0.2-0.5 MPa |
| Application | Water Treatment Industry, Dewatering Water Filter |
| Control | Full Automatic Control |
| Features | No Clogging |
| Material | Stainless Steel |
| Function | Water Treatment |
| Key Words | Dissolved Air Flotation System |
| Transport Package | Standard Packing |
| Specification | Metal/Plastic |
| Origin | China |
| HS Code | 8428399000 |
| Production Capacity | 50 Pieces/Month |

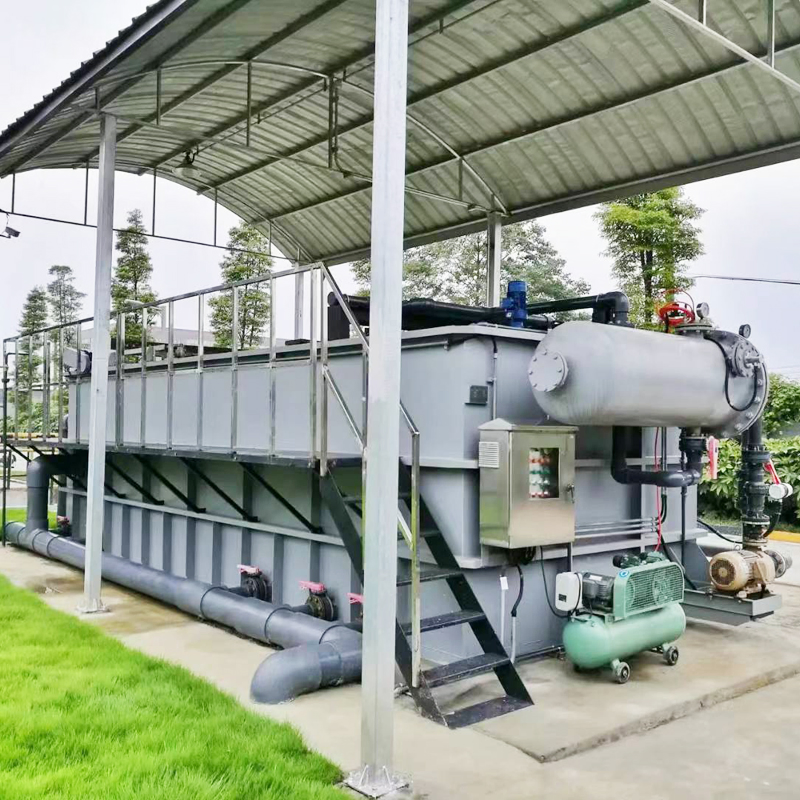

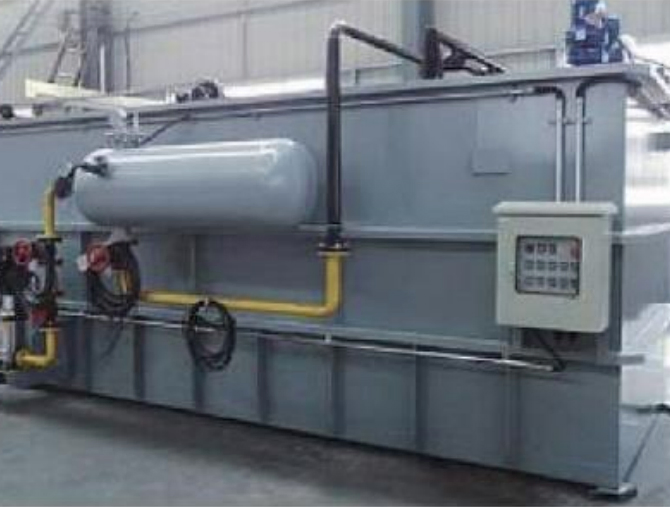

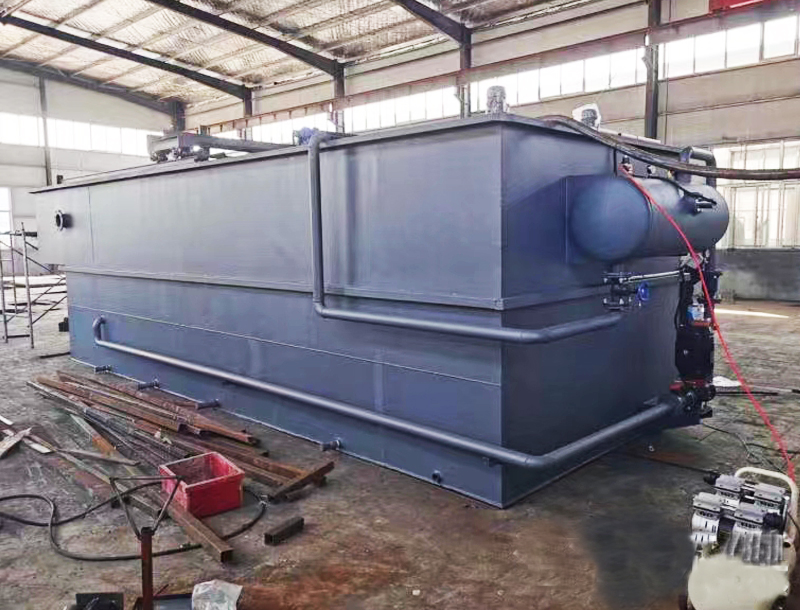

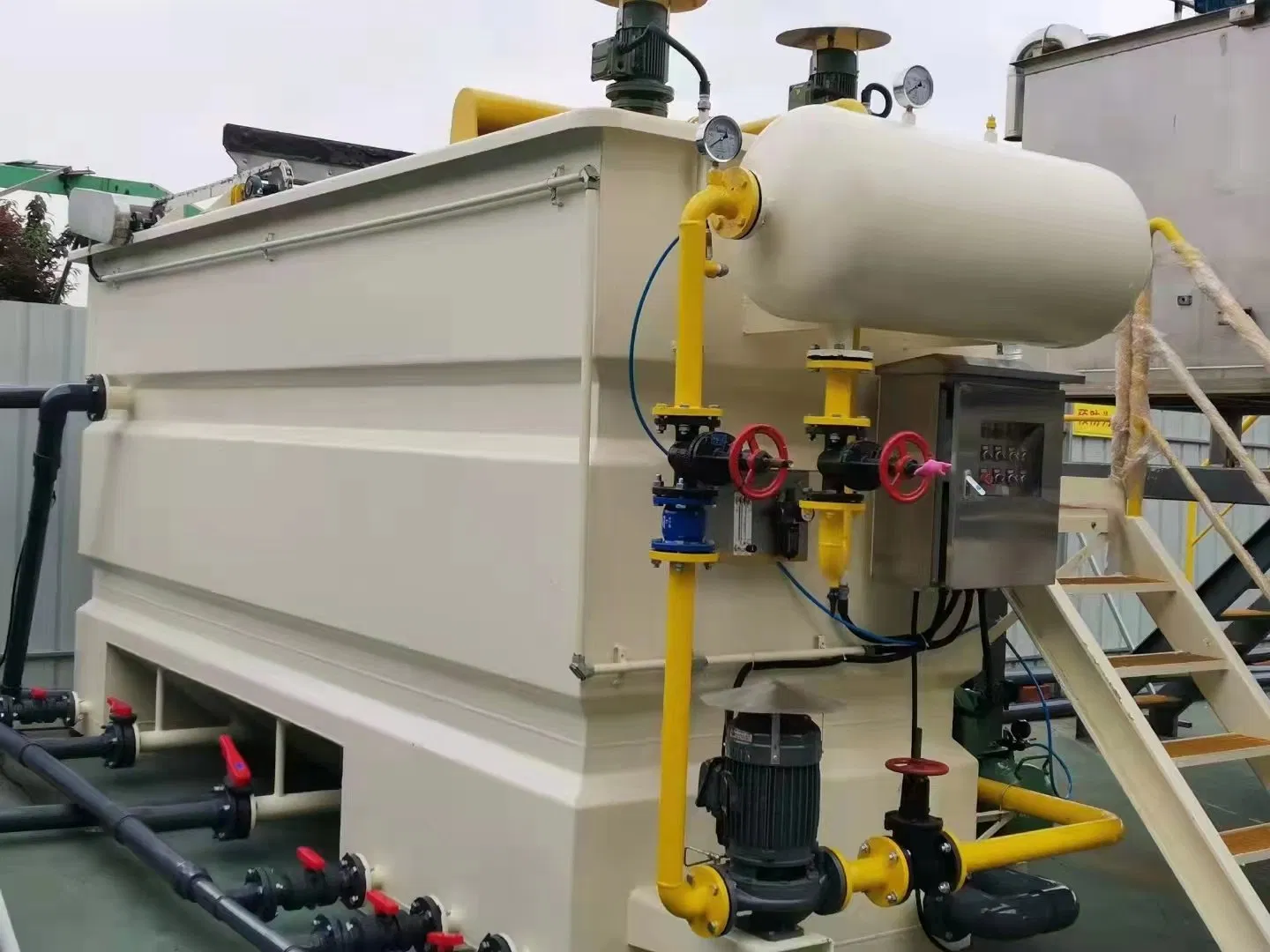

Automation Oil and Water Separating Dissolved Air Flotation System for Sewage Treatment
The flat Air flotation machine is a kind of water purification method, which produces a large number of fine bubbles in the water through the dissolved air water produced by the dissolved air system after rapid decompression release. Some bubbles stick to the surface of the flocculated eurotic particles in the water and form suspended solids with the overall density less than 1. Through buoyancy, it rises to the water surface and separates solid and liquid. Efficient shallow air floatation device is based on the traditional air floatation theory, and the successful use of "shallow theory" and "zero speed" principle, through careful design, set coagulation, air floatation, slag, precipitation, scraping mud as one, is a high efficiency water purification equipment.
Air floatation system collects water, flocculation, separation, water collection in one unit, ensuring treatment performance is stable and effective.
Stable Room: Reduces turbulent kinetic energy so raw water enters the release chamber at a constant speed to guarantee removal efficiency.
Dissolved Gas Release Chamber: Separates dissolved gas water and raw water after flocculation, allowing them to adhere and rise slowly, reaching an 80-100% release rate.

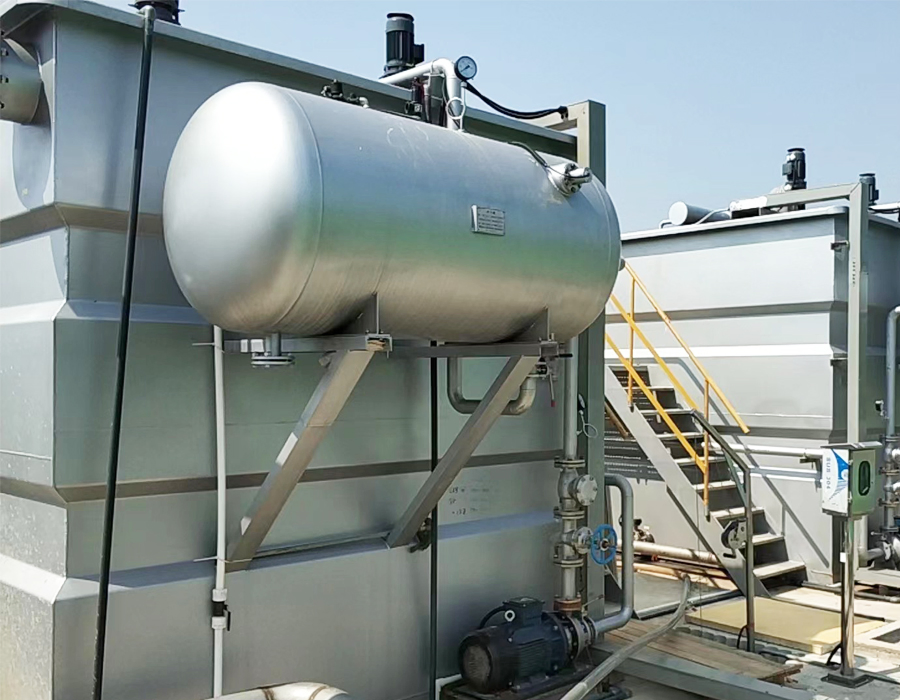

Dissolved Gas System: The "heart" of the equipment. Gas and water are sheared and pressurized to create a mixture with 100% gas solubility and microbubbles under 30um.
Slag Scraper: Rotary slag scraper continuously and evenly removes scum into the trough, with adjustable height to adapt to various operating conditions and reduce sludge moisture.
Control System: Utilizes reliable electrical components for long-term operation. Matching dosing equipment can be provided based on user needs.
