Type:
Air Flotation Machine
Method:
Physical Treatment
Usage:
Industrial, Agriculture, Hospital, Breeding
Application:
Hospital, Industrial, Restaurant, Papermaking
Material:
Carbon Steel Anti-Corrosion / Stainless Steel

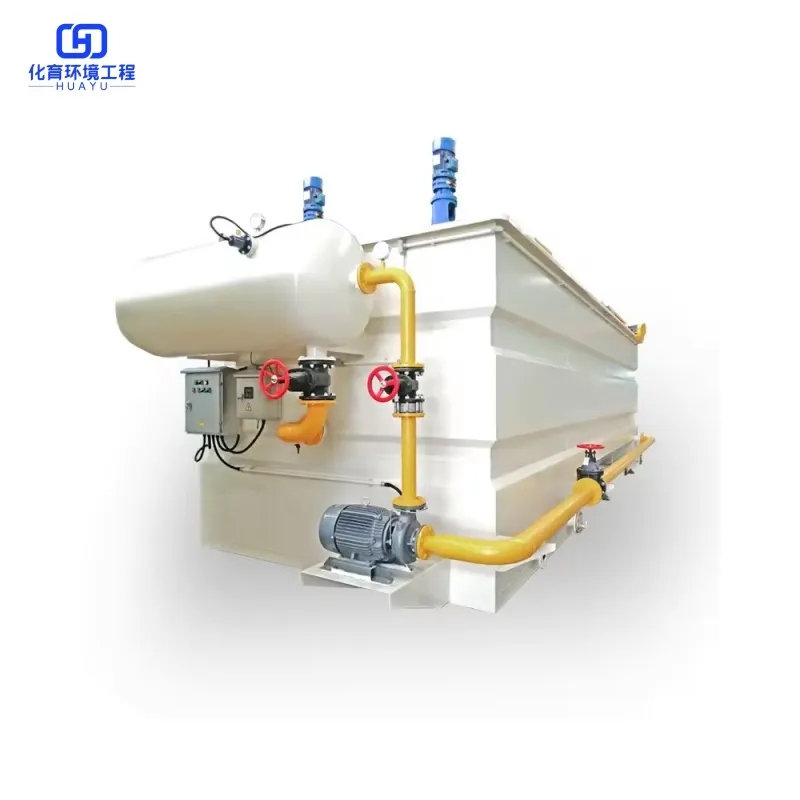

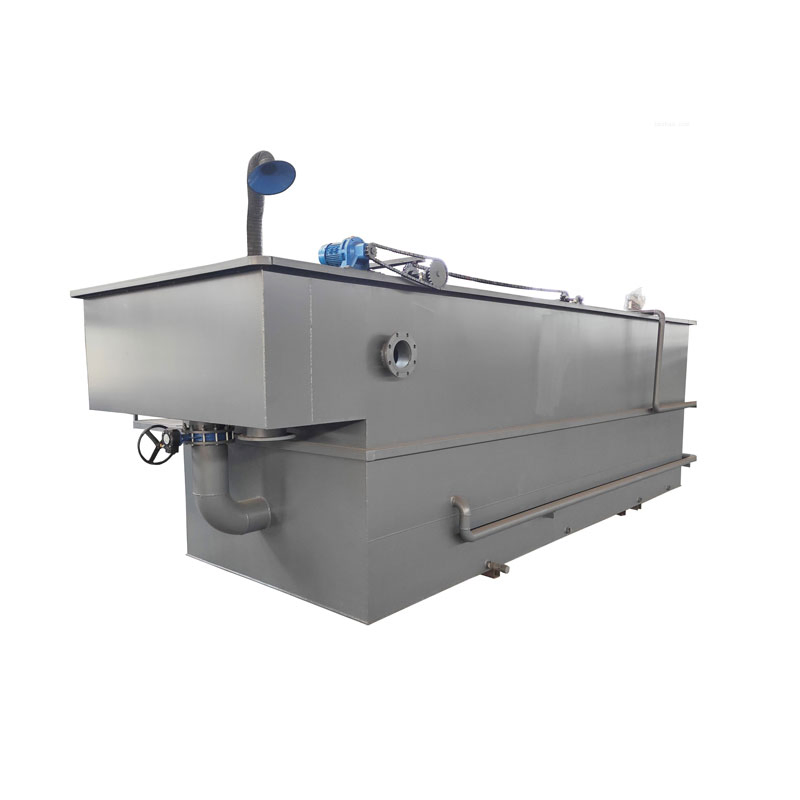

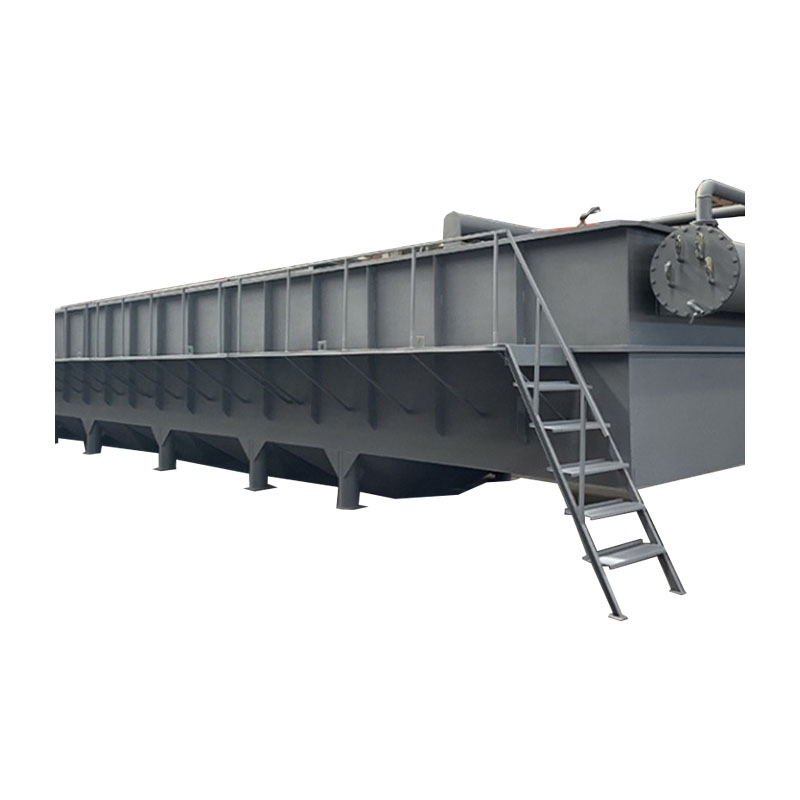

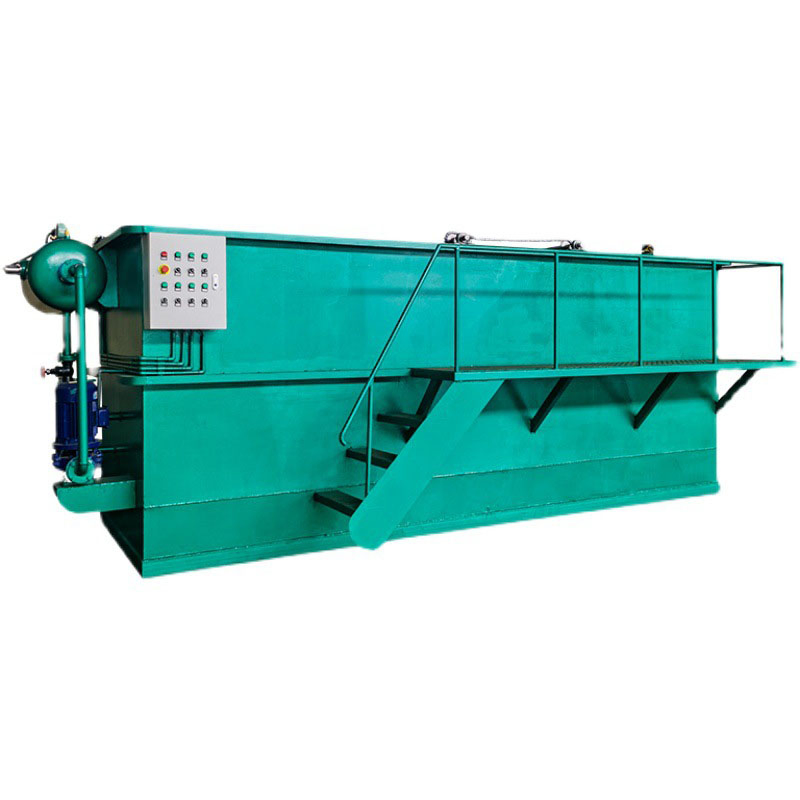

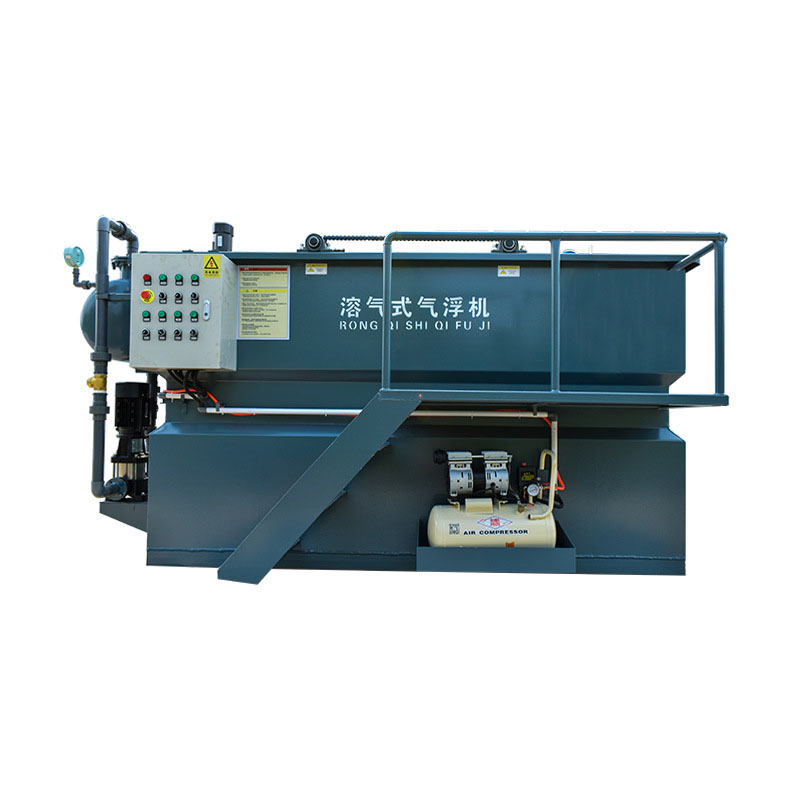

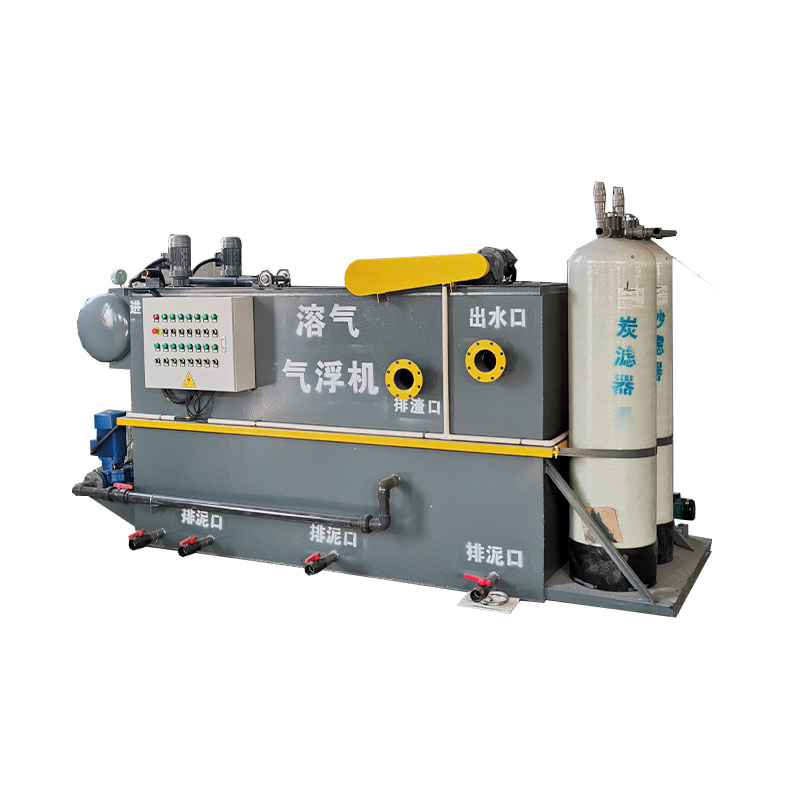

The dissolved air flotation machine is an efficient and stable water treatment equipment that clarifies wastewater by removing oils, greases or other solid suspended matter.

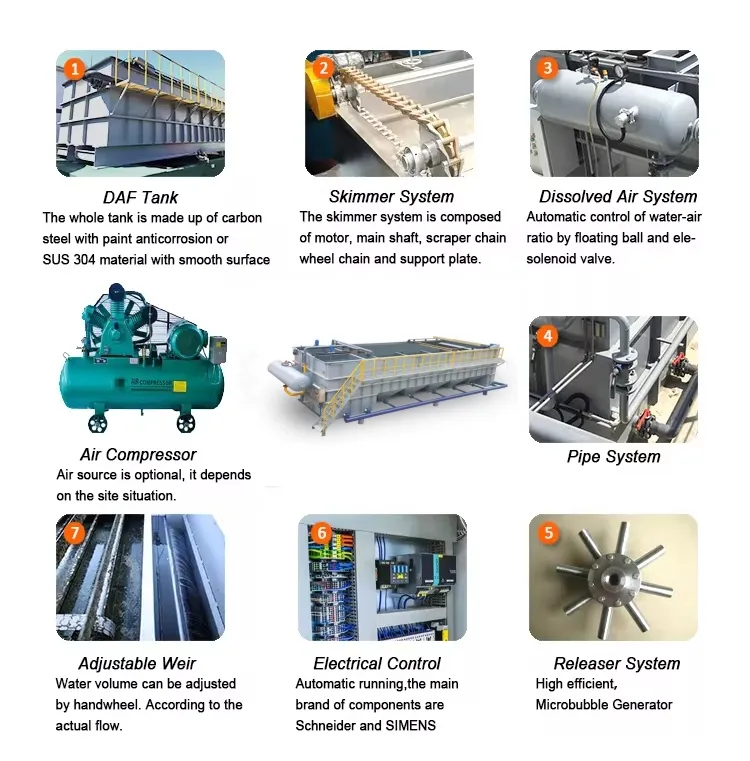

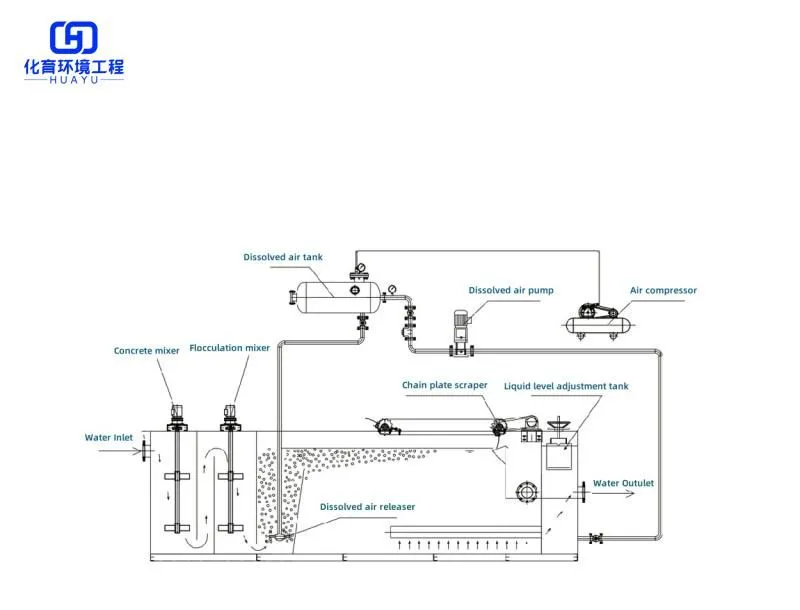

Its process design is to dissolve gas into water to the maximum extent under pressure, striving to be in a supersaturated state, and then release air at atmospheric pressure in the flotation tank. The released air forms a large number of tiny bubbles, which adhere to the suspended matter in the water, causing it to float to the water surface with the bubbles, forming scum, which is then removed by a scraping device.
Air flotation separation technology refers to dissolving air into water to the maximum extent under a certain working pressure. The next step is to release the pressure-dissolved air water, thereby generating a large number of fine bubbles, which are fully in contact with the oil and suspended flocs in the wastewater, so that they adhere to the microbubbles and float to the water surface with the bubbles to form scum.
Heavy particles flow through the inclined plate settling zone, settling to the bottom of the sediment device, and discharged to the sludge tank through the pipeline, then do subsequent processing, and the Clarified purified water will be discharge by the equipment center tube.
| Model |
Capacity(m²/h) |
Size L*B*H(m) |
Operating Weight(T) |
Total Power(KW) |
| HYRQ-5T | 3-5 | 3.5×1×1.9 | 8.5 | 5.55 |
| HYRQ-10T | 5-10 | 4.5×1.2×2.1 | 13.5 | 5.75 |
| HYRQ-15T | 10-15 | 5×1.5×2.1 | 17.5 | 7.8 |
| HYRQ-20T | 15-20 | 5×1.8×2.1 | 20.5 | 7.8 |
| HYRQ-30T | 20-30 | 6×2×2.1 | 27 | 7.8 |
| HYRQ-40T | 30-40 | 7×2.2×2.1 | 34 | 7.8 |
| HYRQ-50T | 40-50 | 7×2.7×2.1 | 41 | 10.55 |
| HYRQ-60T | 50-60 | 8×2.8×2.1 | 48 | 10.55 |
| HYRQ-70T | 60-70 | 9×3×2.1 | 58 | 15.85 |
| HYRQ-80T | 70-80 | 10×3.2×2.1 | 70 | 15.85 |
| HYRQ-100T | 80-100 | 10.5×3.6×2.1 | 80 | 19.85 |
| HYRQ-150T | 120-150 | 11×3.6×2.5 | 90 | 19.85 |
| HYRQ-200T | 180-200 | 12×3.6×2.5 | 118 | 28.65 |

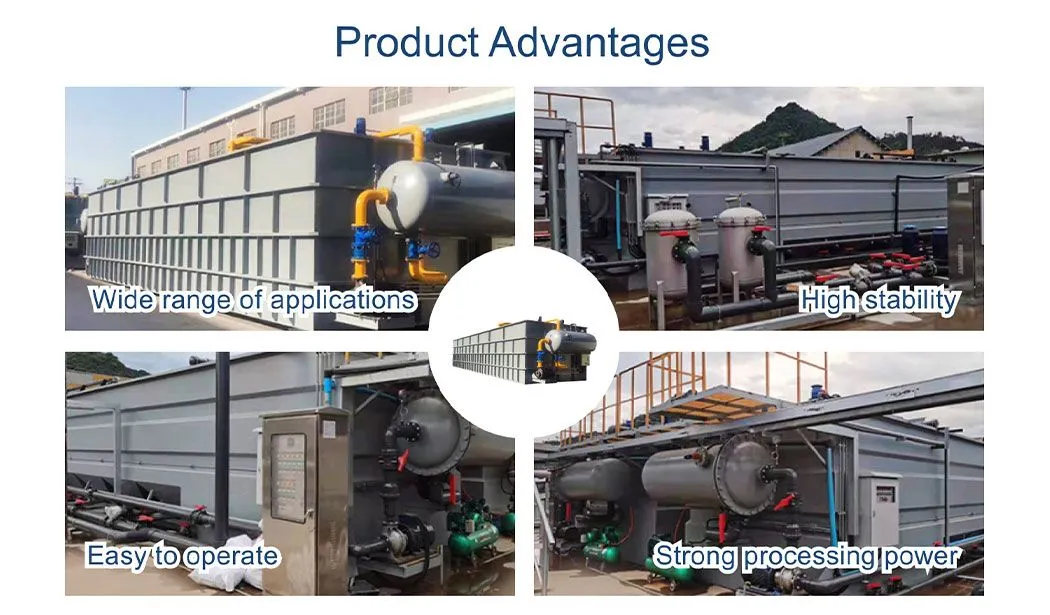

● The equipment occupies a small area and has low energy consumption.
● The equipment is easy to operate and maintain.
● High air dissolution efficiency, effectively preventing blockage with stable treatment.
● High release rate with microbubbles average particle size about 15-30um.
● Adopts a chain plate scraper for stable operation and high scraping efficiency.

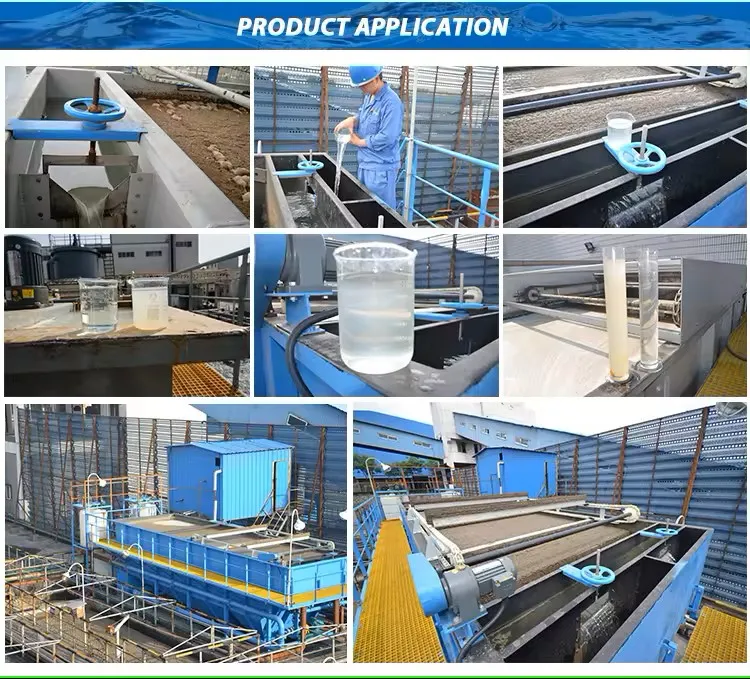

1. Pre-treatment and terminal treatment of industrial wastewaters.
2. Treatment of oily wastewater.
3. Improvement of municipal sewage treatment plants.
4. Recovery of white water pulp and reuse in papermaking.
5. Removal of heavy metal ions.
6. Oil pollution separation in oil refining.
7. Impurity removal in leather manufacturing.
8. Color and impurity removal from printing and dyeing wastewater.
9. Biological treatments and solid-liquid separation.
10. Sewage standard improvement and phosphorus removal.
?
Frequently Asked Questions
Can your air flotation machine effectively treat various types of sewage?
Yes, it utilizes advanced technology to treat industrial, medical, and domestic wastewater effectively based on the raw water quality.
How stable is the machine during long-term operation?
Our machines meet international standards and undergo rigorous testing. High-quality materials and manufacturing ensure stability and reliability under various load changes.
Do you provide installation training and support?
We provide comprehensive installation guidance and training services to ensure safe operation, along with remote support and maintenance.
What is the procedure for maintenance or malfunctions?
Our dedicated after-sales service team provides prompt technical support and repair services if any operational issues arise.
Can the flotation system be customized for specific needs?
Yes, our engineering team can design a customized process plan based on your local water volume, quality, and output standards.
What is the warranty period for the equipment?
The equipment comes with a standard warranty period of one year.
