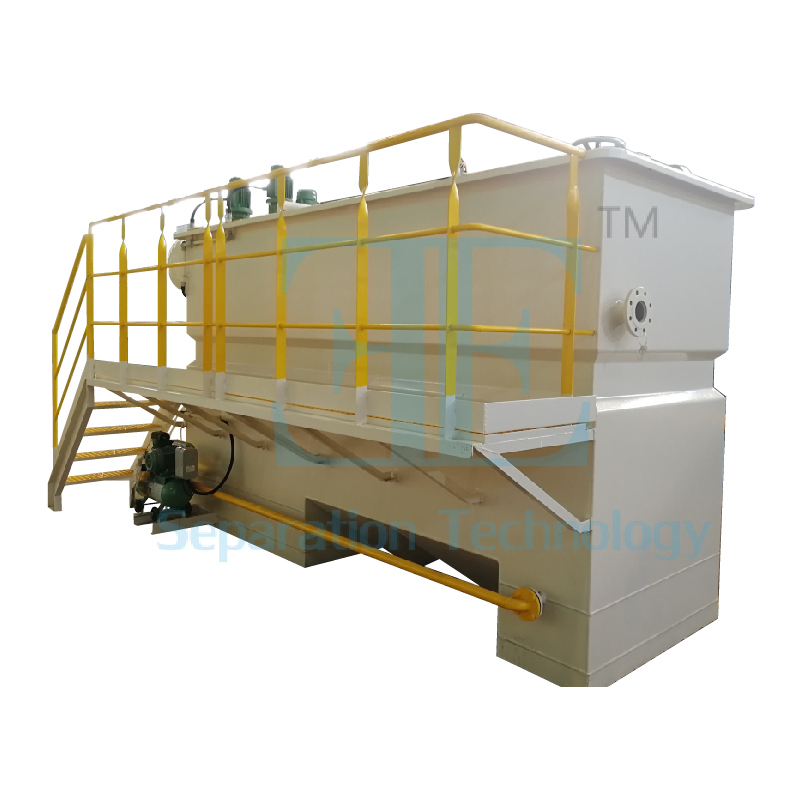

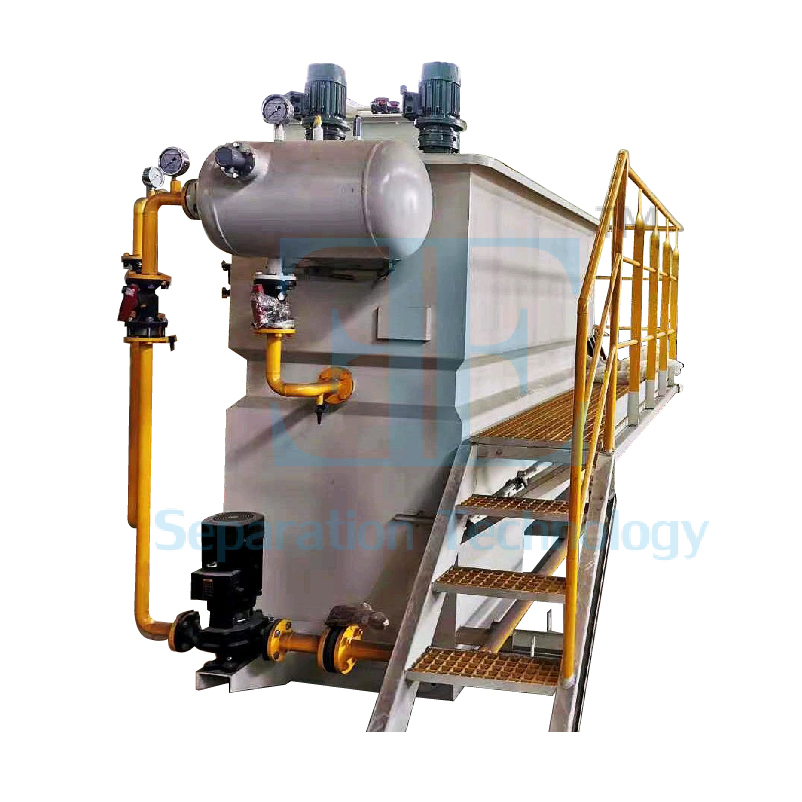

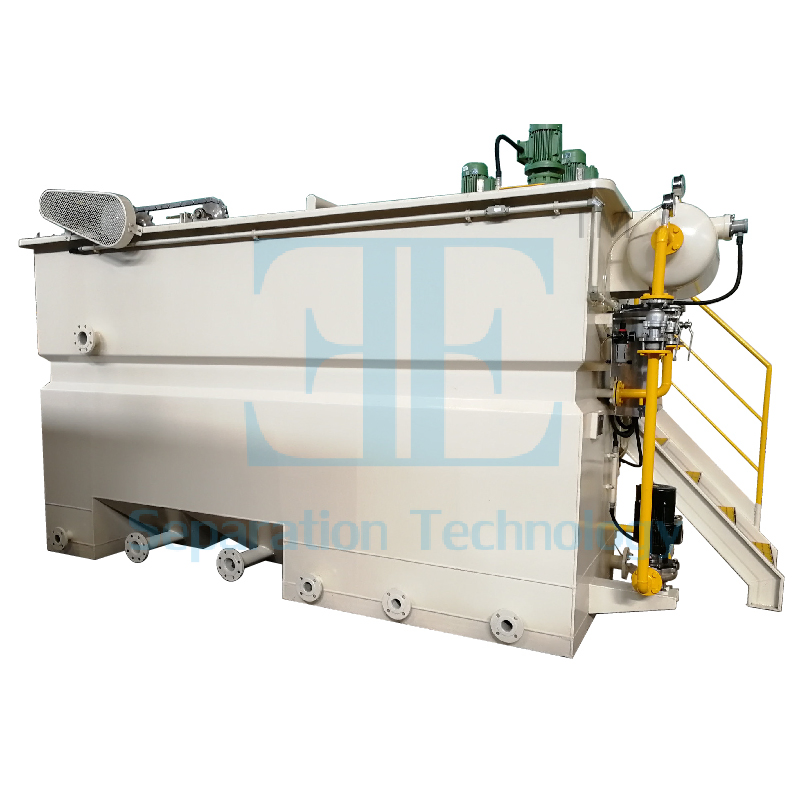

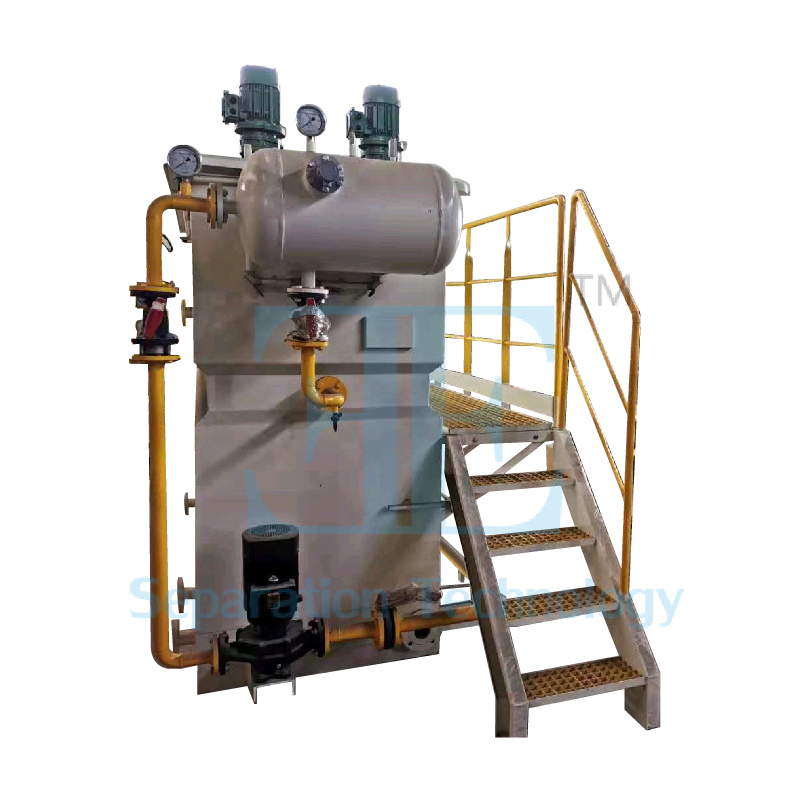

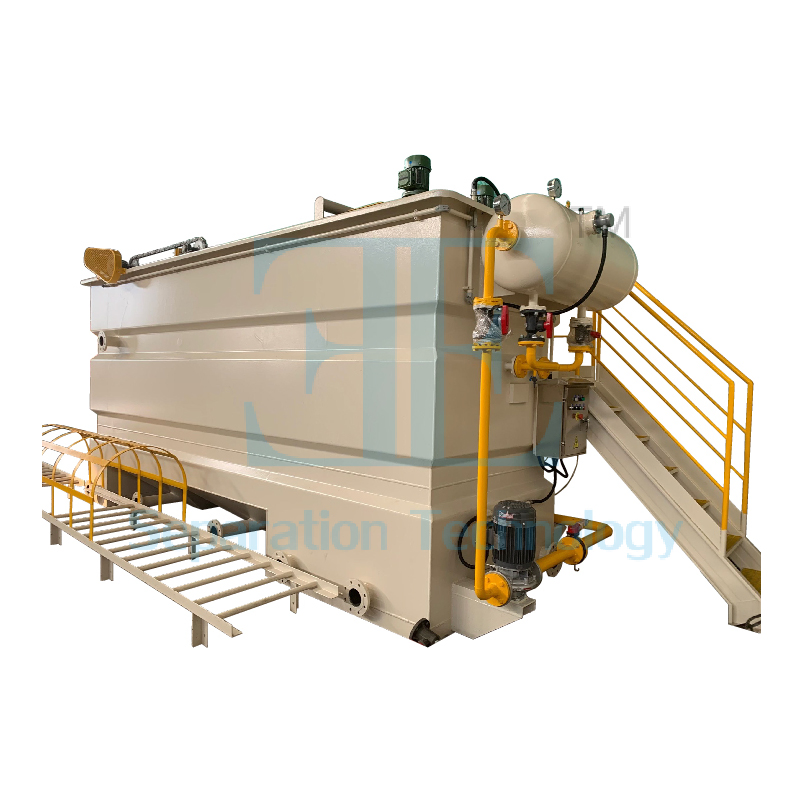

Dissolved Air Flotation (DAF) is a highly efficient water treatment process that clarifies wastewaters by removing suspended matter such as oil or solids. This removal is achieved by dissolving air in the water under pressure and then releasing it at atmospheric pressure in a flotation tank basin.

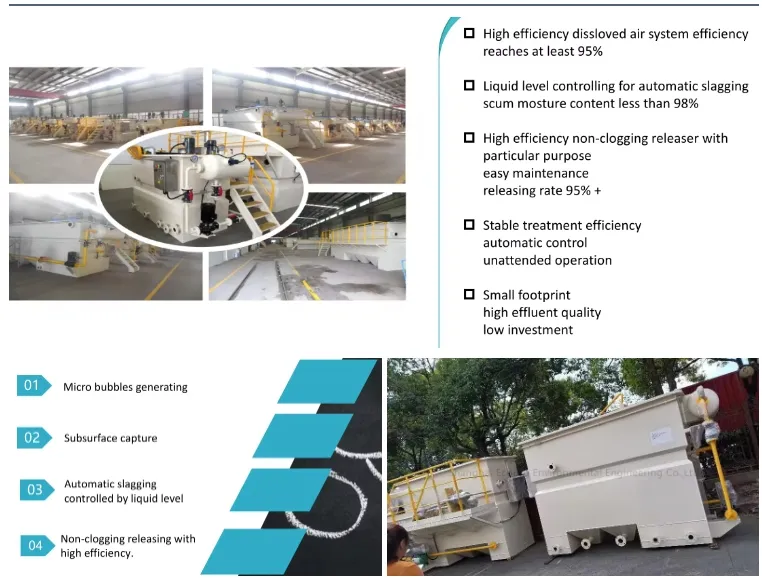

Dissolved air system efficiency reaches at least 95%.
Liquid level controlling for automatic slagging; scum moisture content less than 98%.
Non-clogging design ensures stable treatment and unattended operation.
Small footprint, high effluent quality, and low initial investment.

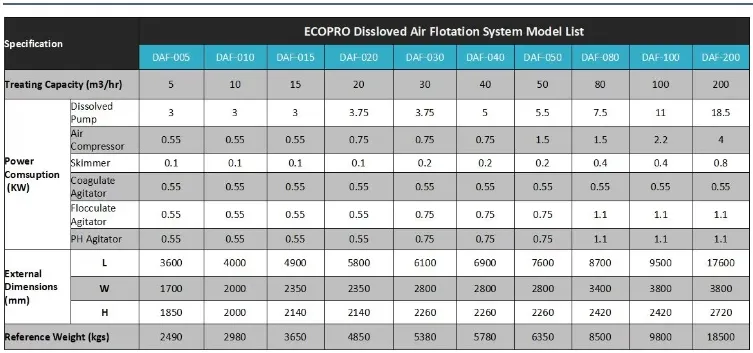

To select the right DAF model, the following parameters should be considered:

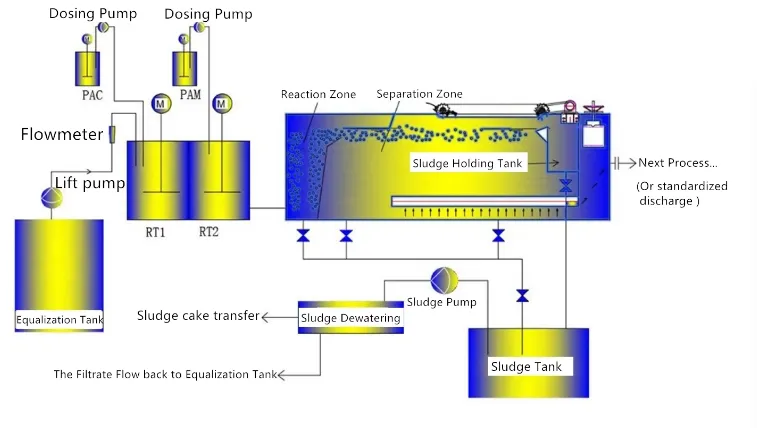

The system dissolves air into the wastewater under pressure. When released into the tank, it forms microbubbles that attach to solids and oils, causing them to float to the surface for removal by a skimmer.
Our advanced DAF technology achieves a dissolved air system efficiency of at least 95%, ensuring stable and high-quality effluent.
No, the system is designed to be non-clogging and supports automatic control. It allows for unattended operation and requires minimal manual maintenance.
The preferred PH range is 6-9. For highly corrosive substances, we recommend a PH adjustment tank before the DAF process or selecting specialized materials for the tank construction.
DAF systems offer a much smaller footprint, higher efficiency in removing light particles like grease and oils, and a lower moisture content in the resulting sludge/scum.
Please provide the type of wastewater, flow rate (m3/h), and concentrations of SS, Oil & Grease, COD, and BOD for an accurate model selection.
