Filter Systems for Edible Oil Treatment

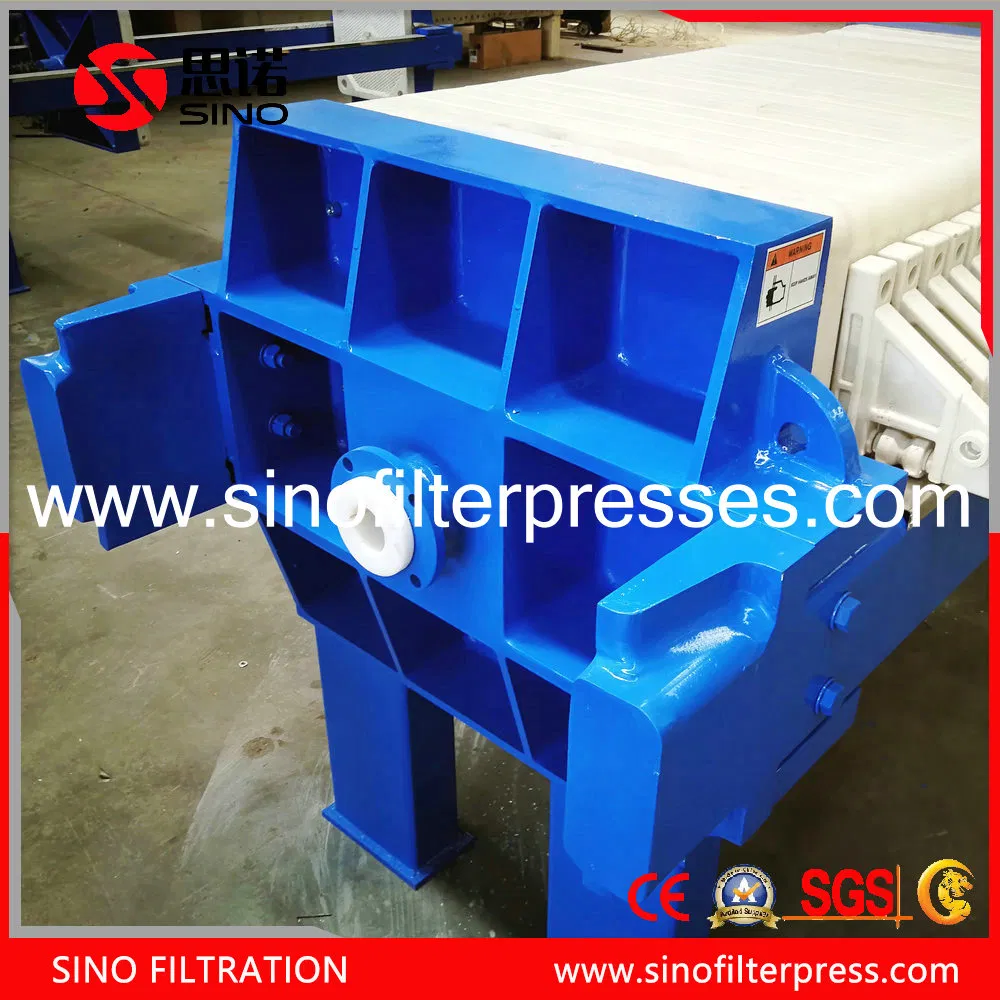

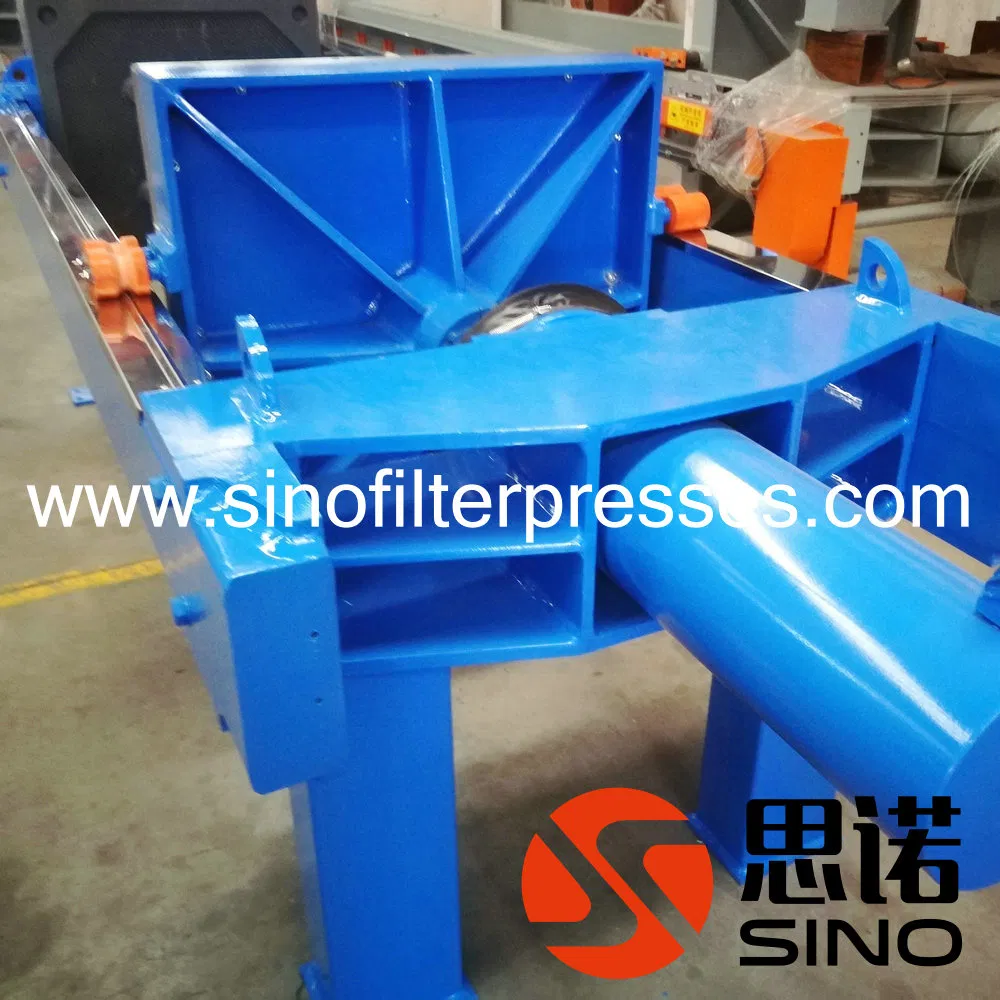

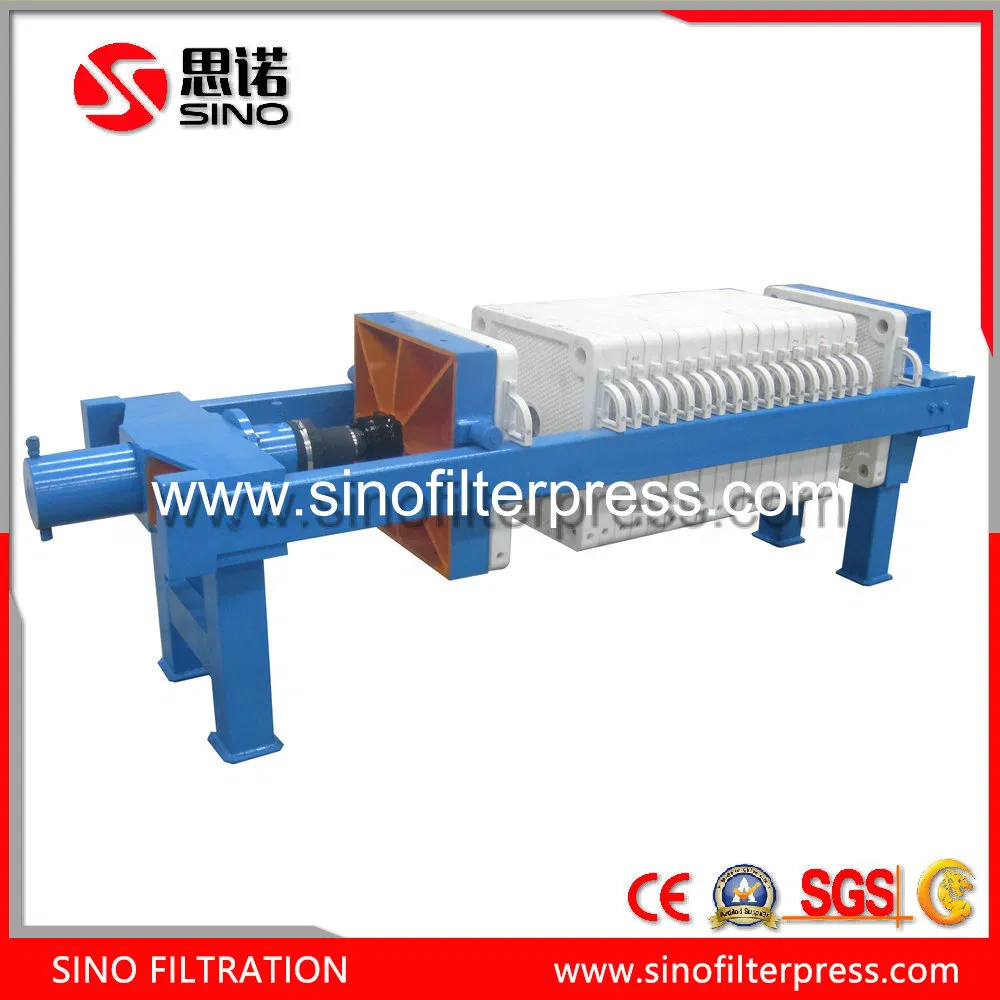

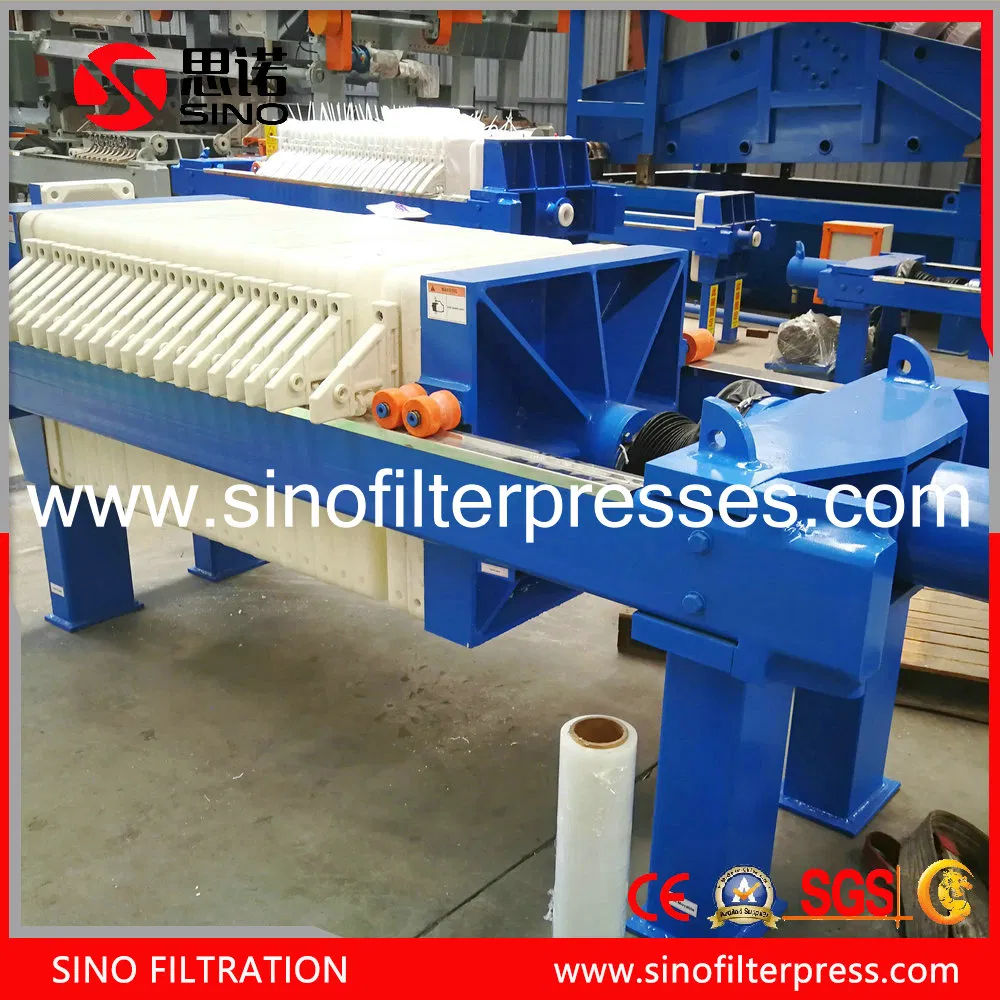

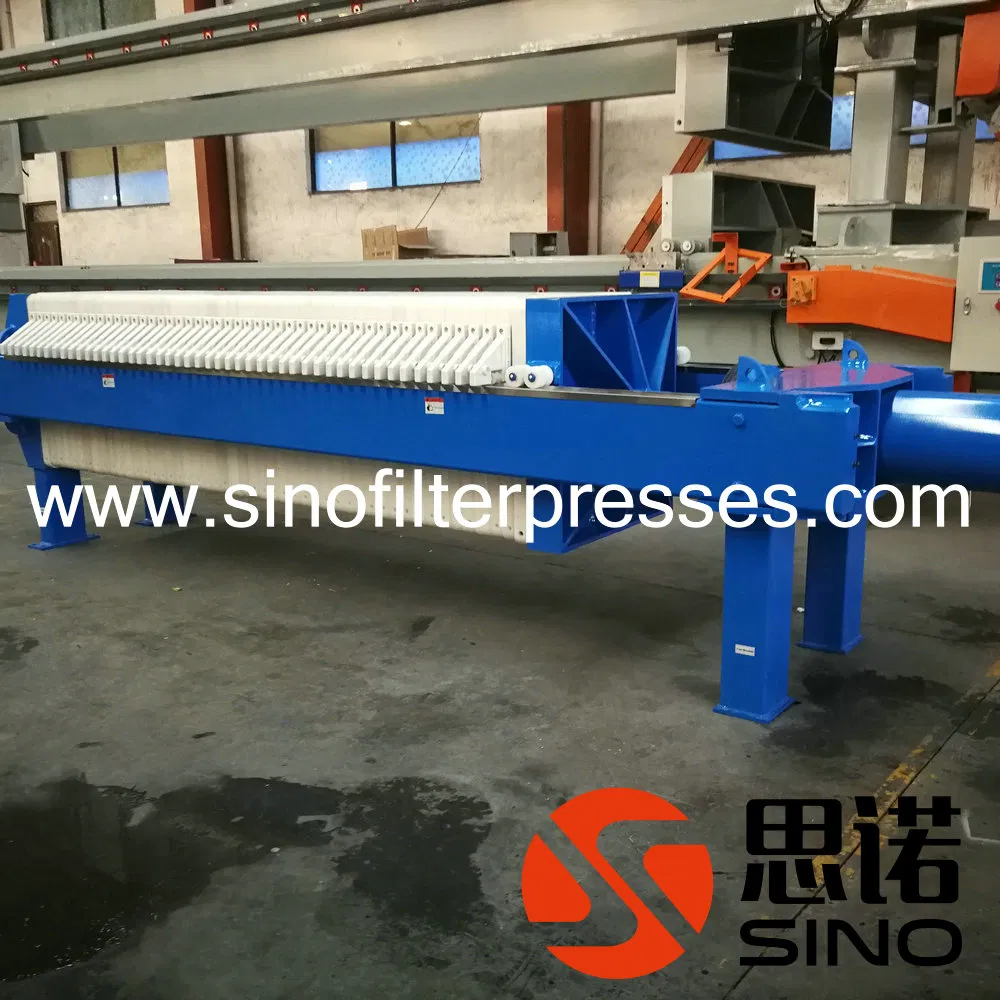

The Chamber filter presses for edible Oil Treatment can be manual, semi-automatic, or automatic handling. The filter chamber of the box filter press is composed of two adjacent concave filter plates.

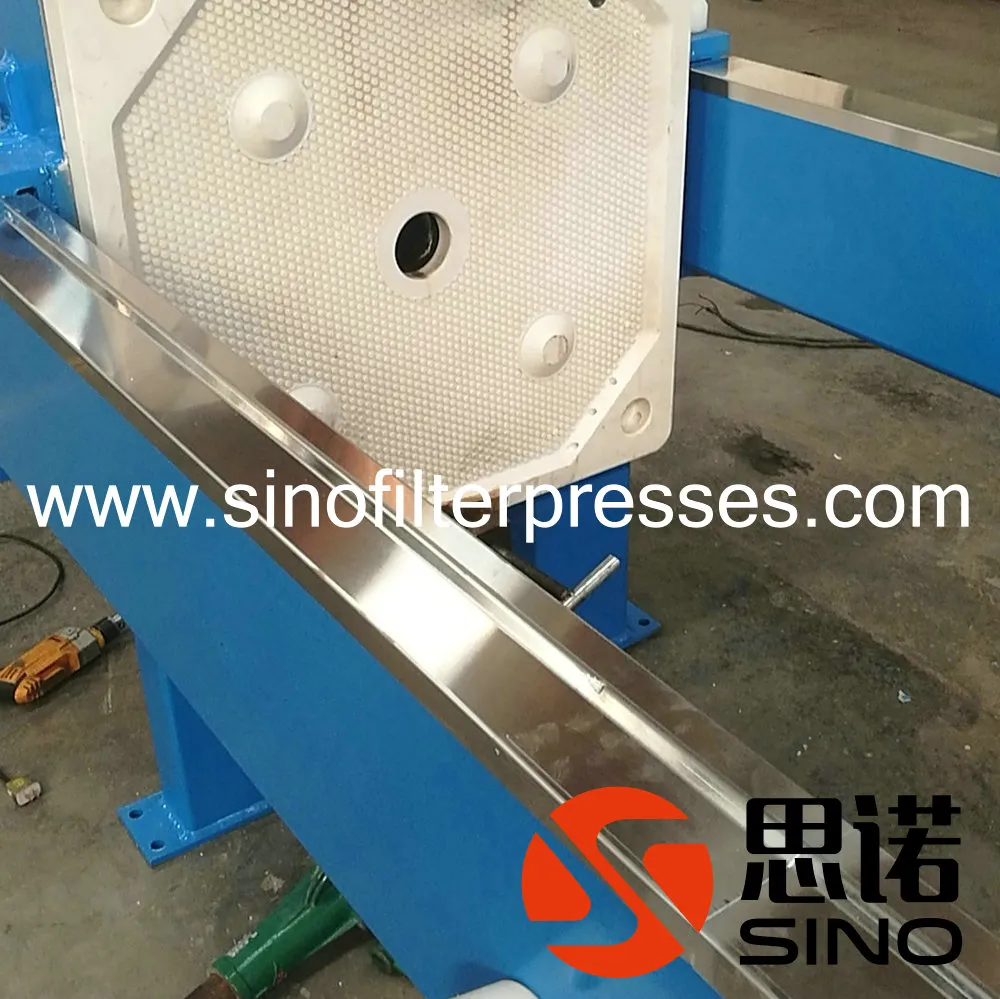

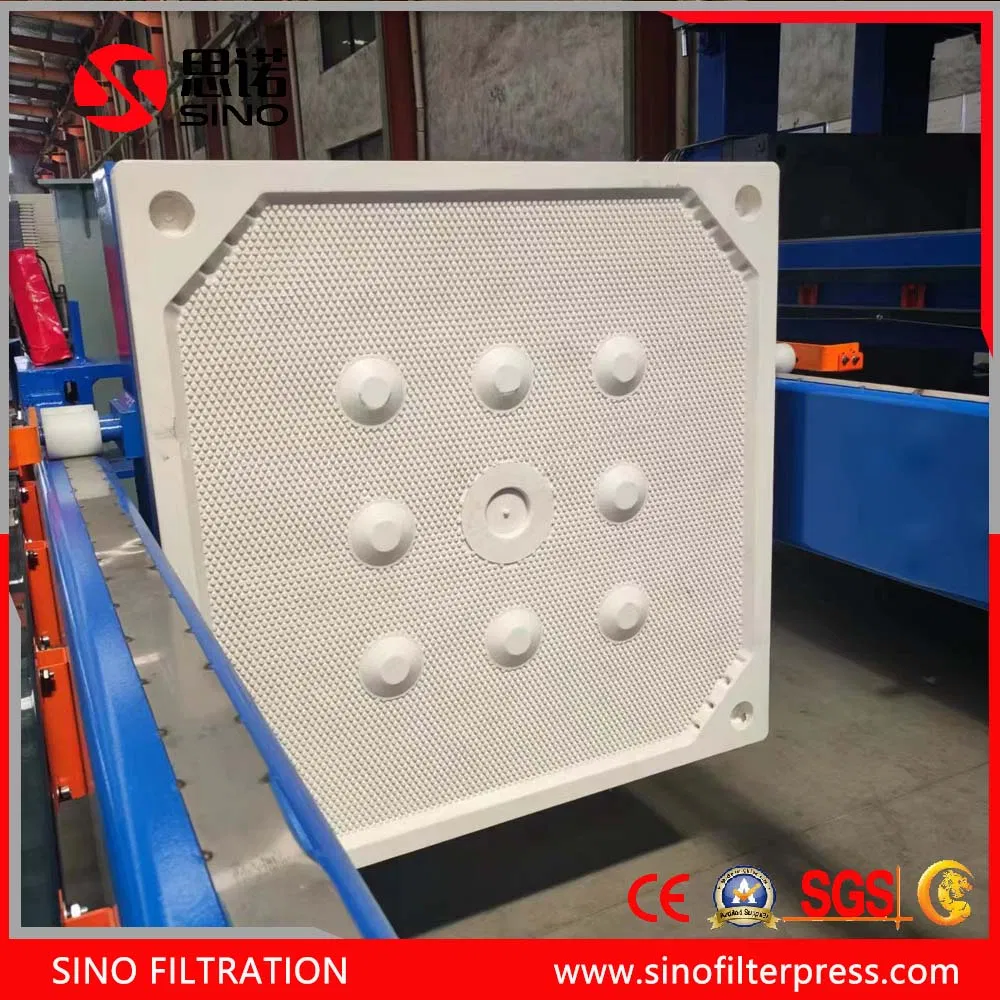

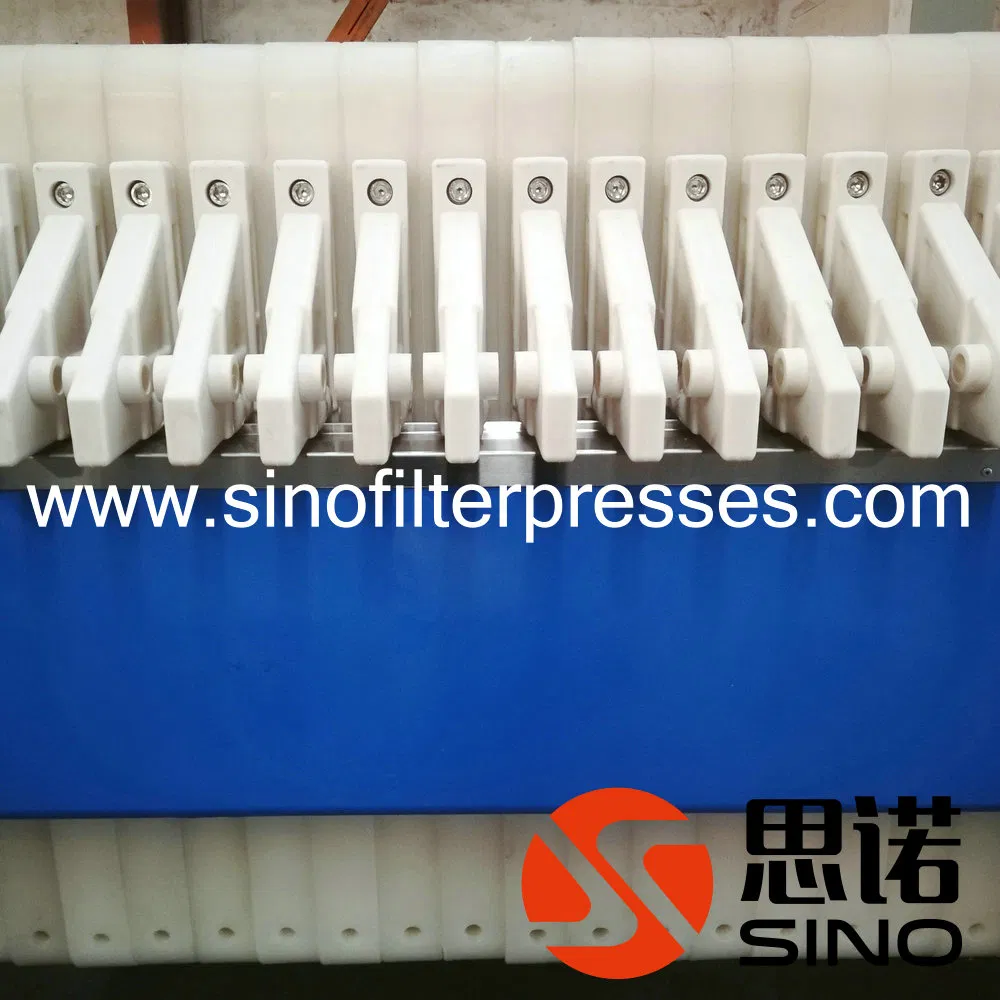

The surface of the filter plate has pits and bosses to support the filter cloth. Under the pressure of the feeding pump, the material liquid is sent to each filter chamber, where solid and liquid are separated through the filter medium. Filter residue forms on the cloth until the chamber is filled into a filter cake. The filtrate passes through the cloth and flows along the groove for centralized discharge. After filtration, the press is opened to remove the cake, and the cloth is cleaned for the next cycle.

• Less loss and higher efficiency during feeding with fast filtering speed.
• High-pressure resistance and low moisture content in the filter cake.
• Lower cost compared to traditional frame and plate filter presses.
• Durable filter plates with high levels of automation for cake removal.
• Capable of handling high temperatures up to 100°C.
• Uniform pressure in each chamber, protecting plates from damage.

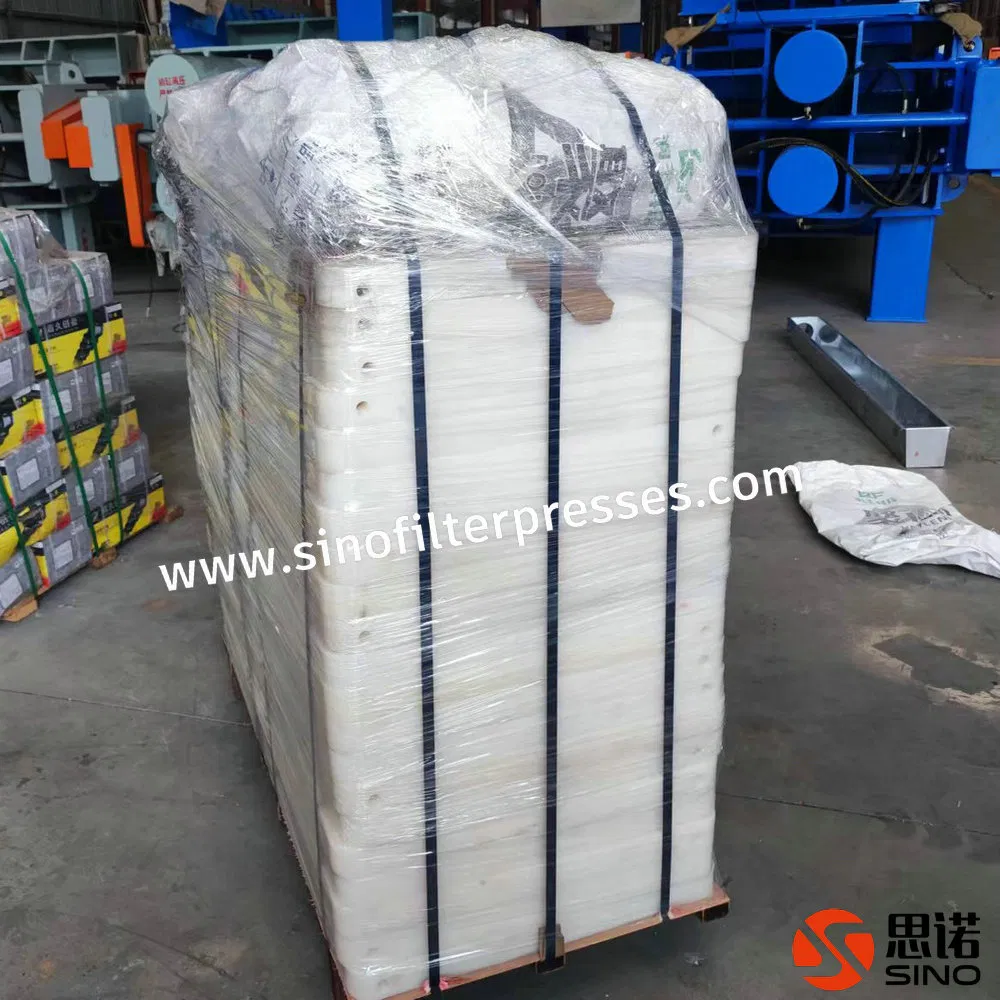

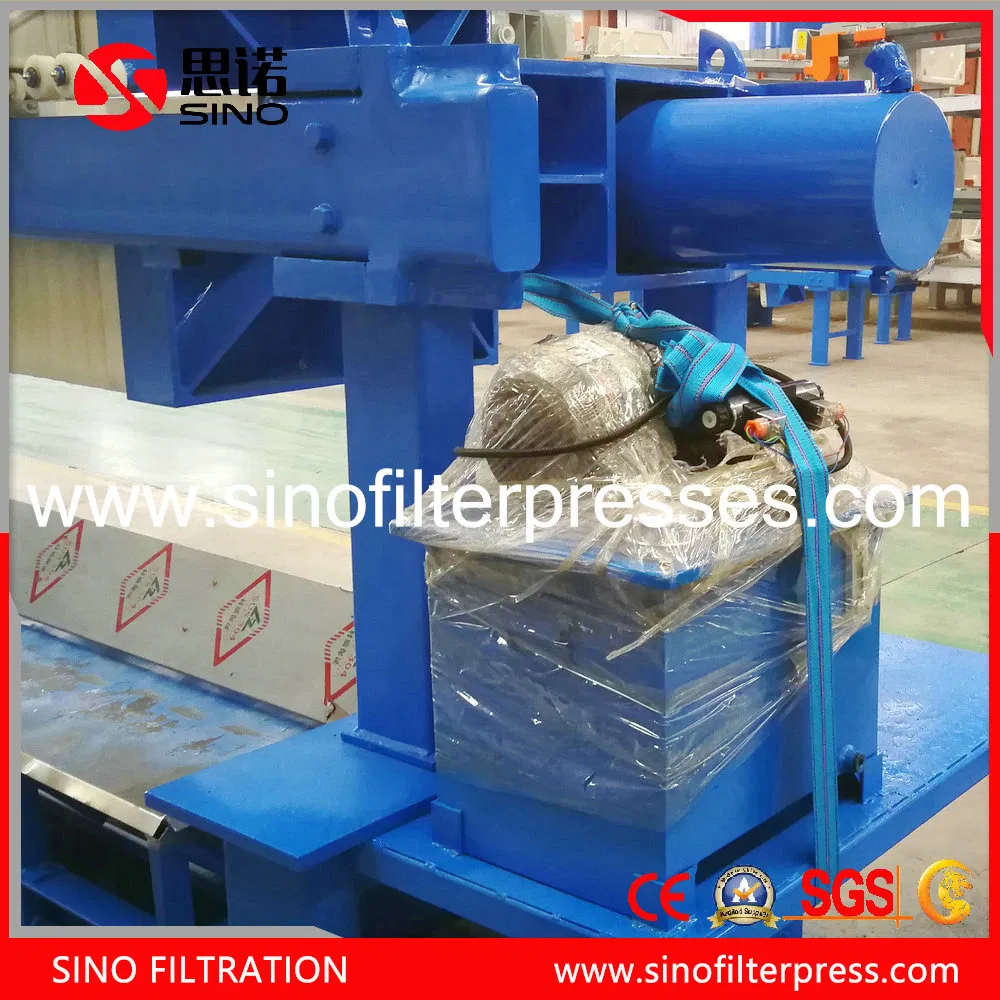

For small filter presses and LCL delivery, we utilize robust wooden cases. For larger models, electrical components are secured in wooden cases, while the main structure is prepared with seaworthy packing.
