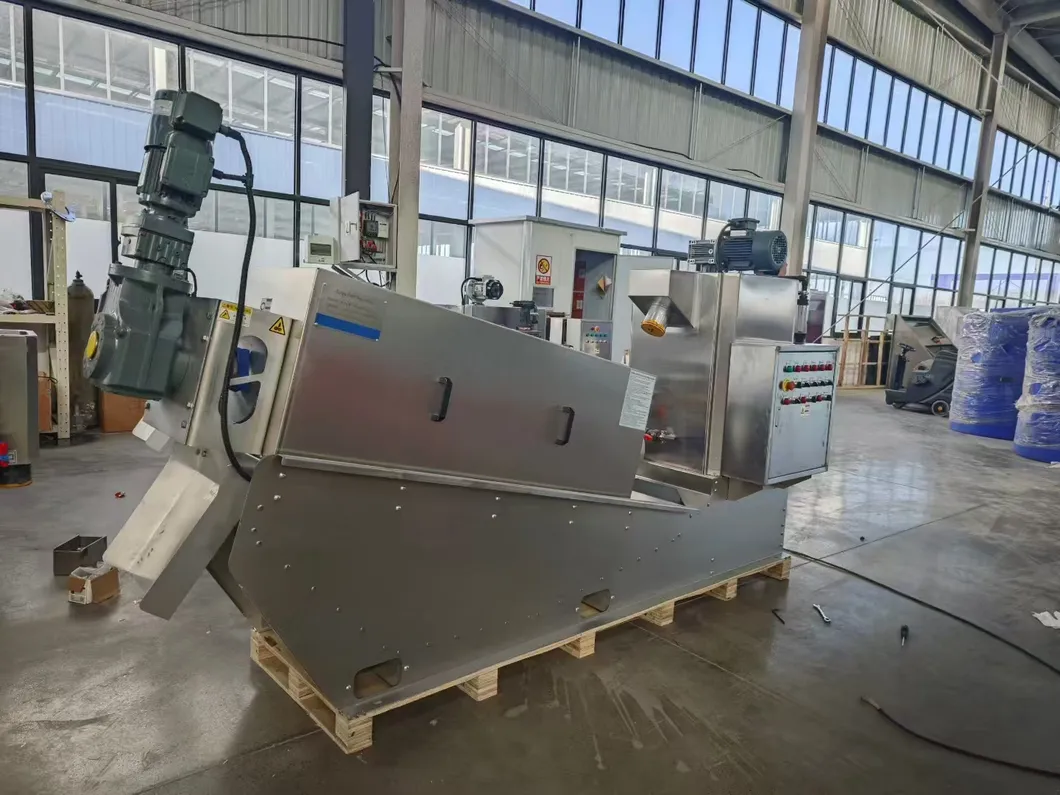

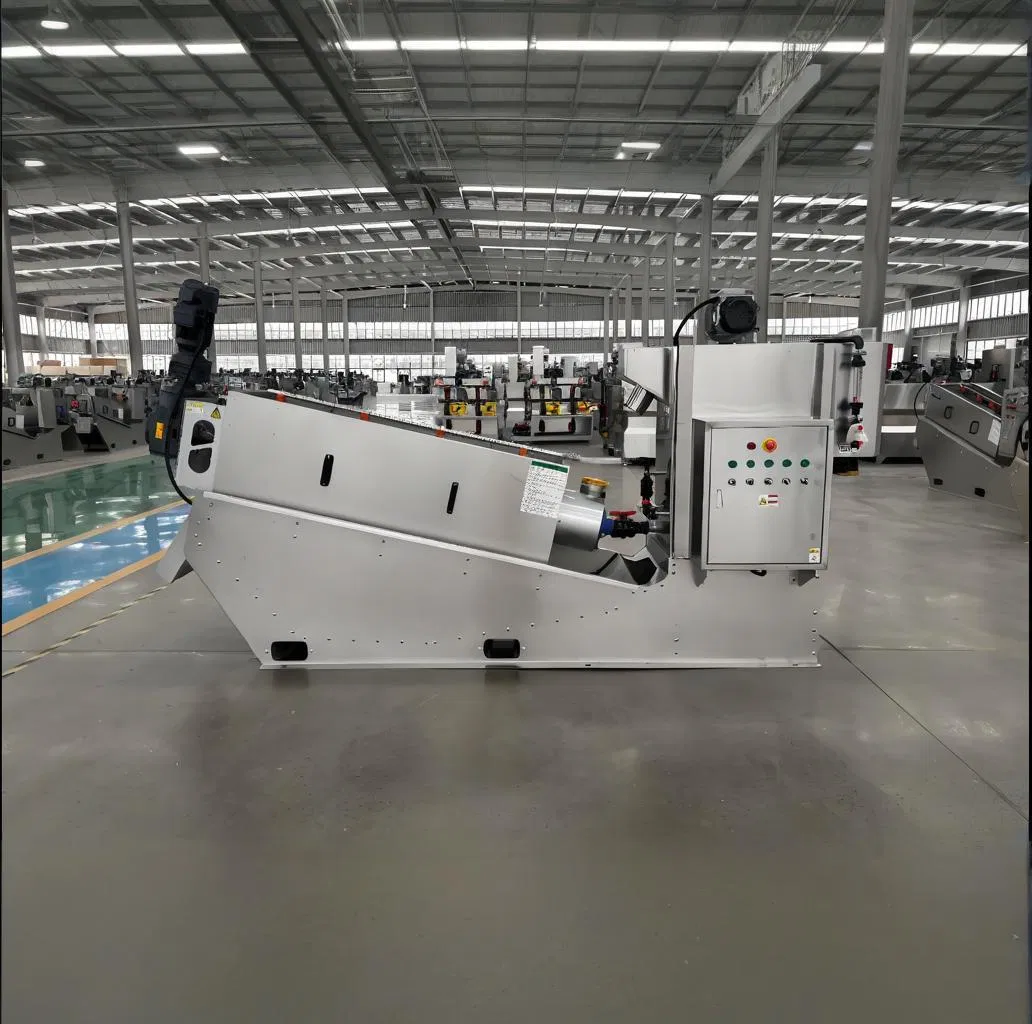

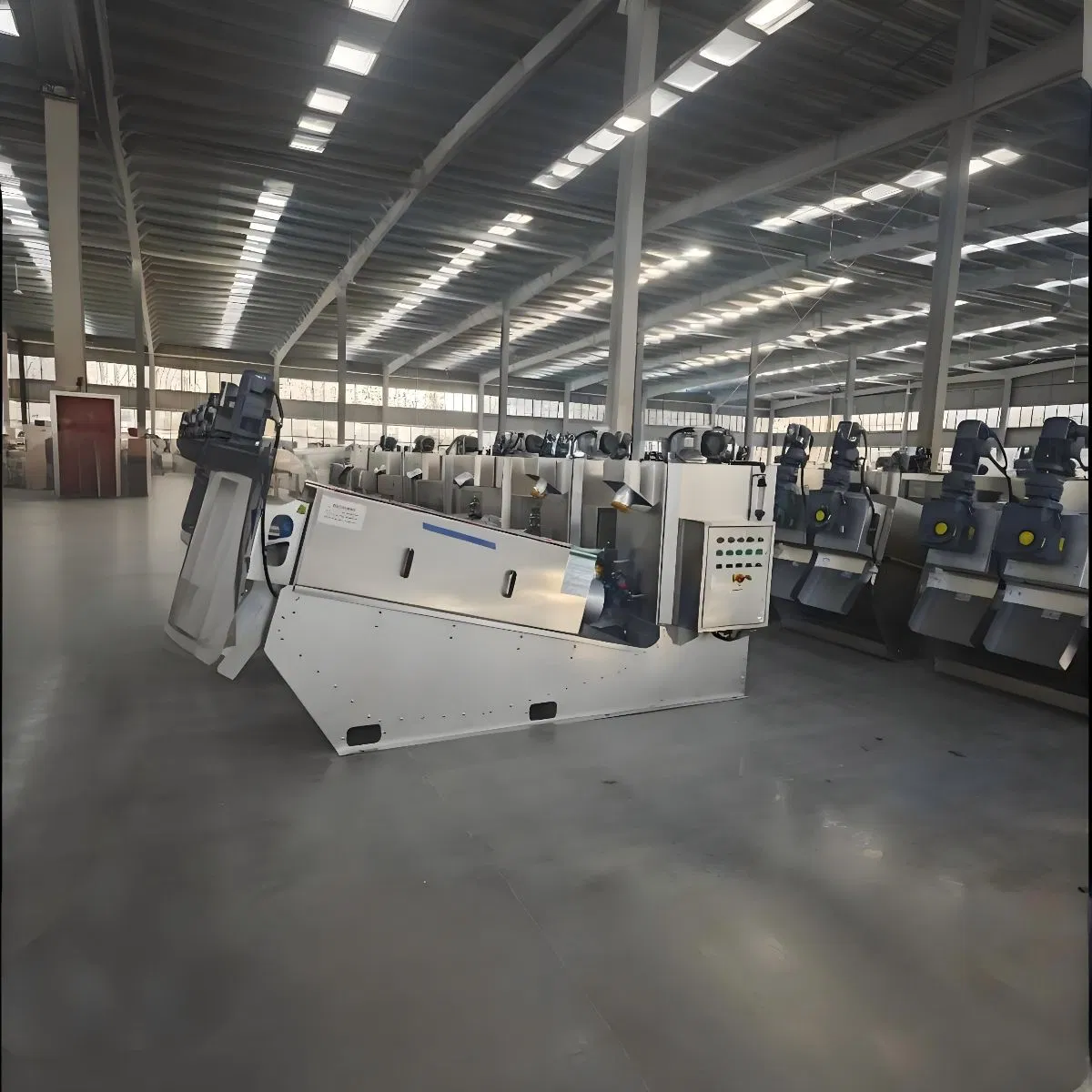

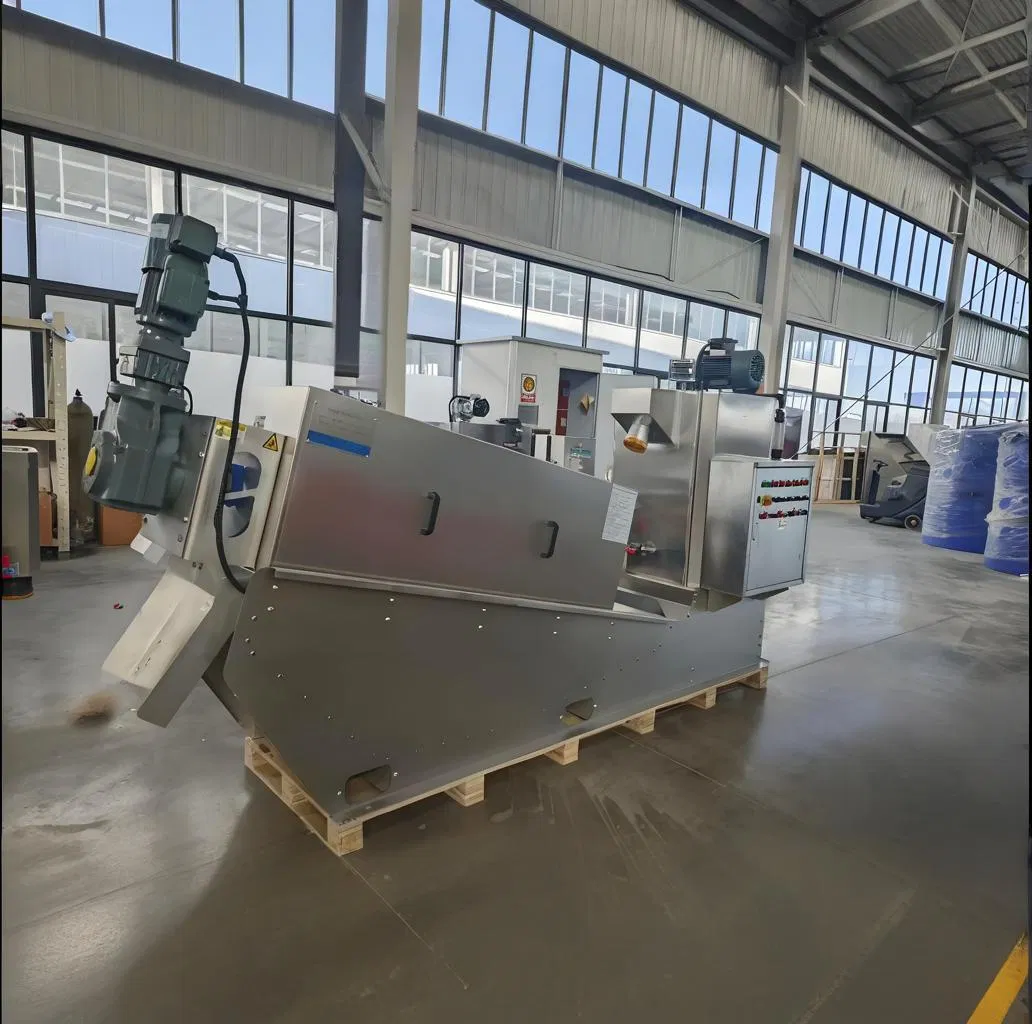

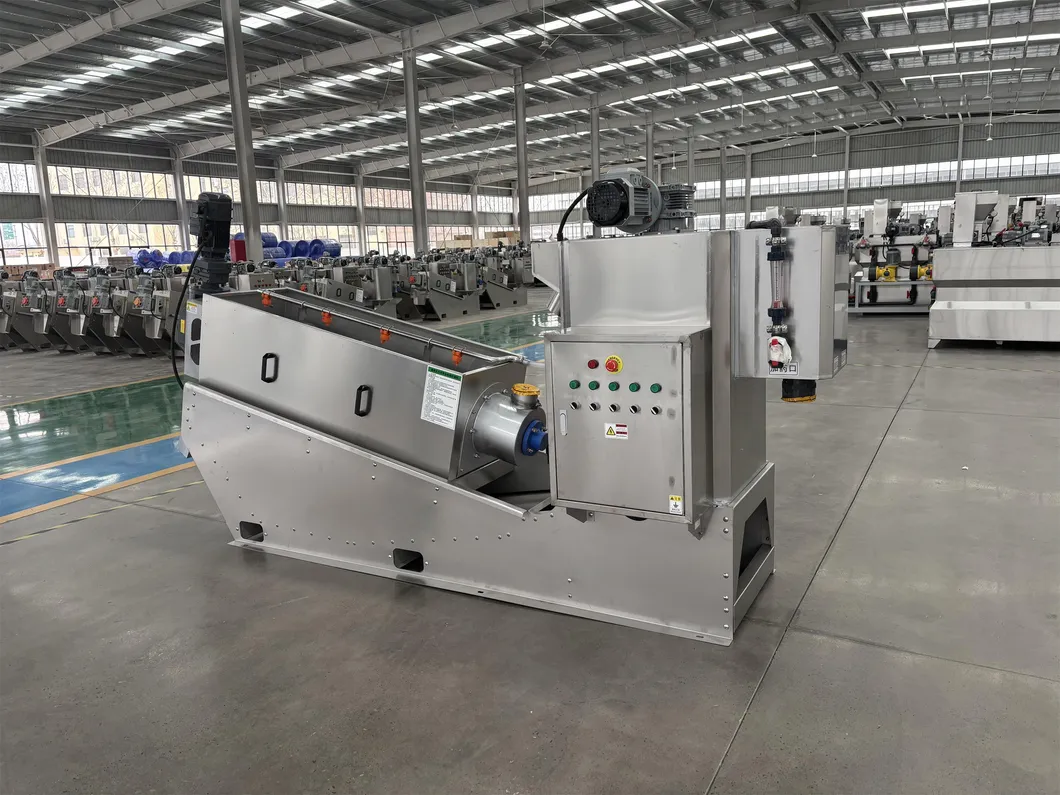

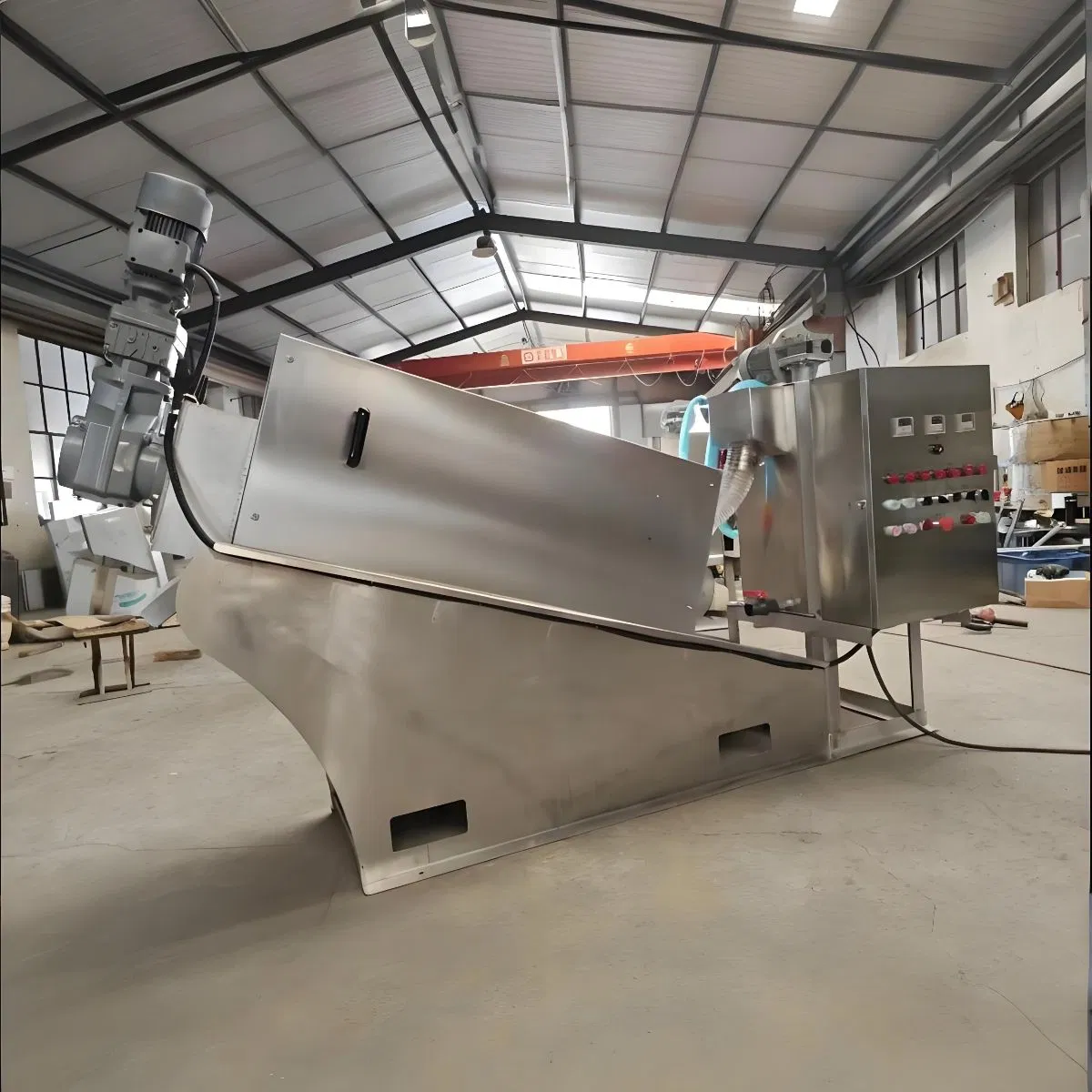

Introduction to the Stacked Snail Sludge Dehydrator:

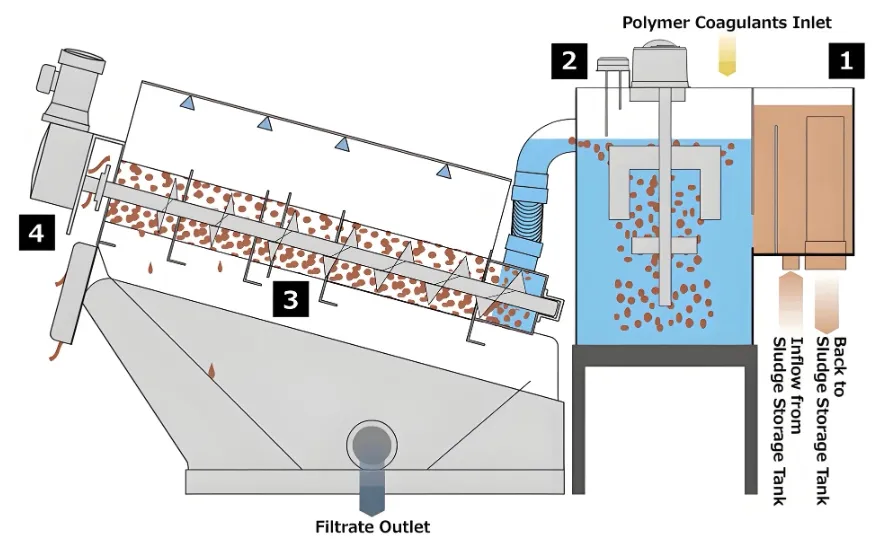

The stacked screw sludge dewatering machine is widely used in water treatment systems for papermaking, municipal sewage treatment projects, as well as industrial sectors such as petrochemicals, light industry, chemical fibers, pharmaceuticals, and leather. The operation has proven that this equipment creates considerable economic and social benefits. The sludge is lifted by a pump to the feeding box, homogenized, and then enters the flocculation system. After forming flocculent alum flowers, the material enters the main body for dewatering. A large amount of filtrate is discharged through the gaps between the stacked sheets, while the squeezed sludge cake is discharged from the outlet, achieving continuous automatic processing.
| Model | Low Conc. (kg/h) | High Conc. (kg/h) | 2000 (mg/L) | 5000 (mg/L) | 10000 (mg/L) | 20000 (mg/L) | 50000 (mg/L) |
|---|---|---|---|---|---|---|---|
| LKDL-131 | 6kg/h | 12kg/h | 3m3/h | 1.2m3/h | 1m3/h | 0.5m3/h | 0.3m3/h |
| LKDL-201 | 9kg/h | 18kg/h | 5m3/h | 2m3/h | 1.5m3/h | 0.8m3/h | 0.5m3/h |
| LKDL-301 | 30kg/h | 60kg/h | 15m3/h | 6.5m3/h | 5m3/h | 2.5m3/h | 1.5m3/h |
| LKDL-401 | 100kg/h | 200kg/h | 20m3/h | 10m3/h | 6m3/h | 6m3/h | 4m3/h |
| LKDL-402 | 200kg/h | 400kg/h | 40m3/h | 20m3/h | 16m3/h | 12m3/h | 8m3/h |
| LKDL-404 | 400kg/h | 800kg/h | 80m3/h | 40m3/h | 32m3/h | 24m3/h | 16m3/h |
Ecological environmental protection is vital for present and future generations. Standardizing water treatment facilities is a crucial step in protecting our environment. The company holds ISO9001, ISO28001, and ISO24001 certifications, backed by core patented technologies.
Our scope includes integrated wastewater treatment equipment, air flotation machines, sedimentation tanks, sludge dewatering machines, and disinfection equipment. We are committed to providing effective water treatment solutions with equipment known for simple operation and long service life.
