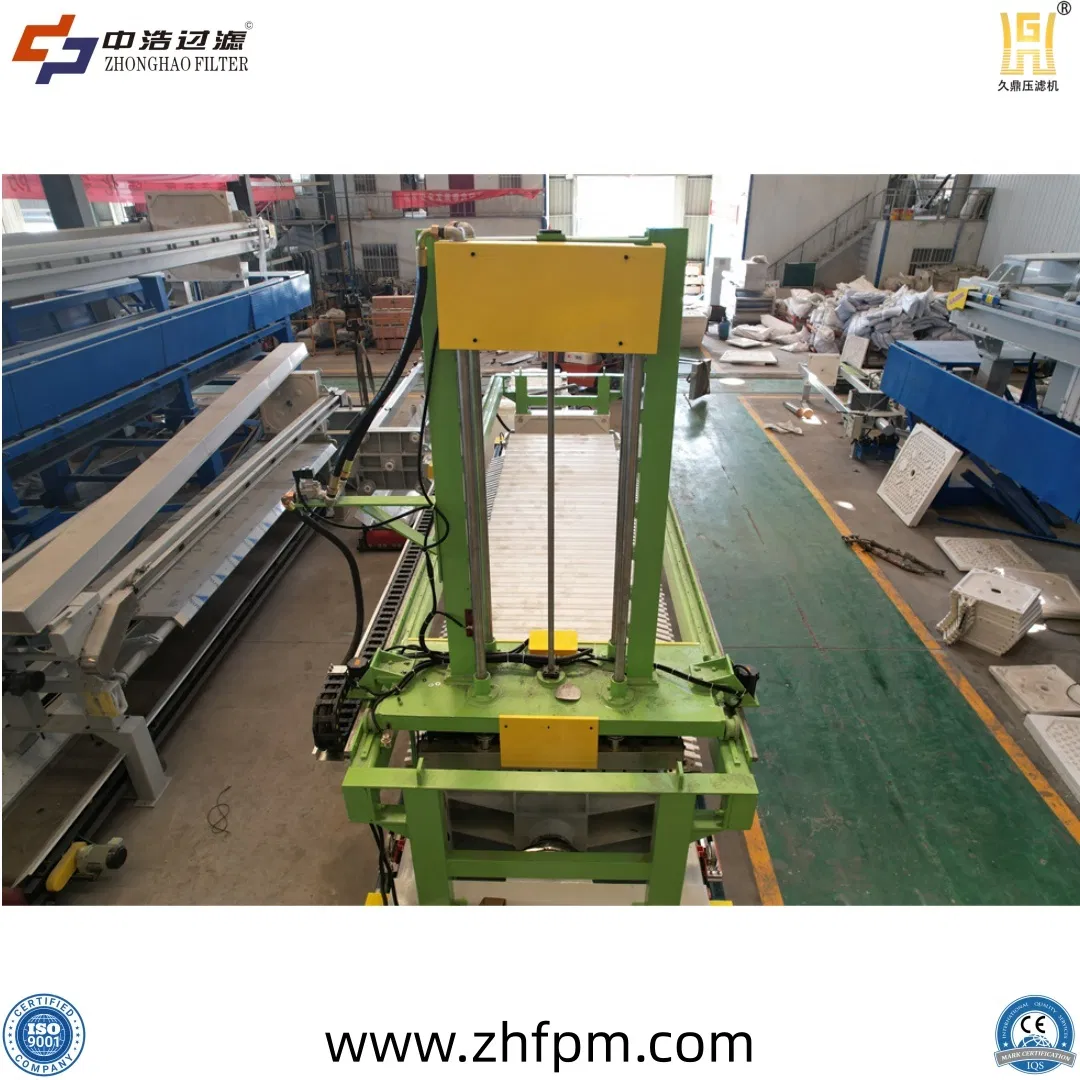

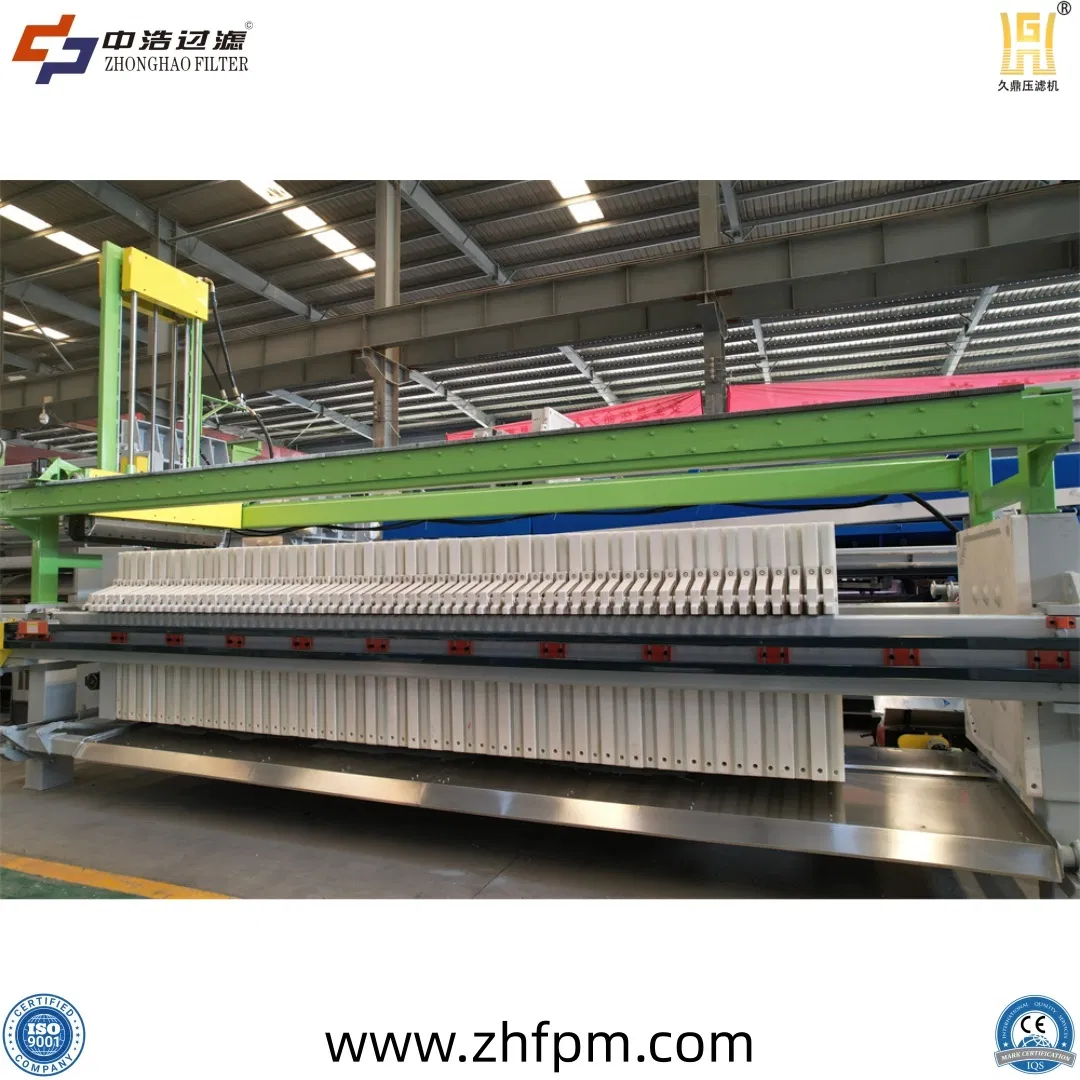

Hydraulic Press System for Automatic Cloth Washing Filter Press

1 / 5

Hydraulic Press System for Automatic Cloth Washing Filter Press

Customization:	Available
Structure:	Cantilever Beam Type
Filter Material:	PP or Stainless Steel or Carbon Steel

Send Inquiry

Product Description

Basic Specifications

Pressure

Hydraulic / Manual / Mechanical

Type

Chamber Filter Press

Filtration Pressure

0.6-2.5MPa

Hydraulic Power

3kw-11kw

Beam Material

Carbon Steel / PP Coated / Stainless Steel

Control System

PLC Intelligent Control

Drip Tray

Optional

Belt Conveyor

Optional

Origin

China

Capacity

6000 sets/Year

Product Description & Application

Chamber Filter Press Overview

Our filter press is specially designed for sand washing plants and industrial wastewater treatment. It efficiently separates solid and liquid, reducing moisture content of the filter cake to below 30%. The machine features automatic plate shifting, hydraulic closing, and PLC intelligent control for easy operation and stable performance.

Application Industries

Sand washing and stone processing
Mining and metallurgy tailings treatment
Chemical, pharmaceutical, and food processing
Municipal and industrial wastewater treatment
Ceramic, paper, and dyeing industries

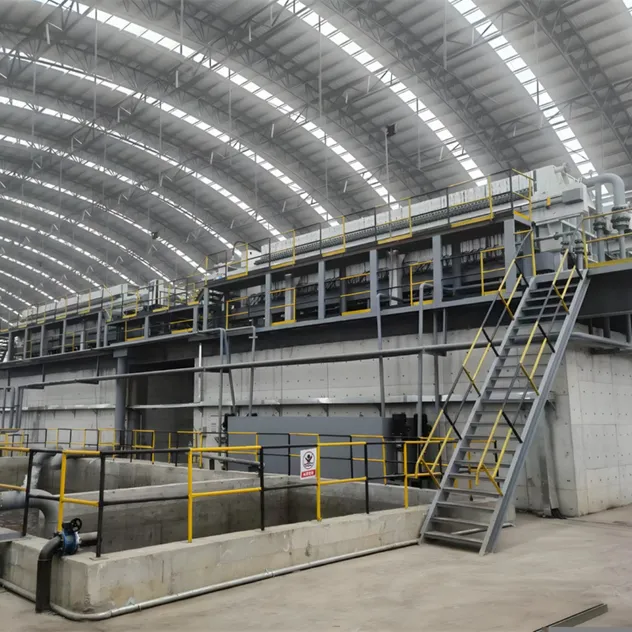

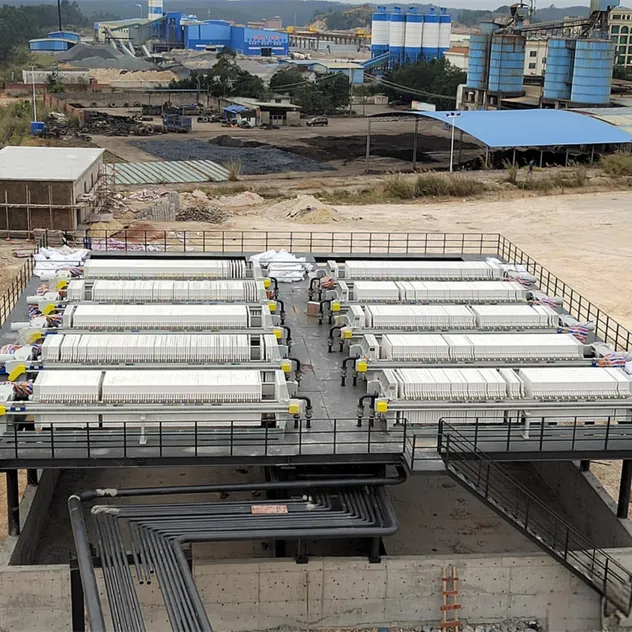

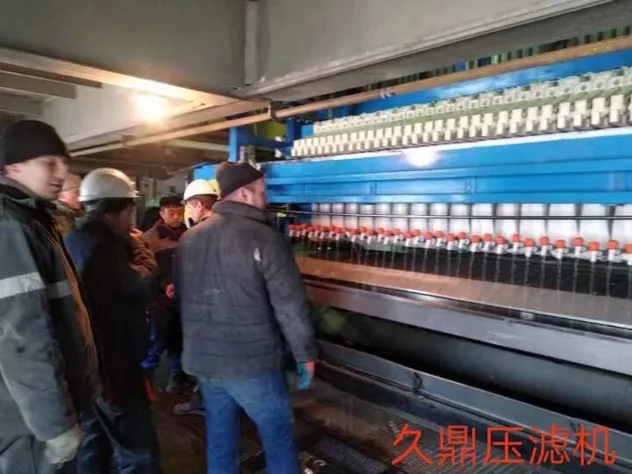

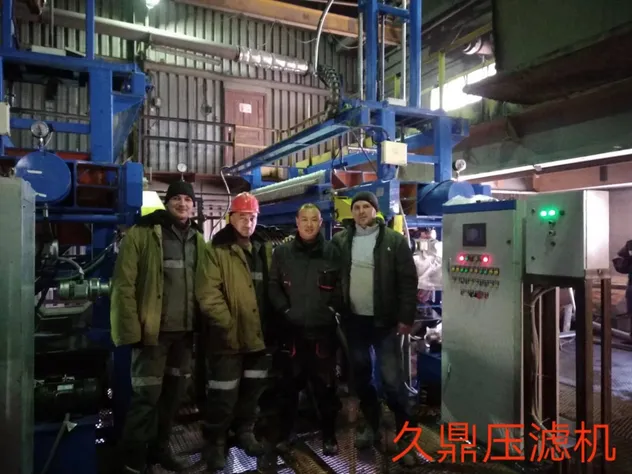

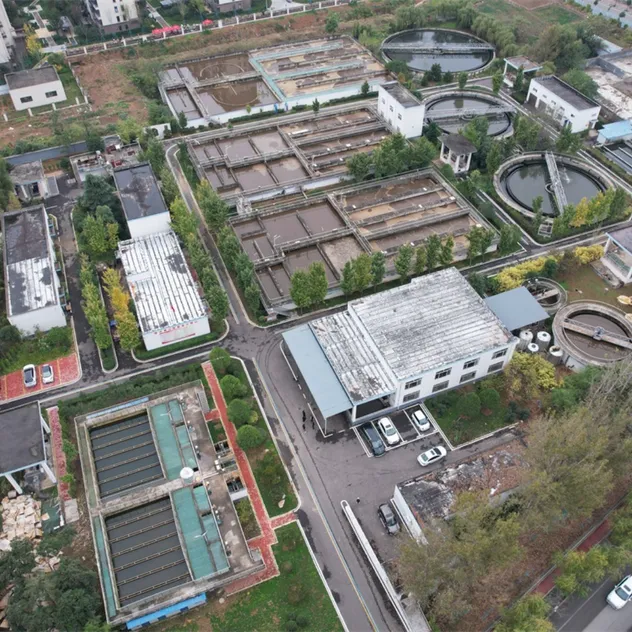

Project Cases & Site Applications

Our filter presses have been widely used in sand washing plants, mining tailings treatment, and municipal wastewater projects worldwide.

Technical Specification

Model	Filtration Area (m²)	Plate Size (mm)	Cake Thickness (mm)	Chamber Volume (L)	Plate Qty (pcs)	Pressure (Mpa)	Power (kw)	Weight (kg)	Dimensions (LWH mm)
XY10/450-30U	10	500×500	30	151	24	0.6	2.2	1010	2700×700×900
XY20/630-30U	20	700×700	30	297	24	0.6	2.2	1993	3140x900x1100
XY40/800-30U	40	800×800	30	606	38	0.6	2.2	2450	4300x1400x1300
XAY60/870-30U	60	870×870	30	902	46	0.6	2.2	3712	4650x1300x1300
XZ100/1000-30U	100	1000×1000	30	1505	57	0.6	3.0	6628	5780X1500X1400
XZ200/1250-30U	200	1250×1250	30	2972	72	0.6	5.5	13504	7510×1850×1600
XZ400/1500-30U	400	1500×1500	30	6049	99	0.6	7.5	32574	10140×2100×1820

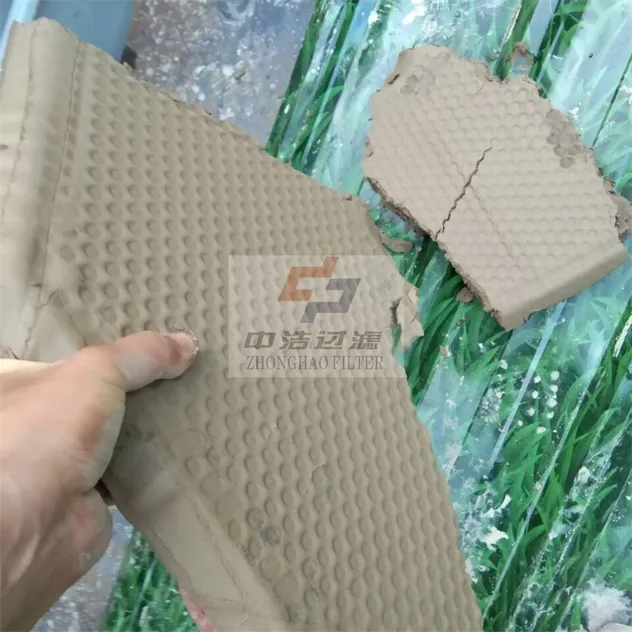

Filter Cake & Filtrate Effect

The filter cake after pressing is firm and easy to discharge, while the filtrate is clear and reusable.

Low moisture content filter cake

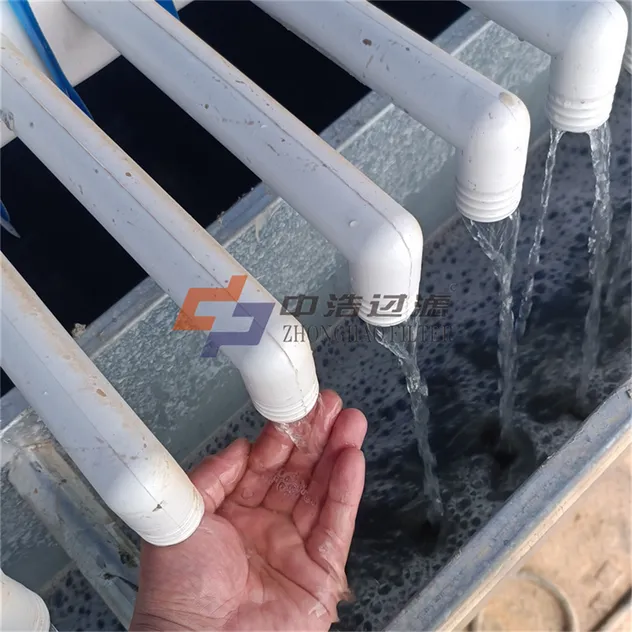

Clear filtrate, can be reused for washing or recycling
Significant reduction in waste discharge

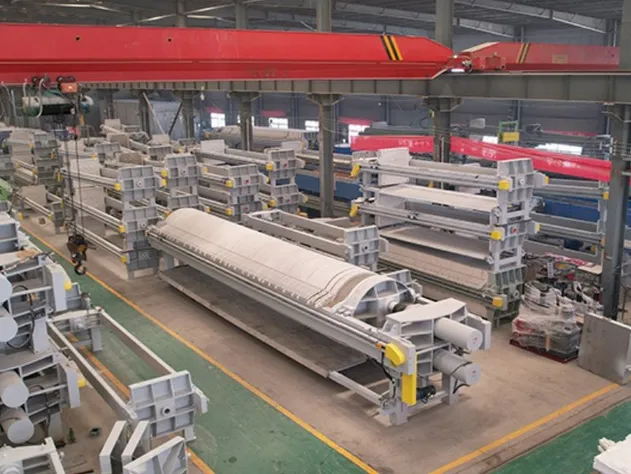

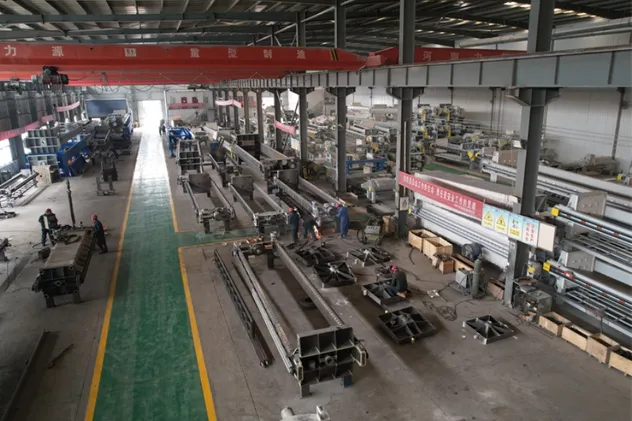

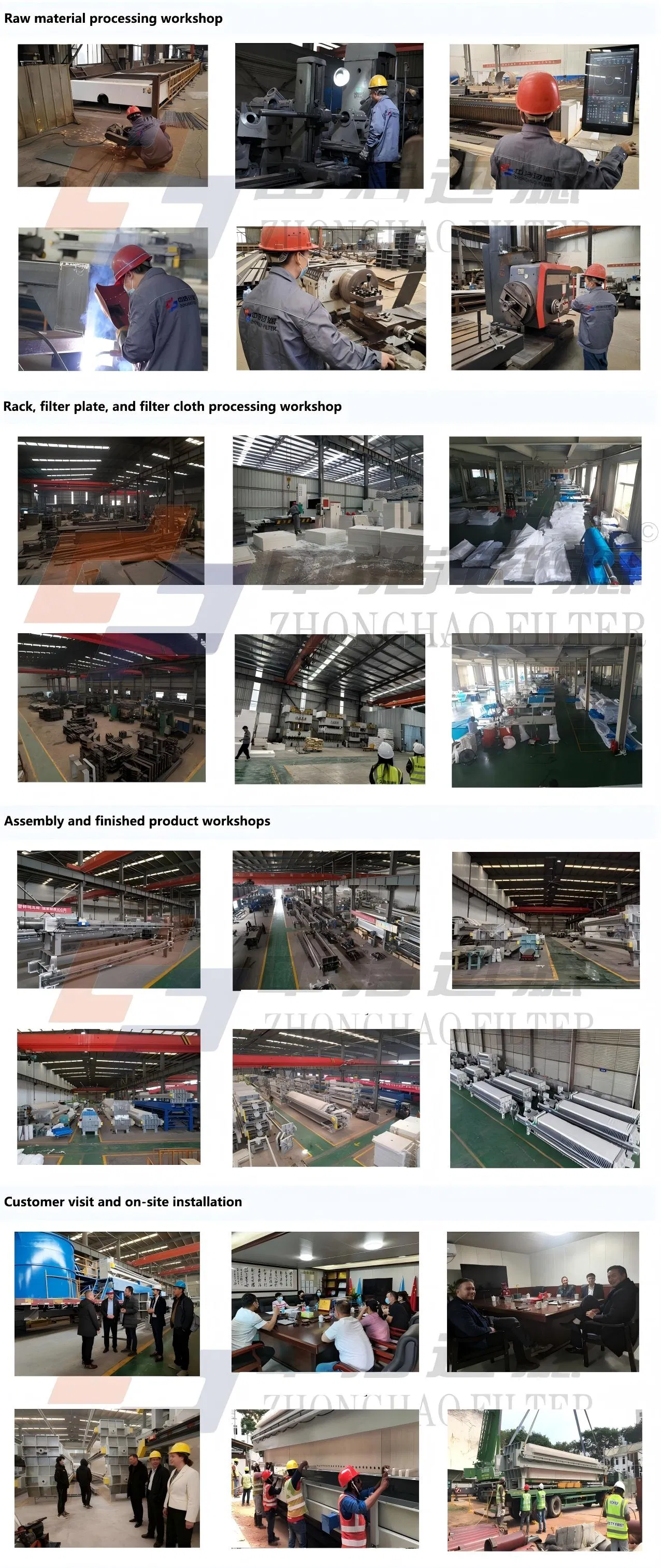

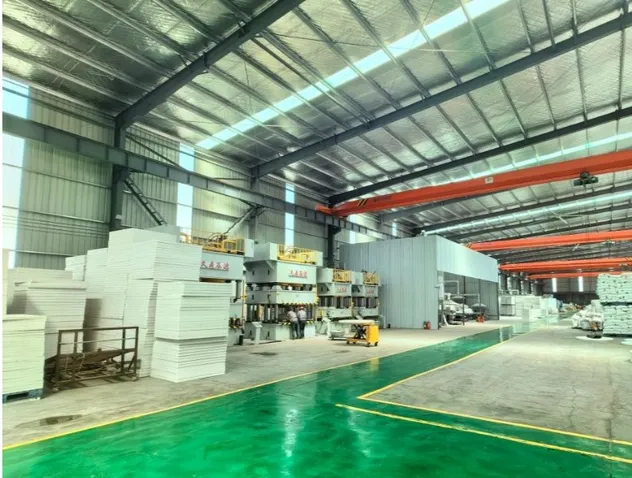

Workshop & Manufacturing Process

We utilize advanced CNC machining centers, welding robots, and strict quality control systems to ensure every unit meets industrial standards.

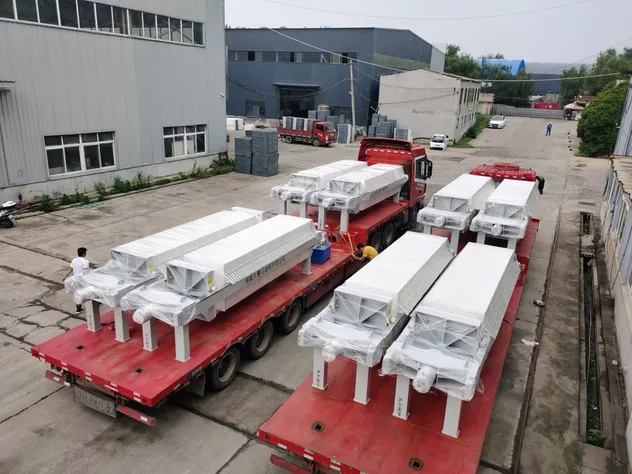

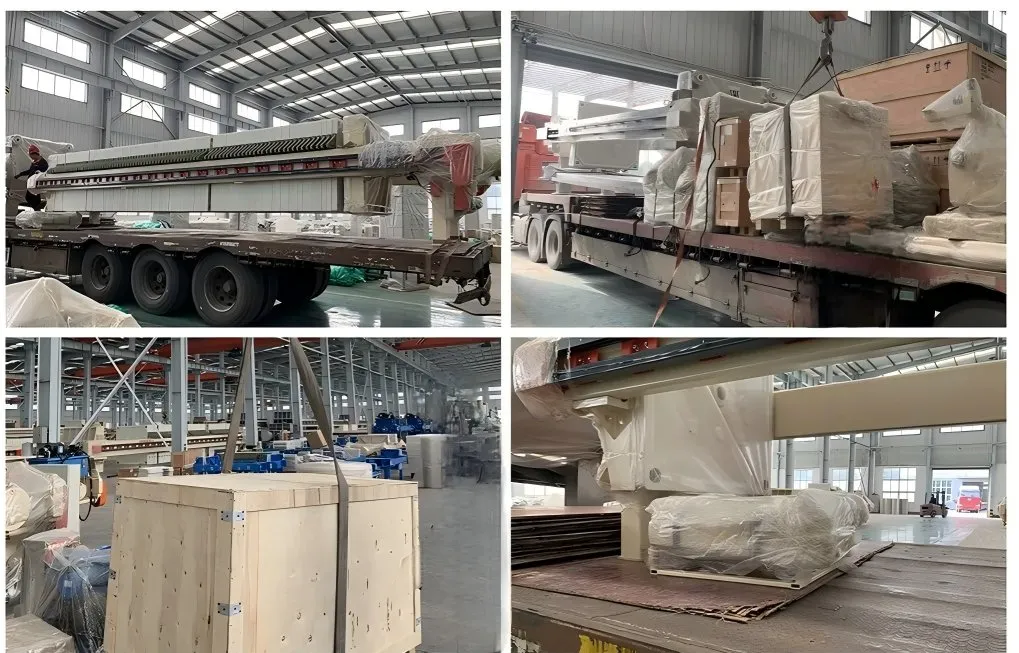

Packing & Delivery

Standard export packing: plastic film and steel frame
Delivery time: 15–30 days after deposit
Transportation: By sea, land, or as per customer request

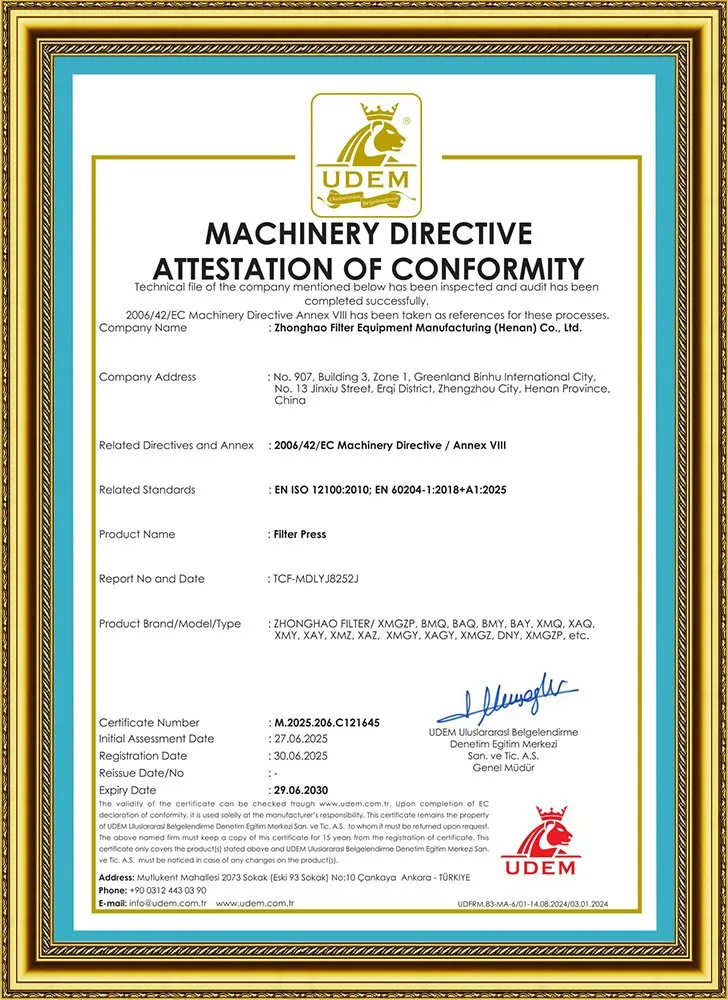

Certifications & Quality Assurance

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer with our own dedicated production workshop and advanced machining equipment.

Can the machine be customized to specific requirements?

Yes, we provide full customization for plate sizes, chamber volumes, filtration pressures, and materials to suit your specific industrial needs.

What is the typical delivery time for an order?

Standard delivery typically ranges between 15 to 30 days after the initial deposit is received.

What control systems do your filter presses use?

Our machines are equipped with high-performance PLC intelligent control systems for stable, automated, and easy operation.

What kind of after-sales service do you provide?

We offer a one-year warranty for main parts, 24-hour online technical support, and engineers are available for overseas installation and commissioning.

What is the moisture content of the final filter cake?

Our chamber filter presses can efficiently reduce the moisture content of the filter cake to below 30%, making it firm and easy to handle.
