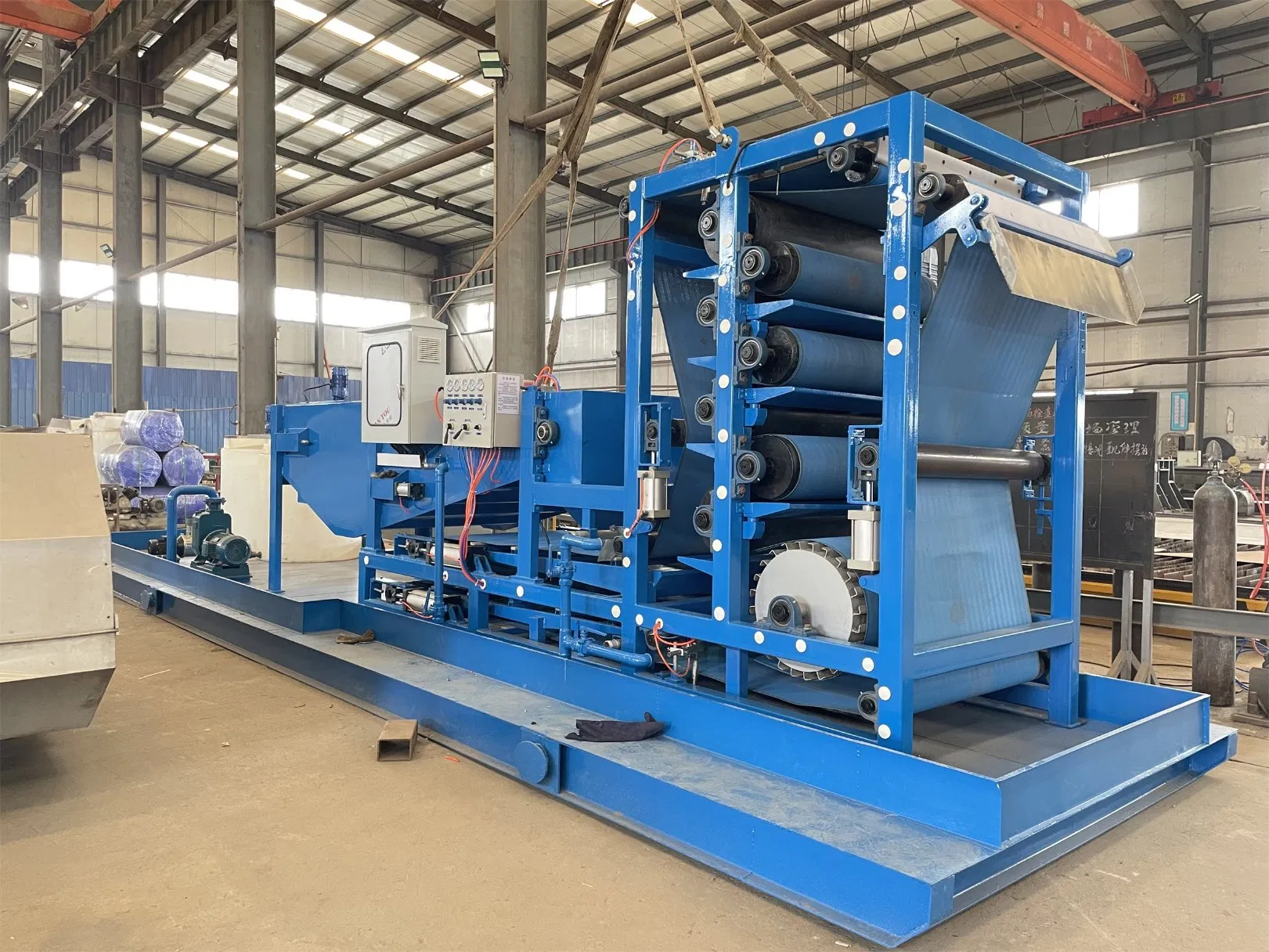

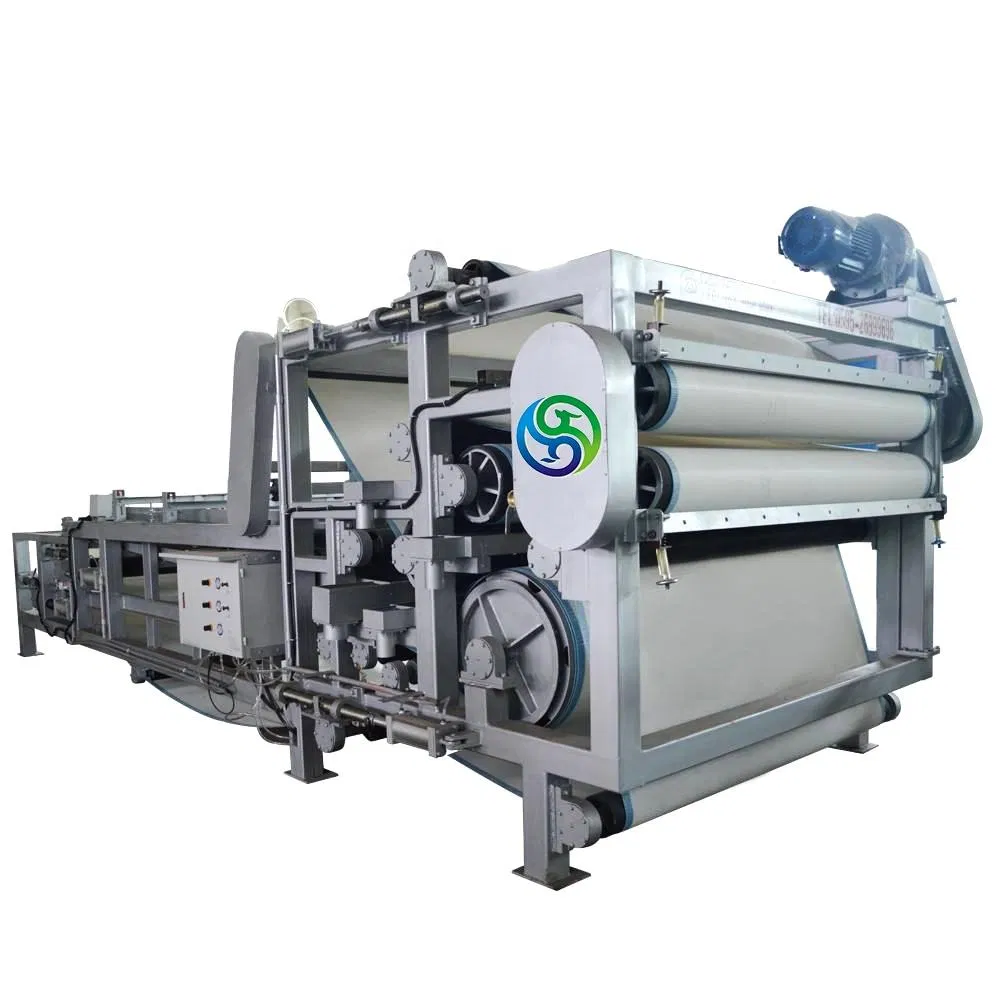

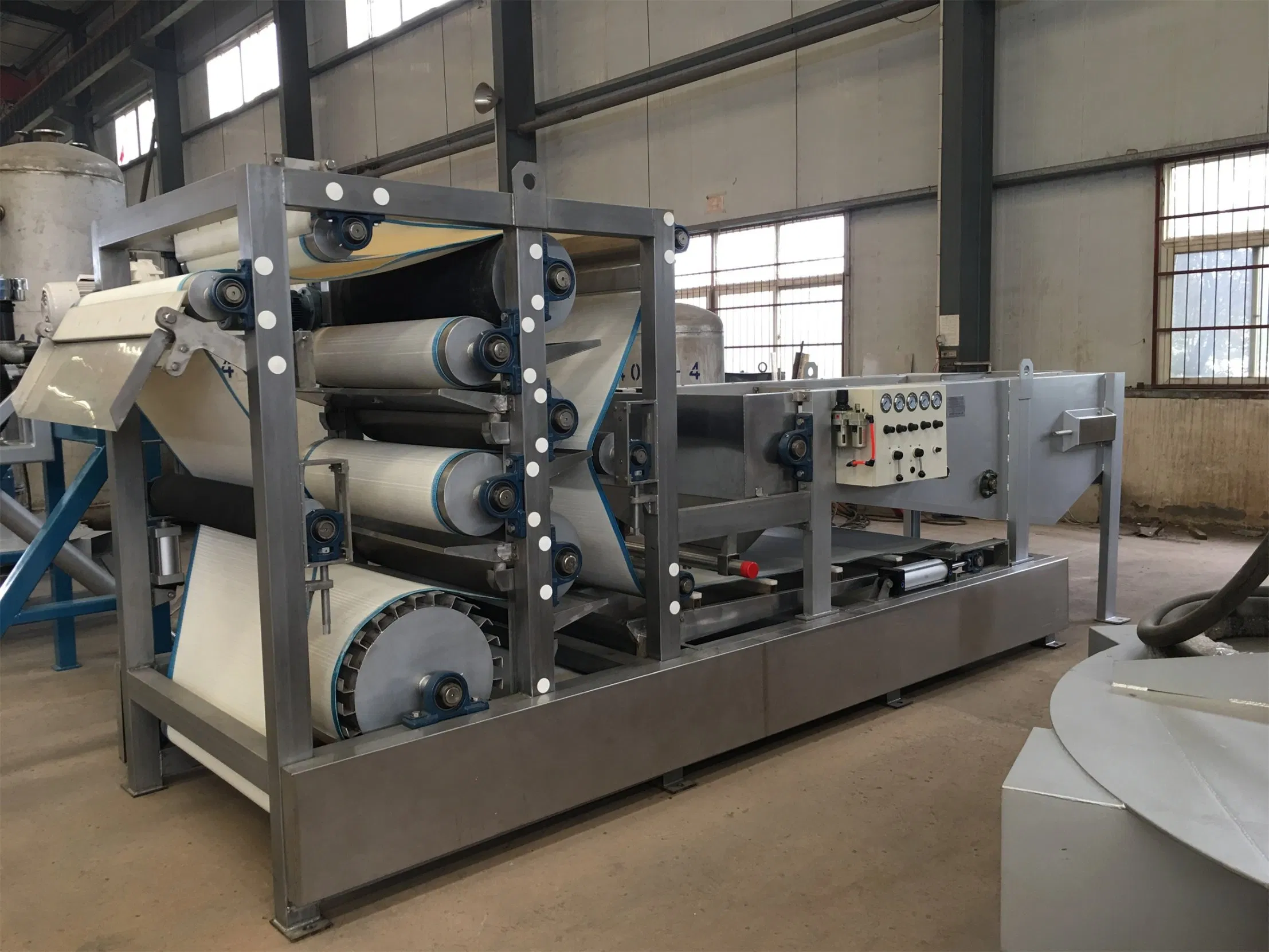

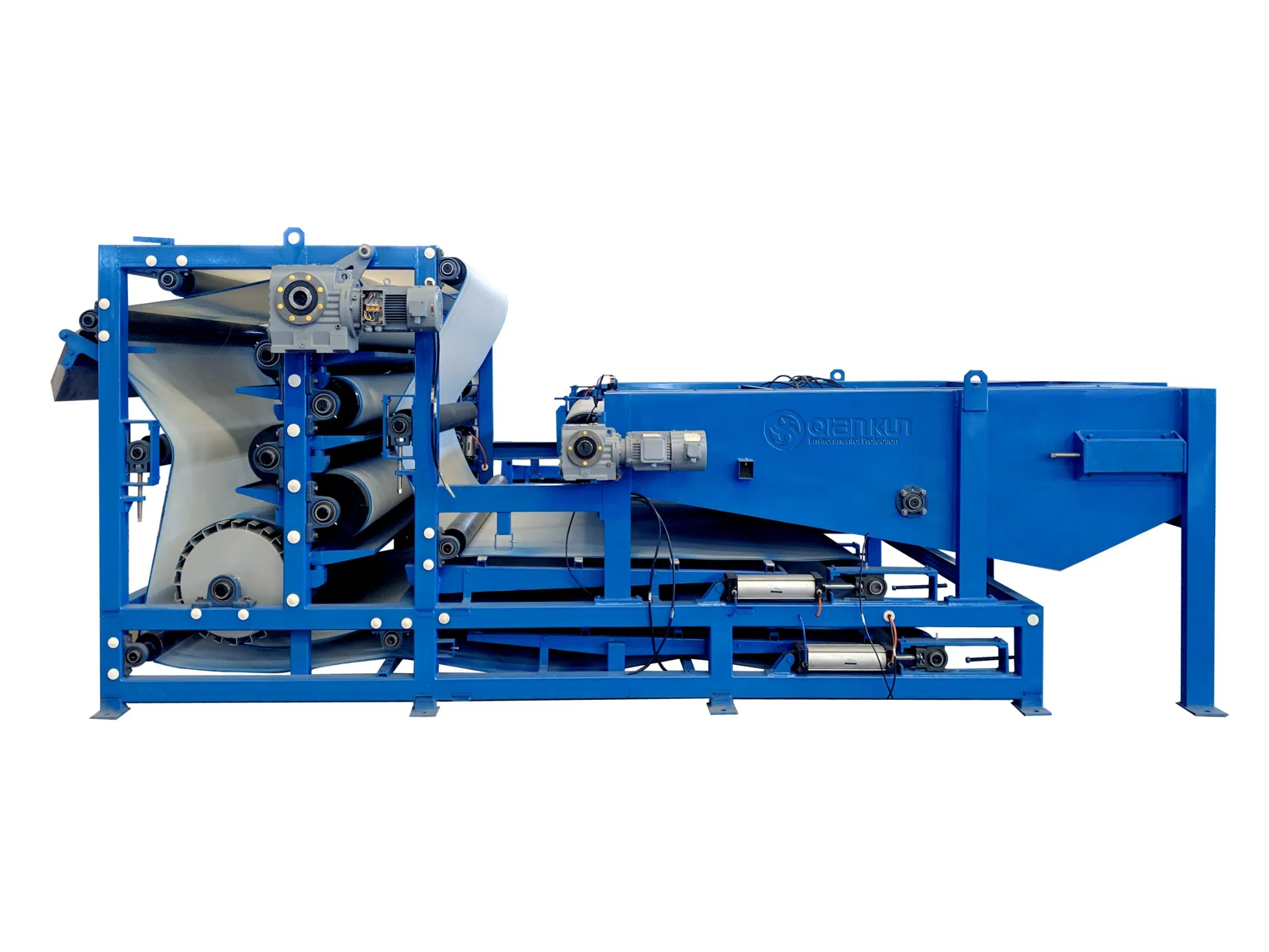

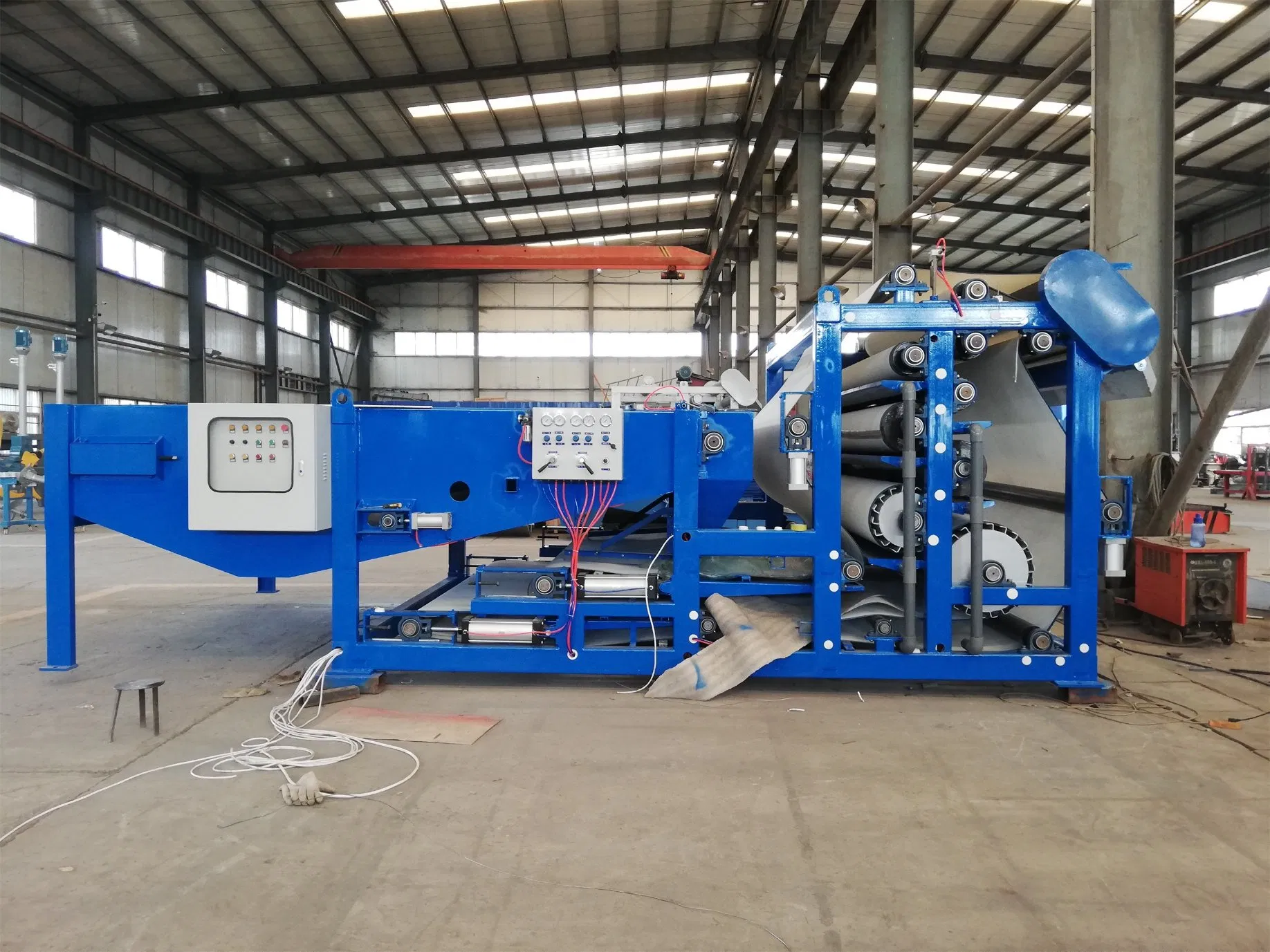

This belt press is used for solid & liquid separation processes, particularly sludge dewatering in chemical industries, paper mills, printing and dyeing mills, mining, and water treatment fields.

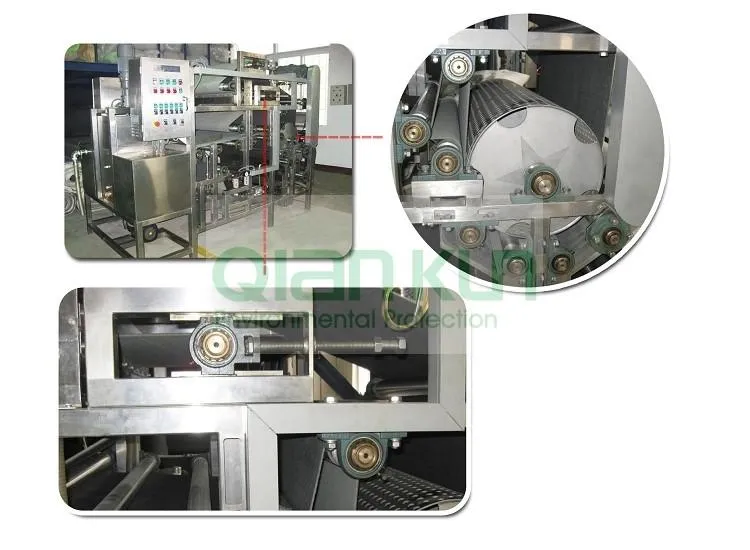

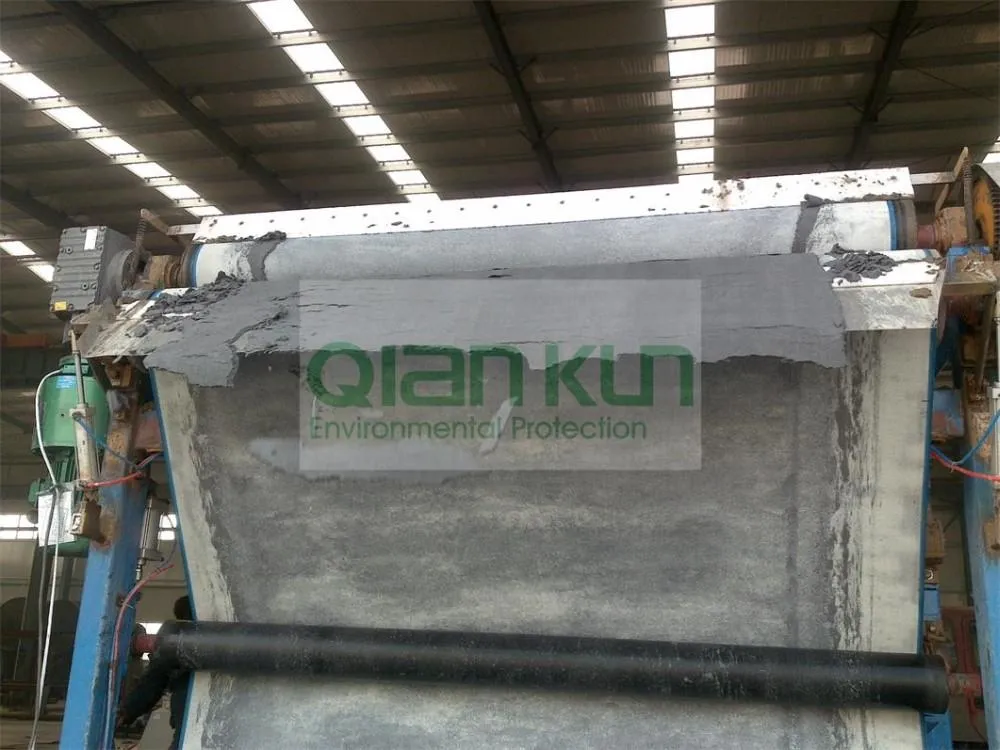

The dewatering process is primarily obtained by passing a pair of filtering cloths and belts through a system of rollers. The system takes sludge or slurry as a feed and separates it into a filtrate and a solid cake.

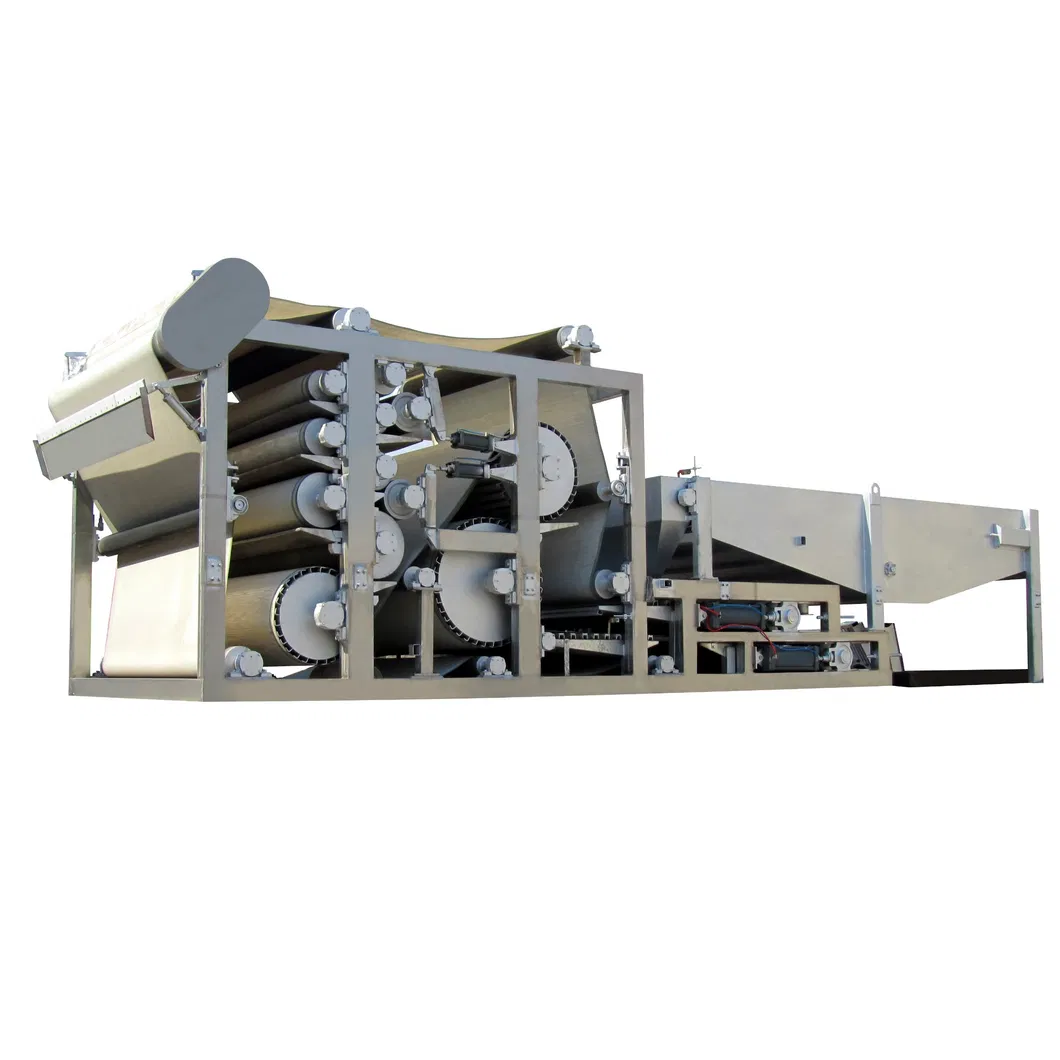

1. Dewatering Belt Press is a biosolids/sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry.

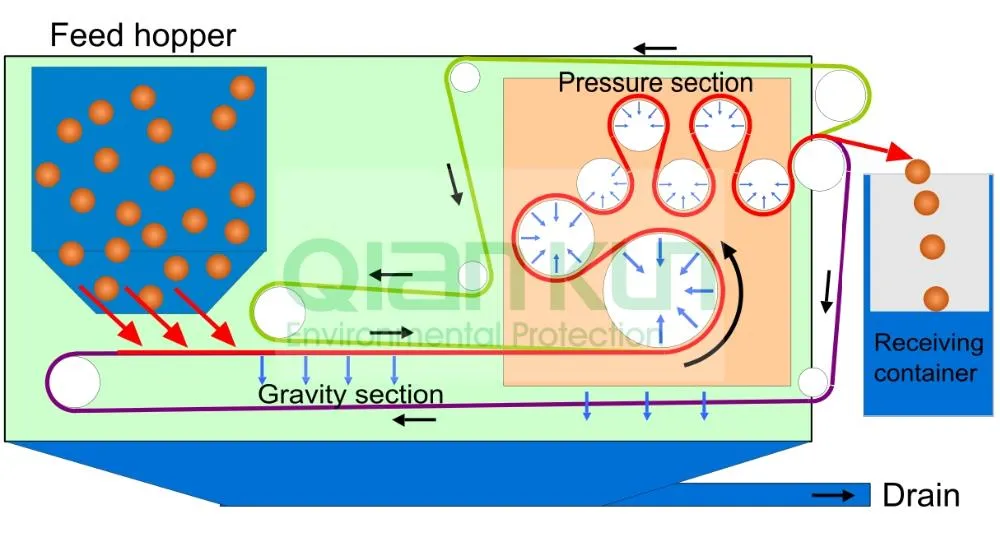

2. Slurry is sandwiched between two tensioned belts by passing those belts through a serpentine of decreasing diameter rolls. The machine is divided into three zones: Gravity Zone (free water drainage), Wedge Zone (solids preparation), and Pressure Zone (high pressure application).

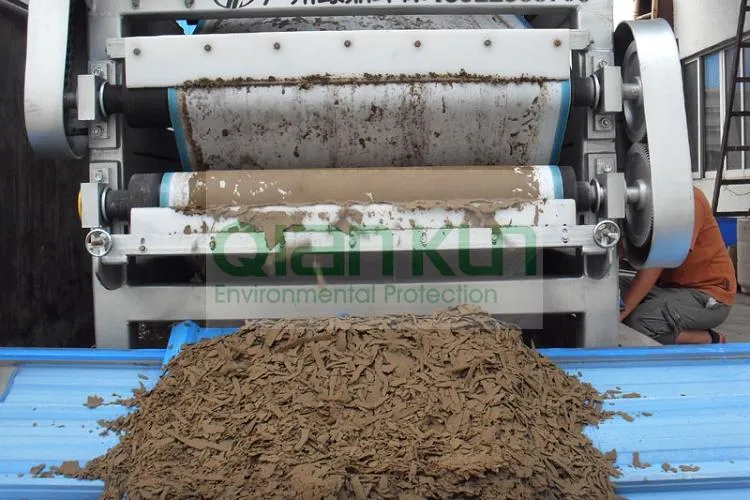

3. Typically, it receives slurry ranging from 1-4% feed solids and produces a final product of up to 25% cake solids, depending on the material nature.
| Model | Main Motor (kw) | Auxiliary Motor (kw) | Capacity (m³/h) |
|---|---|---|---|
| QK-YG1000 | 2.2 | 1.5 | 3-5 |
| QK-YG1500 | 3.7 | 2.2 | 5-8 |
| QK-YG2000 | 4 | 3 | 6-10 |
| QK-YG2500 | 5.5 | 3 | 8-12 |
| Outlet Sludge Dry Content | 35-45% | ||
With 18 years of experience in the environmental protection field, the enterprise has accumulated hundreds of references in pulp & paper, printing & dyeing, chemical fiber, chemicals, leather, breeding, and various municipal sewage treatment projects. The global sales network reaches India, Egypt, Thailand, Malaysia, Vietnam, and more.
Business scope covers comprehensive waste treatment: Wastewater treatment, domestic waste and landfill leachate treatment, and desulfurization, denitration, and dedusting. As a high-tech enterprise, we integrate R&D, engineering, manufacturing, installation, marketing, and after-sale service.
