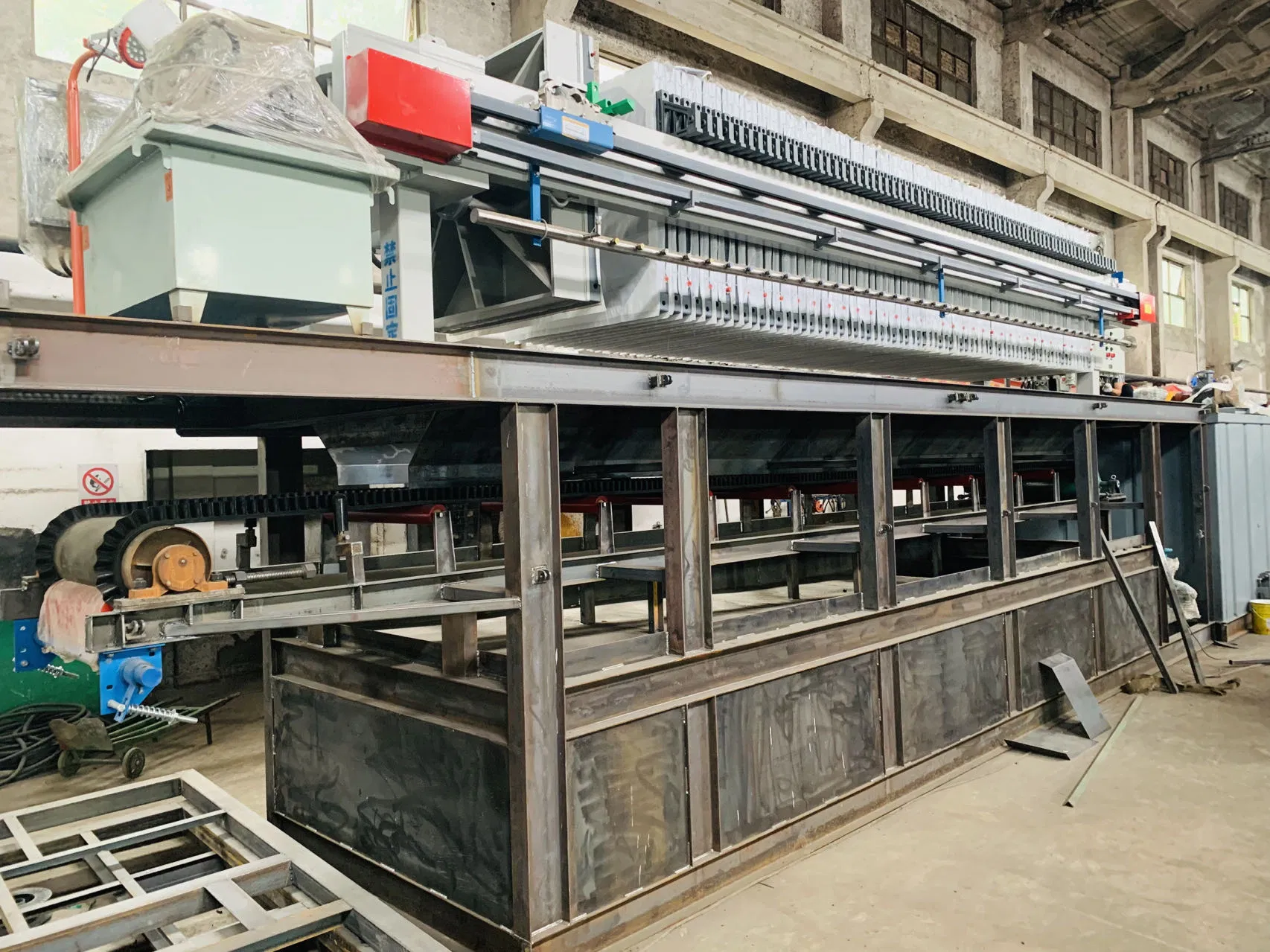

Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
1 / 5
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press
Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press

Waste Treatment System Mud Non Landing System Sludge Dewatering Filter Press

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Waste Treatment System Mud Non Landing System

Sludge Dewatering Filter Press

Basic Information
Model NO.Y250/1250-30U
CertificationISO 9001:2000, ISO 9001:2008
Power SourceElectric
MaterialStainless Steel
TypeFilter Press
Pressure0.6-1.4 Mpa
Filter Area300 m²
Plate Size1000X1000X30 mm
Product NameSludge Dewatering Filter Press
FunctionSolid Liquid separation
Package Size10000.00cm * 3000.00cm * 25000.00cm
Gross Weight11000.000kg
Product Overview

Fast open type filter press configured with wholly automatic system and fast plate-pulling equipment which can automatically pull all the plate at one time, it can greatly shorten the time every cycle takes.

Sludge Dewatering Filter Press Overview
Technical Specifications
Model Pressure (Mpa) Filter Area (m²) Plate Size (mm) Feeding Chamber Volume (l) Plate QTY Motor Power (kW)
Y100/1250-30U 0.6-1.4 100 1000x1000x30 Both ends 1560 36 28-42
Y200/1250-30U 0.6-1.4 200 1000x1000x30 Both ends 3000 72 28-42
Y250/1250-30U 0.6-1.4 250 1000x1000x30 Both ends 3500 86 28-42
Detailed Photos & Application Case
Detailed Component 1

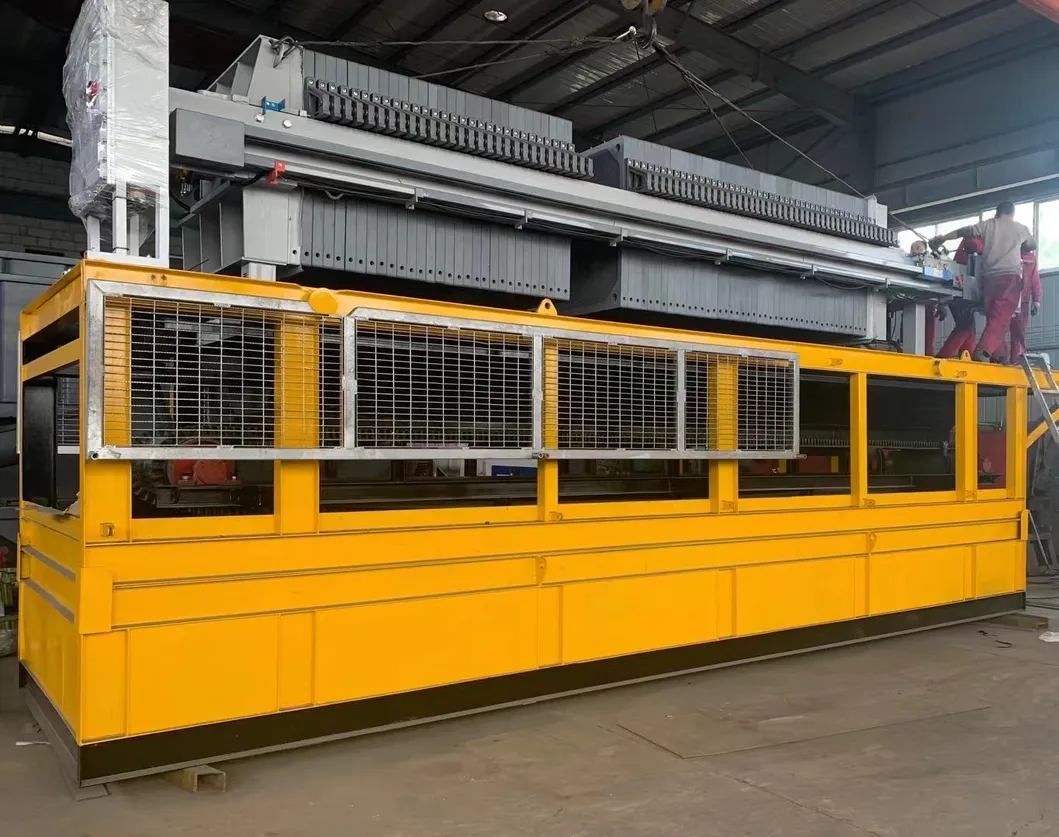

Detailed Component 2

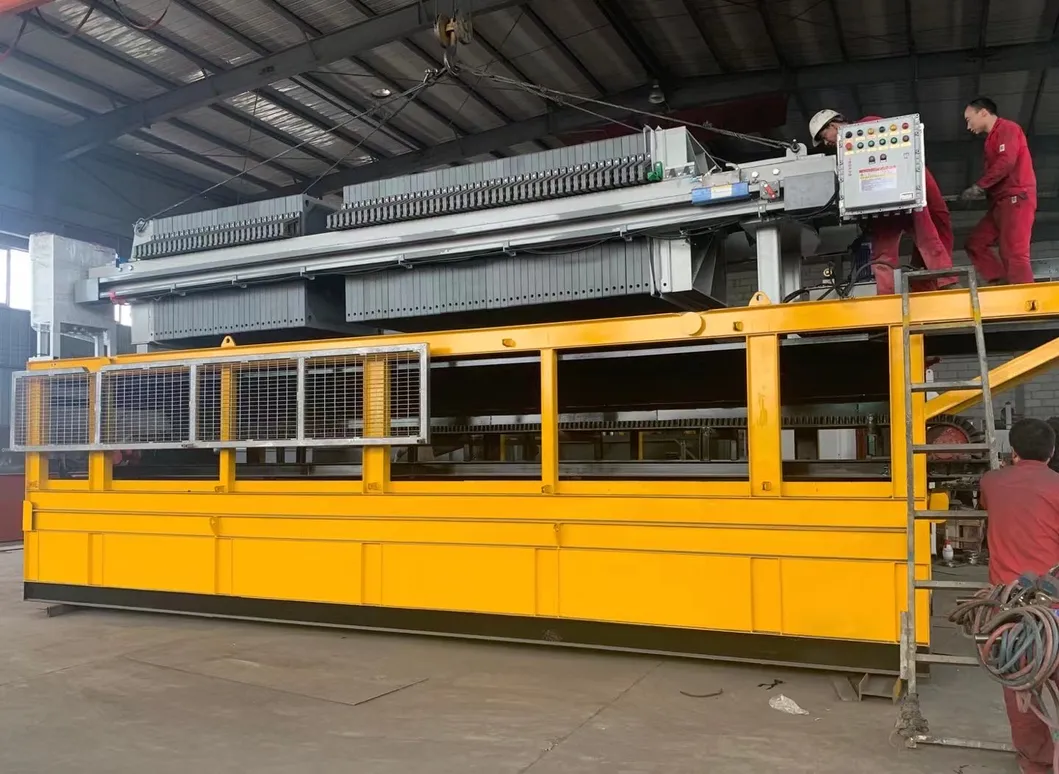

Detailed Component 3
Project Case 1

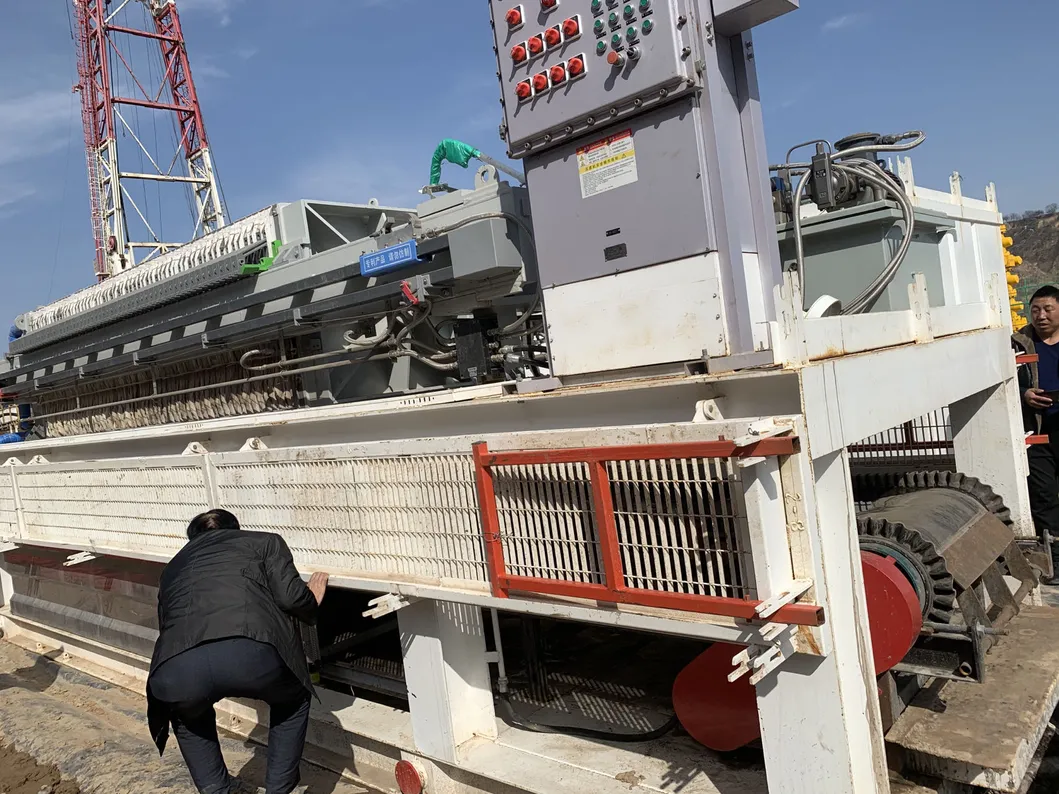

Project Case 2
Key Features
  • ◈
    Filter plate automatically pulled in one step, faster discharge. Fully automatic filter cloth washing. Cycle only takes 30 mins.
  • ◈
    Equipped with membrane expression system using high pressure air for significant sealing and lower residual moisture.
  • ◈
    Modular structure for easy disassembling and assembling.
  • ◈
    Mechatronics-hydraulics-integrated modeling design with advanced mechanical and electrical integration.
  • ◈
    PLC control system utilizing internationally renowned brands.
  • ◈
    Full automation: feeding pump, automatic press, pressurize, cake blow, discharge, and belt conveyor control.
  • ◈
    On-site input of pressure filtration process parameters for easy adjustment.
  • ◈
    Non-standard customization and integrated production solutions available.
System Flowchart
Frequently Asked Questions
1. What makes the fast open type filter press different? It features a fast plate-pulling equipment that opens all plates simultaneously, reducing cycle times to just 30 minutes.
2. Can the residual moisture content be controlled? Yes, by using the membrane expression system with high-pressure air, the system achieves significantly lower residual cake moisture.
3. Is the operation fully automatic? The system includes a PLC-controlled automatic system for feeding, pressing, cloth washing, and cake discharge.
4. What materials are used for construction? The equipment is primarily constructed from high-quality Stainless Steel for durability and corrosion resistance.
5. Are customized solutions available? Yes, non-standard customization is available to meet specific industrial requirements and processing parameters.
6. Which industries can use this sludge dewatering system? It is ideal for any waste treatment system requiring efficient solid-liquid separation, including industrial mud and sludge processing.
