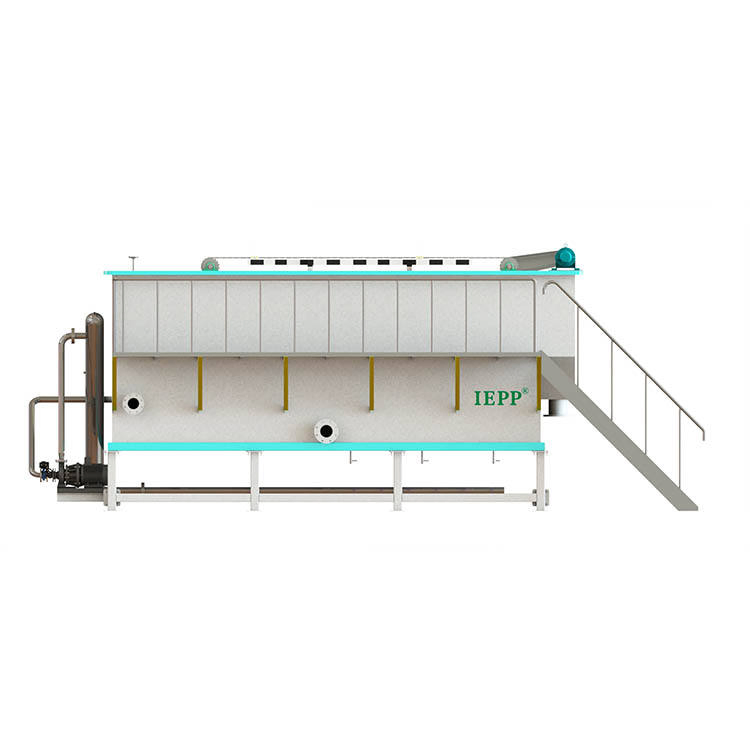

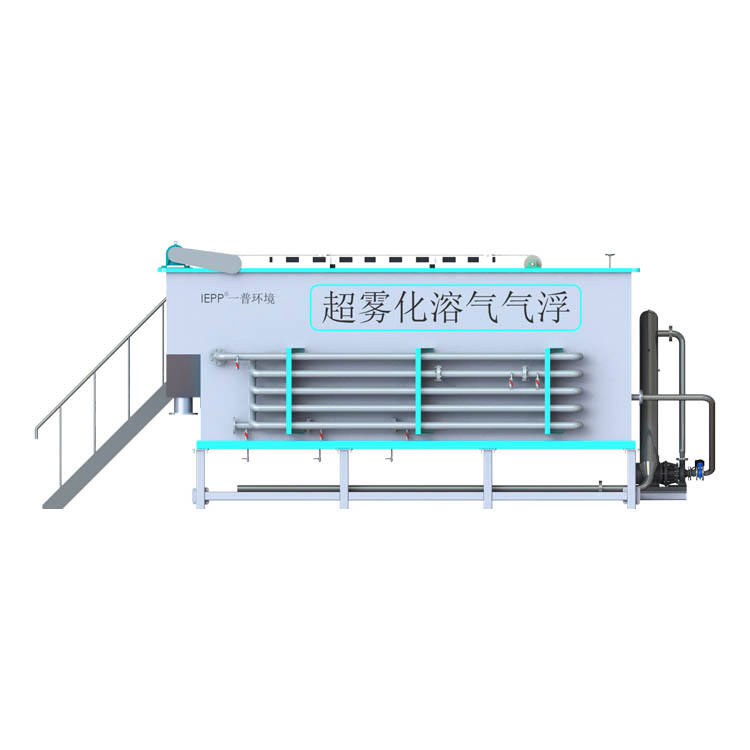

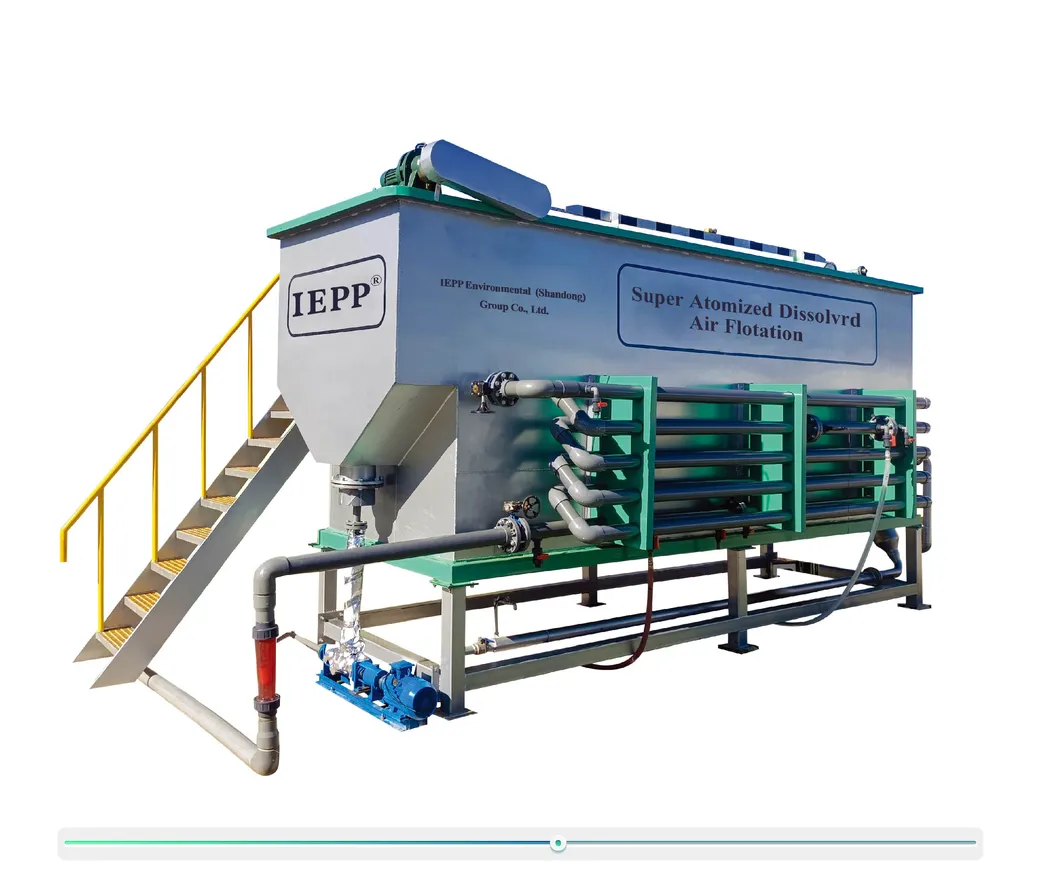

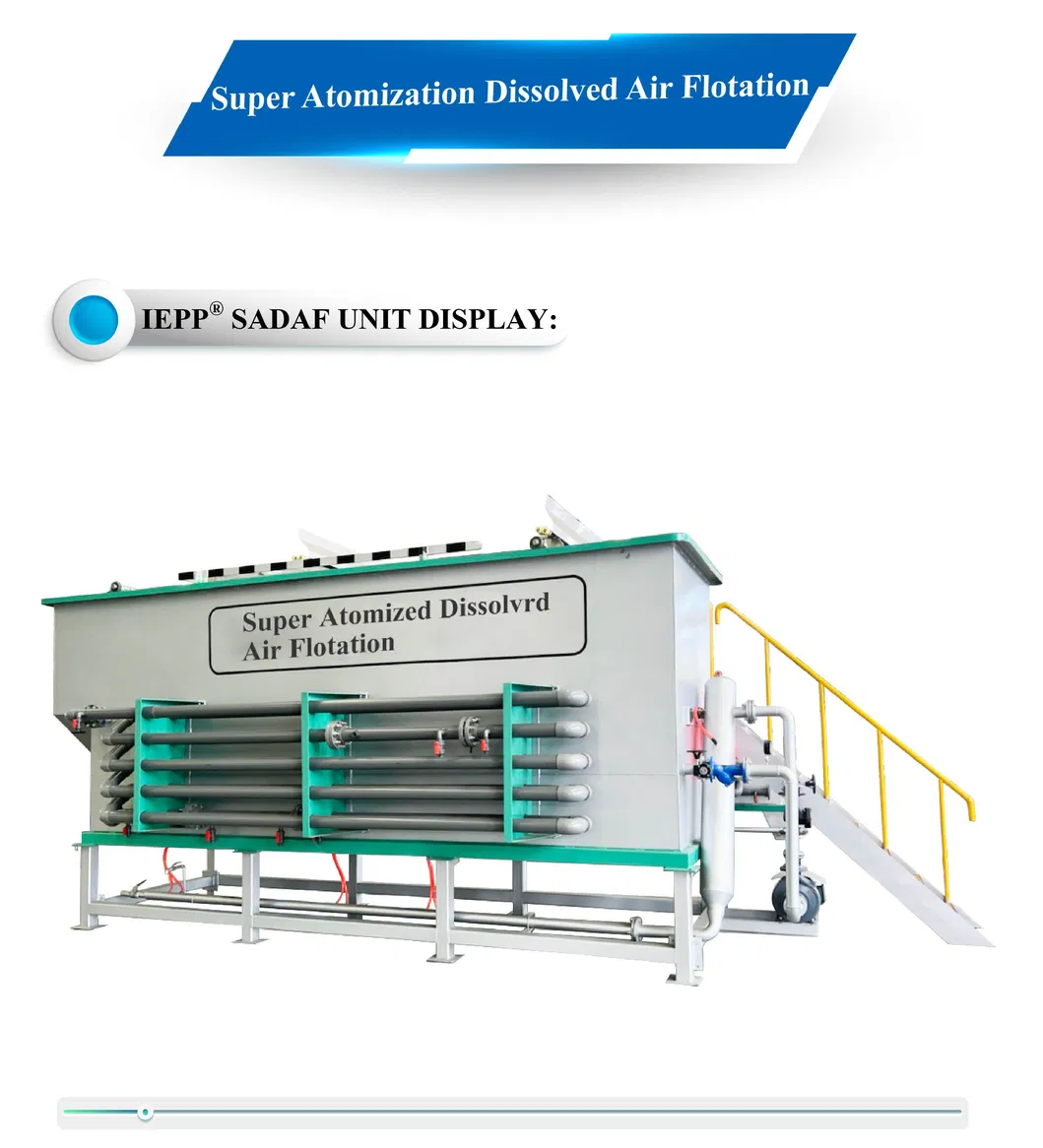

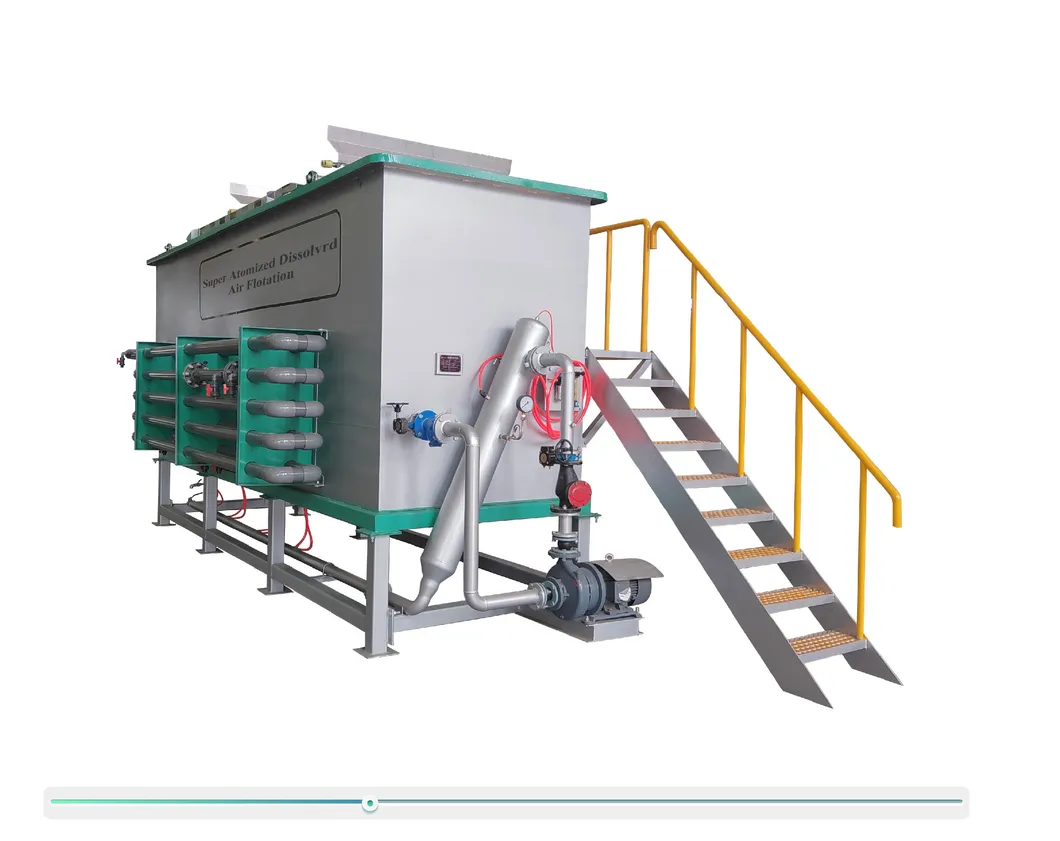

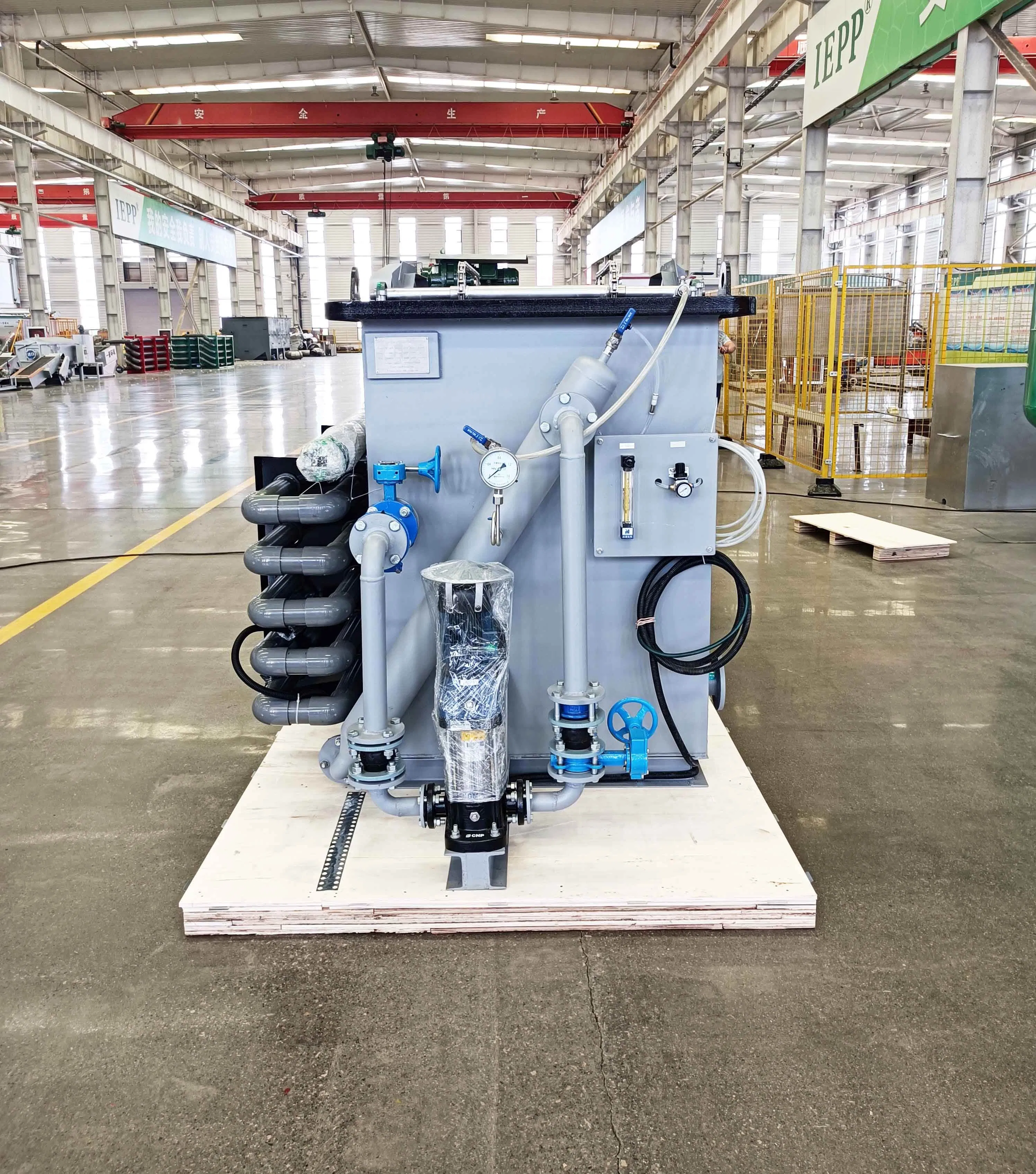

Super Atomization Dissolved Air Flotation (SADAF) System
This technology is used extensively for wastewater treatment in food plants, oil & gas, mining, pulp & paper, major industries, and municipal wastewater plants.
SADAF is ideal for clarification of drinking water treatment, especially for difficult-to-flocculate, low temperature, coloured waters, and waters subject to algae blooms. It works extremely well for waters containing fats, oils, grease, and very fine particles.
The equipment can be used by itself as a clarifier, but when used with chemicals such as a coagulant and a flocculant, it becomes a physical & chemical process.
| Model | Flow (m³/h) | Dissolved Air (m³/h) | Dimensions (mm) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| YP-GQF10 | 10 | 5 | 3510x2540x1850 | 5.5 | 1.18 |
| YP-GQF30 | 30 | 10 | 6275x2940x2700 | 7.5 | 3.55 |
| YP-GQF60 | 60 | 20 | 7575x4620x2850 | 11 | 5.32 |
| YP-GQF100 | 100 | 33 | 10505x5030x3000 | 11 | 7.60 |
| YP-GQF200 | 200 | 70 | 14475x6730x3000 | 22 | 12.08 |
| Model | Flow (m³/h) | Dissolved Air (m³/h) | Dimensions (mm) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| YP-PQF10 | 10-12 | 5 | 4527x2620x2500 | 5.5 | 2.47 |
| YP-PQF30 | 30-33 | 15 | 7425x3120x2900 | 7.5 | 4.33 |
| YP-PQF75 | 75-77 | 33 | 10505x5030x3000 | 11 | 7.60 |
| YP-PQF150 | 145-150 | 70 | 14475x6730x3000 | 22 | 12.08 |
