2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
1 / 5
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H
2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H

2025 Industrial-Grade Polymer Dosing System for Large-Scale Water Treatment 2000L/H

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HCJY-PAM-2000
Type
Chemical Precipitation Unit
Method
Chemical Treatment
Usage
Industrial, Agriculture, Hospital
Transport Package
Wooden Packaging
Specification
2050*1000*1050mm
HS Code
8479820090
Production Capacity
10000sets Per Year
Industrial-Grade Polymer Dosing System (2000L/h)
Technical Advantages
⚙️
Accurate dosing and stable operation
The closed-loop control of the feeding speed of the spiral feeder ensures accurate feeding volume. The silo vibrator, heating, and moisture-proof devices ensure optimal feeding conditions. The solution matures for over 1 hour, ensuring thorough preparation. Dosage automatically adjusts based on influent flow rate to maintain constant concentration.
Polymer Dosing System Technical View
🧠
Intelligent control, safe and labor-saving
Equipped with a PLC intelligent fully automatic control system. Features include fault alarms, automatic shutdown for safety, and an industrial Ethernet communication interface for parameter upload and remote monitoring.

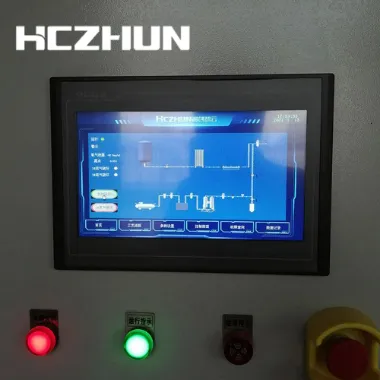

Intelligent Control System
🛠️
Customizable on demand, lightweight integrated body
Features a three-channel overflow integrated structure. It occupies a small footprint, is easy to install, and requires low maintenance.

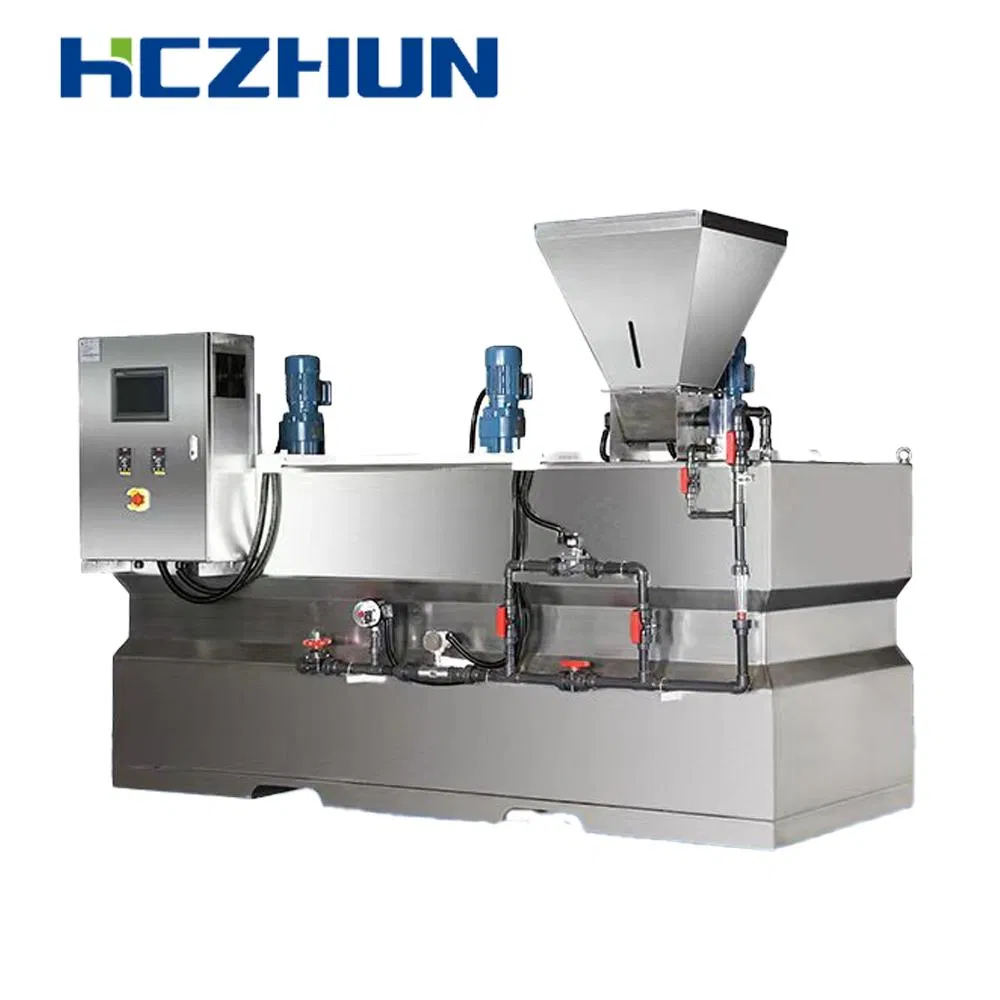

Integrated Body Structure

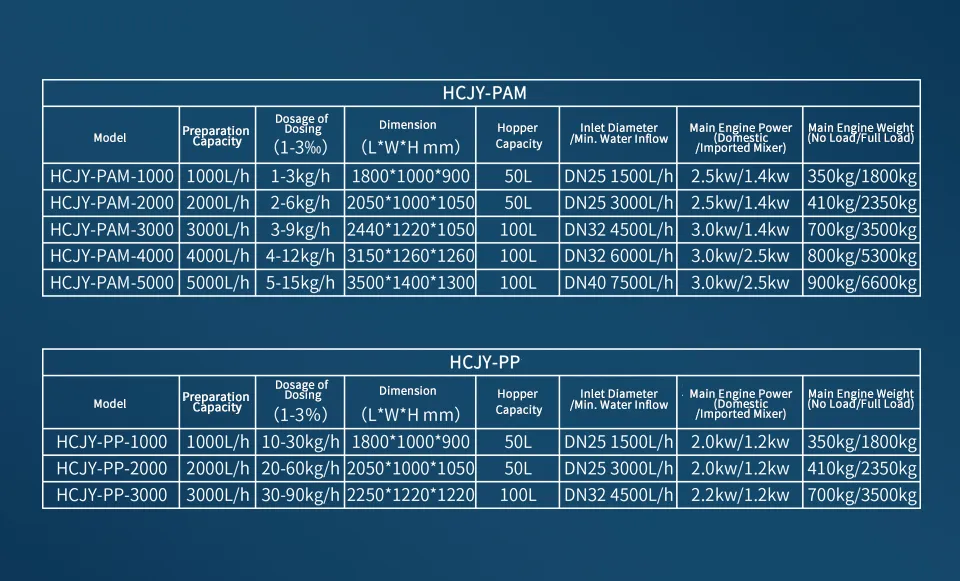

Product Parameters
Model Preparation Capacity (L/h) Dosage (1-3‰) Dimension (L*W*H mm) Hopper Capacity Inlet Diameter & Min. Water Engine Power Weight (No/Full Load)
HCJY-PAM-100010001-3kg/h1800*1000*90050LDN25 1500L/h2.5kw/1.4kw350kg/1800kg
HCJY-PAM-200020002-6kg/h2050*1000*105050LDN25 3000L/h2.5kw/1.4kw410kg/2350kg
HCJY-PAM-300030003-9kg/h2440*1220*1050100LDN32 4500L/h3.0kw/1.4kw700kg/3500kg
HCJY-PAM-400040004-12kg/h3150*1260*1260100LDN32 6000L/h3.0kw/2.5kw800kg/5300kg
HCJY-PAM-500050005-15kg/h3500*1400*1300100LDN40 7500L/h3.0kw/2.5kw900kg/6600kg
Real Machine Photos

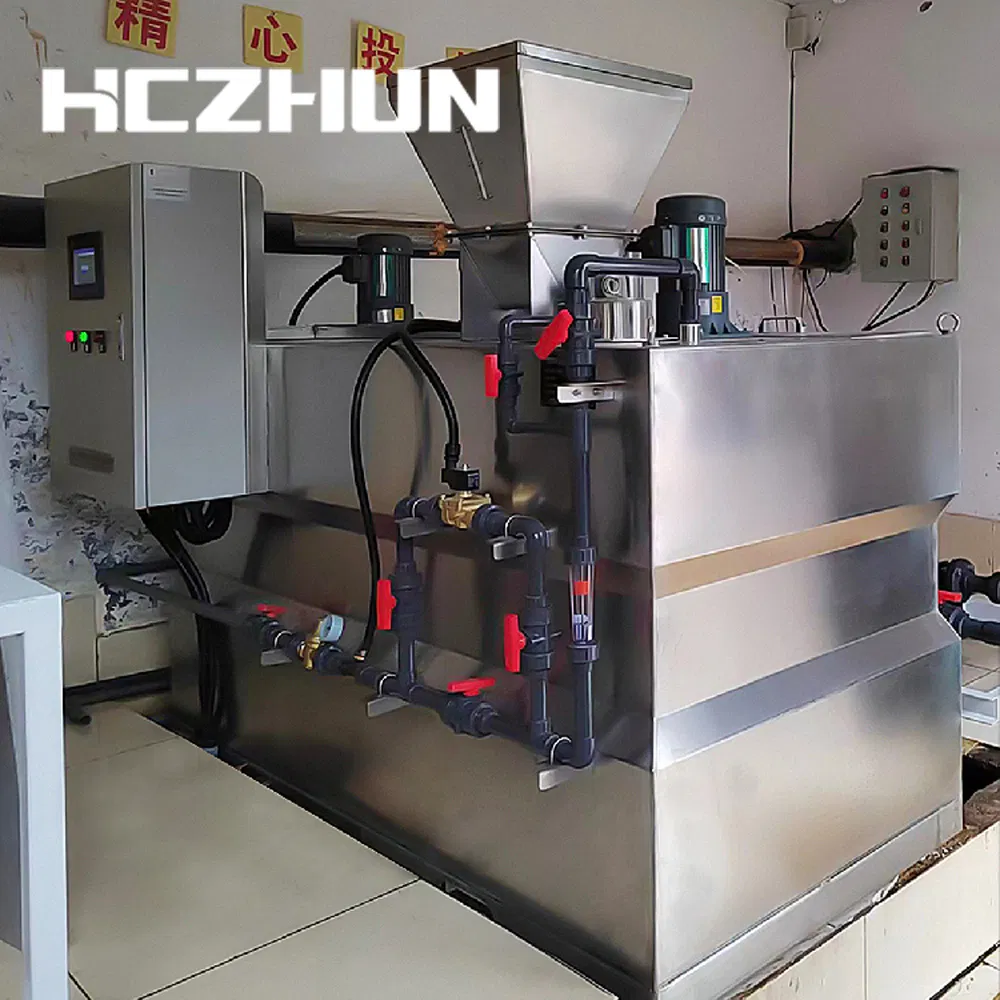

Machine Photo 1
Machine Photo 2
Detailed View 1
Detailed View 2
Component View 1
Component View 2
Component View 3
System Detail 1
System Detail 2
System Detail 3
System Detail 4
System Detail 5
System Detail 6
Frequently Asked Questions
What is the preparation capacity of the HCJY-PAM-2000 model?
The HCJY-PAM-2000 model has a preparation capacity of 2000 Liters per hour (L/h).
How does the system ensure accurate chemical dosing?
It uses a closed-loop control system for the spiral feeder's speed and automatically adjusts the dry powder dosage based on the influent flow rate to maintain a constant concentration.
What type of control system is used in this equipment?
The system utilizes a PLC intelligent fully automatic control system, which includes fault alarms, automatic shutdown features, and Ethernet communication for remote monitoring.
In which industries can this dosing system be used?
This industrial-grade system is suitable for water treatment in industrial, agricultural, and hospital applications.
How long does the solution need to mature?
Under specified preparation and continuous dosing conditions, the solution is matured for more than 1 hour to ensure it is thoroughly ready for use.
What are the physical dimensions and weight of the 2000L/h unit?
The dimensions are 2050*1000*1050mm. The no-load weight is approximately 410kg, and the full-load weight is 2350kg.
