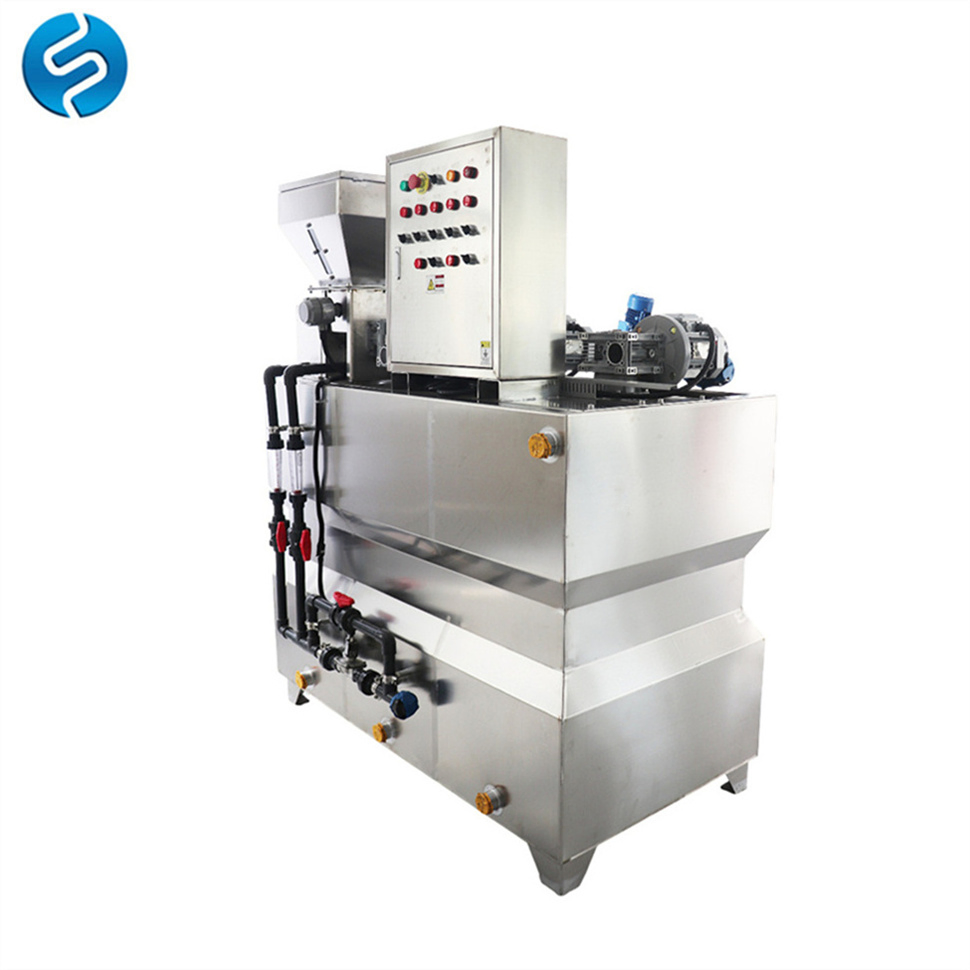

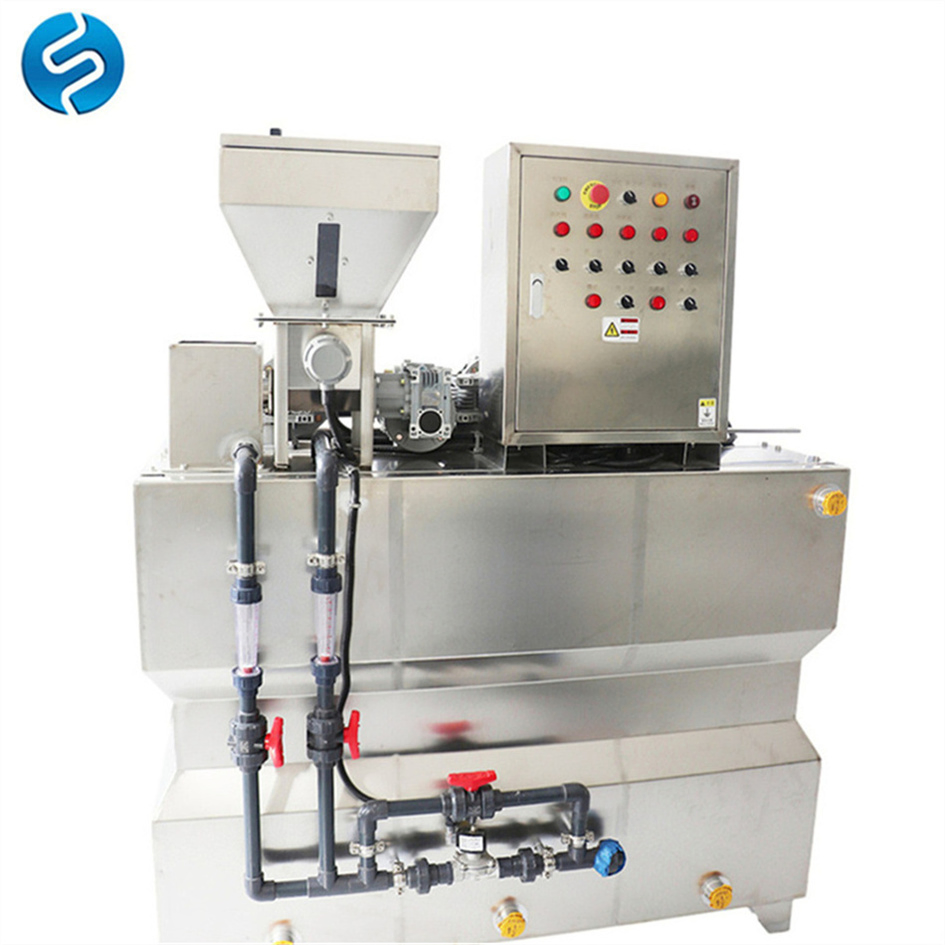

Automatic Polymer Flocculants Preparation PAM Integrated Dosing System

1 / 5

Automatic Polymer Flocculants Preparation PAM Integrated Dosing System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

■Basic Information

Model NO.

Polymer Dosing System

Type

Function

Method

Combined Treatment

Usage

Industrial, Agriculture, Hospital, Water Treatment

Product Name

Automatic Chemical Dosing System

OEM

Yes

Condition

New

Feature

Fully Automatic

HS Code

8479820090

Capacity

5000 Units/Year

■Product Description

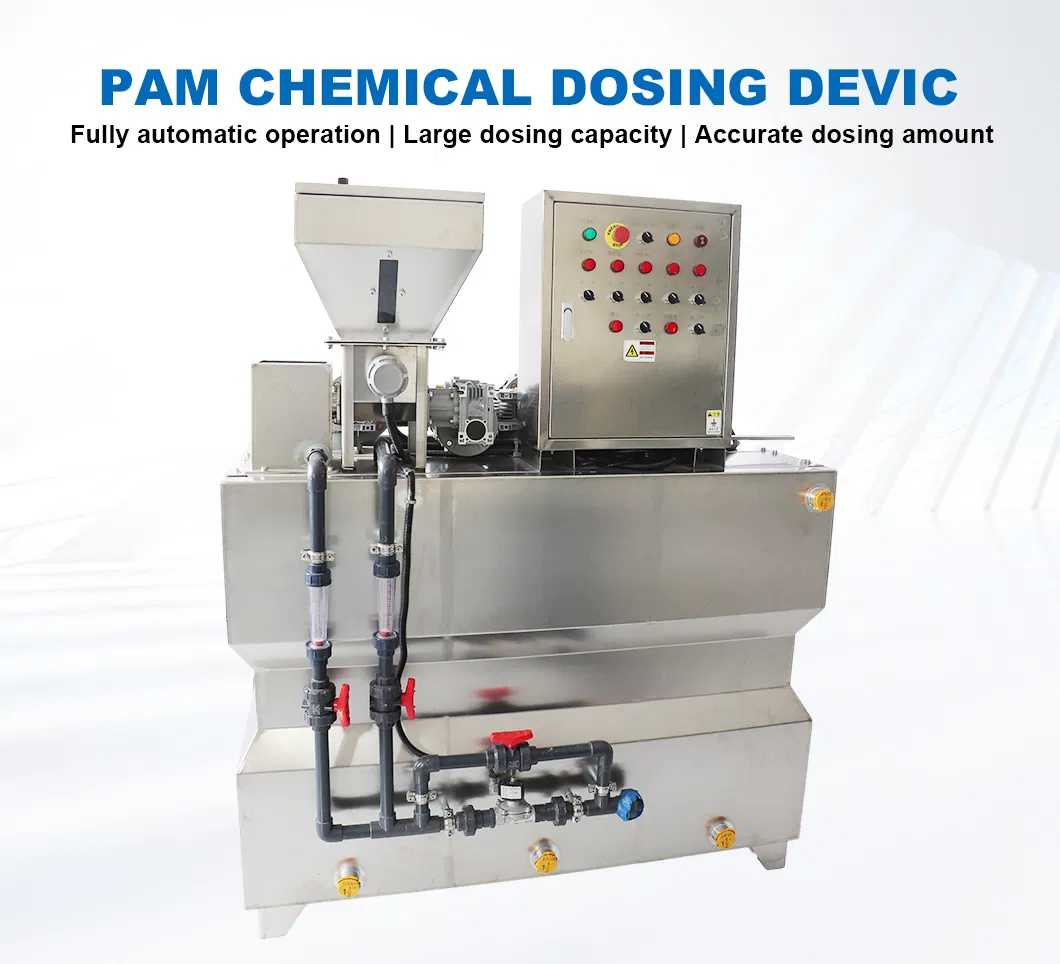

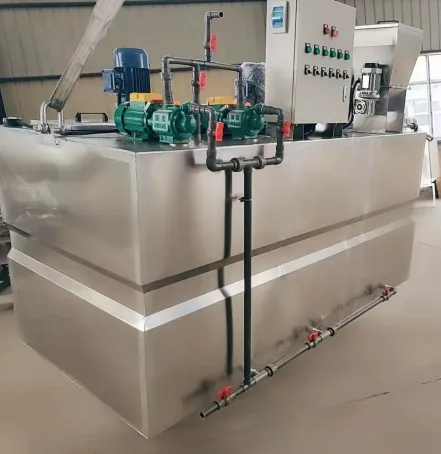

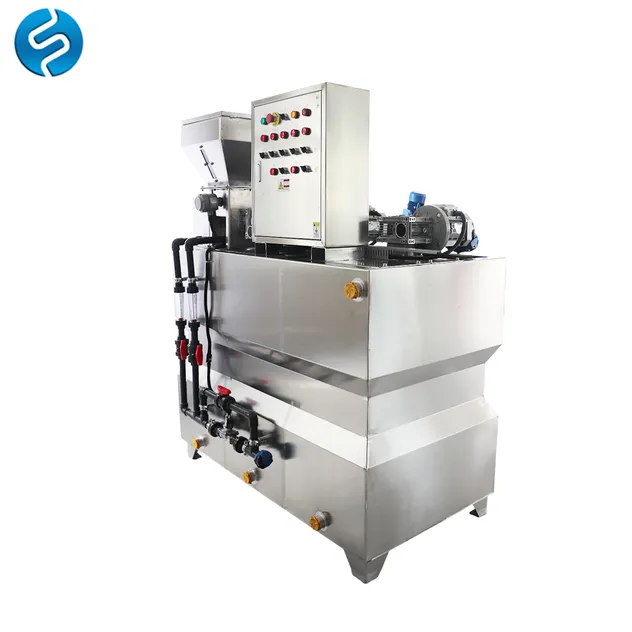

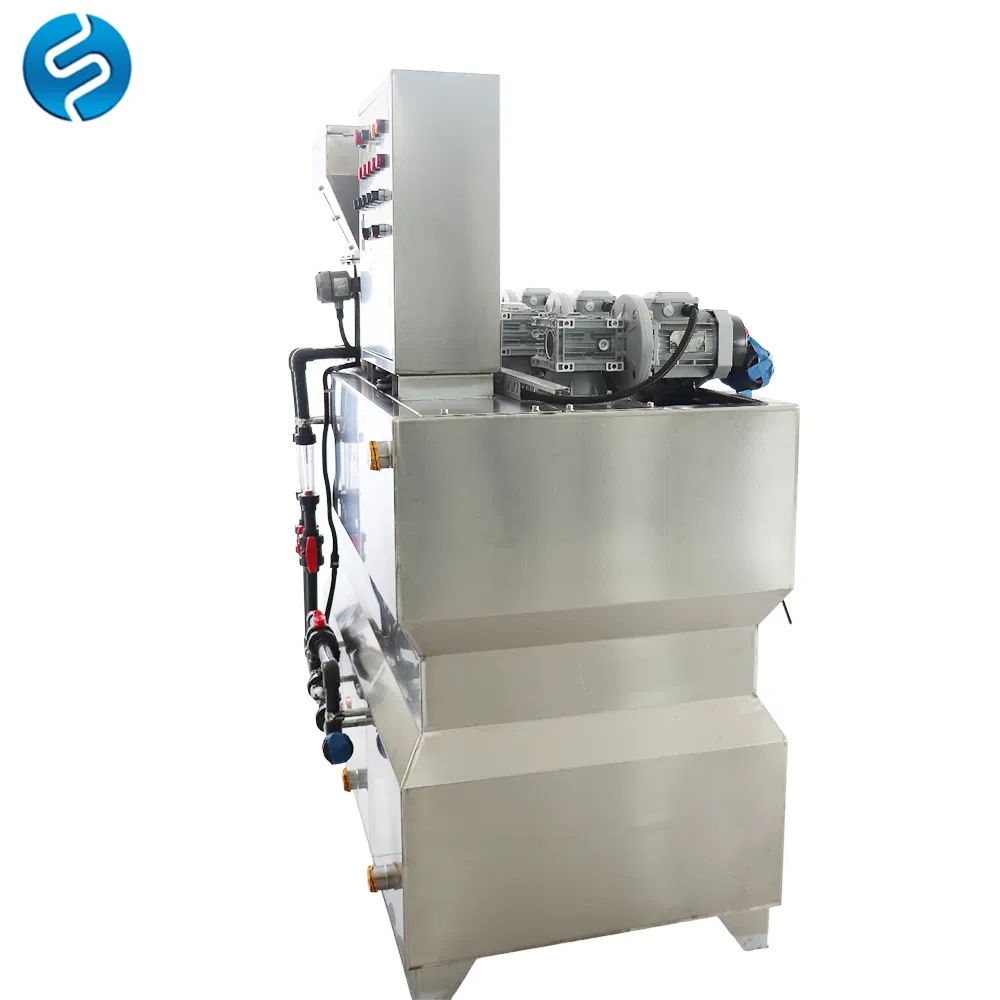

Automatic Polymer Dosing System Overview

The PAM dosing device is an intelligent, fully automatic, continuous integrated flocculant solution preparation and dosing system, with a prepared solution concentration generally ranging from 0.1% to 0.2%.

It consists of a water supply system, dry powder feeding system, dissolution maturation system, control system, and liquid dosing system.

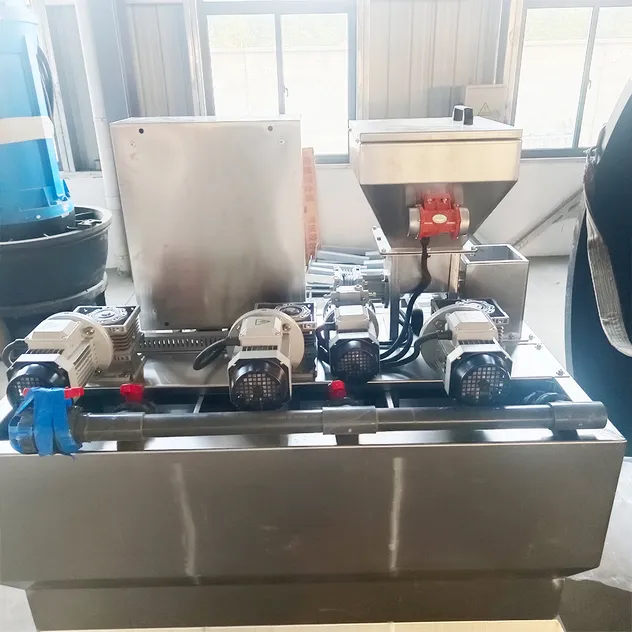

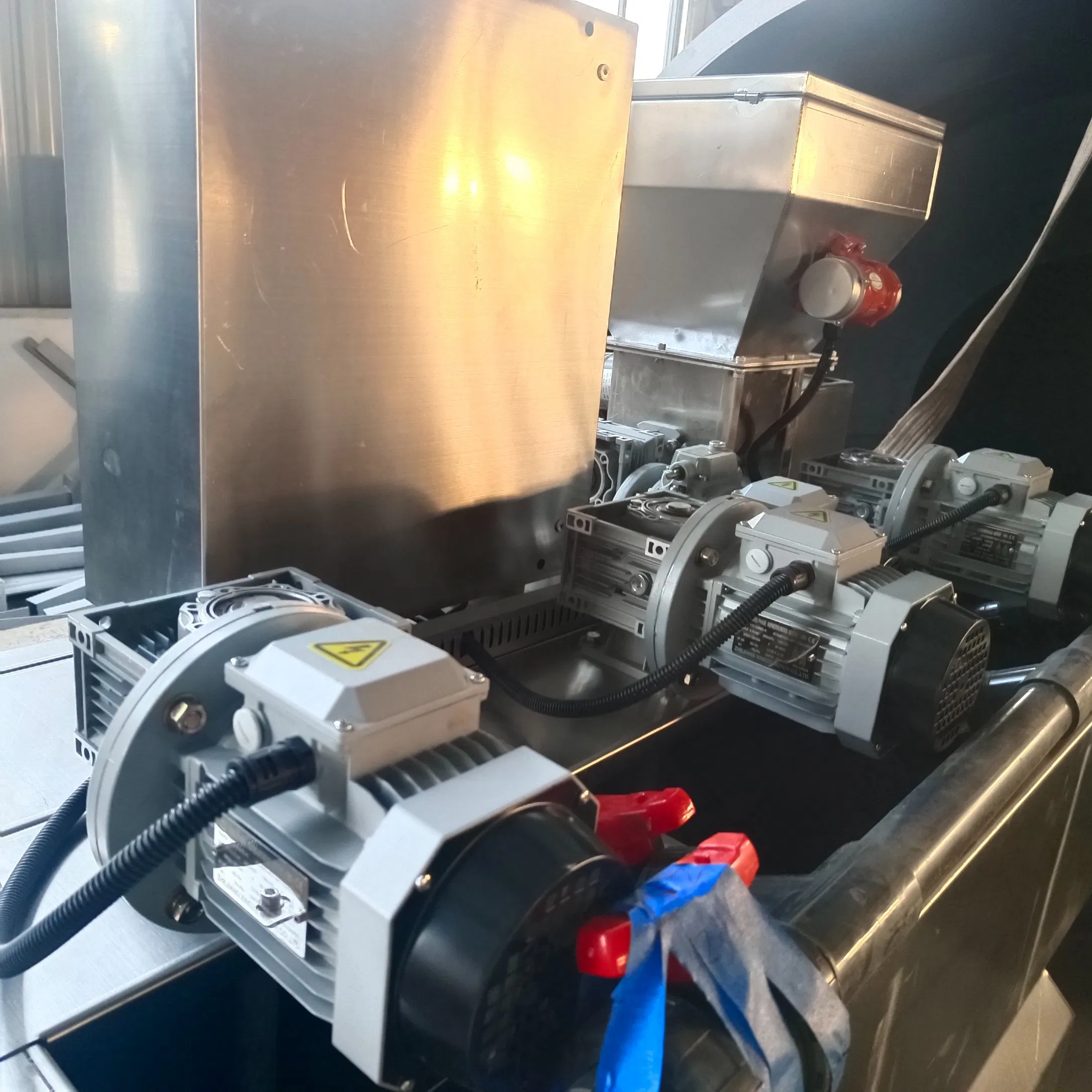

The dry powder flocculant enters the premixer through a screw feeder to be pre-mixed with clear water. The moistened material then enters the preparation tank for dilution and preparation according to the required concentration. Both the preparation tank and the maturation tank are equipped with multi-blade agitators to fully ensure the dilution and maturation of the flocculant.

■Main Features

Highly Integrated: All-in-one equipment for space-saving.
High Automation: Intelligently controlled by a microprocessor.
Easy Installation: Only requires connection to water source and power supply.
Safe Operation: Automatic shutdown and alarm signal upon failure.
Corrosion Resistance: All contact parts are engineering plastics or stainless steel.
Versatility: Suitable for powder, granular, fibrous, and liquid materials.

■Technical Specifications

Parameter \ Model	500	1000	2000	4000	8000
Preparation capability (l/h)	500	1000	2000	4000	8000
Dilution water consumption (l/h)	1500	1500	3000	6000	12000
Dilution water pressure (bar)	3-5	3-5	3-5	3-5	3-5
Dry powder dosage (l/h)	1.3-29	1.3-29	1.3-29	6-132	12-264
Dimensions LWH (mm)	17709151250	24109501605	307010901755	318115212263	443419102350
Power (KW)	1.5	2.6	3.2	5.0	9.5

■Applications & Professional Support

Our products are widely used in water environmental protection, monitoring, sewage treatment, petrochemical, municipal water supply, drainage, infrastructure projects, power stations, and agricultural irrigation.

Why choose our solutions?
1. More than 20 years of industry experience in water treatment.
2. High-quality products and competitive pricing.
3. Professional business personnel and engineers for technical support and selection assistance.

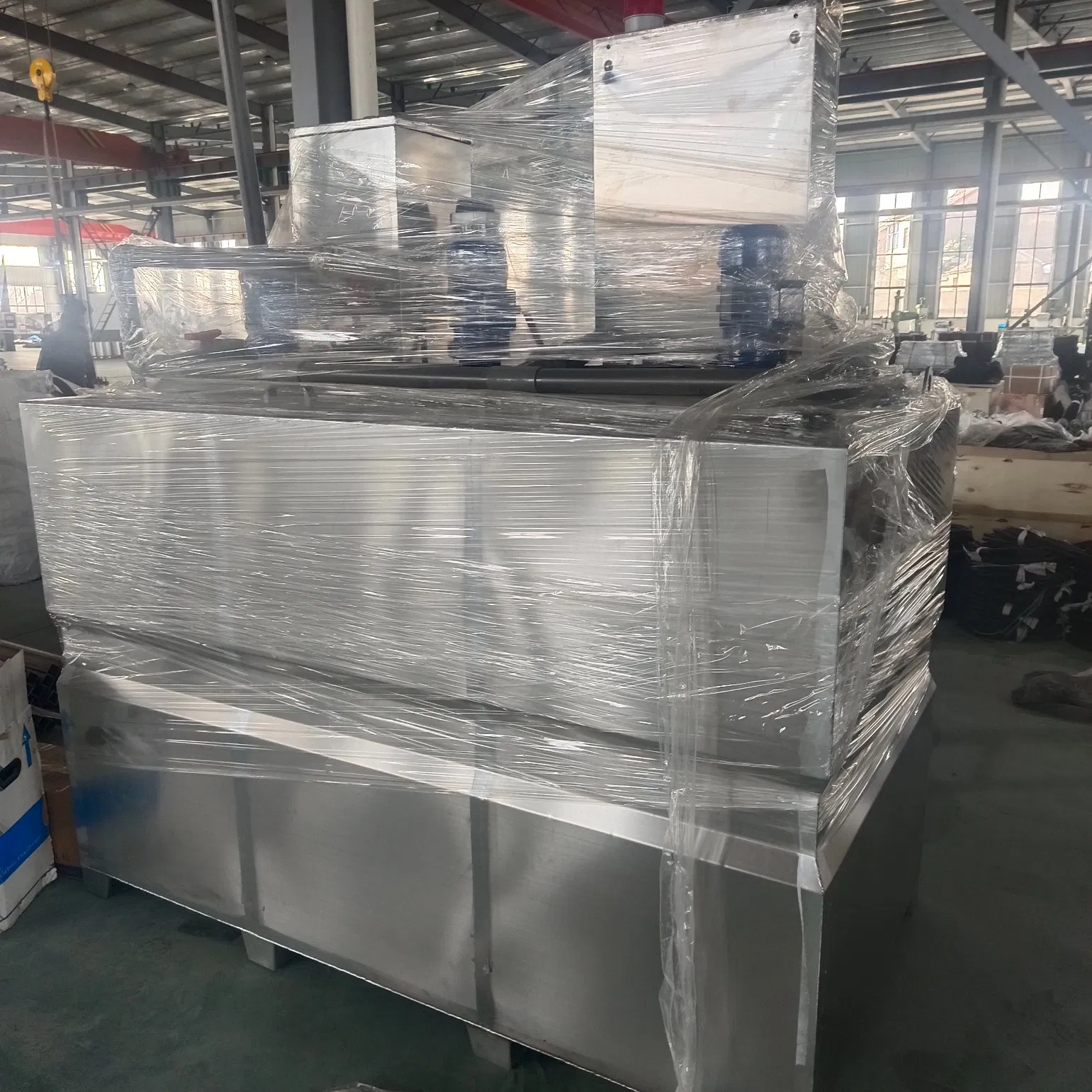

■Exhibitions & Packaging

■Frequently Asked Questions

Are you a factory or a trading company?

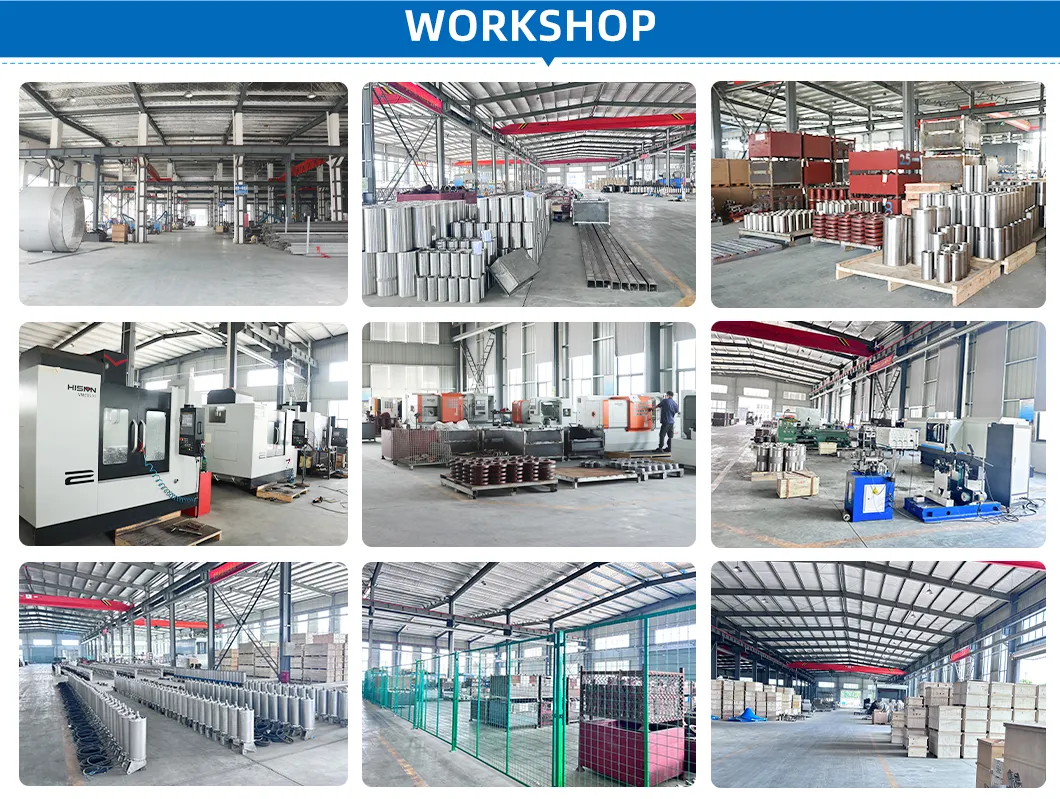

We are a professional manufacturer committed to the design, development, production, and sales of sewage treatment equipment, with extensive facilities covering over 30 acres.

Can the dosing equipment be customized?

Yes, we provide full customization services to modify the equipment according to your specific project requirements and technical needs.

What are the payment terms?

Our standard terms are 30% payment in advance and the remaining 70% before delivery. We provide photos of the product and packaging before final payment.

Do you test the goods before delivery?

Yes, we perform 100% testing on all our goods before they leave the factory to ensure stable performance and quality.

Why should we choose your dosing system?

We focus on scientific and technological innovation, maintain high-quality standards, and offer competitive pricing. Our team of high-level designers and engineers ensures long-term reliable operation.

What materials are used for corrosion resistance?

All parts in contact with the chemical medium are made of high-grade engineering plastics and stainless steel to ensure durability and long service life.
