🛠️ Product Description

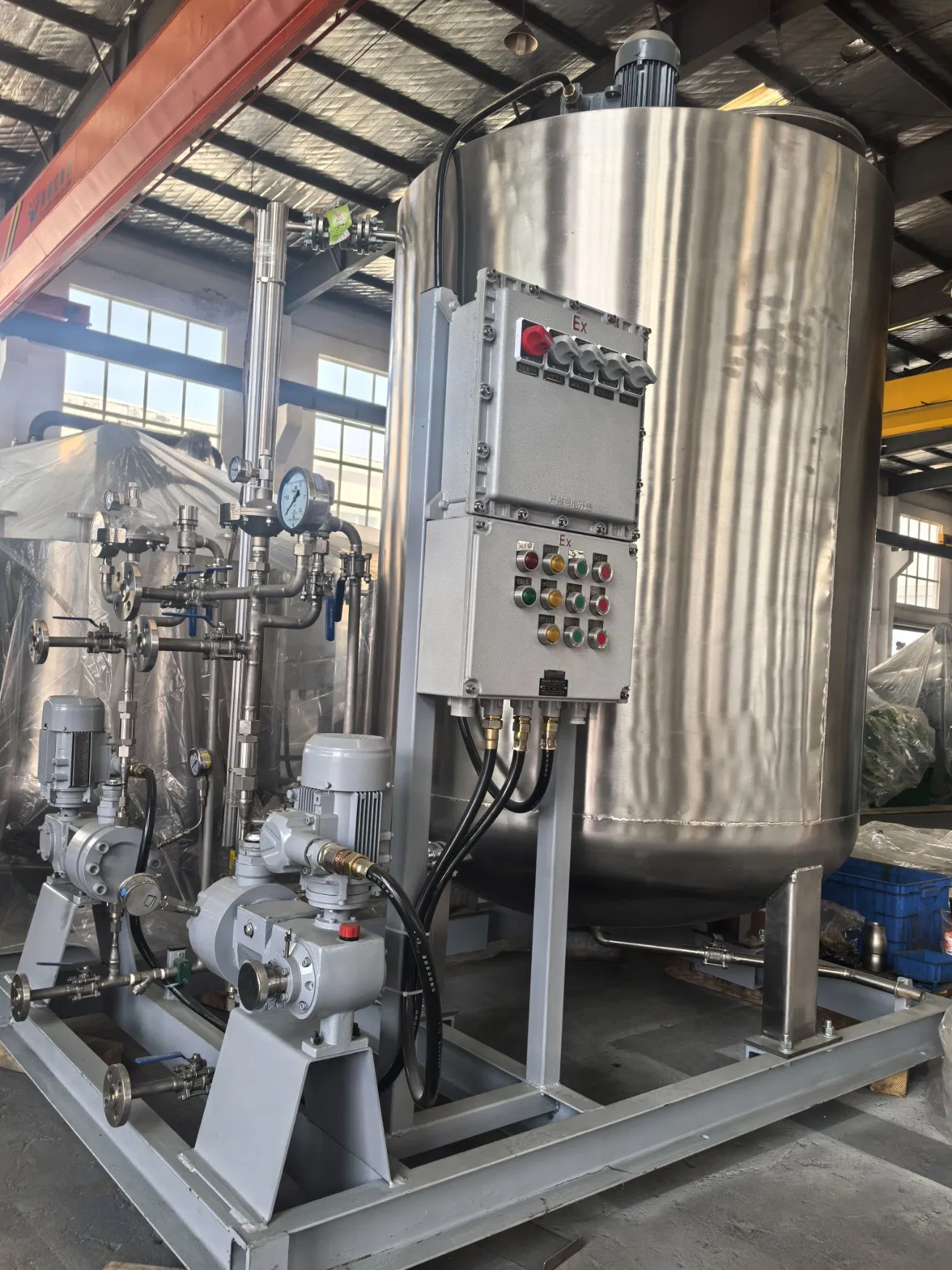

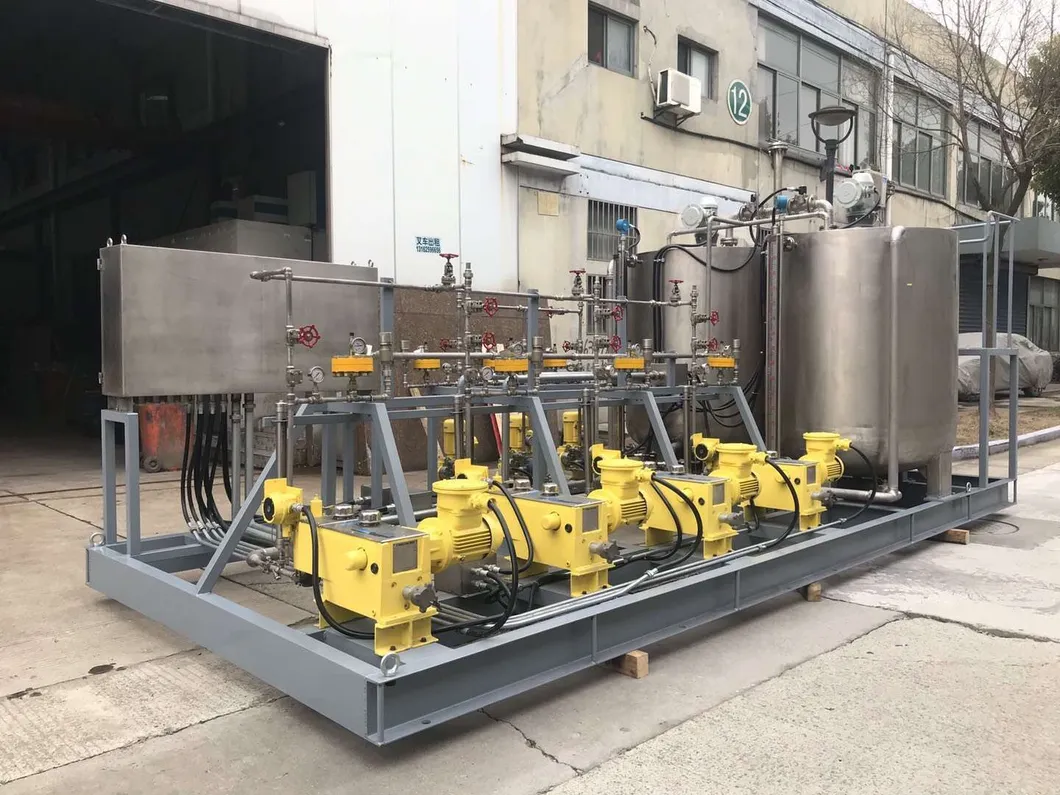

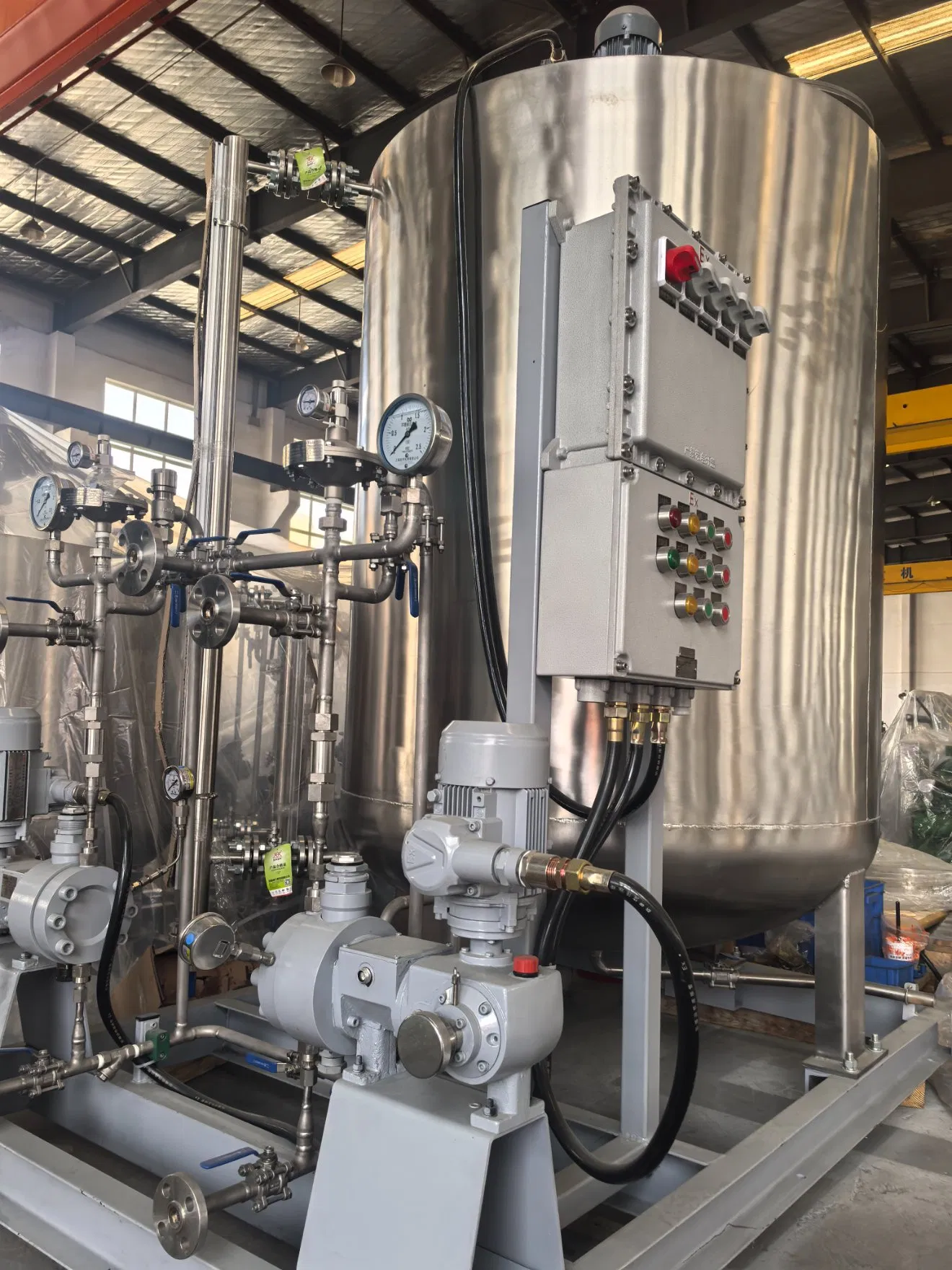

Dosing Device Overview:

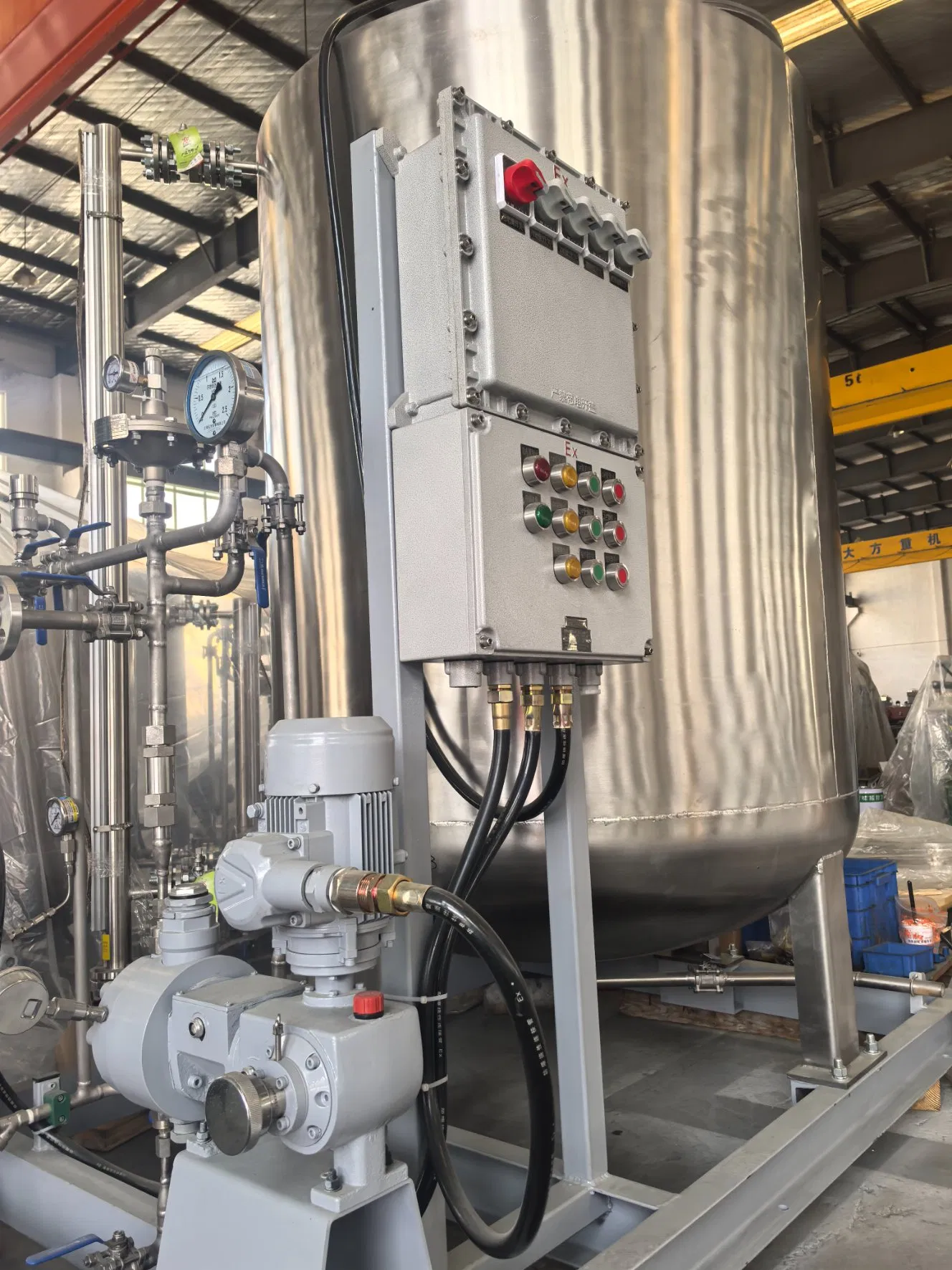

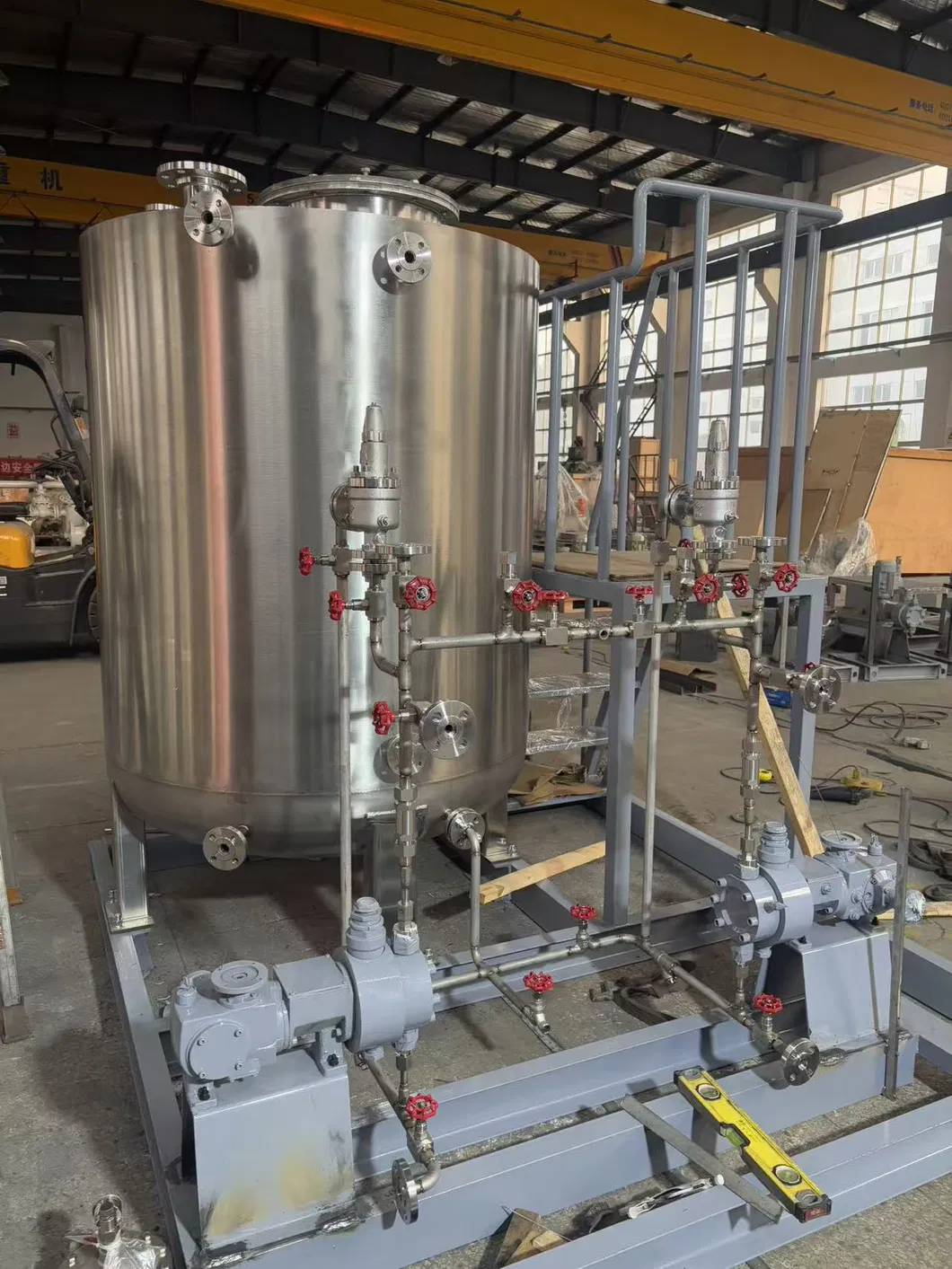

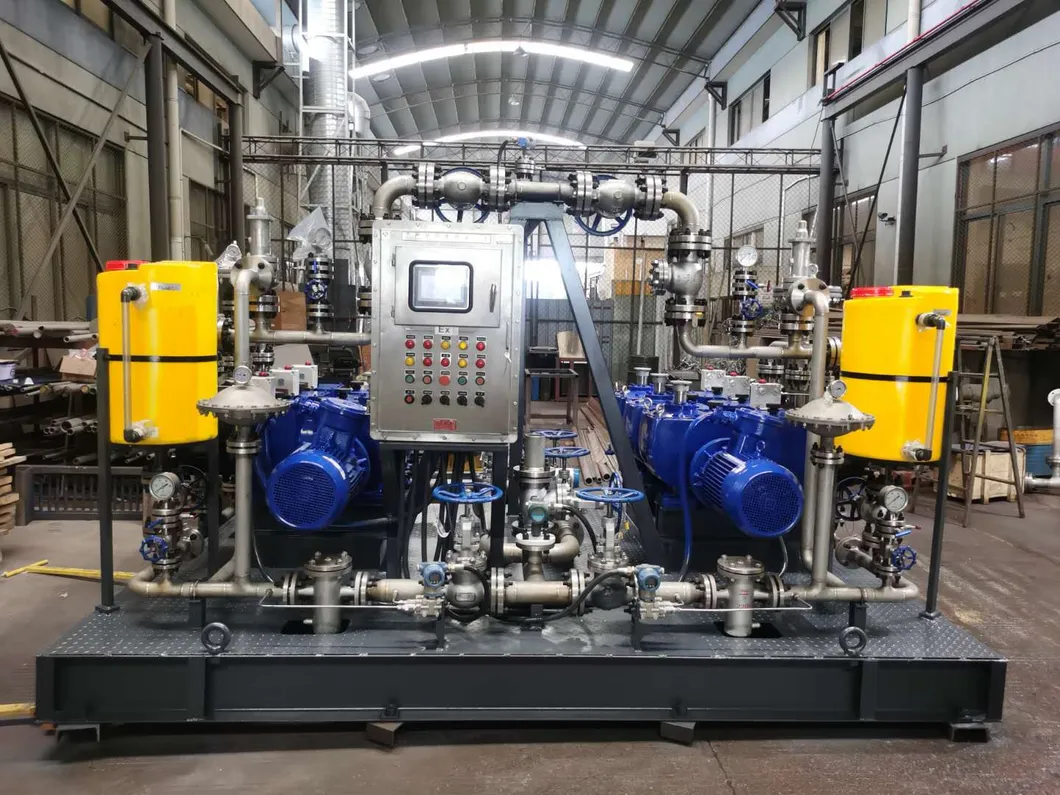

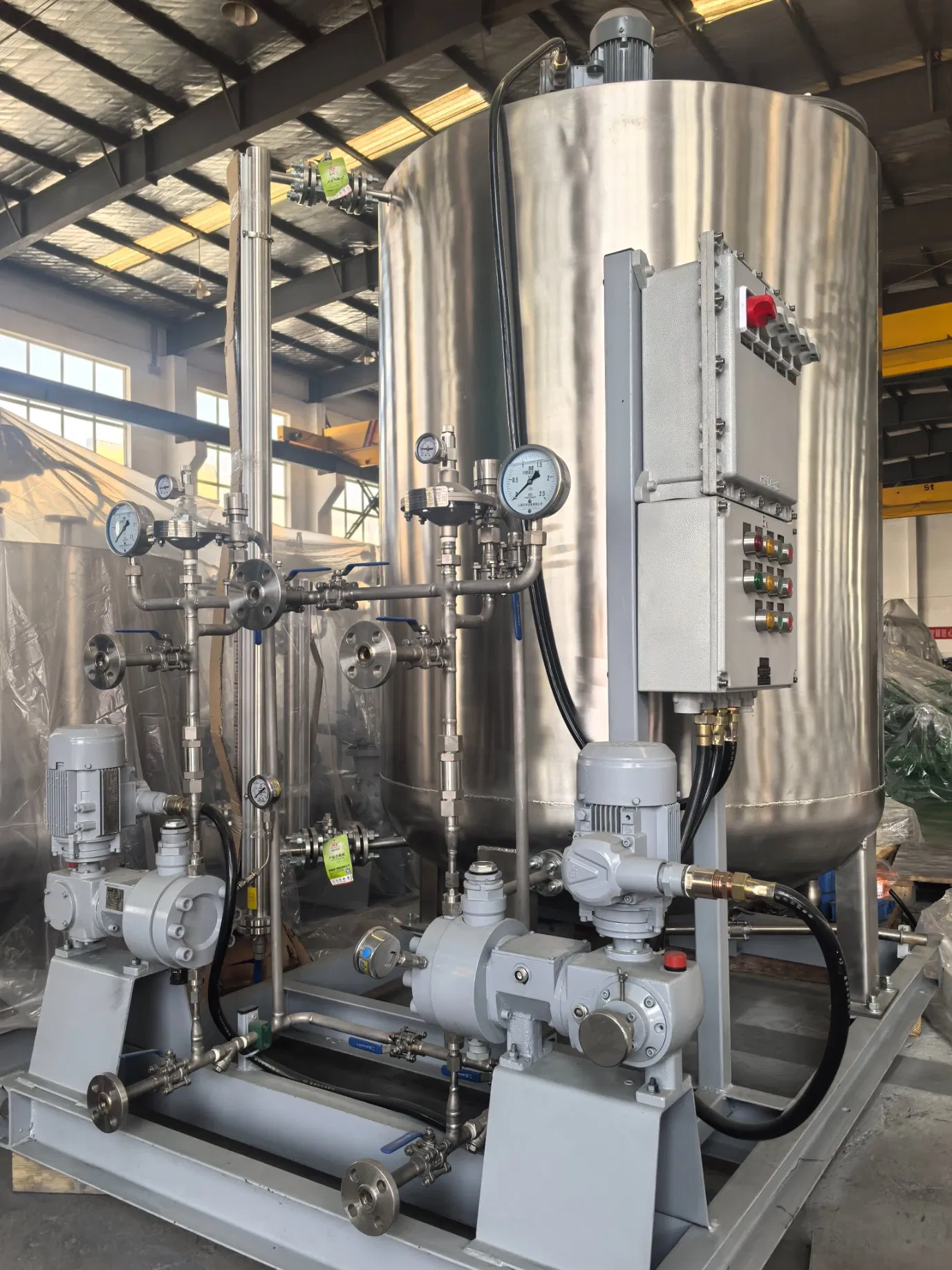

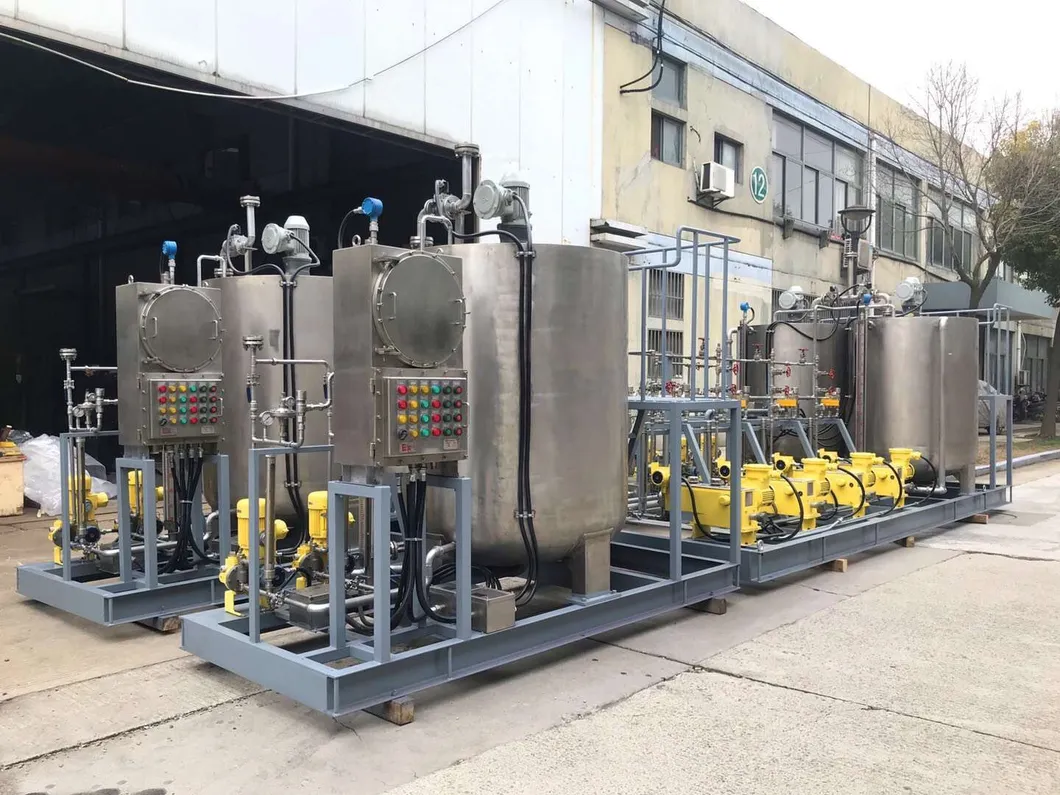

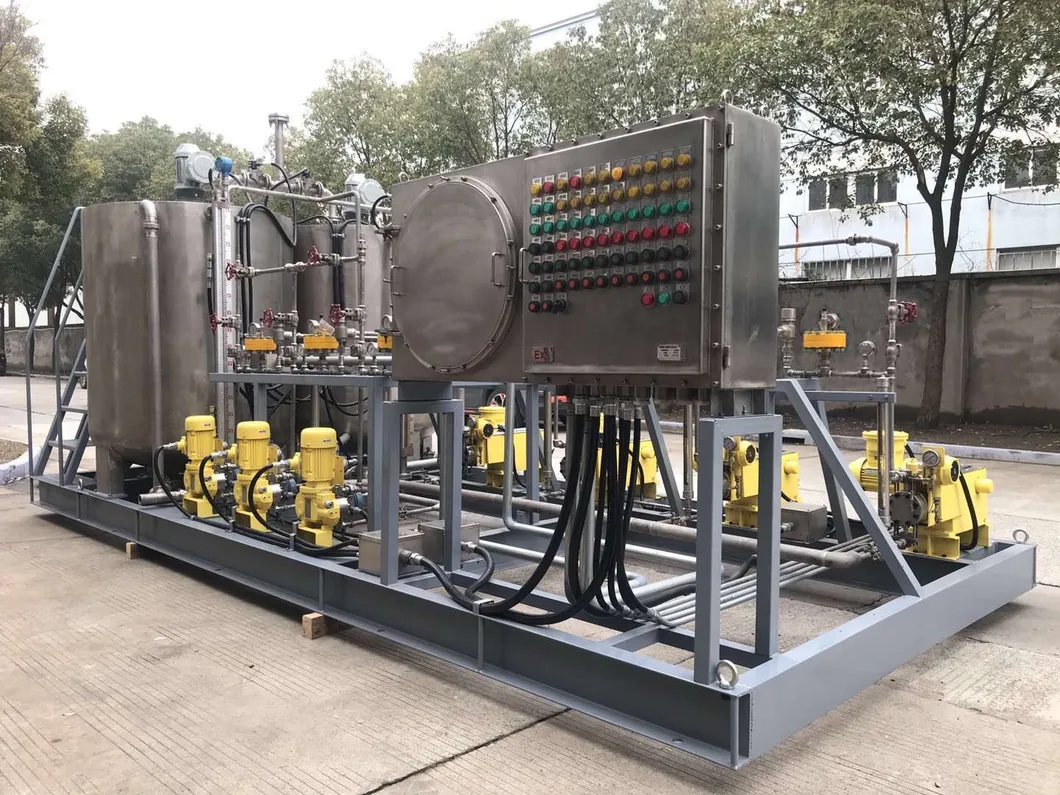

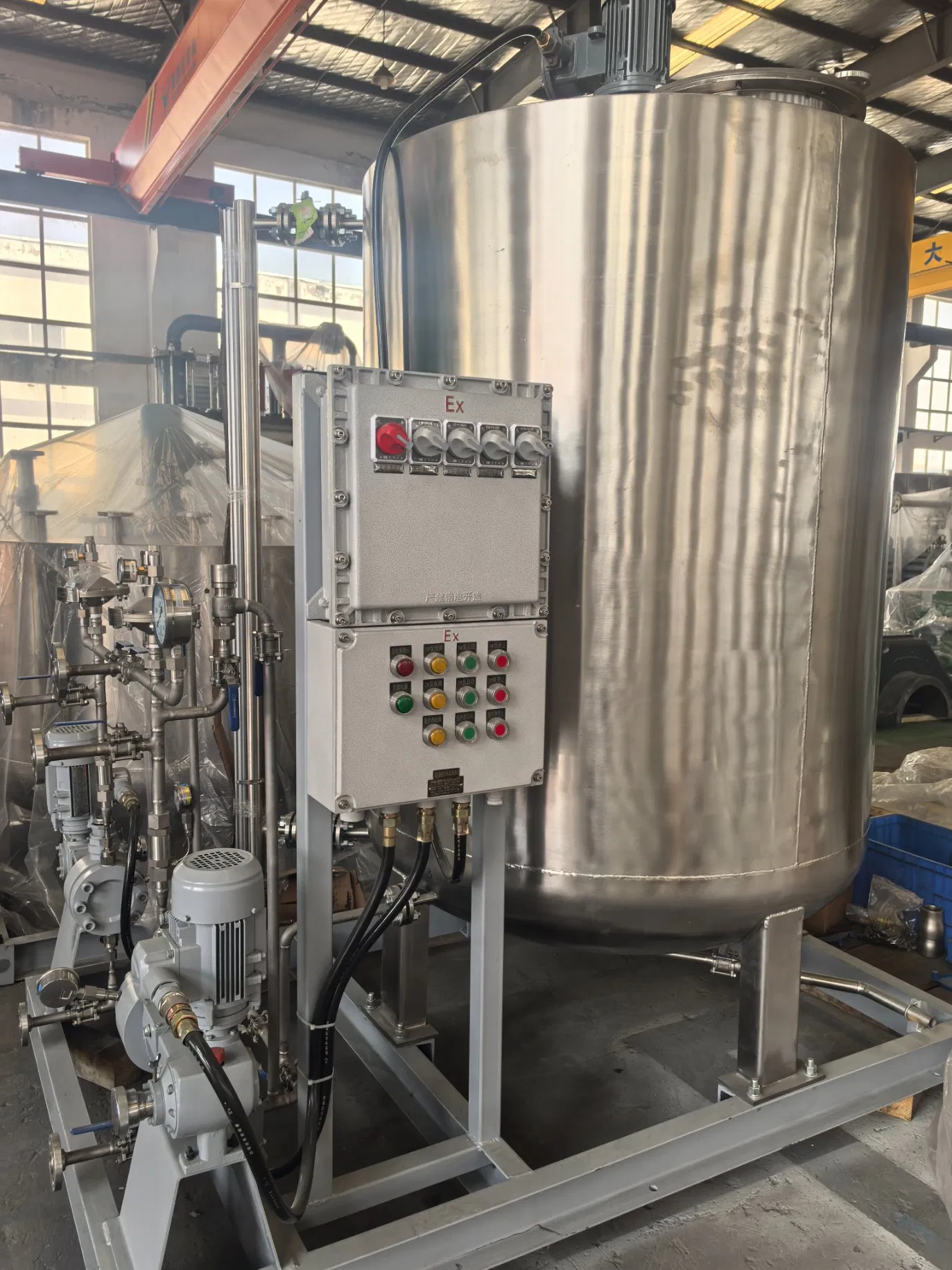

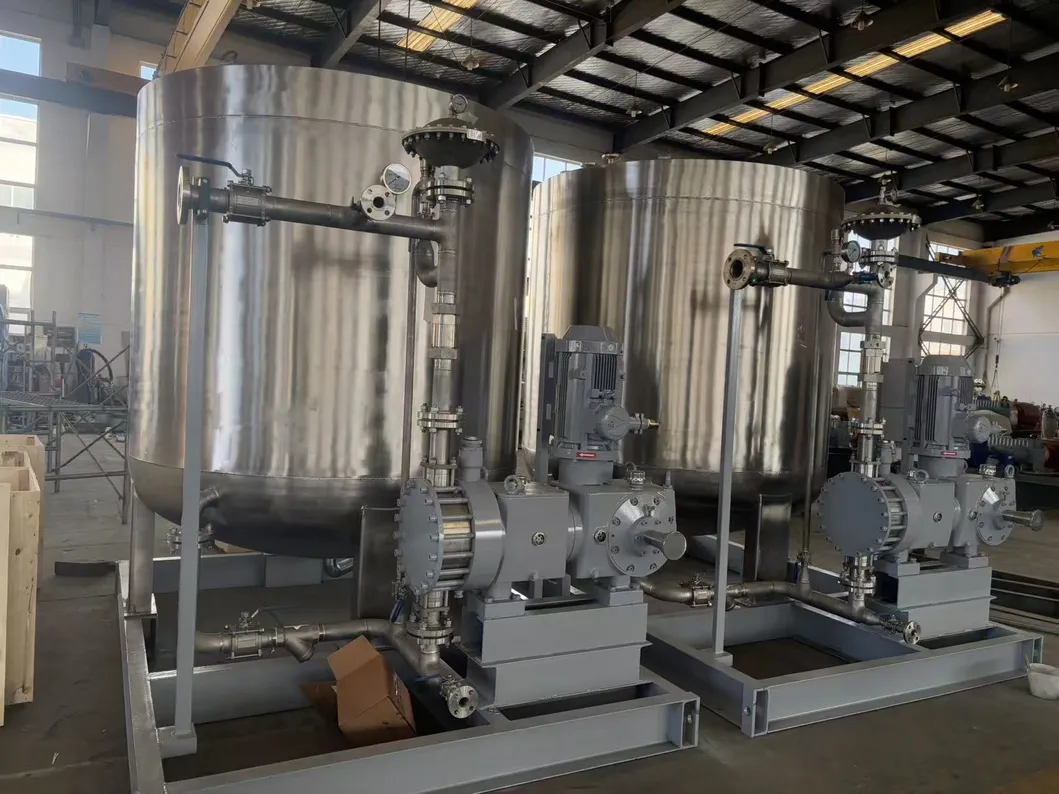

The dosing device adopts a unit system design, and all components and parts within the independent unit, such as solution tank, liquid level gauge, metering box, agitator, dosing metering pump, control cabinet, valves, and pipelines, are centrally arranged and integrated. The complete dosing device can be composed of several units. A filter is installed at the outlet of the solution tank to prevent blockage and equipment failure. Solution configuration magnetic flap liquid level indicator, high and low liquid level alarm, low liquid level automatic pump stop to prevent the metering pump from idling. It can be manually dispensed or automatically dispensed through electromagnetic valves according to different requirements. There are three control methods: on-site manual, on-site automatic, and remote control.
📊 Main Parameters
| Model: | DD series |
| Rated flow rate: | 5000L/h. |
| Maximum rated pressure: | 50 MPa. |
| Measurement accuracy: | ± 1%. |
| The temperature of the conveying medium above 450 ºC. |

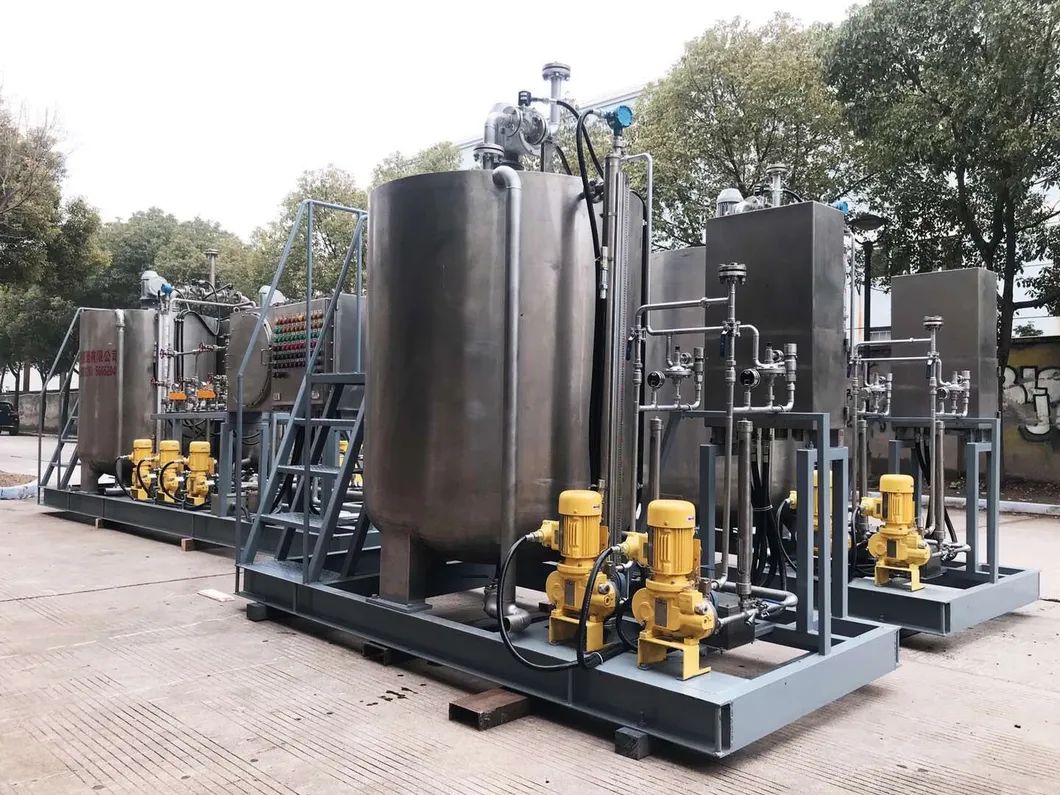

🚀 Application Scenarios
- Water Treatment: Adding coagulants, flocculants, and disinfectants to remove suspended solids and bacteria.
- Wastewater Treatment: Adjusting pH and adding precipitants to meet environmental discharge standards.
- Industrial Production: Precise addition of catalysts, stabilizers, and preservatives for optimized processes.
- Swimming Pool Maintenance: Automatic addition of chlorine for hygienic water quality.
- Cooling Tower Maintenance: Anti-scaling and disinfectant addition to prevent equipment corrosion.
- Agricultural Irrigation: Distribution of trace elements and plant protection products for crop growth.
❓ Frequently Asked Questions
Q1: What is the main design principle of the dosing device?
A1: It adopts a unit system design where all components like tanks, metering pumps, and control cabinets are integrated into a single, compact unit for efficiency.
Q2: How does the system prevent the metering pump from idling?
A2: The device features a magnetic flap liquid level indicator with high/low alarms and an automatic low-level pump stop function.
Q3: Can the dosing process be controlled remotely?
A3: Yes, the system supports three control methods: on-site manual, on-site automatic, and remote control options.
Q4: What is the steady state accuracy of the metering?
A4: The system provides high precision with a steady state measurement accuracy of ± 1%.
Q5: What materials are used for the system components?
A5: The device is primarily constructed from high-quality stainless steel to ensure durability and resistance to chemicals.
Q6: Is it suitable for high-temperature media?
A6: Yes, the system is designed to handle conveying media with temperatures reaching above 450 ºC depending on specific configurations.
