Basic Specifications
■
Model NO.
Chemical Dosing System
■
Method
Chemical Treatment
■
Material
SS304 Stainless Steel
■
Weight (Kg)
500 Kg
■
Core Components
Gearbox, Pressure Vessel, Pump, Gear
■
Application
Chemical Preparation
■
Operation
Automatic Delivery
■
Capacity
500L-10000L
Product Description

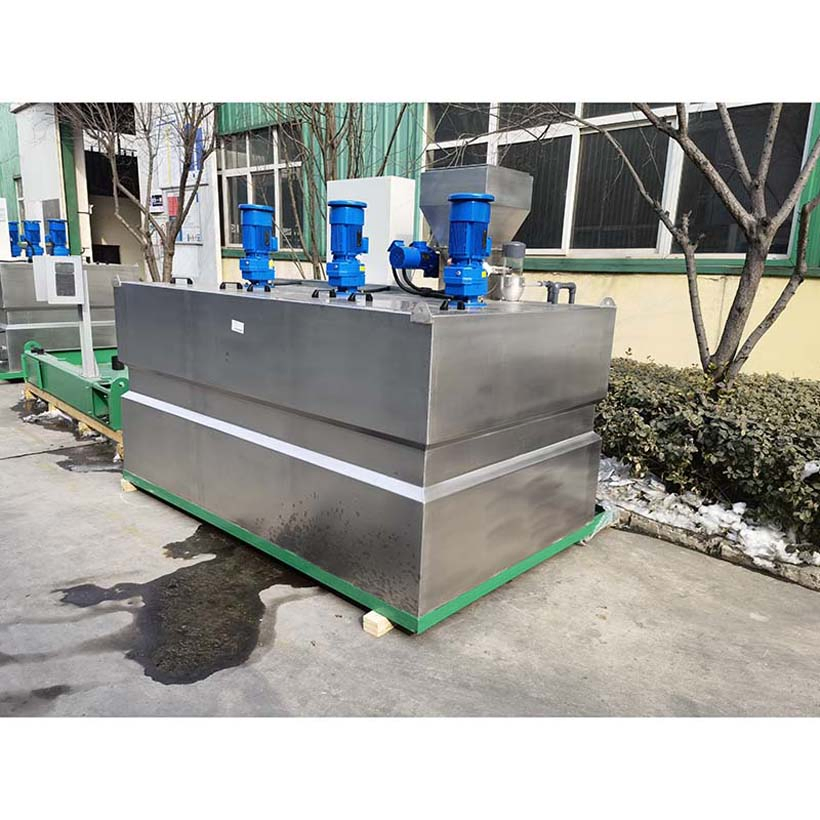

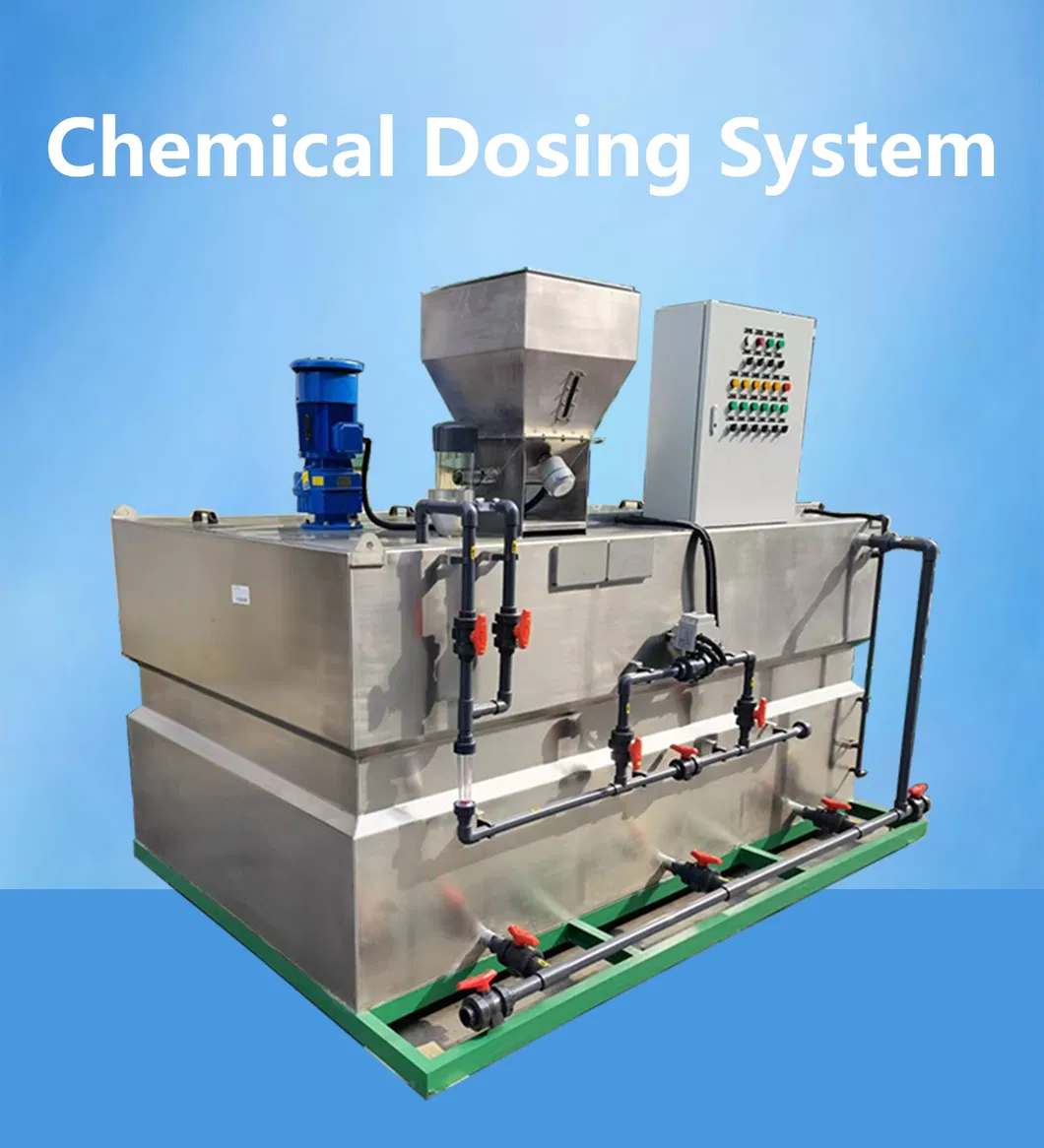

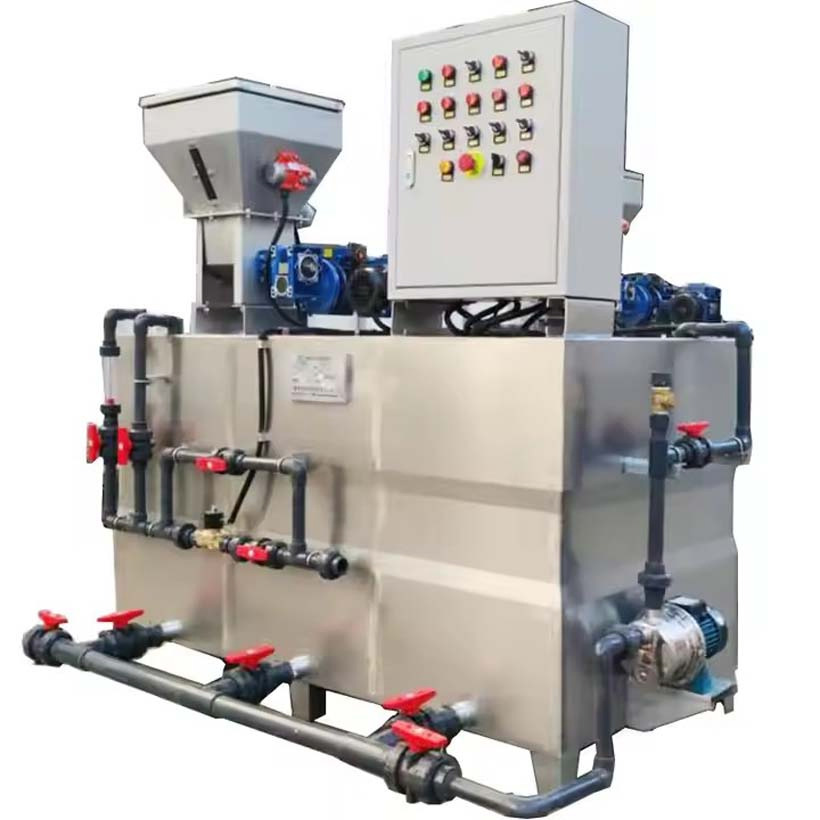

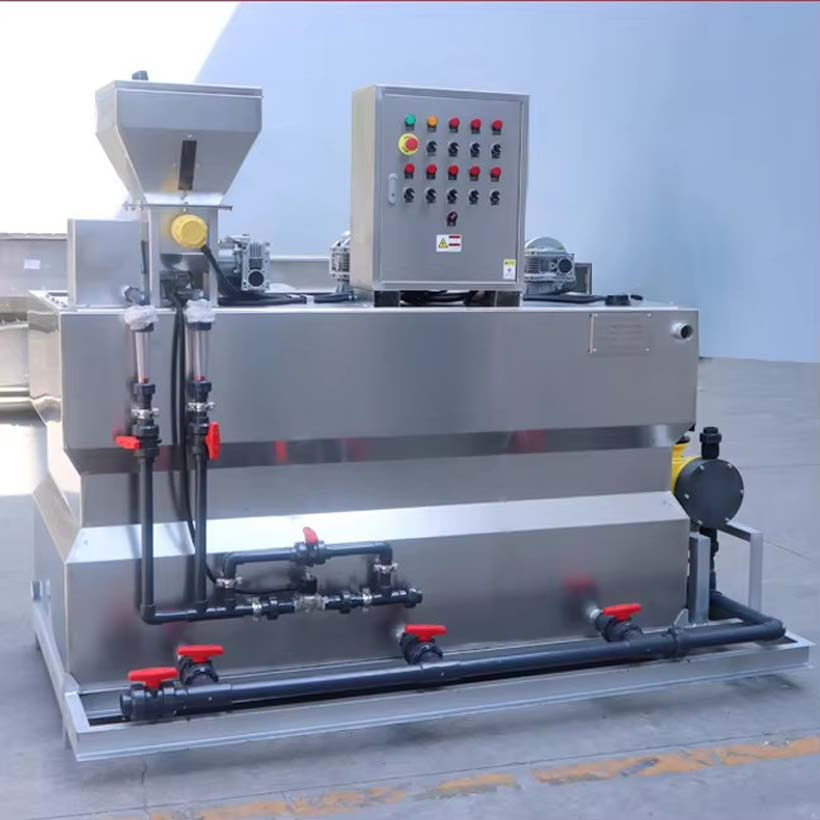

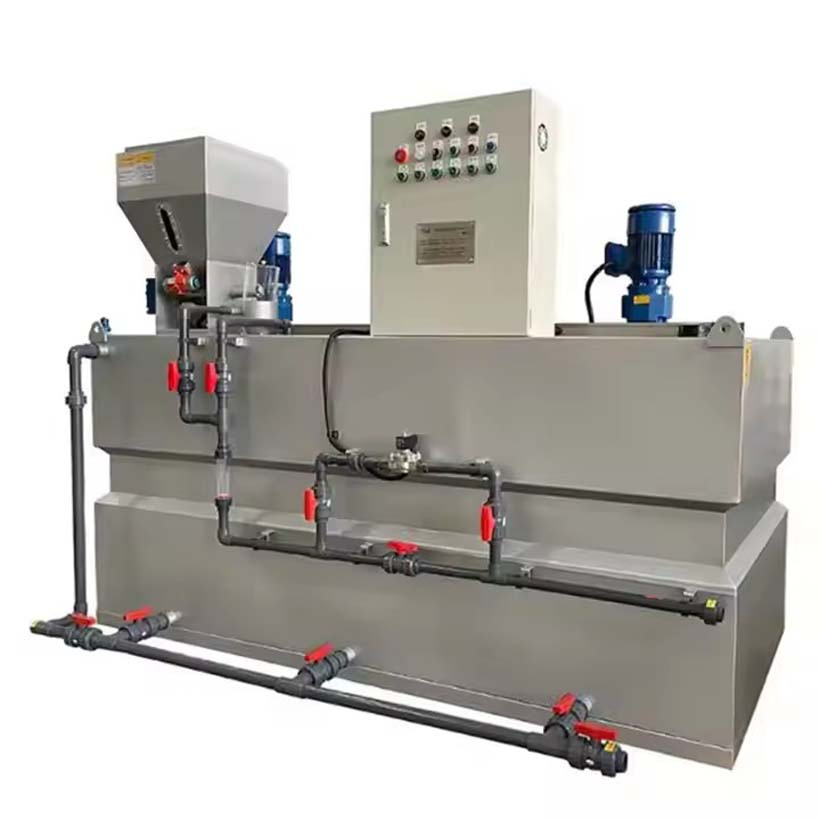

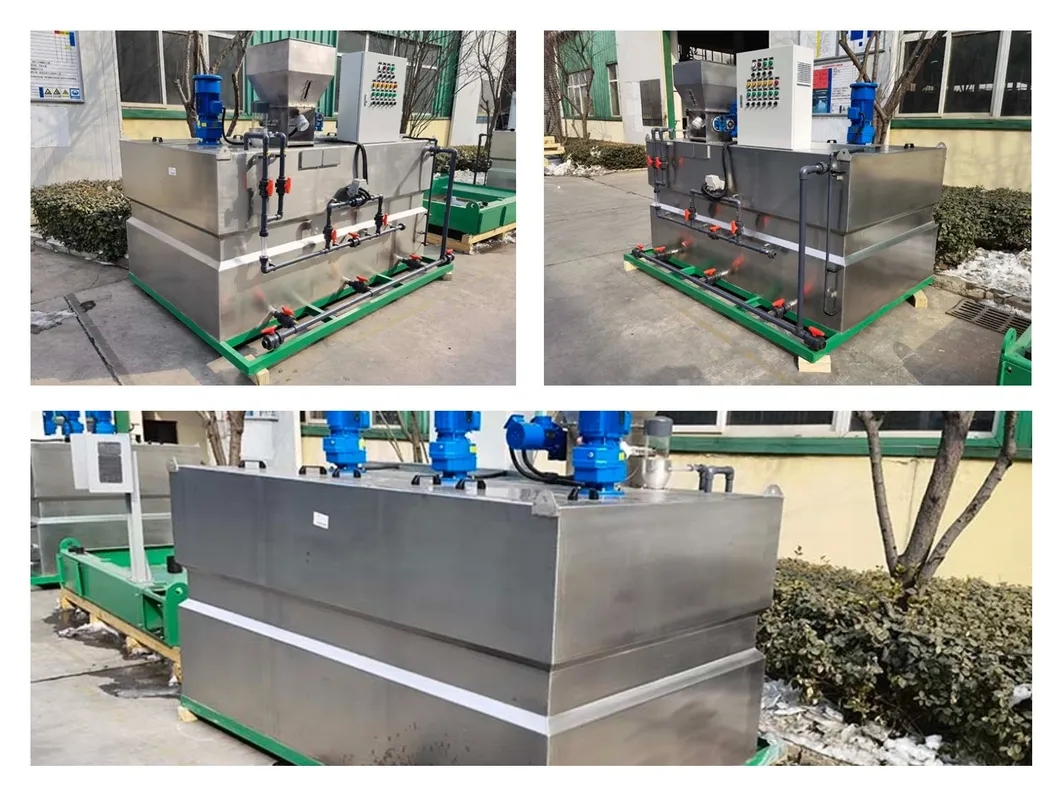

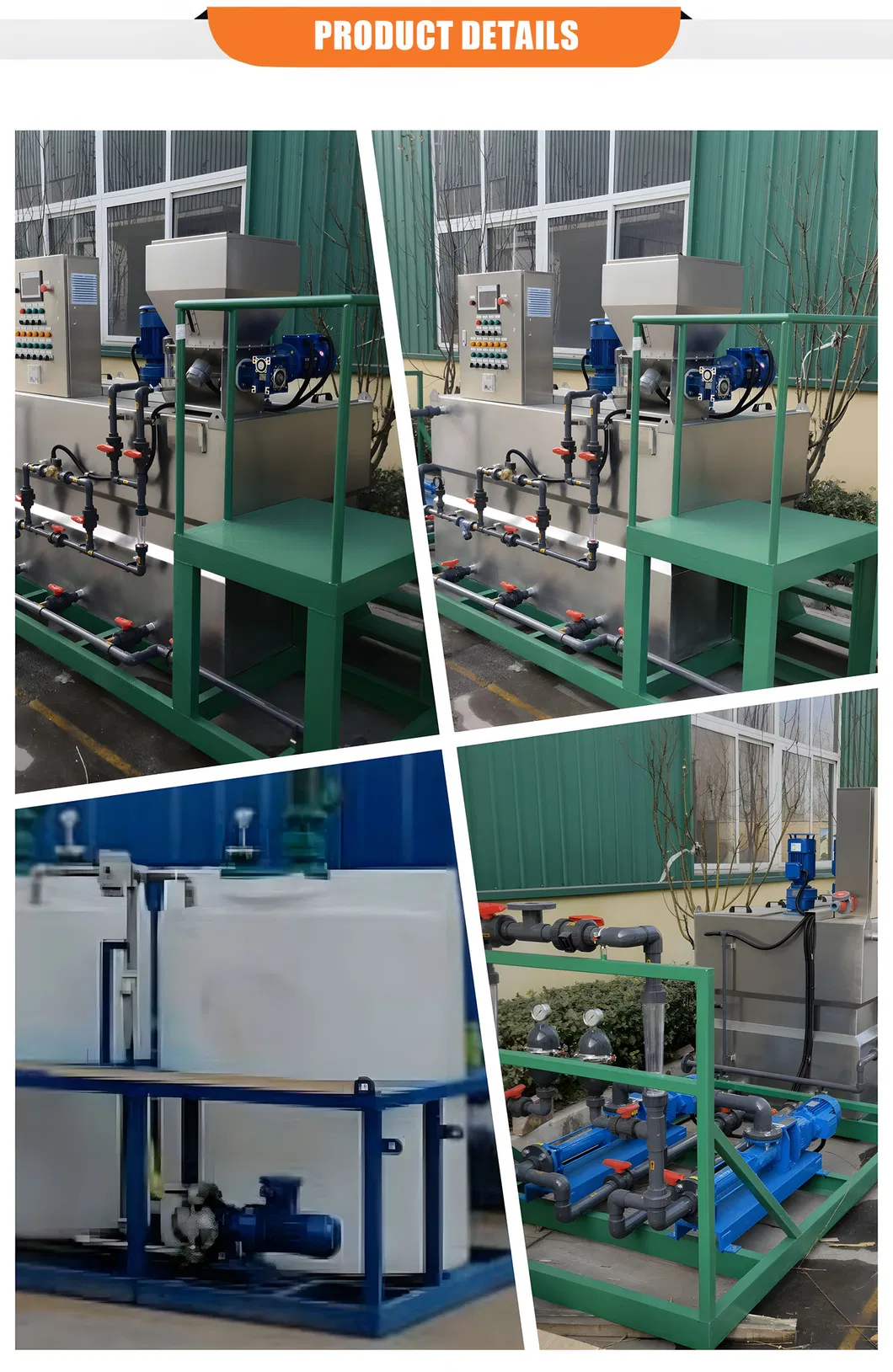

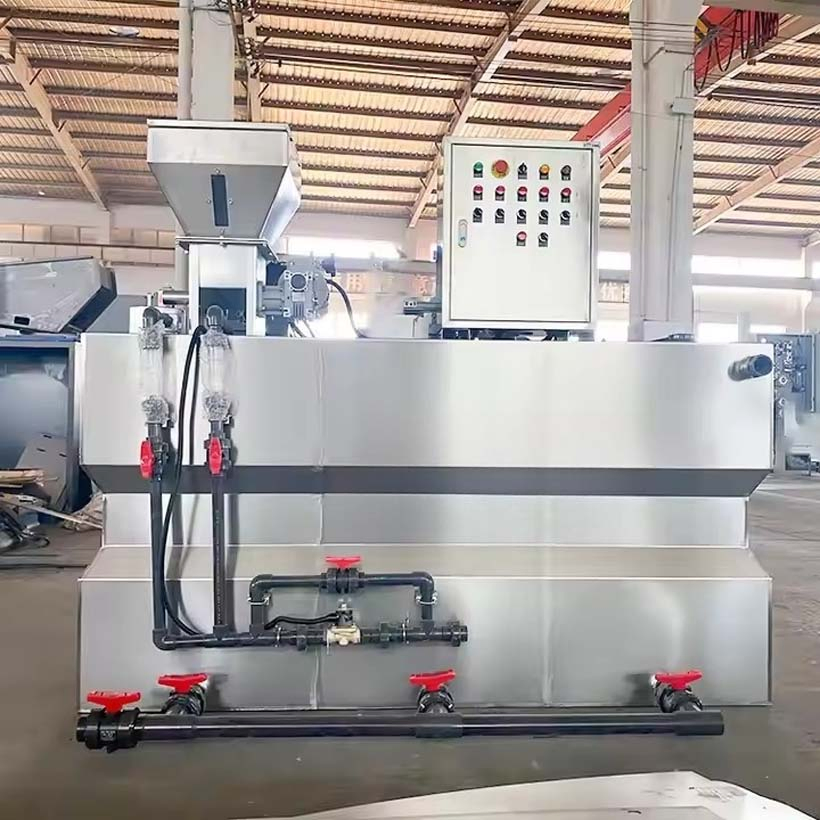

The reagent dosing system is designed for the preparation, storage, and dosing of chemicals. It features fully automatic preparation, dissolution, and dosing cycles. This automatic dosing unit is widely utilized in wastewater treatment and other process media treatments across industries such as petroleum, chemical, paper, pharmaceutical, and food. Due to its versatile application, the automatic dosing unit can be integrated with main dewatering equipment, including decanter centrifuges, screw presses, and filter presses, for the professional preparation and dosing of flocculant solvents.
Technical Specifications
| Model |
Capacity (L/h) |
Size (mm) |
Power (KW) |
Weight (kg) |
| L |
W |
H |
No-load |
Load |
| DYJYJ-500 |
500 |
1750 |
850 |
1600 |
1.3 |
200 |
700 |
| DYJYJ-1000 |
1000 |
2300 |
1450 |
1700 |
1.9 |
430 |
1430 |
| DYJYJ-1500 |
1500 |
2500 |
1510 |
1870 |
1.9 |
490 |
1990 |
| DYJYJ-2000 |
2000 |
2810 |
1600 |
1970 |
1.9 |
550 |
2550 |
| DYJYJ-3000 |
3000 |
2810 |
1800 |
2020 |
3.6 |
680 |
3680 |
| DYJYJ-4000 |
4000 |
3100 |
1800 |
2020 |
3.6 |
800 |
4800 |
Frequently Asked Questions
What is an automatic chemical dosing system?
It is a fully automated unit designed for the precise preparation, dissolution, and delivery of chemical reagents (such as flocculants) into various water treatment or industrial processes.
What materials are used in its construction?
The system is primarily constructed using high-quality SS304 Stainless Steel, ensuring excellent corrosion resistance and durability in harsh chemical environments.
Which industries can benefit from this equipment?
It is widely used in wastewater treatment plants, petroleum refining, chemical processing, paper manufacturing, pharmaceutical production, and the food industry.
Can it work with other dewatering machines?
Yes, it is designed to work seamlessly with main dewatering equipment like decanter centrifuges, screw presses, and filter presses for efficient polymer preparation.
What are the available capacity ranges?
Standard models range from 500L/h to 4000L/h, catering to different scales of industrial and environmental protection requirements.
Is the system difficult to operate?
No, the system features automatic delivery and preparation cycles, which significantly reduces manual intervention and ensures consistent dosing accuracy.
